A process for the production of ectoine and poly(3-hydroxybutyrate) by Halomonas boliviensis

Abstract

The paper reports a study involving the use of Halomonas boliviensis, a moderate halophile, for co-production of compatible solute ectoine and biopolyester poly(3-hydroxybutyrate) (PHB) in a process comprising two fed-batch cultures. Initial investigations on the growth of the organism in a medium with varying NaCl concentrations showed the highest level of intracellular accumulation of ectoine (0.74 g L−1) at 10–15% (w/v) NaCl, while at 15% (w/v) NaCl, the presence of hydroxyectoine (50 mg L−1) was also noted. On the other hand, the maximum cell dry weight and PHB concentration of 10 and 5.8 g L−1, respectively, were obtained at 5–7.5% (w/v) NaCl. A process comprising two fed-batch cultivations was developed—the first culture aimed at obtaining high cell mass and the second for achieving high yields of ectoine and PHB. In the first fed-batch culture, H. boliviensis was grown in a medium with 4.5% (w/v) NaCl and sufficient levels of monosodium glutamate, NH +4 , and PO 3−4 . In the second fed-batch culture, the NaCl concentration was increased to 7.5% (w/v) to trigger ectoine synthesis, while nitrogen and phosphorus sources were fed only during the first 3 h and then stopped to favor PHB accumulation. The process resulted in PHB yield of 68.5 wt.% of cell dry weight and volumetric productivity of about 1 g L−1 h−1 and ectoine concentration, content, and volumetric productivity of 4.3 g L−1, 7.2 wt.%, and 2.8 g L−1 day−1, respectively. At salt concentration of 12.5% (w/v) during the second cultivation, the ectoine content was increased to 17 wt.% and productivity to 3.4 g L−1 day−1.

This is a preview of subscription content, access via your institution.

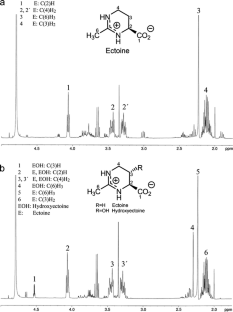

Fig. 1
Fig. 2

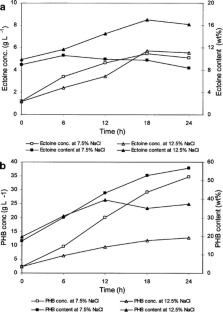

Fig. 3

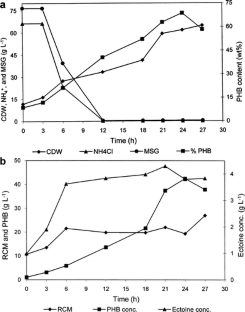

Fig. 4

References

  • Cánovas D, Borges N, Vargas C, Ventosa A, Nieto JJ, Santos H (1999) Role of N-γ-acetyldiaminobutyrate as an enzyme stabilizer and an intermediate in the biosynthesis of hydroxyectoine. Appl Environ Microbiol 65:3774–3779

    Article  Google Scholar

  • Choi J, Lee SY, Han K (1998) Cloning of the Alcaligenes latus polyhydroxyalkanoate biosynthesis genes and use of these genes for enhanced production of poly(3-hydroxybutyrate) in Escherichia coli. Appl Microbiol Biotechnol 64:4897–4903

    CAS  Google Scholar

  • Galinski EA (1993) Compatible solutes of halophilic eubacteria: molecular principles, water–solute interaction, stress protection. Experientia 49:487–496

    CAS  Article  Google Scholar

  • Kunte HJ, Galinski EA, Trüper HG (1993) A modified FMOC-method for the detection of amino acid type osmolytes and tetrahydropyrimidines (ectoines). J Microbiol Methods 17:129–136

    CAS  Article  Google Scholar

  • Lee SY (1996) Plastic bacteria? Progress and prospects for polyhydroxyalkanoate production in bacteria. Trends Biotechnol 14:431–438

    CAS  Article  Google Scholar

  • Lee SY, Wong HH, Choi J, Lee SH, Lee SC, Han CS (2000) Production of medium-chain-length polyhydroxyalkanoates by high-cell-density cultivation of Pseudomonas putida under phosphorus limitation. Biotechnol Bioeng 68:466–470

    CAS  Article  Google Scholar

  • Lentzen G, Schwarz T (2006) Extremolytes: natural compounds from extremophiles for versatile applications. Appl Microbiol Biotechnol 72:623–634

    CAS  Article  Google Scholar

  • Lippert K, Galinski EA (1992) Enzyme stabilization by ectoine-type compatible solutes: protection against heating, freezing and drying. Appl Microbiol Biotechnol 37:61–65

    CAS  Article  Google Scholar

  • Louis P, Trüper HG, Galinski EA (1994) Survival of Escherichia coli during drying and storage in the presence of compatible solutes. Appl Microbiol Biotechnol 41:684–688

    CAS  Article  Google Scholar

  • Motta A, Romano I, Gambacorta A (2004) Rapid and sensitive NMR method for osmolyte determination. J Microbiol Methods 58:289–294

    CAS  Article  Google Scholar

  • Mothes G, Schubert T, Harms H, Maskow T (2008) Biotechnological coproduction of compatible solutes and polyhydroxyalkanoates using the genus Halomonas. Eng Life Sci 8:658–662

    CAS  Article  Google Scholar

  • Ono H, Okuda M, Tongpim S, Imai K, Shinmyo A, Sakuda S, Kaneko Y, Murooka Y, Takano M (1998) Accumulation of compatible solute, ectoine and hydroxyectoine, in a moderate halophile, Halomonas elongata KS3 isolated from dry salty land in Thailand. J Ferment Bioeng 85:362–368

    CAS  Article  Google Scholar

  • Onraedt AE, Wlcarius BA, Soetaert WK, Vandamme EJ (2005) Optimization of ectoine synthesis through fed-batch fermentation of Brevibacterium epidermis. Biotechnol Prog 21:1206–1212

    CAS  Article  Google Scholar

  • Oren A (2002) Diversity of halophilic microorganisms: environments, phylogeny, physiology, and applications. J Ind Microbiol Biotechnol 28:56–63

    CAS  Article  Google Scholar

  • Page WJ, Cornish A (1993) Growth of Azotobacter vinelandii UWD in fish peptone medium and simplified extraction of poly-β-hydroxybutyrate. Appl Environ Microbiol 59:4236–4244

    CAS  Article  Google Scholar

  • Philip S, Keshavarz T, Roy I (2007) Polyhydroxyalkanoates: biodegradable polymers with a range of applications. J Chem Technol Biotechnol 82:233–247

    CAS  Article  Google Scholar

  • Quillaguamán J, Hatti-Kaul R, Mattiasson B, Alvarez MT, Delgado O (2004) Halomonas boliviensis sp. nov., an alkalitolerant, moderate halophile bacterium isolated from soil around a Bolivian hypersaline lake. Int J Syst Evol Microbiol 54:721–725

    Article  Google Scholar

  • Quillaguamán J, Hashim S, Bento F, Mattiasson B, Hatti-Kaul R (2005) Poly(β-hydroxybutyrate) production by a moderate halophile, Halomonas boliviensis LC1 using starch hydrolysate as substrate. J Appl Microbiol 99:151–157

    Article  Google Scholar

  • Quillaguamán J, Delgado O, Mattiasson B, Hatti-Kaul R (2006) Poly(β-hydroxybutyrate) production by a moderate halophile, Halomonas boliviensis LC1. Enzyme Microb Technol 38:148–154

    Article  Google Scholar

  • Quillaguamán J, Muñoz M, Mattiasson B, Hatti-Kaul R (2007) Optimising conditions for poly(β-hydroxybutyrate) production by Halomonas boliviensis LC1 in batch culture with sucrose as carbon source. Appl Microbiol Biotechnol 74:981–986

    Article  Google Scholar

  • Quillaguamán J, Doan-Van T, Guzmán H, Guzmán D, Martín J, Everest A, Hatti-Kaul R (2008) Poly(3-hydroxybutyrate) production by Halomonas boliviensis in fed-batch culture. Appl Microbiol Biotechnol 78:227–232

    Article  Google Scholar

  • Reddy CSK, Ghai R, Kalia V (2003) Polyhydroxyalkanoates: an overview. Bioresour Technol 87:137–146

    CAS  Article  Google Scholar

  • Roberts MF (2005) Organic compatible solutes of halotolerant and halophilic microorganism. Saline Systems 1:5. doi:https://doi.org/10.1186/1746-1448-1-5

    Article  Google Scholar

  • Sauer T, Galinski EA (1998) Bacterial milking: a novel bioprocess for production of compatible solutes. Biotechnol Bioeng 57:306–313

    CAS  Article  Google Scholar

  • Schiraldi C, Maresca C, Catapano A, Galinski EA, De Rosa M (2006) High-yield cultivation of Marinococcus M52 for production and recovery of hydroxyectoine. Res Microbiol 157:693–699

    CAS  Article  Google Scholar

  • Schubert T, Maskow T, Benndorf D, Harms H, Breuer U (2007) Continuous synthesis and excretion of the compatible solute ectoine by a transgenic, nonhalophilic bacterium. Appl Environ Microbiol 73:3343–3347

    CAS  Article  Google Scholar

  • Suzuki T, Yamane T, Shimizu S (1986) Mass production of poly-β-hydroxybutyric acid by fed-batch culture with controlled carbon/nitrogen feeding. Appl Microbiol Biotechnol 24:370–374

    CAS  Article  Google Scholar

  • Vargas C, Jebbar M, Carrasco R, Blanco C, Calderón MI, Iglesias-Guerra F, Nieto JJ (2006) Ectoines as compatible solutes and carbon and energy sources for the halophilic bacterium Chromohalobacter salexigens. J Appl Microbiol 100:98–107

    CAS  Article  Google Scholar

  • Wang F, Lee SY (1997) Poly(3-hydroxybutyrate) production with high productivity and high polymer content by a fed-batch culture of Alcaligenes latus under nitrogen limitation. Appl Environ Microbiol 63:3703–3706

    CAS  Article  Google Scholar

  • Welsh DT (2000) Ecological significance of compatible solute accumulation by micro-organisms: from single cells to global climate. FEMS Microbiol Rev 24:263–290

    CAS  Article  Google Scholar

  • Xu X, Matsuo C, Abo M, Okubo A, Yamazaki S (2001) Identification of osmotic regulators in halophilic photosynthetic bacteria by NMR and capillary electrophoresis. Anal Sci 17:601–604

    Article  Google Scholar

Download references

Acknowledgments

The authors would like to thank the Swedish International Development Cooperation Agency (Sida) and Swedish Research Council through the Swedish Research Link program for supporting this work. JM was supported by Erasmus fellowship from the European Commission.

Author information

Affiliations

Authors

Corresponding author

Correspondence to Jorge Quillaguamán.

Rights and permissions

Reprints and Permissions

About this article

Cite this article

Guzmán, H., Van-Thuoc, D., Martín, J. et al. A process for the production of ectoine and poly(3-hydroxybutyrate) by Halomonas boliviensis . Appl Microbiol Biotechnol 84, 1069–1077 (2009). https://doi.org/10.1007/s00253-009-2036-2

Download citation

  • Received:

  • Revised:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s00253-009-2036-2

Keywords

  • Moderate halophile
  • Halomonas boliviensis
  • Compatible solutes
  • Poly(3-hydroxybutyrate)
  • Fed-batch cultivation
