Enhanced vanillin production from ferulic acid using adsorbent resin

Applied Microbiology and Biotechnology volume 74, pages 783–790 (2007)Cite this article

Abstract

High vanillin productivity was achieved in the batch biotransformation of ferulic acid by Streptomyces sp. strain V-1. Due to the toxicity of vanillin and the product inhibition, fed-batch biotransformation with high concentration of ferulic acid was unsuccessful. To solve this problem and improve the vanillin yield, a biotransformation strategy using adsorbent resin was investigated. Several macroporous adsorbent resins were chosen to adsorb vanillin in situ during the bioconversion. Resin DM11 was found to be the best, which adsorbed the most vanillin and the least ferulic acid. When 8% resin DM11 (wet w/v) was added to the biotransformation system, 45 g l−1 ferulic acid could be added continually and 19.2 g l−1 vanillin was obtained within 55 h, which was the highest vanillin yield by bioconversion until now. This yield was remarkable for exceeding the crystallization concentration of vanillin and therefore had far-reaching consequence in its downstream processing.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

Fig. 1
Fig. 2
Fig. 3
Fig. 4

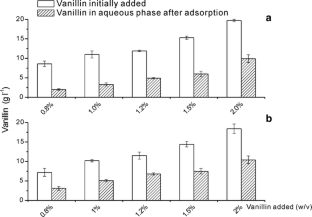

Fig. 5

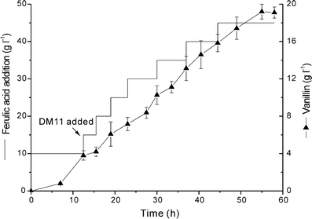

Fig. 6

References

  • Berry A (1996) Review: improving production of aromatic compounds in Escherichia coli by metabolic engineering. Trends Biotechnol 14:250–256

    CAS  Article  Google Scholar

  • Bonnin E, Lesage-Meessen L, Asther M, Thibault J-F (1999) Enhanced bioconversion of vanillic acid into vanillin by the use of “natural” cellobiose. J Sci Food Agric 79:484–486

    CAS  Article  Google Scholar

  • Civolani C, Barghini P, Roncetti AR, Ruzzi M, Schiesser A (2000) Bioconversion of ferulic acid into vanillic acid by means of a vanillate-negative mutant of Pseudomonas fluorescens strain BF13. Appl Environ Microbiol 66:2311–2317

    CAS  Article  Google Scholar

  • Clark GS (1990) Vanillin. Perfum Flavor 15:45–54

    CAS  Google Scholar

  • Dignum MJW, Kerler J, Verpoorte R (2001) Vanilla production: technological, chemical, and biosynthetic aspects. Food Rev Int 17:199–219

    CAS  Article  Google Scholar

  • Faulds CB, Williamson G (1995) Release of ferulic acid from wheat bran by a ferulic acid esterase (FAE-III) from Aspergillus niger. Appl Microbiol Biotechnol 43:1082–1087

    CAS  Article  Google Scholar

  • Freeman A, Woodley JM, Lilly MD (1993) In-situ product removal as a tool for bioprocessing. Bio/Technology 11:1007–1012

    CAS  PubMed  Google Scholar

  • Gastaldo L, Marinelli C, Restelli E, Quarta C (1996) Improvement of the kirromycin fermentation by resin addition. J Ind Microbiol 16:305–308

    CAS  Article  Google Scholar

  • Holt JG, Krieg NR, Sneath PHA, Staley JT, Williams ST (1994) Bergey’s manual of determinative bacteriology, 9th edn. Williams & Wilkins, Baltimore, MD

    Google Scholar

  • Hopwood DA, Bibb MJ, Chater KF, Kieser T, Bruton CJ, Kieser HM (1985) Genetic manipulation of Streptomyces: a laboratory manual. The John Innes Foundation, Norwich

  • Karmakar B, Vohra RM, Nandanwar H, Sharma P, Gupta KG, Sobti RC (2000) Rapid degradation of ferulic acid via 4-vinylguaiacol and vanillin by a newly isolated strain of Bacillus coagulans. J Biotechnol 80:195–202

    CAS  Article  Google Scholar

  • Lesage-Meessen L, Haon M, Delattre M, Thibault J-F, Ceccaldi BC, Brunerie P, Asther M (1997) An attempt to channel the transformation of vanillic acid into vanillin by controlling methoxyhydroquinone formation in Pycnoporus cinnabarinus with cellobiose. Appl Microbiol Biotechnol 47:393–397

    CAS  Article  Google Scholar

  • Lomascolo A, Lesage-Meessen L, Labat M, Navarro D, Delattre M, Asther M (1999) Enhanced benzaldehyde formation by a monokaryotic strain of Pycnoporus cinnabarium using a selective solid adsorbent in the culture medium. Can J Microbiol 45:653–657

    CAS  Article  Google Scholar

  • Lomascolo A, Asther M, Navarro D, Labat M, Delattre M, Lesage-Meessen L (2001) Shifting the biotransformation pathways of l-phenylalanine into benzaldehyde by Trametes suaveolens CBS 334.85 using HP20 resin. Lett Appl Microbiol 32:262–267

    CAS  Article  Google Scholar

  • Lopez-Malo A, Alzamore SM, Argaiz A (1997) Effect of vanillin concentration, pH and incubation temperature on Aspergillus flavue, Aspergillus niger, Aspergillus ochraceus and Aspergillus parasiticus growth. Food Microbiol 14:117–124

    CAS  Article  Google Scholar

  • Marshall VP, Mcwethy SJ, Sirotti JM, Cialdella JI (1990) The effect of neutral resins on the fermentation production of rubradirin. J Ind Microbiol 5:283–288

    Article  Google Scholar

  • Mathew S, Abraham TE (2004) Ferulic acid: an antioxidant found naturally in plant cell walls and feruloyl esterases involved in its release and their applications. Crit Rev Biotechnol 24:59–83

    CAS  Article  Google Scholar

  • Muheim A, Lerch K (1999) Towards a high-yield bioconversion of ferulic acid to vanillin. Appl Microbiol Biotechnol 51:456–461

    CAS  Article  Google Scholar

  • Müller B, Münch T, Muheim A, Welti M (1998) Process for the production of vanillin. European Patent 0,885,968

  • Oddou J, Stentelaire C, Lesage-Meessen L, Asther M, Ceccaldi BC (1999) Improvement of ferulic acid bioconversion into vanillin by use of high-density cultures of Pycnoporus cinnabarinus. Appl Microbiol Biotechnol 53:1–6

    CAS  Article  Google Scholar

  • Overhage J, Priefert H, Rabenhorst J, Steinbüchel A (2000) Construction of production strains for producing substituted phenols by specially inactivating genes of the eugenol and ferulic acid catabolism. World Patent 0,026,355

  • Perez AA (2001) Enhanced microbial production of natural flavors via in-situ product adsorption. Ph.D. thesis, Swiss Federal Institute of Technology Zurich (ETHZ)

  • Priefert H, Rabenhorst J, Steinbüchel A (2001) Biotechnological production of vanillin. Appl Microbiol Biotechnol 56:296–314

    CAS  Article  Google Scholar

  • Rabenhorst J, Hopp R (1997) Process for the preparation of vanillin and suitable microorganisms. European Patent 0,761,817

  • Rao RS, Ravishankar GA (2000) Vanilla flavor: production by conventional and biotechnological routes. J Sci Food Agric 80:289–304

    CAS  Article  Google Scholar

  • Rosazza JPN, Huang Z, Dostal L, Volm T, Rousseau B (1995) Biocatalytic transformation of ferulic acid: an abundant aromatic natural product. J Ind Microbiol 15:457–471

    CAS  Article  Google Scholar

  • Saulnier L, Thibault J-F (1999) Review: ferulic acid and diferulic acids as components of sugar-beet pectins and maize bran heteroxylans. J Sci Food Agric 79:396–402

    CAS  Article  Google Scholar

  • Schrader J, Etschmann MMW, Sell D, Hilmer JM, Rabenhorst J (2004) Applied biocatalysis for the synthesis of natural flavor compounds-current industrial processes and future prospects. Biotechnol Lett 26:463–472

    CAS  Article  Google Scholar

  • Stentelaire C, Lesage-Meessen L, Delattre M, Haon M, Sigoillot JC, Ceccaldi BC, Asther M (1998) Short communication: By-passing of unwanted vanillyl alcohol formation using selective adsorbents to improve vanillin production with Phanerochaete chrysosporium. World J Microbiol Biotechnol 14:285–287

    CAS  Article  Google Scholar

  • Yang XP, Tsai G-J, Tsao GT (1994) Enhancement of in situ adsorption on the acetone-butanol fermentation by Clostridium acetobutylicum. Sep Technol 4:81–92

    CAS  Article  Google Scholar

Download references

Acknowledgments

The authors gratefully acknowledged the financial support of this work by Shanghai Apple Flavor & Fragrance (China). The work was supported in part by the financial support of the State Major Basic Research Development Program (China) (grant 2007CB707800).

Author information

Affiliations

  1. State Key Laboratory of Microbial Technology, Shandong University, Jinan, 250100, People’s Republic of China

    Dongliang Hua, Cuiqing Ma, Lifu Song, Shan Lin, Zhaobin Zhang & Ping Xu

  2. Key Laboratory of Microbial Metabolism, Ministry of Education, College of Life Science and Biotechnology, Shanghai Jiao Tong University, Shanghai, 200240, People’s Republic of China

    Zixin Deng & Ping Xu

Authors
  1. Dongliang Hua
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Cuiqing Ma
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Lifu Song
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Shan Lin
    View author publications

    You can also search for this author in PubMed Google Scholar

  5. Zhaobin Zhang
    View author publications

    You can also search for this author in PubMed Google Scholar

  6. Zixin Deng
    View author publications

    You can also search for this author in PubMed Google Scholar

  7. Ping Xu
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding authors

Correspondence to Cuiqing Ma or Ping Xu.

Rights and permissions

Reprints and Permissions

About this article

Cite this article

Hua, D., Ma, C., Song, L. et al. Enhanced vanillin production from ferulic acid using adsorbent resin. Appl Microbiol Biotechnol 74, 783–790 (2007). https://doi.org/10.1007/s00253-006-0735-5

Download citation

  • Received:

  • Revised:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s00253-006-0735-5

Keywords

  • Vanillin
  • Ferulic acid
  • Streptomyces sp
  • Biotransformation
  • Adsorbent resin
