The Ability of Stroke Volume Variation Measured by a Noninvasive Cardiac Output Monitor to Predict Fluid Responsiveness in Mechanically Ventilated Children

Pediatric Cardiology volume 35, pages 289–294 (2014)Cite this article

Abstract

Continuous noninvasive cardiac output monitoring (NICOM) is a clinically useful tool in the pediatric setting. This study compared the ability of stroke volume variation (SVV) measured by NICOM with that of respiratory variations in the velocity of aortic blood flow (△Vpeak) and central venous pressure (CVP) to predict of fluid responsiveness in mechanically ventilated children after ventricular septal defect repair. The study investigated 26 mechanically ventilated children after the completion of surgery. At 30 min after their arrival in an intensive care unit, a colloid solution of 10 ml/kg was administrated for volume expansion. Hemodynamic variables, including CVP, stroke volume, and △Vpeak in addition to cardiac output and SVV in NICOM were measured before and 10 min after volume expansion. The patients with a stroke volume increase of more than 15 % after volume expansion were defined as responders. The 26 patients in the study consisted of 13 responders and 13 nonresponders. Before volume expansion, △Vpeak and SVV were higher in the responders (both p values <0.001). The areas under the receiver operating characteristic curves of △Vpeak, SVV, and CVP were respectively 0.956 (95 % CI 0.885–1.00), 0.888 (95 % CI 0.764–1.00), and 0.331 (95 % CI 0.123–0.540). This study showed that SVV by NICOM and △Vpeak by echocardiography, but not CVP, reliably predicted fluid responsiveness during mechanical ventilation after ventricular septal defect repair in children.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

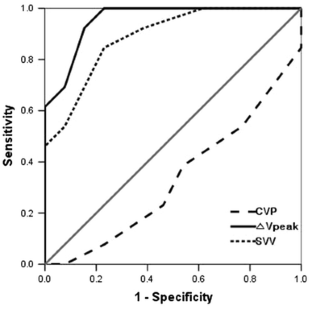

Fig. 1

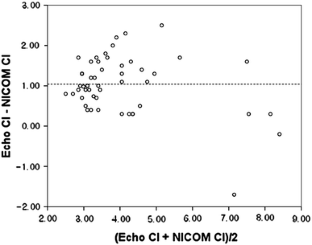

Fig. 2

References

  1. Ballestero Y, López-Herce J, Urbano J et al (2011) Measurement of cardiac output in children by bioreactance. Pediatr Cardiol 32:469–472

    Article  PubMed  Google Scholar

  2. Choi DY, Kwak HJ, Park HY, Kim YB, Choi CH, Lee JY (2010) Respiratory variation in aortic blood flow velocity as a predictor of fluid responsiveness in children after repair of ventricular septal defect. Pediatr Cardiol 31:1166–1170

    Article  PubMed  Google Scholar

  3. Chung E, Cannesson M (2012) Using noninvasive dynamic parameters of fluid responsiveness in children: there is still much to learn. J Clin Monit Comput 26:153–155

    Article  PubMed  Google Scholar

  4. Conway DH, Hussain OA, Gall I (2013) A comparison of noninvasive bioreactance with oesophageal Doppler estimation of stroke volume during open abdominal surgery: an observational study. Eur J Anaesthesiol 30:501–508

    CAS  Article  PubMed  Google Scholar

  5. de Souza Pereira, Neto E, Grousson S, Duflo F et al (2011) Predicting fluid responsiveness in mechanically ventilated children under general anaesthesia using dynamic parameters and transthoracic echocardiography. Br J Anaesth 106:856–864

    Article  Google Scholar

  6. Durand P, Chevret L, Essouri S, Haas V, Devictor D (2008) Respiratory variations in aortic blood flow predict fluid responsiveness in ventilated children. Intensive Care Med 34:888–894

    Article  PubMed  Google Scholar

  7. Fagnoul D, Vincent JL, Backer DD (2012) Cardiac output measurements using the bioreactance technique in critically ill patients. Crit Care 16:460

    PubMed Central  Article  PubMed  Google Scholar

  8. Hanley JA, McNeil BJ (1982) The meaning and use of the area under a receiver operating characteristic (ROC) curve. Radiology 143:29–36

    CAS  Article  PubMed  Google Scholar

  9. Keren H, Burkhoff D, Squara P (2007) Evaluation of a noninvasive continuous cardiac output monitoring system based on thoracic bioreactance. Am J Physiol Heart Circ Physiol 293:H583–H589

    CAS  Article  PubMed  Google Scholar

  10. Lafanechère A, Albaladejo P, Raux M et al (2006) Cardiac output measurement during infrarenal aortic surgery: echo-esophageal Doppler versus thermodilution catheter. J Cardiothorac Vasc Anesth 20:26–30

    Article  PubMed  Google Scholar

  11. Loupec T, Nanadoumgar H, Frasca D et al (2011) Pleth variability index predicts fluid responsiveness in critically ill patients. Crit Care Med 39:294–299

    Article  PubMed  Google Scholar

  12. Marik PE, Baram M, Vahid B (2008) Does central venous pressure predict fluid responsiveness? A systematic review of the literature and the tale of seven mares. Chest 134:172–178

    Article  PubMed  Google Scholar

  13. Marik PE, Cavallazzi R, Vasu T, Hirani A (2009) Dynamic changes in arterial waveform derived variables and fluid responsiveness in mechanically ventilated patients: a systematic review of the literature. Crit Care Med 37:2642–2647

    Article  PubMed  Google Scholar

  14. Obuchowski NA, McClish DK (1997) Sample size determination for diagnostic accuracy studies involving binormal ROC curve indices. Stat Med 16:1529–1542

    CAS  Article  PubMed  Google Scholar

  15. Renner J, Gruenewald M, Meybohm P et al (2008) Effect of elevated PEEP on dynamic variables of fluid responsiveness in a pediatric animal model. Paediatr Anaesth 18:1170–1177

    PubMed  Google Scholar

  16. Renner J, Cavus E, Meybohm P et al (2008) Pulse pressure variation and stroke volume variation during different loading conditions in a paediatric animal model. Acta Anaesthesiol Scand 52:374–380

    CAS  Article  PubMed  Google Scholar

  17. Renner J, Broch O, Gruenewald M et al (2011) Noninvasive prediction of fluid responsiveness in infants using Pleth variability index. Anaesthesia 66:582–589

    CAS  Article  PubMed  Google Scholar

  18. Renner J, Broch O, Duetschke P et al (2012) Prediction of fluid responsiveness in infants and neonates undergoing congenital heart surgery. Br J Anaesth 108:108–115

    CAS  Article  PubMed  Google Scholar

  19. Squara P, Denjean D, Estagnasie P, Brusset A, Dib JC, Dubois C (2007) Noninvasive cardiac output monitoring (NICOM): a clinical validation. Intensive Care Med 33:1191–1194

    Article  PubMed  Google Scholar

  20. Vistisen ST, Koefoed-Nielsen J, Larsson A (2010) Should dynamic parameters for prediction of fluid responsiveness be indexed to the tidal volume? Acta Anaesthesiol Scand 54:191–198

    CAS  Article  PubMed  Google Scholar

  21. Weisz DE, Jain A, McNamara PJ, EL-Khuffash A (2012) Noninvasive cardiac output monitoring in neonates using bioreactance: a comparison with echocardiography. Neonatology 102:61–67

    Article  PubMed  Google Scholar

Download references

Acknowledgments

This study protocol was approved by the institutional review board of Gil Medical Center, Gachon University (IRB No. GIRBA 2738-2012).

Author information

Affiliations

  1. Department of Anesthesiology and Pain Medicine, Gachon University Gil Medical Center, 1198 Guwol-dong, Namdong-gu, Incheon, 405-760, South Korea

    Ji Yeon Lee, Hong Soon Kim, Kyung Cheon Lee & Hyun Jeong Kwak

  2. Department of Anesthesiology and Pain Medicine, Anesthesiology and Pain Research Institute, Yonsei University College of Medicine, Seoul, South Korea

    Ji Young Kim

  3. Department of Cardiothoracic Surgery, Gachon University Gil Medical Center, Incheon, South Korea

    Chang Hyu Choi

Authors
  1. Ji Yeon Lee
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Ji Young Kim
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Chang Hyu Choi
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Hong Soon Kim
    View author publications

    You can also search for this author in PubMed Google Scholar

  5. Kyung Cheon Lee
    View author publications

    You can also search for this author in PubMed Google Scholar

  6. Hyun Jeong Kwak
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Hyun Jeong Kwak.

Rights and permissions

Reprints and Permissions

About this article

Cite this article

Lee, J.Y., Kim, J.Y., Choi, C.H. et al. The Ability of Stroke Volume Variation Measured by a Noninvasive Cardiac Output Monitor to Predict Fluid Responsiveness in Mechanically Ventilated Children. Pediatr Cardiol 35, 289–294 (2014). https://doi.org/10.1007/s00246-013-0772-7

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s00246-013-0772-7

Keywords

  • Aortic blood flow velocity
  • Children
  • Fluid responsiveness
  • Noninvasive cardiac output monitor
  • Stroke volume variation
