Statistical Model of Pesticide Penetration Through Woven Work Clothing Fabrics

Abstract

Statistical models estimating the level of protection and thermal comfort performance of woven fabrics were developed using simple fabric and liquid parameters. Eighteen woven fabrics were evaluated against three pesticide mixtures of atrazine and pendimethalin at different concentrations. Using three mixtures that represent a range of both surface tension and viscosity, percentages of pesticide penetration are measured, along with fabric thickness, fabric cover factor, yarn twist factor, yarn packing factor, solid volume fraction, wicking height, and air permeability. Statistical analyses are performed to examine the relationship between liquid/fabric parameters and pesticide penetration. Statistical analyses show that fabric cover factor, yarn twist factor, viscosity of pesticide mixture, critical surface tension of solid, and wicking height are significant parameters affecting pesticide penetration. For this purpose, cover factor and twist factor are better parameters in describing the geometry of woven fabrics than solid volume fraction. Modeling of comfort performance of woven fabric based on simple textile parameters shows that the combination of fabric thickness, cover factor, yarn twist factor and yarn packing factor can be used to estimate air permeability of woven fabric. These findings could be used for developing selection charts or tools as guidelines for the selection of personal protective equipment for use in hot, humid environments.

This is a preview of subscription content, access via your institution.

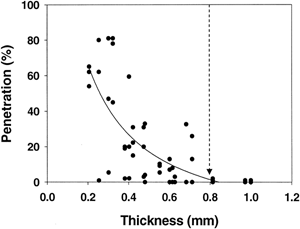

Figure 1

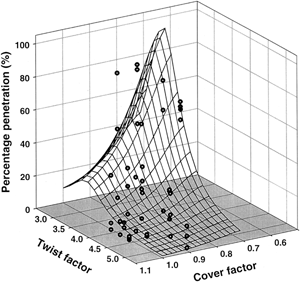

Figure 2

References

  • WD Bascom (1992) The wetting behavior of fibers ME Schrader GI Loeb (Eds) Modern approaches to wettability: theory and applications Plenum Press New York, NY 359

    Google Scholar

  • D Donaldson T Kiely A Grube (2002) Pesticides industry sales and usage. 1998 and 1999 market estimates U.S. Environmental Protection Agency Washington, DC

    Google Scholar

  • YL Hsieh (1995) ArticleTitleLiquid transport in fabric structure Textile Res J 65 299–307

    Google Scholar

  • R Jain M Raheel (2003) ArticleTitleBarrier efficacy of woven and nonwoven fabrics used for protective clothing: predictive models Bull Environ Contam Toxicol 71 437–446 Occurrence Handle10.1007/s00128-003-8988-5 Occurrence Handle14567567

    Article  PubMed  Google Scholar

  • S Lee SK Obendorf (2001) ArticleTitleA statistical model to predict pesticide penetration through nonwoven chemical protective fabrics Textile Res J 71 1000–1009

    Google Scholar

  • KK Leonas (1991) ArticleTitleThe mechanism of pesticide transmission through apparel fabrics: a comparison of drop and spray exposure methodologies Arch Environ Contam Toxicol 20 427–431 Occurrence Handle10.1007/BF01064415 Occurrence Handle1859212

    Article  PubMed  Google Scholar

  • D Lukas E Glazyrina N Pan (1997) ArticleTitleComputer simulation of liquid wetting dynamics in fiber structures using the Ising model J Textile Inst 88 149–161

    Google Scholar

  • JE Mark (Eds) (1996) Physical properties of polymers handbook AIP Press Woodbury, New York

    Google Scholar

  • A Miller P Schwartz (2001) ArticleTitleForced flow percolation for modeling of liquid penetration of barrier materials J Textile Inst 92 53–62

    Google Scholar

  • B Miller I Tyomkin (1994) ArticleTitleLiquid porosimetry: new methodology and applications J Colloid Interface Sci 162 163–170 Occurrence Handle10.1006/jcis.1994.1021

    Article  Google Scholar

  • WE Morton JWS Hearle (1993) Physical properties of textile fibres, 3rd ed The Textile Institute Manchester, UK

    Google Scholar

  • SK Obendorf E Csiszár D Maneefuangfoo J Borsa (2003) ArticleTitleKinetic transport of pesticide from contaminated fabric through a model skin Arch Environ Contam Toxicol 45 283–288 Occurrence Handle10.1007/s00244-003-0211-5 Occurrence Handle14565588

    Article  PubMed  Google Scholar

  • M Raheel EC Gitz (1985) ArticleTitleEffect of fabric geometry on resistance to pesticide penetration and degradation Arch Environ Contam Toxicol 14 273–279 Occurrence Handle10.1007/BF01055403 Occurrence Handle4004335

    Article  PubMed  Google Scholar

  • D Rajagopalan AP Aneja J Marchal (2001) ArticleTitleModeling capillary flow in complex geometries Textile Res J 71 813–821

    Google Scholar

  • G Sun HS Yoo XS Zhang N Pan (2000) ArticleTitleRadiant protective and transport properties of fabrics used by wildland firefighters Textile Res J 70 567–573

    Google Scholar

  • LW Welch SK Obendorf (1997) Limiting dermal exposure of workers to pesticides from contaminated clothing JO Stull AD Schwope (Eds) Performance of protective clothing: sixth volume, ASTM STP 1273 American Society for Testing and Materials West Conshohocken, Pennsylvania 158

    Google Scholar

  • HR Wolfe WF Durham JF Armstrong (1967) ArticleTitleExposure of workers to pesticides Arch Environ Health 14 622–633 Occurrence Handle6024487

    PubMed  Google Scholar

Download references

Author information

Affiliations

Authors

Corresponding author

Correspondence to S. Kay Obendorf.

Rights and permissions

Reprints and Permissions

About this article

Cite this article

Lee, S., Obendorf, S.K. Statistical Model of Pesticide Penetration Through Woven Work Clothing Fabrics. Arch Environ Contam Toxicol 49, 266–273 (2005). https://doi.org/10.1007/s00244-004-0127-8

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s00244-004-0127-8

Keywords

  • Thermal Comfort
  • Cover Factor
  • Personal Protective Equipment
  • Solid Volume Fraction
  • Fabric Thickness
