Simulating calcium salt precipitation in the nephron using chemical speciation

Abstract

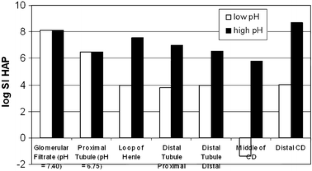

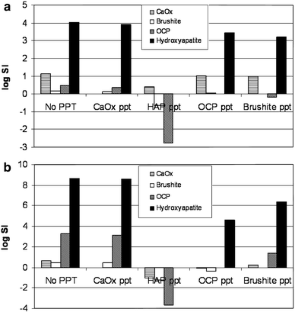

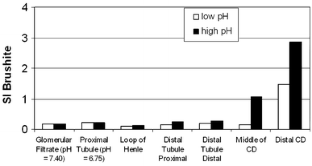

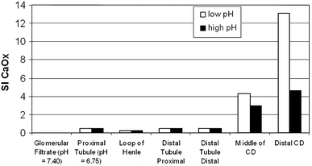

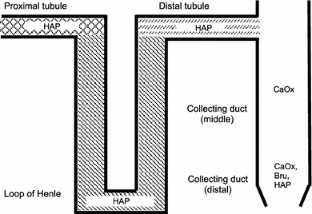

Theoretical modeling of urinary crystallization processes affords opportunities to create and investigate scenarios which would be extremely difficult or impossible to achieve in in vivo experiments. Researchers have previously hypothesized that calcium renal stone formation commences in the nephron. In the present study, concentrations of urinary components and pH ranges in different regions of the nephron were estimated from concentrations in blood combined with a knowledge of the renal handling of individual ions. These were used in the chemical speciation program JESS to determine the nature of the solution complexes in the different regions of the nephron and the saturation index (SI) of the stone-forming salts calcium oxalate (CaOx), brushite (Bru), hydroxyapatite (HAP) and octacalcium phosphate (OCP). The effect of independent precipitation of each of the latter on the SI values of other salts was also investigated. HAP was the only salt which was supersaturated throughout the nephron. All of the other salts were supersaturated only in the middle and distal regions of the collecting duct. Supersaturations were pH sensitive. When precipitation of CaOx, Bru and OCP was simulated in the distal part of the collecting duct, little or no effect on the SI values of the other stone forming salts was observed. However, simulation of HAP precipitation caused all other salts to become unsaturated. This suggests that if HAP precipitates, a pure stone comprising this component will ensue while if any of the other salts precipitates, a mixed CaOx/CaP stone will be formed. Application of Ostwald’s Rule of Stages predicts that the mixed stone is likely to be CaOx and Bru. Our modelling demonstrates that precipitation of stone-forming salts in the nephron is highly dependent on the delicate nature of the chemical equilibria which prevail and which are themselves highly dependent on pH and component concentrations.
