Experimentation and correlation development of mass transfer in a mimicked Fischer–Tropsch slurry bubble column reactor

  • Original Article
  • Published:
Heat and Mass Transfer Aims and scope Submit manuscript

Abstract

Gas–liquid volumetric mass transfer coefficient “\({\mathrm{k}}_{\mathrm{L}}\mathrm{a}\)” for \({\mathrm{CH}}_{4}\), \({\mathrm{CO}}_{2}\), and \(\mathrm{Ar}\) were experimentally measured at different conditions in a mimicked Fischer–Tropsch (FT) slurry bubble column reactor by using a non-invasive gaseous tracer technique and the axial dispersion model. Results validate the square root relation, between \({\mathrm{k}}_{\mathrm{L}}\mathrm{a}\) and diffusivity “\({\mathrm{D}}_{\mathrm{g}}\)”, that can be used to predict \({\mathrm{k}}_{\mathrm{L}}\mathrm{a}\) for different species with \({\mathrm{k}}_{\mathrm{L}}\mathrm{a}\) values available in the literature. Additionally, Higbie’s penetration theory was adopted along with bubble dynamics parameters estimation to develop a correlation for predicting \({\mathrm{k}}_{\mathrm{L}}\mathrm{a}\) at wide range of conditions. Current results were used to tune and modify the developed correlation. Predictions of the modified correlation were found to be in line with the findings of previous studies and hence can used to predict \({\mathrm{k}}_{\mathrm{L}}\mathrm{a}\) for different gases including the syngas (i.e., \({\mathrm{H}}_{2}\) and \(\mathrm{CO}\)) at conditions close to FT conditions.

This is a preview of subscription content, log in via an institution to check access.

Access this article

Log in via an institution

Price excludes VAT (USA)
Tax calculation will be finalised during checkout.

Instant access to the full article PDF.

Institutional subscriptions

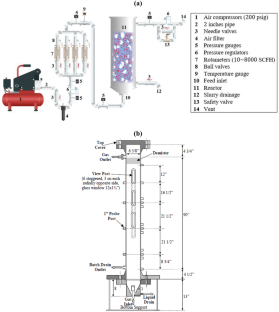

Fig. 1

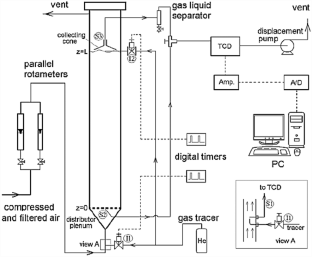

Fig. 2

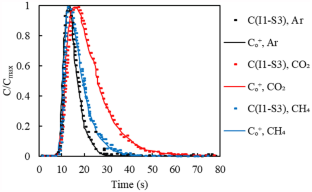

Fig. 3

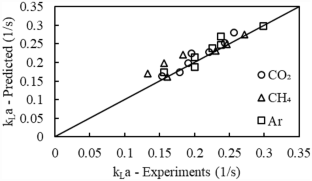

Fig. 4

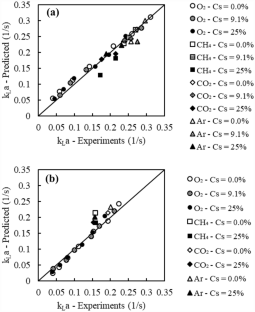

Fig. 5

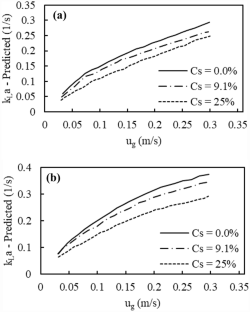

Fig. 6

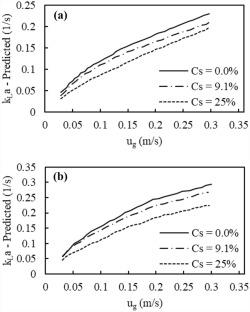

Fig. 7

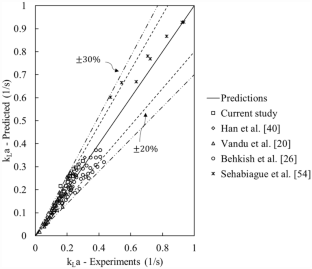

Fig. 8
