Fire retardancy and CO/CO2 emission of intumescent coatings on thin plywood panel with waterborne vinyl acetate-acrylic resin

  • Original
  • Published:
Wood Science and Technology Aims and scope Submit manuscript

Abstract

Using intumescent coatings on wood-based materials is an effective method for fire safety. Previous studies have demonstrated that the formulation of components strongly influences the performance of coatings. This study investigated the effect of intumescent formulation of vinyl acetate-acrylic coating on flame retardancy of plywood. The fire retardancy of materials was assessed by both heat release and CO and CO2 emissions. The CO and CO2 emissions have not been used frequently to rank materials; the highly toxic CO and CO2 may cause most fire fatalities. The fire retardancy of coatings on plywood was assessed by a cone calorimeter. Total heat release and time to peak heat release rate were the two primary parameters. The data show that low contents of binder resin (BR) and foam producing substance (FPS) decreased total heat release and lengthened time to peak heat release rate. Additionally, low BR and FPS content can form an ideal char layer. The ideal char layer significantly decreased the CO and CO2 emission. The mechanism to achieve better fire performance was verified by thermogravimetrical analysis exhibiting lower weight loss. Moreover, evaluated by 31P NMR, the low BR and FPS content can extend the survival duration of phosphor-carbonaceous chars. The results provide information for designing vinyl acetate-acrylic emulsion coating.

This is a preview of subscription content, log in via an institution to check access.

Access this article

Log in via an institution

Subscribe and save

Springer+ Basic
$34.99 /Month
  • Get 10 units per month
  • Download Article/Chapter or eBook
  • 1 Unit = 1 Article or 1 Chapter
  • Cancel anytime
Subscribe now

Buy Now

Price excludes VAT (USA)
Tax calculation will be finalised during checkout.

Instant access to the full article PDF.

Institutional subscriptions

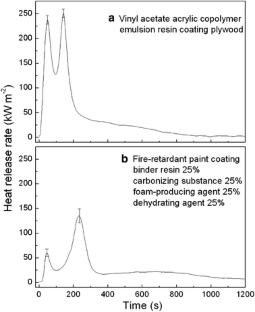

Fig. 1

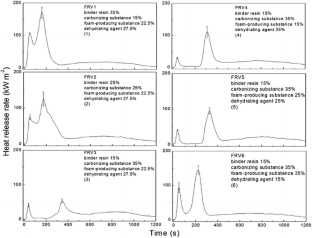

Fig. 2

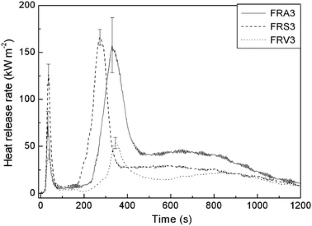

Fig. 3

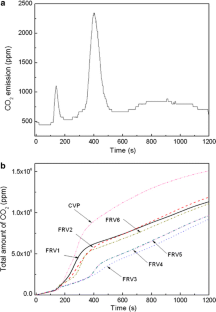

Fig. 4

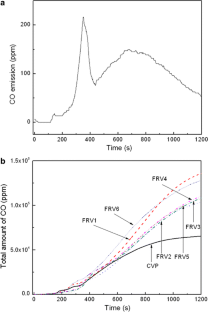

Fig. 5

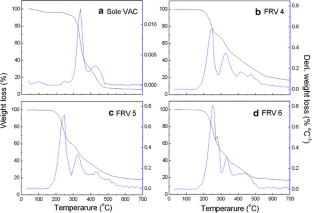

Fig. 6

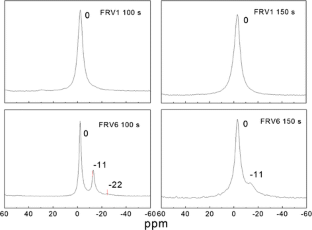

Fig. 7

Similar content being viewed by others

Explore related subjects

Discover the latest articles and news from researchers in related subjects, suggested using machine learning.

Abbreviations

BR:

Binder resin

CS:

Carbonizing substance

FPS:

Foam producing substance

DA:

Dehydrating agent

VAC:

Vinyl acetate-acrylic copolymer emulsion resin

PER:

Pentaerythritol

APP:

Ammonium polyphosphate

HRRav :

Average heat release rate

PHRR:

Peak heat release rate

THR:

Total heat release

Tig:

Time to ignition

References

  • Almeras X, Le Bras M, Hornsby P, Bourbigot S, Marosi GY, Keszei S, Poutch F (2003) Effects of fillers on the fire retardancy of intumescent polypropylene compounds. Polym Degrad Stab 82:325–331

    Article  CAS  Google Scholar

  • Biswas B, Kandola BK, Horrocks AR, Price D (2007) A quantitative study of carbon monoxide and carbon dioxide evolution during thermal degradation of flame retarded epoxy resins. Polym Degrad Stab 92:765–776

    Article  CAS  Google Scholar

  • Bourbigot S, Le Bras M, Delobel R, Decressaing R, Amourex JP (1996) Synergistic effect of zeolite in an intumescent process: study of the carbonaceous structures using solid-state NMR. J Chem Soc Faraday Trans 92:149–158

    Article  CAS  Google Scholar

  • Bourbigot S, Le Bras M, Dabrowski F, Gilman JW, Kashiwagi T (2000) PA-6 clay nanocomposite hybrid as char forming agent in intumescent formulations. Fire Mater 24:201–208

    Article  CAS  Google Scholar

  • Camino G, Costa L, Trossarelli L, Costanzi F, Pagliari A (1985) Study of the mechanism of intumescence in fire retardant polymers: part VI- Mechanism of ester formation in ammonium polyphosphate-pentaerythritol mixtures. Polym Degrad Stab 12:213–228

    Article  CAS  Google Scholar

  • Camino G, Costa L, Martinasso G (1989) Intumescent fire-retardant systems. Polym Degrad Stab 23:359–376

    Article  CAS  Google Scholar

  • Chinese National Standard (1993) CNS 6532 method of test for the fire-resistibility of internal decorative material of building. National Standard Bureau, Taipei

    Google Scholar

  • Chuang CS, Tsai KC, Wang MK, Ou CC, Ko CH, Shiau IL (2008) Effects of intumescent formulation for acrylic-based coating on flame-retardancy of painted red lauan (Parashorea spp.) thin plywood. Wood Sci Technol 42:593–607

    Article  CAS  Google Scholar

  • Chuang CS, Tsai KC, Wang MK, Ou CC, Ko CH, Shiau IL (2009) Impact of the intumescent formulation of styrene acrylic-based coatings on the fire performance of thin painted red lauan (Parashorea spp.) plywood. Eur J Wood Prod 67:407–415

    CAS  Google Scholar

  • Dequesne S, Magnet S, Jama C, Delobel R (2005) Thermoplastic resins for thin film intumescent coatings: towards a better understanding of their effect on intumescence efficiency. Polym Degrad Stab 88:63–69

    Article  Google Scholar

  • Duncan TM, Douglass DC (1984) On the 31P chemical shift anisotropy in condensed phosphates. Chem Phys 87:339–349

    Article  CAS  Google Scholar

  • Gao M, Sun CY, Wang CX (2006) Thermal degradation of wood treated with flame retardants. J Therm Anal Calorim 85:765–769

    Article  CAS  Google Scholar

  • Horrocks AR, Price D (2001) Fire retardant materials. Woodhead Publishing Limited, UK, pp 1–30

    Book  Google Scholar

  • Hull TR, Quinn RE, Areri IG, Purser DA (2002) Combustion toxicity of fire retarded EVA. Polym Degrad Stab 77:235–242

    Article  CAS  Google Scholar

  • Jimenez M, Duquesne S, Bourbigot S (2006) Intumescent fire protective coating: toward a better understanding of their mechanism of action. Thermochim Acta 449:16–26

    Article  CAS  Google Scholar

  • Kandola BK, Horrocks AR (1996) Complex char formation in flame-retarded fire-intumescent combinations II- Thermal analytical studies. Polym Degrad Stab 54:289–303

    Article  CAS  Google Scholar

  • Le Bras M, Bourbigot S, Revel B (1999) Comprehensive study of the degradation of an intumescent EVA-based material during combustion. J Mater Sci 34:5777–5782

    Article  Google Scholar

  • Nyambo C, Kandare E, Wilkie CA (2009) Thermal stability and flammability characteristics of ethylene vinyl acetate (EVA) composites blended with a phenyl phosphonate-intercalated layered double hydroxide (LDH), melamine polyphosphate and/or boric acid. Polym Degrad Stab 94:513–520

    Article  CAS  Google Scholar

  • Siat C, Le Bras M, Bourbigot S (1998) Combustion behaviour of ethylene vinyl acetate copolymer-based intumescent formulations using oxygen consumption calorimetry. Fire Mater 22:119–128

    Article  CAS  Google Scholar

  • Standard ASTM (1999) E1354–99 standard test method for heat and visible smoke release rates for materials and products using an oxygen consumption calorimeter. American Society for Testing and Materials, West Conshohocken

    Google Scholar

  • Tsai KC (2009) Influence of substrate on fire performance of wall lining materials. Const Build Mater 23:3258–3263

    Article  Google Scholar

  • Wladyka-Przbylak M, Kozlowski R (1999) The thermal characteristics of different intumescent coatings. Fire Mater 23:33–43

    Article  Google Scholar

Download references

Acknowledgments

Financial support (NSC 98-2622-B-005-009-CC3, and 99-2622-E-327-010-CC3) from National Science Council, Taiwan, is acknowledged.

Author information

Authors and Affiliations

  1. School of Forestry and Resource Conservation, National Taiwan University, Taipei, 106, Taiwan

    Chih-Shen Chuang

  2. Department of Forestry, National Chung Hsing University, Taichung, 402, Taiwan

    Te-Hsin Yang

  3. Department of Safety Health and Environmental Engineering, National Kaohsiung First University of Science and Technology, Kao-hsiung, 811, Taiwan

    Kuang-Chung Tsai

  4. Taiwan Forestry Research Institute, Council of Agriculture, Executive Yuan, Taipei, Taiwan

    Tsung-Yao Tseng

  5. Department of Agricultural Chemistry, National Taiwan University, Taipei, 106, Taiwan

    Ming-Kuang Wang

Authors
  1. Chih-Shen Chuang
    View author publications

    Search author on:PubMed Google Scholar

  2. Te-Hsin Yang
    View author publications

    Search author on:PubMed Google Scholar

  3. Kuang-Chung Tsai
    View author publications

    Search author on:PubMed Google Scholar

  4. Tsung-Yao Tseng
    View author publications

    Search author on:PubMed Google Scholar

  5. Ming-Kuang Wang
    View author publications

    Search author on:PubMed Google Scholar

Corresponding author

Correspondence to Kuang-Chung Tsai.

Rights and permissions

Reprints and permissions

About this article

Cite this article

Chuang, CS., Yang, TH., Tsai, KC. et al. Fire retardancy and CO/CO2 emission of intumescent coatings on thin plywood panel with waterborne vinyl acetate-acrylic resin. Wood Sci Technol 47, 353–367 (2013). https://doi.org/10.1007/s00226-012-0491-x

Download citation

  • Received:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s00226-012-0491-x
