Finger coordination during moment production on a mechanically fixed object

Experimental Brain Research volume 157, pages 457–467 (2004)Cite this article

Abstract

The moment production by several fingers on a mechanically fixed vertically oriented handle was studied under the systematic variations of task parameters such as (a) moment magnitude (1.0 Nm and 2.0 Nm) and (b) direction of moment production (into pronation and supination), as well as (c) vertical position of the handle from the moment axis, P (0, 2.0, 4.0, and 6.0 cm in both directions). The purpose of this study was twofold: to investigate the dependences between the task parameters and the performance variables and to test the mechanical advantage hypothesis. The performance variables changed symmetrically with P. In particular, magnitudes of the net horizontal and vertical forces both showed an S-shape change. The position of the point of zero free moment (PZFM) was determined. In the intermediate grasp locations (when 0<P magnitude <PZFM), the contribution of M free (moment produced mainly by pronational or supinational effort) and the moment of the resultant force (moment generated mainly by pushing) into the total moment production scaled linearly with the P. The magnitudes of both agonist and antagonist moments (those acting in and against the direction of the required moment, respectively) of normal forces increased with P magnitudes while the magnitude of agonist moments of tangential forces decreased. For individual fingers, the ratio of finger force to its moment arm was not constant. The mechanical advantage hypothesis was successful in explaining some of the data but could not cope with other findings. We assume, therefore, that this hypothesis is limited in its applicability and may be task and effector specific.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

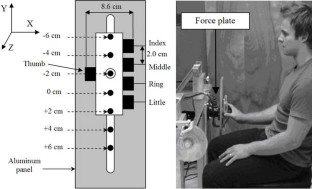

Fig. 1
Fig. 2

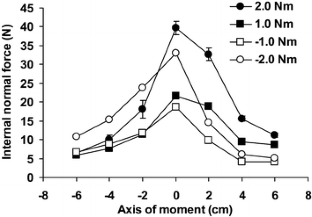

Fig. 3

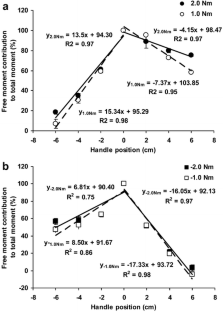

Fig. 4a, b
Fig. 5
Fig. 6a, b
Fig. 7a–d

References

  • Augurelle AS, Penta M, White O, Thonnard JL (2003) The effects of a change in gravity on the dynamics of prehension. Exp Brain Res 148:533–540

    PubMed  Google Scholar

  • Buchanan TS, Rovai GP, Rymer WZ (1989) Strategies for muscle activation during isometric torque generation at the human elbow. J Neurophysiol 62:1201–1212

    CAS  PubMed  Google Scholar

  • Ciriello VM, Webster BS, Dempsey PG (2002) Maximal acceptable torques of highly repetitive screw driving deviation, and handgrip tasks for 7-hour workdays. AIHA J 63:594–604

    Google Scholar

  • Dellinges MA, Tebrock OC (1993) A measurement of torque values obtained with hand-held drivers in a simulated clinical setting. J Prosthodont 2:212–214

    CAS  PubMed  Google Scholar

  • Flanagan JR, Burstedt MK, Johansson RS (1999) Control of fingertip forces in multidigit manipulation. J Neurophysiol 81:1706–1717

    CAS  PubMed  Google Scholar

  • Kerr J, Roth B (1986) Analysis of multifinger hands. Int J Robot Res 4:3–17

    Google Scholar

  • Koshland GF, Hasan Z (1994) Selection of muscles for initiation of planar, three-joint arm movements with different final orientations of the hand. Exp Brain Res 98:157–161

    CAS  PubMed  Google Scholar

  • Latash ML, Gelfand IM, Li ZM, Zatsiorsky VM (1998) Changes in the force-sharing pattern induced by modifications of visual feedback during force production by a set of fingers. Exp Brain Res 123

  • Li ZM, Latash ML, Newell KM, Zatsiorsky VM (1998) Motor redundancy during maximal voluntary contraction in four-finger tasks. Exp Brain Res 122:71–78

    Article  CAS  PubMed  Google Scholar

  • Li S, Danion F, Zatsiorsky VM, Latash ML (2002) Coupling phenomena during asynchronous submaximal two-hand, multi-finger force production tasks in humans. Neurosci Lett 331:75–78

    Article  CAS  PubMed  Google Scholar

  • Li S, Latash ML, Yue GH, Siemionow V, Sahgal V (2003) The effects of stroke and age on finger interaction in multi-finger force production tasks. Clin Neurophysiol 114:1646–1655

    Article  PubMed  Google Scholar

  • Prilutsky BI (2000) Coordination of two- and one-joint muscles: functional consequences and implications for motor control. Motor Control 4:1–44

    CAS  PubMed  Google Scholar

  • Schulze LJ, Goldstein D, Patel A, Stanton E, Woods J (1997) Torque production using handwheels of different size during a simulated valve operation task. Int J Occup Saf Ergon 3:109–118

    PubMed  Google Scholar

  • Shih YC, Wang MJ (1997) The influence of gloves during maximum volitional torque exertion of supination. Ergonomics 40:465–475

    Article  CAS  PubMed  Google Scholar

  • Shim JK, Latash ML, Zatsiorsky VM (2003) Prehension synergies: trial-to-trial variability and hierarchical organization of stable performance. Exp Brain Res E (pub ahead of print)

    Google Scholar

  • Zatsiorsky VM (2002) Kinetics of human motion. Human Kinetics, Champaign, IL

  • Zatsiorsky VM, Li ZM, Latash ML (1998) Coordinated force production in multi-finger tasks: finger interaction and neural network modeling. Biol Cybern 79:139–150

    CAS  PubMed  Google Scholar

  • Zatsiorsky VM, Li ZM, Latash ML (2000) Enslaving effects in multi-finger force production. Exp Brain Res 131:187–195

    CAS  PubMed  Google Scholar

  • Zatsiorsky VM, Gregory RW, Latash ML (2002) Force and torque production in static multifinger prehension: biomechanics and control. I. Biomechanics. Biol Cybern 87:50–57

    Article  PubMed  Google Scholar

  • Zatsiorsky VM, Gao F, Latash ML (2003) Prehension synergies: effects of object geometry and prescribed torques. Exp Brain Res 148:77–87

    Article  CAS  PubMed  Google Scholar

Download references

Acknowledgement.

This work was supported in part by grants AR-048563, AG-018751 and NS-35032 from the National Institutes of Health, USA.

Author information

Affiliations

  1. Department of Kinesiology, The Pennsylvania State University, University Park, PA 16802, USA

    Jae Kun Shim, Mark L. Latash & Vladimir M. Zatsiorsky

  2. Biomechanics Laboratory, Department of Kinesiology, The Pennsylvania State University, 39 Rec. Bldg., University Park, PA 16802, USA

    Vladimir M. Zatsiorsky

Authors
  1. Jae Kun Shim
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Mark L. Latash
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Vladimir M. Zatsiorsky
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Vladimir M. Zatsiorsky.

Rights and permissions

Reprints and Permissions

About this article

Cite this article

Shim, J.K., Latash, M.L. & Zatsiorsky, V.M. Finger coordination during moment production on a mechanically fixed object. Exp Brain Res 157, 457–467 (2004). https://doi.org/10.1007/s00221-004-1859-4

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s00221-004-1859-4

Keywords

  • Finger
  • Prehension
  • Mechanics advantage
  • Moment
  • Coordination
