Application of an in-line imprinted polymer column in a potentiometric flow-injection chemical sensor to the determination of the carbamate pesticide carbaryl in complex biological matrices

Analytical and Bioanalytical Chemistry volume 387, pages 351–357 (2007)Cite this article

Abstract

A flow-injection biosensor-like system based on a nonenzymatic approach has been developed to determine the carbamate pesticide carbaryl in complex biological samples without lengthy and expensive extraction steps. Molecularly imprinted polymeric beads were used to immobilize carbaryl from biological samples. pH variation permitted the elution of carbaryl from the binding cavity to the flow cell. A pH electrode was used to detect changes in the charge of carbaryl in the sample solution resulting from the protonation and deprotonation of the molecule over different pH ranges. At pH 2.0, the secondary amine group is protonated, giving a (+1) charge to the carbaryl molecule. At pH 8.0, the ionized carbaryl loses a proton to become neutral, changing the local pH of the flow cell. The pH change at the flow cell generated by the deprotonation of carbaryl ion in alkaline medium was used to determine the carbaryl concentration. Parameters influencing the performance of the system were optimized for use in the detection procedure. The validated biosensor-like system had a carbaryl detection limit of 10.0 μg/mL and a response that was linear (r 2 > 0.98) over the concentration range of 10.0–00 μg/mL.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

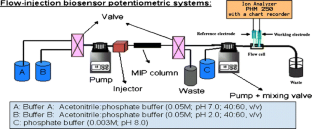

Fig. 1

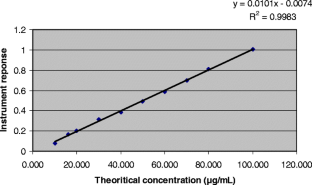

Fig. 2

References

  1. Baron RL (1991) In: Hayes WH Jr, Laws ER Jr (eds) Handbook of pesticide toxicology. Academic, San Diego, CA, 3:1125–1189

    Google Scholar

  2. Farage-Elawar M, Blaker WD (1992) J Appl Toxicol 12:421

    Article  CAS  Google Scholar

  3. Casale GP, Vennerstrom JL, Bavari S, Wang TL (1993) Immunopharmacol Immunotoxicol 15:199

    CAS  Google Scholar

  4. US Department of Health and Human Services (1992) Hazardous substances databank (HSDB): entry for carbaryl. National Toxicology Information Program, National Library of Medicine, Bethesda, MD (available online at http://toxnet.nlm.nih.gov/cgi-bin/sis/search/f?./temp/~SdbQGC:1, last accessed 25th October 2006)

  5. Mimmo DR, McEwen LC (1994) Pesticides. In: Calow P (ed) Handbook of ecotoxicology, vol 2. Blackwell, Oxford, pp 155–203

  6. Jing H, Amirav A (1997) Anal Chem 69:1426–1435

    Article  CAS  Google Scholar

  7. Nunes S, Skladal P, Yamanka H, Barcelo D (1998) Anal Chim Acta 362:59–68

    Article  CAS  Google Scholar

  8. Mulchandani A, Chen W, Mulchandani P, Wang J, Rogers KR (2001) Biosens Bioelectron 16:225–230

    Article  CAS  Google Scholar

  9. Rekha K, Thakur MS, Karanth NG (2000) Crit Rev Biotechnol 20(3):213–235

    CAS  Google Scholar

  10. Suri CR, Raje M, Varshney GC (2002) Crit Rev Biotechnol 22(1):15–32

    Article  CAS  Google Scholar

  11. Trojanowicz M (2002) Electroanalysis 14(19/20):1311–1328

    Article  CAS  Google Scholar

  12. Jungbluth F (1996) Crop protection policy in Thailand: economic and political factors influencing pesticide use (Pesticide Policy Project Publ Ser No 5). GTZ/University of Hannover, Hannover

  13. Thanpinta A, Hudak PF (2000) Environ Monit Assess 60:103–114

    Article  Google Scholar

  14. Mayes AG, Mosback K (1996) Anal Chem 68:3769–3774

    Article  CAS  Google Scholar

  15. US FDA (2001) Guidance for industry—bioanalytical method validation. US Food and Drug Administration, Rockville, MD

  16. Hantash J, Bartlett A, Oldfield P, Dénès G, O’Rielly R, Roudiere D, Menduni S (2006) J Chromatogr A 1125:104–111

    Article  CAS  Google Scholar

  17. Andrsson LI (2001) Bioseperation 10(6):353–364

    Article  CAS  Google Scholar

  18. Kandimalla VB, Ju HX (2004) Anal Bioanal Chem 380(4):587–605

    Article  CAS  Google Scholar

Download references

Acknowledgement

This work was made possible by the support of Charles River Laboratories Preclinical Services Montreal, Inc. (CRM) and Concordia University.

Author information

Affiliations

  1. Charles River Laboratories Preclinical Services Montreal, Inc., 87 Senneville Road, Senneville, Québec, H9X 3R3, Canada

    Jamil Hantash, Alan Bartlett, Philip Oldfield, Roger O’Rielly & Francois David

  2. Laboratory of Solid State Chemistry and Mössbauer Spectroscopy, Department of Chemistry and Biochemistry, Concordia University, 7141 Sherbrooke Street West, Montréal, Québec, H4B 1R6, Canada

    Jamil Hantash & Georges Dénès

Authors
  1. Jamil Hantash
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Alan Bartlett
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Philip Oldfield
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Georges Dénès
    View author publications

    You can also search for this author in PubMed Google Scholar

  5. Roger O’Rielly
    View author publications

    You can also search for this author in PubMed Google Scholar

  6. Francois David
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Jamil Hantash.

Rights and permissions

Reprints and Permissions

About this article

Cite this article

Hantash, J., Bartlett, A., Oldfield, P. et al. Application of an in-line imprinted polymer column in a potentiometric flow-injection chemical sensor to the determination of the carbamate pesticide carbaryl in complex biological matrices. Anal Bioanal Chem 387, 351–357 (2007). https://doi.org/10.1007/s00216-006-0898-z

Download citation

  • Received:

  • Revised:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s00216-006-0898-z

Keywords

  • Pesticides
  • Potentiometric
  • Flow injection
  • Biosensor-like
  • Molecularly imprinted polymer
  • Suspension polymerization
  • Detection
