Subjects
Each MWM experiment was conducted on 24 male Long-Evans rats (Crl:LE, Charles River, Raleigh, NC, USA) of 16–18 weeks of age. Sixty-four male Wistar rats (RccHan:WIST, Harlan Laboratories, Netherlands) of 12 weeks of age were tested on a PA task.
All rats were maintained in groups of four in a temperature—and humidity-controlled room with a 12-h light–dark cycle, and with food and water provided ad libitum. Experiments were carried out between 8 a.m. and 5 p.m.
Morris water maze
MWM testing followed established procedures (Morris 1981, 1984). A circular white pool (diameter 1.8 m; height 60 cm) was filled 40 cm deep with water that was maintained at 26 ± 1°C and made opaque by the addition of an opacifier (an aqueous acrylic emulsion; Acusol, Rohm & Haas, Landskrona, Sweden). A white plastic escape platform (diameter 11 cm) was placed in the center of one of the four equal-area quadrants of the pool.

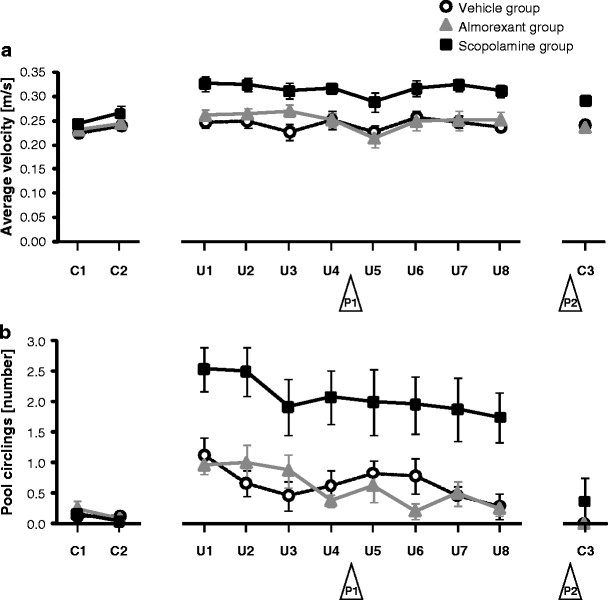

In “cued” trials, the escape platform extended 1.5 cm above the water surface and the border of the escape platform was colored black to increase visibility. In “uncued” (referring to proximal cues) trials, the escape platform was submerged 1.5 cm below the water surface. In “probe” trials, no escape platform was present. The pool was surrounded by large, dissimilar, distal visual cues placed on the walls to assist allocentric orientation and spatial navigation. During trials, behavioral variables including the latency to climb the escape platform (escape latency), swim speed (average velocity), number of completed circles swum (pool circlings), and time spent by the rat in the water maze quadrants (time in quadrant) were measured using a video tracking system (HVS Image, Buckingham, UK). Time during which rats were not actively swimming (i.e., floating) was excluded from the calculation of velocity.
Each cued or uncued trial began by gently releasing a rat into the water facing the wall of the pool and ended when the rat climbed the escape platform or after a cut-off of 60 s, whichever came first. When the rat did not reach the escape platform within 60 s, the experimenter guided the rat to the escape platform. After completion of a trial, rats were allowed to stay on the escape platform for approximately 15 s for spatial orientation. Rats were gently removed from the escape platform, dried with a towel and kept in holding cages. At the end of each day's spatial training, rats were returned to their home cages.

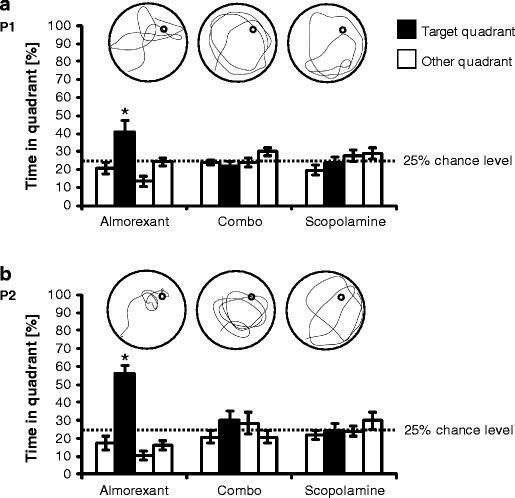

For a timeline of the experiments, see Fig. 1a. 72 h before the first uncued trial, rats performed a total of six cued trials, analyzed in two blocks of three trials denoted as C1 and C2; this allowed the animals to become familiar with the experimental set-up and procedures. Rats were subsequently trained for spatial navigation using 24 uncued acquisition trials, analyzed in eight daily blocks of three trials (U1–U4 in the first week and U5–U8 in the second week). 24 ± 2 h after the first and second weeks’ last uncued trial, rats were tested for memory retention in two 30 s probe trials (P1 and P2) in which no escape platform was present. The time spent by rats in the “target quadrant” (the pool quadrant that had contained the escape platform during the spatial training period) relative to the other quadrants was analyzed as a measure of memory retention. The last probe trial P2 was followed by two cued trials, analyzed in one trial block (C3); these trials served as control measures for motivation and sensorimotor function.
The escape platform location was varied across cued trials. In uncued trials, escape platform location was varied across subjects but kept constant for each rat. To prevent the possibility of egocentric orientation, the location of the rat’s entry into the pool was varied across trials. During probe trials, in order to keep the distance between the location of a rat's entry into the pool and the previously trained escape platform location at a constant and maximal length, the position of entry into the pool was assigned to the quadrant opposite the target quadrant.
Passive avoidance
The “GEMINI” avoidance system with software part 6810-0006-C, equipped with the “AirStim” option (San Diego Instruments, San Diego, CA, USA), was used for tests of step-through type PA learning. One unit consisted of two compartments with inner dimensions of 25 (width) × 20 (depth) × 17 cm (height). The walls were acrylic; the floor consisted of stainless steel grids (diameter 7 mm), 14 per compartment, spaced 9 mm apart and aligned from front to back. An 8.5 cm (width) × 7.6 cm (height) rectangular opening at grid floor level connected both compartments. This opening could be closed by a stainless steel gate. The front wall of each compartment consisted of a door that could be opened to place a rat into or take it out of the compartment. The location of the rat was detected by infra-red photoelectric beams, eight per compartment, positioned 13 mm above the grid floor. An LED house light was centered in the ceiling of each compartment, and supplied 650 lx at grid-floor level.
Air pulse stimulation was chosen as the aversive stimulus, and was delivered from two aluminum tubes (length 24.5 cm, external diameter 6.5 mm), one at the front and one at the back wall of each compartment, positioned 19 mm above the grid floor, and perforated at the vertical center with nine 2.5 × 0.8 mm holes spaced 2.5 cm apart. Air was delivered to the system from a compressed air bottle at a static pressure of 379.2 kPa (55 psi), which was set for each compartment separately using a regulator (Model R07, Norgren, Littleton, CO, USA), yielding a pressure of 322.7 kPa (46.8 psi) at presentation of air. Air was delivered at 3,160 cm3/s into the Tygon tubing (model AAG00007, Saint-Gobain Performance Plastics, Akron, OH, USA; inner diameter 3.2 mm) that connected the regulator to the stimulus delivery tubes. When stimulation was initiated, three pulses of air were applied, each 0.5 s in duration and with 0.5 s separating each pulse (offset to onset). The actual pressure settings were sufficient to initiate a startle response.
The operant conditioning phase consisted of a single trial that began after a rat was gently placed into the right-hand compartment of a GEMINI unit (with front doors and gate closed, and lights turned off). After an acclimation period of 120 s, the compartment in which the rat was located was illuminated and the gate to the left-hand, unilluminated compartment was opened. Step-through latency, i.e., the time until the rat completely stepped through into the left-hand compartment, was recorded. Once the rat stepped through, the gate was closed and, after a delay of 1 s, air pulses were applied to the rat. The rat was allowed to stay in the left-hand compartment to associate the aversive event with the environment, after which it was returned to the home cage. Rats that did not step through within 600 s during the conditioning phase were excluded from the experiment.
The test phase, performed 24 h later, consisted of a single trial identical to the conditioning phase trial with the exception that no aversive stimulus was applied when the rat stepped through. An increase in step-through latency is considered to be an indicator of memory retention (i.e., conditioning success).
Drug treatment
Rats were assigned to one of four drug treatments:
-
1.
Vehicle groups received oral treatment with a water-based solution containing 0.25% methyl cellulose (Methocel® MC, Fluka/Sigma-Aldrich Chemie GmbH, Steinheim, Germany) and intraperitoneal treatment with saline (NaCl 0.9%, B. Braun Medical AG, Switzerland).
-
2.
Almorexant groups received oral treatment with almorexant hydrochloride (Actelion Pharmaceuticals Ltd, Allschwil, Switzerland) in a water-based solution containing 0.25% methyl cellulose, at a dose of 300 mg/kg (calculated as almorexant free base), and intraperitoneal treatment with saline.
-
3.
Scopolamine groups received oral treatment with a water-based solution containing 0.25% methyl cellulose and intraperitoneal treatment with scopolamine hydrobromide trihydrate (Sigma-Aldrich Chemie GmbH, Steinheim, Germany) in saline, at a scopolamine dose of 0.8 mg/kg.
-
4.
Combination (combo) groups received oral treatment with almorexant hydrochloride in a water-based solution containing 0.25% methyl cellulose, at an almorexant dose of 300 mg/kg, and intraperitoneal treatment with scopolamine hydrobromide trihydrate in saline, at a scopolamine dose of 0.8 mg/kg.
The first MWM experiment included a vehicle group, an almorexant group, and a scopolamine group, whereas the follow-up experiment included an almorexant group, a combo group, and a scopolamine group. The PA experiment included all four treatments.
In MWM experiments, treatment was given on every day of spatial training and on the day of the second probe trial P2; in order to control for state dependency, no treatment was given on the day of the first probe trial P1 (Fig. 1a). In the PA experiment, treatment was given once before the acquisition trial.
All treatments were administered with 5 ml/kg. In all experiments, treatments were administered orally and intraperitoneally 60 and 30 min, respectively, before task performance based on the pharmacokinetic and pharmacodynamic properties of almorexant (Brisbare-Roch et al. 2007) and published practice for scopolamine (e.g., McNamara and Skelton 1992; Riekkinen et al. 1996).
Statistical analyses
In order to determine statistically significant differences in escape latency, average velocity, and pool circlings in the MWM test, an analysis of variance (repeated measures two-way analysis of variance (ANOVA) for C1–C2, and U1–U8; one-way ANOVA for C3) was employed. A T test comparing single means against a constant was used to determine if the proportion of time spent in the target quadrant of the MWM was significantly different from the chance rate of 25%.
A Wilcoxon-matched pairs test was employed for the PA test to determine statistically significant intra-individual differences in step-through latency between the conditioning and test phases. A Mann–Whitney test was employed to determine significant differences in step-through latency between drug treatment groups.
Statistical testing was performed using statistical software (Statistica, version 6, StatSoft Inc., Tulsa, OK, USA; and Prism, version 5.01, GraphPad Software, Inc., USA) with differences considered statistically significant at p < 0.05. Data are presented as mean ± standard error of the mean with eight (MWM) or 14–16 (PA) rats per treatment group.
