Robust error estimates for approximations of non-self-adjoint eigenvalue problems

Numerische Mathematik volume 133, pages 471–495 (2016)Cite this article

Abstract

We present new residual estimates based on Kato’s square root theorem for spectral approximations of non-self-adjoint differential operators of convection–diffusion–reaction type. It is not assumed that the eigenvalue/vector approximations are obtained from any particular numerical method, so these estimates may be applied quite broadly. Key eigenvalue and eigenvector error results are illustrated in the context of an hp-adaptive finite element algorithm for spectral computations, where it is shown that the resulting a posteriori error estimates are reliable. The efficiency of these error estimates is also strongly suggested empirically.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

39,95 €

Price includes VAT (Finland)

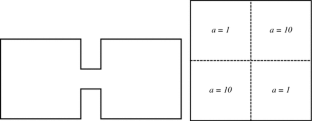

Fig. 1

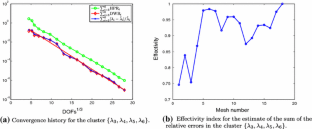

Fig. 2

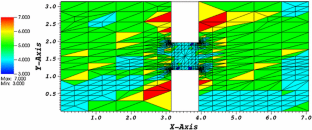

Fig. 3

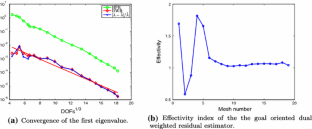

Fig. 4

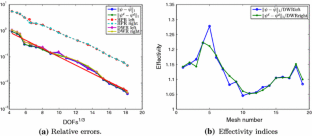

Fig. 5

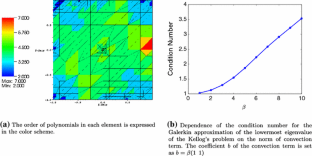

Fig. 6

References

  1. Amestoy, P., Duff, I., L’Excellent, J.-Y.: Multifrontal parallel distributed symmetric and unsymmetric solvers. Comput. Methods Appl. Mech. Eng. 184(2–4), 501–520 (2000)

    Article  MATH  Google Scholar

  2. Auscher, P., Tchamitchian, P.: Square roots of elliptic second order divergence operators on strongly Lipschitz domains: \({L}^2\) theory. J. Anal. Math. 90(1), 1–12 (2003)

    Article  MathSciNet  MATH  Google Scholar

  3. Babuška, I., Guo, B.Q.: The \(h\)-\(p\) version of the finite element method for domains with curved boundaries. SIAM J. Numer. Anal. 25(4), 837–861 (1988)

    Article  MathSciNet  MATH  Google Scholar

  4. Babuška, I., Osborn, J.: Eigenvalue problems. In: Ciarlet, P.G., Lions, J.L. (eds.) Handbook of numerical analysis. vol. II Handbook of Numerical Analysis, II, pp. 641–787. North-Holland, Amsterdam (1991)

    Google Scholar

  5. Babuška, I., Suri, M.: The \(p\) and \(h\)-\(p\) versions of the finite element method, basic principles and properties. SIAM Rev. 36(4), 578–632 (1994)

    Article  MathSciNet  MATH  Google Scholar

  6. Bai, Z., Day, D.: Lanczos method. In: Bai, Z., Demmel, J., Dongarra, J., Ruhe, A., van der Vorst, H. (eds.) Templates for the Solution of Algebraic Eigenvalue Problems: A Practical Guide. SIAM, Philadelphia (2000)

    Chapter  Google Scholar

  7. Balakrishnan, A.V.: Fractional powers of closed operators and the semigroups generated by them. Pacific J. Math. 10, 419–437 (1960)

    Article  MathSciNet  MATH  Google Scholar

  8. Bank, R.E., Xu, J., Zheng, B.: Superconvergent derivative recovery for Lagrange triangular elements of degree \(p\) on unstructured grids. SIAM J. Numer. Anal. 45, 2032–2046 (2007)

    Article  MathSciNet  MATH  Google Scholar

  9. Beattie, C.: Galerkin eigenvector approximations. Math. Comp. 69(232), 1409–1434 (2000)

    Article  MathSciNet  MATH  Google Scholar

  10. Carstensen, C., Gedicke, J.: An oscillation-free adaptive FEM for symmetric eigenvalue problems. Numer. Math. 118(3), 401–427 (2011)

    Article  MathSciNet  MATH  Google Scholar

  11. Carstensen, C., Gedicke, J.: A posteriori error estimators for convection-diffusion eigenvalue problems. Comput. Methods Appl. Mech. Eng. 268, 160–177 (2014)

    Article  MathSciNet  MATH  Google Scholar

  12. Dai, X., Xu, J., Zhou, A.: Convergence and optimal complexity of adaptive finite element eigenvalue computations. Numer. Math. 110, 313–355 (2008)

    Article  MathSciNet  MATH  Google Scholar

  13. Davies, E.B.: Linear Operators and Their Spectra, vol. 106 of Cambridge Studies in Advanced Mathematics. Cambridge University Press, Cambridge (2007)

    Book  Google Scholar

  14. Dunford, N., Schwartz, J.T.: Linear Operators Part I. John Wiley & Sons Inc., New York (1988)

    MATH  Google Scholar

  15. Durán, R., Padra, C., Rodríguez, R.: A posteriori error estimates for the finite element approximation of eigenvalue problems. Math. Models Methods Appl. Sci. 13, 1219–1229 (2003)

    Article  MathSciNet  MATH  Google Scholar

  16. Eisenstat, S.C., Ipsen, I.C.F.: Three absolute perturbation bounds for matrix eigenvalues imply relative bounds. SIAM J. Matrix Anal. Appl. 20(1), 149–158 (1999). (electronic)

    Article  MathSciNet  MATH  Google Scholar

  17. Ern, A., Guermond, J.L.: Theory and Practice of Finite Elements, vol. 159 Applied Mathematical Sciences. Springer-Verlag, New York (2004)

    Book  MATH  Google Scholar

  18. Ern, A., Vohralík, M.: Polynomial-Degree-Robust a Posteriori Estimates in a Unified Setting for Conforming, Nonconforming, Discontinuous Galerkin, and Mixed Discretizations. HAL (Inria) Preprint 00921583 (2013)

  19. Giani, S., Grubisic, L., Ovall, J.: Benchmark results for testing adaptive finite element eigenvalue procedures. Appl. Numer. Math. 62(2), 121–140 (2012)

    Article  MathSciNet  MATH  Google Scholar

  20. Gohberg, I.C., Kreĭn, M.G.: Introduction to the Theory of Linear Non-Self-Adjoint Operators. American Mathematical Society, Providence, R.I. (1969)

    MATH  Google Scholar

  21. Grubišić, L., Ovall, J.S.: On estimators for eigenvalue/eigenvector approximations. Math. Comp. 78, 739–770 (2009)

    MathSciNet  MATH  Google Scholar

  22. Heuveline, V., Rannacher, R.: A posteriori error control for finite approximations of elliptic eigenvalue problems. Adv. Comput. Math. 15(1–4), 107–138 (2002)

    MathSciNet  MATH  Google Scholar

  23. Heuveline, V., Rannacher, R.: Duality-based adaptivity in the \(hp\)-finite element method. J. Numer. Math. 11(2), 95–113 (2003)

    Article  MathSciNet  MATH  Google Scholar

  24. Heuveline, V., Rannacher, R.: Adaptive FEM for eigenvalue problems with application in hydrodynamic stability analysis. In: Advances in Numerical Mathematics, Proc. Int. Conf., Sept. 16–17, 2005, Moscow (2006)

  25. Houston, P., Süli, E.: A note on the design of hp-adaptive finite element methods for elliptic partial differential equations. Comput. Methods Appl. Mech. Eng. 194(2–5), 229–243 (2005)

    Article  MathSciNet  MATH  Google Scholar

  26. Kato, T.: Fractional powers of dissipative operators. J. Math. Soc. Jpn. 13, 246–274 (1961)

    Article  MathSciNet  MATH  Google Scholar

  27. Kato, T.: Perturbation Theory for Linear Operators. Classics in Mathematics. Springer-Verlag, Berlin (1995)

    Google Scholar

  28. Kellogg, R.B.: On the Poisson equation with intersecting interfaces. Appl. Anal. 4, 101–129 (1974)

    Article  MathSciNet  MATH  Google Scholar

  29. Knyazev, A.V., Argentati, M.E.: Rayleigh-Ritz majorization error bounds with applications to FEM. SIAM J. Matrix Anal. Appl. 31(3), 1521–1537 (2009)

    Article  MathSciNet  MATH  Google Scholar

  30. Kolata, W.G.: Spectral approximation and spectral properties of variationally posed nonselfadjoint problems. Thesis (Ph.D.), University of Maryland, College Park (1976)

  31. Kolata, W.G.: Approximation in variationally posed eigenvalue problems. Numer. Math. 29(2), 159–171 (1978)

  32. Kolman, K.: A two-level method for nonsymmetric eigenvalue problems. Acta Math. Appl. Sinica Engl. Ser. 21(1), 1–12 (2005)

    Article  MathSciNet  MATH  Google Scholar

  33. Larson, M.G.: A posteriori and a priori error analysis for finite element approximations of self-adjoint elliptic eigenvalue problems. SIAM J. Numer. Anal. 38(2), 608–625 (2000). (electronic)

    Article  MathSciNet  MATH  Google Scholar

  34. Lehoucq, R.B., Sorensen, D.C., Yang, C.: ARPACK Users’ Guide. SIAM, Philadelphia (1998)

    Book  MATH  Google Scholar

  35. Mao, D., Shen, L., Zhou, A.: Adaptive finite element algorithms for eigenvalue problems based on local averaging type a posteriori error estimates. Adv. Comput. Math. 25(1–3), 135–160 (2006)

    Article  MathSciNet  MATH  Google Scholar

  36. Markus, A.S.: Introduction to the spectral theory of polynomial operator pencils, vol. 71 of Translations of Mathematical Monographs. Translated from the Russian by H.H. McFaden, Translation edited by Ben Silver, With an appendix by M.V. Keldysh. Am. Math. Soc., Providence, RI (1988)

  37. McIntosh, A.: The square root problem for elliptic operators: a survey. In: Functional-analytic methods for partial differential equations (Tokyo, 1989), vol. 1450 of Lecture Notes in Math., pp. 122–140. Springer, Berlin (1990)

  38. Melenk, J.M., Wohlmuth, B.I.: On residual-based a posteriori error estimation in \(hp\)-FEM. Adv. Comput. Math. 15(1–4), 311–331 (2002)

    MathSciNet  MATH  Google Scholar

  39. Miller, J.C., Miller, J.N.: Statistics for Analytical Chemistry. Ellis Horwood Ltd, Chichester (1993)

    MATH  Google Scholar

  40. Reed, M., Simon, B.: Methods of Modern Mathematical Physics. I Second Edition. Functional analysis. Academic Press Inc. [Harcourt Brace Jovanovich Publishers], New York (1980)

    MATH  Google Scholar

  41. Trefethen, L.N., Betcke, T.: Computed eigenmodes of planar regions. In: Recent advances in differential equations and mathematical physics, vol. 412 of Contemp. Math., pp. 297–314. Amer. Math. Soc., Providence, RI (2006)

  42. Verfürth, R.: A posteriori error estimates for nonlinear problems. Finite element discretizations of elliptic equations. Math. Comp. 62(206), 445–475 (1994)

    Article  MathSciNet  MATH  Google Scholar

Download references

Acknowledgments

The authors would like to thank Prof. Dr. V. Mehrmann, Technical University Berlin, for very helpful comments on the manuscript and Dr. C. Engström, University of Umea for bringing the early and important references [30, 31] to our attention. We also thank the referees and editor for very helpful suggestions on refining the manuscript. L. Grubišić was supported by the Croatian MZOS Grant Nr. 037-0372783-2750 “Spectral decompositions—numerical methods and applications” and the bilateral MZOS–NSF Grant “Estimates for finite element approximation error by auxiliary subspace method”. A. Międlar was supported by the DFG Research Center Matheon. J. Ovall was supported by the National Science Foundation under contract DMS-1414365.

Author information

Authors and Affiliations

  1. School of Engineering and Computing Sciences, Durham University, South Road, Durham, DH1 3LE, UK

    Stefano Giani

  2. Department of Mathematics, University of Zagreb, Bijenička 30, 10000, Zagreb, Croatia

    Luka Grubišić

  3. Institut für Mathematik, Technische Universität Berlin, Strasse des 17. Juni 136, Berlin, Germany

    Agnieszka Międlar

  4. Fariborz Maseeh Department of Mathematics and Statistics, Portland State University, 315 Neuberger Hall, Portland, OR, 97201, USA

    Jeffrey S. Ovall

Authors
  1. Stefano Giani
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Luka Grubišić
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Agnieszka Międlar
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Jeffrey S. Ovall
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Luka Grubišić.

Rights and permissions

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Giani, S., Grubišić, L., Międlar, A. et al. Robust error estimates for approximations of non-self-adjoint eigenvalue problems. Numer. Math. 133, 471–495 (2016). https://doi.org/10.1007/s00211-015-0752-3

Download citation

  • Received:

  • Revised:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s00211-015-0752-3

Mathematics Subject Classification

  • 65N30
  • 65N25
  • 65N15
