Ultrasonography has high positive predictive value for medial epicondyle lesions among adolescent baseball players

Knee Surgery, Sports Traumatology, Arthroscopy volume 27, pages 3261–3268 (2019)Cite this article

Abstract

Purpose

Only few studies have investigated medial epicondyle (MEC) lesions, particularly in the 12–18 age group. To the best of our knowledge, no study has compared ultrasonography (US), radiography and magnetic resonance imaging (MRI) in detecting MEC lesions. The aims of this study were to examine the value of US for detecting MEC lesions and to investigate correlations among diagnostic tools.

Methods

A prospective, comparative study was performed. Young baseball players from southern Taiwan were recruited, and basic characteristics, as well as passive range of motion (pROM) of the upper extremities, were recorded. Screening US was performed to identify MEC lesions, and players with MEC lesions received follow-up plain radiography and MRI.

Results

A total of 299 young baseball players were screened using US, and 28 of 299 players with possible MEC lesions were identified with a positive predictive value (PPV) of 88% according to MRI findings. The MEC lesions were primarily comprised of unfused ossicles and bony fragmentation. Other diagnoses, including UCL strain and medial epicondylitis, were also found by MRI in players with abnormal US screening results. The pROM of shoulder external rotation (ER) of the throwing hand was significantly reduced in players with MEC lesions (p = 0.006).

Conclusions

Bony cortical discontinuity or fragmentation over the MEC warrants further research, and US provides good PPV for types of MEC lesions. Decreased shoulder ER may relate to MEC lesions and should be taken into consideration. The use of US may facilitate early detection and intervention.

Level of evidence

IV, Cross-sectional study.

This is a preview of subscription content, access via your institution.

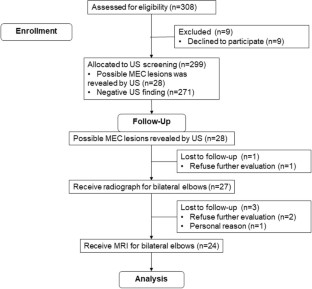

Fig. 1
Fig. 2
Fig. 3
Fig. 4

Abbreviations

MEC:

Medial epicondyle

UCL:

Ulnar collateral ligament

LLE:

Little league elbow

US:

Ultrasonography

MRI:

Magnetic resonance imaging

pROM:

Passive range of motion

ER:

External rotation

IR:

Internal rotation

BMI:

Body mass index

References

  1. Brogdon BG, Crow NE (1960) Little leaguer’s elbow. Am J Roentgenol Radium Ther Nucl Med 83:671–675

    CAS  PubMed  Google Scholar

  2. Cain EL Jr, Dugas JR, Wolf RS, Andrews JR (2003) Elbow injuries in throwing athletes: a current concepts review. Am J Sports Med 31:621–635

    Article  PubMed  Google Scholar

  3. Erb J, Sherman H, Williard S, Bui J, Kachingwe A (2017) Ultrasound study of elbow ulnar collateral ligament changes in collegiate baseball players: a pilot study. J Bodyw Mov Ther 21:259–266

    Article  PubMed  Google Scholar

  4. Fleisig GS, Andrews JR, Dillman CJ, Escamilla RF (1995) Kinetics of baseball pitching with implications about injury mechanisms. Am J Sports Med 23:233–239

    Article  CAS  PubMed  Google Scholar

  5. Hang DW, Chao CM, Hang YS (2004) A clinical and roentgenographic study of little league elbow. Am J Sports Med 32:79–84

    Article  PubMed  Google Scholar

  6. Harada M, Takahara M, Mura N, Sasaki J, Ito T, Ogino T (2010) Risk factors for elbow injuries among young baseball players. J Shoulder Elb Surg 19:502–507

    Article  Google Scholar

  7. Harada M, Takahara M, Sasaki J, Mura N, Ito T, Ogino T (2006) Using sonography for the early detection of elbow injuries among young baseball players. AJR Am J Roentgenol 187:1436–1441

    Article  PubMed  Google Scholar

  8. Hodgins JL, Vitale M, Arons RR, Ahmad CS (2016) Epidemiology of medial ulnar collateral ligament reconstruction: a 10-year study in New York State. Am J Sports Med 44:729–734

    Article  PubMed  Google Scholar

  9. Jones KJ, Dines JS, Rebolledo BJ, Weeks KD, Williams RJ, Dines DM et al (2014) Operative management of ulnar collateral ligament insufficiency in adolescent athletes. Am J Sports Med 42:117–121

    Article  PubMed  Google Scholar

  10. Kijowski R, Tuite MJ (2010) Pediatric throwing injuries of the elbow. Semin Musculoskelet Radiol 14:419–429

    Article  PubMed  Google Scholar

  11. Klingele KE, Kocher MS (2002) Little league elbow: valgus overload injury in the paediatric athlete. Sports Med 32:1005–1015

    Article  PubMed  Google Scholar

  12. Larson RL, Singer KM, Bergstrom R, Thomas S (1976) Little league survey: the Eugene study. Am J Sports Med 4:201–209

    Article  CAS  PubMed  Google Scholar

  13. Lyman S, Fleisig GS, Andrews JR, Osinski ED (2002) Effect of pitch type, pitch count, and pitching mechanics on risk of elbow and shoulder pain in youth baseball pitchers. Am J Sports Med 30:463–468

    Article  PubMed  Google Scholar

  14. Marshall NE, Keller RA, Van Holsbeeck M, Moutzouros V (2015) Ulnar collateral ligament and elbow adaptations in high school baseball pitchers. Sports Health 7:484–488

    Article  PubMed  PubMed Central  Google Scholar

  15. Ng WM, Chan CK, Takahashi N, Kawai N, Teh KK, Saravana R et al (2017) Radiological analysis of the medial epicondyle in the adolescent throwing athlete. Singap Med J 58:103–106

    Article  Google Scholar

  16. Otoshi K, Kikuchi S, Kato K, Sato R, Igari T, Kaga T et al (2017) Age-specific prevalence and clinical characteristics of humeral medial epicondyle apophysitis and osteochondritis dissecans: ultrasonographic assessment of 4249 players. Orthop J Sports Med 5:2325967117707703

    Article  PubMed  PubMed Central  Google Scholar

  17. Park JY, Yoo HY, Chung SW, Lee SJ, Kim NR, Ki SY et al (2016) Valgus extension overload syndrome in adolescent baseball players: clinical characteristics and surgical outcomes. J Shoulder Elb Surg 25:2048–2056

    Article  Google Scholar

  18. Patel RM, Lynch TS, Amin NH, Calabrese G, Gryzlo SM, Schickendantz MS (2014) The thrower’s elbow. Orthop Clin N Am 45:355–376

    Article  Google Scholar

  19. Pennock AT, Pytiak A, Stearns P, Roocroft JH, Dwek J, Kruk P et al (2016) Preseason assessment of radiographic abnormalities in elbows of little league baseball players. J Bone Jt Surg Am 98:761–767

    Article  Google Scholar

  20. Petty DH, Andrews JR, Fleisig GS, Cain EL (2004) Ulnar collateral ligament reconstruction in high school baseball players: clinical results and injury risk factors. Am J Sports Med 32:1158–1164

    Article  PubMed  Google Scholar

  21. Pourhoseingholi MA, Vahedi M, Rahimzadeh M (2013) Sample size calculation in medical studies. Gastroenterol Hepatol Bed Bench 6:14–17

    PubMed  PubMed Central  Google Scholar

  22. Rossy WH, Oh LS (2016) Pitcher’s elbow: medial elbow pain in the overhead-throwing athlete. Curr Rev Musculoskelet Med 9:207–214

    Article  PubMed  PubMed Central  Google Scholar

  23. Shanley E, Thigpen C (2013) Throwing injuries in the adolescent athlete. Int J Sports Phys Ther 8:630–640

    PubMed  PubMed Central  Google Scholar

  24. Shitara H, Kobayashi T, Yamamoto A, Shimoyama D, Ichinose T, Tajika T et al (2017) Prospective multifactorial analysis of preseason risk factors for shoulder and elbow injuries in high school baseball pitchers. Knee Surg Sports Traumatol Arthrosc 25:3303–3310

    Article  PubMed  Google Scholar

  25. Wei AS, Khana S, Limpisvasti O, Crues J, Podesta L, Yocum LA (2010) Clinical and magnetic resonance imaging findings associated with little league elbow. J Pediatr Orthop 30:715–719

    Article  PubMed  Google Scholar

  26. Werner SL, Murray TA, Hawkins RJ, Gill TJ (2002) Relationship between throwing mechanics and elbow valgus in professional baseball pitchers. J Shoulder Elb Surg 11:151–155

    Article  Google Scholar

Download references

Acknowledgements

The authors thank the players, coaches, members of baseball associations, and the staff for their assistance. The authors also express gratitude to their families for providing moral support and warm encouragement.

Funding

This work was supported by a grant from Chang Gung Memorial Hospital in Taiwan, ROC (Grant no. CMRPG8E0901).

Author information

Affiliations

  1. Department of Physical Medicine and Rehabilitation, Kaohsiung Chang Gung Memorial Hospital and Chang Gung University College of Medicine, 123, Dapi Road, Niaosong District, Kaohsiung, Taiwan, Republic of China

    Yan-Yuh Lee, Tsung-Hsun Yang, Yu-Chi Huang, Po-Cheng Chen, Chia-Hao Hsu & Lin-Yi Wang

  2. Department of Diagnostic Radiology, Kaohsiung Chang Gung Memorial Hospital and Chang Gung University College of Medicine, Kaohsiung, Taiwan, Republic of China

    Chung-Cheng Huang

  3. Department of Orthopaedic Surgery, Kaohsiung Chang Gung Memorial Hospital and Chang Gung University College of Medicine, 123, Dapi Road, Niaosong District, Kaohsiung, Taiwan, Republic of China

    Wen-Yi Chou

  4. Medical Mechatronic Engineering Program, Cheng Shiu University, Kaohsiung, Taiwan, Republic of China

    Wen-Yi Chou

Authors
  1. Yan-Yuh Lee
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Tsung-Hsun Yang
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Chung-Cheng Huang
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Yu-Chi Huang
    View author publications

    You can also search for this author in PubMed Google Scholar

  5. Po-Cheng Chen
    View author publications

    You can also search for this author in PubMed Google Scholar

  6. Chia-Hao Hsu
    View author publications

    You can also search for this author in PubMed Google Scholar

  7. Lin-Yi Wang
    View author publications

    You can also search for this author in PubMed Google Scholar

  8. Wen-Yi Chou
    View author publications

    You can also search for this author in PubMed Google Scholar

Contributions

LYW and WYC have made substantial contributions to the conception, design and acquisition of data and have been involved in revising it critically for important intellectual content. YYL and THY have made substantial contributions to acquisition of data, statistical analysis and interpretation of data and have been involved in drafting the manuscript. PCC and CHH have made substantial contributions to acquisition of data and have been involved in drafting the manuscript. CCH and YCH participated in the creation of figures and tables. All authors read and approved the final manuscript.

Corresponding authors

Correspondence to Lin-Yi Wang or Wen-Yi Chou.

Ethics declarations

Conflict of interest

The authors declare that they have no conflict of interest.

Ethical approval

All procedures performed in studies involving human participants were in accordance with the ethical standards of the institutional and/or national research committee and with the 1964 Helsinki Declaration and its later amendments or comparable ethical standards.

Rights and permissions

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Lee, YY., Yang, TH., Huang, CC. et al. Ultrasonography has high positive predictive value for medial epicondyle lesions among adolescent baseball players. Knee Surg Sports Traumatol Arthrosc 27, 3261–3268 (2019). https://doi.org/10.1007/s00167-018-5178-x

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s00167-018-5178-x

Keywords

  • Baseball
  • Medial epicondyle
  • Little league elbow
  • Ultrasonography
  • Adolescent
  • Ulnar collateral ligament
  • Apophysitis
