Cruciate-retaining total knee arthroplasty: How much of the PCL is really retained?

Knee Surgery, Sports Traumatology, Arthroscopy volume 25, pages 3556–3560 (2017)Cite this article

Abstract

Purpose

It is questionable how much of the PCL is really preserved following a complete transverse tibial cut during a cruciate-retaining (CR) total knee arthroplasty (TKA). It is hypothesized that a complete transverse tibial cut jeopardizes the PCL tibial insertion during a common CR TKA. Thus, the aim of the present study was to assess intraoperatively the amount of PCL tibial attachment damage following a standard complete tibial cut technique.

Methods

Thirty consecutive female patients suffering from degenerative knee osteoarthritis were included. Two measurements were performed on preoperative MRI images. On sagittal plane, the PCL facet of tibia and the PCL tibial attachment were measured. All 30 patients underwent a TKA using a common CR prosthesis. Postoperatively, the amount of PCL facet resection was measured on the resected tibial plateau using a digital sliding caliper.

Results

In preoperative MRI images, the length of the PCL facet of tibia was found 25.5 ± 2.1 mm and the length of the PCL tibial attachment was 14.5 ± 1.3 mm. The amount of PCL facet resection following TKA was 20.6 ± 2.2 mm on average. This result corresponds to an average resection of 65.1 ± 15.9 % of the PCL tibial attachment following TKA.

Conclusion

The hypothesis that a complete transverse tibial cut during a conventional CR TKA jeopardizes the PCL tibial insertion was confirmed. According to measurements performed on preoperative knee MRI scans and surgical specimens of resected tibial plateaus, a significant amount of the PCL insertion on the tibia is actually removed in the majority of cases. Surgeons should be aware that when resecting the tibial plateau without using a technique that spares the PCL tibial attachment, there is a high risk of considerable damage to the PCL that may, in turn, increase the likelihood of potential complications due to PCL deficiency.

Level of evidence

IV.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

Fig. 1

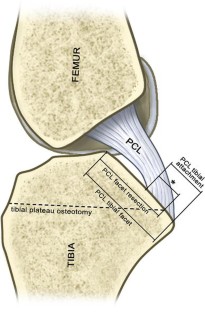

Fig. 2

References

  1. Amis AA, Gupte CM, Bull AM, Edwards A (2006) Anatomy of the posterior cruciate ligament and the meniscofemoral ligaments. Knee Surg Sports Traumatol Arthrosc 14:257–263

    CAS  Article  PubMed  Google Scholar

  2. Callaghan JJ, Rosenberg AG, Rubash HE, Simonian PT, Wickiewicz TL (eds) (2003) The adult knee. Lippincott Williams & Wilkins, Philadelphia

    Google Scholar

  3. Christen B, Neukamp M, Aghayev E (2012) No difference in anterior tibial translation with and without posterior cruciate ligament in less invasive total knee replacement. Knee Surg Sports Traumatol Arthrosc 20:503–509

    Article  PubMed  Google Scholar

  4. Dennis D, Komistek R, Mahfouz M, Haas BD, Stiehl JB (2003) Multicenter determination of in vivo kinematics after total knee arthroplasty. Clin Orthop Relat Res 416:37–57

    Article  Google Scholar

  5. Edwards A, Bull AM, Amis AA (2007) The attachments of the fiber bundles of the posterior cruciate ligament: an anatomic study. Arthroscopy 23:284–290

    Article  PubMed  Google Scholar

  6. Feyen H, Van Opstal N, Bellemans J (2013) Partial resection of the PCL insertion site during tibial preparation in cruciate-retaining TKA. Knee Surg Sports Traumatol Arthrosc 21:2674–2679

    Article  PubMed  Google Scholar

  7. Girgis FG, Marshall JL, Monajem A (1975) The cruciate ligaments of the knee joint. Anatomical, functional and experimental analysis. Clin Orthop Relat Res 106:216–231

    Article  Google Scholar

  8. Heesterbeek PJ, Labey L, Wong P, Innocenti B, Wymenga AB (2014) A new spacer-guided, PCL balancing technique for cruciate-retaining total knee replacement. Knee Surg Sports Traumatol Arthrosc 22:650–659

    CAS  Article  PubMed  Google Scholar

  9. Huang CH, Lee YM, Liau JJ, Cheng CK (1998) Comparison of muscle strength of posterior cruciate-retained versus cruciate-sacrificed total knee arthroplasty. J Arthroplasty 13:779–783

    CAS  Article  PubMed  Google Scholar

  10. Indelli PF, Marcucci M, Graceffa A, Charlton S, Latella L (2014) Primary posterior stabilized total knee arthroplasty: analysis of different instrumentation. J Orthop Surg Res 9:54

    Article  PubMed  PubMed Central  Google Scholar

  11. Kannan A, O’Connell RS, Kalore N, Curtin BM, Hull JR, Jiranek WA (2015) Revision TKA for flexion instability improves patient reported outcomes. J Arthroplasty 30:818–821

    Article  PubMed  Google Scholar

  12. Komistek RD, Mahfouz MR, Bertin KC, Rosenberg A, Kennedy W (2008) In vivo determination of total knee arthroplasty kinematics: a multicenter analysis of an asymmetrical posterior cruciate retaining total knee arthroplasty. J Arthroplasty 23:41–50

    Article  PubMed  Google Scholar

  13. Li N, Tan Y, Deng Y, Chen L (2014) Posterior cruciate-retaining versus posterior stabilized total knee arthroplasty: a meta-analysis of randomized controlled trials. Knee Surg Sports Traumatol Arthrosc 22:556–564

    Article  PubMed  Google Scholar

  14. Liabaud B, Patrick DA Jr, Geller JA (2013) Is the posterior cruciate ligament destabilized after the tibial cut in a cruciate retaining total knee replacement? Knee 20:412–415

    Article  PubMed  Google Scholar

  15. Lützner J, Firmbach FP, Lützner C, Dexel J, Kirschner S (2015) Similar stability and range of motion between cruciate-retaining and cruciate-substituting ultracongruent insert total knee arthroplasty. Knee Surg Sports Traumatol Arthrosc 23:1638–1643

    Article  PubMed  Google Scholar

  16. Matziolis G, Mehlhorn S, Schattat N, Diederichs G, Hube R, Perka C et al (2012) How much of the PCL is really preserved during the tibial cut? Knee Surg Sports Traumatol Arthrosc 20:1083–1086

    Article  PubMed  Google Scholar

  17. Moorman CT 3rd, Murphy Zane MS, Bansai S, Cina SJ, Wickiewicz TL, Warren RF et al (2008) Tibial insertion of the posterior cruciate ligament: a sagittal plane analysis using gross, histologic, and radiographic methods. Arthroscopy 24:269–275

    Article  PubMed  Google Scholar

  18. Pagnano MW, Hanssen AD, Lewallen DG, Stuart MJ (1998) Flexion instability after primary posterior cruciate retaining total knee arthroplasty. Clin Orthop Relat Res 356:39–46

    Article  Google Scholar

  19. Rosenberg AG (2012) Posterior cruciate ligament retention in total knee arthroplasty. In: Scott NW (ed) Insall & Scott surgery of the knee. Elsevier Churchill Livingstone, Philadelphia p, pp 1125–1131

    Chapter  Google Scholar

  20. Sessa P, Fioravanti G, Giannicola G, Cinotti G (2015) The risk of sacrificing the PCL in cruciate retaining total knee arthroplasty and the relationship to the sagittal inclination of the tibial plateau. Knee 22:51–55

    Article  PubMed  Google Scholar

  21. Shannon FJ, Cronin JJ, Cleary MS, Eustace SJ, O’Byrne JM (2007) The posterior cruciate ligament-preserving total knee replacement: do we ‘preserve’ it? A radiological study. J Bone Joint Surg Br 89:766–771

    CAS  Article  PubMed  Google Scholar

  22. Sheps DM, Otto D, Fernhout M (2005) The anatomic characteristics of the tibial insertion of the posterior cruciate ligament. Arthroscopy 21:820–825

    Article  PubMed  Google Scholar

  23. Sorger JI, Federle D, Kirk PG, Grood E, Cochran J, Levy M (1997) The posterior cruciate ligament in total knee arthroplasty. J Arthroplasty 12:869–879

    CAS  Article  PubMed  Google Scholar

  24. Suggs JF, Kwon YM, Durbhakula SM, Hanson GR, Li G (2009) In vivo flexion and kinematics of the knee after TKA: comparison of a conventional and a high flexion cruciate-retaining TKA design. Knee Surg Sports Traumatol Arthrosc 17:150–156

    Article  PubMed  Google Scholar

  25. Swanik CB, Lephart SM, Rubash HE (2004) Proprioception, kinesthesia, and balance after total knee arthroplasty with cruciate-retaining and posterior stabilized prostheses. J Bone Joint Surg Am 86-A:328–334

    Article  PubMed  Google Scholar

  26. van den Boom LG, Brouwer RW, van den Akker-Scheek I, Bulstra SK, van Raaij JJ (2009) Retention of the posterior cruciate ligament versus the posterior stabilized design in total knee arthroplasty: a prospective randomized controlled clinical trial. BMC Musculoskelet Disord 10:119

    Article  PubMed  PubMed Central  Google Scholar

  27. Yue B, Varadarajan KM, Moynihan AL, Liu F, Rubash HE, Li G (2011) Kinematics of medial osteoarthritic knees before and after posterior cruciate ligament retaining total knee arthroplasty. J Orthop Res 29:40–46

    Article  PubMed  Google Scholar
