Sagittal plane evaluation of patellofemoral movement in patellofemoral pain patients with no evidence of maltracking

Knee Surgery, Sports Traumatology, Arthroscopy volume 23, pages 986–990 (2015)Cite this article

Abstract

Purpose

The cause of abnormal patellar kinematics in patients with patellofemoral pain remains unclear. Many patients who develop patellofemoral pain symptoms do not exhibit evidence of maltracking. In these patients, sagittal plane evaluation of patellofemoral movement should be performed.

Methods

Knee radiographs were obtained for forty healthy volunteers and thirty patients at 0°, 30°, 60°, 90° and 120° of flexion in a standing weight-bearing position. The degree of active patellar movement was measured by a newly developed technique called “patellar motion angle”. Three independent examiners sequentially performed all of the measurements under identical conditions.

Results

A significant decrease in the patellar motion angle was found during deep knee flexion from 90° to 120° in the patient group compared to the volunteer group (mean 18.5° ± 5.8° and 23.6° ± 6.2°, respectively) (P = 0.001). From 0° to 90° of knee flexion, no significant differences in the patellar motion angle were found between the two groups.

Conclusion

Sagittal plane patellofemoral joint kinematics is an area of interest in the study of the mechanical factors associated with patellofemoral pain. This study demonstrated a decrease in patellar movement during deep knee bending activity in patients with patellofemoral pain.

Level of evidence

Therapeutic study, Level II.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

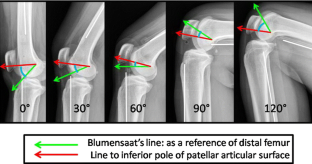

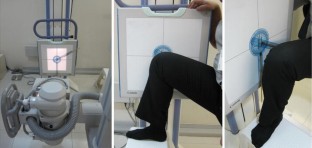

Fig. 1
Fig. 2

References

  1. Amis AA, Senavongse W, Bull AM (2006) Patellofemoral kinematics during knee flexion-extension: an in vitro study. J Orthop Res 24:2201–2211

    Article  PubMed  Google Scholar

  2. Bennell K, Bartam S, Crossley K, Green S (2002) Outcome measures in patellofemoral pain syndrome: test retests reliability and interrelationships. Phys Ther Sport 1:32–41

    Article  Google Scholar

  3. Bentley G, Dowd G (1984) Current concepts of etiology and treatment of chondromalacia patellae. Clin Orthop Relat Res 189:209–227

    PubMed  Google Scholar

  4. Besier TF, Draper CE, Gold GE et al (2005) Patellofemoral joint contact area increases with knee flexion and weight bearing. J Orthop Res 23:345–350

    Article  PubMed  Google Scholar

  5. Besier TF, Gold GE, Delp SL et al (2008) The influence of femoral internal and external rotation on cartilage stresses within the patellofemoral joint. J Orthop Res 26(12):1627–1635

    Article  PubMed  Google Scholar

  6. Biedert RM, Albrecht S (2006) The patellotrochlear index: a new index for assessing patellar height. Knee Surg Sports Traumatol Arthrosc 14(8):707–712

    Article  PubMed  Google Scholar

  7. Blumensaat C (1938) Die lageabweichungen und verrenkungen der kniescheibe. Ergeb Chir Orthop 31:149–223

    Google Scholar

  8. Brattstro¨m H (1963) The picture of the femoro-patellar joint in recurrent dislocation of the patella. Acta Orthop Scand 33:373–375

    Google Scholar

  9. Brechter JH, Powers CM (2002) Patellofemoral stress during walking in persons with and without patellofemoral pain. Med Sci Sports Exerc 34:1582–1593

    Article  Google Scholar

  10. Brechter JH, Powers CM (2002) Patellofemoral joint stress during stair ascent and descent in persons with and without patellofemoral pain. Gait and Posture 16:115–123

    Article  PubMed  Google Scholar

  11. Cowan SM, Bennell KL, Hodges PW, Crossley KM, McConnell J (2001) Delayed onset of electromyographic activity of vastus medialis obliquus relative to vastus lateralis in subjects with patellofemoral pain syndrome. Archives of Phy Med and Rehab 82:183–189

    Article  CAS  Google Scholar

  12. Fulkerson JP (ed) (2005) Common patellofemoral problems. American Academy of Orthopaedic Surgeons, Rosemont, IL, pp 19–28

    Google Scholar

  13. Grelsamer RP, Proctor CS, Bazos AN (1994) Evaluation of patellar shape in the sagittal plane: a clinical analysis. Am J Sports Med 22(1):61–66

    Article  CAS  PubMed  Google Scholar

  14. Gruber MA (1979) The conservative treatment of chondromalacia patella. Orthop Clin North Am 10:105–115

    CAS  PubMed  Google Scholar

  15. Haim A, Yaniv M, Dekel S, Amir H (2003) Patellofemoral pain syndrome, validity of clinical and radiological features. Clin Orthop Relat Res 451:223–228

    Article  Google Scholar

  16. Ireland ML, Willson JD, Ballantyne BT, Davis IM (2003) Hip strength in females with and without patellofemoral pain. J Orthop Sports Phys Ther 33:671–676

    Article  PubMed  Google Scholar

  17. Kannus PA (1992) Long patellar tendon: radiographic sign of patellofemoral pain syndrome: a prospective study. Radiology 185:859–863

    Article  CAS  PubMed  Google Scholar

  18. Kujala UM, Osterman K, Kormano M, Nelimarkka O, Hurme M, Taimela S (1989) Patellofemoral relationships in recurrent patellar dislocation. J Bone Joint Surg Br 71:788–792

    CAS  PubMed  Google Scholar

  19. Laprade J, Culham E (2003) Radiographic measures in subjects who are asymptomatic and subjects with patellofemoral pain syndrome. Clin Orthop Relat Res 414:172–182

    Article  PubMed  Google Scholar

  20. Laurin CA, Levesque HP, Dussault R et al (1978) The abnormal lateral patellofemoral angle. J Bone Joint Surg Am 60:55–60

    CAS  PubMed  Google Scholar

  21. MacIntyre NJ, Hill NA, Fellows RA, Ellis RE, Wilson DR (2006) Patellofemoral joint kinematics in individuals with and without patellofemoral pain syndrome. J Bone Joint Surg Am 88:2596–2605

    Article  CAS  PubMed  Google Scholar

  22. Malek MM, Mangine RE (1981) Patellofemoral pain syndromes: a comprehensive and conservative approach. J Orthop Sports Phys Ther 2:108–116

    Article  CAS  PubMed  Google Scholar

  23. McNally EG, Ostlere SJ, Pal C, Phillips A, Reid H, Dodd C (2000) Assessment of patellar maltracking using combined static and dynamic MRI. Eur Radiol 10:1051–1055

    Article  CAS  PubMed  Google Scholar

  24. Merchant AC (1990) Patellofemoral malalignment and instabilities. In: Ewing JW (ed) Articular cartilage and knee joint function: basic science and arthroscopy. Raven Press Ltd, New York, pp 79–91

    Google Scholar

  25. Nha KW, Papannagari R, Gill TJ (2008) In vivo patellar tracking: clinical motions and patellofemoral indices. J Orthop Res 26:1067–1074

    Article  PubMed Central  PubMed  Google Scholar

  26. O’Donnell P, Johnstone C, Watson M, McNally E, Ostlere S (2005) Evaluation of patellar tracking in symptomatic and asymptomatic individuals by magnetic resonance imaging. Skeletal Radiol 34:130–135

    Article  PubMed  Google Scholar

  27. Powers CM, Ward SR, Fredericson M et al (2003) Patellofemoral kinematics during weight-bearing and non-weightbearing knee extension in persons with lateral subluxation of the patella: a preliminary study. J Orthop Sports Phys Ther 33:677–685

    Article  PubMed  Google Scholar

  28. Reider B (1999) The orthopaedic physical examination. In: Reider B (ed) The knee. WB Saunders Company, Philadelphia, pp 201–248

    Google Scholar

  29. Selfe J (2000) Peak 5 motion analysis of an eccentric step test performed by 100 normal subjects. Physiotherapy 86:241–247

    Article  Google Scholar

  30. Stickland A (1985) Examination of the knee joint. Physiotherapy 70:144–150

    Google Scholar

  31. Waldron VD (1983) A test for chondromalacia patellae. Orthop Rev 12:103

    Google Scholar

  32. Wilson NA, Press JM, Koh JL (2009) In vivo noninvasive evaluation of abnormal patellar tracking during squatting in patients with patellofemoral pain. J Bone Joint Surg Am 91:558–566

    Article  PubMed Central  PubMed  Google Scholar

Download references

Conflict of interest

None.

Ethical standard

Ethics committee approvals were obtained.

Author information

Affiliations

  1. Department of Orthopaedics Surgery, Faculty of Medicine, Siriraj Hospital, Mahidol University, Siriraj Hospital 2 Prannok Road Bangkoknoi, Bangkok, 10700, Thailand

    Rapeepat Narkbunnam, Keerati Chareancholvanich & Thossart Hanroongroj

Authors
  1. Rapeepat Narkbunnam
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Keerati Chareancholvanich
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Thossart Hanroongroj
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Rapeepat Narkbunnam.

Rights and permissions

Reprints and Permissions

About this article

Cite this article

Narkbunnam, R., Chareancholvanich, K. & Hanroongroj, T. Sagittal plane evaluation of patellofemoral movement in patellofemoral pain patients with no evidence of maltracking. Knee Surg Sports Traumatol Arthrosc 23, 986–990 (2015). https://doi.org/10.1007/s00167-013-2782-7

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s00167-013-2782-7

Key words

  • Patellofemoral pain
  • Patellar movement
  • Patellar tracking
  • Radiographic study
