Variability in knee laxity in anterior cruciate ligament deficiency using a mechanized model

Knee Surgery, Sports Traumatology, Arthroscopy volume 21, pages 784–788 (2013)Cite this article

Abstract

Purpose

To establish normative values for the magnitude of anterior tibial translation (ATT) in the Lachman and pivot shift tests in the intact and anterior cruciate ligament (ACL)-deficient states, and to explore whether a correlation in ATT magnitude exists between the Lachman and pivot shift tests.

Methods

Twenty-six fresh frozen cadaveric hip-to-toe specimens were used. Mechanized testing was performed to simulate both a Lachman and pivot shift test with the ACL intact. Tests were repeated after sectioning the ACL. ATT was recorded using a computer navigation system. Difference in ATT after sectioning was calculated for each specimen.

Results

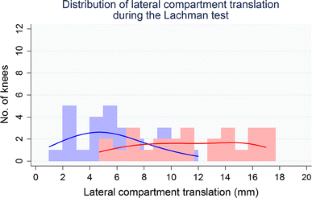

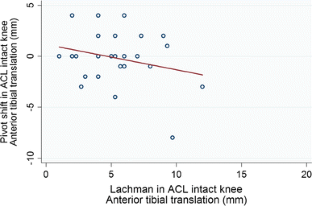

For the Lachman, mean lateral compartment ATT in the intact knee was 5.3 mm (SD = 2.8 mm). After sectioning the ACL, translation increased to 11.4 mm (SD = 3.9 mm; P < 0.05). For the mechanized pivot shift, mean lateral compartment ATT in the intact knee was −0.2 mm (SD = 2.6 mm). After sectioning the ACL, translation increased to 8.2 mm (SD = 3.1 mm; P < 0.05). No correlation in the magnitude of ATT was found between the intact and ACL-deficient knees for either the Lachman or pivot shift tests, or between both tests (Cronbach’s α < 0.7).

Conclusions

No correlation was found between the Lachman and pivot shift test in both the intact and ACL-deficient knee. This suggests that the Lachman cannot be used as a surrogate for the pivot shift as the magnitude of the Lachman did not predict the magnitude of the pivot shift.
