Extended sagittal saw cut significantly reduces fracture load in cementless unicompartmental knee arthroplasty compared to cemented tibia plateaus: an experimental cadaver study

Knee Surgery, Sports Traumatology, Arthroscopy volume 20, pages 1087–1091 (2012)Cite this article

Abstract

Purpose

Periprosthetic tibial plateau fractures represent a rare but serious complication in unicompartmental knee arthroplasty and are associated with extended sagittal tibial bone cuts. These can occur during the surgery, weaken the posterior cortex of the tibia and are associated with periprosthetic tibial plateau fractures. Although excellent long-term results have been reported with cemented unicompartmental knee arthroplasty, there is high interest in cementless fixation. The aim of the study was to compare fracture loads of cementless and cemented unicompartmental knee arthroplasty.

Methods

Tibial components of the Oxford Uni were implanted in six paired fresh-frozen tibiae with a defined extended saw cut (10°) at the dorsal cortex of each specimen. In one set, surgery was performed with cement fixation, and in the other, cementless components were implanted. Vertical loads were then applied under standardised conditions to fracture the specimens.

Results

Median loads of 3.7 (0.7–6.9) kN led to fractures in the cemented group, whereas cementless fixated tibiae fractured with a median load of 1.6 (0.2–4.3) kN (P = 0.02).

Conclusion

The loading capacity in tibiae with cementless components is significantly less compared to cemented fixation. The results show that in case of an extended sagittal bone cut patients especially those with poor bone quality who are treated with a cementless unicompartmental knee arthroplasty are at higher risk for periprosthetic tibial fractures.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

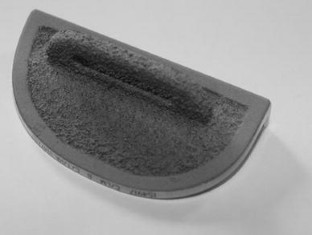

Fig. 1

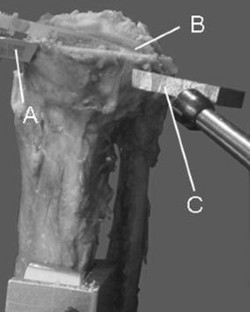

Fig. 2

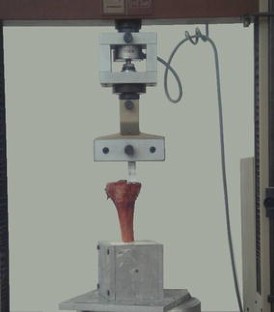

Fig. 3
Fig. 4
Fig. 5

References

  1. Aldinger PR, Clarius M, Murray DW, Goodfellow JW, Breusch SJ (2004) Die mediale schlittenprothese mit mobilem Polyethylenmeniskus: “Oxford uni”. Orthopäde 33:1277–1283

    PubMed  Article  CAS  Google Scholar

  2. Berger RA, Meneghini RM, Jacobs JJ, Sheinkop MB, Della Valle CJ, Rosenberg AG, Galante JO (2005) Results of unicompartmental knee arthroplasty at a minimum of ten years of follow-up. J Bone Jt Surg 87-A(5):999–1006

    Article  Google Scholar

  3. Bruni D, Iacono F, Russo A, Zaffagnini S, Marcheggiani Muccioli GM, Bignozzi S, Bragonzoni L, Marcacci M (2010) Minimally invasive unicompartmental knee replacement: retrospective clinical and radiographic evaluation of 83 patients. Knee Surg Sports Traumatol Arthrosc 18(6):710–717

    PubMed  Article  Google Scholar

  4. Clarius M, Aldinger PR, Bruckner T, Seeger JB (2009) Saw cuts in unicompartmental knee arthroplasty: an analysis of Sawbone preparations. Knee 16(5):314–316

    PubMed  Article  Google Scholar

  5. Clarius M, Haas D, Aldinger PR, Jaeger S, Jakubowitz E, Seeger JB (2010) Periprosthetic tibial fractures in unicompartmental knee arthroplasty as a function of extended sagittal saw cuts: an experimental study. Knee 17(1):57–60

    PubMed  Article  CAS  Google Scholar

  6. Forsythe ME, Englund RE, Leighton RK (2000) Unicondylar knee arthroplasty: a cementless perspective. Can J Surg 43(6):417–424

    PubMed  CAS  Google Scholar

  7. Goodfellow J, O’Connor J, Murray DW (2002) The Oxford meniscal unicompartmental knee. J Knee Surg 15(4):240–246

    PubMed  Google Scholar

  8. Pandit H, Jenkins C, Beard DJ, Gallagher J, Price AJ, Dodd CA, Goodfellow JW, Murray DW (2009) Cementless Oxford unicompartmental knee replacement shows reduced radiolucency at one year. J Bone Joint Surg Br 91(2):185–189

    PubMed  Article  CAS  Google Scholar

  9. Pandit H, Murray DW, Dodd CA, Deo S, Waite J, Goodfellow J, Gibbons CL (2007) Medial tibial plateau fracture and the Oxford unicompartmental knee. Orthopedics 30(5 Suppl):28–31

    PubMed  Google Scholar

  10. Panisello JJ, Herrero L, Canales V, Herrera A, Martinez AA, Mateo J (2009) Long-term remodeling in proximal femur around a hydroxyapatite-coated anatomic stem: ten years densitometric follow-up. J Arthroplast 24(1):56–64

    Article  Google Scholar

  11. WJ PriceAJ, Svard U (2005) Long-term clinical results of the medial Oxford unicompartmental knee arthroplasty. Clin Orthop Rel Res 435:171–180

    Google Scholar

  12. Riddle DL, Jiranek WA, McGlynn FJ (2008) Yearly incidence of unicompartmental knee arthroplasty in the United States. J Arthroplast 23(3):408–412

    Article  Google Scholar

  13. Robertsson O, Knutson K, Lewold S, Lidgren L (2001) The routine of surgical management reduces failure after unicompartmental knee arthroplasty. J Bone Jt Surg Br 83(1):45–49

    Article  CAS  Google Scholar

  14. Rudol G, Jackson MP, James SE (2007) Medial tibial plateau fracture complicating unicompartmental knee arthroplasty. J Arthroplast 22(1):148–150

    Article  Google Scholar

  15. MJ SchwarzJT, Engh CA (1989) Femoral fracture during non-cemented total hip arthroplasty. J Bone Jt Surg 71-A(8):1135–1142

    Google Scholar

  16. Skwara A, Figiel J, Knott T, Paletta JR, Fuchs-Winkelmann S, Tibesku CO (2009) Primary stability of tibial components in TKA: in vitro comparison of two cementing techniques. Knee Surg Sports Traumatol Arthrosc 17(10):1199–1205

    PubMed  Article  Google Scholar

  17. Svard UC, Price AJ (2001) Oxford medial unicompartmental knee arthroplasty. A survival analysis of an independent series. J Bone Jt Surg Br 83(2):191–194

    Article  CAS  Google Scholar

  18. Thomsen M, Jakubowitz E, Seeger J, Lee C, Clarius M (2006) Periprosthetic fractures in older patients. Z Orthop Ihre Grenzgeb 144(5):442–443

    PubMed  Article  Google Scholar

  19. Thomsen MN, Jakubowitz E, Seeger JB, Lee C, Kretzer JP, Clarius M (2008) Fracture load for periprosthetic femoral fractures in cemented versus uncemented hip stems: an experimental in vitro study. Orthopedics 31:653

    PubMed  Google Scholar

  20. Tsuji T, Kitano K, Yamano Y, Sato T, Koike T (2001) Distribution of bone mineral density in the proximal tibia in mid-teens. J Bone Miner Metab 19(5):324–328

    PubMed  Article  CAS  Google Scholar

  21. Woo SL, Orlando CA, Camp JF, Akeson WH (1986) Effects of postmortem storage by freezing on ligament tensile behavior. J Biomech 19(5):399–404

    PubMed  Article  CAS  Google Scholar

Download references

Conflict of interest

The study was partially supported by Biomet, and the authors of the study disclose the following financial relationships to the company: Dr. Clarius serves as a paid consultant for Aesculap and Biomet and has received research or institutional support from Biomet. However, Aesculap or Biomet did not exert an influence on the study methods, results, or interpretation of the data. The study was supported by a research fund of the University of Heidelberg.

Author information

Affiliations

  1. Center for Musculoskeletal Surgery, University of Berlin, Charitéplatz 1, 10117, Berlin, Germany

    J. B. Seeger, E. Röhner & S. Tohtz

  2. Laboratory of Biomechanics and Implant Research, University of Heidelberg, Schlierbacher Landstrasse 200a, 69118, Heidelberg, Germany

    J. B. Seeger, D. Haas, S. Jäger & M. Clarius

  3. Department of Orthopaedic and Trauma Surgery, Vulpius Klinik GmbH, Vulpiusstraße 29, 74906, Bad Rappenau, Germany

    M. Clarius

Authors
  1. J. B. Seeger
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. D. Haas
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. S. Jäger
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. E. Röhner
    View author publications

    You can also search for this author in PubMed Google Scholar

  5. S. Tohtz
    View author publications

    You can also search for this author in PubMed Google Scholar

  6. M. Clarius
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to M. Clarius.

Rights and permissions

Reprints and Permissions

About this article

Cite this article

Seeger, J.B., Haas, D., Jäger, S. et al. Extended sagittal saw cut significantly reduces fracture load in cementless unicompartmental knee arthroplasty compared to cemented tibia plateaus: an experimental cadaver study. Knee Surg Sports Traumatol Arthrosc 20, 1087–1091 (2012). https://doi.org/10.1007/s00167-011-1698-3

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s00167-011-1698-3

Keywords

  • Tibial plateau fracture
  • Periprosthetic
  • Cementless
  • Unicompartmental knee
  • Saw cut
  • Fracture load
