Improvements in surgical technique of valgus high tibial osteotomy

Knee Surgery, Sports Traumatology, Arthroscopy volume 11, pages 132–138 (2003)Cite this article

Abstract

We present four technical modifications of high tibial osteotomy which improve its safety and reproducibility. (a) Open wedge correction: opening wedge osteotomy from the medial side avoids lateral muscle detachment, dissection of the peroneal nerve, proximal fibula osteotomy, and leg shortening; only one osteotomy needs to be performed and the correction can be adapted intraoperatively. (b) Biplanar osteotomy: in addition to the transverse osteotomy of the posterior tibia a second ascending osteotomy in the coronary plane underneath the tibial tuberosity is performed. This provides improved rotational stability of the osteotomy and creates an anterior buttress against sagittal tilting of the osteotomy planes. (c) Incomplete osteotomy with plastic deformation of the tibia: 10 mm of lateral bone stock is left intact. The osteotomy is opened gradually over several minutes by sequential impaction of flat chisels or by use of a special spreading tool. Manifest fractures of the lateral cortex with resulting instability are avoided. Rapid bone healing is promoted. (d) Rigid fixation: stable osteosynthesis allows for early mobilization and avoids losses-of-correction. We use a medial plate-fixator which can be applied percutanously. In 112 patients operated on using this modified technique no pseudarthosis or loss-of-correction was observed.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

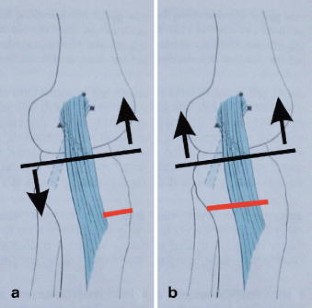

Fig. 1a–c.
Fig. 2a, b.
Fig. 3a, b.
Fig. 4.
Fig. 5a, b.
Fig. 6a–c.
Fig. 7.

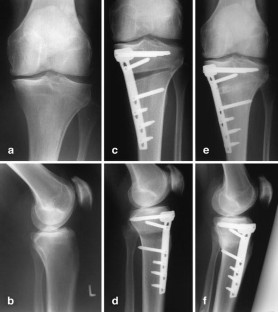

Fig. 8a–f.

References

  1. Agneskirchner JD, Brucker P, Burkart A, Imhoff AB (2002) Large osteochondral defects of the femoral condyle: press-fit transplantation of the posterior femoral condyle (MEGA-OATS). Knee Surg Sports Traumatol Arthrosc 10:160–168

    Article  PubMed  Google Scholar

  2. Aydogdu S, Cullu E, Arac N, Varolgunes N, Sur H (2000) Prolonged peroneal nerve dysfunction after high tibial osteotomy: pre- and postoperative electrophysiological study. Knee Surg Sports Traumatol Arthrosc 8:305–308

    Article  CAS  PubMed  Google Scholar

  3. Coventry MB (1973) Osteotomy about the knee for degenerative and rheumatoid arthritis. J Bone Joint Surg Am 55:23–48

    CAS  PubMed  Google Scholar

  4. Coventry MB (1979) Upper tibial osteotomy for gonarthrosis. The evolution of the operation in the last 18 years and long term results. Orthop Clin North Am 10:191–210

    CAS  PubMed  Google Scholar

  5. Coventry MB (1988) Proximal tibial osteotomy. Orthop Rev 17:456–458

    CAS  PubMed  Google Scholar

  6. Dejour H, Bonnin M (1994) Tibial translation after anterior cruciate ligament rupture. Two radiological tests compared. J Bone Joint Surg Br 76:745–749

    CAS  PubMed  Google Scholar

  7. Deshmukh RV, Scott RD (2001) Unicompartmental knee arthroplasty: long-term results. Clin Orthop 392:272–278

    PubMed  Google Scholar

  8. De Simoni C, Staubli A (2000) Neue Fixationstechniken für mediale open-wedge Osteotomien der proximalen Tibia. Schweiz Med Wochenschr 119:130

    Google Scholar

  9. Fujisawa Y, Masuhara K, Shiomi S (1979) The effect of high tibial osteotomy on osteoarthritis of the knee. An arthroscopic study of 54 knee joints. Orthop Clin North Am 10:585–608

    CAS  PubMed  Google Scholar

  10. Gilbert JE (1998) Current treatment options for the restoration of articular cartilage. Am J Knee Surg 11:42–46

    CAS  PubMed  Google Scholar

  11. Hassenpflug J, von Haugwitz A, Hahne HJ (1998) [Long-term results of tibial head osteotomy]. Z Orthop Ihre Grenzgeb 136:154–161

    CAS  PubMed  Google Scholar

  12. Insall JN, Joseph DM, Msika C (1984) High tibial osteotomy for varus gonarthrosis. A long-term follow-up study. J Bone Joint Surg Am 66:1040–1048

    CAS  PubMed  Google Scholar

  13. Ivarsson I, Myrnerts R, Gillquist J (1990) High tibial osteotomy for medial osteoarthritis of the knee. A 5 to 7 and 11 year follow-up. J Bone Joint Surg Br 72:238–244

    PubMed  Google Scholar

  14. Johnson LL (1986) Arthroscopic abrasion arthroplasty historical and pathologic perspective: present status. Arthroscopy 2:54–69

    CAS  PubMed  Google Scholar

  15. Lobenhoffer P (1999) Chronic instability after posterior cruciate ligament injury. Tactics, techniques, and results. Unfallchirurg 102:824–838

    CAS  PubMed  Google Scholar

  16. Lootvoet L, Massinon A, Rossillon R, Himmer O, Lambert K, Ghosez JP (1993) Upper tibial osteotomy for gonarthrosis in genu varum. Apropos of a series of 193 cases reviewed 6 to 10 years later. Rev Chir Orthop Reparatrice Appar Mot 79:375–384

    CAS  PubMed  Google Scholar

  17. Maquet P (1976) Valgus osteotomy for osteoarthritis of the knee. Clin Orthop 120:143–148

    Google Scholar

  18. McGinley BJ, Cushner FD, Scott WN (1999) Debridement arthroscopy. 10-year followup. Clin Orthop 367:190–194

    PubMed  Google Scholar

  19. Odenbring S, Egund N, Knutson K, Lindstrand A, Larsen ST (1990) Revision after osteotomy for gonarthrosis. A 10–19-year follow-up of 314 cases. Acta Orthop Scand 61:128–130

    CAS  PubMed  Google Scholar

  20. Slocum B, Devine T (1983) Cranial tibial thrust: a primary force in the canine stifle. J Am Vet Med Assoc 183:456–459

    CAS  PubMed  Google Scholar

  21. Yasuda K, Majima T, Tsuchida T, Kaneda K (1992) A ten- to 15-year follow-up observation of high tibial osteotomy in medial compartment osteoarthrosis. Clin Orthop 282:186–195

    Google Scholar

Download references

Acknowledgements

The continuous effort to improve the technique of this procedure has been substantially helped by discussions during the expert courses offered by the Arbeitsgemeinschaft für Osteosynthesefragen (AO) in 2000 and 2001 and especially by the work of the Knee Expert Group of the AO. The contributions of A. Gächter, R.P. Jakob, P. Holzach, A. Staubli, C. De Simoni, and A. Wymenga are acknowledged.

Author information

Affiliations

  1. Department of Trauma and Reconstructive Surgery, Henriettenstiftung Hannover, Marienstrasse 72–90, 30171, Hanover, Germany

    Philipp Lobenhoffer & Jens D. Agneskirchner

Authors
  1. Philipp Lobenhoffer
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Jens D. Agneskirchner
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Philipp Lobenhoffer.

Rights and permissions

Reprints and Permissions

About this article

Cite this article

Lobenhoffer, P., Agneskirchner, J.D. Improvements in surgical technique of valgus high tibial osteotomy. Knee Surg Sports Traumatol Arthrosc 11, 132–138 (2003). https://doi.org/10.1007/s00167-002-0334-7

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s00167-002-0334-7

Keywords

  • High tibial osteotomy
  • Varus malalignment
  • Unicompartimental osteoarthritis
  • Open wedge osteotomy
  • Osteosynthesis
