Chapter 2. Surge capacity and infrastructure considerations for mass critical care

Abstract

Purpose

To provide recommendations and standard operating procedures for intensive care unit (ICU) and hospital preparations for a mass disaster or influenza epidemic with a specific focus on surge capacity and infrastructure considerations.

Methods

Based on a literature review and expert opinion, a Delphi process was used to define the essential topics including surge capacity and infrastructure considerations.

Results

Key recommendations include: (1) hospitals should increase their ICU beds to the maximal extent by expanding ICU capacity and expanding ICUs into other areas; (2) hospitals should have appropriate beds and monitors for these expansion areas; hospitals should develop contingency plans at the facility and government (local, state, provincial, national) levels to provide additional ventilators; (3) hospitals should develop a phased staffing plan (nursing and physician) for ICUs that provides sufficient patient care supervision during contingency and crisis situations; (4) hospitals should provide expert input to the emergency management personnel at the hospital both during planning for surge capacity as well as during response; (5) hospitals should assure that adequate infrastructure support is present to support critical care activities; (6) hospitals should prioritize locations for expansion by expanding existing ICUs, using postanesthesia care units and emergency departments to capacity, then step-down units, large procedure suites, telemetry units and finally hospital wards.

Conclusions

Judicious planning and adoption of protocols for surge capacity and infrastructure considerations are necessary to optimize outcomes during a pandemic.

Introduction

The type of the mass casualty event (MCE) is a major determinant of the demands on a hospital. For 2009 H1N1 influenza, the impact on ICU services varied considerably. The proportion of ICU beds occupied by patients with H1N1 peaked at 9–19% in Australia and New Zealand [1], but ICU services in Mexico were overwhelmed, and many patients required ventilation outside ICUs [2].

• 1. Purpose: to describe a stepwise approach to intensive care infrastructure expansion in response to a pandemic or disaster. This stepwise approach should be used for events of any scale and for both sudden (e.g., bomb detonation) or gradual events (e.g., pandemic influenza).

• 2. Scope: using examples and general recommendations, provide templates for intensive care unit (ICU) and isolation area expansion including consideration of central system capacity expansion (such as oxygen). Recent recommendations have called for institutions to prepare for at least a 300% increase in ICU capacity beyond baseline during a pandemic or catastrophic disaster [3]. This level of expansion of space and services is not achievable without significant prior planning/preparedness activities. Institutions should define their own capacities and capabilities. Defining specific limitations (e.g., shortage of available ventilators), sources to mitigate these shortfalls (e.g., national stockpile, institutional cache) and a strategy for accepting/using outside resources to expand capacity is critical to response success. This document cannot account for operational planning details at individual institutions, but aims to provide a brief, general overview of key issues to be addressed during events requiring critical care surge capacity generation. Hospitals should create their own specific plans according to hospital size, role in the community and the hazards recognized in the community. Hospitals may refer to recent articles for surge capacity frameworks [4, 5] and crisis patient care decision frameworks [6, 7].

• 3. Goals and objectives: describe the basis for institutional standard operating procedures (SOP) for ICU and isolation space expansion using templates. Provide recommendations for expansion of oxygen capacity and continuity of infrastructure operation.

Definitions

• 1. Mass casualty event: an event generating a large number of victims that does not generate demand exceeding the facility or community resources.

• 2. Disaster: an event generating large numbers of victims that exceed usual hospital and/or community resources and requires changes in the usual practices to meet demand (usually short term). Usually implies temporary communications and resource shortfalls and a temporary lack of situational awareness. Note that a MCE is not equivalent to a disaster, and increased capacity and preparedness increase facility surge capacity for larger patient volumes before a MCE becomes a disaster.

• 3. Crisis standard of care: a substantial change in usual health care operations and the level of care it is possible to deliver, made necessary by a pervasive (e.g., pandemic influenza) or catastrophic (e.g., earthquake, hurricane) disaster. This change in the level of care delivered is justified by specific circumstances and is formally declared by government entities. The formal declaration that crisis standards of care are in operation enables specific legal/regulatory powers and protections for health care providers in the necessary tasks of allocating and using scarce medical resources [7].

• 4. Surge capacity: three functional components of surge capacity exist (Fig. 1) [5, 7].

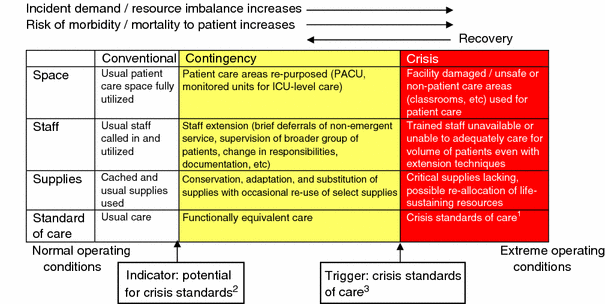

  Fig. 1



  Continuum of surge capacity (reprinted with permission from Guidance for Establishing Crisis Standards of Care for Use in Disaster Situations, 2009, by the National Academy of Sciences, Courtesy of the National Academies Press, Washington, DC) [3] Post Anesthesia Care Unit (PACU); Intensive Care Unit (ICU). 1 Unless temporary, requires state empowerment, clinical guidance, and protection for triage decisions and authorization for alternate care sites/techniques. Once situational awareness has been achieved, triage decisions should be as systematic and integrated into institutional process, review and documentation as possible. 2 Institutions consider impact on the community of resource use (consider “greatest good” versus individual patient needs, e.g., conserve resources when possible), but patient-centered decision making is still the focus. 3 Institutions (and providers) should make triage decisions balancing the availability of resources to others and the individual patient’s needs—shift to community—centered decision making

• a. Conventional: using usual patient care spaces, resources and practices.

• b. Contingency: using adapted areas of the facility for ICU services (procedure areas, post-anesthesia care, operative suites, stepdown units) including adaptations to standard staffing and resource practices to provide functionally equivalent medical care, with minimal increase in risk to the patient.

• c. Crisis: providing sufficient care under the circumstances with significant changes to standard staffing and resource practices (e.g., using an oxygen-saturation monitor with high/low rate alarms instead of usual cardiac and other monitors, tiered staffing so one nurse/physician with critical care expertise supervises several staff with lesser degrees of training that provide the bedside care) that may significantly impact patient morbidity and mortality.

Basic assumptions

• 1. An incident management system (Hospital Incident Command System or alternative nationally compliant system) [8, 9] is in place at the facility. This assures that in addition to using appropriate incident command positions and terminology that the process of management by objectives and utilization of formal and practiced planning cycles to generate incident action plans (IAP) for the next operational period is followed. The Hospital Emergency Executive Control Group coordinates these activities (see Chap. 3: Coordination and collaboration of interface units).

• 2. Coordination agreements and systems with neighboring/regional health care facilities are put in place [10] by the Local, Regional or National Emergency Executive Control Group (see Chap. 3: Coordination and collaboration of interface units). These may cross jurisdictional and even national boundaries. The importance of resource-balancing across multiple institutions cannot be overemphasized. During a single-site event, expedient patient transfer to those facilities with resources provides the best care possible, and during a pervasive event (such as a pandemic), inter-facility coordination assures a consistent standard of care across a given region. ‘Regions’ are usually defined functionally for hospitals rather than geographically (as is the case for emergency management), and planning should include usual referral partners regardless of geographic boundaries.

• 3. The hospital has an ICU, operating rooms, post-anesthesia care, stepdown/intermediate care units and procedure areas (may include respiratory/gastrointestinal procedure rooms or outpatient surgery/procedure areas) [11–13]

• 4. The hospital has prepared for MCEs including stockpiling equipment, medications and basic supplies [11, 12]. This should include planning for special populations regardless of the hospital’s role in the community (for example, a hospital that does not usually provide burn or pediatric care may have to provide care for these patients during an incident that overwhelms or damages usual community resources).

• 5. The hospital has one ventilator per critical care bed [12] but can obtain limited additional ventilators within 6–12 h.

Lines of authority

• 1. The hospital incident manager [9] has overall decision-making authority to implement surge capacity or any other systematic decisions involved in the response. Depending on the organization of the system, the hospital incident manager optimally may answer to (or at least coordinate with) an over-arching governmental entity and be providing institutional direction informed by higher level situational awareness and objectives. Critical care staff (unit nursing supervisor or physician depending on availability) at hospitals should be prepared to act within their authority to:

  • a. Inform the incident manager about the status and capacity of ICU services and their resource needs. These updates should occur as soon as possible after event declaration and be updated every few hours until the influx of patients has stabilized (after a no-notice event) at which point twice-daily reporting is likely to be sufficient unless specific circumstances require an update.

  • b. Transfer patients within the facility as needed to open critical care space.

  • c. Work with unit managers from other hospital departments to implement pre-determined strategies for critical care surge capacity (Table 1).

    Table 1 Sample priority actions to generate surge capacity at ‘City Hospital’

  • d. Provide information to the incident manager about patients that could be safely transferred to other institutions. The incident manager should have a planned mechanism to coordinate this information with other institutions and arrange appropriate transfer and transportation.

  • e. Change staffing patterns and hours to provide the most appropriate coverage based on the demands of the incident.

Concepts of operations

• 1. Critical care surge capacity—critical care is expanded across a continuum of physical space reflected below from conventional to crisis capacity.

The institutional plan should provide for a phased expansion of critical care appropriate to the incident demands. Hospitals should be able to increase their ICU beds to the maximal extent by expanding ICUs and other areas with appropriate beds and monitors. Increases beyond 25% over usual capacity are unlikely with the current H1N1 virus. Future mutations, outbreaks or MCE may require maximum feasible expansion of capacity. This maximal feasible number will vary between institutions and countries, and be determined by the number of excess ICU patients, the usual ICU bed proportion of the total population and the maximum feasible expansion. As noted above, one group recommended a 300% expansion target, but many facilities may not be able to reach this target [3] and should consider phased expansion to double capacity.

• a. Conventional: involves spaces usually used for critical care. Occupancy and staffing of existing beds is maximized, including moving appropriate patients to step-down care from ICU (facilitated by having pre-existing ‘bump lists’), increasing staffing through call-backs and holding staff as needed. This should be coupled with hospital-wide implementation of the same strategies of maximal bed use including ‘surge discharge’ that prioritize floor patients for early discharge or movement to other holding areas/hall beds per unit protocol so that adequate space can be created for ICU patient transfers [14, 15]. Discharge holding areas should be pre-identified, and processes for patient assessment and rapid discharge should be in place if patients are to move efficiently between the emergency department (ED)/accident and emergency (A&E), operating suites, ICUs and inpatient floors. For example, a lounge or waiting area may be designated as an area where patients designated for early discharge can be moved while awaiting final orders, medications and transportation in order to more quickly make these beds available for incoming patients. This is of particular utility in a ‘no-notice’ or sudden event. During a more prolonged event, selective admission and surgical strategies (deferring elective procedures and selective scheduling of other procedures) will be of prominent value in maintaining maximal critical care resources.

• b. Contingency: utilizes spaces that can provide comparable services to true ICU beds with supervising staff that have critical care skills. This would include use of pre- and post-anesthesia care units (PACU), operating suites (especially in procedure areas), procedure rooms [gastroenterology (GI), respiratory, interventional radiology], step-down units/monitored units and potentially emergency department beds (though competing priorities for use will impact incident manager decisions about which spaces to use). The overall objective is to concentrate care for the least stable and most critically ill in the conventional critical care areas and move those that are more stable or with lower resource requirements to other areas of care. Key infrastructure features include the ability to provide usual cardiac and oxygen saturation monitoring, intravenous medications and drips and mechanical ventilation [11–13]. In preparing hospitals for a crisis, locations should be prioritized in the following order: expanding existing ICUs, postanesthesia care units and emergency departments to capacity, then step-down units, large procedure suites, telemetry units and finally hospital wards [12]. Infection control personnel should create a phased plan to accommodate larger numbers of patients with highly infectious diseases as this may be different than planning for patients that do not require isolation.

Hospitals should balance ICU needs and the potential decreasing benefits of increasing ICU capacity (because of excess workload) with other hospital needs that may suffer more as services are depleted. Staff for these areas (anesthesia, surgery, critical care, emergency) should have a high degree of comfort managing the critically ill, at least on a short-term basis. Hospital incident ‘worksheets’ should be developed that map and prioritize care areas for use based on ability to monitor the patient rooms, proximity to existing critical care or step-down units, and institution-specific factors (for example, PACU and pre-anesthesia care first, followed by conversion of step-down unit to ICU level care, etc.) (Table 2). Staff and equipment considerations should be pre-planned so that critical care staff can supervise overall care for critical patients while reducing their hands-on patient care responsibilities (‘increasing the altitude of supervision’ to oversee a larger number of patients) [11, 12]. Ventilators are expensive and difficult to stockpile, but contingency plans at the facility and government (local, state, provincial, national) levels should provide for some additional ventilators. Planned criteria for re-distribution of equipment (use of oxygen saturation monitors restricted to those that are on ventilators or on high-flow oxygen, for example, with spot checks for others) or conservation of equipment (what medications should be given by pumps vs. those that can safely be given by gravity flow) may facilitate implementation during an event [3, 16]. Prioritization of support services (minimizing tests ordered, laboratory and radiology restricting services to essential tests and diagnostics, use of alternative diagnostics—for example, ultrasound rather than computed tomography for abdominal imaging) is also required and should be institution-wide. Restrictions on utilization of diagnostics (laboratory, radiology) should increase with demand in pre-planned phases. The phased response for H1N1 may last several weeks [1, 2].

Table 2 Sample surge capacity worksheet for critical care supervisor at large hospital: City Hospital Critical Care Surge Capacity Worksheet

• c. Crisis: provision of ‘sufficient’ critical care in areas that are not designed for high-intensity care, for example, using floor beds with an oxygen saturation monitor (with high/low rate and low saturation alarms) for a patient on a ventilator and using staff that do not have significant training in critical care to provide basic care (basic nursing care, vital signs monitoring, etc.) with an even higher ‘altitude’ of the critical care nurses and physicians supervising these providers (e.g., critical care nursing and physician staff round on the patients at scheduled intervals to provide guidance to the primary nursing and physician staff and are available for consultation/questions). Should demand exceed resource capacity for specific equipment (e.g., ventilators, extra-corporeal membrane oxygenation equipment), with no resources expected and no transfers possible [7, 17], triage processes should be implemented that have been pre-planned to the extent possible and are consistent with the community standard of care and any state, provincial or national guidance.

Central system considerations

• 1. Oxygen

• a. Remodeling or building projects at a hospital should consider incorporating oxygen ports (or extra ports) into patient rooms, meeting rooms, etc., to facilitate conversion to patient care areas or the accommodation of additional beds in usual areas. However, safety considerations are paramount, as these systems may not be used often and yet still require regular inspection and testing. Multi-patient regulators are available that can serve multiple patients on variable oxygen flow rates from a single wall port, and these may be useful for providing cohort care, particularly in flat-space areas such as meeting rooms, etc. Though this does not provide critical care, it can open beds up that can be used for critical care and thus is a valuable part of planning.

• b. Hospitals should carefully consider limitations of the oxygen supply. Even if enough ventilators or oxygen flow meters are available such that every bed in the hospital would have one, the oxygen systems for most hospitals were not designed to provide such a supply and maintain pressure within the system. Continued supply and re-supply of liquid oxygen may be another limiting factor. Hospitals should examine their oxygen delivery and storage systems for vulnerabilities. Often, there are many potential points of failure within these systems with little redundancy or recovery. It may be to the institution’s advantage to duplicate liquid oxygen systems, ideally separated geographically, or at least equipped to allow an interface with a trailer-based liquid oxygen system should the primary fixed delivery system fail.

• 2. Suction/compressed air: suction and compressed air lines are a lower priority for incorporation into congregate care spaces (those providing low acuity non-ambulatory patient care); however, at least compressed air (and ideally suction) should be available for any spaces where mechanical ventilation is a consideration (i.e., patient rooms). Hand-held and battery-operated suction units are available and may have utility, though the availability of wall suction is far preferable because of superior performance.

• 3. Utilities

• a. Electricity: emergency generators at most hospitals do not have the capacity to power outlets in all patient rooms sufficiently for the monitors, ventilators and pumps necessary for critical care. Further, heating, air conditioning and ventilation systems (including negative flow systems) may not be included or adequately powered with emergency power circuits. Critical care staff should identify which systems and outlets are included in emergency power, which are not and what the maximum load is (just because outlets are marked for emergency use does not mean that the generators can support the electrical draw if many of these outlets are used at once). The hospital should plan with jurisdictional emergency management the types and quantities of generators necessary to effectively run the facility should primary power fail and have the necessary adaptors available to wire temporary generators into the hospital system [18].

• b. Water: clean water is required for many health care activities, including large volumes for hemodialysis. Hospital planners may be unaware of the water needs for critical care activities and should work with critical care to forecast needs and identify suppliers and an operating procedure.

• c. Continuity of operational planning: the ability of the institution to provide critical care depends on the maintenance of the operating infrastructure. Water and utilities are separated from these because of the specific considerations above, but the availability of lighting, communications, information technology, fire suppression, heating/ventilation/air conditioning, nutrition services, laboratory, radiology and many other support and infrastructure services is not assured and critical care planners should be familiar with planning for maintaining general hospital operations during outages and other incidents [19, 20].

Expansion of isolation capacity

• 1. Cohorting patients in the ICU environment: critical care personnel should understand which beds/locations are separately ventilated and meet negative airflow requirements. The goal of isolation should be considered; for special respiratory pathogens (such as SARS), functional negative flow is optimal; for droplet-borne diseases, simple isolation should suffice (physical separation of patients).

• 2. Creation of isolation spaces: in an epidemic event, cohorting patients with the infectious illness in a single unit or location is likely preferred, allowing these units to be treated as ‘isolation areas.’ Facilities should identify which units and areas can be separately ventilated with 100% exhaust to the outside and how temporary anterooms for staff changing/donning of personal protective equipment (PPE) can be facilitated should an airborne-transmitted pathogen be involved [21].

• 3. Cohorting of patients on wards/wings: depending on the scope of the epidemic, units, wings or the entire campus of the facility may have to be treated as an infectious area and may require constant use of PPE by staff and patients/visitors within these areas. Protocols (SOPs) within each institution should account for phased expansion of the use of these spaces (Table 3), facilitate screening and triage of persons on entrance to the facility, and use and monitoring of staff, patient and visitor PPE within these areas.

  Table 3 City Hospital SOP for critical care management of special pathogen patients

• 4. Fatality management: the health care facility should understand their interface with mass fatality plans existing in the community. Regardless of perceived jurisdictional capacity, the facility should have plans to temporarily and respectfully accommodate excess decedents in congruence with community values and applicable legal requirements. This may involve the use of refrigerated trailers or augmentation of existing spaces within the facility.

Functional roles and responsibilities of the internal personnel and interface agencies or sectors (these should be defined prior to the event and the specific actions to be taken listed in job action sheets or other resources that the care providers and incident management team can reference during an event)

• 1. Health Facility (Hospital) Emergency Executive Control Group: sets overall incident priorities, provides management decisions and prioritizes use of hospital staff and facilities to ensure best possible care for the greatest number of patients.

• 2. Critical care lead physician(s): provide planning expertise and technical assistance to the incident manager including information on resources (physical and staff) needed, patient status and patients that may be able to be transferred out of the facility (if receiving facilities can be identified), as well as the need to open contingency/crisis care spaces. They provides oversight to critical care activities. Other physicians supervise individual units and/or provide critical care depending on their role as assigned by the critical care supervisor.

• 3. Critical care nursing: nursing supervisor maintains overall patient (and ‘bump’) lists, transfer lists, manages nursing staff and shifts, facilitates bed changes/movements/transfers, and facilitates supply and resource requests to internal hospital departments (pharmacy, central supply, and hospital command center).

• 4. Ancillary staff: provide supply and resource support, maintain utilities, provide diagnostic services, food supply/nutrition and transfer/transport assistance.

• 5. Interface agencies

• a. Local Emergency Executive Control Group: assists with resource acquisition (particularly for non-medical supplies such as security personnel for traffic control, etc.), coordinates the response on the jurisdictional level, and depending on the regional construct may assist with arranging patient transfers. This group assists with Emergency Medical Services and other patient transportation resources.

• b. Health care systems: provide mutual aid including resources and staff to disproportionately affected hospitals. Depending on regional constructs, these systems ideally have a coordinating entity that establishes priorities of response and resource assignments, coordinates patient transfers, and works with other stakeholder agencies to obtain necessary staff, resources and emergency declarations. Hospital personnel should understand how these systems work in their area and practice using them prior to an event [3, 10].

Logistics support and requirements necessary for the effective implementation of the SOP

Incident management framework, institutional mobilization (disaster) plan, pre-existing phased implementation plans for capacity expansion, materials and resources appropriate to the plans (scope determined by institutional commitment and financial resources) and mechanism for monitoring, requesting and receiving resources [22–24] are required.

Maintenance of standard operating procedure

Development/adaptation of facility plans should include administrative and critical care stakeholders, review and vetting with other affected department staff [Accident & Emergency (A&E), operating room, stepdown units, and procedure areas, laboratory and radiology services, etc.], and preparedness activities supporting the SOP (materials acquisition, planning).

Recommended training and exercise activities

The initial development of the critical care surge plan should include a draft, with discussion, revision and a feedback cycle to the facility stakeholders. Once a draft plan is complete, a tabletop exercise should test basic assumptions of the plan with revision as needed. Initial orientation and training of staff on procedures should follow, and the plans should then be tested as realistically as possible in a functional exercise. After each exercise or event, an after-action review should identify areas for improvement and corrective actions. The SOP should be redrafted as needed based on the experiences, or additional preparedness/planning activities may need to occur. Education on these changes is conducted, and the plan exercised again. Too often hospital disaster exercises stop with the patients being processed through the ED/A&E and do not require inpatient decision-making.

Conclusion

Effective augmentation of critical care services at a hospital requires substantial planning prior to the event, with integration of planning efforts across multiple services at the hospital and the engagement of community and government partners. Development of a phased critical care expansion plan addressing staff, space and supplies in conjunction with hospital administration and emergency management personnel should be a priority with the ongoing 2009 H1N1 influenza pandemic.
