Wertigkeit von 3D-Sonographie und MRT des Meniskusschadens

Value of three-dimensional ultrasound and MRI in meniscal lesions

Der Orthopäde volume 35, pages 982–988 (2006)Cite this article

Zusammenfassung

Hintergrund

Ziel der hier durchgeführten prospektiven Studie ist die Feststellung der diagnostischen Sicherheit der dreidimensionalen (3D-)Sonographie bei Meniskusläsionen.

Material und Methoden

Es wurden 34 Sonographien (11,7-MHz-Linearschallkopf) unter Einsatz der 3D-Rekonstruktion klinisch vermuteter Meniskusläsionen durchgeführt. Im Vorfeld erfolgte die Anfertigung einer MRT, deren Bilder und Befund dem Untersucher nicht bekannt war. Der vom anfertigenden Radiologen erstellte Befund wurde zur späteren Auswertung herangezogen. Die Situation am Meniskus wurde arthroskopisch festgestellt und als Referenz herangezogen.

Ergebnisse

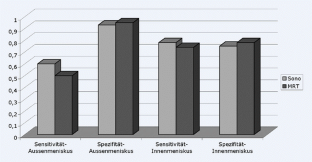

Arthroskopisch fanden sich 10 Außen- und 47 Innenmeniskusläsionen unterschiedlicher Lokalisationen. Die Sensitivität (0,5–0,78) und Spezifität (0,75–0,95) der beiden Untersuchungsverfahren war insgesamt vergleichbar.

Schlussfolgerung

Die Ultraschalltechnik inklusive 3D-Rekonstruktion und hoch auflösendem Schallkopf in der Hand des Erfahrenen erreicht eine ähnlich gute Diagnosesicherheit wie die MRT in einer allgemein radiologischen Untersuchung.

Abstract

Background

The aim of this prospective study was the evaluation of preoperative three-dimensional ultrasound in detecting meniscal lesions compared to preoperative MRI.

Methods

A total of 34 patients with clinical signs of meniscal lesions were examined preoperatively (11.7 MHz linear transducer) using the 3-D technique. Before ultrasound, MRI was performed, the results of which were unknown to the ultrasound examiner. The basis of the MRI result was the radiologist’s written report. Arthroscopically the meniscal situation was noted and taken as reference.

Results

At arthroscopy there were 10 lateral meniscal lesions at different locations and 47 medial meniscal lesions at different locations. The sensitivity (0.5–0.78) and specificity (0.75–0.95) of both imaging methods were overall comparable.

Conclusion

Ultrasound with the three-dimensional technique and high-resolution transducer in the hands of an experienced operator gives results comparable to the MRI interpretation by a general radiologist in detecting meniscal lesions.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

Abb. 1
Abb. 2
Abb. 3
Abb. 4
Abb. 5

Literatur

  1. Azzoni R, Cabitza P (2002) Is there a role for sonography in the diagnosis of tears of the knee menisci? J Clin Ultrasound 30(8): 472–476

    Article  PubMed  Google Scholar

  2. Bohnsack M, Ruhmann O, Sander-Beuermann A, Wirth CJ (1999) Comparison of clinical examination with NMR spectroscopy in the diagnosis of meniscal lesions in daily practice. Z Orthop Ihre Grenzgeb 137(1): 38–42

    PubMed  Google Scholar

  3. Bruce W, Lee TS, Sundarajan V et al. (2004) Performance characteristics of ultrasound of the knee in a general radiological setting. Knee 11(4): 303–306

    Article  PubMed  Google Scholar

  4. Casser HR, Sohn C, Kiekenbeck A (1990) Current evaluation of sonography of the meniscus. Results of a comparative study of sonographic and arthroscopic findings. Arch Orthop Trauma Surg 109(3): 150–154

    Article  PubMed  Google Scholar

  5. Costa CR, Morrison WB, Carrino JA (2004) Medial meniscus extrusion on knee MRI: is extent associated with severity of degeneration or type of tear? AJR Am J Roentgenol183(1): 17–23

    Google Scholar

  6. Court-Payen M (2004) Sonography of the knee: Intra-articular pathology. J Clin Ultrasound 32(9): 481–490

    Article  PubMed  Google Scholar

  7. De Maeseneer M, Lenchik L, Starok M et al. (1998) Normal and abnormal medial meniscocapsular structures: MR imaging and sonography in cadavers. AJR Am J Roentgenol 171(4): 969–976

    PubMed  Google Scholar

  8. Dorsay TA, Helms CA (2003) Bucket-handle meniscal tears of the knee: sensitivity and specificity of MRI signs. Skeletal Radiol 32(5): 266–272

    PubMed  Google Scholar

  9. Fischer SP, Fox JM, Del Pizzo W et al. (1991) Accuracy of diagnoses from magnetic resonance imaging of the knee. A multi-center analysis of one thousand and fourteen patients. J Bone Joint Surg Am 73(1): 2–10

    PubMed  Google Scholar

  10. Fusting M, Casser HR (1991) Dynamic examination technique in meniscus sonography. Sportverletz Sportschaden 5(1): 27–36

    PubMed  Google Scholar

  11. Gillies H, Seligson D (1979) Precision in the diagnosis of meniscal lesions: a comparison of clinical evaluation, arthrography, and arthroscopy. J Bone Joint Surg Am 61(3): 343–346

    PubMed  Google Scholar

  12. Jerosch J, Castro WH, de Waal Malefijt MC et al. (1997) Interobserver variation in diagnostic arthroscopy of the knee joint. „How really objective are arthroscopic findings“? Unfallchirurg 100(10): 782–786

    Article  PubMed  Google Scholar

  13. Jerosch J, Riemer S (2004) How good are clinical investigative procedures for diagnosing meniscus lesions? Sportverletz Sportschaden 18(2): 59–67

    Article  PubMed  Google Scholar

  14. Lee D, Bouffard JA (2001) Ultrasound of the knee. Eur J Ultrasound 14(1): 57–71

    Article  PubMed  Google Scholar

  15. Leotta DF, Martin RW (2000) Three-dimensional spatial compounding of ultrasound scans with weighting by incidence angle. Ultrason Imag 22(1): 1–19

    Google Scholar

  16. Leotta DF, Martin RW (2000) Three-dimensional ultrasound imaging of the rotator cuff: spatial compounding and tendon thickness measurement. Ultrasound Med Biol 26(4): 509–525

    Article  PubMed  Google Scholar

  17. Magee T, Williams D (2004) Detection of meniscal tears and marrow lesions using coronal MRI. AJR Am J Roentgenol 183(5): 1469–1473

    PubMed  Google Scholar

  18. Riedl S, Kuhner C, Tauscher A et al. (1996) Experimental study of meniscus lesions. Significance of 3-dimensional ultrasonography. Ultraschall Med 17(5): 247–252

    PubMed  Google Scholar

  19. Riedl S, Tauscher A, Kuhner C et al. (1997) 3-dimensional sonography in the diagnosis of meniscal lesions. An experimental and clinical study. Chirurg 68(11): 1150–1155

    Article  PubMed  Google Scholar

  20. Riedl S, Tauscher A, Kuhner C et al. (1998) 3-dimensional ultrasound in clinical diagnosis of meniscus lesions. Ultraschall Med 19(1): 28–33

    PubMed  Google Scholar

  21. Rubin DA (1997) MR imaging of the knee menisci. Radiol Clin North Am 35(1): 21–44

    PubMed  Google Scholar

  22. Rutten M, Collins J, Kampen van A, Jager G (1998) Meniscal cysts: detection with high-resolution sonography. Am J Radiol 171(8): 491–496

    Google Scholar

  23. Tarhan NC, Chung CB, Mohana-Borges AV et al. (2004) Meniscal tears: role of axial MRI alone and in combination with other imaging planes. AJR Am J Roentgenol183(1): 9–15

    Google Scholar

Download references

Interessenkonflikt

Es besteht kein Interessenkonflikt. Der korrespondierende Autor versichert, dass keine Verbindungen mit einer Firma, deren Produkt in dem Artikel genannt ist, oder einer Firma, die ein Konkurrenzprodukt vertreibt, bestehen. Die Präsentation des Themas ist unabhängig und die Darstellung der Inhalte produktneutral.
