The S20G substitution in hIAPP is more amyloidogenic and cytotoxic than wild-type hIAPP in mouse islets
- 876 Downloads
The S20G human islet amyloid polypeptide (hIAPP) substitution is associated with an earlier onset of type 2 diabetes in humans. Studies of synthetic S20G hIAPP in cell-free systems and immortalised beta cells have suggested that this may be due to increased hIAPP amyloidogenicity and cytotoxicity. Thus, using primary islets from mice with endogenous S20G hIAPP expression, we sought to determine whether the S20G gene mutation leads to increased amyloid-induced toxicity, beta cell loss and reduced beta cell function.
Islets from mice in which mouse Iapp was replaced with human wild-type or S20G hIAPP were isolated and cultured in vitro under amyloid-forming conditions. Levels of insulin and hIAPP mRNA and protein, amyloid deposition and beta cell apoptosis and area, as well as glucose-stimulated insulin and hIAPP secretion, were quantified.
Islets expressing S20G hIAPP cultured in 16.7 mmol/l glucose demonstrated increased amyloid deposition and beta cell apoptosis, reduced beta cell area, decreased insulin content and diminished glucose-stimulated insulin secretion, compared with islets expressing wild-type hIAPP. Amyloid deposition and beta cell apoptosis were also increased when S20G islets were cultured in 11.1 mmol/l glucose (the concentration that is thought to be physiological for mouse islets).
S20G hIAPP reduces beta cell number and function, thereby possibly explaining the earlier onset of type 2 diabetes in individuals carrying this gene mutation.
KeywordsAmylin Amyloid Beta cell Insulin secretion Islet Islet amyloid polypeptide Toxicity Type 2 diabetes
Glucose-stimulated insulin secretion
Human islet amyloid polypeptide
Serine-to-glycine substitution at amino acid 20
VA Puget Sound Health Care System
Human islet amyloid polypeptide (hIAPP; amylin) is a 37-amino-acid peptide that is co-secreted with insulin by the pancreatic beta cell. In type 2 diabetes, aggregation of hIAPP and its deposition as amyloid in the islet is associated with beta cell apoptosis .
Various modifications in the amino acid sequence of hIAPP have been shown to alter its aggregation properties. However, to date only one hIAPP polymorphism has been identified in humans. This serine-to-glycine substitution at position 20 (S20G) described in Asian populations is associated with an earlier onset of type 2 diabetes when comparing individuals with and without this substitution [2, 3]. Findings with cell lines using either synthetic hIAPP peptides applied exogenously or plasmid transfection approaches generally suggest that the S20G substitution renders hIAPP more toxic [4, 5, 6]. Based on observations in cell-free systems, it has also been proposed that S20G hIAPP aggregates faster than wild-type hIAPP [4, 5, 6]. This has been confirmed by structural studies reporting that S20G hIAPP fibril formation is enhanced due either to increased local flexibility or to conformational pre-organisation in the monomer prior to self-assembly .
Given these findings we sought to determine whether endogenous hIAPP bearing the S20G substitution exhibits increased amyloidogenicity and cytotoxicity. For this purpose, we used transgenic islets from mice in which wild-type hIAPP or S20G hIAPP had been knocked into the endogenous mouse Iapp locus . Here, we report our findings that islets bearing the S20G gene mutation exhibit increased amyloid-induced beta cell apoptosis, decreased beta cell area and impaired insulin release.
C57BL/6NHsd mice (Harlan, Indianapolis, IN, USA) with wild-type hIAPP or S20G hIAPP knocked into the endogenous mouse Iapp locus  were bred and maintained at the VA Puget Sound Health Care System (VAPSHCS). Islets from 10-week-old male or female mice were isolated by collagenase digestion, recovered overnight in RPMI 1640 medium and subsequently cultured in media containing either 11.1 or 16.7 mmol/l glucose for 144 h, with media being renewed every 48 h. The VAPSHCS Institutional Animal Care and Use Committee approved the studies.
Assessment of islet morphology
Islets were fixed in formalin, embedded in paraffin, sectioned and labelled with thioflavin S (0.5% w/v; Sigma-Aldrich, St Louis, MO, USA) to visualise amyloid deposits, insulin antibody (1:2000; clone K36AC10; Sigma-Aldrich) to visualise beta cells and Hoechst 33258 (2 μg/ml; Sigma-Aldrich) to visualise nuclei. Amyloid prevalence (no. of amyloid-positive islets/no. of total islets × 100) and amyloid severity (amyloid area/islet area × 100) were quantified on 14–35 islets (average 26) per sample using a computer-based quantitative method. Beta cell apoptosis was determined by staining with propidium iodide (9 μg/ml; Invitrogen, Grand Island, NY, USA) and counterstaining with an insulin antibody as above on 18–42 (average 28) islets per sample [9, 10]. The observer was blinded to the genotype and culture condition of the islets. A detailed description of these processes has been published .
Beta cell secretory function
After 144 h culture in either 11.1 or 16.7 mmol/l glucose, islets were incubated in 2.8 mmol/l Krebs buffer for 1.5 h, followed by incubation of triplicate samples of five islets each in either 2.8 or 20 mmol/l glucose for 1 h. Thereafter, supernatant fractions were collected and islet content extracted with acid–ethanol from islets exposed to 2.8 mmol/l glucose. Insulin (ALPCO, Salem, NH, USA) and hIAPP (EZHA-52K; Millipore, St. Charles, MO, USA) concentrations were measured using ELISAs. The IAPP ELISA employs a monoclonal capture antibody (F002; binds all molecular forms of (pro)IAPP), and a monoclonal detection antibody (F025; binds amidated IAPP at its C terminus) . hIAPP release at basal (2.8 mmol/l) glucose was below the detection limit of the assay under all conditions.
RNA was isolated, reverse transcribed and gene expression determined by Taqman real-time quantitative PCR using 18S as housekeeping gene (Applied Biosystems, Foster City, CA, USA).
Data are presented as mean ± SEM. Statistical significance was determined using Student’s t test or Mann–Whitney U test for non-parametric data. p ≤ 0.05 was considered statistically significant.
Amyloid deposition is greater in S20G islets
Beta cell apoptosis is increased and beta cell area decreased in S20G islets

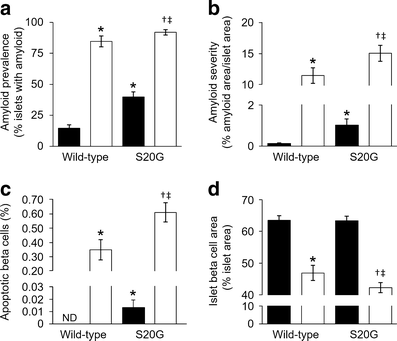

Increased amyloid deposition was associated with increased beta cell apoptosis (Figs 1e and 2c) and decreased beta cell area (Fig. 2d) in both wild-type and S20G hIAPP islets cultured in 16.7 vs 11.1 mmol/l glucose. Compared with wild-type hIAPP islets, S20G islets exhibited increased rates of beta cell apoptosis when cultured in 11.1 (0.01 ± 0.01% vs 0.00 ± 0.00%; Fig. 2c) as well as in 16.7 mmol/l glucose (0.61 ± 0.07% vs 0.35 ± 0.07%; Fig. 2c). Compared with islets cultured in 11.1 mmol/l glucose, beta cell area was decreased in 16.7 mmol/l glucose in both genotypes and beta cell area was decreased in S20G islets compared with wild-type hIAPP islets cultured in 16.7 mmol/l glucose (42.3 ± 1.6 vs 46.9 ± 2.4%; Fig. 2d).
Glucose-stimulated insulin secretion is reduced in S20G islets cultured in high glucose

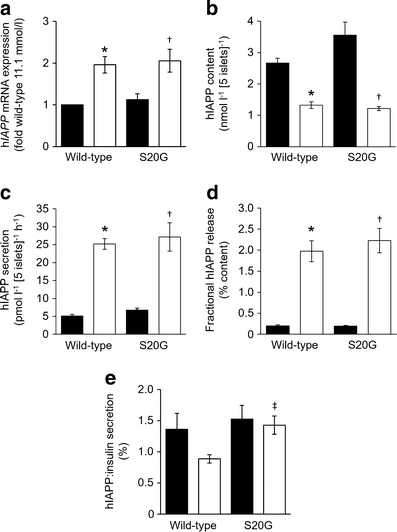

Ins2 mRNA levels were higher in S20G islets than in wild-type hIAPP islets in both glucose concentrations (Fig. 3a). hIAPP mRNA levels did not differ between genotypes, but were increased in islets cultured in 16.7 compared with 11.1 mmol/l glucose (Fig. 4a).
For both genotypes, insulin and hIAPP content was reduced in islets cultured in 16.7 compared with 11.1 mmol/l glucose (Figs 3b and 4b). In 16.7 mmol/l glucose, insulin content was lower in S20G than wild-type hIAPP islets (22.4 ± 2.1 vs 37.4 ± 4.4 nmol l−1 [5 islets]−1), while hIAPP content did not differ between genotypes (1.22 ± 0.07 vs 1.33 ± 0.11 nmol l−1 [5 islets]−1).
In islets pre-cultured in 11.1 mmol/l glucose, basal insulin secretion and GSIS were similar between genotypes (Fig. 3c). In contrast, in islets pre-cultured in 16.7 mmol/l glucose, basal insulin secretion was similar between genotypes (51.8 ± 12.0 vs 67.5 ± 10.2 pmol l−1 [5 islets]−1 h−1), but GSIS was decreased by 35% in S20G islets compared with wild-type hIAPP islets (1895 ± 208 vs 2905 ± 244 pmol l−1 [5 islets]−1 h−1) (Fig. 3d). Glucose-stimulated hIAPP secretion was greater in wild-type hIAPP islets pre-cultured in 16.7 compared with 11.1 mmol/l glucose (25.2 ± 1.5 vs 5.1 ± 0.4 pmol l−1 [5 islets]−1 h−1) (Fig. 4c). This increase was also observed in S20G islets (27.2 ± 4.0 vs 6.7 ± 0.6 pmol l−1 [5 islets]−1 h−1). In contrast to GSIS, hIAPP release did not differ between genotypes following pre-culture in either glucose concentration (Fig. 4c).
When insulin release was normalised to content, fractional insulin release was greater in islets cultured for 144 h in 16.7 mmol/l glucose, but did not differ between genotypes (Fig. 3e). Similarly, fractional release of hIAPP was also greater following culture in 16.7 mmol/l glucose in both genotypes, and also did not differ between genotypes (Fig. 4d).
The ratio of glucose-stimulated hIAPP:insulin secretion was similar in both hIAPP genotypes pre-cultured in low glucose (1.53 ± 0.22 vs 1.36 ± 0.26%) and S20G hIAPP pre-cultured in high glucose (1.43 ± 0.15%) (Fig. 4e). When islets were pre-cultured in high glucose, the hIAPP:insulin ratio was lower in wild-type hIAPP islets than in S20G islets (0.89 ± 0.07%) and tended to be lower than for wild-type hIAPP islets pre-cultured in low glucose (p = 0.1).
We have demonstrated for the first time in primary islets with endogenous expression of the S20G gene mutation of hIAPP that this substitution results in greater amounts of islet amyloid deposition than wild-type hIAPP. Further, under the amyloid-promoting condition of 16.7 mmol/l glucose, this increase in amyloid deposition is associated with an increase in beta cell apoptosis, a decrease in beta cell area and reduced GSIS, suggesting that the S20G substitution augments amyloid-induced islet damage.
Species differences exist in the IAPP amino acid sequence and with that the aggregation potential of the peptide. Early studies that compared the IAPP sequence of aggregation-prone and non-amyloidogenic IAPP concluded that amino acids 20–29 are critical for hIAPP aggregation and that substitutions within this sequence are responsible for the lack of aggregation in certain species . The S20G substitution is located within this critical segment and a recent study explored the sensitivity of hIAPP aggregation to alterations at residue 20 in detail . Consistent with earlier reports [5, 6], it found that the S20G substitution accelerated amyloid formation in a cell-free system using synthetic peptides. In addition, substitution of residue 20 to the bigger and positively charged amino acid lysine greatly slowed amyloid formation, further identifying residue 20 as a key determinant of aggregation behaviour .
The fibrillar structure of aggregated synthetic S20G hIAPP appears to be similar to that of wild-type hIAPP fibrils, with both variants being rich in beta sheet structures . This suggests that islets expressing S20G or wild-type hIAPP should both form amyloid deposits. Indeed, we found that endogenous S20G hIAPP aggregates to form thioflavin S-detectable amyloid deposits in isolated islets. Further, these deposits were morphologically indistinguishable from those formed in islets expressing wild-type hIAPP.
The greater amounts of islet amyloid we observed in S20G islets could be explained by either the S20G substitution rendering hIAPP more amyloidogenic [4, 5, 6] or an increase in hIAPP production and release. However, hIAPP production does not appear to be increased in S20G islets as the level of hIAPP mRNA did not differ between genotypes. Further, hIAPP content and secretion were also similar in the two genotypes. Thus, we favour the explanation that the increase in amyloid formation results from S20G being more amyloidogenic.
The observed increased rate of beta cell apoptosis in S20G islets was associated with a reduction in beta cell area and reduced insulin content. These changes could be expected to affect islet function. Indeed, GSIS was diminished, confirming that S20G islets exposed to a hyperglycaemic milieu are functionally impaired. Normalising the GSIS to insulin content showed that the amount of insulin released was proportional to islet insulin content in both genotypes. This observation suggests that the surviving beta cells in S20G islets cultured in 16.7 mmol/l glucose do release insulin, but do not appear to compensate for the reduced insulin secretion occurring as a result of greater beta cell loss by releasing an increased fraction of their content.
We also found that greater amounts of amyloid were formed in S20G islets when cultured in 11.1 mmol/l glucose, despite hIAPP release by S20G islets being similar to that seen in wild-type islets. As we have found that amyloid formation is dependent on hIAPP secretion  and that this is the physiological glucose concentration for mouse islets, this observation again suggests that the threshold for amyloid formation may be lower in S20G islets than wild-type hIAPP islets. This increase in amyloid deposition in S20G islets was also associated with a marginal albeit significantly increased rate of beta cell apoptosis. However, this low rate of apoptosis did not lead to a detectable difference in beta cell area. These observations support the concept that individuals who are at high risk of developing type 2 diabetes and also carry the S20G gene mutation may be predisposed to develop islet amyloidosis at much lower glucose concentrations. Should this be the case, one could hypothesise that individuals with impaired glucose tolerance may be losing beta cells by this process, which ultimately results in greater beta cell loss and an earlier onset of diabetes than seen with wild-type hIAPP.
We used islets from mice in which the mouse Iapp gene was replaced with wild-type or S20G hIAPP. It has previously been reported that these mice do not develop thioflavin S-detectable amyloid deposits following 18 months of high-fat diet feeding , an observation that differs from what we documented with mice in which hIAPP was transgenically expressed under the control of the rat insulin promoter . We believe this difference in in vivo amyloid deposition is most likely due to strain differences (C57BL/6 vs F1 C57BL/6 × DBA/2), as we have previously shown that the DBA/2 background is a critical determinant of amyloid formation in vivo . Other factors could possibly have contributed: (1) differences in the endogenous mouse Iapp and transgenic rat insulin promoters that drive hIAPP expression; (2) the stimulus in vitro was glucose while in vivo it was high fat and (3) the in vitro model used isolated islets that are by definition not in situ within the pancreas and thus lack innervation and vascular flow.
It is of interest that we observed differences in insulin and hIAPP mRNA expression in response to increased glucose, with hIAPP expression increasing and insulin mRNA expression remaining unchanged. This observation is consistent with findings made using human islets . Furthermore, in response to pre-culture in high glucose, in wild-type hIAPP islets we noticed a decrease in the ratio of hIAPP:insulin released. This was not the case for S20G islets. These observations suggest that there may be some differential regulation of the production of these two beta cell secretory products in response to glucose.
In conclusion, we found that S20G islets are more prone to develop amyloid deposits, which in turn leads to loss of beta cells and decreased GSIS. These observations provide a potential explanation to why individuals carrying this gene mutation have an earlier onset of type 2 diabetes.
We thank B. Barrow, M. Peters, J. Willard, P. Bergquist, D. Hackney, A. Rahman, J. Wilkins-Gutierrez and C. Ho (all Seattle Institute for Biomedical and Clinical Research, Seattle, WA, USA) for excellent technical support. We thank N. Eberhardt (Mayo Clinic and Foundation, Rochester, MN, USA) for providing the transgenic mice.
This work was supported by the Department of Veterans Affairs grant BX001060 and NIH grants DK-017047, DK-007247, DK-080945, DK-088082, DK-098506, DK-107022 and HL-007028. DTM was supported by a Swiss National Foundation Fellowship and the Dick and Julia McAbee Endowed Fellowship in Diabetes from the University of Washington. ATT was supported by an American Diabetes Association Mentor-Based Fellowship.
Duality of interest
The authors declare that there is no duality of interest associated with this manuscript.
DTM designed the studies, performed research, analysed and interpreted the data and wrote the manuscript. LE performed research, analysed the data and reviewed/edited the manuscript. ATT, MFH, MM, SZ and RLH analysed and interpreted the data and reviewed/edited the manuscript. SEK contributed to the study design, analysed and interpreted the data and reviewed/edited the manuscript. All authors approved the final version. DTM is responsible for the integrity of the work as a whole.
