p66Shc deletion or deficiency protects from obesity but not metabolic dysfunction in mice and humans
- 1.3k Downloads
Oxygen radicals generated by p66Shc drive adipogenesis, but contradictory data exist on the role of p66Shc in the development of obesity and the metabolic syndrome. We herein explored the relationships among p66Shc, adipose tissue remodelling and glucose metabolism using mouse models and human adipose tissue samples.
In wild-type (WT), leptin-deficient (ob/ob), p66Shc −/− and p66Shc −/− ob/ob mice up to 30 weeks of age, we analysed body weight, subcutaneous and visceral adipose tissue histopathology, glucose tolerance and insulin sensitivity, and liver and muscle fat accumulation. A group of mice on a high fat diet (HFD) was also analysed. A parallel study was conducted on adipose tissue collected from patients undergoing elective surgery.
We found that p66Shc −/− mice were slightly leaner than WT mice, and p66Shc −/− ob/ob mice became less obese than ob/ob mice. Despite their lower body weight, p66Shc −/− mice accumulated ectopic fat in the liver and muscles, and were glucose intolerant and insulin resistant. Features of adverse adipose tissue remodelling induced by obesity, including adipocyte enlargement, apoptosis, inflammation and perfusion were modestly and transiently improved by p66Shc (also known as Shc1) deletion. After 12 weeks of the HFD, p66Shc −/− mice were leaner than but equally glucose intolerant and insulin resistant compared with WT mice. In 77 patients, we found a direct correlation between BMI and p66Shc protein levels. Patients with low p66Shc levels were less obese, but were not protected from other metabolic syndrome features (diabetes, dyslipidaemia and hypertension).
In mice and humans, reduced p66Shc levels protect from obesity, but not from ectopic fat accumulation, glucose intolerance and insulin resistance.
KeywordsDiabesity Inflammation Longevity Oxidative stress
Protein kinase B
Analysis of variance
Adult Treatment Panel III
Body mass index
Extracellular signal-regulated kinase
High fat diet
i.p. glucose tolerance test
Insulin tolerance test
Mammalian target of rapamycin
SHC (Src homology 2 domain containing) transforming protein 1, 66 kDa isoform
Reactive oxygen species
Subcutaneous adipose tissue
Visceral adipose tissue
The 66 kDa p66Shc is a unique protein isoform of SHC (Src homology 2 domain containing) transforming protein 1, encoded by the mammalian ShcA gene (also known as Shc1), and acts as a receptor tyrosine kinase adaptor and redox enzyme . Tyrosine phosphorylation of p66Shc mediates downstream effects of growth factors, whereas serine phosphorylation causes p66Shc to translocate to the mitochondrial intermembrane space, where it interacts with cytochrome C and produces H2O2 . Genetic deletion or knockdown of p66Shc results in decreased levels of reactive oxygen species (ROS). Thus, in accordance with the free-radical theory of ageing p66Shc −/− mice live longer than wild-type (WT) mice in a controlled environment . p66Shc −/− mice are also protected from typical oxidative stress related diseases, including diabetic complications [4, 5, 6, 7]. ROS generated via p66Shc are required for adipogenesis, such that p66Shc −/− mice gain less weight when fed a high fat diet (HFD), with concomitant adipose tissue browning and a mildly raised body temperature . Impaired adipogenesis and thermo-insulation probably make p66Shc −/− mice less resistant to cold and wild environments . Based on these observations, p66Shc can be considered a ‘thrifty gene’, which is evolutionarily conserved in mammals .
Previous reports show that 20-week-old p66Shc −/− mice rendered obese by crossing with leptin-deficient (Lep ob/ob ) mice, are more glucose tolerant and insulin sensitive than their p66Shc+/+ counterparts . However, two independent p66Shc −/− strains respond differently to HFD: while the original ShcP strain is protected from fat accumulation , the ShcL strain has a fat phenotype .
To date, no study has compared adipose tissue histopathology during the development of obesity in WT and p66Shc −/− mice. We herein analysed subcutaneous adipose tissue (SAT) and visceral adipose tissue (VAT) remodelling in parallel with changes in body weight and metabolic features in WT and p66Shc −/− mice on Lep WT/WT and Lep ob/ob C57Bl/6J backgrounds. These data, together with a parallel study carried out in humans, suggest that p66Shc deletion protects from the development of obesity, but not from glucose intolerance and insulin resistance.
All procedures involving animals were approved by the local ethics committee and the Italian Ministry of Health. Experiments were conducted according to the National Institutes of Health Principles of Laboratory Animal Care. Animals were maintained under standard laboratory conditions, kept in 12 h light–dark cycles with ad libitum access to food and water. The p66Shc knockout mice were generated by M. Giorgio  and correspond to the ShcP strain . p66Shc −/− and p66Shc −/− Lep ob/ob animals were bred at the animal facility of the University of Padua. Lep ob/ob mice were obtained from The Jackson Laboratory (Bar Harbor, ME, USA). Age- and sex-matched WT animals were obtained from the in-house colony of the animal facility of the Venetian Institute of Molecular Medicine (Padua, Italy). In a separate set of experiments, WT and p66Shc −/− mice were fed an HFD with 60% of the total energy derived from fat (ssniff EF acc. D12492 (I) mod., Spezialdiäten, Soest, Germany) from 4 to 16 weeks of age (12 week HFD duration). Both male and female mice were used. WT and p66Shc −/− were randomly assigned to the HFD group or standard diet group.
GTTs and insulin tolerance tests were performed in fasted animals by measuring blood glucose at 0, 30, 60 and 120 min after injection of 1 g/kg d-glucose, or 0.75 U/kg human recombinant insulin (Humulin R; Lilly, Indianapolis, IN, USA), respectively. Glucose uptake into isolated mouse muscles was assayed by the uptake of 2-deoxy-d-glucose, using a colorimetric kit. Serum adipokines were measured using a commercially available multiple suspension assay. For full details on these procedures, please see the electronic supplementary material (ESM) Methods.
Investigators were blinded when analysing mouse samples and when assessing the outcome of experiments. Exclusion criteria were pre-determined: animals were excluded from analysis in case of death, cannibalism, or sickness.
Adipose tissue histopathology
Histopatology experiments were performed on at least three biological replicates, and at least five random fields per sample were analysed.
Ten micrometre thick sections of paraffin-embedded mouse VAT and SAT were cut with a Leica microtome. Sections were deparaffinised in xylene, rehydrated in serial dilutions of ethanol and, finally, rinsed with tap water. An antigen retrieval step was applied for F4/80 and TUNEL staining, by incubating sections for 10 min with 10 μmol/l proteinase K diluted in 0.1 mol/l Tris-HCl. TUNEL staining was then performed following manufacturer’s protocol (ApopTag; Millipore, Temecula CA, USA). For F4/80 antibody staining (Abcam, Cambridge, UK), sections were saturated with 1% BSA and 10% donkey serum in PBS for 1 h at room temperature, and then incubated in a 1:150 dilution of primary antibody at 4°C overnight. Sections were then washed three times with PBS and endogenous peroxidase activity was quenched by immersing sections for 30 min in 0.3% H2O2 in ethanol, and then washing twice with PBS. Secondary donkey anti-rat HRP-conjugated antibody was used (Jackson ImmuoResearch Europe, Suffolk, UK). Samples were then washed and incubated with 3,3′-diaminobenzidine substrate (ImmPACT DAB; Vector Laboratories, Peterborough, UK) following the manufacturer’s instructions. Haematoxylin and eosin staining was performed using a Rapid Frozen Section Kit (Bio-Optica, Milan, Italy), following the manufacturer’s instructions. Picrosirius red staining was performed by immersing sections in Direct Red 80 (Sigma-Aldrich, Milan, Italy) dissolved in a saturated aqueous solution of picric acid (Sigma-Aldrich) for 1 h at room temperature, and then washing in two changes of acidified water (0.5% v/v glacial acetic acid in distilled water). Samples were then dehydrated in three changes of absolute ethanol, cleared in two changes of xylene and mounted with mounting medium (Bio-Optica). Histological images were taken with a Leica DM5000B microscope equipped with a DFC300 FX charge-coupled device camera. Morphometric analysis of adipocyte size was performed using a semiautomated procedure with Fiji/ImageJ (1.48r, National Institutes of Health, Bethesda MD, USA). For full details, please see the ESM Methods. Triacylglycerol content was determined in lysed liver and muscle samples using an automated spectrophotometer. Oil Red O staining of tissue sections was also performed. Adipose tissue haemoglobin content was measured using a spectrophotometer and normalised to protein content. A custom multiplex suspension phospho-protein array was used to assess signalling pathways, determined the ratio of phosphorylated vs total protein kinase B (Akt) (Ser473), extracellular signal-regulated kinases 1 and 2 (ERK1/2) (Thr202/Tyr204, Thr185/Tyr187), mammalian target of rapamycin (mTor; Ser2448) and S6 kinase (S6K; Thr389). For full details on these procedures, please see the ESM Methods.
The protocol was approved by local ethics institutions and conducted in accordance with the Declaration of Helsinki. Patients undergoing elective surgery for morbid obesity or cholecystectomy were recruited at the 1st General Surgery Unit of the University Hospital of Padua. All patients provided informed consent for the collection of adipose tissue samples during surgery. We recorded the following clinical data: age, sex, baseline BMI, prevalence of diabetes (diagnosed according to ADA criteria), dyslipidaemia (defined in this population as total cholesterol >5.18 mmol/l, triacylglycerol >1.69 mmol/l), hypertension (defined as systolic BP >140 mmHg or diastolic BP >90 mmHg), the metabolic syndrome (defined according to revised Adult Treatment Panel III [ATP-III] criteria). Prevalence of cardiovascular disease was defined as a history of myocardial infarction, angina, stroke or peripheral arterial disease, or evidence of significant stenosis in the coronary, carotid or leg arteries.
RNA isolation and qPCR analysis
Total RNA was extracted from fat samples using an RNeasy kit (Qiagen, Venlo, the Netherlands) following the manufacturer’s instructions. Total RNA was reverse transcribed using Superscript II reverse transcriptase (Thermo Scientific, Monza, Italy) and the cDNA was analysed by quantitative real-time PCR (qPCR) using primers specific for p66Shc and TaqMan chemistry (Universal probe library no. 8; Roche Diagnostics, Milan, Italy) and the primers FW, 5′-CTGGAGGAAGGGGCTTCT-3′; RV, 5′-AGGCAGAGGAGGCAGGAT-3′. Results were expressed as fold change relative to the controls after normalisation using 18S rRNA (Life Technologies, Monza, Italy) gene expression levels.
Tissue extracts were prepared by homogenisation and lysis with extraction buffer, protease inhibitor (Roche Diagnostics), and phosphatase inhibitor (Sigma-Aldrich). The protein concentration was determined using standard Bradford reagent (Sigma-Aldrich). Proteins were separated by 10% SDS-PAGE and transferred onto a nitrocellulose membrane. This was incubated in PBS containing 0.1% Tween-20 and 5% non-fat dry milk with the primary anti-Shc polyclonal antibody (BD Transduction Laboratories, Milan, Italy) for 3 h at room temperature. Membranes were then incubated with HRP-conjugated secondary antibody (Cell Signaling, Leiden, the Netherlands). Membranes were reprobed with an anti-β-actin antibody to control for protein loading (Sigma-Aldrich). Immunoreactive proteins were visualised with a chemiluminescence substrate (Pierce, Rockford, USA) and captured on x-ray film.
Data are reported as the mean ± SE for continuous variables or as a percentage for categorical variables. Normal distribution of the variables of interest was checked using the Kolmogorov–Smirnov test. Non-normal continuous variables were log-transformed before analysis. Comparison of data between two or more groups was performed using a two-tailed unpaired Student’s t test or two-way ANOVA (with post hoc Bonferroni correction), respectively. ITT and ipGTT curves were compared using the repeated-measure ANOVA and by calculating the AUC. Linear correlations were checked using the Pearson’s r coefficients, which were compared using Fisher transformation. A multivariable linear regression analysis was carried out using IBM SPSS Statistics software (version 22.0, Chicago, IL, USA). Statistical significance was set at p < 0.05.
Development of obesity in p66Shc −/− and WT mice
Metabolic features of lean and obese p66Shc −/− and WT mice

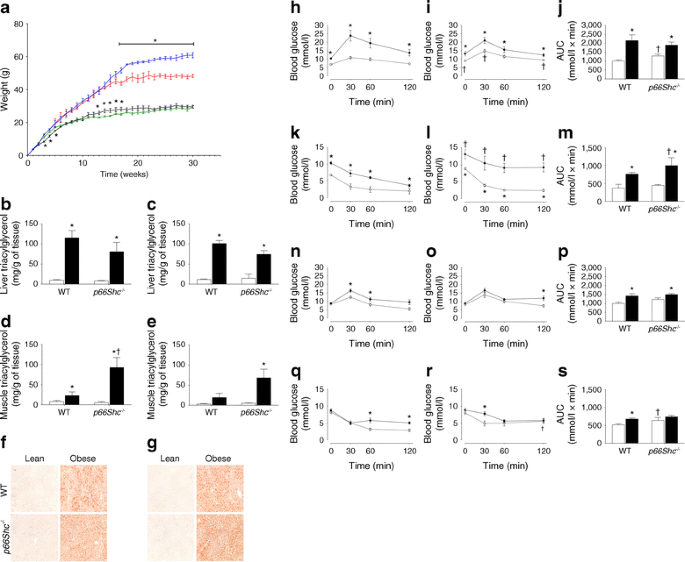

We analysed ectopic fat accumulation in metabolically active organs, such as the liver and skeletal muscle. Ob/ob mice showed severe hepatic triacylglycerol overload (> tenfold increase), which was nonsignificantly improved by p66Shc deletion at 18 (p = 0.35) and 30 (p = 0.06) weeks (Fig. 1b, c). Further evidence was provided by Oil Red O staining, which indicated that p66Shc −/− mice are not protected from hepatic lipid accumulation induced by overfeeding (Fig. 1f, g). An increase in triacylglycerol content (~ threefold) was also found, as expected, in the skeletal muscles of ob/ob compared with WT mice; this was significantly worsened by p66Shc deletion at both 18 and 30 weeks (Fig. 1d, e). As determined by ex vivo insulin-induced glucose uptake, the p66Shc −/− skeletal muscle was insulin resistant compared with WT, especially at 30 weeks of age (ESM Fig. 2).
Fasting blood glucose levels were higher in ob/ob compared with lean mice, and were significantly higher in lean p66Shc −/− compared with WT mice at both 18 and 30 weeks and in ob/ob p66Shc −/− compared with WT mice at 18 weeks (ESM Fig. 3). At both 18 and 30 weeks, ob/ob mice showed glucose intolerance compared with WT mice in ipGTTs (Fig. 1h–j, n–p). Glucose tolerance of 18-week-old lean p66Shc −/− mice was worse than that of WT mice of the same age, and p66Shc deletion did not prevent the effects of obesity, as p66Shc −/− ob/ob mice were less glucose tolerant compared with lean mice (Fig. 1h, j). At the same time, p66Shc −/− ob/ob mice showed insulin resistance in ITTs compared with lean mice (Fig. 1k–m, q–s), especially at 18 weeks, when they were more insulin resistant than WT obese mice (Fig. 1k–m). No significant differences were detected between male and female mice (not shown).
p66Shc −/− mice were only mildly and transiently protected from hyperinsulinaemia induced by obesity, and showed hyperglucagonaemia by week 18 compared with WT mice. The insulin:glucagon ratio, which was increased by tenfold in ob/ob vs WT mice, was reduced in p66Shc −/− ob/ob mice vs ob/ob (p = 0.005) at 18, but not at 30 weeks of age. HOMA-IR and QUICKI values showed that lean p66Shc −/− mice were already insulin resistant compared with controls and were not protected from obesity-induced worsening in insulin resistance (ESM Fig. 1). Lean p66Shc −/− mice showed reduced resistin concentrations at 18 and 30 weeks compared with WT mice, but this difference was lost in obese mice. Circulating plasminogen activator inhibitor-I (PAI-I) concentrations were increased by obesity and tended to be higher in p66Shc −/− mice (ESM Fig. 1). Metabolic signalling pathways were investigated using a multiplex phospho-protein array in extracts from liver and muscle tissues taken under fasting conditions from lean and ob/ob mice at 18 and 30 weeks. These showed no substantial effects of p66Shc deletion on Akt, ERK, mTor or S6K activation (ESM Fig. 4). Taken together, these data indicate that, despite being significantly leaner, overfed leptin-deficient p66Shc −/− are not protected from insulin resistance and glucose intolerance, and show ectopic fat accumulation in the liver and muscles. To confirm these findings, we used the HFD model. During a 12 week HFD, p66Shc −/− mice gained significantly less weight than WT mice. At the end of this period, HFD had induced glucose intolerance and insulin resistance in both WT and p66Shc −/− mice, with no difference between the two strains (ESM Fig. 5).

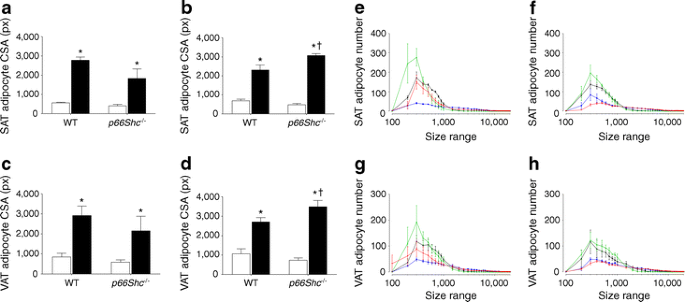

Adipose tissue remodelling in obese p66Shc −/− and WT mice
Adipose tissue haemoglobin content was measured as a surrogate of tissue perfusion. Obesity induced an increase in haemoglobin content, which was blunted by p66Shc deletion, especially in SAT at 18 weeks and in VAT at 30 weeks (Fig. 4i, l).
Correlation between p66Shc expression and human adiposity
Clinical characteristics of study patients
Age (range), years
51.3 ± 1.6 (25–85)
Sex, % male
BMI (range), kg/m2
43.1 ± 1.3 (21.9–67.1)
ATP-III metabolic syndrome, %
Cardiovascular disease, %
Results of the multivariable analysis of clinical data
Standardised β coefficient
This study shows that p66Shc −/− mice are protected from obesity and from some adverse features of adipose tissue remodelling, but accumulate ectopic fat in the liver and muscles and are not protected from insulin resistance and glucose intolerance induced by overfeeding. The dysmetabolic phenotype observed in p66Shc −/− mice despite the consistently lower body weight compared with WT mice in both the ob/ob and HFD models is reminiscent of lipodystrophy. p66Shc generates H2O2, and ROS are required for adipocyte differentiation and lipid storage [8, 13]. Therefore, p66Shc −/− ob/ob mice gained less weight than their controls, probably because of a defect in adipocyte growth. As body mass was reduced but the average adipocyte area was not, adipocyte hyperplasia may be compromised by p66Shc deletion. Previous data showed that p66Shc −/− mice fed a standard diet  or a HFD had a normal food intake and a mildly elevated metabolic rate , whereas p66Shc deletion affected only the short-term metabolic effects of caloric restriction . Therefore, lipids that are not stored in the adipose tissue are only partly oxidised and accumulate in ectopic sites, such as the liver and skeletal muscle. This impaired fatty acid trapping is a likely mechanism by which p66Shc −/− mice become insulin resistant and glucose intolerant. In fact, 18-week-old p66Shc −/− mice, which are about 10% leaner than WT mice, were already glucose intolerant even on a Lep WT/WT background. Previous studies reported better glucose tolerance and insulin sensitivity in p66Shc −/− mice on the Lep ob/ob background  or on a HFD  compared with WT mice. Possible reasons for the discrepancy with our results include differences in housing environment, the original background (C57Bl/6 vs C57Bl/6J) and the timing of observation. We would like to emphasise that this is the first study to analyse the parallel changes in body weight, glucose/insulin tolerance and adipose tissue histopathology during the development of obesity in p66Shc −/− mice, using both leptin-deficient and HFD models. Typical features of the expanding VAT in obesity include macrophage infiltration, apoptosis, fibrosis and angiogenesis [16, 17]. These changes favour fatty acid leakage and ectopic storage, leading to insulin resistance in the muscle and liver. Adipocyte area is proportional to adipose insulin resistance, is higher in VAT than in SAT and is increased in obese mice and humans . Lean and obese p66Shc −/− mice had smaller adipocytes at age 18 weeks, but p66Shc −/− ob/ob mice showed markedly enlarged adipocytes compared with ob/ob mice at age 30 weeks. Although p66Shc regulates mitochondrial apoptosis and p66Shc deletion or knockdown protects from apoptosis , we only found a partial and transient reduction of adipocyte apoptosis in p66Shc −/− mice, possibly because death of adipocytes may occur passively as they become severely enlarged during weight gain and excess energy storage [18, 20]. Therefore, worsening of glucose tolerance, insulin sensitivity and ectopic fat accumulation in p66Shc −/− ob/ob mice correlated with adipocyte hypertrophy, despite a relative improvement in more specific inflammatory features, namely macrophage infiltration and angiogenesis.
In human adipose tissue samples, we found that p66Shc gene and protein expression were poorly correlated, as previously shown in studies using peripheral blood mononuclear cells . In a cohort of 77 patients undergoing elective surgery, we found a direct correlation between BMI and VAT p66Shc protein levels, especially in the absence of the metabolic syndrome. Despite VAT p66Shc protein levels being lower in non-obese compared with obese patients, having a low p66Shc content did not protect patients from other features of the metabolic syndrome, which tended to be more prevalent in patients with low p66Shc levels than in those with higher p66Shc levels. This finding strikingly parallels those obtained with p66Shc −/− mice, which became less obese than WT mice but still accumulated ectopic fat and became glucose intolerant. It should be noted that we used the ShcP knockout strain originally described to be long-lived and protected from oxidative stress related diseases . This strain seems to have a different phenotype compared with ShcL knockout mice with respect to fat accumulation . This difference has been attributed to upregulation of p46Shc in the adipose tissue of p66Shc −/− mice . However, we were unable to confirm p46Shc upregulation in the adipose tissue of p66Shc −/− mice (ESM Fig. 6), and no role for p46Shc in obesity has been demonstrated so far. In addition, p66Shc may have divergent, and possibly antagonistic, effects in the different organs and tissues involved in the metabolic response to overfeeding, an issue that could be addressed only with tissue-specific p66Shc knockout. For instance, obese p66Shc −/− mice become glucose intolerant despite p66Shc −/− beta cells being resistant to lipotoxicity-induced apoptosis . Therefore, further studies are still needed to dissect the role of p66Shc in whole body metabolism.
In summary, our findings in mice and humans collectively indicate that reduced p66Shc expression protects from obesity, possibly by inhibiting ROS-dependent adipogenesis, but does not protect from insulin resistance and glucose intolerance.
We thank K. A. Dyar, Helmholtz Center, Munich, and L. E. Wright, Department of Biomedical Sciences, University of Padua, for technical assistance.
This study was funded by an Italian Ministry of Health grant (no. GR-2010–2301676) to GPF.
Duality of interest statement
The authors declare that there is no duality of interest associated with this manuscript.
All author provided substantial contributions to conception and design, acquisition of data or analysis and interpretation of data; drafting the article or revising it critically. SC, MA, AD, VS and MG performed experiments in animals, and analysed and interpreted data. LM, NP, EP, MM and BB designed, performed, analysed and interpreted in vitro experiments. MT, MF, LP and DN collected, analysed and interpreted human data. AA and GPF conceived the study, collected and interpreted data, and provided support. SC, MA and GPF wrote the manuscript. All authors reviewed and approved the final draft of the article. GPF is the guarantor of this work.
