Introduction

In humans and in the NOD mouse strain, type 1 diabetes is preceded by leucocyte infiltration of the pancreatic islets of Langerhans (insulitis) followed by destruction of the insulin-producing beta cells by autoimmune T cells [1]. We and others have demonstrated the presence of circulating autoreactive human CD4+ T cells as well as CD8+ T cells [2, 3] around the clinical onset of type 1 diabetes. Moreover, T-cell-directed therapies were found to preserve beta cell function [2], suggesting the contribution of autoreactive T cells to the pathogenesis of type 1 diabetes.

Analysis of insulitis development in NOD mice demonstrated that CD4+ T cells predominate in the early phase, followed by an influx of CD8+ T cells [4]. However, both CD4+ and CD8+ T cells are required for the initiation of beta cell destruction after adoptive transfer into NOD-scid mice [5]. Moreover, injection of an islet-specific CD4+ T cell clone was found to accelerate diabetes in young NOD mice [6]. Thus, a signal derived from CD4+ T cells seems to be required for efficient accumulation of autoreactive T cells in islets of Langerhans [7, 8].

We have previously cloned autoreactive CD4+ T cells from a recent-onset type 1 diabetic patient [9] and from a pre-diabetic patient who developed type 1 diabetes 2 years after isolation of the clone [10]. The relevance of such autoreactive T cells in human insulitis and the beta cell destruction process remains unresolved. To extend our knowledge on these islet-reactive T cells, we aimed to study their homing capacity to pancreatic tissue of NOD-scid mice in relation with their chemokine receptor expression. These recipient mice were shown to allow functional engraftment of human leucocytes without severe signs of graft-vs-host disease [11, 12]. Moreover, autoantigens associated with type 1 diabetes as well as murine chemokines and chemokine receptors display a very high sequence homology between man and mouse. We therefore analysed the fate of both T cell clones, injected either separately or together.

Since early antigen exposure was shown to be a prerequisite for prolonged survival and function of human T cells in scid mice [12], we co-injected peptide-pulsed antigen-presenting cells (APC). In addition, we determined the contribution of streptozotocin-induced beta cell stress to the migration pattern of autoreactive T cells and analysed their chemokine receptor expression in situ.

Materials and methods

Animals

Male NOD-scid mice (FOX CHASE SCID-NOD) aged 4–6 weeks were obtained from M&B (Ry, Denmark). Mice were housed under specific pathogen-free conditions in micro-isolator cages and were fed sterilised water and autoclaved chow. Experiments and maintenance of the mice were approved by the Animal Ethics Committee of the University of Leiden. Recipient mice received five consecutive daily i.p. injections of low-dose (40 mg/kg) streptozotocin to induce hyperglycaemia [13, 14] and autoantigen release from damaged islets [15]. Control mice received vehicle only. Human cells were injected into the mice 1 day after the last streptozotocin injection. Hyperglycaemia was monitored by FreeStyle teststrips in combination with a FreeStyle glucometer (Disetronic, Vianen, The Netherlands) and was diagnosed when blood glucose levels exceeded 11 mmol/l on repeated measurements.

Reconstitution of NOD-scid mice with human cells

Human peripheral blood mononuclear cells (PBMC) were isolated by Ficoll gradient from buffy coats obtained from healthy blood donors selected on the basis of their HLA type. T-cell-depleted APC were obtained by using Dynabeads Pan Mouse IgG beads precoated with 10 μg/ml mouse anti-human CD3 antibody (CLB, Amsterdam, The Netherlands), according to the manufacturer’s protocol (Dynal Biotech, Hamburg, Germany). Monocyte and B-cell-enriched APC (<10% CD3+ T cells) were pulsed for 3 h at 37°C and 5% CO2 in IMDM medium (Gibco Life Technologies, Breda, The Netherlands) supplemented with 5% pooled human serum and 6 μmol/l relevant peptide, depending on the T cell clone(s) used for reconstitution. After peptide pulsing, APC were washed with sterile PBS and mixed in a 1:1 ratio with equal numbers of T cells. In some experiments, monocyte-derived dendritic cells, generated as previously described [16], were used as APC and mixed in a 1:10 ratio with T cells. The stimulatory capacity of injected APC was routinely checked by culturing 2×104 mixed cells for 4 days in a standard proliferation assay as described previously [16]. In most reconstitution experiments, APC were mismatched for HLA-A determinants for identification purposes as described below.

Three different T cell clones were used for reconstitution experiments: a glutamic acid decarboxylase 65 kDa (GAD65)-specific autoreactive T cell clone (PM1#11), which recognises the GAD65 epitope p(339–352) in the context of HLA-DR3 [10]. Additionally, these T cells express HLA-A1/A26 and HLA-B8/B57. The second islet-specific autoreactive T cell clone (1C6) recognises insulin secretory granules or 38-kDa antigen [9] and a peptide epitope p(51–70) in the context of HLA-DR1 [17]. Additionally, these T cells express HLA-A2/A3 and HLA-B39/B44. The third T cell clone (N3A9; HLA-DR1 restricted) was isolated from a tuberculoid leprosy patient and recognises p(412–425) of the 65-kDa heat shock protein (hsp) of M. leprae [18]. Murine and human hsp60, a candidate autoantigen in type 1 diabetes, both contain this exact amino acid sequence. Additionally, these T cells express HLA-A10/A26 and HLA-B5/B51. Both autoreactive T cell clones were expanded for 8–12 days by 0.5% phyto-haemagglutinin (HA16, Murex Biotech, Dartford, UK) in the presence of 3000 rd-irradiated pooled feeder cells, whereas clone N3A9 was expanded with 0.15 μmol/l M. leprae sonicate in the presence of 2000 rd irradiated HLA-DR1 matched PBMC. Resting T cells (10×106/mouse) were harvested and washed before mixing with APC and 0.5 ml of this mix was injected i.p. in each recipient mouse. Typically, three mice were analysed in each experimental group. Results are expressed as mean percentage detected T cells ± SD. NOD-scid mice expressing ≥1% circulating mouse CD3+ T cells were excluded from the experiments.

Evaluation of chimerism

The prevalence of human leucocytes was evaluated by flow cytometry [fluorescence-activated cell sorter (FACS) Calibur] using APC-conjugated mouse anti-human CD3 antibody (BD Biosciences, Amsterdam, The Netherlands) on single cell suspensions prepared from various organs or peritoneal lavage fluid. To exclude aspecific staining of murine FcγR+ cells or dead cells, samples were counterstained with propidium iodide (PI) and PE-labelled rat anti-mouse CD45 (BD Biosciences). In some experiments, T cells were double-labelled with a specific human HLA-A1 monoclonal antibody followed by PE-labelled rabbit anti human IgM F(ab)2 (Dakopatts, Älvsjö, Denmark). To check for T cell proliferation in vivo, cloned T cells were labelled with 0.5 μmol/ml CFDA-SE (Molecular Probes, Leiden, The Netherlands) prior to infusion.

The presence of human T cells or APC in the pancreas, spleen and pancreas draining lymph nodes (PDLN) was analysed in 8-μm cryostat sections, which were fixed in 100% acetone and stained with mouse anti-human CD3 antibody (Dakopatts), followed by Alexa Fluor 488-conjugated goat anti-mouse IgG1 (Molecular Probes). To discriminate cloned T cells from contaminating T cells present in the APC fraction, double-labelling was performed with specific human monoclonal HLA antibodies (HuMAbs) followed by Alexa Fluor 594-conjugated goat anti-human IgG (Molecular Probes). Hybridomas producing HuMAbs were developed by electrofusion of EBV-transformed cell lines generated from the lymphocytes of multiparous females with serum HLA antibodies. HLA specificities of these antibodies were determined by screening complement-mediated cytotoxicity against large panels (n>240) of serologically HLA-typed individuals. HuMAbs were used as hybridoma supernatants. The following HuMAbs were used: SN230G6 (IgG; anti HLA-A2/B17) and VDK1D12 (IgM; anti HLA-A1/A36). All antibodies and conjugates were diluted in PBS/2% FCS and were tested negatively on tissue sections prepared from naïve NOD-scid mice (data not shown). Immediately after staining, sections were analysed on a Nikon Eclipse E800 microscope containing a Nikon DXM 1200 digital camera and Nikon ACT-1 software.

Chemokine receptor expression by cloned T cells

The expression of various chemokine receptors was determined on viable (PI−) T cells by FACS analysis using various PE-labelled antibodies (BD Biosciences). Additionally, CXCR3 and CCR4 expression was determined in situ on 8-μm cryostat sections prepared from spleen and pancreas of reconstituted mice. Briefly, sections were simultaneously stained with human anti-human HLA-A2 antibody and mouse anti-human CXCR3, CXCR4 or CCR4 antibody (BD Biosciences), followed by Alexa Fluor 488-conjugated goat anti mouse IgG1 and Alexa Fluor 594-conjugated goat anti-human IgG (Molecular Probes) as described above.

Results

Cloned human autoreactive T cells survive at least 14 days after intraperitoneal reconstitution of NOD-scid mice

To determine the survival of human autoreactive T cells upon i.p. transfer into NOD-scid mice, we analysed the presence of human CD3+ T cells in peritoneal lavage fluids of mice killed at 7 (Fig. 1a, c) or 14 (Fig. 1b) days after reconstitution with CFSE-labelled 38-kDa antigen-specific T cells and CD3-depleted PBMC. Within the total fraction of viable cells, CD3+/CFSE− (1.8±0.5%) as well as CD3+/CFSE+ (5.1±1.9%) T cells were recovered from the peritoneal cavity at day 14 after infusion (Fig. 1). The latter population displayed a variable level of CFSE expression, indicative of T cell proliferation in vivo.

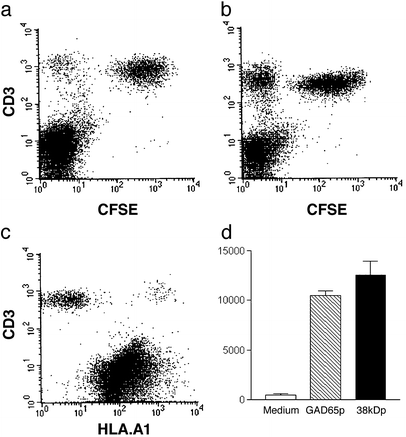

Fig. 1
figure 1

Survival and function of human 38-kDa-specific T cells upon intraperitoneal injection into NOD-scid mice. Peritoneal lavages were performed at 7 (a, c, d) or 14 days (b) after reconstitution of NOD-scid mice with CFSE (a, b) or non-labelled (c, d) autoreactive T cells. After this, we determined the presence of human CD3+ T cells in the PI−/mouse CD45− population. To discriminate autoreactive T cells (HLA-A1−) from contaminating T cells (HLA-A1+) in the APC population, double staining was performed for human CD3 and HLA-A1 (see Materials and methods). d The proliferative capacity of T cells recovered from a recipient mouse that had been injected with two different autoreactive T cell clones in a 1:1 ratio. Peptide-pulsed monocytes expressing both restriction elements were used as APC. Results are shown as mean proliferation (cpm) of triplicate cultures ± SD

Full size image

We next analysed the origin of the CD3+ T cells recovered from the peritoneal cavity (Fig. 1c) by using a specific HLA-A1 antibody that discriminates contaminating T cells in the injected APC fraction (HLA-A1+) from the autoreactive T cell clone (HLA-A1−). The mean percentage of contaminating, i.e. HLA-A1+ T cells was 12.9±1.9% within the recovered fraction of CD3+/PI− cells, demonstrating that the majority of human T cells recovered originated from the injected T cell clone.

In separate mice, we addressed the survival of GAD65-specific T cells upon co-administration with 38-kDa-specific T cells (Fig. 1d). At 7 days after transfer, both autoreactive T cell clones were viable and retained the capacity to respond upon in vitro co-culture with new peptide-pulsed APC. These results demonstrate that the T cells had not become anergic, probably due to co-transferred peptide-pulsed APC [12]. Thus, antigenic stimulation and appropriate co-stimulatory signals induce proliferation and/or survival of autoreactive human T cells upon injection into the peritoneal cavity.

Cloned human autoreactive T cells express CXCR3, a chemokine receptor associated with T cell infiltration in insulitis

The expression of various chemokine receptors associated with type 1 diabetes (CCR5, CXCR3 [19–21]), with various sites of inflammation (CCR1, CCR4 and CXCR6) or with homing to T cell zones in lymphoid organs (CCR7 [22], CXCR4 [23]) was analysed on the two islet-specific autoreactive T cell clones (1C6 and PM1#11) as well as on the hsp60-specific T cell clone (Fig. 2). All T cells expressed CXCR3, CXCR4 and low levels of CCR4. Expression of CXCR6, CCR1, CCR7 (data not shown) and CCR5 could not be detected. Thus, all T cell clones express the CXCR3 chemokine receptor associated with TH1 inflammation in general [20, 24] and with homing to inflamed islets in particular, as well as CXCR4, a chemokine receptor associated with homing to the white pulp of the spleen [25].

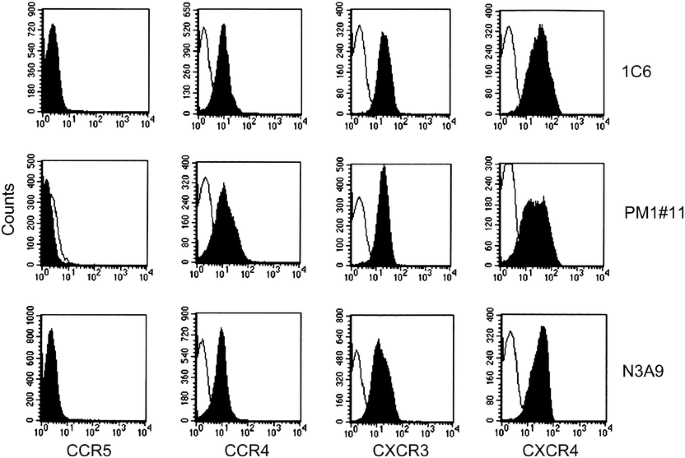

Fig. 2
figure 2

Chemokine receptor expression by cloned human autoreactive T cells (clone 1C6 or PM1#11) or by a cross-reactive TH1 T cell clone reactive to bacterial hsp60 of M. leprae and mice (N3A9)

Full size image

Homing of human autoreactive T cell clones to murine pancreatic tissue and other organs

The presence of human CD3+ T cells in frozen tissue sections prepared from pancreata and other organs isolated at 7 or 14 days after reconstitution with 38-kDa-specific autoreactive T cells was analysed (Fig. 3a). Few T cells were observed adjacent to blood vessels in the interstitial connective tissue between the pancreatic lobuli when APC pulsed with autoantigen were co-administered. Human T cells could not be detected in peripheral (axillar and brachial) lymph nodes or liver (Table 1). However, in view of the high number of cells, the sensitivity of the FACS technique on whole liver suspensions may be too low for detection of human T cells. A previous study on the engraftment of human peripheral blood lymphocytes has, however, reported that CD3+ cells can be detected in liver from 4 weeks post i.p. injection onwards [26]. T cells were detected in spleen (0.2±0.07%) and PDLN (23.7±8.1%).

Fig. 3
figure 3

Analysis of the homing pattern of autoreactive T cells to murine pancreatic tissue. NOD-scid mice were pretreated with vehicle (a) or streptozotocin (b–f) prior to intra-peritoneal reconstitution with human islet-reactive T cells. Reconstituted mice were killed at 4 (e, f), 7 (c, d) or 14 (a, b) days after infusion. Frozen pancreatic tissue sections were prepared and stained with various antibodies: human CD3-expressing 38-kDa-specific T cells in green and mouse endothelial cells in red (MECA-32 [48], 400×) (a, b); human CD3-expressing 38-kDa-specific T cells in green, HLA-A1-expressing T cell-depleted APC in red and contaminating HLA-A1+ T cells from APC fraction in yellow (200×) (c); human HLA-A1−-CD3 expressing 38-kDa-specific T cells in green, HLA-A1+ dendritic cells in red and HLA-A1+ CD3-expressing GAD65-specific T cells in yellow (400×) (d); human CXCR3 (e) or CCR4-expressing cells (f) in green in combination with HLA-A2+-expressing 38-kDa-specific T cells in red (200×)

Full size image
Table 1 Migration pattern of two different human autoreactive T cell clones after transfer into NOD-scid mice
Full size table

Similar experiments were performed with GAD65-specific T cells. These T cells could not be traced in the pancreas, liver or peripheral lymph nodes, despite similar survival in the peritoneal cavity (Fig. 1). Accumulation of both T cell clones was, however, observed in pancreas draining lymph nodes (8.6±1.9%) and spleen (0.3±0.1%).

We next studied whether streptozotocin pretreatment of recipient NOD-scid mice would augment the influx of human T cells (Table 1). We were able to detect increased numbers of 38-kDa-specific T cells in the interstitial tissue (Fig. 3b), as well as around, but never within the islets of Langerhans (data not shown). Few GAD65-specific T cells were found in the pancreas when transferred into streptozotocin-treated mice, comparable to levels observed after transfer of 38-kDa-specific T cells into untreated mice (data not shown). We additionally tested the composition of the infiltrates by double staining the sections for CD3 and HLA-A1 antibodies (Fig. 3c). The majority of infiltrating cells stained positive for CD3 but not for HLA-A1, representing the injected T cell clone 1C6 (HLA-A1−/A2+), whereas few cells stained double positive (yellow) representing contaminating T cells from the APC fraction (CD3+, HLA-A1+). Thus, the pancreatic infiltrates mainly consisted of infiltrating T cell clones as well as antigen-presenting cells. Control experiments were performed to test the contribution of antigenic stimulation to homing into the pancreas of streptozotocin-treated hosts. For this, 38-kDa-specific T cells were co-injected with GAD65 peptide-pulsed APC. Analysis of spleen and pancreas demonstrated the presence of only a few scattered T cells, which could be detected by histological techniques only (data not shown). Collectively, these results show that optimal homing of human autoreactive T cells into the pancreas is dependent on proper antigenic stimulation in vivo, as well as on streptozotocin pretreatment of the host.

After this we analysed the fate of both T cell clones that had been injected together with dendritic cells expressing both restriction elements and the relevant peptides (Fig. 3d). We hypothesised that recruitment of 38-kDa-specific T cells into pancreatic tissue could perhaps improve the poor migration of GAD-65-specific T cells. We consistently observed a dominant influx of CD3+/HLA-A1− 38-kDa-specific T cells (green) and lower, but clearly detectable numbers of yellow staining T cells (CD3+/HLA-A1+), representing GAD65-specific T cells. We also studied the homing of the CXCR3-expressing cross-reactive hsp60-specific T cells (HLA-A2−) in vivo by co-injecting this clone with 38-kDa-specific T cells (HLA-A2+). Both T cell clones were detected in the pancreas (data not shown). Collectively, these results suggest that 38-kDa-specific T cells improve pancreatic accumulation of poorly homing autoreactive as well as hsp60-specific T cells derived from a nondiabetic individual.

Finally, we analysed the expression of CXCR3 and CCR4 in pancreatic tissue collected 4 days after reconstitution, when the first infiltrating T cells were observed (Fig. 3e, f). A few CXCR3+ but HLA-A2− cells could be detected in situ, but the majority of the cells stained yellow, representing HLA-A2 and CXCR3 expressing 38-kDa-specific T cells. None of the recruited cells were found to express CCR4.

Discussion

This is the first report on in vivo migration characteristics of two islet-reactive T cell clones isolated from patients before or at clinical onset of type 1 diabetes. We demonstrate that NOD-scid mice are suitable hosts for long-term, i.e. a minimum of 3 weeks, reconstitution with human T cell clones, providing that peptide-pulsed APC are co-administered. Our study shows constitutive homing of both T clones to PDLN and spleen, but variable accumulation in the pancreas. Recruitment into pancreatic tissue was clearly augmented after pretreatment of recipient mice with streptozotocin, but this treatment did not result in infiltration of islets of Langerhans.

Extravasation of lymphocytes from the circulation into organs or inflamed tissue is a multistep process involving recognition and specific interactions of adhesion molecules on these cells with their endothelial counter receptors. GAD65-reactive peripheral blood lymphocytes from type 1 diabetes patients were found to express α4β7 integrin, which is known to bind the mucosal addressin MAdCAM-1 [27]. Mucosal lymphoid organs preferentially express MAdCAM-1 on high endothelial venules [28]. MAdCAM-1 is also expressed in inflamed islets of NOD mice and human diabetic pancreas [29, 30] and was shown to mediate pancreatic homing of murine T cells [31]. In prediabetic mice, MAdCAM-1 is constitutively expressed in the exocrine tissue and on vessels adjacent to but not inside the islets [32]. This expression pattern matches the observed accumulation of human islet-reactive T cells in our study, i.e. in exocrine tissue and occasionally around the islets. Thus despite the fact that streptozotocin pretreatment is thought to be associated with immunogenic alterations in islets [15], this is probably not sufficient to induce entry of human autoreactive T cells. Interferon-γ may be an important factor involved in the induction of MAdCAM-1 expression in islets of Langerhans [33]. Experimental diabetes models using different IFNγ-deficient mice have shown that this cytokine is crucial in controlling the homing of diabetogenic T cells into islets [34, 35]. In the absence of IFNγ, diabetogenic T cells accumulate in the exocrine tissue or at the islet vascular isthmus, comparable to the histological results presented in this study.

Interferon-γ is also an important inducer of chemokine release by stressed pancreatic islets or beta cells [20, 36, 37]. Chemokines and their receptors are thought to play an important role in lymphocyte traffic. Chemokines mediate local inflammatory responses by their ability to recruit T cells and other cells of the immune system, providing that these cells express certain chemokine receptors [38]. Several chemokine receptors have been associated with recruitment of TH1 T cells to sites of inflammation [39]. The contribution of CCR5 to the pathogenesis of autoimmune diabetes in NOD mice was indirectly demonstrated by reduced insulitis and protection from diabetes in NOD.MIP-1α−/− mice, the chemokine that binds to CCR5 [19]. A contribution of CXCR3 as well as CCR4 in autoimmune diabetes or pancreatic infiltration has also been documented [20, 40, 41]. In recent-onset type 1 diabetes patients, a temporary reduction of peripheral CD3+/CD4+ T cells expressing TH1-associated chemokine receptors CXCR3 and CCR5 was demonstrated [42]. These results suggest a role for these receptors in recruitment of autoreactive T cells into the inflamed pancreas. Our observed CXCR3 expression in situ is in line with the earlier studies implicating this chemokine receptor in directing murine autoreactive T cell to inflamed pancreatic tissue. Two known ligands for CXCR3, i.e. CXCL10 [43] and CXCL9 [44], have been shown to be involved in diapedesis of human and circulating effector T cells [36]. Moreover, murine CXCL10 shares a high amino acid sequence identity with human CXCL10 and is known to bind to the human CXCR3 receptor [45].

Both human islet-reactive T cells and the hsp60-specific T cell clone were found to express equal levels of the CXCR3 chemokine receptor in vitro. Yet, our results point out differences in pancreatic accumulation between the T cell clones. Perhaps the 38-kDa-specific T cells up-regulate other integrins or chemokine receptors in vivo, which may improve pancreatic homing compared to the other human T cells tested, even in the absence of pancreatic inflammation. Alternatively, T cell homing to the pancreas under non-inflammatory conditions may be biased by the absence or presence of the relevant autoantigens. It is conceivable that the unique granular localisation of 38-kDa antigen drives pancreatic homing of these T cells based on steady-state activity of beta cells, i.e. exocytosis of insulin.

The hsp60-specific T cell clone was found in the pancreas after co-transfer with 38-kDa-specific T cells in streptozotocin-pretreated mice. These results are in line with observations in prediabetic NOD mice, demonstrating that homing of lymphocytes to pancreatic islets is not restricted to autoreactive T cells [33]. Moreover, the peptide epitope recognised by the these T cells resides in a conserved region of heat shock protein 65, a protein produced under conditions of (beta) cell stress and associated with insulitis and type 1 diabetes [2]. Like hsp60-specific T cells, GAD65-specific T cells could only be traced in the pancreas when co-injected with 38-kDa-specific T cells. This poor accumulation could be explained by the fact that the GAD65-specific T cell clone requires autoantigen-presentation by HLA-DR3+ endothelial cells for optimal migration across human vascular endothelium [46]. Unstimulated T cells do not transmigrate, suggesting that only appropriately stimulated autoreactive T cells reach the endocrine islet mass.

In contrast to variable homing to pancreatic tissue, both islet-specific autoreactive T cell clones accumulated to a similar extent in the pancreas draining lymph nodes. Beta cell insult, i.e. after viral infection in RIP-LCMV transgenic mice, was recently shown to induce a CXCL10 gradient between the pancreas (low expression) and its draining lymph node (high expression) [47]. Such a gradient is perhaps also present in hyperglycaemic streptozotocin-treated NOD-scid mice and may recruit human T cells away from the pancreas into the pancreas draining lymph nodes.

Collectively, our results demonstrate that autoreactive T cells derived from type 1 diabetic patients home to the pancreatic islet environment, but may require additional signals to enter the islets. As yet, we have no evidence that these T cells destroy pancreatic islets in vivo. Nevertheless, on the basis of their homing characteristics, we conclude that these human T cells fulfil a critical primary checkpoint for participation in the pathogenesis of type 1 diabetes.
