Identification of molecular variants of the nonrestoring restorer-of-fertility 1 allele in sugar beet (Beta vulgaris L.)

Theoretical and Applied Genetics volume 129, pages 675–688 (2016)Cite this article

An Erratum to this article was published on 22 April 2017

Abstract

Key message

Only three variants of nonrestoring alleles for sugar beet Rf1 were found from the US maintainer lines which were the selections from a broad range of genetic resources.

Abstract

Cytoplasmic male sterility is widely used for hybrid breeding of sugar beets. Specific genotypes with a nonsterility-inducing cytoplasm and a nonrestoring allele of restorer-of-fertility gene (rf) are called maintainers. The infrequent occurrence of the maintainer genotype evokes the need to diagnose rf alleles. Molecular analysis of Rf1, one of the sugar beet Rfs, revealed a high level of nucleotide sequence diversity, but three variants were tightly associated with maintainer selection in Japan. The question was raised whether this small number of variants would be seen in cases where a wider range of genetic resources was used for maintainer selection. Fifty-seven accessions registered as maintainers in the USDA germplasm collection were characterized in this study. Mitochondrial DNA types (mitotypes) of 551 plants were diagnosed based on minisatellite polymorphism. A mitotype associated with sterility-inducing (S) cytoplasm was identified in 58 plants, indicating S-cytoplasm contamination. The organization of rf1 was investigated by two PCR markers and DNA gel blot analysis. Eight haplotypes were found among the US maintainers, but subsequently two haplotypes were judged as restoring alleles after a test cross and another haplotype was not inherited by the progeny. Nucleotide sequences of rf1 regions in the remaining five haplotypes were compared, and despite the sequence diversity of the gene-flanking regions, the gene-coding regions were identified to be three types. Therefore, there are three rf1 variants in US maintainers, the same number as in the Japanese sugar beet germplasm collection. The implications of having a small repertoire of rf1 variants are discussed.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

Fig. 1

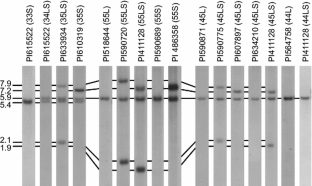

Fig. 2

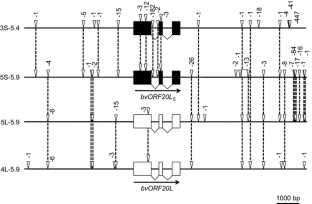

Fig. 3

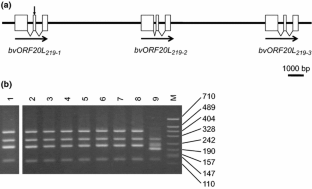

Fig. 4

References

  • Abegg FA (1936) A genetic factor for the annual habitat in beets and linkage relationship. J Agr Res 53:493–511

    Google Scholar

  • Bosemark NO (2006) Genetics and breeding. In: Draycott AP (ed) Sugar beet. Blackwell, Oxford, pp 50–88

  • Budar F, Touzet P, Pelletier G (2006) Cytoplasmic male sterility. In: Ainsworth C (ed) Flowering and its manipulation. Blackwell, Oxford, pp 147–180

    Chapter  Google Scholar

  • Cheng D, Kitazaki K, Xu D, Mikami T, Kubo T (2009) The distribution of normal and male-sterile cytoplasms in Chinese sugar-beet germplasm. Euphytica 165:345–351

    Article  Google Scholar

  • Cheng D, Yoshida Y, Kitazaki K, Negoro S, Takahashi H, Xu D, Mikami T, Kubo T (2011) Mitochondrial genome diversity in Beta vulgaris L. ssp. vulgaris (Leaf and Garden Beet Groups) and its implications concerning the dissemination of the crop. Genet Resour Crop Evol 58:553–560

    Article  Google Scholar

  • Cuguen J, Wattier R, Saumitou-Laprade P et al (1994) Gynodioecy and mitochondrial DNA polymorphism in natural populations of Beta vulgaris ssp maritima. Genet Select Evol 26:S87–S101

    Article  Google Scholar

  • Doyle JJ, Doyle JL (1990) Isolation of plant DNA from fresh tissue. Focus 12:13–15

  • Hagihara E, Itchoda N, Habu Y, Iida S, Mikami T, Kubo T (2005) Molecular mapping of a fertility restorer gene for Owen cytoplasmic male sterility in sugar beet. Theor Appl Genet 111:250–255

    CAS  Article  PubMed  Google Scholar

  • Hecker RJ, Helmerick RH (1985) Sugar-beet breeding in the United States. In: Russel GE (ed) Progress in plant breeding-1. Butterworths, London, pp 37–61

    Chapter  Google Scholar

  • Hjerdin-Panagopoulos A, Kraft T, Rading IM, Tuvesson S, Nilson NO (2002) Three QTL regions for restoration of Owen CMS in sugar beet. Crop Sci 42:540–544

    Article  Google Scholar

  • Honma Y, Taguchi K, Hiyama H, Yui-Kurino R, Mikami T, Kubo T (2014) Molecular mapping of restorer-of-fertility 2 gene identified from a sugar beet (Beta vulgaris L. ssp. vulgaris) homozygous for the non-restoring restorer-of-fertility 1 allele. Theor Appl Genet 127:2567–2574

    CAS  Article  PubMed  PubMed Central  Google Scholar

  • Kitazaki K, Arakawa T, Matsunaga M et al (2015) Post-translational mechanisms are associated with fertility restoration of cytoplasmic male sterility in sugar beet (Beta vulgaris). Plant J 83:290–299

    CAS  Article  PubMed  Google Scholar

  • Lewellen RT (1992) Use of plant introductions to improve populations and hybrids of sugarbeet. In: Shands HL, Wiesner L (eds) Use of plant introductions in cultivar development. Crop Science Society of America, Madison, pp 117–136

    Google Scholar

  • Matsuhira H, Kagami H, Kurata M et al (2012) Unusual and typical features of a novel restorer-of-fertility gene of sugar beet (Beta vulgaris L.). Genetics 192:1347–1358

    CAS  Article  PubMed  PubMed Central  Google Scholar

  • McGrath JM, Derrico CA, Yu Y (1999) Genetic diversity in selected, historical US sugarbeet germplasm and Beta vulgaris ssp. maritima. Theor Appl Genet 98:968–976

    Article  Google Scholar

  • Moritani M, Taguchi K, Kitazaki K et al (2013) Identification of the predominant nonrestoring allele for Owen-type cytoplasmic male sterility in sugar beet (Beta vulgaris L.): development of molecular markers for the maintainer genotype. Mol Breed 32:91–100

    CAS  Article  PubMed  PubMed Central  Google Scholar

  • Nishizawa S, Kubo T, Mikami T (2000) Variable number of tandem repeat loci in the mitochondrial genomes of beets. Curr Genet 37:34–38

    CAS  Article  PubMed  Google Scholar

  • Nishizawa S, Mikami T, Kubo T (2007) Mitochondrial DNA phylogeny of cultivated and wild beets: relationships among cytoplasmic male-sterility-inducing and nonsterilizing cytoplasms. Genetics 177:1703–1712

    CAS  Article  PubMed  PubMed Central  Google Scholar

  • Onodera Y, Arakawa T, Yui-Kurino R et al (2015) Two male sterility-inducing cytoplasms of beet (Beta vulgaris) are genetically distinct but have closely related mitochondrial genomes: implication of a substoichiometric mitochondrial DNA molecule in their evolution. Euphytica 206:365–379

    CAS  Article  Google Scholar

  • Owen FV (1945) Cytoplasmically inherited male-sterility in sugar beets. J Agr Res 71:423–440

    Google Scholar

  • Pillen K, Steinrücken G, Herrmann RG, Jung C (1993) An extended linkage map of sugar beet (Beta vulgaris L.) including nine putative lethal genes and the restorer gene X. Plant Breed 111:265–272

    CAS  Article  Google Scholar

  • Sambrook J, Fritsch EF, Maniatis T (1989) Molecular cloning: a laboratory manual, 2nd edn. Cold Spring Harbor Laboratory Press, Cold Spring Harbor, New York

    Google Scholar

  • Schnable PS, Wise RP (1998) The molecular basis of cytoplasmic male sterility and fertility restoration. Trends Plant Sci 3:175–180

    Article  Google Scholar

  • Taguchi K, Nakatsuka K, Takahashi H, Okazaki K, Yoshida T (2006) Relationship between the coefficient of parentage and sugar yield in sugar beet F1 hybrid (in Japanese). Breed Res 8:151–159

    Article  Google Scholar

  • Taguchi K, Hiyama H, Yui-Kurino R, Muramatsu A, Mikami T, Kubo T (2014) Hybrid breeding skewed the allelic frequencies of molecular variants derived from the restorer-of-fertility 1 locus for cytoplasmic male sterility in sugar beet (Beta vulgaris L.). Crop Sci 54:1407–1412

    CAS  Article  Google Scholar

  • Touzet P (2012) Mitochondrial genome evolution and gynodioecy. In: Marechal-Drouard L (ed) Mitochondrial genome evolution. Academic Press, Oxford, pp 71–98

    Chapter  Google Scholar

  • Yamamoto MP, Shinada H, Onodera Y et al (2008) A male sterility-associated mitochondrial protein in wild beets causes pollen disruption in transgenic plants. Plant J 54:1027–1036

    CAS  Article  PubMed  Google Scholar

Download references

Acknowledgments

This work was supported in part by JSPS KAKENHI Grant Number 25292001.

Author information

Affiliations

  1. Research Faculty of Agriculture, Hokkaido University, N-9, W-9, Kita-Ku, Sapporo, 060-8589, Japan

    Takashi Ohgami, Daisuke Uchiyama, Sachiyo Ue, Rika Yui-Kurino, Yu Yoshida, Yoko Kamei & Tomohiko Kubo

  2. Hokkaido Agricultural Research Center, National Agriculture and Food Research Organization, Memuro, 082-0081, Japan

    Yosuke Kuroda & Kazunori Taguchi

Authors
  1. Takashi Ohgami
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Daisuke Uchiyama
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Sachiyo Ue
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Rika Yui-Kurino
    View author publications

    You can also search for this author in PubMed Google Scholar

  5. Yu Yoshida
    View author publications

    You can also search for this author in PubMed Google Scholar

  6. Yoko Kamei
    View author publications

    You can also search for this author in PubMed Google Scholar

  7. Yosuke Kuroda
    View author publications

    You can also search for this author in PubMed Google Scholar

  8. Kazunori Taguchi
    View author publications

    You can also search for this author in PubMed Google Scholar

  9. Tomohiko Kubo
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Tomohiko Kubo.

Ethics declarations

Conflict of interest

The authors declare that there is no conflict of interest.

Additional information

An erratum to this article is available at http://dx.doi.org/10.1007/s00122-017-2907-3.

Communicated by B. Hulke.

Electronic supplementary material

Rights and permissions

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Ohgami, T., Uchiyama, D., Ue, S. et al. Identification of molecular variants of the nonrestoring restorer-of-fertility 1 allele in sugar beet (Beta vulgaris L.). Theor Appl Genet 129, 675–688 (2016). https://doi.org/10.1007/s00122-015-2656-0

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s00122-015-2656-0

Keywords

  • Sugar Beet
  • Cytoplasmic Male Sterility
  • Marker Type
  • Fertility Restoration
  • Maintainer Line
