Kardiale Kontraktilitätsmodulation

Cardiac contractility modulation

Der Internist volume 59, pages 1021–1027 (2018)Cite this article

Zusammenfassung

Die kardiale Kontraktilitätsmodulation (CCM) ist eine Device-basierte elektrische Therapieform zur additiven Behandlung der chronischen medikamentös therapierefraktären Herzinsuffizienz. Hochamplitudige Signale werden während der absoluten Refraktärphase appliziert und induzieren über multiple Mechanismen inklusive Modifikationen der Genexpression und Beeinflussung myokardialer Schlüsselproteine eine Steigerung der Kontraktilität. Aktuell sind weltweit >3500 CCM-Devices erfolgreich implantiert worden. In randomisierten Studien wurden eine Verbesserung der Belastungskapazität und der Lebensqualität sowie eine Verbesserung linksventrikulärer Parameter nachgewiesen. Für Patienten mit therapierefraktärer Herzinsuffizienz und schmalem QRS-Komplex ist die CCM momentan außerhalb von Studien zusammen mit der Barorezeptortherapie die einzige additive elektrische Therapieoption in Deutschland. Erstmalig erfolgte aktuell eine Berücksichtigung in den neuen Leitlinien der Herzinsuffizienz. Prognostische Daten zur Mortalität liegen als Fallserien vor, aktuell laufen diesbezüglich randomisierte Studien bzw. Register, die mittlerweile teilweise publiziert sind. Eine Zulassung durch die Food and Drug Administration wird in den nächsten Monaten erwartet.

Abstract

Cardiac contractility modulation (CCM) is a device-based electrical therapy for the additive treatment of chronic drug-refractory heart insufficiency. High-amplitude signals are applied during the absolute refractory period and have been shown to enhance the strength of left ventricular (LV) contraction and improve exercise tolerance and quality of life. The mechanisms of action appear to involve effects on myocardial gene expression and on normalization of key myocardial proteins. So far, more than 3500 CCM devices have been implanted worldwide. For patients with therapy refractory heart insufficiency and narrow QRS complex, CCM is together with baroreceptor activation the only additive electrical therapy which had been approved in Germany. For the first time CCM has been referenced in the current guidelines on cardiac insufficiency. Prognostic data with respect to mortality have been evaluated in case series. Ongoing randomized trials and registries will address these specific endpoints and have to a significant extent already been recently published. A Food and Drug Administration (FDA) approval is expected within the next few months.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

Abb. 1
Abb. 2

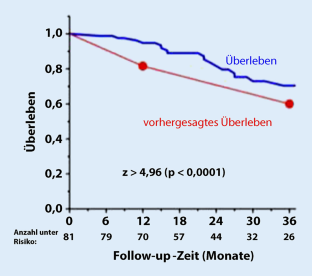

Abb. 3
Abb. 4

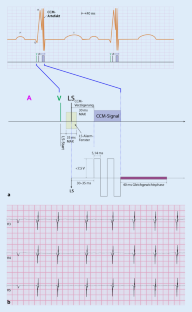

Abb. 5
Abb. 6

Literatur

  1. Abraham WT, Kuck KH, Goldsmith RL et al (2018) A randomized controlled trial to evaluate the safety and efficacy of cardiac contractility modulation. JACC Heart Fail. https://doi.org/10.1016/j.jchf.2018.04.010

    Article  PubMed  Google Scholar

  2. Abraham WT, Nademanee K, Volosin K et al (2011) Subgroup analysis of a randomized controlled trial evaluating the safety and efficacy of cardiac contractility modulation in advanced heart failure. J Card Fail 17:710–717

    Article  PubMed  Google Scholar

  3. Borggrefe MM, Lawo T, Butter C et al (2008) Randomized, double blind study of non-excitatory, cardiac contractility modulation electrical impulses for symptomatic heart failure. Eur Heart J 29:1019–1028

    Article  PubMed  Google Scholar

  4. Butter C, Rastogi S, Minden HH et al (2008) Cardiac contractility modulation electrical signals improve myocardial gene expression in patients with heart failure. J Am Coll Cardiol 51:1784–1789

    CAS  Article  PubMed  Google Scholar

  5. Butter C, Wellnhofer E, Schlegl M et al (2007) Enhanced inotropic state of the failing left ventricle by cardiac contractility modulation electrical signals is not associated with increased myocardial oxygen consumption. J Card Fail 13:137–142

    Article  PubMed  Google Scholar

  6. Goliasch G, Khorsand A, Schutz M et al (2012) The effect of device-based cardiac contractility modulation therapy on myocardial efficiency and oxidative metabolism in patients with heart failure. Eur J Nucl Med Mol Imaging 39:408–415

    CAS  Article  PubMed  Google Scholar

  7. Kadish A, Nademanee K, Volosin K et al (2011) A randomized controlled trial evaluating the safety and efficacy of cardiac contractility modulation in advanced heart failure. Am Heart J 161:329–337.e1-2

    Article  PubMed  Google Scholar

  8. Kloppe A, Lawo T, Mijic D et al (2016) Long-term survival with Cardiac Contractility Modulation in patients with NYHA II or III symptoms and normal QRS duration. Int J Cardiol 209:291–295

    Article  PubMed  Google Scholar

  9. Kloppe A, Mijic D, Schiedat F et al (2016) A randomized comparison of 5 versus 12 h per day of cardiac contractility modulation treatment for heart failure patients: A preliminary report. Cardiol J 23:114–119

    Article  PubMed  Google Scholar

  10. Kuck KH, Bordachar P, Borggrefe M et al (2014) New devices in heart failure: an European Heart Rhythm Association report: developed by the European Heart Rhythm Association; endorsed by the Heart Failure Association. Europace 16:109–128

    Article  PubMed  Google Scholar

  11. Kuschyk J, Kloppe A, Schmidt-Schweda S et al (2017) Cardiac contractility modulation: a technical guide for device implantation. Rev Cardiovasc Med 18:1–13

    PubMed  Google Scholar

  12. Kuschyk J, Roeger S, Schneider R et al (2015) Efficacy and survival in patients with cardiac contractility modulation: long-term single center experience in 81 patients. Int J Cardiol 183:76–81

    Article  PubMed  Google Scholar

  13. Liu M, Fang F, Luo XX et al (2016) Improvement of long-term survival by cardiac contractility modulation in heart failure patients: a case-control study. Int J Cardiol 206:122–126

    Article  PubMed  Google Scholar

  14. Muller D, Remppis A, Schauerte P et al (2017) Clinical effects of long-term cardiac contractility modulation (CCM) in subjects with heart failure caused by left ventricular systolic dysfunction. Clin Res Cardiol 106:893–904

    CAS  Article  PubMed  PubMed Central  Google Scholar

  15. Myers J, Goldsmith RL, Keteyian SJ et al (2010) The ventilatory anaerobic threshold in heart failure: a multicenter evaluation of reliability. J Card Fail 16:76–83

    Article  PubMed  Google Scholar

  16. Nagele H, Behrens S, Eisermann C (2008) Cardiac contractility modulation in non-responders to cardiac resynchronization therapy. Europace 10:1375–1380

    CAS  Article  PubMed  Google Scholar

  17. Ponikowski P, Voors AA, Anker SD et al (2016) 2016 ESC Guidelines for the diagnosis and treatment of acute and chronic heart failure: The Task Force for the diagnosis and treatment of acute and chronic heart failure of the European Society of Cardiology (ESC)Developed with the special contribution of the Heart Failure Association (HFA) of the ESC. Eur Heart J 37:2129–2200

    Article  PubMed  Google Scholar

  18. Shen L, Jhund PS, Petrie MC et al (2017) Declining risk of sudden death in heart failure. N Engl J Med 377:41–51

    Article  PubMed  Google Scholar

  19. Yu CM, Chan JY, Zhang Q et al (2009) Impact of cardiac contractility modulation on left ventricular global and regional function and remodeling. JACC Cardiovasc Imaging 2:1341–1349

    Article  PubMed  Google Scholar

  20. Kuschyk J, Rudic B, Borggrefe M et al (2017) Aktueller Stellenwert der Device-Therapie. Herz 42:151–161

    CAS  Article  PubMed  Google Scholar

Download references

Author information

Affiliations

  1. I. Medizinische Klinik, Deutsches Zentrum für Herz-Kreislauf-Forschung (DZHK), Universitätsmedizin Mannheim, Theodor-Kutzer-Ufer 1–3, 68167, Mannheim, Deutschland

    J. Kuschyk, B. Rudic, M. Borggrefe & I. Akin

Authors
  1. J. Kuschyk
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. B. Rudic
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. M. Borggrefe
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. I. Akin
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to J. Kuschyk.

Ethics declarations

Interessenkonflikt

J. Kuschyk und M. Borggrefe: Beratertätigkeit, Vortragshonorare und Reisekostenübernahme von Impulse Dynamics und Boston Scientific. B. Rudic: Vortragshonorare und Reisekostenübernahme von Impulse Dynamics und Boston Scientific. I. Akin gibt an, dass kein Interessenkonflikt besteht.

Dieser Beitrag beinhaltet keine von den Autoren durchgeführten Studien an Menschen oder Tieren.

Additional information

Redaktion

G. Hasenfuß, Göttingen

Rights and permissions

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Kuschyk, J., Rudic, B., Borggrefe, M. et al. Kardiale Kontraktilitätsmodulation. Internist 59, 1021–1027 (2018). https://doi.org/10.1007/s00108-018-0493-3

Download citation

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s00108-018-0493-3

Schlüsselwörter

  • Herzinsuffizienz
  • Schmaler QRS-Komplex
  • Belastungskapazität
  • Lebensqualität
  • Implantierbare Kardioverter-Defibrillatoren

Keywords

  • Heart failure
  • Narrow QRS
  • Exercise tolerance
  • Quality of life
  • Cardioverter defibrillators, implantable
