Patient-related quality assurance with different combinations of treatment planning systems, techniques, and machines

A multi-institutional survey

Patientenbezogene Qualitätssicherung mit unterschiedlichen Kombinationen von Planungssystemen, Techniken und Geräten

Eine multiinstitutionelle Studie

Strahlentherapie und Onkologie volume 193, pages 46–54 (2017)Cite this article

Abstract

Purpose

This project compares the different patient-related quality assurance systems for intensity-modulated radiation therapy (IMRT) and volumetric-modulated arc therapy (VMAT) techniques currently used in the central Germany area with an independent measuring system.

Materials and methods

The participating institutions generated 21 treatment plans with different combinations of treatment planning systems (TPS) and linear accelerators (LINAC) for the QUASIMODO (Quality ASsurance of Intensity MODulated radiation Oncology) patient model. The plans were exposed to the ArcCHECK measuring system (Sun Nuclear Corporation, Melbourne, FL, USA). The dose distributions were analyzed using the corresponding software and a point dose measured at the isocenter with an ionization chamber.

Results

According to the generally used criteria of a 10 % threshold, 3 % difference, and 3 mm distance, the majority of plans investigated showed a gamma index exceeding 95 %. Only one plan did not fulfill the criteria and three of the plans did not comply with the commonly accepted tolerance level of ±3 % in point dose measurement.

Conclusion

Using only one of the two examined methods for patient-related quality assurance is not sufficiently significant in all cases.

Zusammenfassung

Ziel

Im Rahmen des Projekts sollten die verschiedenen derzeit im mitteldeutschen Raum eingesetzten patientenbezogenen Qualitätssicherungssysteme zur intensitätsmodulierten Radiotherapie (IMRT) und volumenmodulierten Arc-Radiotherapie (VMAT) mit einem unabhängigen Messsystem verglichen werden.

Material und Methoden

Die teilnehmenden Einrichtungen berechneten insgesamt 21 Bestrahlungspläne mit verschiedenen Planungssystemen (TPS) und Linearbeschleunigern (LINAC) für das Patientenmodell QUASIMODO (Quality ASsurance of Intensity MODulated radiation Oncology), die dann auf das ArcCHECK-Phantom (Sun Nuclear Corporation, Melbourne, FL, USA) übertragen und abgestrahlt wurden. Zur Auswertung wurde sowohl eine Punktmessung im Isozentrum als auch die Dosisverteilung in der Diodenebene des Messphantoms betrachtet.

Ergebnisse

Nach den allgemein üblichen Kriterien von 10 %-Schwellenwert, 3 %-Abweichung und 3‑mm-Abstand zeigten die meisten Pläne dieser Studie einen Gamma-Index größer 95 %, lediglich ein Plan erfüllte diese Kriterien nicht. Bei der Dosispunktmessung lagen drei Pläne außerhalb der üblichen Toleranz der 3 %-Abweichung.

Schlussfolgerung

Für die patientenbezogene Qualitätssicherung ist die Punktmessung der Dosis oder die alleinige Gammaanalyse zur Planverifizierung nicht in allen Fällen ausreichend signifikant.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

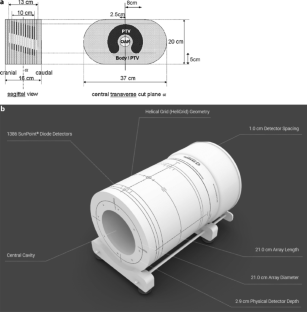

Fig. 1

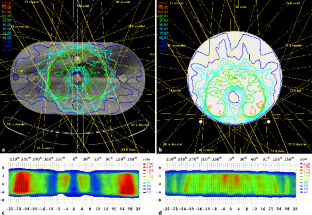

Fig. 2
Fig. 3
Fig. 4

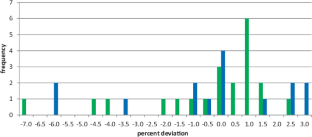

Fig. 5

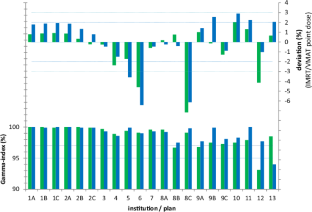

Fig. 6
