4D-Listmode-PET-CT and 4D-CT for optimizing PTV margins in gastric lymphoma

Determination of intra- and interfractional gastric motion

4D-Listmode-PET-CT und 4D-CT für die Optimierung des PTV-Sicherheitsabstandes bei Magenlymphomen

Erfassung der intra- und interfraktionellen Magenbewegung

Strahlentherapie und Onkologie volume 192, pages 322–332 (2016)Cite this article

Abstract

Purpose

New imaging protocols for radiotherapy in localized gastric lymphoma were evaluated to optimize planning target volume (PTV) margin and determine intra-/interfractional variation of the stomach.

Methods

Imaging of 6 patients was explored prospectively. Intensity-modulated radiotherapy (IMRT) planning was based on 4D/3D imaging of computed tomography (CT) and positron-emission tomography (PET)-CT. Static and motion gross tumor volume (sGTV and mGTV, respectively) were distinguished by defining GTV (empty stomach), clinical target volume (CTV = GTV + 5 mm margin), PTV (GTV + 10/15/20/25 mm margins)  plus paraaortic lymph nodes and proximal duodenum. Overlap of 4D-Listmode-PET-based mCTV with 3D-CT-based PTV (increasing margins) and V95/D95 of mCTV were evaluated. Gastric shifts were determined using online cone-beam CT. Dose contribution to organs at risk was assessed.

Results

The 4D data demonstrate considerable intra-/interfractional variation of the stomach, especially along the vertical axis. Conventional 3D-CT planning utilizing advancing PTV margins of 10/15/20/25 mm resulted in rising dose coverage of mCTV (4D-Listmode-PET-Summation-CT) and rising D95 and V95 of mCTV. A PTV margin of 15 mm was adequate in 3 of 6 patients, a PTV margin of 20 mm was adequate in 4 of 6 patients, and a PTV margin of 25 mm was adequate in 5 of 6 patients.

Conclusion

IMRT planning based on 4D-PET-CT/4D-CT together with online cone-beam CT is advisable to individualize the PTV margin and optimize target coverage in gastric lymphoma.

Zusammenfassung

Hintergrund

Zur Optimierung des Sicherheitsabstandes beim Planungszielvolumen (PTV) und zur Erfassung der intra-/interfraktionellen Variation des Magens wurden neue Protokolle für die Bildverarbeitung in der Radiotherapie lokalisierter Magenlymphome evaluiert.

Methode

Die Bildgebung von 6 Patienten wurde prospektiv untersucht. Die Planung der intensitätsmodulierten Strahlentherapie (IMRT) basierte auf 4D-/3D-Bildgebung von Computertomographie (CT) und Positronenemissionstomographie-CT (PET-CT). Wir differenzierten zwischen „static“ und „motion“ Gesamttumorvolumen (sGTV, mGTV) unter Definition von GTV (leerer Magen), klinischem Zielvolumen (CTV= GTV + 5 mm Sicherheitsabstand), PTV (GTV + 10/15/20/25 mm Sicherheitsabstand)  plus  paraaortalen Lymphknoten (LK ) und  proximalem Duodenum. Die Überschneidung des 4D-Listmode-PET-basierten mCTV mit dem 3D-CT-basierten PTV (steigender Sicherheitssaum) und die V95/D95 des mCTV wurden evaluiert. Magenverschiebungen wurden im Online-Conebeam-CT bestimmt. Die Dosisverteilung für die Risikoorgane wurde berechnet.

Ergebnisse

Die 4D-Bilddaten zeigen die bemerkenswerte intra-/interfraktionelle Variation des Magens, insbesondere vertikal. Die konventionelle 3D-CT-Planung mit schrittweise zunehmenden PTV-Sicherheitsabständen von 10/15/20/25 mm resultierte in steigender Dosisversorgung des mCTV (4D-Listmode-PET-Summation-CT) und steigender D95 und V95 des mCTV. Bei 3 von 6 Patienten war ein PTV-Sicherheitsabstand von 15 mm ausreichend, bei 4 von 6 Patienten 20 mm und bei 5 von 6 Patienten 25 mm.

Schlussfolgerung

Die IMRT-Planung auf Basis von 4D-PET-CT/4D-CT mit der Online-Conebeam-CT kann die PTV-Sicherheitsabstände individualisieren und die Zielvolumenerfassung bei Magenlymphomen optimieren.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

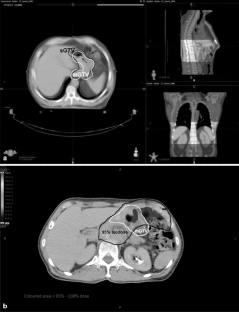

Fig. 1
Fig. 2

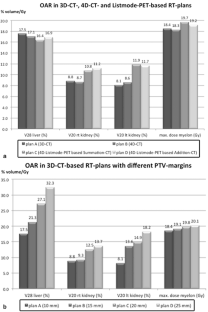

Fig. 3
