On the estimation of the bed-material transport and budget along a river segment: application to the Middle Loire River, France

  • Research Article
  • Published:
Aquatic Sciences Aims and scope Submit manuscript

Abstract

Sediment load and budgets are a fundamental component of the process-based hydromorphological framework developed by the REFORM project, and are needed to accurately assess the current condition of a river, its sensitivity to change, and its likely future evolutionary trajectory. This paper presents an evaluation of three different methods for estimating both bedload sediment transport and bed-material budget within river channels, using the Middle Loire River as a case study. The first method is based on the stream power concept and does not need any hydraulic calculations. It yields estimates of the sediment transport in the same order of magnitude as measurements but poor results for the bed-material budget in terms of magnitude and tendency. For the second method, hydraulic parameters are computed using the Manning–Strickler equation (or a 1D hydraulic model for steady flow). It provides useful indicators for understanding river dynamics but does not yield significant improvements compared to the first method. The third method uses 1D numerical software for water flow and river bed evolution. It yields the most accurate results for both sediment transport and bed evolution but requires more data and overall more work to construct the model. Guidance is provided on the amount of data required, the competence needed to build the models, and the predictive capability of each of the methods.

This is a preview of subscription content, log in via an institution to check access.

Access this article

Log in via an institution

Price excludes VAT (USA)
Tax calculation will be finalised during checkout.

Instant access to the full article PDF.

Institutional subscriptions

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5

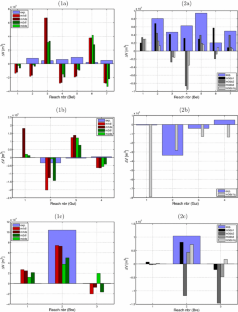

Fig. 6

Similar content being viewed by others

References

  • Bagnold RA (1966) An approach of sediment transport model from general physics. Technical Report 422-I, US Geol. Survey Prof. Paper

  • Brewer PA, Passmore DG (2002) Sediment budgeting techniques in gravel-bed rivers. In: Jones S, Frostick LE (eds) Sediment Flux to Basins: Causes, Controls and Consequences, volume special publications 191, Geological Society, London, pp 97–113

  • Camenen B (2012) Discussion of “understanding the influence of slope on the threshold of coarse grain motion: revisiting critical stream power” by C. Parker, N.J. Clifford, and C.R. Thorne. Geomorphology 139–140:34–38

  • Camenen B, Holubová K, Luka\(\breve{{\rm c}}\) M, Le Coz J, Paquier A (2011) Assessment of methods used in 1D models for computing bedload transport in a large river: the Danube River in Slovakia. J Hydraulic Eng 137(10):1190–1199

  • Camenen B, Larroudé P (2003) Comparison of sediment transport formulae for a coastal environment. Coastal Eng 48:111–132

    Article  Google Scholar

  • Camenen B, Larson M (2005) A bedload sediment transport formula for the nearshore. Estuar Coast Shelf Sci 63:249–260

    Article  Google Scholar

  • Claude N, Rodrigues S, Bustillo V, Bréhéret J-G, Macaire J-J, Jugé P (2012) Estimating bedload transport in a large sand-gravel bed river from direct sampling, dune tracking and empirical formulas. Geomorphology 179:40–57

    Article  Google Scholar

  • Claude N, Rodrigues S, Bustillo V, Bréhéret JG, Macaire J-J, Jugé P (2014) Interactions between flow structure and morphodynamic of bars in a channel expansion/contraction, Loire River, France. Water Resour Res 50:2850–2873

  • Daubert A, Lebreton JC (1967) Etude expÉrimentale et sur modèle mathèmatique de quelques aspects des processus d’érosion des lits alluvionnaires, en régime permanent et non-permanent [Study with a mathematic model on some erosion processes in alluvial rivers for steady and unsteady regimes]. In: Proc. 12th IAHR Congress, Fort Collins, vol 3, Colorado, pp 26–37 (in French)

  • El Kadi Abderrezzak K, Paquier A (2009) One-dimensional numerical modeling of sediment transport and bed deformation in open channels. Water Resour Res 45(W05404):20

  • Emmett WW, Wolman MG (2001) Effective discharge and gravel-bed rivers. Earth Surface Proc Landf 26:1369–1380

    Article  Google Scholar

  • Francalanci S, Paris E, Solari L (2013) A combined field sampling-modeling approach for computing sediment transport during flash floods in a gravel-bed stream. Water Resour Res. 49:6642–6655

    Article  Google Scholar

  • Francalanci S, Solari L, Toffolon M, Parker G (2012) Do alternate bars affect sediment transport and flow resistance in gravel-bed rivers? Earth Surface Proc Landf 37:866–875

    Article  Google Scholar

  • Frings RM, Kleinhans MG (2008) Complex variations in sediment transport at three large river bifurcations during discharge waves in the river Rhine. Sedimentology 55:1145–1171

    Article  Google Scholar

  • Grabowski RC, Gurnell AM (2015) Diagnosing problems of fine sediment delivery and transfer in a lowland catchment. Aquat Sci. doi:10.1007/s00027-015-0426-3

  • Grabowski RC, Surian N, Gurnell AM (2014) Characterizing geomorphological change to support sustainable river restoration and management. WIREs Water 1(5):483–512

    Article  Google Scholar

  • Gurnell AM, Bussettini M, Camenen B, González del Tánago M, Grabowski R, Hendriks D, Henshaw A, Latapie A, Rinaldi M, Surian N (2014) A multi-scale framework and indicators of hydromorphological processes and forms. Deliverable 2.1, Part 1, REFORM (REstoring rivers FOR effective catchment Management), a Collaborative project (large-scale integrating project) funded by the European Commission within the 7th Framework Programme under Grant Agreement 282656. 217p

  • Gurnell AM et al (2015) A multi-scale hierarchical framework for developing understanding of river behaviour to support river management. Aquat Sci. doi:10.1007/s00027-015-0424-5

  • Latapie A (2011) Modélisation de l’évolution morphologique d’un lit alluvial: application à la Loire Moyenne [Modelling the morphological evolution of the Middle Loire River (France)]. PhD thesis, F. Rabelais University, Tours, France, p 279 (in French)

  • Latapie A, Camenen B, Rodrigues S, Paquier A, Bouchard J-P, Moatar F (2014) Classifying anthropogenised river reaches to assess channel changes using hydraulic parameters. Catena 121:1–12

    Article  Google Scholar

  • Lenzi MA, Mao L, Comiti F (2006) Effective discharge for sediment transport in a mountain river: computational approaches and geomorphic effectiveness. J Hydrol 326:257–276

    Article  Google Scholar

  • Meyer-Peter E and Müller R (1948) Formulas for bed-load transport. In: Proc. 2nd IAHR Congress, Stockholm, Sweden, pp 39–64

  • Mosselman E (2005) Modelling sediment transport and morphodynamics of gravel-bed rivers. In: Church M, Biron P, Roy A (eds) Gravel-Bed Rivers VII: Processes, Tools, Environments, Wiley, USA, pp 101–115

  • Papanicolaou AN, Elhakeem M, Krallis G, Prakash S, Edinger J (2008) Sediment transport modeling review-current and future developments. J Hydraul Eng 1:1–14

    Article  Google Scholar

  • Parker C, Thorne CR, Clifford NJ (2014) Development of ST:REAM: a reach-based stream power balance approach for predicting alluvial river channel adjustment. Earth Surf Proc Landf 40(3):403–413

    Article  Google Scholar

  • Pitlick J, Wilcock P (2001) Relations between streamflow, sediment transport, and aquatic habitat in regulated rivers. In: Dorava JM, Montgomery DR, Palcsak BB, Fitzpatrick FA (eds) Geomorphic Processes and Riverine Habitat. American Geophysical Union, Washington, D. C

    Google Scholar

  • Reid LM, Dunne T (1996) Rapid evaluation of sediment budgets. Catena Verlag, Reiskirchen, GeoEcology. ISBN 3-923381-39-5

  • Rodrigues S, Mosselman E, Claude N, Wintenberger C, Jugé P (2015) Alternate bars in a sandy gravel bed river: generation, migration and interactions with superimposed dunes. Earth Surf Proc Landf 40(5):610–628

    Article  Google Scholar

  • Sternberg H (1875) Untersuchungen über längen- und querprofil geschiebeführender flüsse [Study on the longitudinal and transversal bed-load transport in rivers]. Zeitschrift Bauwesen 25:483–506 (in German)

    Google Scholar

  • Surian N, Rinaldi M (2003) Morphological response to river engineering and management in alluvial channels in Italy. Geomorphology 50:307–326

    Article  Google Scholar

  • Valverde L, Rodrigues S, Jugé P, Desmet M, Recking A, Tal M (2013) Variations of grain size in relation with cross-section dynamics and tributary confluences in a large sand-gravel bed river: the Loire (France). In: Proc. 8th International SedNet conference, Lisbon, Portugal

  • van Rijn LC (2007) Unified view of sediment transport by currents and waves. I: Initiation of motion, bed roughness, and bed-load transport. J. Hydraul Eng 133(6):649–667

  • Wilcock PR (2001) Toward a practical method for estimating sediment transport rates in gravel-bed rivers. Earth Surf Proc Landf 26:1395–1408

    Article  Google Scholar

  • Wu W, Viera DA, Wang SSY (2004) One-dimensional numerical model for nonuniform sediment transport under unsteady flows in channel networks. J Hydraul Eng 130(9):914–923

    Article  Google Scholar

Download references

Acknowledgments

The preparation of this manuscript was supported by the EU FP7 project REFORM (contract no. 282656). We would like to thank E. Mosselman and the three anonymous reviewers for their significant input to improve the quality of this paper

Author information

Authors and Affiliations

  1. Irstea Lyon, 5 rue de la Doua CS70077, 69626, Villeurbanne, France

    B. Camenen, A. Latapie & A. Paquier

  2. Cranfield Water Science Institute, Cranfield University, Bedford, UK

    R. C. Grabowski

  3. Department of Civil and Environmental Engineering, University of Florence, Florence, Italy

    L. Solari

  4. F. Rabelais University, E.A. 6293 GéHCO, 37200, Tours, France

    S. Rodrigues

Authors
  1. B. Camenen
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. R. C. Grabowski
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. A. Latapie
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. A. Paquier
    View author publications

    You can also search for this author in PubMed Google Scholar

  5. L. Solari
    View author publications

    You can also search for this author in PubMed Google Scholar

  6. S. Rodrigues
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to B. Camenen.

Rights and permissions

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Camenen, B., Grabowski, R.C., Latapie, A. et al. On the estimation of the bed-material transport and budget along a river segment: application to the Middle Loire River, France. Aquat Sci 78, 71–81 (2016). https://doi.org/10.1007/s00027-015-0442-3

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s00027-015-0442-3
