Influence of Electrochemical Potentials on the Tribological Behavior of Silicon Carbide and Diamond-Coated Silicon Carbide

Original Paper
First Online:
Received:
Revised:
Accepted:

Abstract

Due to their high corrosion stability in combination with advantageous tribological performance, sintered silicon carbide ceramics are widely used in industrial applications. Both the corrosion stability and the tribological behavior can be affected by electrochemical processes. Tribological investigations were carried out using an electrochemical three electrode setup. The influence of electrochemical potentials on the friction and wear behavior of different sintered SiC materials in 1 M NaCl-solution was investigated to analyze the complex interplay between mechanical, chemical, and electrochemical interactions during tribo-corrosion. The results revealed that friction and wear of SiC were decreased under cathodic electrochemical polarization depending on the material composition. In addition, tribological tests at different electrochemical potentials showed that the coefficient of friction can be switched immediately. The results indicated that the tribological behavior is strongly affected by the increased double-layer repulsion due to the electrochemical potentials, which supports the hydrodynamic lubrication.

Keywords

Potential-controlled friction Electric conductive-sintered silicon carbide Diamond-coated silicon carbide Wear analysis Friction mechanisms

1 Introduction

Due to their low friction in aqueous media and high corrosion and wear resistance silicon carbide ceramics (SiC) have become standard materials for slide bearings and face seals in pumps [1, 2, 3]. However, in aggressive media chemical or electrochemical corrosion processes of these materials may occur. Celis et al. [4] discussed the complex interplay between mechanical and chemical mechanisms during tribo-corrosion. Tribochemical reactions of water with the ceramic contact surfaces are important for a stable lubrication regime [5]. It is assumed that these chemical reactions are responsible for the formation of superlubricious phases i.e., to tribological regimes with nearly zero friction [6, 7]. In an aqueous environment, the friction coefficient of SiC sliding pairs reaches values below 0.1 [8] and tribochemical reactions in the sliding contact cause a smoothening of the sliding surfaces [9, 10, 11]. These tribochemical reactions cause mild wear conditions, and the removal of surface asperities favors hydrodynamic lubrication even at very low lubricant viscosity. Knowledge of the electrochemical and tribochemical mechanisms is the key to improve the operational safety, availability, and durability of ceramic components in many applications such as pumps in the chemical industry or power plants. Recently, a detailed investigation of the electrochemical corrosion of different SiC materials were carried out using potentiodynamic polarization measurements in acidic and alkaline environments [12, 13, 14, 15, 16]. They observed the formation of a thin layer of SiO\(_{2}\) on the surface in acid (HCl, HNO\(_{3}\)) and a more pronounced active corrosion in NaOH. The electrochemical corrosion rate strongly depends on the specific electric resistance of the materials. With increasing specific electric resistance, the electrochemical reaction rate reduces. Beside this overall dependence, also deviation of the electrochemical reaction between different grains and even inside individual grains was found. In liquid phase-sintered materials (LPS SiC) and in silicon infiltrated materials (SiSiC), a core rime structure of the grains was observed with more pronounced corrosion at the rims [13, 16, 17]. This behavior is caused by the different doping levels of the core and rim resulting in different specific electric resistances and electrochemical corrosion. Additionally, the analysis of the corrosion rate of individual grains of a solid phase-sintered SiC material (SSiC) reveals that the corrosion rate of the individual grains show a large scattering [14, 15]. This scattering could not be explained by different doping levels but only by the different grain boundary resistivities. Herrmann et al. [14] investigated the electrochemical corrosion of silicon carbide ceramics in sodium hydroxide at different potentials and found under anodic potential a specific recession of certain SiC grain surfaces, which correlated with the local resistivities.

In the past two decades, it has been reported in several works that the friction behavior of metal–metal and metal–ceramic contacts in surfactant-containing solutions can be actively influenced by the application of electrochemical potentials [18, 19, 20, 21]. This mechanism was named potential-controlled friction (PCF) from Chang et al. [22] and Meng et al. [23]. However, most of these studies are focused on metals that have high electric conductivity. There have also been some investigations on the influence of electrochemical potentials on the tribological behavior of steel–ceramic sliding pairs [23, 24] and steel in contact with hard coatings (e.g., TiN-coatings [25]). In addition, it was shown that there is a clear influence of electrochemical potentials on the tribological and corrosion damage behavior of ceramic components in technical systems [26]. Potential-dependent changes in the coverage and stability of an adsorbed lubricating layer on a steel surface lead to different tribological behaviors [27]. Brandon et al. found the lowest wear at a electrochemical potential of \(-\)1000 mV against standard hydrogen electrode (SHE). A maximum wear was measured at anodic potentials due to the competing effects of oxidative corrosion and protective film formation. In addition, Kalin et al. [28] investigated how electrochemical parameters affect the properties of the surface layer, the physico–chemical and load-carrying properties of the lubricating film. They showed that the wear of alumina and zirconia can be strongly affected by electrochemical parameters. It is suggested that the surface charge, the associated pH value and the zeta-potential influence the result of tribological tests. Due to the rolling of a cylinder, the charge distribution in the electric double layer (EDL), and also the friction force, changes [29].

In these tribological systems, which are influenced by electrochemical potentials, electrokinetic interactions between the sliding surfaces are suggested as important tribological mechanism [30]. Kelsall et al. [18] suggested that increased double-layer repulsion could reduce the friction coefficient and wear because the interfacial potential of a material surface is closely related to the tribological performance. Bai et al. [31] and other researchers [32, 33] noted that the electric double layer at very thin lubricating films lead to an electrokinetic effect by which the surface near viscosity is increased [34]. As consequence, hydrodynamic lubrication is partly ensured and the friction coefficient is reduced. A mathematical model of electro-viscosity is described by Zuo et al. [35]. They discussed the hydrodynamic and elastohydrodynamic water lubrication cases and showed that the apparent viscosity depends on the sum of two zeta potentials. Therefore, the electric double layer leads to an increase of the viscosity of very thin films. By analogy, Zhang and Umehara [36] and Chen et al. [37] suggested that the electric double layer generates a repulsive force and thus promotes hydrodynamic surface separation in sliding contacts. More details about the effect of the electric double layer on the friction properties were described by Kelsall et al. [18] and Zhu [38]. Electric double layer and boundary slip are coupled effects which influence the apparent viscosity and one-dimensional slide-bearing performance [39]. The electric double layer is influenced in the presence of electrochemical potentials and at high shear rates the charge movement in the diffuse layer causes a significant increase of the viscosity, which in consequence stabilizes hydrodynamic conditions [40].

As part of preliminary investigations of the authors, evidence was found that under certain electrochemical conditions friction, wear and corrosion performance can be significantly influenced by electrochemical potentials using electrically semiconductive ceramics [41, 42]. These preliminary investigations resulted in a patent for an apparatus and a method for operating a tribologically stressed component under the influence of electrochemical potentials [43]. But the fundamental understanding of the tribological behavior of SiC in aqueous solutions is still deficient, because of the complex interplay between mechanical, chemical, and electrochemical interactions during tribo-corrosion [44]. In addition, the demand for higher energy efficiency of technical systems leads to increasing requirements for ceramic bearings. Therefore the aim of this work is to carry out a fundamental study to investigate the influence of electrochemical potentials on friction and wear. In particular, different electric conductive SiC materials were used to study the influence of electrochemical potentials on the tribological behavior. In addition, wear analysis was conducted after the friction tests to analyze the tribological mechanisms.

2 Experimental

2.1 Electrochemical Characterization

The electrochemical measurements of the SiC materials were conducted using three electrode setup. At first, the electrochemical window (ECW) was measured for 1 M NaCl-solution using cyclic voltammetry (CV) with a scan rate of 100 mV/s. In addition, the open circuit potential (OCP) of the material was measured for 1000 s and subsequently the corrosion potential (\(E_{\text{corr}}\)) was determined using linear scan voltammetry (LSV) with a scan rate of 1 mV/s. The measurements were performed using an Ag/AgCl-reference electrode, a platinum counter electrode and a pin as working electrode. The surface area of the pin was 116.2 mm\(^2\) and the measurements were carried out without rotation or loading. The LSV measurements were conducted immediately after immersion of the pins.

2.2 Tribological Tests

Tribological experiments were performed using a tribometer (TRM 1000, Wazau GmbH, Germany) with a rotating shaft on the upper side and a stationary setup fixed on the lower side. Two different geometries (Fig. 1) were used for the tribological tests: pin-on-disk and ring-on-disk. A three electrode test setup was used in which the stationary SiC material was set as working electrode. The pin-on-disk contact geometry was used to analyze the tribochemical effects and to select an appropriate material for the more application specific tests with the ring-on-disk geometry. The pin-on-disk tests were conducted at a load of 50 N which corresponds to an Hertzian contact pressure of 1 GPa. The initial point contact of the rounded pin-tip (radius: 5 mm) changes during the tribological test to a surface contact due to wear. The applied electrochemical potentials were \(-\)1000 and +500 mV against Ag/AgCl. These electrochemical potentials were chosen to have a maximum and comparable cathodic and anodic potential related to OCP within the electrochemical stable window for a 1 M NaCl-solution, because the adsorption and stability of a lubricating surface layer strongly depends on the electrochemical potential [27]. The ring-on-disk tests were carried out at loads of 100 and 200 N which corresponds to 0.2 and 0.4 MPa contact pressure (contact area: 552 mm\(^2\)), which was kept constant over the whole testing time. For each tribological test, new samples were used. The relative low sliding speeds of 0.1 and 0.2 m/s were chosen to analyze friction and wear in the mixed lubrication regime, because the lubricant film thickness is mostly influenced by velocity besides the constant parameters viscosity and contact pressure. The film thickness at the used test parameters is calculated to appr. 0.2 \(\upmu\)m for pin-on-disk and appr. 8 \(\upmu\)m for ring-on-disk geometry [45]. It is described in literature that the transition from hydrodynamic to mixed lubrication takes place at a ratio of film thickness to composite surface roughness of 3 [46]. The roughness (Ra) of the ceramics is between 5 and 10 \(\upmu\)m and so this ratio is much lower. To analyze the samples at higher anodic potentials, in relation to the OCP, the electrochemical potentials were slightly modified to \(-\)800 and +800 mV against Ag/AgCl. In both test setups, the lower stationary sample was set as the working electrode. The counter body (disk or ring) was made of the same material as the pin. The electrochemical potential was measured between the working electrode (WE, testing sample: SiC) and the reference electrode (RE: Ag/AgCl). The necessary current flow to maintain this potential was applied between the working electrode and the counter electrode (CE: platinum). The galvanic parameters were assessed before the test specimens were brought into contact. In a second step, the normal load was applied and the tribological test was started. In addition, it must be noticed that at tribological tests the counterbody gets in contact with the working electrode and so the electrochemically influenced area increases. The real surface area can be estimated to 700 mm\(^2\) at pin-on-disk and 2800 mm\(^2\) for ring-on-disk geometry.

Pin and disk were cleaned with ethyl alcohol before the test. The potential was controlled by a potentiostat (Wenking LPG03-50, Bank Elektronik GmbH). The medium (electrolyte) was 1 M NaCl-solution, and all parts of the test setup were made of electrically isolating poly(methyl methacrylate) (PMMA).

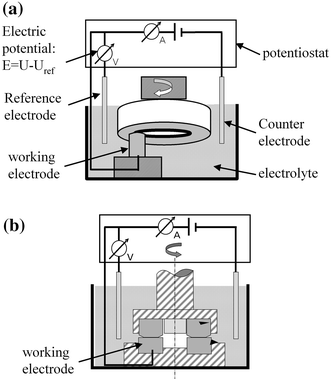

Fig. 1

Three electrode test setup for electrotribological measurements (WE: testing sample, RE: Ag/AgCl, CE: platinum): a pin-on-disk geometry; b ring-on-disk geometry

The results of the wear analysis are explained in Sect. 3.3. After the tribological tests, the surfaces were analyzed using white light interferometry to measure the wear volume and evaluate the topography of the surface. To investigate deposits and wear debris (thin SiO\(_2\)-layers) the Oxford Instruments thin film measurement tool [47, 48] was used [14]. With this tool surface layers between 1 nm and 1 \(\upmu\)m in thickness can be measured.

2.3 Material

Material characteristics of the SiC materials are listed in Table 1. It is noticeable that the material properties strongly depend on the composition and manufacturing route. The two SSiC materials are solid-state sintered materials that are electrically semiconductive due to their different amounts of Al-, N-, and Si-dotation. SiSiC is a reactive sintered material formed by the infiltration of liquid Si into a SiC-preform. During infiltration Si reacts with some residual carbon in the preform forming so-called secondary SiC. This secondary SiC exhibits usually higher conductivity due to impurity incorporations. The used SSiC-2 from ESK is also known as EKasicD. Figure 2 illustrates the surface of the different SiC-ceramics using field emission scanning electron microscope (FESEM). For the ring-on-disk friction tests, two different materials were selected Table 2. For sliding bearings and phase seals that are applied under severe conditions regarding tribological loads and corrosivity of the environment, crystalline diamond coatings have been developed [49, 50, 51, 52]. Due to the chemical inertness of crystalline diamond-coated materials [53], tribochemical reactions on the surface can be excluded during the friction test.
Table 1

Material characteristics of the SiC materials for pin-on-disk tests

Characteristic

SSiC-1

SiSiC

SSiC-2

Phases

SSiC

SiC/Si

SSiC

Supplier

FCTa

H.C.S.b

ESKc

Additive types

Al, N

–

Al

Elastic modulus (GPa)

406

343

440

Spec. electr. res. \((\Omega \,{\text {cm})}\)

400

0.01

250

Vickers hardness (HV)

3030

2716

2946

Roughness (\(\upmu\)m)



 Ra

13.7

5.20

10.2

 Rz

149.6

142.70

96.1

aFCT Hartbearbeitungs GmbH, Sonneberg, Germany

bH.C. Starck Ceramics GmbH, Selb, Germany

cFormer ESK Ceramics GmbH now 3M Technical Ceramics

Fig. 2

Surface analysis of the SiC-ceramics using field emission scanning electron microscope (FESEM)

Table 2

Material characteristics of the SiC materials for ring-on-disk tests

Characteristic

SSiC-3

Diamond-coated



Ring

Disk

Ring

Disk

Supplier

EagleBurgmanna

EagleBurgmannb

Electric resistance

7 k\(\Omega\)

M\(\Omega\)-range

0.05 k\(\Omega\)

5 k\(\Omega\)

aEagleBurgmann Germany GmbH, Wolfratshausen

bCoated at Fraunhofer IST

3 Results

3.1 Electrochemical Characterization

The used 1 M NaCl-solution (pH 7.1, deionized water) shows no chemical reaction (no oxygen or hydrogen formation) between \(-\)1 and +1 V against SHE, which was measured using cyclic voltammetry (Fig. 3a). But it must be noticed that the solution is not buffered and therefore the pH value can change during the tribological test due to effects of dissolved air (\({\text {CO}}_{2}\)). The change of the pH value also influences the area in which water is electrochemically stable (Pourbaix diagram). In Fig. 3b the open circuit potential (OCP) of SSiC-1, SSiC-2, and SiSiC over 1000 s is illustrated. In contrast to SSiC-1 and SSiC-2, SiSiC has a significantly lower OCP and and a stronger scatter of the measured values. But after 1000 s, the OCP is also stable for SSiC-2 and SiSiC. Figure 3c shows the result of the linear scan voltammetry (LSV) of the three materials. In accordance with the OCP measurement, SiSiC has also a lower corrosion potential (\(E_{\text {corr}}\)) than the other two materials. SSiC-2 has a lower corrosion current density (\(i_{\text {corr}}\)) than SSiC-1 and SiSiC, which nearly show similar values (Table 3). For the calculation of the degree of corrosion per year \(m_{y}\) (Eq. 1, in g/cm\(^2\) per year) the measured corrosion current density (\(i_{\text {corr}}\) in A), the molar mass (M in mol), the number of electrons which participate at the chemical reaction (z), the Faraday constant (F in A /mol) and the time (t = 1 year in s) are needed. This value can be converted by using the material density (g/cm\(^3\)) to the corrosion rate in \(\upmu\)m/y (Table 3). As a result of the different corrosion current densities, SSiC-2 has the lowest corrosion rate. In addition the anodic and cathodic Tafel slopes (\(\beta _{\text {a}}\) and \(\beta _{\text {c}}\)) were calculated from the experimental data (Table 3). \(\beta _{\text {c}}\) is related to the kinetics of the corrosion reaction and is generally about 120 mV for the cathodic reactions of hydrogen ion reduction or oxygen reduction [54, 55]. The three materials show comparable values for \(\beta _{\text {c}}\). In contrast to SiSiC, the two ceramics without Si (SSiC-1 and SSiC-2) have a distinct higher \(\beta _{\text {a}}\), which implies passivity [56].
$$\begin{aligned} m_{\text {y}} = \frac{M\,i_{\text {corr}}\,t}{z\,F} \end{aligned}$$
(1)

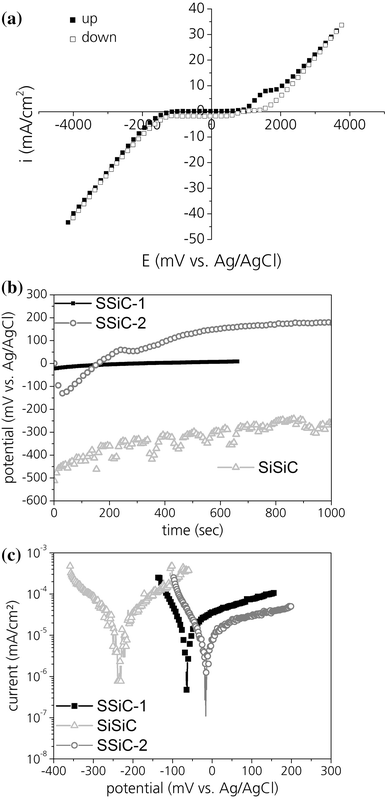

Fig. 3

Electrochemical characterization of SSiC-1-, SSiC-2-, and SiSiC-pins in 1 M NaCl-solution: a result of cyclic voltammetry for a 1 M NaCl-solution; b open circuit potential (OCP) over time; c measurement of the corrosion potential with linear scan voltammetry (LSV, scan rate: 1 mV/s)

Table 3

Results of the electrochemical characterization

Parameter

SSiC-1

SiSiC

SSiC-2

\(E_{\text {corr}}\) (mV versus Ag/AgCl)

\(-\)65

\(-\)234

\(-\)18

\(i_{\text {corr}}\) (nA/cm\(^2\))

24.1

25.9

15.5

\(\beta _{\text {c}}\) (mV/decade of current)

70

120

79

\(\beta _{\text {a}}\) (mV/decade of current)

338

146

524

Corrosion rate (\(\upmu\)m/year)

45

52

30

3.2 Pin-on-Disk Tests

Figure 4 shows the coefficient of friction against time under the influence of potential steps. The three tribological tests with SSiC-1, SiSiC, and SSiC-2 started at OCP (without any external potential) and after approximately 15 min a cathodic potential was applied. SSiC-1 shows a decrease of friction over the whole testing time, but no response to cathodic or anodic potentials (Fig. 4a). In contrast, the coefficient of friction (COF) of SiSiC and SSiC-2 are directly affected by potential change (Fig. 4b, c). For both materials, the cathodic potential (\(-\)1000 mV vs. Ag/AgCl) causes a decrease (\(\approx \!-8\,\%\)) and an anodic potential an increase (\(\approx \!+4\,\%\)) of the COF.

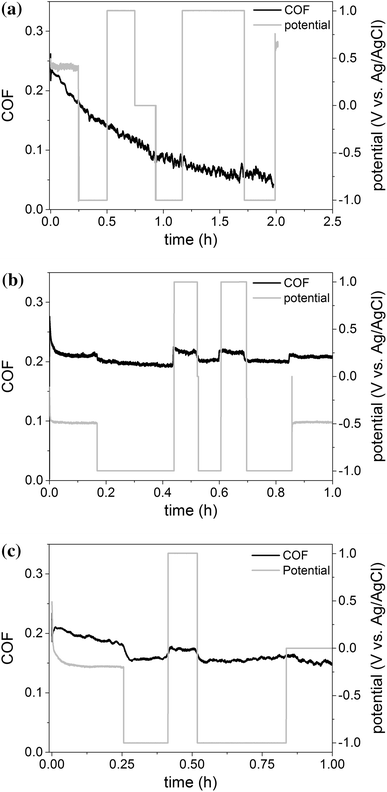

Fig. 4

Friction coefficients at different electrochemical potentials that were manually switched to different values (\(-\)1000, +1000, \(-\)1000, 0 mV vs. Ag/AgCl) using pin-on-disk geometry (1 mol NaCl, 50 N; 0.1 m/s): a SSiC-1; b SiSiC; c SSiC-2

In addition, sliding speed and normal force were varied to further evaluate the influence of the tribological conditions. Figure 5 shows an overview of friction coefficients with pin-on-disk geometry using 1 M NaCl at different testing parameters for SiSiC. The influence of the electrochemical potentials on the COF of SiSiC strongly depends on the tribological parameters. At low sliding speed, the effect is more significant than at higher speeds. The normal force has only little influence on the COF at these parameters.

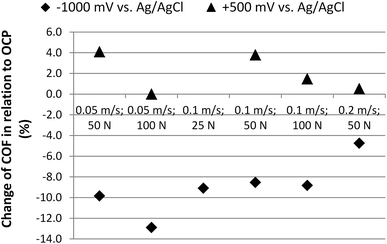

Fig. 5

Change of the coefficient of friction of SiSiC at different electrochemical potentials and test parameters in relation to OCP

Figure 6 shows the COF of SSiC-1 over 2 h at a constant potential. As measured at potential steps (Fig. 4a), SSiC-1 shows also a decreasing COF over the whole testing time without external electrochemical potential (Fig. 6a). Using cathodic potential, there is nearly no difference in the COF to the result at OCP. At anodic potential, the decrease of COF is lower and ends at higher values in contrast to OCP and cathodic potential (Fig. 6b). The current of the tests at anodic and cathodic potentials is plotted in Fig. 6c. Both curves tend to a constant current value after a short time. But at the cathodic potential, the current approaches approximately 0 \(\upmu\)A, whereas at +500 mV versus Ag/AgCl a higher current of +25 \(\upmu\)A is observed over the whole testing time. This is consistent with the voltammograms. At \(-\)1000 mV versus Ag/AgCl oxidation of solved oxygen and may be a slight water decomposition takes place, whereas at +500 mV versus Ag/AgCl the permanent oxidation of SiC and the formation of a SiO\(_{2}\) surface layer is observed.

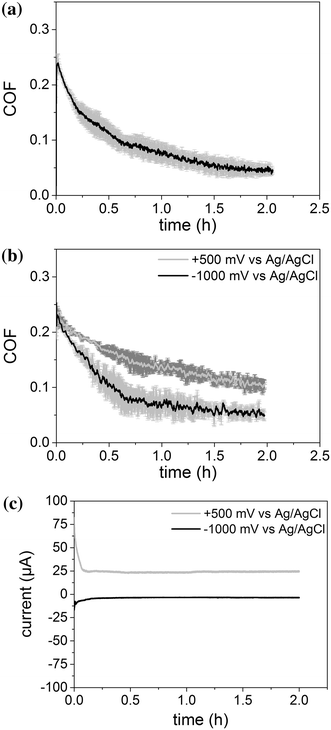

Fig. 6

Results of the friction tests at a constant electrochemical potential with pin-on-disk geometry using SSiC-1 (1 M NaCl, 50 N; 0.1 m/s, 2 h): a at OCP without external potential; b at cathodic and anodic potential; c current measured during friction test at cathodic and anodic potential

The results of the tribological tests using SiSiC at constant potentials are shown in Fig. 7. The COF values are quite constant over the whole testing time. In accordance with SSiC-1, the current tends to a constant value after a short time. The current at anodic potential is at +75 \(\upmu\)A and for cathodic potential at \(-\)70 \(\upmu\)A and therefore obviously higher than for SSiC-1 in both cases.

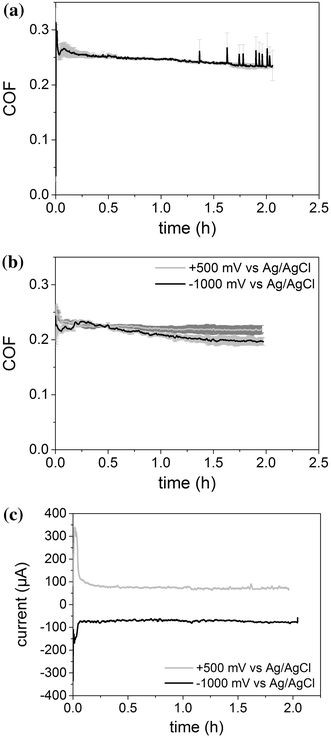

Fig. 7

Coefficient of friction at a constant electrochemical potential using pin-on-disk geometry (SiSiC; 1 M NaCl, 50 N; 0.1 m/s, 2 h): a test at OCP without external potential; b test at cathodic and anodic potentials; c current measured during friction test at cathodic and anodic potential

To evaluate the current flow the necessary electric charge transfer Q, to maintain the different potentials, was calculated using Eq. 2:
$$\begin{aligned} Q = \int \limits _{t=0}^{t={\text {end}}} I \cdot {\text {d}}t \end{aligned}$$
(2)
The calculated values for the electric charge transfer Q are listed in Table 4. SSiC-1 has considerably lower values than SiSiC. For cathodic potential, lower values are measured for both materials.
Table 4

Electric charge transfer Q and change of the COF due to electrochemical potentials in relation to OCP using pin-on-disk geometry

Material

el. potential

COF (%)

Q

SSiC-1

\(-\)1000 mV versus Ag/AgCl

+6

0.027 C



+500 mV versus Ag/AgCl

+120

0.179 C

SiSiC

\(-\)1000 mV versus Ag/AgCl

\(-\)15

0.543 C



+500 mV versus Ag/AgCl

\(-\)6

0.567 C

An overview on the COF at the end of the tribological tests at constant potentials is shown in Fig. 8. In Table 4, the measured change of the COF and wear of SSiC-1 and SiSiC using potentials with pin-on-disk geometry are compared. The COF of SSiC-1 doubles at anodic potential compared to the test without potential. At cathodic potential, the COF is not different from the COF at OCP. For SiSiC, a clear improvement of the COF at cathodic potential and also a little decrease at anodic potential is observable.

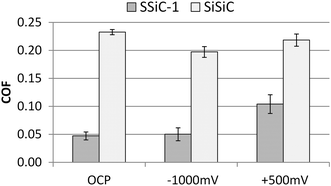

Fig. 8

Comparison of the final friction coefficients at constant electrical potentials from Figs. 4 and 6

3.3 Wear Analysis

After the pin-on-disk-tests at constant electrochemical potential, the wear tracks of the disks were analyzed using white light interferometry (Fig. 9). The wear on the disk was measured over a length of 5 mm, and then extrapolated to the whole wear scar length of 88 mm. Both materials show grooves in sliding direction on the worn surface.

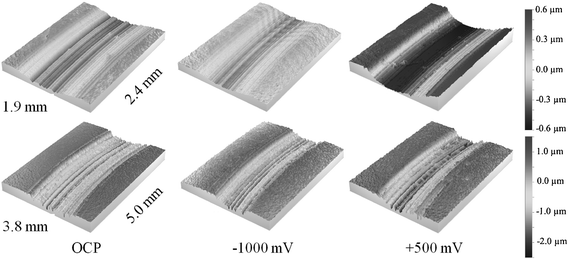

Fig. 9

Analysis of the wear scar of the disk after pin-on-disk test with constant electrochemical potential using white light interferometry (1 M NaCl, 50 N; 0.1 m/s; 2 h): (above) SSiC-1; (below) SiSiC

The wear measurement of pin (Fig. 10a) and disk show that the wear is lower when a cathodic potential is applied (Fig. 10b). The wear volume of the disks was lower than the wear of the pins. This difference may be caused by the different contact conditions: since the pin surfaces are in permanent contact throughout the whole test, the pin temperature may be slightly higher and therefore the tribochemical reactivity of the surface slightly enhanced. Anodic potential leads to a significantly higher wear compared to reference tests at OCP. In agreement to the COF results, the influence of electrochemical potentials on wear is stronger for SSiC-1 that for SiSiC. The most pronounced difference was observed for SSiC-1 at anodic potential. Here, the wear volume of the ring was almost 170 % higher (Table 5).

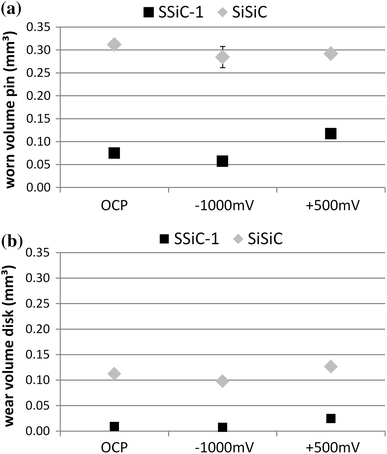

Fig. 10

Wear analysis of pin-on-disk (1 M NaCl, 50 N; 0.1 m/s; 2 h): a wear volume of the pin; b wear volume of the disk

Table 5

Change of wear due to electrochemical potentials in relation to OCP using pin-on-disk geometry

Material

El. potential

Wear volume



Disk (%)

Pin (%)

SSiC-1

\(-\)1000 mV versus Ag/AgCl

\(-\)17

\(-\)21



+500 mV versus Ag/AgCl

+171

+45

SiSiC

\(-\)1000 mV versus Ag/AgCl

\(-\)13

\(-\)14



+500 mV versus Ag/AgCl

+12

\(-\)7

The deposits and wear debris of the worn pins after tribological tests at different electrochemical potentials were studied using SEM-EDS (Fig. 11). SSiC-1 shows a smoothing of the surface with some grooves without cracks and typical pores at all three test conditions. The main difference is some SiO\(_{2}\) debris, which were observed at anodic potential (Fig. 11a). For SiSiC without potential, cracks occured in the SiC (darker ares) perpendicular to the rubbing direction. On the silicon (brighter ares), there are some grooves (Fig. 11b). At cathodic and anodic potential, there are also partially cracks in the silicon (Fig. 11c) in contrast to OCP.
Fig. 11

Analysis of the wear scar of the pins after pin-on-disk friction test with scanning electron microscope (1 M NaCl, 50 N; 0.1 m/s; 2 h): a SSiC-1 (+500 mV vs. Ag/AgCl): SiO\(_{2}\) debris besides a smooth wear surface; b SiSiC (OCP): cracks in the SiC and grinding marks on the silicon; c SiSiC (\(-\)1000 mV vs. Ag/AgCl): also partially cracks in the silicon

3.4 Ring-on-Disk Tests

Friction tests with at different electrochemical potentials were started at OCP, afterward the potential was changed as shown in Fig. 12a, b. The friction values of SSiC-3 at OCP (SSiC) show that the friction coefficient reached constant value of 0.11 after a 30 min running-in period. In contrast to the subsequent cathodic polarization with nearly no change in COF, there is a strong COF change at anodic potential (Fig. 12a). This increase of the COF is reversible because after switching the potential to OCP the COF decreases to its starting level after running-in.

The influence of electrochemical potential steps on the COF with ring-on-disk geometry using diamond-coated SiC is shown in Fig. 12b, c. It was observed that the friction coefficient decreases strongly at cathodic polarization and increases at anodic polarization (Fig. 12b). During the OCP steps, the friction coefficient returned to the initially higher values. Figure 12c gives an overview on the friction behavior of diamond-coated SSiC at different electrochemical potentials and tribological loads. It is clearly visible that the influence of the electrochemical potential on the COF is stronger at higher loads and lower sliding velocities, which implies that under mixed lubrication conditions (i.e., very thin lubrication films and partially solid–solid contact), the electrochemical influence is stronger. The strongest effect was observed at 0.2 m/s and 200 N, which was the highest applied load within this test series. At these parameters, the COF is reduced by \(-\)35 % under cathodic polarization and increased by +45 % using anodic polarization.

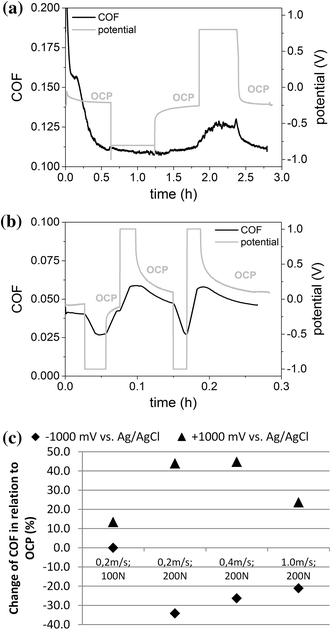

Fig. 12

Influence of electrochemical potential on the coefficient of friction using ring-on-disk geometry (1 M NaCl): a SSiC-3 (100 N; 0.2 m/s); b diamond-coated SSiC (200 N; 0.2 m/s); c COF under various tribological test conditions for diamond-coated SSiC

Tribological tests with SSiC-3 at constant electrochemical potentials were performed (Fig. 13). The tests were conducted in three 20 h steps. After each step, the test was stopped and the load was removed. Without electrochemical potential, the COF started at about 0.5 and dropped to about 0.1 after 10 hours. In the second step, the COF increased slightly and in the third step the COF was rather constant at a value of 0.13. At cathodic potential, the test started at a COF of about 0.4 and decreased already after 3 h to 0.1. During the second and third step, a very constant COF was achieved. The COF after 60 h was significantly lower than the COF at OCP. At anodic polarization, the test started with a COF of 0.6 and decreases after 4 h also to a value of 0.1, which was stable until the end of the test.
Fig. 13

Results of friction tests using ring-on-disk geometry (1 M NaCl; 100 N; 0.2 m/s): COF of SSiC-3 at three successive 20 h friction tests at a constant electrochemical potential

4 Discussion

In previous publications, several tribological mechanisms for water-lubricated SiC sliding contacts have been proposed [5, 7, 10, 11, 30, 32, 57, 58]. Most of them identified tribochemical reactions as a clue for the explanation of low and stable friction coefficients. The mild chemical wear may lead to the formation of very smooth surfaces and tribochemical oxidation products may act as lubricious oxides. Only few papers recognized electrochemical effects, especially electrokinetic effects a possible mechanism to significantly influence friction and wear [34, 41, 42]. As shown in this work, electrochemical potentials strongly influence the tribological behavior. Therefore the formation of an electric double layer (EDL), which consists of a compact layer (ions are strongly attracted to the wall surface and are immobile) and a diffuse double layer (ions are affected less by the electrical field and are mobile), is assumed to initiate the changed tribological behavior using electrochemical potentials. An EDL is formed on a solid surface due to an electrochemical potential. The thickness of the diffuse EDL depends upon the electric potential of the solid surface. The electrical potential at the boundary between the compact layer and the diffuse layer is called the zeta potential. In addition, shear of EDL leads to a movement of the ions in the mobile part of the EDL and this causes an electrical current (streaming current) and this sets up an electrical field which leads to an electrical potential, the streaming potential [59]. This electrokinetic effect [18, 38, 40] then leads to an increase of the surface near viscosity and causes an increase of the electrostatic repulsion, especially at a very thin lubricating film [18, 31, 32, 33, 34]. These mechanisms support the hydrodynamic lubrication, which can be observed due to the change of the coefficient of friction using electrochemical potentials. In addition, it can be assumed that the effect of EDL is the most important mechanism concerning the change of the tribological behavior, because there is also a very strong influence of electrochemical potentials visible by using diamond-coated surfaces at which tribochemical reactions on the surface can be excluded (Fig. 12).

The results of this investigation but also show that SiC materials of different material compositions show significantly different results in both sliding geometries (i.e., pin-on disk and ring-on ring). This can be mostly explained by different electrical conductivities of the ceramics. The grain boundaries in SiC materials have an higher electrical resistivity in comparison to the grains [17, 60, 61, 62]. Therefore the current through the grain and thus the value of corrosion will be different for different grains due to the distribution of grain boundary resistivities [14]. Because of this electric behavior not only the electric conductivity of the whole test specimen is relevant, but also the microscale variation of the conductivity due to microstructural effects. As shown by Herrmann et al. [14] these local variations of electric conductivities lead to locally different electrochemical corrosion rates. But it can also be assumed that electric double layers can only be influenced by electrochemical potentials when the electric activity of the surface is sufficiently high. The formation of a SiO\(_{2}\) surface layer was provided after electrochemical corrosion experiments of SSiC in \({\text{H}}_{2}{\text{SO}}_{4}\) at different voltages [14]. The grains for which the grain boundary resistivity is low will exhibit a high current density and therefore form thicker SiO\(_2\) layers [14]. Therefore the formation of an SiO\(_{2}\) surface layer under electrochemical potentials could have a dominating influence concerning the friction behavior.

Discussing the effect of the electrical potential two cases have to be distinguished the anodic and cathodic polarization. In the anodic range, the oxidation of the SiC surface takes place:
$$\begin{aligned} {\text {SiC}}\,+\,4 {\text {H}}_{2}{\text {O}} \rightleftharpoons {\text {SiO}}_{2} + 8 {\text {H}}^{+} + {\text {CO}}_{2} + 8{\text {e}}^{-} \end{aligned}$$
(3)
SiC materials with different compositions and microstructures exhibit different corrosion behaviors. It is noticeable that the corrosion rate of SiC strongly depends on the specific electric resistance [14]. This is in good agreement with our results on SiSiC which has, due to the low electric resistance, the highest corrosion current density and therefore the highest corrosion rate. But there could be also strong local variations of the anodic corrosion behavior of SiC that correlate with the local electric conductivity of the material. Herrmann et al. [14] showed that domains of low electric conductivity show less chemical attack. As previous experiments have shown [16], in the SiSiC material the most intensive electrochemical corrosion takes place at the rims of the SiC grains. Si and the core of the SiC grains are less attacked. This is on the one hand caused by the different local resistivities due to different doping levels of the core and the rim of the SiC. On the other hand, the structure of the SiO\(_{2}\) layer on Si and SiC seems to be different. On the Si very thin passivating layers (up to 5 nm) were found, whereas on the SiC the thickness of the electrochemical formed SiO\(_{2}\) layers can reach up to 100 nm under the same conditions [14, 16]. The consequence is that in the SiSiC material only a small fraction of the surface is affected by the electrical potential. Therefore, the influence of the potential on the tribological behavior is much less pronounced for SiSiC-ceramics in comparison to the SSiC materials investigated despite the fact that the SiSiC material has a lower resistivity in comparison to the investigated SSiC materials. It is known that tribochemical reactions without applied voltage form on SiC surfaces SiO\(_{2}\) layers, which reduce the friction coefficient [5, 11]. The tribo electrochemically formed SiO\(_{2}\) layers in our experiments, however, do not reduce friction and wear. In contrast, the electrochemically enhanced tribo-oxidation of SiC leads to higher wear and not to reduced friction. Under cathodic polarization conditions, the SiC is stable. The current flowing through the surface results in the conversion of the solved in the electrolyte oxygen or the beginning water decomposition. The surface is not altered by the electrochemical reactions. Therefore in this case the change of the electric double layer and as a consequence a change in the apparent viscosity at the electrolyte surface interface are likely to be the most important reason for the observed changes in the tribological behavior. For recharging the double layer, only very low current densities are necessary and the influence of the resistivity of the material must be less pronounced. The SiC is a semiconductor and the kind of the doping element (Al, B, and N) and the doping level influence the character and value of the conductivity. At the SiC surface in contact to the electrolyte, the Fermi level shifted and space charge layers are formed. The properties of this layer strongly depends on the carrier concentration and kind in the SiC, i.e., from the local doping of the grains [63, 64] and only to a less extend by overall resistance of the materials. These space charge layers influence the formation of the surface potential and double layers and hence the tribological properties. Further detailed investigations of SiC materials with different well-defined doping levels and conducting character (p-; n-conductor) are necessary to validate this explanation.

In the case of ring-on-ring sliding geometries, the contact area is rather large (552 mm\(^2\)) and the contact pressure is rather low (0.2 MPa). Under these conditions, the influence of electrochemical potentials is visible when the electric conductivity is sufficiently high. In our investigation the electrical resistance of SSiC-3 was high (7 k\(\Omega\)), but the diamond-coated surfaces had very good conductivity. As a result, the friction coefficient was varied between 0.025 and 0.06. On diamond surfaces the formation of solid oxide phases on the surface can be excluded. But it has to be discussed, if only EDL effects are responsible for this change of COF. The electrochemical potentials could also simply reduce the amount or density of dangling bonds in the sliding surfaces that are formed during tribological mechanisms. The passivation of dangling bonds may then reduce adhesion and interaction of surfaces in solid–solid contact events. These tests using ring-on-disk contact geometry show considerable benefits with electrochemical potentials, which may also be obtained in real applications like slide bearings and face seals.

The influence of electrochemical potentials on the COF also strongly depends on the tribological test parameters. At low sliding speeds a higher change of COF was observed. This is an indication for the enhancement of hydrodynamic lubrication, which are assumed to arise due to the formation of an electric double layer (increase of repulsion force, increase of surface near viscosity).

5 Conclusions and Outlook

The friction and wear behavior of different silicon carbide materials in aqueous environment (1 M NaCl) under electrochemical potentials were investigated. The used materials differ in their corrosion potential and in their corrosion current density due to their unequal material composition. Model friction tests with two different geometries were carried out: pin-on-disk and ring-on-disk. To analyze the influence of electrochemical potentials on friction and wear tests without external potentials (OCP), at cathodic and anodic potentials were conducted. The electrochemical potentials were applied in steps, to analyze the direct influence on the coefficient of friction and reversibility, and constant over the whole testing time. In summary, the most important results of this study were as follows:
  • Pin-on-disk tests
    1. *

      The coefficient of friction can be switched for SiSiC and SSiC-2 immediately by the application of an electrochemical potential.


    2. *

      SSiC-1 did not show an instantaneous change of the friction value.


    3. *

      Friction and wear can be strongly influenced with electrochemical potentials. SSiC-1 shows higher interference with electrochemical potentials as SiSiC, due to different electric conductivities of the materials.


    4. *

      A correlation of wear volume and electric charge transfer was found. Higher wear is connected to higher electric charge transfer during the test.


  • Ring-on-disk tests
    1. *

      An anodic potential leads to an increase of the coefficient of friction using SSiC-3, whereas at cathodic polarization there is no change in relation without electrochemical potential.


    2. *

      The coefficient of friction can immediately be changed using Diamond-coated SSiC by \(-\)35 % (cathodic) and +45 % (anodic).


    3. *

      At constant electrochemical potentials over a testing time of 60 h using SSiC-3, there was a strong decrease of the coefficient of friction at cathodic potential.


From these results, we conclude that the main mechanisms are electrostatic repulsion and electro-viscosity. For a more exact validation of this hypothesis, further tests with the ring-on-disk geometry will be conducted using higher pressure, varied ion-concentration and other materials. In addition, from a more application point of view, it would be interesting to make investigations using a two electrode setup.
