Deep Brain Stimulation for Substance Abuse

Most addictive substances either trigger pleasure or relieve distress [10•], effects that play a pivotal role in driving the desire for repeated use. While initial experimentation with drugs of abuse is largely a voluntary behavior, continued drug use gradually impairs neural function, and eventually impacts the capacity to exert free will and turns drug use into a compulsive behavior [11•]. Furthermore, repeated and frequent drug consumption leads to the development of tolerance, which decreases the positive reinforcing effects [12••] of a substance and leads to increases in dosage [13] (Table 1). Similarly, negative reinforcement, related to the experience of withdrawal symptoms, plays an important role in the development of substance abuse, as an individual continues to use a substance in order to avoid the consequences of drug withdrawal [13, 14]. The addiction phenotype (compulsive drug consumption, impaired self-control, and behavioral inflexibility) therefore represents an unbalanced interaction between brain regions implicated in goal-directed behaviors. This complex network includes such structures as the striatum, ventral tegmental area (VTA), substantia nigra (SN), amygdala, hippocampus, prefrontal cortex (PFC), and the lateral habenula (LHb) (Fig. 1). And central to the modulation of reward [15], emotional reactivity, and executive function within this network is dopamine (DA).

Table 1

Definitions of addiction-related terminology

Term	Definition
Extinction	Extinction is an important process of learning that is typically defined as the removal of reinforcers and/or biologically relevant stimuli from a previously established stimulus relationship that results in the reduction in responding [44]
Negative reinforcement	The process by which removal of an aversive stimulus (e.g., emotional state of drug withdrawal) increases the probability of a response (e.g., dependence) [12••]
Positive reinforcement	The process by which presentation of a stimulus, usually pleasant, increases the probability of a response [12••]
Reinstatement	Reinstatement refers to the reappearance of the conditioned response following post-extinction exposure to the unconditional stimuli [44]
Reinstatement	Reinstatement refers to the reappearance of the conditioned response following post-extinction exposure to the unconditional stimuli [44]
Reward	Induced state that subsequently leads to a conditioned approach behavior [15]
Withdrawal	Development of a substance-specific maladaptive behavioral change, with physiological and cognitive symptoms, that is due to the cessation of, or reduction in, heavy and prolonged substance use [14]

Open image in new window

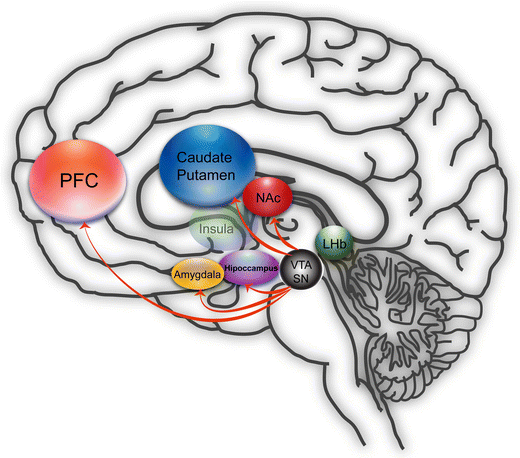

Dopaminergic projections from the VTA and SN to the striatum serve to reinforce responses to both primary rewards (e.g., food) and secondary rewards (e.g., money), and are fundamental for learning from past experiences and coordinating behavioral responses [16]. Either directly or indirectly, all addictive drugs have the power to cause large and transient increases in DA from VTA neurons that project primarily to the nucleus accumbens (NAc) of the ventral striatum, but also to the dorsal striatum, amygdala, hippocampus, hypothalamus, lateral septal area, and PFC [10•]. Human positron emission tomography studies have demonstrated that nicotine, alcohol, and cannabis can increase DA in the dorsal and ventral striatum, and that these increases are proportional to the intensity of the subjective experience of euphoria caused by the drug [10•]. However, the role of DA in reward is also related to its ability to encode the prediction of reward, the imprinting of incentive value to reinforcers, and the facilitation of learning of reward associations through its modulation of other subcortical and cortical brain regions [10•]. Drugs of abuse increase dopamine release in a more prolonged and unregulated way than natural stimuli [12••]. Furthermore, animal studies have demonstrated that a single in vivo exposure to cocaine induces long-term potentiation (LTP) of α-amino-3-hydroxy-5-methyl-4-isoxazolepropionic acid (AMPA)-receptor-mediated currents at excitatory synapses onto dopamine cells in the VTA [17]. These alterations result in changes in synaptic plasticity within the dopaminergic system, which ultimately modify the normal learning mechanisms of the individual and result in a form of habit learning that persists even under significant adverse consequences [12••].

Several other circuits have been implicated in the neuroadaptive changes of the addiction cycle. The dorsal striatum may play a significant role in the cue- or context-dependent craving given its role in habit learning and action initiation [12••]. The right dorsolateral and inferior frontal cortices have demonstrated increased activation in cocaine users after an intravenous injection of cocaine, with a coincident improvement in a motor response inhibition task [18]. Hence, some of the acute effects of cocaine could be related to a transient reversal of the chronic hypofunction in the impulse control circuitry. The amygdala plays a pivotal role in both structural and functional adaptations that underlie drug-related memories [19]. And the anterior insula, reciprocally connected to several limbic regions including the ventromedial prefrontal cortex, amygdala, and ventral striatum, appears to integrate autonomic and visceral information with emotion and motivation, and therefore may be involved in motivational processes that promote addiction, such as conscious urges and the decision to relapse [20]. Indeed, insular reactivity has been suggested to serve as a biomarker to help predict substance abuse relapse [12••]. Finally, glutamatergic inputs from the LHb to the VTA have also been implicated in the pathophysiology of addiction [21]. Inhibition of dopaminergic VTA signaling by the LHb enables learning avoiding behaviors when an aversive stimulus or negative feedback is provided [10•]. The chronic use of addictive drugs leads to habenular hyperactivity, which may promote a negative emotional state during drug withdrawal [10•].

All together, the development of a change in the firing of mesolimbic dopamine neurons appears to begin with the first administration of the drug, develops into LTP first in the VTA then NAc, and via feedback loops, subsequently engages the dorsal striatum. Long-term changes in the amygdala and medial PFC may follow, and combined with chronic dysregulation of higher-order cognitive processes, may facilitate the ability of stress to serve as a powerful drive for drug-seeking behavior, even months after drug withdrawal [12••]. Hence, interventions targeted to disrupt this cycle may be necessary to effectively manipulate and address addictive behaviors. Direct electrical stimulation of structures within this network may offer one possible therapeutic approach for modulating the aberrant neural circuits triggered by substance abuse. Given that the NAc receives and transmits information between a variety of systems that promote distinct patterns of behavior related to motivation and goal seeking, this structure may be an important candidate target for modulatory interventions [22].

DBS surgery has gained the most traction as a first-line treatment for patients with movement disorders. The first systematic application of high-frequency DBS for the treatment of Parkinsonian and essential tremor dates back to 1987 and involved targeted stimulation of the thalamic ventral intermediate (Vim) nucleus [23]. Since that initial study, other targets, including the subthalamic nucleus (STN) and the globus pallidus pars interna (GPi), have emerged as basal ganglia targets whose stimulation has proven to benefit other Parkinsonian symptoms including rigidity and bradykinesia. DBS for the treatment of Parkinson’s disease (PD) has shown to be superior to the best medical treatment in the control of motor fluctuations and dyskinesia, and in the improvement of quality of life [24, 25, 26]. DBS therapy of the GPi has also shown significant and sustained success in the treatment of primary and cervical dystonia, and emerging evidence suggests a benefit in certain types of secondary dystonia such as tardive dystonia, dyskinetic cerebral palsy, and neurodegeneration with brain iron accumulation (NBIA) [27].

Building upon these initial successes using DBS, investigators have more recently trialed DBS for psychiatric disorders. In part, this was prompted by initial reports demonstrating the improvement in obsessive-compulsive disorder (OCD) symptoms in patients with PD treated with STN DBS [28, 29]. Today, DBS has been shown to be effective in the treatment of both Tourette’s syndrome [30] and OCD [31••]. In one study of 15 patients who underwent DBS of the ventral striatum/ventral capsule, depressive symptoms were significantly improved [32]. Although follow-up durations varied, at least five patients met criteria for remission and eight met criteria for clinical response [32]. Similar results from an open label trial of DBS of the subcallosal cingulate were recently reported. After 2 years of chronic stimulation, a group of 17 patients with unipolar or bipolar depression exhibited high response and remission rates (92 and 58 %, respectively), with no significant relapse in those patients achieving remission [33]. Notably, in a follow-up study, diffusion tensor imaging (DTI) was used to identify white matter tracts traveling through the activation volumes in 16 of the original 17 patients. All responders had activation volumes that involved three specific white matter pathways [34]. These data importantly suggest a target selection strategy based on network connectivity and raise the possibility that optimal electrode implantation and stimulation parameter selection for DBS in psychiatric disease may critically rely on the accurate identification of relevant white matter tracts.

Several animal studies have reported the effects of brain stimulation on drug-seeking behaviors. Based on the known reward and addiction pathways, most studies have focused on stimulation of the NAc, although low- and high-frequency stimulation of the medial PFC in rats also demonstrates reductions in the motivation for cocaine [35]. In rodents, the NAc has two morphologically and functionally distinct subunits, a shell and a core [36]. Stimulation of either the NAc shell or core region in the normal brain of rodents can elicit different effects on drug-seeking behavior. In primates and humans, the shell area has regressed and is no longer clearly distinguishable or functionally distinct [36].

In one study, chronic bilateral DBS of the NAc core significantly attenuated heroin-seeking behavior in rats, and unilateral DBS of the right NAc core provided almost equivalent effects [37]. Importantly, stimulation of the NAc had no significant effect on motor activity and spatial learning. Similar results were observed in a separate study examining morphine use in rats 7 to 10 days after high-frequency NAc DBS [38]. DBS of the NAc shell attenuates the reinstatement of drug-seeking behavior on rats re-exposed to cocaine [39] and morphine [40]. DBS of the NAc accelerated the innate decay of drug craving in morphine-dependent rats without, again, significantly influencing learning and memory as assessed using the Morris water maze task [40]. And DBS of the NAc reduced alcohol consumption in P rats that spontaneously consume alcohol without requiring reinforcement, both acutely and after a period of alcohol deprivation [41, 42]. More recently, DBS of the NAc shell was directly compared to pharmacological inactivation through bilateral infusions of a GABA agonist in P rats [43]. Alcohol consumption decreased by 55 % in the bilateral GABA-infusion group and by 47 % in those receiving DBS of the NAc shell [43].

Abnormalities of the LHb have been demonstrated in several psychiatric disorders such as depression, psychosis, and drug addiction. Over-activation of the LHb following continuous subcutaneous cocaine exposure leads to axonal degeneration of the fasciculus retroflexus (FR), which connects the NA to the VTA [21]. DBS of the LHb significantly attenuates cocaine-seeking behavior in rats, suggesting that stimulation of the LHb interferes with reward processes mediated through these interactions and subsequent drug-induced plasticity of the VTA [21]. Furthermore, DBS of the LHb during maintenance, extinction and reinstatement [44] reduced cocaine-seeking behavior at the lower and intermediate, but not at the highest cocaine doses [21]. Hence, the efficacy of LHb DBS may depend on the severity of the addiction, and therefore on the resulting FR degeneration [45].

Animal studies therefore suggest that stimulation of the NAc, LHb, and PFC may successfully decrease drug-seeking behaviors in animals without resulting in significant side effects. While encouraging, the possible contributors and consequences of addictive behaviors in humans are likely more complicated than in animals. Analogous stimulation paradigms should therefore account for technical and dimensional differences that could have important implications when translated to humans.

Stereotactic surgery was first used as a treatment for substance abuse as early as 1999, and involved creating a lesion in the cingulate gyrus. In 335 patients, the procedure resulted in a 60 % rate of total remission [46]. Stereotactic ablation of the NAc similarly demonstrated significant results in the treatment of opioid abuse in China between 2000 and 2004 [37]. No severe complications were reported, and the relapse rate varied from 15.4% to 54.8% after a mean follow-up of 6 to 12 months. The procedure was subsequently prohibited due to the lack of appropriate experimental models and long-term follow-up studies [47]. However, the long-term outcomes of those patients (n = 272) were subsequently reported, and 1-year relapse rates were only 30.5 % [48]. In the cross-sectional follow-up that included 100 of the initial 272 patients, the 5-year relapse rate was 42 % [48].

While these studies each had their particular design flaws, they nevertheless suggested that ablative procedures may be of potential benefit in the treatment of substance abuse [49]. Indeed, patients with damage to the insula, an area associated with motivational processes that drive addictive behavior, exhibited significantly higher rates of smoking cessation than patients with non-insular lesions [50]. This is consistent with other reports associating insular lesions with smoking cessation [51, 52]. Ablative procedures, however, are irreversible, and lesions arising from vascular events are arbitrary and uncontrolled. Given the efficacy of DBS for movement disorders and select psychiatric disorders, neuromodulation rather than ablation may offer a more attractive interventional alternative. Indeed, some patients with PD treated with STN DBS exhibited improvements in symptoms related to dopamine dysregulation syndrome [53, 54], a form of addiction involving dopamine treatment [55••]. Several studies have therefore retrospectively evaluated the effects of DBS on patients with psychiatric disorders and comorbid substance abuse, including alcohol and nicotine.

Patients treated with DBS of the NAc for mood disorders exhibited a higher rate of smoking cessation, compared to unaided smoking cessation rates in the general population [56••]. In a report evaluating NAc DBS in a patient with an anxiety disorder and alcohol abuse, the patient experienced remarkable improvement of his alcohol dependency at 12 months of follow-up, with only occasional consumption of alcohol [57]. Similarly, a 47-year-old woman with history of severe refractory OCD and morbid obesity underwent NA DBS therapy. In addition to improvements in her psychiatric symptoms, she was able to quit smoking after 10 months of therapy and started a weight loss program, reaching her goal weight and body mass index after losing 44 kg [58].

While the aforementioned studies have examined the effects of DBS on substance abuse in patients receiving DBS for comorbid psychiatric conditions, to date, no sham-controlled studies have explicitly evaluated the long-term effects of DBS on patients with substance abuse as a primary outcome. Several case reports, however, suggest that such a study, if conducted, may prove successful. In a report of a 24-year-old man with history of heroin dependence receiving NAc DBS, regular heroin use that had been refractory to standard treatment subsided after surgical intervention and stimulation therapy [59]. The device was subsequently turned off and the pulse generator removed after 3 years, yet the patient continued to abstain from heroin after 3.5 years of follow-up. In a separate report of a 47-year-old man with treatment-refractory heroin dependence for 22 years, bilateral NAc DBS significantly reduced drug use and craving [60]. And in a third case report, a 69-year-old male with a 30-year history of refractory alcohol dependence underwent DBS surgery of the NAc, resulting in complete cessation of alcohol consumption 1 year after the start of stimulation therapy [61]. Notably, the patient also exhibited improvements in error-related negativity, an electroencephalographic signal associated with the commission of errors, indicating an improvement of the functional integrity of the performance-monitoring system [61].

In the largest case report series, three patients with refractory alcohol dependence received bilateral NAc DBS [62]. All patients experienced a significant reduction in alcohol craving without significant adverse effects. Two patients remained abstinent at 1-year follow-up, and the alcohol consumption was reduced considerably in the third patient [62]. In a follow-up study, these three patients were included in a case series of five patients with severe refractory alcohol addiction who received bilateral DBS of the NAc [13]. All five patients had a history of alcoholism for more than 10 years and had unsuccessfully attempted therapy with acamprosate, naltrexone, or disulfiram. Remarkably, all exhibited complete remission of alcohol cravings with stimulation with no adverse events or permanent side effects. Two of the patients had remained completely abstinent for more than 4 years, while one patient had a transient episode of hypomania that resolved after readjusting his programming settings [13].

In summary, animal studies have shown promising results for the treatment of drug-seeking behaviors using DBS of several targets known to play an important role in the reward circuit, and individual human case reports consistently suggest that this intervention may offer a promising alternative to standard therapy. Yet despite these encouraging signs, there still remain no reported randomized sham-controlled studies evaluating the effects of DBS for substance abuse in humans. Animal studies and these individual case reports suggest that the NAc may represent the first candidate structure for such a trial investigating DBS therapy in the treatment of substance abuse. DBS of the NAc has already demonstrated efficacy in the treatment of anxiety disorders, principally OCD, and the pathophysiologic similarities between substance abuse and other psychiatric disorders of reward circuitry raise the intriguing possibility that stimulation of this target may be effective for addiction disorders as well. It should be noted, however, that disorders of substance abuse likely involve a complex interaction of structures within the reward circuit, and so future studies should also explore the efficacy of DBS on other targets and white matter tracts within this network.

DBS therapy for movement disorders has been standard care for over a decade, yet the precise mechanisms responsible for the therapeutic effects of DBS on neurodegenerative and psychiatric conditions remain unclear. Hence, how exactly DBS would address disorders of addiction is unknown. Given the postulated pathophysiology of addictive behaviors, one possibility is that DBS may normalize disrupted VTA or NAc activity, but studies investigating this in detail are limited.

Electrophysiological animal studies suggest a reduced firing in orbitofrontal cortex pyramidal cells and enhanced synchronicity of the thalamo-cortical circuit after high-frequency NAc DBS [9]. NAc DBS may therefore modulate the activity of specific pathways within a dysfunctional neuronal network [9]. And in a study investigating changes in fMRI BOLD activation following NAc DBS in 13 patients with OCD, NAc activity that had been reduced in OCD patients with stimulation off returned to levels observed in age-matched controls following stimulation [63]. Resting state fMRI in these patients demonstrated that DBS reduced connectivity between the NAc and the prefrontal cortex, and DBS also attenuated increases in low-frequency oscillations over the frontal cortex provoked by behavioral stimuli in a reward anticipation task [63]. One possibility, then, is that DBS reduces abnormal NAc activity and connectivity, as well as the frontal brain response triggered by symptom-provoking events.

Furthermore, studies of addicted individuals have also shown decreased activity in the cingulate gyrus and the dorsolateral prefrontal cortex, changes that presumably affect the process of inhibitory control [9]. Modulating neuronal activity within this network could therefore lead to an increase in self-control. These mechanisms are not mutually exclusive, and both could contribute to the reported effects. Moreover, different brain regions and different classes of cells may be affected differently by high frequency stimulation, although in what manner is largely unknown [9]. Future research on the mechanisms of addiction and the possible effects of DBS based on newly developed strategies such as network connectivity [34] could guide the search of an optimal target for both substance abuse and other psychiatric conditions.
