A parametric piecewise-linear approach to laser projection

Victor M. Jimenez-Fernandez; Hector H. Cerecedo-Nuñez; Hector Vazquez-Leal; Luis Beltran-Parrazal; Uriel Filobello-Nino

doi:10.1007/s40314-013-0099-2

Computational and Applied Mathematics

October 2014, Volume 33, Issue 3, pp 841–858 | Cite as

A parametric piecewise-linear approach to laser projection

Authors
Authors and affiliations

Victor M. Jimenez-FernandezEmail author
Hector H. Cerecedo-Nuñez
Hector Vazquez-Leal
Luis Beltran-Parrazal
Uriel Filobello-Nino

Article

First Online: 28 November 2013

Received: 02 July 2013

Revised: 03 October 2013

Accepted: 06 November 2013

190 Downloads
3 Citations

Abstract

A parametric approach to sketching two-dimensional piecewise linear curves by a scanning galvo mirror system is presented. The proposed method uses a decomposed piecewise linear model that is based on the one-dimensional description of Chua-Kang. The curves to be drawn are treated as a parametric system composed of two positional equations, $X$ and $Y$, which are related to each other by an artificial parameter $\mu $. To verify the effectiveness of this approach, the proposed formulation is applied to a dual-axis motor/mirror assembly Scanner Galvo Mirror System model LP20 showing its capability to sketch accurately any piecewise linear curve.

Keywords

Piecewise-linear Curve-fitting Laser-projection

Mathematics Subject Classification

41A45 41A10 41A15 37E05

This is a preview of subscription content, to check access.

Notes

Acknowledgments

The authors would like to thank Jaime Ehrenzweig Reyes, Jose Luis Vazquez Beltran, and Jose Martin Alvarez Hernandez for their contribution in this project as LabView programmers.

Appendix A

Let the two-dimensional piecewise linear curve of Fig. 15 be described by $L$ linear segments, and $(L+1)$-coordinates denoted as ($X_{i},Y_{i}$), for $i=1,2,\ldots ,L+1$.

Fig. 15
A $L$-segments piecewise linear curve

Each segment has a slope as follows:

Region $(1)$: $J^{(1)}$ for $x\le \beta _{1}$
Region $(2)$: $J^{(2)}$ for $\beta _{1}< x\le \beta _{2}$, and consecutively
Region $(L-1)$: $J^{(L-1)}$ for $\beta _{L-2}< x\le \beta _{L-1}$
Region $(L)$: $J^{(L)}$ for $\beta _{L-1}< x$

$$\begin{aligned} J^{(i)}=\frac{Y_{i+1}-Y_{i}}{X_{i+1}-X_{i}},\forall i=\left\{ 1,2,\ldots ,L\right\} \end{aligned}$$

(18)

Beginning from the left to the right, the piecewise linear characteristic can be decomposed into the sum of $L$ components as shown in Fig. 16: a straight line passing through the origin with slope $m_{0}$, a concave characteristic which starts at $\beta _{1}$ with a negative slope $m_{1}$, and consecutively, the concave characteristics that start at $\beta _{L-2}$ with slope $m_{L-2}$, and $\beta _{L-1}$ with slope $m_{L-1}$, respectively.

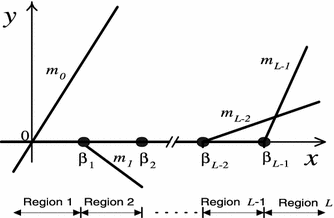

Fig. 16
Concave segments that compose the piecewise linear curve of Fig. 15

Adding the $L$ characteristics, it can be obtained an explicit expression $y(x)=y_{0}+y_{1}$ $+\cdots +y_{L-1}$ to describe the curve of Fig. 15.

The slopes $m_{0}, m_{1}, \ldots , m_{L-1}$ must satisfy the following:

Region $(1)$: $m_{0}=J^{(1)}$
Region $(2)$: $m_{0}+m_{1}=J^{(2)}$ , and consecutively
Region $(L)$: $m_{0}+\cdots +m_{L-1}=J^{(L)}$ or $\sum ^{L-1}_{i=1}m_{i}=J^{(L)}$

Thus, $m_{0}=J^{(1)}, m_{1}=J^{(2)}-J^{(1)}, \ldots , m_{L-1}=J^{(L)}-J^{(L-1)}$.

After using the normalized equivalence of $y_{i}=\frac{1}{2}m_{i}\left[ \left| x-\beta _{i}\right| +\left( x-\beta _{i}\right) \right] $, (In this case, de normalized case $m_{i}=1$) which is graphically depicted in Fig. 17, it can be obtained.

$$\begin{aligned} y_{0}&= m_{0}x \\ y_{1}&= \frac{1}{2}m_{1}\left[ \left| x-\beta _{1}\right| +\left( x-\beta _{1}\right) \right] \\ \vdots \\ y_{L-1}&= \frac{1}{2}m_{L-1}\left[ \left| x-\beta _{L-1}\right| +\left( x-\beta _{L-1}\right) \right] \end{aligned}$$

Fig. 17
Graphical representation for $y_{i}=\frac{1}{2}m_{i}\left[ \left| x-\beta _{i}\right| +\left( x-\beta _{i}\right) \right] $, normalized $m_{i}=1$

It must be noted that each $y_{i}$ equivalence has been scaled by the corresponding slope.

After that, with $y(x)=y_{0}+y_{1}+\cdots +y_{L-1}$, it can also be obtained

$$\begin{aligned} y(x)=\left( -\frac{1}{2}\sum ^{L-1}_{i=1}m_{i}\beta _{i}\right) +\left( m_{0}+\frac{1}{2}\sum ^{L-1}_{i=1}m_{i}\right) x+\left( \frac{1}{2}\sum ^{L-1}_{i=1}m_{i}\left| x-\beta _{i}\right| \right) \end{aligned}$$

(19)

This may be written in the following general form:

$$\begin{aligned} y(x)=a+bx+\sum _{i=1}^{L-1}c_{i}\left| x-\beta _{i}\right| \end{aligned}$$

(20)

where

$$\begin{aligned} b&= m_{0}+\frac{1}{2}\sum ^{L-1}_{i=1}m_{i}=J^{(1)}+\frac{1}{2}\sum ^{L-1}_{i=1}\left( J^{(i+1)}-J^{(i)}\right) =\frac{J^{(1)}+J^{(L)}}{2},\end{aligned}$$

(21)

$$\begin{aligned} c_{i}&= \frac{1}{2}\sum ^{L-1}_{i=1}m_{i}=\frac{J^{(i+1)}-J^{(i)}}{2},\end{aligned}$$

(22)

$$\begin{aligned} a&= -\frac{1}{2}\sum ^{L-1}_{i=1}m_{i}\beta _{i}=-\sum ^{L-1}_{i=1}\frac{J^{(i+1)}-J^{(i)}}{2}\beta _{i}=-\sum ^{L-1}_{i=1}c_{i}\beta _{i} \end{aligned}$$

(23)

Two extensions of Eq. (23) can be provided in reference (Chua et al. 1987). The first one considers the case when the initial segment of Fig. 15 does not pass through the origin, in this case Eq. (23) needs simply to be completed by adding a constant as

$$\begin{aligned} a=y(0)-\sum _{i=1}^{\sigma }c_{i}\beta _{i} \end{aligned}$$

(24)

The second one considers a more generalized situation by extending the piecewise linear curve domain as running from the second to the first quadrant. This allows recast Eq.(23) as

$$\begin{aligned} a=y(0)-\sum _{i=1}^{\sigma }c_{i}\left| \beta _{i}\right| \end{aligned}$$

(25)

References

ABC-geodata (2013) Geoinformation. http://www.abc-geodata.com/Vector-and.117.0.html
Abderyim P, Halabi O, Fujimoto T, Chiba N (2008) Accurate and efficient drawing method for laser projection. J Soc Art Sci 7(4):155–169CrossRefGoogle Scholar
Abderyim P, Menendez FJ, Halabi O, Chiba N (2007) Morphing-based vectorized candle animation for laser graphics. In: Proceedings of the IWAIT ‘07, pp 127–132Google Scholar
BGIS (2013) Introduction. http://bgis.sanbi.org/gis-primer/page19.htm
Blais F (January 2004) Review of 20 years of range sensor development. J Electron Imaging 13(1):231–240Google Scholar
Chen MF, Chen YP, Hsiao WT, Wu SY, Hu CW, Gu ZP (2008) A scribing laser marking system using DSP controller. Opt Lasers Eng 46:410–418CrossRefGoogle Scholar
Chua LO, Desoier CA, Kuh ES (1987) Linear and nonlinear circuits. McGraw-Hill Education, Series in Electrical and Computer Engineering, ISBN: 0071001670Google Scholar
Chua LO, Deng A (1986) Canonical piecewise-linear modeling. IEEE Trans Circuits Syst 33(5):511–525MathSciNetCrossRefGoogle Scholar
Chua LO, Deng A (1988) Canonical piecewise-linear representation. IEEE Trans Circuits Syst 35:101–111MathSciNetCrossRefMATHGoogle Scholar
Drexel (2013) Drexel University. http://repairfaq.ece.drexel.edu/sam/MEOS/EXP28.pdf
Edmund (2012) Edmund optics. http://www.edmundoptics.com
Geomatec (2013) Optical system for lasers. http://www.geomatec.co.jp
Halabi O, Chiba N (2009) Efficient vector-oriented graphic drawing method for laser-scanned display. Elsevier Disp 30:97–106Google Scholar
Harmonic Drive Systems Inc. (2013) Beam Servo Scanner. http://www.hds.co.jp
Jimenez-Fernandez V (2006) Decomposed piecewise-linear representation applied to DC analysis. PhD thesis, National Institute for Astrophysics, Optics and ElectronicsGoogle Scholar
Jimenez-Fernandez V, Hernandez-Martinez L, Sarmiento-Reyes A (2006) Decomposed piecewise-linear models by hyperplanes unbending. In: IEEE international symposium on circuits and systems, ISCAS 2006, Kos, Greece pp 2353–2356Google Scholar
Kang SM, Chua LO (1978) A global representation of multidimensional piecewise-linear functions with linear partitions. IEEE Trans Circuits Syst CAS-25(11):938–940Google Scholar
Kang SM, Chua LO (1977) Section-wise piecewise-linear functions: canonical representation, properties and applications. Proc IEEE 65:915–929CrossRefGoogle Scholar
Klawonn F (2012) Introduction to computer graphics: using Java 2D and 3D, 2nd edn. Springer, Berlin, ISBN: 1447127323Google Scholar
Menendez FJ, Halabi O, Chiba N (2007) Vector-based library for displaying Bezier curves using a laser projector. In: Proceedings of the IWAIT ‘07, pp 121–126Google Scholar
Meyer LE, Otberg N, Sterry W, Lademann J (2006) In vivo confocal scanning laser microscopy: comparison of the reflectance and fluorescence mode by imaging human skin. J Biomed Opt 11(4):044012Google Scholar
Murphy P, Benner WR (1993) Computer graphics for scanned laser displays. SMPTE Mot.Image J 102(12): 1125–1133. doi: 10.5594/J01654
Platte RB, Trefethen LN, Kuijlaars AB (2011) Impossibility of fast approximation of analytic functions equispaced samples. SIAM Rev 2:308–318MathSciNetCrossRefGoogle Scholar
Prenter PM (2008) Splines and variational methods. Dover Books on Mathematics Series, ISBN: 0486469026Google Scholar
RP Photonics (2013) Encyclopedia of laser physics and technology. http://www.rp-photonics.com/laser-applications.html
Sridhar M, Basu S, Scranton VL, Campagnola PJ (2003) Construction of a laser scanning microscope for multiphoton excited optical fabrication. Rev Sci Instrum 74:3474. doi: 10.1063/1.1584079 Google Scholar
Technohands Co. Ltd. (2013) Galvano scanner motor. http://www.technohands.co.jp
Thorlabs (2012) Thorlabs Scanning Galvo Systems. User Guide. http://www.thorlabs.com
Vohnsen B, Rativa D (2011) Ultrasmall spot size scanning laser ophthalmoscopy. Biomed Opt Express 2(6):1597–1609. doi: 10.1364/BOE.2.001597 Google Scholar
Zicara (2013) Solutions. http://www.zicara.com/techbytes/web-design/advantages-disadvantages-vector-images
