Power attacks in the presence of exponent blinding

Werner Schindler; Andreas Wiemers

doi:10.1007/s13389-014-0081-y

Journal of Cryptographic Engineering

November 2014, Volume 4, Issue 4, pp 213–236 | Cite as

Power attacks in the presence of exponent blinding

Authors
Authors and affiliations

Werner SchindlerEmail author
Andreas Wiemers

Regular Paper

First Online: 03 June 2014

Received: 01 November 2013

Accepted: 03 May 2014

262 Downloads
1 Citations

Abstract

Exponent blinding has been known as an effective countermeasure against side-channel attacks on RSA. However, if single power traces reveal some exponent bits with certainty, an attack by Fouque et al. (Power attack on small RSA public exponent. Springer, Berlin, pp 339–353, 2006) applies that recovers the exponent. Since this attack becomes infeasible if some of these assumed exponent bits are incorrect it has not been assumed to be a realistic threat in the context of side-channel attacks. In this paper we present three generic attack variants (basic attack, enhanced attack, alternate attack), which work in the presence of considerable error rates at each bit position, disproving the hypothesis that mere exponent blinding is always sufficient to protect SPA-resistant implementations against any type of power attacks. Simulation experiments confirm that for small blinding factors the basic attack permits error rates of more than \(25~\%\). The enhanced attack allows smaller error rates but requires much less power traces and computations. Unlike the basic attack and the enhanced attack the alternate attack (against ECC and RSA without CRT) cannot effectively be prevented by simply enlarging the blinding factor. This paper extends (Schindler and Itoh, Exponent blinding does not always lift (Partial) SPA resistance to higher-level security. Springer, Berlin, pp 73–90, 2011) by many new results.

Keywords

Power analysis Exponent blinding

This is a preview of subscription content, to check access.

Appendix

We believe that Lemma 1 should be well-known in the literature but we are unable to provide a reference. Lemma 1(iii) follows from Lemma 1(ii). The fact \(E(Y)\approx 0.333n\) is mentioned, e.g. in [3], Theorem II.2.2.

Proof of Lemma 1 Let \(\sum _{j=0}^n \beta _{i;j}2^j\) denote the \(\mathrm{NAF}\)-representation of \(z_i\) for \(i=1,2\). Then \(z_1+z_2 = \sum _{j=0}^n (\beta _{1;j}+\beta _{2,j})2^j\) and by triangle inequality \(\sum _{j=0}^n \vert \beta _{1;j}+\beta _{2,j}\vert \le \sum _{j=0}^n \vert \beta _{1;j}\vert +\sum _{j=0}^n \vert \beta _{2,j}\vert = \mathrm{ham}(\mathrm{NAF}(z_1)) + \mathrm{ham}(\mathrm{NAF}(z_2))\). Now scan the coefficient vector \((\beta _{1;n}+\beta _{2,n},\beta _{1;n-1}+\beta _{2,n-1},\ldots ,\beta _{1;0}+\beta _{2,0})\) from right to left, and do the following: If \(\beta _{1;j}+\beta _{2,j}\in \{-1,0,1\}\) then do nothing. If \(\beta _{1;j}+\beta _{2,j}\in \{2,3\}\) then replace \((\beta _{1;j}+\beta _{2,j})\) by \((\beta _{1;j}+\beta _{2,j}-2)\) and \((\beta _{1;j+1}+\beta _{2,j+1})\) by \((\beta _{1;j+1}+\beta _{2,j+1}+1)\) (carry bit). If \(\beta _{1;j}+\beta _{2,j}\in \{-2,-3\}\) then perform corresponding operations with ‘\(+2\)’ and ‘\(-1\)’ in place of ‘\(-2\)’ and ‘\(+1\)’. (Possibly a leading digit has to be added.) Within this process \((\beta _{1;j}+\beta _{2;j})\in \{-3,\ldots ,+3\}\), and each replacement reduces the sum of the absolute values at least by one. Thus, we obtain a signed representation of \(z_1+z_2\), which fulfils (12)in place of \(NAF(z_1+z_2).\) The NAF property finally implies (12) and the second assertion of (i).

We represent \(\mathrm{NAF}(0),\ldots ,\mathrm{NAF}(2^n-1)\) as sequences of \((n+1)\) digits, prepending leading zeroes if necessary. Clearly, \(\mathrm{ham}(\mathrm{NAF}(z))=(0,\ldots ,0)\) iff \(z=0\), and there are exactly \(n\) sequences with Hamming weight \(1\) (encoding \(1,2,\ldots ,2^{n-1}\)). Within this proof \(A\) denotes the subset of all non-zero \(\mathrm{NAF}\) representations with leading digit \(0\), and \(B\) denotes the sequences with leading digit \(1\). Let \(k\in \{2,\ldots ,\lfloor (n+1)/2\rfloor \}\). We first note that there are \({n+1-k \atopwithdelims ()k}\) sequences with digits \(0\) and \(*\) of length \((n+1)\), that begin with \(0\) and have non-adjacent \(*\)-digits (\(*\in \{1,-1\}\)). This claim can be seen as follows: each such sequence can be covered by \(k\) patterns ‘\(0*\)’ and \(n+1-2k\) patterns ‘\(0\)’. This immediately yields the number of sequences in \(A\) with Hamming weight \(k\), namely \(2^{k-1}{n+1-k \atopwithdelims ()k}\), since the most significant non-zero digit is \(1\). Similarly, one shows that in \(B\) there are \(2^{k-2}{n-(k-1) \atopwithdelims ()k-1}\) sequences with Hamming weight \(k\). (The second most significant non-zero digit must be \(-1\) since \(z<2^n\).) The identity \({n+1-k \atopwithdelims ()k}+{n+1-k \atopwithdelims ()k-1}={n+2-k \atopwithdelims ()k}\) finally verifies the third line in (13). For even \(n\), set \(B\) also contains \(2^{n/2-1}\) sequences with Hamming weight \(\lfloor n/2\rfloor +1\) (having alternating zero and non-zero digits). This completes the proof of (ii).

Let \(x=(\beta _{n+1},\ldots ,\beta _0)_2\). The NAF digit \(z_i\) depends on the binary digits \(\beta '_{i+1},\beta '_i\) and on the carry bit \(c_{i}\), i.e. it can be written as \(f(\beta '_{i+1},\beta '_i,c_{i})\) for a suitably defined function \(f\) (cf. Algorithm 5). The next state \((\beta '_{i+2},\beta '_{i+1},c_{i+1})\) depends on \((\beta '_{i+1},\beta '_i,c_{i})\) and on the next binary digit \(\beta _{i+2}\) of \(x\). Since \(X\) is uniformly distributed on \(Z_{2^n}\) the sequence \((B'_{i+1},B'_i,C_{i-1})_{i\ge 0}\) forms a homogeneous ergodic Markov chain on the state space \(\Omega := \{(\beta '',\beta ',c) \mid 0\le \beta ',\beta '',c\le 1\}\), and \(\mathrm{ham}(\mathrm{NAF}(x)) = \vert f(\beta '_{1},\beta '_0,c_{0})\vert + \vert f(\beta '_{2},\beta '_1,c_{1})\vert +\cdots \). Neglecting boundary effects for the most significant binary digits Theorem 1 in [13] says that \(\mathrm{ham}(\mathrm{NAF}(X))\) fulfils the Central Limit Theorem if \(n\) tends to infinity. Concerning the second assertion of (iii) recall that the NAF digits \(\le i\) of \(x\) only depend on the binary digits \(\beta _0,\beta _1,\ldots ,\beta _{i+1}\). Unless \(n-(i+1)\) is very small, \(X (\mathrm{mod}\,2^{i})\) should be ‘almost’ uniformly distributed on \(Z_{2^{i-1}}\). Thus, the Central Limit Theorem applies to the \(\mathrm{NAF}\) digits \(z_0,\ldots ,z_{i+1}\) while the remaining bits may be viewed as ‘boundary effects’.\(\square \)

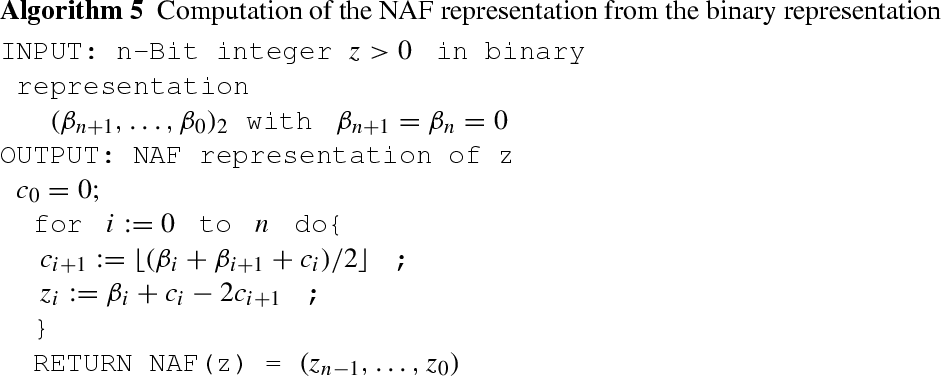

The proof of Lemma 1 applies Algorithm 5 ([3], Algorithm 1), which provides explicit instructions to compute \(\mathrm{NAF}(z)\). We mention that [19], Theorem (10.24) (with \(r=2\)) should allow a more efficient implementation. It is not necessary to compute the binary representation of \(z\) first (c.f. [9], Algorithm 3.30, for instance).

References

1.
Acıiçmez, O., Schindler, W.: A vulnerability in RSA implementations due to instruction cache analysis and its demonstration on openSSL. In: Malkin, T. (ed.) Topics in Cryptology—CT-RSA 2008, Lecture Notes in Computer Science, pp. 256–273. Springer, Berlin (2008)CrossRefGoogle Scholar
2.
Bronstein, I.N., Semendjaev, K.A.: Taschenbuch der Mathematik, 21st edn. Harri Deutsch-Verlag, Leipzig (1982)Google Scholar
3.
Ciet, M.: Aspects of Fast and Secure Arithmetics for Elliptic Curve Cryptography. PhD thesis, Catholic University of Louvain, Belgium (2003)Google Scholar
4.
Cohen, H.: A Course in Computational Algebraic Number Theory. Springer, Berlin (2000). (Forth Printing)Google Scholar
5.
Coron, J.S.: Resistance against differential power analysis for elliptic curve cryptosystems. In: Koç, Ç.K., Paar, C. (eds.) Cryptographic Hardware and Embedded Systems—CHES 1999, Lecture Notes in Computer Science, pp. 292–302. Springer, Berlin (1999)Google Scholar
6.
Courrège, J.C., Feix, B., Roussellet, M.: Simple power analysis on exponentiation revisited. In: Gollmann, D., Lanet, J.-L., Iguchi-Cartigny, J. (eds.) Smart Card Research and Advanced Application—CARDIS 2010, Lecture Notes in Computer Science, pp. 65–79. Springer, Berlin (2010)Google Scholar
7.
Diaconis, P.: Group Representations in Probability and Statistics. Lecture Notes—Monograph Series, vol. 11. Institute of Mathematical, Statistics, Hayward (1988)Google Scholar
8.
Fouque, P., Kunz-Jacques, S., Martinet, G., Muller, F., Valette, F.: Power attack on small RSA public exponent. In: Goubin, L., Matsui, M. (eds.) Cryptographic Hardware and Embedded Systems—CHES 2006, Lecture Notes in Computer Science, pp. 339–353. Springer, Berlin (2006)CrossRefGoogle Scholar
9.
Hankerson, D., Menezes, A., Vanstone, S.: Guide to Elliptic Curve Cryptography. Springer, Berlin (2004)MATHGoogle Scholar
10.
Henecka, W., May, A., Meurer, A.: Correcting errors in RSA private keys. In: Rabin, T. (ed.) Advances in Cryptology—CRYPTO 2010, Lecture Notes in Computer Science, pp. 351–369. Springer, Berlin (2010)CrossRefGoogle Scholar
11.
Itoh, K., Yamamoto, D., Yajima, J., Ogata, W.: Collision-based power attack for RSA with small public exponent. In: IEICE Transactions on Information and Systems, vol. E92-D, no. 5, pp. 897–908 (2009)Google Scholar
12.
Itoh, K., Izu, T., Takenaka, M.: Address-bit differential power analysis of cryptographic schemes OK-ECDH and OK-ECDSA. In: Kaliski, B., Koç, Ç.K., Paar, C. (eds.) Cryptographic Hardware and Embedded Systems—CHES 2002, Lecture Notes in Computer Science, pp. 129–143. Springer, Berlin (2002)Google Scholar
13.
Jones, G.J.: On the Markov Chain central limit theorem. Probab. Surv. 1, 299–320 (2004) Google Scholar
14.
Knuth, D.E.: The Art of Computer Programming. vol. 1, 3rd edn., Addison-Wesley, Reading (Cal.) (2000)Google Scholar
15.
Kocher, P.: Timing attacks on implementations of Diffie-Hellman, RSA, DSS and other systems. In: Koblitz, N. (ed.) Advances in Cryptology—CRYPTO ‘96, Lecture Notes in Computer Science, pp. 104–113. Springer, Berlin (1996)Google Scholar
16.
Kocher, P., Jaffe, J., Jun, B.: Differential power analysis. In: Krawczyk, H. (ed.) Advances in Cryptology—CRYPTO 99, Lecture Notes in Computer Science, pp. 388–397. Springer, Berlin (1998)Google Scholar
17.
Krüger, A.: The Schindler-Itoh-attack in case of partial information leakage. In: Schindler, W., Huss, S. (eds.) Constructive Side-Channel Analysis and Secure Design—COSADE 2012, Lecture Notes in Computer Science, pp. 199–214. Springer, Berlin (2012)Google Scholar
18.
Lang, S.: Algebra, 3rd edn. Addison-Wesley, Reading (Cal.) (1993)Google Scholar
19.
van Lint, J.H.: Introduction to Coding Theory. Graduate Texts in Mathematics, 2nd edn. Springer, Berlin (1991)Google Scholar
20.
Schindler, W.: A combined timing and power attack. In: Paillier, P., Naccache, D. (eds.) Public Key Cryptography—PKC 2002, Lecture Notes in Computer Science, pp. 263–279. Springer, Berlin (2002)Google Scholar
21.
Schindler, W., Itoh, K.: Exponent blinding does not always lift (Partial) SPA resistance to higher-level security. In: Lopez, J., Tsudik, G. (eds.) Applied Cryptography and Network Security—ACNS 2011, Lecture Notes in Computer Science, pp. 73–90. Springer, Berlin (2011)Google Scholar
22.
Yen, S., Lien, W., Moon, S., Ha, J.: Power analysis by exploiting chosen message and internal collisions—vulnerability of checking mechanism for RSA-decryption. In: Dawson, E., Vaudenay, S. (eds.) Mycrypt 2005, Lecture Notes in Computer Science, pp. 73–90. Springer, Berlin (2005)Google Scholar
