The Effect of Organic Modifiers on Electrospray Ionization Charge-State Distribution and Desorption Efficiency for Oligonucleotides

  • Buyun Chen
  • Sadie F. Mason
  • Michael G. Bartlett
Research Article
First Online:
Received:
Revised:
Accepted:

Abstract

The chemical composition of the solution has a critical impact on the electrospray desorption efficiency of oligonucleotides. Several physiochemical properties of various organic modifiers were investigated with respect to their role in the desorption process of oligonucleotides. The Henry’s Law Constant, which reflects the volatility of alkylamines, was found to have a prominent effect on both the electrospray charge state distribution and desorption efficiency of oligonucleotides. Alkylamines with higher \( \mathrm{k}_{\mathrm{H,cc}}\left( {\mathrm{aq}/\mathrm{gas}} \right) \) values such as hexylamine, piperidine, and imidazole reduced the charge state distribution by forming complexes with the oligonucleotide and dissociating from it in the gas phase, while alkylamines with extremely low \( \mathrm{k}_{\mathrm{H,cc}}\left( {\mathrm{aq}/\mathrm{gas}} \right) \) values reduced the electrospray charge state distribution by facilitating ion emission at an earlier stage of the electrospray desorption process. Ion-pairing agents with moderate \( \mathrm{k}_{\mathrm{H,cc}}\left( {\mathrm{aq}/\mathrm{gas}} \right) \) values do not alter the electrospray charge state distribution of oligonucleotides and their ability to enhance oligonucleotide ionization followed the order of decreasing \( \mathrm{k}_{\mathrm{H,cc}}\left( {\mathrm{aq}/\mathrm{gas}} \right) \) values. The Henry’s Law Constant also correlated to the impact of the acidic modifiers on oligonucleotide ionization efficiency. Ionization enhancement effects were observed with hexafluoroisopropanol, and this effect was attributed to its low \( \mathrm{k}_{\mathrm{H,cc}}\left( {\mathrm{aq}/\mathrm{gas}} \right) \) and moderate acidity. The comprehensive effects of both alkylamine and hexafluoroisoproapnol on the electrospray ionization desorption of oligonucleotides were also evaluated, and acid-base equilibrium was found to play a critical role in determining these effects.

Key words

Oligonucleotide Electrospray ionization
This is a preview of subscription content, log in to check access.

Supplementary material

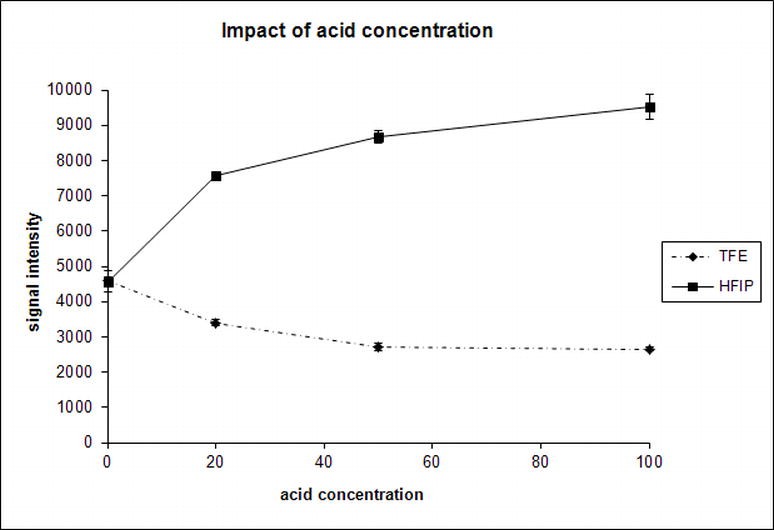

Supplemental Figure S1

Signal intensity from a 24 mer oligonucleotide in 0–100 mM of TFE or HFIP in 50 % MeOH:H2O (JPEG 29 kb)

13361_2012_509_MOESM1_ESM.tif (32 kb)
High Resolution Image (TIFF 31 kb)
Supplemental Figure S2

pH value of different combinations of 0–100 mM of HFIP and 0–30 mM DIEA in water (JPEG 30 kb)

13361_2012_509_MOESM2_ESM.tif (33 kb)
High Resolution Image (TIFF 32 kb)

References

  1. 1.
    McCloskey, J.A., Crain, P.F.: Progress in mass spectrometry of nucleic acid constituents: analysis of xenobiotic modifications and measurements at high mass. Int. J. Mass Spectrom. Ion Processes 118/119, 593–615 (1992)CrossRefGoogle Scholar
  2. 2.
    Zhang, G., Lin J., Srinivasan K., Kavetskaia O., Duncan J.N.: Strategies for bioanalysis of an oligonucleotide class macromolecule from rat plasma using liquid chromatography-tandem mass spectrometry. Anal. Chem. 79(9), 3416–3424 (2007)Google Scholar
  3. 3.
    Ye, G., Beverly, M.: The use of strong anion‐exchange (SAX) magnetic particles for the extraction of therapeutic siRNA and their analysis by liquid chromatography/mass spectrometry. Rapid Commun. Mass Spectrom. 25(21), 3207–3215 (2011)CrossRefGoogle Scholar
  4. 4.
    Jiao, K.S., Rashid, A., Basu, S.K., Zhu, S.H., Brown, B.D., Guerciolini, R., Fambrough, D.M.: Quantitative analysis of dicer substrate oligonucleotides in mouse liver by ultra-high-performance liquid chromatography-electrospray ionization tandem mass spectrometry. ASSAY Drug Dev. Technol. 10(3), 278–288 (2011)Google Scholar
  5. 5.
    Muddiman, D.C., Cheng, X.H., Udseth, H.R., Smith, R.D.: Charge-state reduction with improved signal intensity of oligonucleotides in electrospray ionization mass spectrometry. J. Am. Soc. Mass Spectrom. 7(8), 697–706 (1996)Google Scholar
  6. 6.
    Cheng, X.H., Gale, D.C., Udseth, H.R., Smith, R.D.: Charge state reduction of oligonucleotide negative ions from electrospray ionization. Anal. Chem. 67(3), 586–593 (1995)Google Scholar
  7. 7.
    Null, A.P., Nepomuceno, A.I., Muddiman, D.C.: Implications of hydrophobicity and free energy of solvation for characterization of nucleic acids by electrospray ionization mass spectrometry. Anal. Chem. 75(6), 1331–1339 (2003)CrossRefGoogle Scholar
  8. 8.
    Liu, C.L., Wu, Q.Y., Harms, A.C., Smith, R.D.: On-line microdialysis sample cleanup for electrospray ionization mass spectrometry of nucleic acid samples. Anal. Chem. 68(18), 3295–3299 (1996)Google Scholar
  9. 9.
    Bleicher, K., Bayer, E.: Various factors influencing the signal intensity of oligonucleotides in electrospray mass spectrometry. Biol. Mass Spectrom. 23(6), 320–322 (1994)CrossRefGoogle Scholar
  10. 10.
    Gaus, H.J., Owens, S.R., Winniman, M., Cooper, S., Cummins, L.L.: On-line HPLC electrospray mass spectrometry of phosphorothioate oligonucleotide metabolites. Anal. Chem. 69(3), 313–319 (1997)Google Scholar
  11. 11.
    Huber, C.G., Krajete, A.: Analysis of nucleic acids by capillary ion-pair reversed-phase HPLC coupled to negative-ion electrospray ionization mass spectrometry. Anal. Chem. 71(17), 3730–3739 (1999)CrossRefGoogle Scholar
  12. 12.
    Deguchi, K., Ishikawa, M., Yokokura, T., Ogata, I., Ito, S., Mimura, T., Ostrander, C.: Enhanced mass detection of oligonucleotides using reverse-phase high performance liquid chromatography/electrospray ionization ion trap mass spectrometry. Rapid Commun. Mass Spectrom. 16(22), 2133–2141 (2002)Google Scholar
  13. 13.
    Apffel, A., Chakel, J.A., Fisher, S., Lichtenwalter, K., Hancock, W.S.: Analysis of oligonucleotides by HPLC-electrospray ionization mass spectrometry. Anal. Chem. 69(7), 1320–1325 (1997)Google Scholar
  14. 14.
    Cole, R.B.: Electrospray ionization mass spectrometry: fundamentals, instrumentation, and applications. John Wiley & Sons, New York, NY, pp. 48–50 (1997)Google Scholar
  15. 15.
    Hendricks Jr., C., Pfeifer, R.: Parametric studies of electrohydrodynamic spraying. AIAA J. 6, 496–502 (1968)CrossRefGoogle Scholar
  16. 16.
    Tang, K., Gomez, A.: On the structure of an electrostatic spray of monodisperse droplets. Phys. Fluids 6, 2317–2332 (1994)CrossRefGoogle Scholar
  17. 17.
    Rayleigh, J.W.S.: On the equilibrium of liquid conducting masses charged with electricity. Philos. Mag. 14:184–186 (1882)Google Scholar
  18. 18.
    Fernández de la Mora, J.F.: On the outcome of the Coulombic fission of a charged isolated drop. Journal of Colloid and Interface Science. 178(1), 209–218 (1996)Google Scholar
  19. 19.
    Iribarne, J., Thomson, B.: On the evaporation of small ions from charged droplets. J. Chem. Phys. 64(6), 2287 (1976)CrossRefGoogle Scholar
  20. 20.
    Dole, M., Mack, L.L., Hines, R.L.: Molecular beams of macroions. J. Chem. Phys. 49, 2240 (1968)Google Scholar
  21. 21.
    Hogan, C.J., Carroll, J.A., Rohrs, H.W., Biswas, P., Gross, M.L.: Combined charged residue-field emission model of macromolecular electrospray ionization. Analy. Chem. 81(1), 369–377 (2008)Google Scholar
  22. 22.
    Fenn, J.B.: Ion formation from charged droplets: roles of geometry, energy, and time. J. Am. Soc. Mass Spectrom. 4(7), 524–535 (1993)CrossRefGoogle Scholar
  23. 23.
    Wu, Z.R., Gao, W.Q., Phelps, M.A., Wu, D., Miller, D.D., Dalton, J.T.: Favorable effects of weak acids on negative-ion electrospray ionization mass spectrometry. Anal. Chem. 76(3), 839–847 (2004)Google Scholar
  24. 24.
    Cohen, A.S., Bourque, A.J., Wang, B.H., Smisek, D.L., Belenky, A.: A nonradioisotope approach to study the in vivo metabolism of phosphorothioate oligonucleotides. Antisense Nucleic Acid Drug Dev. 7(1), 13 (1997)Google Scholar
  25. 25.
    Cech, N.B., Enke, C.G.: Practical implications of some recent studies in electrospray ionization fundamentals. Mass Spectrom. Rev. 20(6), 362–387 (2001)CrossRefGoogle Scholar

Copyright information

© American Society for Mass Spectrometry 2013

Authors and Affiliations

  • Buyun Chen
    • 1
  • Sadie F. Mason
    • 1
  • Michael G. Bartlett
    • 1
  1. 1.Department of Pharmaceutical and Biomedical Science, College of PharmacyThe University of GeorgiaAthensUSA
