Journal of The American Society for Mass Spectrometry

, Volume 23, Issue 9, pp 1544–1557 | Cite as

A Comparison of the Effects of Amide and Acid Groups at the C-Terminus on the Collision-Induced Dissociation of Deprotonated Peptides

  • Samantha S. Bokatzian-Johnson
  • Michele L. Stover
  • David A. Dixon
  • Carolyn J. Cassady
Research Article
First Online:
Received:
Revised:
Accepted:

Abstract

The dissociative behavior of peptide amides and free acids was explored using low-energy collision-induced dissociation and high level computational theory. Both positive and negative ion modes were utilized, but the most profound differences were observed for the deprotonated species. Deprotonated peptide amides produce a characteristic cm–2 – product ion (where m is the number of residues in the peptide) that is either absent or in low abundance in the analogous peptide acid spectrum. Peptide acids show an enhanced formation of cm–3 –; however, this is not generally as pronounced as cm–2 – production from amides. The most notable occurrence of an amide-specific product ion is for laminin amide (YIGSR-NH2) and this case was investigated using several modified peptides. Mechanisms involving 6- and 9-membered ring formation were proposed, and their energetic properties were investigated using G3(MP2) molecular orbital theory calculations. For example, with C-terminal deprotonation of pentaglycine amide, formation of cm–2 – and a 6-membered ring diketopiperazine neutral requires >31.6 kcal/mol, which is 26.1 kcal/mol less than the analogous process involving the peptide acid. The end group specific fragmentation of peptide amides in the negative ion mode may be useful for identifying such groups in proteomic applications.

Key words

C-terminal peptide amide Deprotonated peptides CID Peptide sequencing

1 Introduction

Hydrophobic amide groups at the C-termini of peptides are prolific in nature and generally thought to be one of the key binding sites on biologically active peptides [1, 2, 3, 4]. For example, a C-terminal amide group is a post-translational modification found in peptides that have the C-terminus extended by a glycine residue [5, 6, 7]. In addition, there are several groups of well-known biologically active peptides that are C-terminal amides; for example, the tachykinins, a family of neurological peptides. Substance P, discovered by Von Euler and Gaddum in 1931, belongs to the broad tachykinin family and is one of the peptides used in our study [8]. There are several groups of peptides with antimicrobial and anticancer properties that possess a C-terminal amide [9]. Additional biologically active C-terminal amide peptides include the adrenomedullins, amylins, calcitonin, cholecystokinins, endokinins, growth hormone releasing factor, and oxytocins [10, 11, 12, 13, 14, 15, 16, 17]. Furthermore, C-terminal amide dipeptides are easily converted to 2,5-diketopiperazines, a 6-membered ring species, in the presence of an acid [18], and the formation of diketopiperazines from the N-terminal amino group has been reported [19, 20]. Wang et al. [21] studied endomorphin-1 and endomorphin-2, both C-terminal amides, and their activity when the C-terminus was modified. Their results showed that the functionality of the C-terminus was important and that derivatizing the amide by converting the terminus to an ester has a detrimental effect on the activity of the endomorphin peptide.

There has been a great deal of research comparing the properties of peptide acids and amides by chemical methods other than mass spectrometry. Dennison et al. [9] studied the effects of changing the C-terminus on peptides that exhibit antimicrobial and anticancer activity via physical and computational methods. Their work demonstrated an unpredictable effect on the efficacy and no effect on the selectivity of the peptides studied. Krstenansky et al. [22] synthesized several C-terminal analogs of hirudin (54-65) to probe the structure–activity relationship. The C-terminal amide was among the modifications studied and its presence lessened the activity of the antithrombin peptide. Chemical means have been used to determine the C-terminal end group of peptides and proteins by converting the C-terminus from a carboxylic acid to an amide via ammonolysis or hydrazinolysis [23, 24].

There have been few reports comparing acid and amide analogous peptides by mass spectrometry. Kim and Kim [25] employed a carboxypepsidase Y digestion to identify amino acid amides using fast atom bombardment (FAB) mass spectrometry. Brinkworth and Bowie [26] investigated the maculatin family of C-terminal amide peptides by negative ion mode electrospray ionization (ESI) mass spectrometry. Although their work did not consider the acid versions of the peptides, it did demonstrate the dissociation patterns of deprotonated peptide amides. Enjalbal and coworkers [27] performed an extensive study comparing the differences in positive ion mode collision-induced dissociation (CID) fragmentation patterns of both peptide acids and amides. Their work included 76 pairs of peptide acids and amides with a variety of amino acid compositions. For their study of protonated peptides, the presence of the amide group at the C-terminus had little effect on the resulting CID spectra, apart from an increased loss of ammonia from the protonated peptide amide. This minor difference is likely influenced by the peptide composition and is not solely due to the C-terminal end group. To date, there have been no published reports of a comparison of the acid/amide analogous peptides via negative ion mode CID.

Conversion of a C-terminal carboxylic acid group to an amide group may remove a possible charge site in negative ion mode. Consequently, absence of this carboxylic acid group should alter the fragmentation pattern of the deprotonated peptide. Complimentary to the positive ion mode work of Enjalbal and coworkers [27], our effort focuses on the differences observed in negative ion mode fragmentation. Differing fragmentation patterns between nearly identical deprotonated species will allow for greater identification of unknown peptides.

2 Experimental

2.1 Peptides

Table 1 shows the amino acid sequences of each peptide studied and the monoisotopic masses for the protonated and deprotonated ions. Substance P acid and amide, cholecystokinin acid, and laminin acid and amide were purchased from Anaspec (San Jose, CA, USA). Cholecystokinin amide was purchased from American Peptide (Sunnyvale, CA, USA). Penta-alanine and the laminin analogs were synthesized in our laboratory using standard Fmoc protocol [28] on an Advanced ChemTech Model 90 peptide synthesizer (Louisville, KY, USA). Wang and Rink amide resins (Advanced ChemTech) were used to produce the acid (–COOH) and amide functionalities (–CONH2), respectively. The Sieber resin (Anaspec, San Jose, CA, USA) was used to produce the secondary amide functionality (–NHEt). YIGSR-NMe2 was custom synthesized by NEO BioScience (Cambridge, MA, USA). YIGSR-OMe was produced in our laboratory via methyl esterification [29] of the commercially available laminin acid. The remaining peptides were provided by Christine Enjalbal’s group at the University of Montpellier (Montpellier, France).
Table 1

Peptide Sequences, Precursor Ion Monoisotopic Masses, and Predominant Backbone Cleavage Ions from CID of [M – H]−

Peptide Sequence (name)

Monoisotopic massa of [M – H]−

Base peak of spectruma

Observed CID backbone product ionsb,c

Amide

Acid

Amide

Acid

Amide

Acid

AAAAA (penta-alanine)

371.1

372.2

c3 –/y3 –

c2 –

a3 −, a4 −, a5 −, c2 −, c 3 − , y2 −, y 3 − , y4 −

a3 −, a4 −, a5 −, c 2 − , c3 −, y2 −, y3 −, y4 −

YIGSR (laminin)

592.3

593.3

[M – H – CH2O]–

[M – H – CH2O]–

c 3 −

c2 −, c3 −

YIGSA

507.2

508.2

[M – H]–

M – H – NH3]–

c2 −, c 3 −

c2 −, c3 −

FPARVGI

756.4

757.4

[M – H]–

[M – H – NH3]–

c2 −, c3 −, c4 −, c 5 − , y3 −, y4 −, y5 −, y6 −

c2 −, c3 −, c4 −, c5 −, y3 −, y4 −, y5 −, y6 −

DYMGWMDF (cholecystokinin)

1061.4

1062.4

[M – H – H2O]–

[M – H – H2O]–

c6 −, y7 −

c6 −, y7 −

LMYVHWVK

1072.6

1073.6

y6 – and c6 –

c5 –

c3 −, c 4 − , c5 −, c 6 − , y3 −, y 4 − , y 5 − , y 6 − , y7 −

c3 −, c4 −, c 5 − , c6 −, y3 −, y4 −, y 5 − , y 6 − , y7 −

LMYVHWVR

1100.6

1101.6

c6 – and [M – H – HN = C = NH]–

[M – H – HN = C = NH]–

c3 −, c 4 − , c 5 − , c 6 − , c 7 − , y4 −, y 5 − , y 6 − , y7 −

c3 −, c4 −, c5 −, c6 −, c7 −, y4 −, y5 −, y6 −, y7 −

MLGFRSVGYA

1097.5

1098.5

[M – H]–

[M – H – CH2O]–

c3 −, c4 −, c5 −, c6 −, c7 −, c8 −, c9 −, y3 −, y4 −, y5 −, y6 −, y7 −, y8 −, y9 −, y10 −

c3 −, c4 −, c5 −, c6 −, c7 −, c8 −, c9 −, c10 −, y3 −, y4 −, y5 −, y6 −, y7 −, y8 −, y9 −, y10 −

WFAPPRVGYL

1202.6

1203.6

[M – H]–

[M – H – NH3]–

c2 −, c5 −, c6 −, c7 −, c 8 − , y3 −, y4 −, y5 −, y6 −, y7 −, y8 −, y9 −, y10 −

c5 −, c6 −, c7 −, c8 −, c9 −, y3 −, y4 −, y5 −, y6 −, y7 −, y8 −, y9 −, y10 −

RPKPQQFFGLM (Substance P)

1345.7

1346.7

c9 –

[M – H – HN = C = NH]–

c4 −, c5 −, c6 −, c7 −, c8 −, c 9 − , y4 −, y5 −, y 6 − , y7 −, y 8 − , y9 −, y10 −

c8 −, c9 −, y4 −, y5 −, y6 −, y7 −, y 8 − , y9 −, y10 −

a Units are Daltons

b Neutral loss products are excluded from the listing

c Ions in bold red have an intensity of >40 % of base peak

2.2 Sample Preparation

Stock peptide solutions were prepared in ultrapure water from solid peptide at a concentration of 1–2 mg/mL. Peptides that had low solubility in water were prepared in a 50:50 mixture (by volume) of ultrapure water and methanol. Solutions for mass spectral analysis were obtained by diluting the stock solutions to 1–5 μM in a 50:50 mixture of acetonitrile and ultrapure water. A 0.1 %–1 % volume of either acetic acid or ammonium hydroxide was added to the sample solution to assist in protonation or deprotonation, respectively.

2.3 Mass Spectrometry

Low-energy CID experiments were performed using a Bruker HCTultra PTM Discovery System (Billerica, MA, USA) high capacity quadrupole ion trap (QIT) equipped with ESI. Peptide samples were introduced into the ESI source using a KD Scientific syringe pump (Holliston, MA, USA) at a flow rate of 100–250 μL/h. Ions were produced by ESI using a spray voltage of ±3000–4000 V. Nitrogen was used as the ESI drying gas and was heated to a temperature of 250 °C and set to flow at a rate of 5 L/min. The nebulizer gas, also nitrogen, was set to a pressure of 10 psi.

For low-energy CID experiments, precursor ions were allowed to accumulate in the trap for up to 200 ms and then mass-selected using ejection pulses. The isolation window was 4 m/z wide in most cases, but was narrowed to 1 m/z for a couple of situations that had interfering peaks nearby. Narrowing the isolation window had a negligible effect on the intensity of the ion of interest and effectively removed the interfering peak. Helium was the collision gas. A collision energy sweep of 30 %–200 % with amplitude between 0.8 and 1.0 V was used to maximize CID fragmentation. Care was taken to use the same CID conditions for each member of an acid amide peptide pair.

To describe the observed fragmentation of the peptides in the study, nomenclature introduced by Roepstorff and Fohlman [30] is used. The symbols a, b, c, x, y, and z refer to cleavage sites on the peptide backbone, the subscript denotes the residue at which backbone cleavage occurs, and the prime symbol is used to indicate loss or gain of hydrogen(s) relative to the cleavage site. A prime symbol to the left of the alphabetical symbol indicates loss of a hydrogen. A prime symbol to the right indicates the gain of a hydrogen. This nomenclature can be used to describe both positive and negative ion mode cleavages, but the number of associated hydrogens differs for b-, c-, y-, and z-type cleavages. For example, in positive ion mode, a y-type cleavage produces yn″+, whereas yn – is produced in negative ion mode. A diagram illustrating (in more detail) the common types of peptide cleavages has been included in the supplementary materials (Supplementary Figure S1).

2.4 Computations

The calculations were performed at the density functional theory (DFT) and correlated molecular orbital (MO) theory levels with the program Gaussian-03 [31]. The geometries were initially optimized at the DFT level with the B3LYP exchange-correlation functional [32, 33] and the DZVP2 basis set [34]. Vibrational frequencies were calculated to show that the structures were minima and to provide zero point and thermal corrections to the enthalpy and entropies so that free energies could be calculated for direct comparison to experiment. A range of structures were optimized to determine the most stable conformers. In our previous work on amino acid acidities [35, 36, 37] [and Bokatzian-Johnson, S. S.; Stover, M. L.; Dixon, D. A.; Cassady, C. J., unpublished results] we showed that the high level G3(MP2) correlated molecular orbital method [38] gave agreement for the acidities with the experimental values to within about ±1 kcal/mol. G3(MP2) has an additional advantage over DFT methods in terms of reliable predictions for these types of compounds because the correlated molecular orbital methods in G3(MP2) perform better in the prediction of hydrogen bond energies as well as steric non-bonded interactions than do most widely-used DFT exchange-correlation functionals.

3 Results and Discussion

3.1 CID of Peptide Acid/Amide Pairs

Protonated, [M + H]+, and deprotonated, [M – H]−, peptides were fragmented by low-energy CID. For protonated peptides, loss of NH3 was more prominent in the amide spectra than in the peptide acid spectra (data not shown), but few other differences were observed. This is consistent with the C-terminal acid and amide groups not being charge sites in the positive ion mode. These results are in agreement with those of Enjalbal and coworkers for CID on protonated ions from 76 acid/amide pairs [27].

For the deprotonated peptides, common negative ion mode CID backbone cleavages occur; that is, cn − and yn − [39, 40, 41, 42]. Penta-alanine also produces an − and ″bn −, which is typical of oligoalanine peptides in the negative ion mode [41]. Neutral loss peaks common to specific amino acid residues are abundant in the spectra; for example, elimination of H2O and CH2O from serine [42, 43, 44, 45, 46, 47, 48, 49], the guanidino group (HN = C = NH) from arginine [40, 49, 50], H2O from aspartic acid [51, 52, 53, 54], O = C6H4 = CH2 from tyrosine [54], and CH3SH, CH3SCH3, and CH2CH2SCH3 from methionine [55].

In the negative ion mode, a dominant backbone cleavage product ion forms for most of the peptides studied and is typically several times more abundant than other backbone product ions. The deprotonated peptide amides produce abundant cm-2 −, where m is the number of residues in the peptide sequence. Many of the peptide acids produce cm-3 − in abundance, which was also observed in prior work by Cassady and coworkers [40].

Data from the deprotonated peptide CID experiments have been compiled in Table 1. Three sets of example spectra are given in Figures 1, 2, and 3. The negative ion mode CID spectra for the remaining peptides are in the Supplemental Material. These example spectra illustrate the differences observed between the acid and amide peptides. Laminin amide (Figure 1a), which is a pentapeptide (m = 5), produces c3 − as the only backbone cleavage ion in abundance. This cm-2 − type ion is far more pronounced in the amide spectrum than in the acid spectrum. Laminin acid (Figure 1b), whose sequence is YIGSR, produces a very simple spectrum consisting mainly of neutral loss peaks and c2 − and c3 − in low abundance. Another example can be seen in the spectra of FPARVGI (m = 7, Figure 2). Dissociation of the FPARVGI amide (Figure 2a) produces several cn − and yn −, as well as many neutral loss peaks. A very intense c5 − (a cm-2 − type ion) and products from internal valine (V) residue elimination (e.g., [y4 – V]− and neutral loss products from this ion) are unique to the amide spectrum. The acid form of FPARVGI (Figure 2b) produces a spectrum similar to the amide, without the intense c5 − and valine loss. Another significant aspect of the FPARVGI acid spectrum is a more abundant c4 −, a cm-3 − type ion. Penta-alanine (AAAAA, m = 5) is also shown to demonstrate the differences between acids and amides without interaction from amino acid side chains. Penta-alanine amide (Figure 3a) has c3 –/y3 – as the base peak of the spectrum (masses are identical due to symmetry) and a very prominent water loss peak associated with this ion. The remaining product ions have an intensity of less than 20 % relative to the base peak. Penta-alanine acid (Figure 3b) has c2 – as the base peak of its CID spectrum, which is a cm-3 − ion. While other peptide acids show enhanced cm-3 −, this effect is most pronounced for penta-alanine. Other backbone fragment ions are observed for penta-alanine, but they are all less than 20 % relative to the base peak.

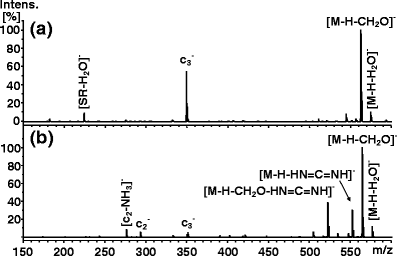

Figure 1

CID spectra of [M – H]– from laminin (YIGSR) (a) amide and (b) acid

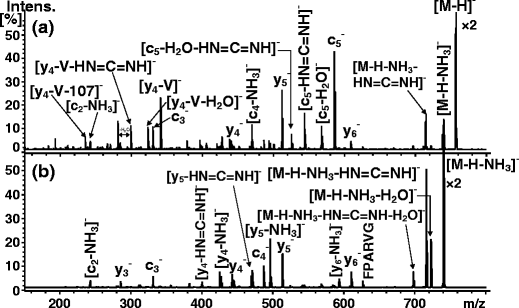

Figure 2

CID spectra of [M – H]– from FPARVGI (a) amide and (b) acid

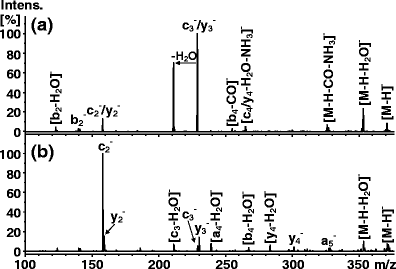

Figure 3

CID spectra of [M – H]– from penta-alanine (AAAAA) (a) amide and (b) acid

These selected spectra demonstrate the differences in dissociative behavior of deprotonated peptide acids and their amide analogs. Formation of cm-3 − in CID of the peptide acids has been observed previously [40, 56]. However, the production of cm-2 − in the CID spectra of the peptide amides has not been addressed. There are several factors that must be considered in this case. Since conversion of the C-terminus to an amide removes a highly acidic site on a peptide, the site of deprotonation may be a factor in cm-2 − formation. Another factor is the reaction enthalpy, which accounts for the difference in energies between the deprotonated peptide precursor ion and the products (neutral and c-ion).

3.2 Peptide Composition Effects on cm-2 − Formation

To elucidate the involvement of a C-terminal amide group in formation of cm-2 −, we chose to modify laminin and study these peptides by CID. Several laminin analogs were synthesized with altered C-termini to explore the involvement of the C-terminus. Other analogs were studied to test amino acid residue and backbone site interactions. Table 2 shows the C-terminal modifications as well as the absolute and relative (to the base peak, [M – H – CH2O]–) intensities of c3 −.
Table 2

Comparison of CID Fragmentation Observed for Laminin (YIGSR) and Related Derivatives

aRelative to the base peak, [M – H – CH2O]–

bBase peak is [M – H – MeOH – HN = C = NH]–

cBecause this peptide does not contain a serine residue, the c 3 − ion is the base peak

The first modification is replacement of one of the hydrogens on the C-terminal amide moiety with an ethyl group, producing YIGSR-NHEt. CID of deprotonated YIGSR-NHEt produces a spectrum (Supplementary Figure S2a) nearly identical to that of the original laminin amide (Figure 1b), with the exception of product ions related to the C-terminal ethyl group. The intensity of c3 − is reduced in half when one amide hydrogen is substituted by an ethyl group, from ~60 % of the base peak for laminin amide to ~30 % of base peak for the –NHEt analog.

The second modification was to completely remove both C-terminal amide hydrogens and replace them with methyl groups, producing YIGSR-NMe2. Although its intensity has dropped by about a third relative to unmodified laminin amide, c3 − is still present at ~40 % of the base peak (Supplementary Figure S2b). This suggests that a precursor ion structure involving deprotonation at the C-terminal amide group is responsible for some, but not all, cm-2 − formation.

A third C-terminal modification was to form the methyl ester of laminin acid. The CID spectrum of YIGSR-OMe (Supplementary Figure S3) is dominated by products formed from elimination of CH3OH from the methyl ester functional group. There have been previous reports of CH3OH loss in CID of peptide methyl esters [57, 58]. Laminin acid (Figure 1a) produces [c2 – NH3]− and c2 −; these ions do not form for the laminin methyl ester. However, the laminin methyl ester produces small amounts of y3′−, c3 −, and c3′−. The c3′− ion (i.e., [c3 + H]−) appears adjacent to c3 − and is not observed in other spectra, which suggests that this product ion stems from the presence of the C-terminal methyl ester group.

Laminin was also modified internally by replacing specific residues in the sequence to test their involvement in the formation of cm-2 −. The first of these modifications was replacement of arginine with a neutral alanine residue, to form YIGSA. This was done to rule out the possibility of a salt bridge interaction involving the highly basic arginine residue [50, 59]. Both acid and amide analogs were synthesized and fragmented by CID (Supplementary Figures S4a and S4b, respectively). The acid and amide analogs of YIGSA yield spectra nearly identical to the spectra for laminin (YIGSR) analogs except without the neutral loss peaks related to the side chain of arginine. These spectra indicate that arginine is not participating in the mechanism that leads to production of cm-2 − or cm-3 −.

Additional internally modified peptides, YIGA′R-NH2 and YIGG′R-NH2, were studied to test the involvement of the backbone alpha carbon and the amide nitrogen on formation of cm-2 −. The penultimate residue of these laminin amide analogs is either 2-methylalanine (A′), which has two methyl groups on the alpha carbon, or sarcosine (G′), which is glycine substituted with a methyl group on the amide nitrogen. Both of these laminin analogs (Supplementary Figures S5 and S6, respectively) produce abundant c3 − as the base peak in the CID spectra. These results indicate that at least one mechanism of cm-2 − formation does not require hydrogen substitution on the methylene carbon or amide nitrogen of the penultimate residue. Thus, cm-2 − can form even when it is not possible to deprotonate the backbone amide site at the penultimate residue.

3.3 Peptide Deprotonation Site

In general, gas-phase deprotonation of a peptide occurs at an acidic site such as the carboxylic acid groups of the glutamic acid (E) and aspartic acid (D) side chains and the C-terminus [46]. In the peptide amides, the carboxylic acid group at the C-terminus is replaced with a less acidic terminal amide group. A comparison of the gas-phase acidities (GAs) of simple compounds like acetic acid and acetamide reveals a distinct difference in the energy required for the deprotonation of carboxylic acid versus amide functional groups. Acetic acid has a GA of 341.1 ± 2.0 kcal/mol, whereas acetamide has a GA of 355.0 ± 2.0 kcal/mol [60], an energy difference of 13.9 kcal/mol with acetic acid being more acidic (i.e. lower GA). Yet, the peptide amides studied here produce abundant [M – H]– by ESI. These peptide amides deprotonate even though (with the exception of cholecystokinin) they are composed of amino acid residues without acidic side chains. This is consistent with past work by Gao and Cassady [61], where peptides with no carboxylic acid groups deprotonate readily by matrix-assisted laser desorption ionization (MALDI) mass spectrometry. In addition, Bowie and coworkers [42, 46, 62] have reported instances of deprotonation occurring at the amide nitrogen for peptide and organic amides. Their experimental results are supported by lower level theoretical calculations (HF/6-31 G*//AM1) using model systems [62]. Thus, amide nitrogens and alpha carbons of the peptide backbone must be considered as alternative deprotonation sites.

We are currently undertaking a comprehensive experimental and high level G3(MP2) computational study of the GAs for all possible deprotonation sites of numerous small peptides. This will be the subject of a future publication. We have found that the amide nitrogens are the most energetically favorable peptide backbone deprotonation sites due to their ability to form an –(O–)–C = N– resonance structure. Therefore, these sites need to be considered in the present study.

Table 3 includes the calculated G3(MP2) heats of formation (ΔHf) for several deprotonated peptide ions produced from acid and amide analogs of tri- to pentaglycine and the acid analog of penta-alanine. The lowest energy structure for each deprotonated peptide has been calculated by sampling a variety of conformers. For the peptide amides, the ΔHf values indicate that there is only a few kcal/mol difference between deprotonation at the C-terminal amide nitrogen and deprotonation at a backbone amide nitrogen. For example, consider pentaglycine amide: ΔHf of the anion is –261.8 kcal/mol when deprotonated at the carboxylic acid group of the C-terminus, –265.7 kca/mol when deprotonated at the amide nitrogen of the central residue, and –263.7 kcal/mol when deprotonated at the amide nitrogen of the penultimate residue. Given this relatively small difference in energies, the ESI process in the mass spectrometer should be capable of deprotonation at all three sites. The fact that multiple precursor ion structures are potentially involved explains why removal of both C-terminal amide hydrogens in the YIGSR-NMe2 experiments lessens, but does not eliminate, cm-2 – formation by CID and why removing both backbone amide hydrogens in the YIGA′R-NH2 experiments also does not eliminate cm-2 – formation.
Table 3

G3(MP2) Calculated Heats of Formation



ΔHf (kcal/mol)



Deprotonation site



C-terminus

Backbone for 6-membered ring formationa

Backbone for 9-membered ring formationb

Precursor Ions

[GGG-NH2 – H]–

–156.5

–164.6

NAc

[GGG-OH – H]–

–220.4

–210.4

NA

[GGG-NHEt – H]–

–166.9

–172.7

NA

[GGGG-NH2 – H]–

–209.5

–213.9

–216.4

[GGGG-OH – H]–

–271.5

–258.7

–254.2

[GGGG-NHEt – H]–

–214.2

–221.6

–224.4

[GGGGG-NH2 – H]–

–261.8

–263.7

–265.7

[GGGGG-OH – H]–

–325.2

–298.7

–312.8

[GGGGG-NHEt – H]–

–264.5

–271.5

–271.0

[AAAAA-OH – H]–

–369.4

–341.4

–353.2

Product Ionsd

cm-2 – from GGG peptides

–55.4



cm-2 – from GGGG peptides

–108.6



cm-3 – from GGGG peptides

–55.4



cm-2 – from GGGGG peptides

–156.5



cm-3 – from GGGGG peptides

–108.6



cm-2 – from AAAAA peptide

–182.4



cm-3 – from AAAAA peptide

–125.7



Neutral productse

diketopiperazine (DKP)

–73.7



1-ethylpiperazine-2,5-dione (DKP-Et)f

–83.6



1,4,7-triazonane-2,5,8-trione (TAT)

–105.1



1-ethyl-1,4,7-triazonane-2,5,8-trione (TAT-Et)g

–114.6



Diketomorpholine (DKM)

–111.0



1,4,7-Oxadiazonane-2,5,8-trione (ODAT)

–147.1



1,4-Dimethyl-2,5-diketomorpholine (DKM(Me2))h

–130.5



3,5,9-Trimethyl-1,4,7-oxadiazone-2,5,8-trione (ODAT(Me3))i

–175.1



aDeprotonation is at the backbone amide nitrogen adjacent to the N–C bond cleavage site for formation of cm-2 − and the 6-membered ring DKP and DKM species

bDeprotonation is at the backbone amide nitrogen adjacent to the N–C bond cleavage site for formation of cm-3 − and the 9-membered ring TAT and ODAT species

cNA = not applicable. For triglycine (GGG), loss of a neutral incorporating a 9-membered ring containing all three residues would not leave sufficient atoms to form a c-ion

dChanging the C-terminal end group (–OH, –NH2, –NHEt) does not change ΔHf of the product ions. All of the calculations involve c-ions with linear structures where the negative charge is on the amide nitrogen at the C-terminal side

eNeutral structures are shown in Schemes 1 and 2. The neutral products do not possess a deprotonation site

fStructure is equivalent to DKP with an ethyl group on a ring nitrogen

gStructure is equivalent to TAT with an ethyl group on a ring nitrogen

hStructure is equivalent to DKM with a methyl group on each ring carbon

iStructure is equivalent to ODAT with a methyl group on each ring carbon

For the peptide acids, the ΔHf values of Table 3 indicate that C-terminal deprotonation is more favorable than backbone deprotonation by 10–30 kcal/mol. For example, with pentaglycine acid, ΔHf for the peptide ion deprotonated at the C-terminal carboxylic acid group is –325.2 kcal/mol, which is more favorable than ΔHf’s for the ions deprotonated at the central amide nitrogen (–312.8 kcal/mol) and at the penultimate amide nitrogen (–298.7 kcal/mol). ESI is a very soft ionization technique that produces ions will little excess energy and, therefore, preferentially generates ions with the lowest energy structure [63, 64, 65, 66, 67]. As a result, the majority of the precursor ions produced by ESI on the peptide acids should be deprotonated at the C-terminal carboxylic acid group. However, the presence of some peptide acid anions with backbone amide deprotonation cannot be ruled out. In particular, after ion activation by CID, the location of negative charge on the ion may move in an analogous manner to the “mobile proton model” [68] that occurs during CID on protonated peptides in the positive ion mode.

3.4 Proposed Dissociation Mechanisms

We propose a substituted 2,5-piperazinedione (or diketopiperazine, DKP) as the stable heterocyclic leaving group for the formation of cm-2 – by deprotonated peptide amides. The general DKP structure is shown in Structure 1 of Scheme 1 for X = NH. DKP analogs frequently form as a by-product in solid-phase peptide synthesis [69, 70, 71]. These 6-membered ring dipeptides are often biologically active and commonly present in nature as secondary metabolites [72, 73]. DKP analogs have been the subject of much debate in the formation of b2 + from protonated peptides [74, 75, 76, 77], but there have been few reports of the role of this structure in deprotonated peptide spectra. Harrison and co-workers [78] proposed involvement of a DKP neutral in the formation of ″b2 – from a3 – in low-energy CID of tripeptides, but their theoretical calculations suggested this was not a key pathway [79]. Harrison and Young [80] mentioned the possible formation of DKPs in their study involving formation of oxazolones in CID of deprotonated N-benzoylpeptides. Bowie and coworkers [57] proposed the formation of a deprotonated DKP from diglycine methyl ester in high-energy CID. There have also been reports of CID fragmentation of deprotonated DKPs, as well as theoretical calculations of fragmentation pathways [81, 82]. A diketomorpholine (DKM) is the analogous leaving group for a deprotonated peptide acid. This compound is identical to DKP, except that DKM has an oxygen in place of one ring nitrogen (Structure 1 with X = O). Diketomorpholines are frequently used in synthetic applications and are occasionally biologically active [83, 84].

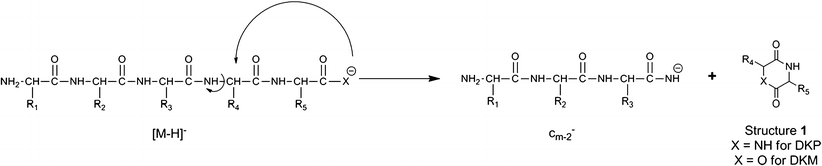

Scheme 1



Scheme 1 illustrates our proposed mechanism to form cm-2 − from either the acid or amide form of a pentapeptide with involvement of the C-terminus. The process proceeds by a nucleophilic attack of the deprotonated C-terminus on the alpha carbon of the penultimate residue. When the C-terminus is a carboxylic acid, the neutral leaving group is a DKM. In instances where the C-terminus is an amide, the leaving group is a DKP. A factor of importance to the proposed mechanism is the nucleophilicity of the deprotonated functional group on the C-terminus of the peptide. As neutrals, both groups are weakly nucleophilic, with the carboxylic acid being a somewhat better nucleophile [85]. However, deprotonation renders the amide, NH−, to be a much stronger nucleophile than the deprotonated acid, COO−.

Reaction enthalpies (ΔHrxn) give a more complete energetic explanation for the processes occurring here, especially as they are endothermic processes. G3(MP2) calculations have been performed for the thermodynamics of a variety of dissociation processes of deprotonated peptides. The calculated structures and the respective processes for GGGG are shown in Figure 4, the G3(MP2) heats of formation are given in Table 3, and the reaction enthalpies are given in Table 4. For each peptide, deprotonation has been considered at the C-terminus and also at the backbone amide nitrogen adjacent to the cleavage site. Heats of formation have been calculated for the backbone fragment ions, cm-2 − and cm-3 −, as these are two prominent features of the peptide amide and acid spectra, respectively. Heats of formation have also been calculated for the neutral leaving groups resulting from the CID processes. When cm-2 − forms, the proposed neutral leaving groups are the 6-membered ring species DKP (Figure 4a and Scheme 1) for the peptide amide and DKM for the peptide acid (Figure 4b and Scheme 1). As shown in Scheme 2, formation of cm-3 − is proposed to involve elimination of a 9-membered ring neutral, which is 1,4,7-triazonane-2,5,8-trione (TAT, Structure 2 with X = NH) for peptide amides, and 1,4,7-oxadiazonane-2,5,8-trione (ODAT, Structure 2 with X = O) for peptide acids. For comparison, G3(MP2) calculations for the C-terminal ethyl amide (–NHEt) analogs of the oligoglycines are also included in Tables 3 and 4.

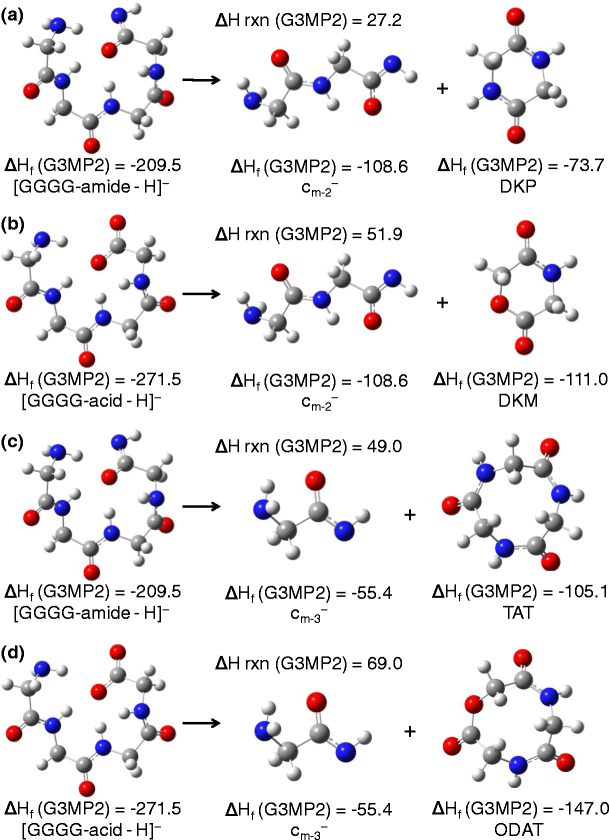

Figure 4

G3(MP2) calculations of enthalpies of formation (ΔHf) and of reaction enthalpies (ΔHrxn) in kcal/mol for (a) GGGG-CONH− forming c m-2 − and DKP, (b) GGGG-COO− forming c m-2 − and DKM, (c) GGGG-CONH− forming c m-3 − , and TAT, (d) GGGG-COO− forming c m-3 − and ODAT

Table 4

G3(MP2) Calculated Reaction Enthalpies

Reaction

ΔHrxn (kcal/mol)

GGG m = 3

GGGG m = 4

GGGGG m = 5

AAAAA m = 5

C-terminus deprotonation of precursor ion

[Peptide amide – H]– → cm-2 – + DKP

27.4

27.2

31.6

–d

[Peptide ethyl amide – H]– → cm-2 – + DKP-Et

27.9

22.0

24.4

–

[Peptide acid – H]– → cm-2 – + DKM

54.0

51.9

57.7

56.5e

[Peptide amide – H]– → cm-3 – + TAT

NAa

49.0

48.1

–

[Peptide ethyl amide – H]– → cm-3 – + TAT-Et

NA

44.2

41.3

–

[Peptide acid – H]– → cm-3 – + ODAT

NA

69.0

69.5

68.6f

Backbone deprotonation of precursor ion

[Peptide amide – H]– → cm-2 – + DKPb

35.5

31.6

33.5

–

[Peptide ethyl amide – H]– → cm-2 – + DKP-Etb

33.7

29.4

31.4

–

[Peptide acid – H]– → cm-2 – + DKMb

44.0

39.1

31.2

28.5e

[Peptide amide – H]– → cm-3 – + TATc

NA

55.9

52.0

–

[Peptide ethyl amide – H]– → cm-3 – + TAT-Etc

NA

54.4

47.8

–

[Peptide acid – H]– → cm-3 – + ODATc

NA

51.7

57.1

52.4f

aNA = not applicable. Due to the small size of triglycine (GGG), c-ions cannot form with a 9-membered ring neutral

bBackbone deprotonation for the precursor ion is at the amide nitrogen adjacent to the N–C bond cleavage site for formation of cm-2 − and the 6-membered ring neutrals

cBackbone deprotonation for the precursor ion is at the amide nitrogen adjacent to the N–C bond cleavage site for formation of cm-3 − and the 6-membered ring neutrals

dNot calculated for this species

eThe DKM species formed in this case is DKM(Me)2

fThe ODAT species formed in this case is ODAT(Me)3

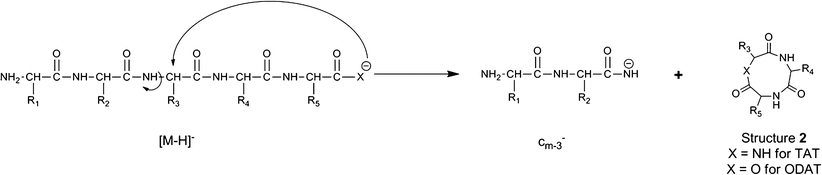

Scheme 2



The reaction enthalpies shown in Table 4 are in most cases substantially endothermic, which explains the need for collisional activation and dissociation to form the fragmentation products. Several noteworthy trends can be obtained from these values. Many of the examples discussed below will involve the pentaglycine analogs because all of the peptides studied experimentally by CID had five or more residues.

For the mechanism shown in Scheme 1 with deprotonation at the C-terminus, formation of DKP from a peptide amide is considerably less endothermic than production of DKM from a peptide acid, regardless of peptide length. For example, with C-terminal deprotonation and dissociation to yield cm-2 − and a 6-membered ring neutral, pentaglycine amide requires greater than 31.6 kcal/mol, whereas pentaglycine acid requires greater than 57.7 kcal/mol. This is consistent with the CID results where cm-2 − forms in much greater abundance for peptide amides than for peptide acids. When the peptide amides are deprotonated at the backbone nitrogen adjacent to the site of N–Cα bond cleavage, the process is 2–8 kcal/mol more endothermic than for C-terminal deprotonation. Also, as the size of the peptide increases, the energy difference between processes involving C-terminus deprotonation and backbone deprotonation decreases. The process to form cm-2 − and DKP with C-terminus deprotonation of the dissociating ion is less endothermic than the analogous process with backbone deprotonation by 8.1 kcal/mol for triglycine amide, 4.4 kcal/mol for tetraglycine amide, and 1.9 kcal/mol for pentaglycine amide. This suggests that for larger peptide amides both C-terminal and backbone deprotonation sites may contribute to cm-2 − formation.

For the mechanism shown in Scheme 2, formation of a 9-membered ring neutral from a peptide amide is ~20 kcal/mol less endothermic than from a peptide acid. This is true for both tetraglycine and pentaglycine. (Triglycine analogs, m = 3, cannot form cm-3 − because of their short sequences.) For example, pentaglycine amide requires greater than 48.1 kcal/mol to form cm-3 − and TAT when the precursor ion has C-terminal deprotonation and greater than 52.0 kcal/mol with backbone deprotonation. The analogous process to produce ODAT from pentaglycine acid requires greater than 69.5 kcal/mol with C-terminal deprotonation and greater than 57.1 kcal/mol with backbone amide deprotonation.

The reaction enthalpies indicate that processes leading to the formation of 6-membered ring neutrals are always lower in energy (when considering ΔHrxn) than those that produce 9-membered rings, regardless of peptide length or deprotonation site of the precursor ion. With pentaglycine amide, formation of cm-2 − and DKP is less endothermic than production of cm-3 − and TAT by 16.5 kcal/mol for C-terminal deprotonation and 18.5 kcal/mol for backbone amide deprotonation. For pentaglycine acid deprotonated at the C-terminus, formation of cm-2 − and DKM is less endothermic than production of cm-3 − and ODAT by 11.8 kcal/mol. The predicted reaction enthalpy trend is interesting because it is the opposite of the trend in our CID experiments where peptide acids generally produce more cm-3 − than cm-2 − (although this effect is not as pronounced as the enhancement of cm-2 − for peptide amides). The difference between the predicted thermodynamic trend and experiment may relate to the ability of ESI to generate the deprotonated peptide precursor ion and to the contribution of backbone deprotonation in these fragmentation pathways. As the ΔHf values in Table 3 indicate for pentaglycine acid anions, [GGGGG-OH – H]−, deprotonation at the amide nitrogen of the central residue (which is a precursor for cm-3 −) requires 12.4 kcal/mol more energy than deprotonation at the carboxylic acid group of the C-terminus; however, deprotonation at the penultimate residue (which is a precursor for cm-2 −) requires a significantly larger amount of energy, 26.5 kcal/mol more than C-terminal deprotonation. Therefore, for peptide acids with five residues or more, the ESI process may preferentially generate the deprotonated backbone precursor for the cm-3 − pathway, resulting in a more intense cm-3 − in the CID spectra. We note that the calculated energy differences for dissociation processes starting from the same anion are much larger than the estimated ±1 to ±2 kcal/mol errors for such calculated energy differences.

The above discussion assumes that the reactions are under thermodynamic control. It is of course possible that the reactions that are under kinetic control. For the highly endoergic dissociations, this seems to be unlikely as the location of the barrier will be displaced towards the products and the barrier will be small [86]. We did search for transition states for [GGGG-OH – H]– to form the 6-member and 9-member rings. Initially, we used a semi-empirical molecular orbital method with the PM6 parameterization scheme [87] to search for the transition states with the AMPAC version 9 program [88]. This gave PM6 barrier heights of 76.5 and 78.9 kcal/mol for the dissociation to the 6-member and 9-member rings respectively. Using these geometries, single point calculations at the DFT/B3LP/DZVP2 level gave respective barriers of 85 and 100 kcal/mol for the 6- and for the 9-member rings. These energy differences are in the order of the dissociation energies and the differences in the barriers to the dissociated products is almost the same for both rings (31–33 kcal/mol). Numerous subsequent optimizations of these transition states at the DFT level always led back to the low energy chain structure so it is likely that there is no or only a small barrier to dissociation at the higher computational level. Thus, we have no evidence for why there could be a kinetic preference for the 9-member ring unless there are dynamic effects which would not be found by the calculation of specific points on the potential energy surface.

The G3(MP2) calculations show that production of cm-2 − and DKP from C-terminally deprotonated peptide amide ions requires only 27.4 kcal/mol, 27.2 kcal/mol, and 31.6 kcal/mol, respectively, for the amides of tri-, tetra-, and pentaglycine. Calculations were also performed for oligoglycine amides where one hydrogen on the amide C-terminus was replaced with an ethyl group. When comparing the processes that led to DKP and DKP-Et, the reactions involving triglycine are very close in energy (27.4 kcal/mol versus 27.9 kcal/mol). However, for tetra- and pentaglycine analogs, the processes that led to DKP-Et are less endothermic by 5–7 kcal/mol than that of DKP. These same trends can be seen in the reactions that produce TAT-Et and TAT; TAT-Et production is less endothermic by 5–7 kcal/mol. Steric hindrance from the relatively bulky ethyl group apparently lowers the reaction energy for the tetraglycine and pentaglycine ethyl amides; however, in triglycine ethyl amide the ethyl group causes the reaction to be more endothermic and comparable to that for the triglycine amide. Steric hindrance may also be a factor in the CID experiments where replacement of the –NH2 group on the laminin with a –NHEt group decreased the intensity of c3 − by approximately half.

We used the same G3(MP2) computational approach to study the thermodynamics of the penta-alanine anion decomposition. For C-terminus deprotonation, the effect of the five methyl groups (from the alanine side chains) is small, on the order of 1 kcal/mol decreasing both reaction energies (ΔHrxn = 68.6 kcal/mol for [AAAAA-Peptide Acid – H]– → cm-3 – + ODAT(Me3) and ΔHrxn = 56.5 kcal/mol for [AAAAA-Peptide Acid – H]– → cm-2 – + DKM(Me2)) relative to the same processes for pentaglycine. Backbone deprotonation at the third nitrogen from the C-terminus of penta-alanine is 11.8 kcal/mol more probable than deprotonation of the second nitrogen from the C-terminus. Deprotonation from the third nitrogen leads to the formation of the nine-member ring ODAT(Me3) (see Supplemental Figure S14 for a molecular drawing) and from the second nitrogen to the 6-member ring DKM(Me2). The effect of the methyl groups are to lower the endothermicity of the 9-member ring formation by 4.7 kcal/mol (ΔHrxn = 52.4 kcal/mol for AAAAA-Peptide Acid – H]– → cm-3 – + ODAT(Me3)) and that of the 6-member ring by 2.7 kcal/mol (ΔHrxn = 28.5 kcal/mol for AAAAA-Peptide Acid – H]– → cm-2 – + DKM(Me2)) as compared to the unsubstituted reactions. These effects are larger than for the C-terminus deprotonation as the methyl groups have more of an impact on the anion site in the backbone deprotonated penta-alanine.

3.5 Internal Valine Residue Loss

An interesting aspect of the CID spectrum for FPARVGI amide (Figure 2a) is the incidence of [y4 – V]– and related products such as [y4 – V – H2O]– and [y4 – V – HN = C = NH]–. This is not observed in the CID of FPARVGI acid (Figure 2b). Loss of an internal valine residue was originally reported by Bowie and coworkers when studying CID of deprotonated citropin 1.1 and its synthetic analogs; these peptides all have C-terminal amide groups [89, 90]. They proposed that the helical structure of the peptide allows a conformational rearrangement to take place and found that the ESI solvent can affect the process. Elimination of valine has also been observed by Jai-nhuknan [91] in a study of protonated transform growth factor (TGF) α [34, 35, 36, 37, 38, 39, 40, 41, 42, 43] using sustained off-resonance irradiation (SORI) CID in a Fourier transform ion cyclotron resonance (FT-ICR) mass spectrometer. The valine loss appears as [M + 2 H – V]2+ in the SORI-CID spectrum of [M + 3 H]3+ from TGF α (34−43), which has a C-terminal carboxylic acid group and a disulfide bond [91]. Jai-nhuknan [91] also studied the reduced form of TGF α [34, 35, 36, 37, 38, 39, 40, 41, 42, 43], where the disulfide bond is cleaved; this ion did not eliminate the valine residue. This suggests that the intact disulfide bond in TGF α [34, 35, 36, 37, 38, 39, 40, 41, 42, 43] facilitates a peptide ion conformation that contributes to a unique loss of an internal valine residue [91].

3.6 Peptides with No Difference in CID Spectra Between Acid and Amide Analogs

Although most of the peptide amides in this study produced abundant cm-2 –, there were a few that did not follow this trend. The peptide amides of SWAMVR, MLGFRSVGYA, and cholecystokinin produce only a small amount of cm-2 –. (These spectra can be found in the Supplemental Materials.) In these cases, backbone fragmentation is overshadowed by neutral loss products from specific amino acid side chains. Each of the peptides contains at least one methionine residue, which is known for its abundant side chain loss in negative ion mode [55]. Cholecystokinin also has two aspartic acid residues in its sequence; acidic amino acid residues yield significant H2O loss [51, 54]. In addition, serine is responsible for the production of abundant CH2O loss in the spectra of deprotonated SWAMVR and MLGFRSVGYA [43, 53, 58, 90].

4 Conclusions

The effects of differing C-termini were studied using positive and negative ion mode CID on a group of peptides. Key differences were observed in the fragmentation of deprotonated Substance P, laminin, penta-alanine, WFAPPRVGYL, LMYVHWVR, LMYVHWVK, and FPARVGI peptide acids and amides. G3(MP2) calculations show that formation of cm-2 − and a diketopiperazine neutral leaving group from a deprotonated peptide amide requires significantly less energy than the analogous process of a deprotonated peptide acid leading to the formation of a diketomorpholine. The presence of a prominent cm-2 − in a negative ion mode CID spectrum is a strong indicator that a peptide has an amide group at the C-terminus. However, in some cases, side chain eliminations can suppress this distinctive fragmentation.

Notes

Acknowledgments

This work is supported by the National Science Foundation (NSF) under CHE-0848470, which is funded by the American Recovery and Reinvestment Act (ARRA) and is jointly sponsored by NSF’s Analytical and Surface and Experimental Physical Chemistry sections. Financial support for the purchase of the Bruker HCTultra used in this research was provided by a NSF Chemistry Research Instrumentation Facility grant, CHE-0639003. S.S.B.-J. thanks the University of Alabama’s National Alumni Association for a License Tag Fellowship. M.L.S. thanks the U.S. Department of Education for a Graduate Assistance in Areas of National Need Fellowship (DoEd-GAANN grant P200A100190). D.A.D. thanks the Robert Ramsay Fund from the University of Alabama for partial support. The authors also thank Christine Enjalbal from the University of Montpellier (France) for providing many of the peptides used in this study.

Supplementary material

13361_2012_431_MOESM1_ESM.docx (4.3 mb)
ESM 1 CID spectra that were not shown in the main manuscript for the deprotonated peptides in this study may be found in the Supplemental Materials. Additional information obtained from the theoretical calculations including Cartesian coordinates of the B3LYP/DZVP2 optimized geometries in Å and H298 and G298 values for all neutral amino acids and anions at the G3MP2 level can also be found in the Supplemental Materials. (DOCX 4.34 MB)

References

  1. 1.
    Ferrier, B.M., du Vigneaud, V.: 9-deamidooxytocin, an analog of the hormone containing a glycine residue in place of the glycinamide residue. J. Med. Chem. 9, 55–57 (1966)CrossRefGoogle Scholar
  2. 2.
    Rittel, W., Maier, R., Brugger, M., Kamber, B., Riniker, B., Sieber, P.: Structure-activity relationship of calcitonin. III. biological activity of synthetic analogues with shortened or terminally modified peptide chains. Experientia 32, 246–248 (1976)CrossRefGoogle Scholar
  3. 3.
    Morley, J.S.: Structure-function relationships in gastrin-like peptides. Proc. R. Soc. London B 170, 97–111 (1968)CrossRefGoogle Scholar
  4. 4.
    Glass, J.D., Schwartz, I.L., Walter, R.: Enzymatic inactivation of peptide hormones possessing a C-terminal amide group. Proc. Natl. Acad. Sci. U.S.A. 63, 1426–1430 (1969)CrossRefGoogle Scholar
  5. 5.
    Bradbury, A.F., Smyth, D.G.: Biosynthesis of the C-terminal amide in peptide hormones. Biosci. Rep. 7, 907–916 (1987)CrossRefGoogle Scholar
  6. 6.
    Bradbury, A.F., Smyth, D.G.: Peptide amidation. Trends Biochem. Sci. 16, 112–115 (1991)CrossRefGoogle Scholar
  7. 7.
    Merkler, D.J.: C-terminal amidated peptides: Production by the in vitro enzymatic amidation of glycine-extended peptides and the importance of the amide to bioactivity. Enzyme Microb. Technol. 16, 450–456 (1994)CrossRefGoogle Scholar
  8. 8.
    Von Euler, U.S., Gaddum, J.H.: An unidentified depressor substance in certain tissue extracts. J. Physiol. 72, 74–87 (1931)Google Scholar
  9. 9.
    Dennison, S.R., Harris, F., Bhatt, T., Singh, J., Phoenix, D.A.: The effect of C-terminal amidation on the efficacy and selectivity of antimicrobial and anticancer peptides. Mol. Cell. Biochem. 332, 43–50 (2009)CrossRefGoogle Scholar
  10. 10.
    du Vigneaud, V., Ressler, C., Trippett, S.: The sequence of amino acids in oxytocin, with a proposal for the structure of oxytocin. J. Biol. Chem. 205, 949–957 (1953)Google Scholar
  11. 11.
    Neher, R., Riniker, B., Rittel, W.: Menschliches calcitonin. III. Struktur von calcitonin M und D. Helv. Chim. Acta 51, 1900–1905 (1968)CrossRefGoogle Scholar
  12. 12.
    Guillemin, R., Brazeau, P., Bohlen, P., Esch, F., Ling, N., Wehrenberg, W.: Growth hormone-releasing factor from a human pancreatic tumor that caused acromegaly. Science 218, 585–587 (1982)CrossRefGoogle Scholar
  13. 13.
    Ling, N., Esch, F., Bohlen, P., Brazeau, P., Wehrenberg, W.B., Guillemin, R.: Isolation, primary structure, and synthesis of human hypothalamic somatocrinin: growth hormone-releasing factor. Proc. Natl. Acad. Sci. U.S.A. 81, 4302–4306 (1984)CrossRefGoogle Scholar
  14. 14.
    Kitamura, K., Kangawa, K., Kawamoto, M., Ichiki, Y., Nakamura, S., Matsuo, H., Eto, T.: Adrenomedullin: A novel hypotensive peptide isolated from human pheochromocytoma. Biochem. Biophys. Res. Commun. 192, 553–560 (1993)CrossRefGoogle Scholar
  15. 15.
    Cooper, G.J.S.: Amylin compared with calcitonin gene-related peptide: Structure, biology, and relevance to metabolic disease. Endocrinol. 15, 154–160 (1994)Google Scholar
  16. 16.
    Schell, D.A., Vari, R.C., Samson, W.K.: Adrenomedullin: A newly discovered hormone controlling fluid and electrolyte homeostasis. Trends Endocrin. Met. 7, 7–13 (1996)CrossRefGoogle Scholar
  17. 17.
    Page, N.M., Bell, N.J., Gardiner, S.M., Manyonda, I.T., Brayley, K.J., Strange, P.G., Lowry, P.J.: Characterization of the endokinins: Human tachykinins with cardiovascular activity. Proc. Natl. Acad. Sci. U.S.A. 100, 6245–6250 (2003)CrossRefGoogle Scholar
  18. 18.
    Yamazaki, Y., Mori, Y., Oda, A., Okuno, Y., Kiso, Y., Hayashi, Y.: Acid catalyzed monodehydro-2,5-diketopiperazine formation from N-α-ketoacyl amino acid amides. Tetrahedron. 65, 3688–3694 (2009)CrossRefGoogle Scholar
  19. 19.
    Battersby, J.E., Hancock, W.S., Canova-Davis, E., Oeswein, J., O'Connor, B.: Diketopiperazine formation and N-terminal degradation in recombinant human growth hormone. Int. J. Pept. Protein Res. 44, 215–222 (1994)CrossRefGoogle Scholar
  20. 20.
    Goolcharran, C., Borchardt, R.T.: Kinetics of diketopiperazine formation using model peptides. J. Pharm. Sci. 87, 283–288 (1998)CrossRefGoogle Scholar
  21. 21.
    Wang, C., Yao, J., Yu, Y., Shao, X., Cui, Y., Liu, H., Lai, L., Wang, R.: Structure–activity study of endomorphin-2 analogs with C-terminal modifications by NMR spectroscopy and molecular modeling. Bioorg. Med. Chem. 16, 6415–6422 (2008)CrossRefGoogle Scholar
  22. 22.
    Krstenansky, J.L., Payne, M.H., Owen, T.J., Yates, M.T., Mao, S.J.: C-terminal peptide alcohol, acid and amide analogs of desulfato hirudin 54-65 as antithrombin agents. Thromb. Res. 54, 319–325 (1989)CrossRefGoogle Scholar
  23. 23.
    Chambers, R.W., Carpenter, F.H.: Ammonolysis of peptides: A method of determining C-terminal amino acids. J. Am. Chem. Soc. 77, 1527–1531 (1955)CrossRefGoogle Scholar
  24. 24.
    Akabori, S., Ohno, K., Narita, K.: On the hydrazinolysis of proteins and peptides: A method for the characterization of carboxy-terminal amino acids in proteins. Bull. Chem. Soc. Jpn. 25, 214–218 (1952)CrossRefGoogle Scholar
  25. 25.
    Kim, J., Kim, K.: Identification of the C-terminal amino acid amides by carboxypeptidase Y digestion and fast atom bombardment mass spectrometry. Biochem. Mol. Biol. Int. 34, 897–907 (1994)Google Scholar
  26. 26.
    Brinkworth, C.S., Bowie, J.H.: Negative ion electrospray mass spectra of the maculatin peptides from the tree frogs litoria genimaculata and litoria eucnemis. Rapid Commun. Mass Spectrom. 17, 2215–2225 (2003)CrossRefGoogle Scholar
  27. 27.
    Mouls, L., Subra, G., Aubagnac, J., Martinez, J., Enjalbal, C.: Tandem mass spectrometry of amidated peptides. J. Mass. Spectrom. 41, 1470–1483 (2006)CrossRefGoogle Scholar
  28. 28.
    Chan, W.C., White, P.D.: Fmoc Solid Phase Peptide Synthesis: A Practical Approach, p. 345. Oxford University Press, New York (2000)Google Scholar
  29. 29.
    Greene, T.W., Wuts, P.G.M. (eds.): Protective Groups in Organic Synthesis. John Wiley & Sons, Inc., New York (1991)Google Scholar
  30. 30.
    Roepstorff, P., Fohlman, J.: Proposal for a common nomenclature for sequence ions in mass spectra of peptides. Biomed. Mass Spectrom. 11, 601 (1984)CrossRefGoogle Scholar
  31. 31.
    Frisch, J., Trucks, G.W., Schlegel, H.B., Scuseria, G.E., Robb, M.A., Cheeseman, J.R., Scalmani, G., Barone, V., Mennucci, B., Petersson, G.A., Nakatsuji, H., Caricato, M., Li, X., Hratchian, H.P., Izmaylov, A.F., Bloino, J., Zheng, G., Sonnenberg, J.L., Hada, M., Ehara, M., Toyota, K., Fukuda, R., Hasegawa, J., Ishida, M., Nakajima, T., Honda, Y., Kitao, O., Nakai, H., Vreven, T., Montgomery Jr., J.A., Peralta, J.E., Ogliaro, F., Bearpark, M., Heyd, J.J., Brothers, E., Kudin, K.N., Staroverov, V.N., Keith, T., Kobayshi, R., Normand, J., Raghavachari, K., Rendell, A., Burant, J.C., Iyengar, S.S., Tomasi, J., Cossi, M., Rega, N., Millam, J.M., Klene, M., Knox, J.E., Cross, J.B., Bakken, V., Adamo, C., Jaramillo, J., Gomperts, R., Stratmann, R.E., Yazyev, O., Austin, A.J., Cammi, R., Pomelli, C., Ochterski, J.W., Martin, R.L., Morokuna, K., Zakrzewski, V.G., Voth, G.A., Salvador, P., Dannenberg, J.J., Dapprich, S., Daniels, A.D., Farkas, O., Foresman, J.B., Ortiz, J.V., Cioslowshi, J., Fox, D.J.: Gaussian 09, Revision B.0.M. Gaussian, Inc, Wallingford, CT (2010)Google Scholar
  32. 32.
    Becke, A.D.: Density-functional thermochemistry. III. The role of exact exchange. J. Chem. Phys. 98, 5648–5652 (1993)CrossRefGoogle Scholar
  33. 33.
    Lee, C., Yang, W., Parr, R.G.: Development of the colle-salvetti correllation energy formula into a functional of the electron density. Phys. Rev. B. 37, 785–789 (1988)CrossRefGoogle Scholar
  34. 34.
    Godbout, N., Salahub, D. R., Andzelm, J., Wimmer, E.: Optimization of gaussian-type basis sets for local spin density functional calculations. Part I. Boron through Neon, Optimization Technique and Validation. Can. J. Chem. 92, 70, 560–571 (1991)Google Scholar
  35. 35.
    Gutowski, K.E., Dixon, D.A.: Ab initio prediction of the gas- and solution-phase acidities of strong brønsted acids: The calculation of pKa values less than –10. J. Phys. Chem. A 110, 12044–12054 (2006)CrossRefGoogle Scholar
  36. 36.
    Li, Z., Matus, M.H., Velazquez, H.A., Dixon, D.A., Cassady, C.J.: Gas-phase acidities of aspartic acid, glutamic acid, and their amino acid amides. Int. J. Mass Spectrom. 265, 213–223 (2007)CrossRefGoogle Scholar
  37. 37.
    Stover, M.L., Jackson, V., Matus, M., Adams, M., Cassady, C.J., Dixon, D.A.: Fundamental thermochemical properties of amino acids: Gas-phase and aqueous acidities and gas-phase heats of formation. J. Phys. Chem. B 116, 2905–2916 (2012)CrossRefGoogle Scholar
  38. 38.
    Curtiss, L.A., Redfern, P.C., Raghavachari, K., Rassolov, V., Pople, J.A.: Gaussian-3 theory using reduced moller-plesset order. J. Chem. Phys. 110, 4703–4709 (1999)CrossRefGoogle Scholar
  39. 39.
    Papayannopoulos, I.A.: The interpretation of collision-induced dissociation tandem mass-spectra of peptides. Mass Spectrom. Rev. 14, 49–73 (1995)CrossRefGoogle Scholar
  40. 40.
    Pu, D., Clipston, N.L., Cassady, C.J.: A comparison of positive and negative ion collision-induced dissociation for model heptapeptides with one basic residue. J. Mass Spectrom. 45, 297–305 (2010)CrossRefGoogle Scholar
  41. 41.
    Harrison, A.G.: Sequence-specific fragmentation of deprotonated peptides containing H or alkyl side chains. J. Am. Soc. Mass Spectrom. 12, 1–13 (2001)CrossRefGoogle Scholar
  42. 42.
    Bowie, J.H., Brinkworth, C.S., Dua, S.: Collision-induced fragmentations of the (M – H)– parent anions of underivatized peptides: an aid to structure determination and some unusual negative ion cleavages. Mass Spectrom. Rev. 21, 87–107 (2002)CrossRefGoogle Scholar
  43. 43.
    Waugh, R.J., Eckersley, M., Bowie, J.H., Hayes, R.N.: Collision induced dissociations of deprotonated peptides: Dipeptides containing serine or threonine. Int. J. Mass Spectrom. Ion Processes 98, 135–145 (1990)CrossRefGoogle Scholar
  44. 44.
    Pu, D., Cassady, C.J.: Negative ion dissociation of peptides containing hydroxyl side chains. Rapid Commun. Mass Spectrom. 22, 91–100 (2008)CrossRefGoogle Scholar
  45. 45.
    Ewing, N.P., Cassady, C.J.: Dissociation of multiply charged negative ions for hirudin (54–65), fibrinopeptide B, and Insulin A (Oxidized). J. Am. Soc. Mass Spectrom. 12, 105–116 (2001)CrossRefGoogle Scholar
  46. 46.
    Marzluff, E.M., Campbell, S., Rogers, M.T., Beauchamp, J.L.: Low-energy dissociation pathways of small deprotonated peptides in the gas phase. J. Am. Chem. Soc. 116, 7787–7796 (1994)CrossRefGoogle Scholar
  47. 47.
    Bradford, A.M., Waugh, R.J., Bowie, J.H.: Characterization of underivatized tetrapeptides by negative-ion fast-atom bombardment mass spectrometry. Rapid Commun. Mass Spectrom. 9, 677–685 (1995)CrossRefGoogle Scholar
  48. 48.
    Reiter, A., Teesch, L.M., Zhao, H., Adams, J.: Gas-phase fragmentations of anionic complexes of serine- and threonine-containing peptides. Int. J. Mass Spectrom. Ion Processes 127, 17–26 (1993)CrossRefGoogle Scholar
  49. 49.
    Waugh, R.J., Bowie, J.H.: A review of the collision-induced dissociations of deprotonated dipeptides and tripeptides. An aid to structure determination. Rapid Commun. Mass Spectrom 8, 169–173 (1994)CrossRefGoogle Scholar
  50. 50.
    Farrugia, J.M., O’Hair, R.A.J.: Involvement of salt bridges in a novel gas phase rearrangement of protonated arginine-containing dipeptides which precedes fragmentation. Int. J. Mass Spectrom. 222, 229–242 (2003)CrossRefGoogle Scholar
  51. 51.
    Harrison, A.G., Young, A.B.: Fragmentation reactions of deprotonated peptides containing aspartic acid. Int. J. Mass Spectrom. 255/256, 111–122 (2006)CrossRefGoogle Scholar
  52. 52.
    Steinborner, S.T., Bowie, J.H.: The negative ion mass spectra of [M – H]– ions derived from caeridin and dynastin peptides. Internal backbone cleavages directed through Asp and Asn residues. Rapid Commun. Mass Spectrom. 11, 253–258 (1997)CrossRefGoogle Scholar
  53. 53.
    Li, Z., Yalcin, T., Cassady, C.J.: C-terminal amino acid residue loss for deprotonated peptide ions containing glutamic acid, aspartic acid, or serine residues at the C-terminus. J. Mass Spectrom. 41, 939–949 (2006)CrossRefGoogle Scholar
  54. 54.
    Waugh, R.J., Bowie, J.H., Hayes, R.N.: Collision induced dissociations of deprotonated peptides: Dipeptides containing phenylalanine, tyrosine, histidine and tryptophan. Int. J. Mass Spectrom. Ion Processes 107, 333–347 (1991)CrossRefGoogle Scholar
  55. 55.
    Waugh, R.J., Bowie, J.H., Gross, M.L.: Collision-induced dissociations of deprotonated peptides. Dipeptides containing methionine or cysteine. Rapid Commun. Mass Spectrom. 7, 623–625 (1993)CrossRefGoogle Scholar
  56. 56.
    Pu, D.: Mass spectrometric studies of peptide fragmentation and complexes of chromium (III) with acidic peptides, Ph.D. Dissertation, University of Alabama, Tuscaloosa, AL (2007)Google Scholar
  57. 57.
    Bradford, A.M., Waugh, R.J., Bowie, J.H., Vollmer, D.L., Gross, M.L.: Collision-induced dissociations of deprotonated dipeptide methyl esters containing H, alkyl or benzyl α side-chains. Int. J. Mass Spectrom. Ion Processes 136, 143–153 (1994)CrossRefGoogle Scholar
  58. 58.
    Steinborner, S.T., Bradford, A.M., Waugh, R.J., Bowie, J.H., Vollmer, D.L., Gross, M.L.: Collision-induced dissociations of deprotonated dipeptide methyl esters containing serine or threonine. Aust. J. Chem. 47, 1851–1857 (1994)CrossRefGoogle Scholar
  59. 59.
    Paizs, B., Suhai, S., Hargittai, B., Hruby, V.J., Somogyi, A.: Ab Initio and MS/MS studies on protonated peptides containing basic and acidic amino acid residues: I. solvated proton vs. salt-bridged structures and the cleavage of the terminal amide bond of protonated RD-NH2. Int. J. Mass Spectrom 219, 203–232 (2002)CrossRefGoogle Scholar
  60. 60.
    Bartmess, J. E.: Negative Ion Energetics Data. In NIST Chemistry WebBook, NIST Standard Reference Database Number 69, Linstrom, P. J.; Mallard, W. G., Eds.; National Institute of Standards and Technology, Gaithersburg MD, 20899, http://webbook.nist.gov (Accessed August 2, 2011)
  61. 61.
    Gao, J., Cassady, C.J.: Negative Ion production from peptides and proteins by matrix-assisted laser desorption/ionization time-of-flight mass spectrometry. Rapid Commun. Mass Spectrom. 22, 4066–4072 (2008)CrossRefGoogle Scholar
  62. 62.
    Brinkworth, C.S., Dua, S., Bowie, J.H.: Backbone cleavages of [M – H]– anions of peptides. Cyclisation of citropin 1 peptides involving reactions between the C-terminal [CONH]– residue and backbone amide carbonyl groups. a new type of b cleavage: a joint experimental and theoretical study. Rapid Commun. Mass Spectrom 16, 713–721 (2002)CrossRefGoogle Scholar
  63. 63.
    Tian, Z., Kass, S.R.: Does electrospray ionization produce gas-phase or liquid-phase structures? J. Am. Chem. Soc. 130, 10842–10843 (2008)CrossRefGoogle Scholar
  64. 64.
    Tian, Z., Kass, S.R.: Gas-phase versus liquid-phase structures by electrospray ionization mass spectrometry. Angew. Chem. Int. Edit. 48, 1321–1323 (2009)CrossRefGoogle Scholar
  65. 65.
    Joyce, J., Richards, D.: Kinetic control of protonation in electrospray ionization. J. Am. Soc. Mass Spectrom. 22, 360–368 (2011)CrossRefGoogle Scholar
  66. 66.
    Cole, R.B.: Some tenets pertaining to electrospray ionization mass spectrometry. J. Mass Spectrom. 35, 763–772 (2000)CrossRefGoogle Scholar
  67. 67.
    Fenn, J.B., Mann, M., Meng, C.K., Wong, S.F., Whitehouse, C.M.: Electrospray ionization for mass spectrometry of large biomolecules. Science 246, 64–71 (1989)CrossRefGoogle Scholar
  68. 68.
    Dongre, A.R., Jones, J.L., Somogyi, A., Wysocki, V.H.: Influence of peptide composition, gas-phase basicity, and chemical modification on fragmentation efficiency: Evidence for the mobile proton model. J. Am. Chem. Soc. 118, 8365–8374 (1996)CrossRefGoogle Scholar
  69. 69.
    Lunkenheimer, W., Zahn, H.: Peptide, LXXIX1) merrifield-synthese symmetrischer cystinpeptide2). Justus Liebigs Ann. Chem. 740, 1–17 (1970)CrossRefGoogle Scholar
  70. 70.
    Gisin, B.F., Merrifield, R.B.: Carboxyl-catalyzed intramolecular aminolysis. Side reaction in solid-phase peptide synthesis. J. Am. Chem. Soc. 94, 3102–3106 (1972)CrossRefGoogle Scholar
  71. 71.
    Khosla, M.C., Smeby, R.R., Bumpus, F.M.: Failure sequence in solid-phase peptide synthesis due to the presence of an N-Alkylamino acid. J. Am. Chem. Soc. 94, 4721 (1972)CrossRefGoogle Scholar
  72. 72.
    Morley, J.E., Levine, A.S., Prasad, C.: Histidyl-proline diketopiperazine decreases food intake in rats. Brain Res. 210, 475–478 (1981)CrossRefGoogle Scholar
  73. 73.
    Martins, M.B., Carvalho, I.: Diketopiperazines: Biological activity and synthesis. Tetrahedron. 63, 9923–9932 (2007)CrossRefGoogle Scholar
  74. 74.
    Bythell, B.J., Somogyi, A., Paizs, B.: What is the structure of b2 ions generated from doubly protonated tryptic peptides? J. Am. Soc. Mass Spectrom. 20, 618–624 (2009)CrossRefGoogle Scholar
  75. 75.
    Eckart, K., Holthausen, M.C., Koch, W., Spiess, J.: Mass spectrometric and quantum mechanical analysis of gas-phase formation, structure, and decomposition of various b2 ions and their specifically deuterated analogs. J. Am. Soc. Mass Spectrom. 9, 1002–1011 (1998)CrossRefGoogle Scholar
  76. 76.
    Knapp-Mohammady, M., Young, A.B., Paizs, B., Harrison, A.G.: Fragmentation of doubly-protonated pro-his-xaa tripeptides: Formation of b2 2+ ions. J. Am. Soc. Mass Spectrom. 20, 2135–2143 (2009)CrossRefGoogle Scholar
  77. 77.
    Oomens, J., Young, S., Molesworth, S., van Stipdonk, M.: Spectroscopic evidence for an oxazolone structure of the b2 fragment ion from protonated tri-alanine. J. Am. Soc. Mass Spectrom. 20, 334–339 (2009)CrossRefGoogle Scholar
  78. 78.
    Harrison, A.G., Siu, K.W.M., El Aribi, H.: Amide bond cleavage in deprotonated tripeptides: A newly discovered pathway to ''b2 ions. Rapid Commun. Mass Spectrom. 17, 869–875 (2003)CrossRefGoogle Scholar
  79. 79.
    Chass, G.A., Marai, C.N.J., Setiadi, D.H., Csizmadia, I.G., Harrison, A.G.: A hartree-fock, MP2, and DFT computational study of the structures and energies of "b2 ions derived from deprotonated peptides. A comparison of method and basis set used on relative product stabilities. J. Mol. Struc.: THEOCHEM 675, 149–162 (2004)CrossRefGoogle Scholar
  80. 80.
    Harrison, A.G., Young, A.B.: Fragmentation of deprotonated N-benzoylpeptides: Formation of deprotonated oxazolones. J. Am. Soc. Mass Spectrom. 15, 446–456 (2004)CrossRefGoogle Scholar
  81. 81.
    Guo, Y., Cao, S., Wei, D., Zong, X., Yuan, X., Tang, M., Zhao, Y.: Fragmentation of deprotonated cyclic dipeptides by electrospray ionization mass spectrometry. J. Mass Spectrom. 44, 1188–1194 (2009)CrossRefGoogle Scholar
  82. 82.
    Wabnitz, P.A., Waugh, R.J., Eckersley, M.A., Dua, S., Blumenthal, T., Bowie, J.H.: The negative ion mass spectra of deprotonated 2,5-diketopiperazines. Int. J. Mass Spectrom. Ion Processes 154, 193–201 (1996)CrossRefGoogle Scholar
  83. 83.
    Hasumi, K., Shinohara, C., Iwanaga, T., Endo, A.: Lateritin, a new inhibitor of Acyl-CoA:Cholesterol acyltransferase produced by gibberella lateritium IFO 7188. J. Antibiot. 46, 1782–1787 (1993)CrossRefGoogle Scholar
  84. 84.
    Szardenings, A.K., Burkoth, T.S., Lu, H.H., Tien, D.W., Campbell, D.A.: A simple procedure for the solid phase synthesis of diketopiperazine and diketomorpholine derivatives. Tetrahedron. 53, 6573–6593 (1997)CrossRefGoogle Scholar
  85. 85.
    Bailey, P.D., Morgan, K.M.: Organonitrogen Chemistry, 38th edn, pp. 9-13. Oxford University Press, New York (1996)Google Scholar
  86. 86.
    Hammond, G.S.A.: Correlation of reaction rates. J. Am. Chem. Soc. 77, 334–338 (1955)CrossRefGoogle Scholar
  87. 87.
    Stewart, J.J.P.: Optimization of parameters for semi-empirical methods V: Modification of NDDO approximations and application to 70 elements. J. Mol. Model. 13, 1173–1213 (2007)CrossRefGoogle Scholar
  88. 88.
    AMPAC 9. Semichem, Inc. Available at: http://www.semichem.com/ Shawnee, KS, 1992–2008. Accessed August 2, 2011
  89. 89.
    Brinkworth, C.S., Bilusich, D., Bowie, J.H.: The unusual loss of an internal val residue from the (M – H)– parent anions of the antimicrobial peptide citropin 1.1 and synthetically modified analogues. Fragmentations which require a specific conformation of the decomposing anion. Int. J. Mass Spectrom. 236, 43–53 (2004)CrossRefGoogle Scholar
  90. 90.
    Bilusich, D., Bowie, J.H.: Fragmentations of (M – H)– anions of underivatized peptides. Part 2: Characteristic cleavages of Ser and Cys and of disulfides and other post-translational modifications, together with some unusual internal processes. Mass Spectrom. Rev. 28, 20–34 (2009)CrossRefGoogle Scholar
  91. 91.
    Jaran Jai-nhuknan. Post-source decay of negative peptide ions in a matrix-assisted laser desorption/ionization time-of-flight mass spectrometer, Ph.D. Dissertation, Miami University, Oxford, Ohio (1998)Google Scholar

Copyright information

© American Society for Mass Spectrometry 2012

Authors and Affiliations

  • Samantha S. Bokatzian-Johnson
    • 1
  • Michele L. Stover
    • 1
  • David A. Dixon
    • 1
  • Carolyn J. Cassady
    • 1
  1. 1.Department of ChemistryThe University of AlabamaTuscaloosaUSA

Personalised recommendations
