Distinct new catalysts for utilization of ethylene gas to polymer and oligomer

Open Access
KACST Forum
First Online:
Received:
Accepted:

Abstract

Bi-nickel-center catalysts were prepared by Schiff-base condensation of 2,3-butanedione with 2,6-di-isopropylaniline; 2-5-butylaniline, 2-isopropylaniline and 1,4-phenylene diamine(I). More Schiff-base ligands were prepared by condensation of 2,3-butandione with 2,6-diisopropylaniline; 2,4-6-trimethyl aniline and 4,4-diaminophenyl (benzidine)(II), and subsequent metathesis reaction with (DME)NiBr2. Bis(alpha diimine)nickel(II)dibromide complexes are suitable catalysts and are precursors for the polymerization of ethylene after activation with methylaluminoxane (MAO). In comparison with these complex analogs, mono-nickel-center catalysts, the new catalysts have much bigger molecules, illustrated by the distance between every two active centers (II and III). For bi-nickel-center catalysts, the catalyst’s structural credibility had profound influence on the catalytic activity. When the substituent was diisopropyl; t-butyl or methyl, the catalysts demonstrated much higher catalytic activity than the corresponding mono-nickel-center catalysts. Catalyst (II) with phenyl bridge showed high activity compared with catalyst (III) with diphenyl bridge. The catalytic properties of these complexes and the character of the obtained polymers depend on the ligand structure of the used catalysts. Substituents on the arene moiety and/or the backbone of the ligand influence the polymerization reaction. Small aryl substituents result in the formation of low molecular weight oligomers, whereas bulky aryl substituents gave high molecular weight polyethylene. Catalysts are cheap and can be prepared easily with available starting material and stable in air. The effect of Al/Ni ratio, of reaction time, variation of ethylene pressure, and the effect of temperature on catalyst performance will be discussed.

Keywords

Organometallic Polymerizations Late transition metals Ethylene

Introduction

The area of olefin polymerization catalysis has endured a remarkable increase in research outcome over the past 20 years, with many academic and industrial research centers involving in the design of a new organometallic precatalysts for the controlled synthesis of polyolefin products. In the early 1970s researches on the Group 4 metallocenes gave more detailed understanding of the chemistry around of the activated sites [6]. In the early 1990s new classes of “post-metallocene” catalysts were developed which overcame the inherent problems in Group 4 cyclopentadienyl systems, by using late transition metal systems enabling the incorporation of polar comonomers into polyolefin materials, and gave a new morphology surface at low levels of comonomer incorporation and changed the bulk properties of the polyolefin at higher levels of incorporation [2, 5]. In the late 1990s, a new type of catalysts was developed, based on late transition complexes such as nickels’ which are very active towards ethylene polymerizations coupled with, the last decade, breakthrough by utilizing such a system to do what is so called living polymerization of olefinic monomers. In this process, the absence of chain-transfer or chain-termination gives rise to a polyolefinic material with very narrow molecular weight distributions (typically <1.1), block copolymers, and polymers with novel topologies [3, 4, 7].

Experimental

All manipulations of air and/or water-sensitive compounds were carried out under dry nitrogen atmosphere using a dry box or Schlenk line techniques. The molecular weight (MW) and polydispersity index (PDI) of PE were determined by GPC (PL-GPC220/FTIR) in 1,2,4-trichlorobenzene/THF using polystyrene columns as standard.

Synthesis of new ligands

The ligand L 1 was synthesized by condensation of 2,3-butanedione with 2,6-di-isopropylaniline; 2-5-t-butylaniline, 2-isopropylaniline and 1,4-phenylene diamine. More Schiff-base ligands, L 2 and L 3 , were prepared by condensation of 2,3-butandione with 2,6-diisopropylaniline; 2,4-6-trimethyl aniline and 4,4-diaminophenyl (benzidine)(II), (Scheme 1). For example, a 100-ml Schlenk flask was charged with 3.29 g (18.59 mmol) (2,6-di-isopropylaniline; 2-5-t-butylaniline, 2-isopropylanilin, or 2,4-6-trimethyl aniline), 1.60 g (18.59 mmol) 2,3-butanedione, 30 ml ethanol and 0.4 ml glacial acetic acid, the pale yellow solution was stirred for one day at room temperature (the intermediate products were not isolated). Then, 9.30 mmol of 4,4-diaminophenyl or benzidine, and more 30 ml of ethanol was added. The final solution was stirred for 1 week at room temperature which yielded an yellow precipitate. The yellow precipitate was isolated by filtration, washed with 2 × 10 ml ethanol, and dried in vacuum; 4.8 g yellow powder was obtained; yield, 63 %.
Open image in new window

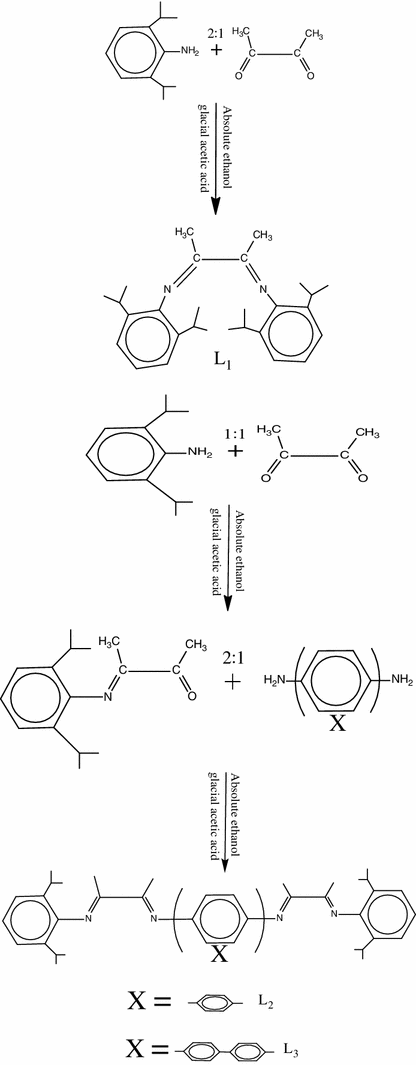

Scheme 1

Synthesis of ligands L 1 , L 2 and L 3

Synthesis of complexes 1, 2 and 3

The nickel complexes (Scheme 2) were prepared in good yield as shown below in Scheme 2.
Open image in new window

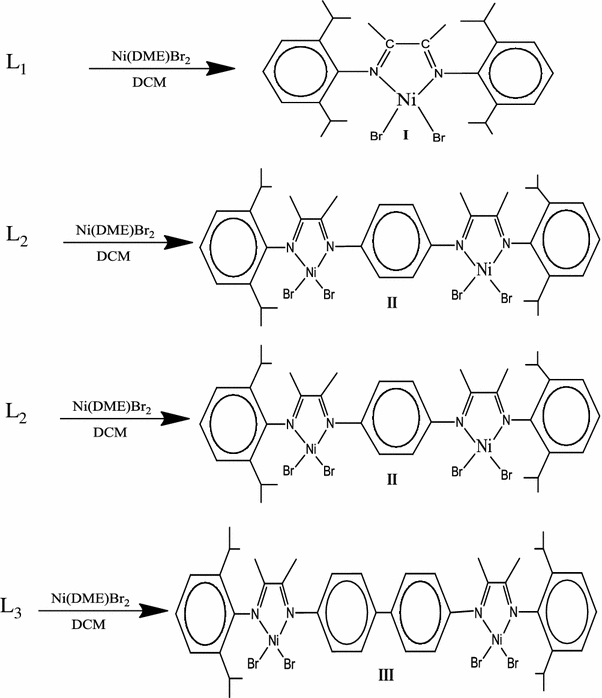

Scheme 2

Synthesis nickel complexes 1, 2, and 3

General procedure for ethylene polymerization

A 1-l stainless steel reactor was backed out under N2 flow for at least 1 h at 150 °C and subsequently cooled to room temperature for polymerization. After the reactor was cooled, MAO dissolved in toluene (50 ml) was introduced into the reactor and stirred at reaction temperature. The ethylene was introduced into the reactor by back pressure of nitrogen for at least 1 h. The catalyst solution in toluene (or hexane) was then injected under N2. The reactor pressure was maintained constant throughout the polymerization run by computer-controlled addition of ethylene. The polymerization time was between 20 and 60 min. Runs were terminated by venting off volatiles and the reactor contents were isolated, washed with aqueous HCl and methanol and the polymer produced was dried in a vacuum oven at 50 °C.

Results and discussion

Synthesis of new ligands and complexes

The goal of this collaborative research work is to develop and envisage a convenient method to prepare highly active new bi-nuclear alpha-diimine-nickel catalysts toward the catalytic performances for ethylene polymerization. The basic idea is to utilize substituents on the arene moiety and/or the backbone of the ligand to prepare new ligands and corresponding complexes. The structure around the metal may strongly influence the catalytic performances, such as catalytic activity. Under the guidance of this basic idea, three kinds of new catalysts including bi-nickel-center catalysts, were prepared and studied for catalytic ethylene polymerization in toluene using MAO as co-catalysts.

On treatment with MAO, all the three nickel complexes are active towards ethylene polymerization. They all showed strong temperature dependence of the catalytic activities. Furthermore, they later decrease monotonously with the increase of polymerization temperature (as shown in Figs. 1, 2). In addition, the catalyst’s activity increases with the increase of the molar ratio, Al/Ni, as shown in Fig. 3 where the catalyst activity significantly increased; whereas, when the ratio value increased from 200 to 600 it has little or no effect upon any further increase. The most active was the new catalyst with diisopropyl substitute, the catalytic activity was high at 25 °C with Al(MAO)Ni ratio at 500. In general, the ratio of Al/Ni was 500:1 for the most of polymerization reported in this work.
Open image in new window

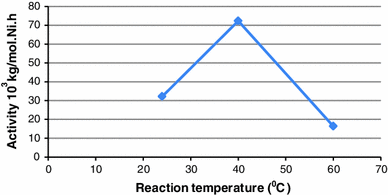

Fig. 1

A plot of reaction temperature versus the catalytic activity of catalyst 2 at ethylene pressure of 10 bars and polymerization time 1 h

Open image in new window

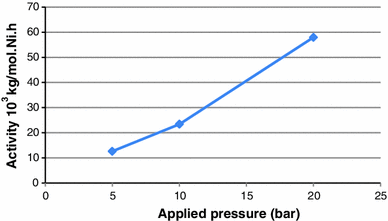

Fig. 2

A plot of applied pressure versus the catalytic activity of catalyst 2. Polymerization time 1 h and temperature 24 °C

Open image in new window

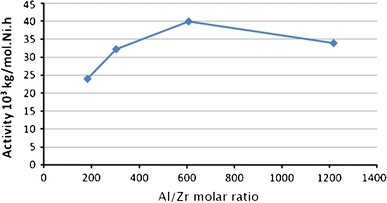

Fig. 3

A plot of Al/Ni ratio versus the catalytic activity of catalyst 2 at ethylene pressure of 10 bars, polymerization time 1 h and temperature 24 °C

Conclusion

The result of ethylene polymerization catalyzed by 1, 2 and 3 complexes using MAO as a cocatalyst showed that the activity of complexes 2 and 3 is higher than that for 1 which could be explained by the fact that the ligand environment around the metal center has a profound effect on catalysts’ productivity and product molecular weight. Changing the ligand environment results, generally, in a slight drop in productivity and in the molecular weight, as shown by Fig. 4. Confirming the conjugation and steric protection of the metal center are crucial for high activity [1].
Open image in new window

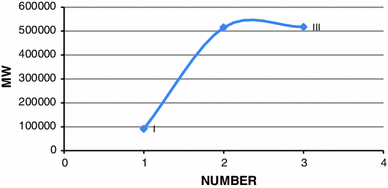

Fig. 4

A plot of molecular weight of polyethylene versus the substituent type
