Applications of quick look methods for evaluating the Middle Miocene Jeribe Formation from a selected well in Jambour Oilfield, Kurdistan Region, northern Iraq

The Miocene Carbonate Jeribe Formation in Kurdistan Region has effective reservoir properties in most of the old and newly discovered oilfields. The porous and permeable nature of the formation which sometimes enhanced by secondary fracturing or vugging makes the formation act as a very attractive target in the exploration plans of most of the petroleum companies in the region. Obvious examples are the discovered fields in the last few years including Sarqala, Taza, Tawqe (Abdulla 2017; Banks 2011; Ibrahim 2008) and other oilfields in which Jeribe comprised one of their potential reservoirs.

The attraction of Jeribe Formation is not only due to its porous and permeable nature as a reservoir rock, but also due to being deposited in a relatively wide depositional environment and hence existing in most parts of Iraq. Being Jeribe Formation of Middle Miocene in age (Sissakian et al. 2016), so its stratigraphic position in the geologic column of the area gives the formation a great chance to receive the generated oils from all of the known potential source rocks in the region (which are mostly of Jurassic Period). On the other hand, the formation is overlain by the evaporites and clay beds of the most effective seal rocks in the region known as Lower Fars (Fatha) Formation.

In this study, an attempt done to detect some reservoir properties of Jeribe Formation based mainly on the available well log data and by applying the techniques of quick look methods (QLM). The selected well for this application is Ja-49 from the known Jambour Oilfield in which the 56-m-thick Jeribe Formation has been penetrated between depths 2156 and 2212 m of the well.

In the techniques of QLM (which are widely used by log analysts for wellsite evaluation), log data are plotted in a reasonably simple and effortless way that reveals different reservoir properties. The selected techniques to be applied in this study are among the basic techniques of QLM which are discussed and mentioned by different authors including Asquith and Gibson (1982), Bateman (1985), Schlumberger (1989), Bassiouni (1994), Krygowsky (2003), Asquith and Krygowski (2004), Serra and Serra (2004), and Johnson and Pile (2006).

The Middle Miocene Sequence in Iraq was deposited in a broad basin following a marine transgression during a phase of strong subsidence that overlapped the margins of the former Oligocene–Early Miocene basin, especially in NE of Iraq. The sequence consists of a shallow water carbonate (Jeribe Formation) overlying by thick evaporites, carbonate, and marls of the Lower Fars Formation in the intra-shelf area (Jassim and Buday 2006).

The Jeribe Formation was first described by Bellen in 1957 (Bellen et al. 1959) in the type locality near Jaddala Village in the Sinjar anticline in Foothills Zone. In its type section, the thickness of the formation is about 70 m and composed of recrystallized and dolomitized, mostly massive limestones, in beds 1–2 m thick (Bellen et al. 1959).

The formation is supposed to be of Early Miocene age but later included in the Middle Miocene age due to existence of the Orbulina datum near the base of the Jeribe Formation (Parzak 1974).

The formation’s lithology is relatively uniform mainly consisting of different facies of limestone. Some marly limestone and anhydrite sections were also mentioned by Johnson (1961; in Buday 1980), Ibrahim (2008), and Baban and Hussein (2016).

The Jerbie Formation was deposited in lagoonal (back-reef and reef environment, with sign of more offshore facies too. Reef and back reef are predominant according to Bellen et al. (1959). The formation probably represents a shallowing upward carbonate ramp sequence as it was deposited relatively throughout the basin (Aqrawi et al. 2010).

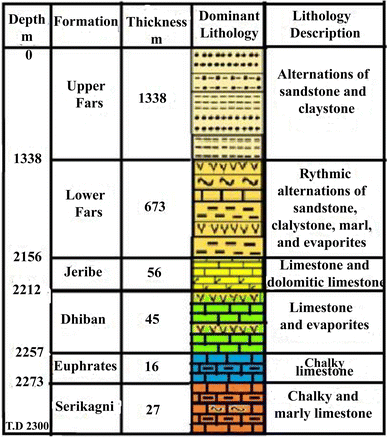

Jeribe Formation in the studied section consists of about 56-m-thick limestone, dolomitic limestone, and dolostone beds with few narrow beds of anhydrites or anhydritic beds (Fig. 2). Mudstone and wackestone are the dominant microfacies of the formation.

Open image in new window

A lot of works done about Jeribe Formation in Iraq. In this section, focus will be only on those works that deal with characterization of Jeribe Formation from reservoir properties point of view.

Sun and Esteban (1994) discussed the reservoir quality of Euphrates and Jeribe formations and mentioned that in central Iraq these carbonate reservoirs have porosities ranging between 10 and 30% and permeabilities from 1.0 to several hundreds mD in open marine facies.

Markaryan (2005) studied Jeribe Formation in a number of fields in Dyala Governorate. She has revealed that Jeribe Formation has good reservoir properties with an average porosity about 20% and average permeability about 30md. She examined the porosity type in the formation and mentioned that intraparticle, fracture, channels, vugs, and moldic types all are exist in the formation.

Jassim and Al-Gailani (2006) mentioned that Jeribe Formation has a mean porosity about 17% and a mean permeability about 200 mD. They also noted that in packstone facies of Jeribe Formation, dolomitization creates a mean porosity about 23% and a mean permeability about 10 mD.

Ibrahim (2008) studied Jeribe Formation from sedimentology and reservoir characterization points of view in two wells of Tawke Oilfield in Kurdistan Region, northern Iraq. He concluded that Jeribe Formation belongs to the Miocene Langhian subcycle and composed mainly of limestone and dolomite with thin interbeds of anhydrite. He also identified a number of microfacies within the formation and described the types of porosity existed in the formation including fractures, vugs, interparticles, and intercrystallines.

Al-Ameri et al. (2011) have studied the hydrocarbon in the Middle Miocene Jeribe Formation in a number of oilfields in Dyala district, northern Iraq. They have explored that Jeribe Formation owns an average porosity about 12–27% in the studied oilfields.

The facies, depositional environment, and diageneses of Jeribe Formation have studied by Al-Dabbas et al. (2012) in selected wells in northern Iraqi oilfields (Ajeel, Hamrin, Judaida, and Khashab). They have identified a number of microfacies with variety of diagenetic processes such as compaction, dissolution, cementation, neomorphism, dolomitization, anhydritization, and silicification.

In Ajeel Oilfield, Gharib (2012) has studied Jeribe and Euphrates formations from a number of wells. He has divided Jeribe Formation using log and microfacies data into two reservoir units separated in the middle part by a marl bed.

The sedimentological and reservoir characteristics of Jeribe Formation have studied by Fadhil (2013) in Allas dome of Hamrin Oilfield, northern Iraq. She has recognized four main microfacies within the formation representing depositional environments from semiclosed platform to open platform and front slope. Then, she has divided Jeribe Formation into two reservoir units (A and B, depending mainly on log data) which have separated by a layer of shale. Later she has noted that Jeribe has porosities ranging between 0 and 33%.

Hussein (2015) and Baban and Hussein (2016) studied the Tertiary reservoir (including Jeribe Formation) from a number of wells in Khabbaz Oilfield. Poor permeability due to relatively high content of dispersed shale was the most noticeable conclusion of those two studies.

Al-Jwaini and Gayara (2016) studied the Jeribe Formation in the two fields of Bai Hassan and Khabbaz. They characterized the types of the microfacies in the formation and the types of the porosities with the diagenesis affected the properties of the formation. The formation also was evaluated depending on the log data from which shale content, porosity values, and saturations in Jeribe Formation were determined in the two mentioned fields.

Saeed (2017) studied in detail the reservoir characterization of the Jeribe Formation from three selected wells in Hamrin Oilfield. He subdivided the formation to four reservoir units depending on variations in the shale content, porosity, and permeability. He also calculated the net-to-gross reservoir and pay ratios for Jeribe Formation in the studied wells using different calculated cutoff values for shale content, porosity, permeability, and water saturation.

According to Asquith and Gibson (1982), quick look methods (QLM) in log interpretation are helpful to the geologist because they provide flags, or indicators, that point to possible hydrocarbon zones requiring further investigation. The importance of QLM is in their ability to provide information about the nature of the fluids in the pore spaces and the lithology of the reservoirs in a quick and simple way.

Before water saturation is calculated for any zone, it is necessary to scan a log and locate favorable zones that warrant further investigation. This is true not only for potential hydrocarbon-bearing zones, but water-bearing zones as well. This is often referred to as “scanilizing” a log (HLS 2007). There are certain responses that should be looked for, and these responses may indicate whether a zone is water bearing or hydrocarbon bearing.

Generally, there are three branches for quick look analysis as mentioned by Bateman (1985) which are compatible overlays of logs, crossplot of selected log readings, and simple algorithms for calculators.

In this study, four techniques of QLM selected to be applied for preliminarily characterizing Jeribe Formation. Details of each technique with the obtained results are shown below.

R_wa Method

This technique is one of the QLM in log analysis mentioned by different authors (Asquith and Gibson 1982; Bateman 1985; Schlumberger 1989; Asquith and Krygowski 2004).

Based on Archie’s assumption, the apparent formation water resistivity (R_wa) is equal to true resistivity (R_t) divided by formation factor (F). In any clean water-bearing zone (S_w = 100%), the wet resistivity (R_o) is equal to R_t and equal to F multiplied by formation water resistivity (R_w); in such a case also R_wa becomes equal to R_w. So, by following variations in the calculated R_wa values along any reservoir, one can detect water-bearing zones and that by following the zones of the lowest computed R_wa values (regardless the magnitude of the of R_wa as ohm m values). In fact, zones of lowest R_wa values will represent either water-bearing zone or zones of lowest hydrocarbon saturations. Accordingly, any increase in the R_wa values will positively proportion to the hydrocarbon saturation.

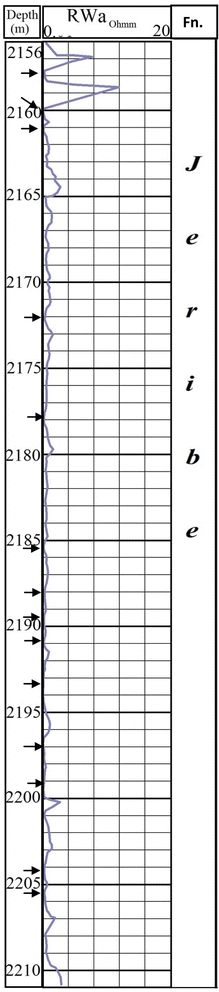

Through following the plotted curve of R_wa (Fig. 3), it is so easy to notice zones in which lowest recorded values of R_wa are locate (locations of the black arrows in Fig. 3). Those zones are expected to be water-bearing zones or zones with the lowest hydrocarbon saturation. Accordingly, zones with greater computed R_wa values are zones of higher hydrocarbon saturation.

Open image in new window

Logarithmic Movable Oil Plot Method

In this technique of QLM which considered as compatible overlays method, three curves are plotted on a logarithmic scale and their overlying pattern is followed to detect locations of the water- or hydrocarbon-bearing zones in addition to roughly detect the ratio of the movable hydrocarbons.

To apply this technique, values of wet resistivity (R_o) are needed and the resistivity values of the flushed zones (R_xoo, considering complete flushing of the zones by mud filtrate) in addition to the true resistivity values of the uninvaded zone (R_t).

For calculating R_o values, which is the resistivity of the water-bearing uninvaded zone, the simple equation of R_o = F. R_w applied, whereas F multiplied by R _mf used for calculating R_xoo.

As shown in Fig. 3, the R_o curve is mostly of the lower resistivity value due to being the reservoir water of saline nature and conductive. On the other hand, the R_t curve shows higher resistivity values in most of the zones and becomes close or of the same value with R_o in few zones.

As a QLM, any separation between the R_o and R_t curves is an indication to hydrocarbon-bearing zones, whereas non-separation cases are indications to water-bearing zones. The space between the two curves is proportion to the percentage of the hydrocarbon saturation.

The benefit of plotting R_xoo curve with the two curves of R_o and R_t is to show preliminarily the ratio between the residual and the movable hydrocarbons. The spacing between R_o and R_xoo represents the residual hydrocarbons, whereas the spacing between the R_xoo and R_t represents the movable hydrocarbons.

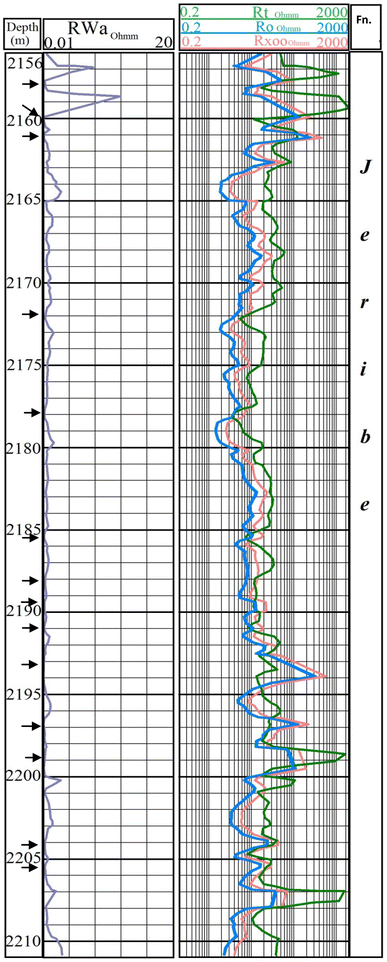

By comparing R_wa, with R_o, R_xoo, and R_t curves (Fig. 4), the following points can be observed:

Open image in new window

1. 1.

   In most, but not all the depth intervals the curves show the same result about the containing fluids and their relative saturations.


2. 2.

   The intervals of high R_wa values showed high recorded R_t values (and vice versa) indicating the workable of the R_wa technique in detecting hydrocarbon-bearing zones in this study (e.g., depths 2156–2158, 2164.5, 2200.5, 2207 m)


3. 3.

   Zones of high recorded R_t values are not necessarily zones of high hydrocarbon saturations because low porosity and dense lithology both are causing high recorded R_t values just like hydrocarbons.


4. 4.

   The high difference between the resistivity of the formation water and the resistivity of hydrocarbons may result in high separation between the calculated R_o and the recorded R_t curves regardless to the water or hydrocarbon saturations ratio.


5. 5.

   Zones of high water saturation show higher R_o and R_xoo values than the recorded R_t (e.g., depths 2161, 2189.5, 2193–2194, 2197 m).


6. 6.

   The intercalated of water-saturated horizons between the oil-bearing intervals of Jeribe Formation is due to the micropore size of high capillary pressure of those horizons (mostly of Wackestone microfacies) in which the buoyancy force of the migrated oil cannot displace the pore waters.


7. 7.

   No continuous water-bearing zone is observed in the studied well, which means the oil water contact location is at a greater depth and the whole thickness of Jeribe Formation comprises part of the oil column.



SP with R_xo/R_t overlay Method

This QLM can be applied in those wells which drilled with freshwater base mud in reservoirs having saline pore water. In such a well condition, good SP log data can be obtained which is commonly helpful in determining the permeable zones where electron exchanges can much easily occur. The main purpose in applying this method is to detect preliminarily the hydrocarbon-bearing zones without need to know porosity. The needed data besides SP are true resistivity (R_t) and shallow resistivity (R_xo). The theory behind the method as clarified by Bateman (1985) depends on Archie’s equation and the SP relationship (Eq. 1).

$${\text{SP}} = - K \, \log \left( {R_{\text{mf}} /R_{\text{w}} } \right)$$

(1)

where SP = spontaneous potential, K = kelvin, temperature, R_mf = resistivity of mud filtrate, R_w = resistivity of formation water.

By writing Eq. 1 for both invaded and uninvaded zones (Eqs. 2, 3), the formation factor (F) including porosity eliminates (Eq. 4). So, no need to know porosity, cementation factor (m), and tortuosity factor (a) for the reservoir under consideration.

$$S_{\text{w}}^{n} = \, F \, \times \, R_{\text{w}} /R_{\text{t}}$$

(2)

$$S_{xo}^{n} = \, F \, \times \, R_{mf} /R_{xo}$$

(3)

$$\left( {S_{w} / \, S_{xo} } \right)^{n} = \, R_{w} /R_{mf} \times \, R_{xo} /R_{t}$$

(4)

According to Bateman (1985) and by assuming S_xo = S _w ^1/5 , then (S_w/S_xo) ⁿ can be replaced by S _w ^8/5 in case the saturation exponent (n) assumed to be equal to 2.0. Finally, SP can be represented by Eqs. 5 or  6.

$$- SP \, = \, K \, \log \, \left\{ { \, \left( {R_{xo} /R_{t} } \right) \, S_{w}^{5/8} } \right\}$$

(5)

or

$$- SP \, = \, K \, \log \, \left( {R_{xo} /R_{t} } \right) \, + \, K \, \log \, S_{w}^{5/8}$$

(6)

In wet zones where water saturation is equal to 100%, the part K log S _w ^5/8 of Eq. 6 is equal to zero, and thus, -SP numerically becomes equal to K log (R_xo/R_t). On the other hand, in hydrocarbon-bearing zones where S_w is less 100%, the part K log S _w ^5/8 numerically becomes less than -SP (due to being log S _w ^5/8 less than 1.0). Accordingly, by drawing the two curves of SP and K log (R_xo/R_t), they will track in wet zones and separate in hydrocarbon-bearing zones.

Bateman (1985) supported the application of this method by an example from a sandstone reservoir with a very clear tracking and separation curves of SP and K log (R_xo/R_t) in wet and hydrocarbon-bearing zones, respectively.

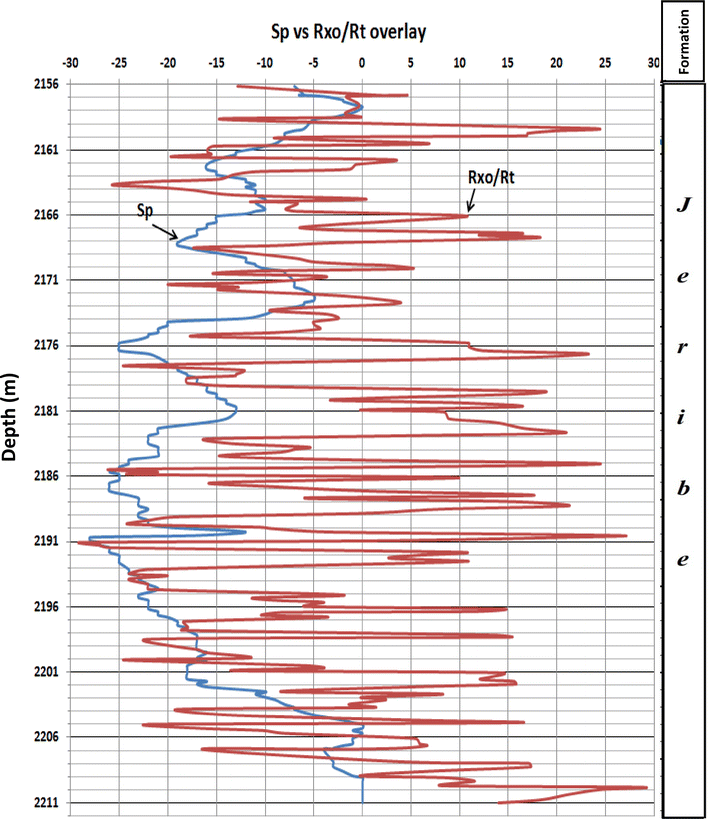

In this study, we tried to be sure about the applicability of this technique in more complex carbonate nature reservoirs like Jeribe Formation. Figure 5 shows the overlay of SP and K log (R_xo/R_t) for Jeribe Formation in the well Ja-49. By comparing Fig. 5 with the previously identified depths of the water and hydrocarbon-bearing horizons (Figs. 3, 4), good matching can be observed between both. Although the tracking and separation between the two curves in Fig. 5 are not ideal, it is clear that in hydrocarbon-bearing zones the value of K log (R_xo/R_t) is greater than -SP (positive separation), whereas in water-bearing horizons they are either equal or the value of K log (R_xo/R_t) is less than -SP (negative separation).

Open image in new window

Movable Hydrocarbon Index (MHI) Method

Water saturation of the uninvaded zone (S_w) and flushed zone (S_xo) can be used as an indicator of hydrocarbon moveability. If the value of S_xo is much larger than S_w, then hydrocarbons in the flushed zone have probably been moved or flushed out of the zone nearest the borehole by the invading drilling fluids.

The ratio method for identifying hydrocarbon moveability bases on the difference between water saturations in the flushed zone (S_xo) and the uninvaded zone (S_w). When the water saturation in the uninvaded zone from Archie’s equation (Archie, 1942) is divided by the water saturation in the flushed zone, the result is representing MHI as shown in Eq. 7.

$$ \frac{{{\text{Sw}}^{2} }}{{{\text{Sxo}}^{2} }} = \left[ { \frac{{{\text{Sw }}}}{\text{Sxo}}} \right]^{2} = \frac{{{\text{F*}}\frac{\text{Rw}}{\text{Rt}}}}{{{\text{F*}}\frac{\text{Rmf}}{\text{Rxo}}}} = \frac{{\frac{\text{Rw}}{\text{Rt}}}}{{\frac{\text{Rmf}}{\text{Rxo}}}} = \frac{{\frac{\text{Rxo}}{\text{Rt}}}}{{\frac{\text{Rmf}}{\text{Rw}}}}$$

(7)

where S_w = water saturation in the uninvaded zone, S_xo = water saturation in flushed zone, F = formation factor, R_t = resistivity of uninvaded zone (deep reading log), R_xo = resistivity of flushed zone (shallow reading zone), R_mf = resistivity of mud filtrate, R_w = resistivity of formation water.

When Sw divides by S_xo (Eq. 7), formation factor (F) cancels out, which means it is no longer necessary to know porosity or a value for the cementation exponent (m) to determine water saturation (Asquith and Gibson 1982; Asquith and Krygowski 2004).

Schlumberger (1989) reported that if the ratio of S_w/S_xo is 1.0 or greater, no hydrocarbons are moved during invasion. This is true regardless of whether or not the zone contains hydrocarbons. Whenever the ratio of S_w/S_xo is less than 0.7 for sandstone and less than 0.6 for limestone, movable hydrocarbons are indicated. If carbonate reservoir has a MHI less than 0.6, hydrocarbons are present and the reservoir has enough permeability so that hydrocarbons have been moved during the invasion process by mud filtrate (Asquith 1985).

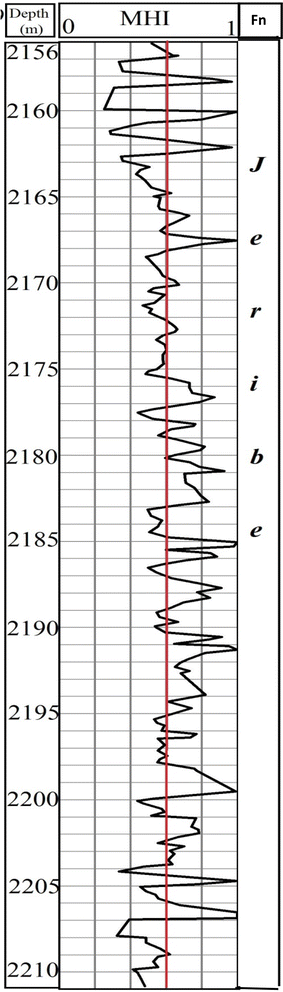

The calculated MHI values for Jeribe Formation in the studied Ja-49 are presented as curve in Fig. 6. In the same figure, the MHI value of 0.6 used as a cutoff value for separating zones of movable hydrocarbons from zones of non-movable hydrocarbons (due to being Jeribe Formation of carbonate nature).

Open image in new window

The following points are general notes about the calculated MHI values which represents effective movable hydrocarbon zones for Jeribe Formation as appears in Fig. 6:

1. 1.

   Nearly, the whole Jeribe Formation contains hydrocarbons but practically not all the formation’s parts contain effective movable hydrocarbons.


2. 2.

   Production of hydrocarbons can be expected only in those horizons which showed MHI values less than 0.6.


3. 3.

   No continuous movable hydrocarbon interval of greater than 4.0 m thickness found in the studied well.


4. 4.

   The upper and lower 5 m of the formation appear to be containing the most efficient productive horizons.


5. 5.

   Based on the technique of MHI, about 30 m from the gross 56 m of Jeribe Formation in the studied well is productive. To be considered as commercially productive horizons, the porosity and permeability of those intervals should be of appreciable values combined with high reservoir pressure.



The used QLM of R_wa, R_o, R_xoo, SP versus (R_xo/R_t), and MHI are actually fast and practical ways for preliminarily evaluating reservoirs. They provide good indications about the type of the reservoired fluids, their saturations, and movability of hydrocarbons. The application of the QLM in the well Ja-49 showed that Jeribe Formation contains a lot of hydrocarbon-bearing horizons. The application of MHI method indicated that about 53% of the gross 56 m thickness of the formation contains movable hydrocarbons. More investigations are needed to make sure about whether those horizons can produce hydrocarbons commercially or not. No actual oil water contact is observed in the studied section of Jeribe Formation, which means the oil column extends down to certain depth in the formations underlying Jeribe Formation.
