Synthesis of didodecylmethyl hydroxyl sulfobetaine and its evaluation for alkali-free flooding

  • Changxin Shi
  • Shemin Song
  • Hongmei Ren
  • Qingqiao Zen
  • Xianrong Tang
Open Access
Original Paper - Production Engineering
First Online:
Received:
Accepted:

Abstract

In this paper, didodecylmethyl hydroxyl sulfobetaine was synthesized by reaction of didodecylmethyl amine with sodium 2-hydroxy-3-chloro propanesulfate. The interfacial tensions between Dagang crude oil and solution of the surfactants, solution of surfactant–polymer mixtures were measured. The effects of surfactant concentration and aging time on the interfacial tension were investigated. It is found that the synthesized betaine surfactant could reduce the interfacial tension to ultra-low without alkali, alcohol and the other additives in the absence of or presence of polymer. The surfactant–polymer system could lower the interfacial tension to ultra-low, even was aged for more than 2 weeks. The sand-pack flooding tests indicated that, with 0.2 wt% of the betaine and with 1,500 mg/L of polymer, 16.89 % of an additional OOIP (original oil in place) was recovered from a sand pack. This result suggested that the didodecylmethyl hydroxyl sulfobetaine might be a good surfactant candidate for enhanced oil recovery.

Keywords

Synthesis Didodecylmethyl hydroxyl sulfobetaine Alkali-free Ultra-low interfacial tension

Introduction

The chemical method of enhanced oil recovery using surfactants has been studied for many years (Johnson 1957; Scott et al. 1965; Hill and Reisberg 1973 ). Surfactant often used together with alkali, or alkali and polymer in oil recovery (Deborah and Philip 1990 ; Ball and Surkalo 1990 ; Kang et al. 2000; Samanta et al. 2010). The reason is that the reaction between the alkali and naphthenic acids in the crude oil could generate soap; the soap and the added surfactants usually showed synergistic effects in reducing the interfacial tension (Rudin and Wasan 1992 ). On the other hand, the addition of the alkali could reduce the adsorption of the surfactant, sequester divalent ions, and alter wettability (Hirasak et al. 2011). However, the presence of alkali in the flooding systems also caused several problems. Strong alkali such as NaOH and NaSiO4 could cause permeability reduction and formation damage (Bagci et al. 2000). Scaling formation is another disadvantage of flood using the conventional alkalis, which often leads to the shortening of pump detection period (Krumrine et al. 1985; Cheng et al. 2008). A new alkali, sodium metaborate, was reported that no scaling formed, but it could decrease the viscosity of polymer (Flaaten et al.2010; Hou et al. 2005), and was not a good option for brines with high bicarbonate and sulfate concentrations (Gupta et al. 2009). The addition of the organic alkali has no influence on the polymer viscosity, but it is not a cheap additive (Berger et al. 2006).

Due to the problems mentioned above, several surfactant–polymer flooding free of alkali pilot tests have been carried out in some China’s oil fields, such as Shengli, Dagang and Henan (Zhu et al. 2012). The key for the surfactant–polymer flooding is to find a well-performed surfactant that could reduce the interfacial tension between oil and water to ultra-low values. Many researchers tried to use mixed surfactants including: petroleum sulfonate formulations (Xiong et al. 2009), alkanolamide mixtures (Meng et al. 2010), alkanolamide with petroleum sulfonate (Li et al. 2010), Span with alkyl polyglycoside (Iglauer et al. 2004), mixed polyoxypropylene ether sulfates (Shinoda and Shibata 1986 ), etc. In recent years, betaine-type surfactants have received extensive attention in the field of petroleum industry for its excellent water solubility, high foam stability, and good hard water resistance. Also it is not sensitive to temperature, pH, and electrolyte variation (Qu et al. 2011). There have been some reports on its laboratory experiment on oil recovery, showing good results (Li et al. 2012; Yu et al. 2011; Feng et al. 2012).Some of them used betaine surfactant mixtures (Cui et al. 2012;Zhao et al. 2012). The main disadvantage of using mixed surfactant is that chromatographic separation may occur in practical application, which will affect the oil recovery (Miller et al. 1991).

In this paper, we synthesized the didodecylmethyl hydroxyl sulfobetaine using didodecylmethyl amine and sodium 2-hydroxy-3-chloro propanesulfate. The test results show that this product is an excellent surfactant for surfactant–polymer flooding.

Materials and methods

Materials

Didodecylmethyl amine of 95 % purity was obtained from Rhodia Feixiang Chemicals Co. Ltd., China. Sodium 2-hydroxy-3-chloro propanesulfate of 99 % purity was purchased from Fuertai Chemicals Co. Ltd., China. Ethanol and sodium hydroxide (AR grade) were purchased from Sinopharm Chemical Reagent Beijing Co. Ltd. Hydrolyzed polyacrylamide (HPAM) with a degree of hydrolysis of 28 % was supplied by Dagang Bohong Petroleum Chemical Company. The molecular weight of the HPAM is 2.5 × 107. The reservoir water was used during the experiment. The content of total dissolved solids is 13,454 mg/L; the water contained 350 mg/L calcium ion and 180 mg/L magnesium ion. The crude oil was offered from the third block of Dagang oilfield Gangxi area in China.

Experimental section

Synthesis

The didodecylmethyl amine 23 g (0.06 mol) was taken in a 250 ml three-neck flask. 15.88 g (0.08 mol) of sodium 3-chloro-2-hydroxypropanesulphonate was first dissolved in 120 ml isopropanol–water (1:1 by volume) solution, and then put into the flask. The reaction mixture was stirred for 18 h at 70 °C under reflux and 3.2 g of sodium hydroxide dissolved in 20 mL of water was added drop by drop. The mixture was separated by standing, and the lower layer was washed three times with petroleum ether.

After evaporation of the water and alcohol to dryness, the obtained solid was dissolved in hot ethanol, followed by immediate filtration. After evaporation of the ethanol, the final product was obtained. The synthetic route for the surfactant is depicted in Scheme 1.

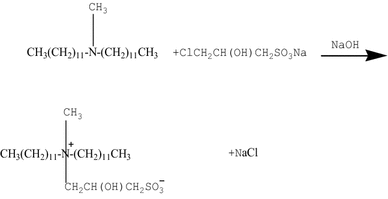

Scheme 1

Synthesis of didodecylmethyl hydroxyl sulfobetaine

Methods

Measurement of FT-IR spectra was performed on a Nicolet 8700 FT-IR spectrometer using KBr pellets.

MS analysis was carried out with a Waters Quattro Premier XE. The capillary voltage was 3.5 kV, the source temperature was 110 °C, the desolvation temperature was 350 °C, the cone voltage was 5 V and the collision energy was 15 eV.

Measurements of the interfacial tension were made by the spinning drop technique at 53.2 °C using a Dataphysics interfacial tensiometer.

To investigate the thermal stability of the surfactant–polymer system, the prepared surfactant–polymer solutions (0.2 % of surfactant and 1,500 mg/L of polymer) were put into sealed glass tubes; the glass tubes were maintained at 53.2 °C. Took a tube out, and measured the interfacial tension between oil and solutions.

Core flood experiment was conducted on the above sand packed core. The core was first filled with the Dagang crude oil sample, and then flooded with water until water cut was more than 98 %. Next, 0.3 PV of oil displacement agents was injected. The flooding system velocity was 0.2 mL/min at the reservoir temperature of 53.2 °C. After the oil displacement agent flooding, water was injected until water cut was more than 98 %.

Results and discussion

Characterization of the product

Infrared spectroscopy

The infrared spectrum of the synthesized is shown in Fig. 1. It can be seen that the absorption at 2,969, 2,926, 2,856 and 1,367 cm−1 can be ascribed to the stretching vibrations of alkyl groups. The stretching vibration at 3,367 cm−1 corresponds to the OH group in the product. The absorption at 1,645 cm−1 can be assigned to the deformation vibration of the OH group. A strong absorption appeared at 1,204 cm−1 attributes to a C–O stretching vibration. The absorption at 1,048 cm−1 is due to the presence of the SO3 − stretching vibration. The absorption at 624 cm−1 represents the S–O stretching vibration.

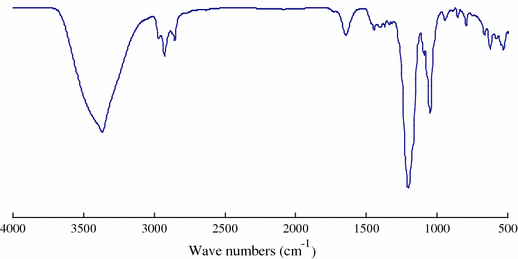

Fig. 1

FT-IR spectrum of the didodecylmethyl hydroxyl sulfobetaine

ESI–MS spectrum

The product was analyzed by ESI–MS in negative mode. The spectrum is shown in Fig. 2.

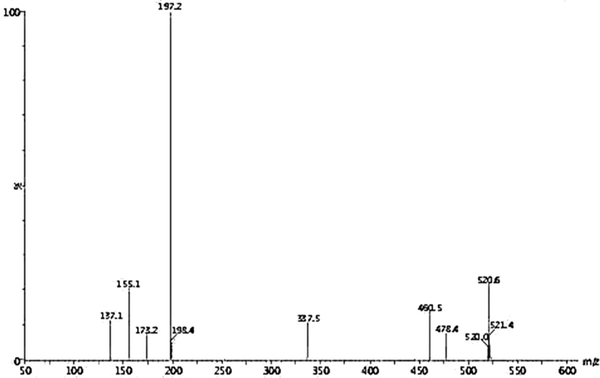

Fig. 2

MS spectrum of the didodecylmethyl hydroxyl sulfobetaine

The peaks at m/z = 137.1 correspond to [CH2–CH (OH)–CH2–SO3]−, the peak at m/z = 155.3 may correspond to [CH2–CH (OH)–CH2–SO3 + H2O]−, the peak at m/z = 197.2 corresponds to [C12H25 –N–CH3]−, the peak at m/z = 337.5 corresponds to [C12H25–N (CH3)–CH2–CH (OH)–CH2–SO3]−, and the peak at m/z = 478.4 may correspond to [C12H25–N (CH3)–CH2–CH (OH)–CH2–SO3 + H2O]−. The ion at m/z 460.5 is may due to the didodecylmethyl hydroxyl sulfobetaine losses of 44 (–CH2–CH2–CH3). The peak at m/z = 520.6 corresponds to [(C12H25)2–N (CH3)–CH2–CH (OH)–CH2–SO3 + CH3]−.

Measurement of Interfacial Tensions

In the surfactant flooding systems for enhanced oil recovery, the interfacial tension between crude oil and reservoir water should be lower than 10−2 mN m−1 (Aoudia et al. 2006). Furthermore, in order to improve sweep efficiency in the reservoir, polymer was often added to the surfactant solutions, which requires that the interfacial tension between the crude oil and surfactant-polymer solutions should also be below than 10−2 mN M−1. Generally speaking, time, surfactant concentration, temperature and salinity have effects on the interfacial tension. However, in the practical application, the temperature and salinity are fixed in the reservoir. Here, the effects of time and surfactant concentration on the interfacial tension were investigated. The dynamic interfacial tension between Dagang crude oil and reservoir water is shown in Fig. 3.

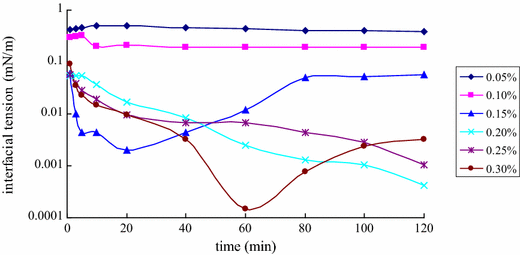

Fig. 3

Effects of didodecylmethyl hydroxyl sulfobetaine concentration on the interfacial tension at 53.2 °C between Dagang crude oil and reservoir water

As shown in Fig. 3, the interfacial tension can reach the ultra-low value (less than 10−2 mN m−1) at a concentration range, from 0.15 to 0.3 wt%. The commonly used surfactant concentration range in the oil recovery process is 0.05–0.3 %. The lowest interfacial tension value is 1.45 × 10−4 mN m−1, corresponding to the surfactant concentration of 0.3 %. Ultra-low interfacial tension value can only last for about 45 min when the surfactant concentration is 0.15 %. In view of adsorption of the surfactant on the rock and economic factors, the optimum concentration is 0.2 %. The presence of polymer in the surfactant solution often has effects on the interfacial tension. To compare with that in the absence of polymer, the HPAM is added to the betaine solution (the concentration is 0.2 %), and the concentration of the HPAM in solution is 1,500 mg/L. The effects of polymer on the interfacial tension are presented in Fig. 4.

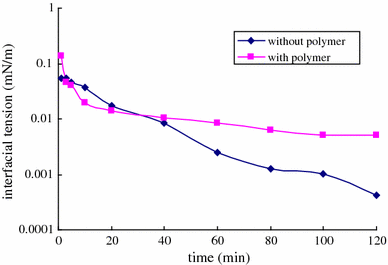

Fig. 4

Effects of polymer on the interfacial tension

Figure 4 shows that in the presence of polymer, the interfacial tension can also be reduced to ultra-low values. But it takes a longer time to reach the ultra-low values when the polymer existed. This is because the presence of polymer increases the viscosity of the solution, which slows the surfactant transfer rate at the interface; another reason might be that the added polymer forms an aggregate with the surfactant, which results in a variation of the surfactant concentration and then affects the interfacial tension. For the surfactant-polymer system, the interfacial tension decreases rapidly at the early times. The reason may be due to uneven distribution of the surfactant in the system.

In the oil production process, after the injection of the surfactant-polymer system into the formation, it often takes some time for the system to take effects. During this period, the polymer degradation will speed up because of high temperature and the existence of oxygen and bacteria. Moreover, another explanation is: system entropy and confusion degree increase with time. The disorder of the surfactant distribution at the oil–water interface is aggravated, which will cause vibration of the interfacial tension (Li et al. 2009). So the thermal stability of the system has to be investigated to make sure that the surfactant–polymer is effective during flooding period. The results are presented in Fig. 5.

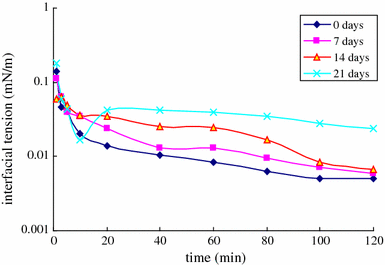

Fig. 5

Dynamic interfacial tension values at different aging time

As can be seen from Fig. 5, the surfactant–polymer system can reduce the interfacial tension to ultra low at least within 14 days. The interfacial tension gradually increases with passing days. In the 21st day, the interfacial tension is above 10−2 mN m−1. For the surfactant-polymer system, the variation of surfactant concentration and viscosity loss of the polymer are jointly responsible for the interfacial tension changes.

Sand-pack core flood tests

The core flood test results are given in Table 1.
Table 1

Oil displacement test of surfactant, polymer and binary system

No.

Length

Diameter

Core permeability (mD)

Porosity (%)

Crude oil saturation (%)

Recovery of water flooding (%)

Additional recovery (%)

Total recovery (%)

1

30

1.95

932

30.28

63.78

46.32

10.38

56.70

2

30

1.95

906

31.45

64.72

45.93

3.79

49.42

3

30

1.95

943

32.59

63.25

45.18

16.89

62.07

According to Table 1, 16.89 % additional oil is produced by injecting 0.3 pore volume of the surfactant-polymer solution, making the total recovery rate reach 62.07 %. However, under the same experimental conditions, only 10.38 % of the additional oil can be recovered by polymer flooding and 3.79 % for the surfactant flooding. It appears to be a synergistic effect between the surfactant and the polymer combination flooding, resulting in a higher oil recovery than the sum of the single polymer and surfactant flooding. This showed the effectiveness of the surfactant-polymer formulation in terms of enhancing oil recovery.

Conclusions

Didodecylmethyl hydroxyl sulfobetaine was synthesized by reacting didodecylmethyl amine with sodium 2-hydroxy-3-chloro propanesulfate. Its structure was confirmed by IR and ESI–MS spectra. The didodecylmethyl hydroxyl sulfobetaine could reduce the interfacial tension between Dagang oil and the formation water to ultra-low values in the presence of 1,500 mg/L of polymer or absence of the polymer. When in the presence of polymer, the surfactant-polymer system could reduce that the interfacial tension to ultra-low values even was aged more than 14 days. Core flood tests indicated that 16.89 % additional oil was recovered by surfactant-polymer flooding with the surfactants and polymer solutions without using alkali.
