Utilization of MSW-Derived Char for Catalytic Reforming of Tars and Light Hydrocarbons in the Primary Syngas Produced During Wood Chips and MSW-RDF Air Gasification

  • Gnouyaro Palla Assima
  • Antonin Paquet
  • Jean-Michel LavoieEmail author
Original Paper

Abstract

The present work aimed at optimising the design and operation of char utilization as a low cost catalyst for tars reforming. The effect of temperature, tars composition, light hydrocarbons composition, steam content and type of reformer on the conversion of tars and light hydrocarbons into additional syngas using sorted municipal solid waste (MSW)—derived char was systematically monitored. Reforming tests were carried out using industrial primary syngas produced by air gasification of wood chips and MSW-RDF in a commercial fluidized bed gasifier. Up to 85% of tars present in the primary syngas have been converted to permanent gases at 871 °C, while passing through the catalytic fixed bed of char, for 1.4 s, at atmospheric pressure and syngas space velocities in the 3500–4000/h relative to the char in the bed (0.82 NL/g h). Content of multi-ring aromatics decreased following the passage of the syngas through the char bed leaving naphthalene and xylene as the predominant residuals. Propane, propylene and ethylene were completely converted. Up to 30% methane conversion was reached at 925 °C while ethane conversion was only occurring under high steam content of 65 vol%.

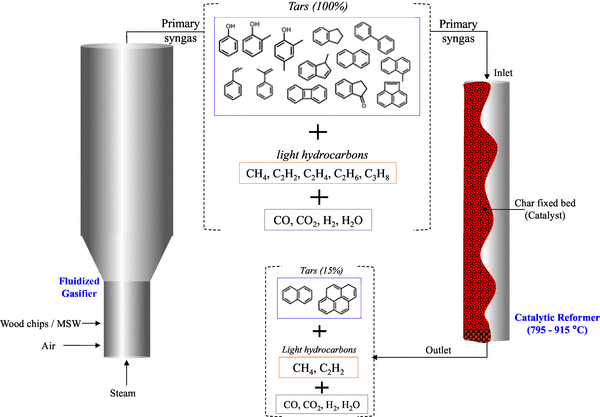

Graphical Abstract

Keywords

Tars Catalytic reforming Char Syngas Gasification Light hydrocarbons
