Food and Environmental Virology

, Volume 9, Issue 2, pp 123–141 | Cite as

Critical Review on the Public Health Impact of Norovirus Contamination in Shellfish and the Environment: A UK Perspective

  • Francis Hassard
  • Jasmine H. Sharp
  • Helen Taft
  • Lewis LeVay
  • John P. Harris
  • James E. McDonald
  • Karen Tuson
  • James Wilson
  • David L. Jones
  • Shelagh K. Malham
Open Access
Review Paper

Abstract

We review the risk of norovirus (NoV) infection to the human population from consumption of contaminated shellfish. From a UK perspective, risk is apportioned for different vectors of NoV infection within the population. NoV spreads mainly by person-to-person contact or via unsanitary food handling. NoV also enters the coastal zone via wastewater discharges resulting in contamination of shellfish waters. Typically, NoV persists in the marine environment for several days, with its presence strongly linked to human population density, wastewater discharge rate, and efficacy of wastewater treatment. Shellfish bioaccumulate NoV and current post-harvest depuration is inefficient in its removal. While NoV can be inactivated by cooking (e.g. mussels), consumption of contaminated raw shellfish (e.g. oysters) represents a risk to human health. Consumption of contaminated food accounts for 3–11% of NoV cases in the UK (~74,000 cases/year), of which 16% are attributable to oyster consumption (11,800 cases/year). However, environmental and human factors influencing NoV infectivity remain poorly understood. Lack of standard methods for accurate quantification of infective and non-infective (damaged) NoV particles represent a major barrier, hampering identification of an appropriate lower NoV contamination limit for shellfish. Future management strategies may include shellfish quality assessment (at point of harvest or at point of supply) or harvesting controls. However, poor understanding of NoV inactivation in shellfish and the environment currently limits accurate apportionment and risk assessment for NoV and hence the identification of appropriate shellfish or environmental quality standards.

Keywords

Aquaculture Food safety Norovirus Norwalk Oyster Shellfish

Introduction

Human NoV is a highly infectious gastrointestinal infection with an incubation period of 10–50 h (ACMSF 2014). NoV illness is characterised by nausea, vomiting and/or watery non-bloody diarrhoea, abdominal or general muscle pain, headache, and chills or fever (Glass et al. 2009; HPA 2004) and can result in dehydration, particularly in locations with poor drinking water quality (Mattner et al. 2006). NoV infection is typically self-limiting (12–48 h) usually without the requirement for medical treatment for recovery (FSA 2015; HPA 2004). Vulnerable people such as the elderly, immunocompromised or the very young can require additional care (Harris et al. 2008). Outbreaks of NoV frequently occur in high-density settings such as care homes, hospitals, and cruise ships; however, outbreaks in restaurants, hotels, holiday camps and through consumption of contaminated drinking water are also commonplace (Heijne et al. 2009; Werber et al. 2009).

The majority of transmission events occur through person-to-person contact, via contact with contaminated surfaces or environments, while other vehicles of infection such as food or water have also been identified (Mathijs et al. 2012; Matthews et al. 2012). NoV typically spreads through contact with or ingestion of faeces or vomit from carriers or infected individuals (HPA 2004). The proportion of NoV derived from different routes is poorly defined due to high levels of uncertainty surrounding epidemiological estimates resulting from a high underreporting ratio of infection and difficulties identifying the vehicle of infection (ACMSF 2014; Tam et al. 2014).

Access to sustainable sources of protein has become one of the major challenges of modern society. In this context, the cultivation of bivalve shellfish offers one potential solution while simultaneously promoting environmental and economic sustainability in coastal regions (Dumbauld et al. 2009). In 2010, the global shellfish aquaculture industry had a value of €1.1 billion (STECF 2013) and was worth ~€15.2 million to the UK (Seafish Guide to Aquaculture 2013). The contamination of bivalve shellfish with enteric pathogens such as human norovirus (NoV) in the harvesting area, however, is recognised as a hazard to human health and the continued growth of sustainable aquaculture practices (Lees 2010; Lowther et al. 2010a, 2012a). Current risk assessment and food hygiene regulation rely on bacterial indicators of faecal pollution (e.g. Escherichia coli and intestinal enterococcus) in shellfish (EC 2004, 2008). However, bacterial indicators often do not adequately represent the risk from enteric human viral pathogens, such as norovirus (NoV) (Ang 1998; Baert et al. 2011). Despite recent advances in methodologies for the cultivation of human NoV (Robinson and Pfeiffer 2014; Jones et al. 2015), at present NoV currently cannot be reliably cultivated for the routine analysis of foodstuffs or environmental samples. Viral pathogen detection in shellfish is based on molecular diagnostics such as reverse transcription qPCR (RT-qPCR). A standard method for quantification of viral pathogens from foodstuffs (ISO/TS 15216-1:2013; ISO/TS 15216-2:2013) has improved comparative viral quantification between laboratories (Anonymous 2013a, b).

In this critical review, we examine contributions of different sources of contamination of NoV to the environment and examine proposed methods to monitor and regulate these sources. We examine the role that shellfish play as a primary vector of NoV, and apportion their contribution to secondary and tertiary infections, using the UK as an example. We examine the methods for assessing viral titre and discuss the application of viral standards on shellfish aquaculture, as well as a range of options for changes to regulatory controls and production area management that may help mitigate human health risk from viral pathogens in shellfish.

NoV Abundance and Distribution in Estuarine and Coastal Waters

Point Source NoV Discharges into the Environment

Shellfisheries are at risk of NoV through contamination with human faecal matter which arises from effluents of wastewater treatment works (WWTWs), storm overflows (SOs), combined sewage overflows (CSOs), septic tanks or boats (Haramoto et al. 2005; Mathijs et al. 2012; EURL 2014b). Intermittent discharges offer a greater risk in areas with high average rainfall/runoff or subject to flashy storm events (Riou et al. 2007). Viral particles can persist in the marine environment and be transported (>10 km) representing a possible risk to shellfish production areas (Flannery et al. 2013; Winterbourn et al. 2016). WTWWs are currently not designed to be effective at removing viruses such as NoV. Typically, tertiary treatments (i.e. UV or membrane filtration) have been shown not to reduce NoV surrogates to a non-infectious level (Palfrey et al. 2011). Similarly, infrequent outbreaks linked to recreational bathing waters have been recorded (Maunula et al. 2004). In open coastal environments, NoV concentrations are expected to be lower compared to rivers and estuaries (Wyn-Jones et al. 2011). In the UK, the highest number of wastewater discharges tends to be located in areas of greatest population (Fig. 1). Shellfish beds are located in areas of both high continuous and intermittent wastewater discharges (Fig. 1).

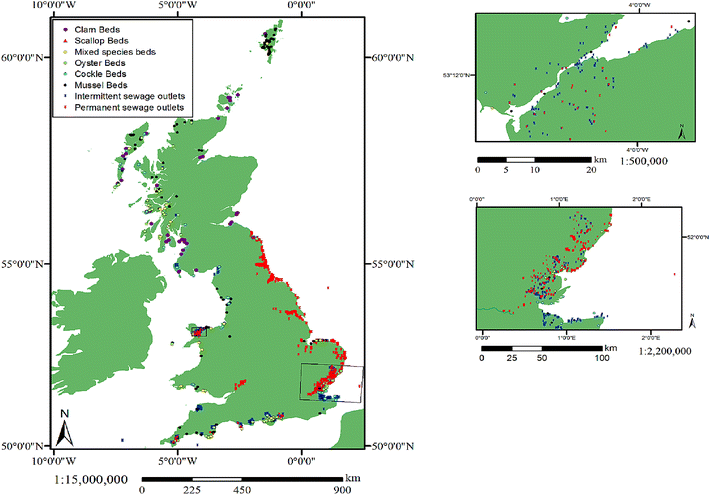

Fig. 1

Shellfish areas and sewage outflow distribution in UK waters. Insert top—Northwest Wales coast; inset bottom—Southeast England

data adapted from sanitary survey data (Kershaw et al. 2012)

The principal NoV contamination risk comes from WWTWs with a continuous discharge and serving >80,000 population equivalents (PE; DEFRA 2015). In 2014, there were 336 WWTWs in the UK and 5417 WWTWs in Europe with a consented flow >80,000 PE (designated at peak flow conditions). Of the UK works, <30 sites have continuous discharges of >80,000 populations equivalents in oyster harvesting zones mainly in the Southeast of England (DEFRA 2015; Fig. 1). However, the impact of the different sewage treatment processes employed across the WWTWs (CSOs and SOs) on viral loading remains uncertain (Pommepuy et al. 2009). The highest probability of contamination arises from untreated or primary-treated sewage—primary treatment typically results in ~2 log10 reduction in viral loading (Palfrey et al. 2011). The efficacy of secondary WWTW at reducing NoV loading varies considerably between treatment types (Campos and Lees 2014). Tertiary waste treatment can be applied to improve the microbiological quality of discharge; however, the efficacy at reducing viral loading to non-infectious levels requires further research (Flannery et al. 2013; Palfrey et al. 2011). Also, given the significant costs of such upgrades and current absence of regulatory controls on viruses in wastewater discharges, investment in tertiary treatment may be considered unjustifiable unless significant human health risk or benefit can be demonstrated. Membrane bioreactors (MBRs) have reported a 1.84–5 log10 reduction in viral titre (Armon et al. 2007; Doré et al. 2013). Modelling suggested that UV treatment results in a ~2 log10 reduction (Aquatic Water Services Ltd. 2014). The reliability of UV disinfection is dependent on the efficiency of upstream processes and applying a suitable wavelength and dose, for a sufficient period of time (Campos and Lees 2014). Although current technology cannot discern the infectivity of viruses (Lees 2010), storing wastewater for 4 weeks at ambient temperature may reduce infectious viruses implying that these treatments could reduce NoV viability (Tian et al. 2012), though this is unlikely to be practical. Small private septic tanks also represent a risk directly into shellfish waters, with approximately 4% of the UK population served by off-grid treatment facilities (DEFRA 2012b) that discharge onto land or tributaries and are considered diffuse pollution at the catchment scale (DEFRA 2015).

Diffuse NoV Discharges into the Environment

Norovirus contamination from shipping and recreational boating represents a limited, seasonal NoV contamination risk (Kershaw et al. 2012; ACMSF 2014). Overboard discharges from small boats are currently unregulated in the UK (ACMSF 2014; Campos and Lees 2014), although regulations are in place preventing large vessels (>400 Gt, or <400 Gt which are certified to carry more than 15 persons) from direct discharge of untreated effluents (Kershaw et al. 2012). In urban areas, sewer misconnections are an additional concern where foul pipes from toilets can be connected to surface water outfalls or streams instead of the sewer. The most frequent domestic misconnections are ‘grey water’ types such as washing machines, sinks, and dishwashers accounting for ~80% of the misconnections in UK catchments (Ellis and Butler 2015).

The use of sludge solids (from the sewage treatment process), as applied to land may pose a potential risk of spreading NoV (DEFRA 2012). However, the application of untreated sewage sludge to all food and non-food crops has been restricted in the UK since 2005 (ADAS 2001) reducing to a minimum the viral contamination of shellfish waters from the application of sewage sludge to land. In addition, 75% of the sludge destined for land is treated by anaerobic digestion, potentially reducing viral titres by ~99% (DEFRA 2012). In contrast, other methods such as heat, lime treatment or solar drying treatments are thought to result in complete pathogen deactivation (ACMSF 2014; ADAS 2001).

Sources of NoV Affecting Shellfisheries

Typically, shellfish harvesting and production areas are found within estuaries and coastal zones (HPA 2004), which have variable freshwater input from rivers and point source discharges, which impacts upon the distribution and persistence of NoV (Table 1). Previous research efforts have largely focused on detecting the presence/absence of NoV, while a limited number of studies have also quantified the concentration/loading, persistence over time or distribution of NoV in aquatic environments (Table 1). Based on the data available, detection of NoV in marine water samples was variable between sites and genogroups. In studies undertaken in Brazil and China, NoV genogroup I (GI) accounted for 0–67% (where detected) of the total NoV detected, while in contrast NoV genogroup II (GII) accounted for 8–100% (where detected) (Marques Souza et al. 2012; Victoria et al. 2010a; Yang et al. 2012). Wyn-Jones et al. (2011) detected NoV in 16.4% of marine water samples (GI + GII; 79/482 samples), with GI detected in 7.9% (38/482) of samples and GII detected in 8.5% (41/482) of samples in Europe (Table 1). The minimum reported viral concentration for GI was 2.6 ± 1.7 log10 gc l−1, and for GII, 2.7 ± 1.8 log10 gc l−1 (detected in Hong Kong), although these values are subject to variability due to spatial and seasonal outbreaks (Yang et al. 2012). Maximum reported concentrations were 5.5 log10 gc l−1 for GI and 6.1 log10 gc l−1 for GII in Brazil (Marques Souza et al. 2012; Moresco et al. 2012).
Table 1

Prevalence and concentration of norovirus in marine, estuarine, and riverine waters

Environment

Location

Prevalence % (samples)

Concentration (log10 gc l−1)

Reference



GI

GII

GI

GII



Marine

Brazil

0% (0/4)

25.0% (1/4)

6.1

Marques Souza et al. (2012)



Brazil

7.5% (10/132)

4.5% (6/132)

4.3–5.5

Moresco et al. (2012)



Brazil

8.3% (1/12) to 16.7% (2/12)

8.3% (1/12)

Victoria et al. (2010a, b)



China

66.7% (4/6)

100% (6/6)

2.6 ± 1.7 to 3.6 ± 2.1

2.7 ± 1.8 to 3.6 ± 2.6

Yang et al. (2012)



Europe

7.9% (38/482)

8.5% (41/482)

Wyn-Jones et al. (2011)



Italy

30.0%b

Wyn-Jones et al. (2011)



Italy

16.3%b

Wyn-Jones et al. (2011)

Estuarine

Brazil

8.3% (1/12)

0% (0/12)

Victoria et al. (2010a, b)



France

7.0% (5/70)

24.0% (17/70)

3.4 (2.1–3.7)

4.3 (2.6–5.0)

Zakhour et al. (2010)



Mexico

Hernandez-Morga et al. (2009)



N. Zealand

60.0% (9/15)

100% (15/15)

1.7 (1.7–1.8)

2.9 (2.4–3.4)

Hewitt et al. (2013)

Riverine

Brazil

41.7% (5/12)

8.3% (1/12)

Victoria et al. (2010a, b)



Europe

Wyn-Jones et al. (2011)



Japan

47.0% (28/60)

30.0% (18/60)

Kitajima et al. (2010)



Japan

Ueki et al. (2005)



N. Zealand

37.1% (13/35) to 95.2% (20/21)

37.1% (13/35) to 95.2% (20/21)

1.7 (1.7–1.7)

2.0 (1.7–2.4)

Hewitt et al. (2013)



S. Africa

12.5% (3/24) to 23.8% (5/21)

4.8% (1/21) to 23.5% (25/106)

2.9 (1.7–3.3)

2.6 (2.0–2.9)

Mans et al. (2013)



S. Korea

20.0% (5/25)

56.0% (14/25)

Park et al. (2011)



Netherlands

15.0%b

Wyn-Jones et al. (2011)



UK

10.0%b

Wyn-Jones et al. (2011)

aLog10 genome copies or viral particles per litre of water

bNumber of samples not stated

In estuarine sites, NoV GI is frequently detected (7–60% of sites sampled in New Zealand; Hewitt et al. 2013), while detection of GII appears more variable with detection levels ranging from 0 to 100% (Victoria et al. 2010a; Hewitt et al. 2013). However, in some estuarine environments, NoV GII abundance was greater than GI, with minimum values of 1.7 log10 gc l−1 for GI, and 2.4 log10 gc l−1 for GII (Hewitt et al. 2013). The greatest reported NoV abundance was 3.7 log10 and 5.0 log10 gc l−1 for GI and GII, respectively, in France (Zakhour et al. 2010). In river samples, GI had a higher abundance than GII (Table 1). Overall detection of NoV in European rivers was 6.3%, based on 928 samples (Wyn-Jones et al. 2011). The concentration of NoV was similar for the two genogroups (difference ~0.3 log10 gc l−1); however, an agricultural catchment had lower NoV (difference ~0.9 log10 en l−1) than an urban-dominated catchment suggesting different loadings or persistence between these environments.

NoV Persistence in Water

Enteric viruses, including NoV, typically persist for several days in water; one study has suggested that 4–6 days be used for risk assessment purposes based on the time taken to achieve a 90% reduction in NoV genome copies (T90) (Aquatic Water Services Ltd. 2014). However, environmental persistence of up to 30 days has also been reported (Pommepuy et al. 2004). For comparison, faecal indicator bacteria (FIB) persist for typically between 0.3 and 6.6 days in the day and night, respectively, based on established decay rates (Whitehead et al. 2016).

Factors such as elevated temperatures and exposure to UV radiation tend to have a negative effect on both FIB survival and viral persistence in the water column (Aquatic Water Services Ltd. 2014). Effective in vitro NoV cultivation has only recently been demonstrated by Ettayebi et al. (2016). Therefore, studies on factors which govern environmental persistence and/or abrogation of infectivity have not been undertaken. Typically, monitoring programmes are based on detection of NoV genome copies only. The seasonality associated with NoV detection in water can be linked to infection rate within the population, lower solar irradiation and temperature (Lopman et al. 2009), and higher water turbidity (Lowther et al. 2012a). In the northern hemisphere, NoV is therefore most prevalent in estuarine and riverine waters between October and April (Haramoto et al. 2005; Kitajima et al. 2010; Mans et al. 2013; Moresco et al. 2012). NoV prevalence is also positively correlated with sites close to inputs of human faecal matter (Ueki et al. 2005; Victoria et al. 2010b; Wyn-Jones et al. 2011) with a subsequent reduction due to dilution with increasing distance from the source (Kitajima et al. 2010). However, NoV has been observed up to 10 km from wastewater discharge points, indicating high survival rates of NoV, persistence in the environment and widespread contamination of the coastal zone (Aquatic Water Services Ltd. 2014; Winterbourn et al. 2016).

Epidemiology of NoV in the UK

NoV is the commonest cause of infectious intestinal disease (IID) in the UK, with an estimated three million cases each year based on sporadic (non-outbreak) infections (FSA 2000; Phillips et al. 2010) and secondary infections (Tam et al. 2012a, b, c; Tam et al. 2014). Given the nature of the illness and public health advice, persons infected with NoV seldom contact medical services, resulting in low reporting rates. It is estimated that only one case of NoV is reported to national surveillance for every 288 cases (largely outbreak-related cases) in the community (Tam et al. 2012c). Outbreak-related (non-sporadic) cases may account for a further 10,000 to 16,000 cases annually, with 15,529 laboratory-confirmed cases in 2010 and 9,382 in 2013, respectively (FSA 2014).

The estimated total number of cases in the UK is 2.65 million per annum (outbreak cases in 2013 × underreporting ratio). However, this number should be treated with caution due to coinfections with other pathogens and the transmission by asymptomatic carriers (Phillips et al. 2009; 2010), or inefficient data submitted to the UK national surveillance could result in an over-estimate of the influence of NoV on IID (Tam et al. 2012b, c). Typically, public perception is that transmission of IID’s is due to consumption of contaminated seafood. This is discussed in relation to the epidemiology of the disease.

Person-to-Person Transmission

Within Europe, typically, 74 to 85% of reported NoV outbreaks are caused by direct spread between humans (Mathijs et al. 2012), while a study in the Netherlands estimated 55% (42% to 88%) of all NoV cases occurred by this route (Havelaar et al. 2008). In comparison, 85% of outbreaks in England and Wales originated from person-to-person transmission (Lopman et al. 2003). Person-to-person transmission is common in enclosed settings where isolation of infected individuals is challenging. Food can be an important vector for initial disease introduction (HPA 2004; HPA 2007). In the UK, 79% of reported outbreaks took place in health care institutions, while 43 deaths, during 38 outbreaks, occurred in hospitals and residential care facilities (Lopman et al. 2003).

Water-borne Transmission

Water-borne transmission is less common than NoV infections associated with food consumption, and most commonly occurs via ingestion of contaminated drinking water or recreational/bathing water (Baert et al. 2009; Werber et al. 2009). Overall, water-borne transmission of NoV represents a minor route of infection in the UK. Treatment of water intended for consumption in the UK is considered to be effective at eliminating the risk of NoV infection (Gormley et al. 2011).

Food-Associated NoV Infection

Estimates of food-associated transmission burden vary widely, from 11% to 25% at the global scale (Table 2), and from 2.7% to 11% in the UK (estimated at ~ 74,000 cases per year) (Adak et al. 2002; Tam et al. 2014). Comparing food-borne transmission data between countries is challenging due to different food consumption behaviour, transmission pathways, data collection, and reporting methods (ACMSF 2014). Annual community cases of 69,628 in 1995, and 61,584 each year between 1996 and 2000 have been reported previously (Adak et al. 2002, 2005). The proportion of food-borne cases, therefore, is low compared with non-food-borne infections. Despite the number of NoV cases, < 1% of food-associated NoV infected individuals are hospitalised (Tam et al. 2014) which represents a burden of ~ 400 cases per year (Table 3).
Table 2

Estimated food-associated norovirus transmission rates, by country

Country

Proportion of infections that are food-associated (%)

Reference

Australia

25

Hall et al. (2005)

France

14

Vaillant et al. (2005)

The Netherlands

17

Havelaar et al. (2008)

UK

11

Adak et al. (2002)

USA

25

Scallan et al. (2011)

Adapted from: ACMSF (2014)

Table 3

Estimated community cases, GP consultations, and hospital admissions related to food-associated norovirus transmission in the UK using different approaches (2009)

Modelling approach

Community cases

GP consultations

Hospital admissions

Cases (95% CI)

Cases (95% CI)

Cases (95% CI)

Monte Carlo

73,420

3240

470

(50,320–104,000)

(1985–5162)

(270–779)

Bayesian

74,100

3276

332

(61,150–89,660)

(2240–4729)

(248–440)

Adapted from: Tam et al. (2014)

Scale of Human Health Risk in Respect to NoV from Shellfish

The bioaccumulation and persistence of NoV in shellfish is influenced by viral concentration in the surrounding environment, shellfish metabolic activity and the effects of any post-harvest treatments applied to the shellfish (Campos and Lees 2014). Oyster tissues can bioaccumulate coliphage to levels ~ 100 times higher than in the surrounding waters (Burkhardt and Calci 2000; Drouaz et al. 2015) suggesting that under optimal conditions, NoV can rapidly bioaccumulate (Baker et al. 2010). Further, NoV can remain in shellfish tissues for ≤ four weeks after a pollution event (Campos and Lees 2014), even after the pathogen is no longer present in the surrounding environment (≤ 12 days, Asahina et al. 2009). This finding has implications for the success of post-harvest purification treatments which have been optimised for bacterial depuration.

The majority harvested shellfish in the UK are sold for human consumption after cooking which can reduce NoV surrogates in shellfish to non-infectious levels (e.g. 90 °C for 3 min, Flannery et al. 2014). NoV infections, where shellfish are the implicated vector, are commonly associated with the consumption of raw or undercooked bivalve shellfish. Raw shellfish are implicated in over half (58.4%) of viral disease outbreaks from shellfish consumption worldwide (Alfano-Sobsey et al. 2012; Bellou et al. 2013). In the UK, native oysters (Ostrea edulis) and Pacific oysters (Crassostrea gigas) are sold for consumption raw, and as such pose an increased NoV risk to consumers compared to cooked shellfish (Lees 2010). An investigation into a peak in northern European NoV outbreaks in 2010 associated with oyster consumption implicated UK oysters (Westrell et al. 2010), suggesting that oyster consumption is important for NoV risk characterisation.

NoV Abundance, Distribution, and Persistence in Shellfish

In a UK study of 39 oyster production areas, NoV was detected in 76.2% of shellfish samples tested. Of these, GI was detected at 20.9% of sites, GII detected at 7.7% of sites and GI and GII both detected at 47.6% of the sites (Lowther et al. 2012a; FSA 2011; CEFAS 2011a, b; CEFAS 2014). The concentration of NoV varied widely, with maxima of 16,507 gc g−1 for GI and 18,024 gc g−1 for GII. High concentrations were relatively infrequent, with most samples containing detectable NoV levels below the limit of quantification (LOQ) of 100 gc g−1 (Lowther et al. 2012a). NoV shows a marked seasonal pattern, with maximum contamination levels observed in the winter months, and minimum levels in summer (FSA 2011; Keaveney et al. 2009; Woods and Burkhardt III 2010). CEFAS (2011b) suggests that NoV is negatively linked to temperature as contamination from oysters is derived from contaminated human faecal matter, which principally occurs due to NoV outbreaks in winter months (Lopman et al. 2009). Detection rates for oysters were 90% in winter (October to March), compared with 62% in summer (April to September), with extremes observed near the end of these periods. Maximum detection occurred in February 2010 (100%), and minimum detection (46%) was measured in September 2010.

Burden of Shellfish-Associated NoV Infection

Fish and shellfish represent 29% of NoV infections where food is a vehicle of infection in the UK (Table 4). The uncertainty regarding infection rates (as discussed above) is also important for shellfish. A comparison of 58 studies found that 8 NoV outbreaks (14%) were attributed to pre-harvest contamination of oysters, and a further 3 outbreaks (5%) to pre-harvest contamination of mussels and clams (Mathijs et al. 2012). In the UK, 16% of food-borne outbreaks were attributed to pre-harvest contamination of oysters from outbreak data between 1992 and 2000 (ACMSF 2014). In England, 289 outbreaks were reported to Public Health England (PHE) between 1992 and 2014, where seafood was recorded as a possible vehicle of infection (Table 5). Specifically, 120 of these outbreaks linked oysters as a vehicle of infection, affecting 1946 people. This is an average of 85 people (median 42) a year during this period and equates to ~ 16 people for each outbreak. In the UK, the potential number of community cases infected by consumption of contaminated shellfish was estimated at between 14,593 and 30,160 cases per year, with some of these cases leading to ongoing transmission (calculated from Table 3 and Table 4).
Table 4

Estimated fraction of norovirus transmitted via different food categories

Food category

Proportion of food-borne norovirus (%)

UKa

Netherlandsb

Canadac

USAd

Fish and shellfish

29

34.7

35.7

35.6

Poultry

16

6.5

2.2

1.6

Composite and ‘other’ foods

16

10.9

7.9

0.2

Fruit and vegetables (produce)

12

15.2

31.5

39

Pork

11

6.5

2.3

1.5

Eggs

7

4.3

0.9

1.1

Grains and beans

7

10.8

4.3

6.1

Unspecified red meat and game

1

0.2

9.9

10.4

Beef and lamb

0.5

6.5

2.7

1.5

Dairy products

0.5

4.3

2.5

3

Adapted from: ACMSF (2014)

aTam et al. (2014)

bHavelaar et al. (2008)

cDavidson et al. (2011)

dHoffman et al. (2007)

Table 5

Number of outbreaks reported to public health England associated with the consumption of shellfish and crustacean between 1992 and 2014 (PHE 2015)

Year

Outbreaks

Number of individuals affected



Seafood

Shellfish/crustacea

Oysters

Number affected (crustacea/shellfish)

Number affected (oysters)

1992

17

14

10

324

183

1993

14

10

5

203

74

1994

20

11

7

125

104

1995

26

15

7

869

76

1996

21

8

5

254

81

1997

30

14

10

182

100

1998

11

6

3

156

42

1999

14

4

2

53

27

2000

11

7

5

164

32

2001

9

5

3

46

21

2002

2

1

1

7

7

2003

2

2

1

7

3

2004

7

5

3

108

37

2005

15

9

8

126

92

2006

12

11

9

186

44

2007

5

2

2

12

12

2008

6

5

4

26

24

2009

16

11

11

732

732

2010

15

13

11

132

101

2011

9

7

4

59

32

2012

6

4

1

30

13

2013

13

13

5

329

91

2014

8

6

3

166

18

Total

289

183

120

4296

1946

Most of the outbreaks reported to PHE did not have confirmation of NoV as the causative agent, due to a historical lack of diagnostic tools for NoV (Fig. 2). Outbreaks where people visit restaurants and are not known to one another and subsequently fall ill are rarely visible to the authorities, unless large numbers of people report illness (Lowther et al. 2010b). A recent study found that secondary infections occurred in 20% of individuals who did not consume shellfish from a restaurant outbreak (attributed to shellfish) highlighting the role of person-to-person transmission in shellfish cases (Alfano-Sobsey et al. 2012). The numbers of people affected by gastrointestinal oyster implicated outbreaks is generally < 5 people in non-winter months (March–November), and between 16 and 28 persons in winter months (December–February) (Fig. 3). However, attributing oysters as the vehicle of infection to an outbreak is challenging due to other possible vehicles of infection such as surfaces or person-to-person contact (Hall 2012; Repp and Keene 2012).

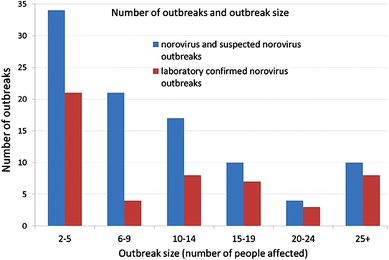

Fig. 2

Outbreak size for confirmed and suspected norovirus outbreaks associated with oysters between 1992 and 2014 (PHE 2015)

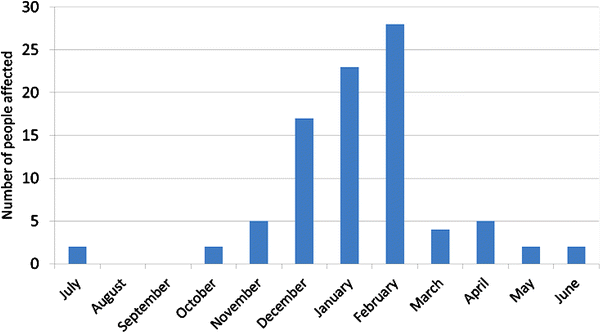

Fig. 3

Number of people affected by gastrointestinal infection outbreaks reported where oysters are the implicated food product, by month of outbreak, between 1992 and 2014 (PHE 2015)

It is widely recognised that the burden of infectious disease is likely to increase in response to a range of factors including climate change, population growth, changes in diet and water supply, and the emergence of more virulent pathogens (Semenza and Menne 2009). It is predicted that flooding may increase with climate change and result in greater discharge of untreated human-derived wastewater into the coastal zone, although the impact on shellfish production requires further attention. A recent modelling study predicted that a doubling of NoV cases associated with food from 2.5% to 5% (of total cases) could increase the overall disease burden by up to 33%, due to the non-linear nature of ongoing transmission (Lane 2014). In addition, a reduction of fish and shellfish infections (33% of food mediated infections) would result in a 16% drop in total NoV infections suggesting efforts to reduce this vector would be useful. Therefore, based on these data preventing person-to-person spread would have the greatest impact on reducing NoV infections and reduce the overall burden of the disease. Consequently, the risk of contracting an IID after shellfish consumption was estimated at 646 cases per 1 million servings (0.00065%), the highest of all food groups. Due to their high viral load and raw consumption, oysters were specifically identified as posing a greater risk factor for NoV infection in adults (Phillips et al. 2010). Tam et al. (2012a, b, c) reported that in ~ 50% of all IID community cases, individuals took sickness leave due to their symptoms. Assuming an average loss of two days per symptomatic individual, this represents a total of between 14,593 and 30,160 days per year for shellfish-borne NoV infections (Table 6). This is likely to be an underestimate, due to underreporting and as food industry and hospital employees require longer before returning to work. Details of mortality due to NoV specifically from shellfish have not been categorically reported in the literature.
Table 6

Estimated community cases, GP consultations, and hospital admissions related to shellfish-borne norovirus transmission in the UK (2009)

Modelling approach

Community cases

GP consultations

Hospital admissions



Cases (95% CI)

Cases (95% CI)

Cases (95% CI)

Monte Carlo

21,292

(14,593–30,160)

940

(576–1497)

136

(78–226)

Bayesian

21,489

(17,734–26,001)

950

(650–1371)

96

(72–128)

Calculated from: ACMSF (2014) and Tam et al. (2014)

Assumes a shellfish-borne rate equivalent to the rate of seafood-borne infection

Numerous outbreaks have been reported from fresh and preserved shellfish (Alfano-Sobsey et al. 2012; Webby et al. 2007). For example, Hewitt and Greening (2004) found that the standard pickling procedure did not reduce the viral gene copies (gc) for NoV or hepatitis A virus. However, a 1.7 log10 reduction in the hepatitis A virus infectivity in tissue culture infections was noted due to pickling. High hydrostatic pressure treatments have been suggested to reduce the infective load of NoV. Leon et al. (2011) found that 600 MPa completely inactivated spiked human NoV in oysters and did not cause infection in human volunteers. However, shellfish treated in this way are not sold live and have a lower economic value (Ye et al. 2014). Flannery et al. (2014) found that cooking time was critical for the reduction in infectious FRNA bacteriophage (as a surrogate for infectious NoV) in mussels. Freezing shellfish has been shown to be insufficient at reducing viral load and has been implicated in a number of outbreaks, e.g. frozen oysters have been implicated in 83 individual cases of gastrointestinal illness (Webby et al. 2007).

Detection and Quantification of NoV

Despite significant efforts, NoV cannot be reliably cultured in vitro (Jones et al. 2015). Historically, NoV antigens have been detected using enzyme immunoassay (Farkas et al. 2006), although these techniques require strain-specific antibodies which cannot detect low concentrations of NoV present in shellfish (Schultz and Myrmel 2013). The development of RT-qPCR methods has allowed the reliable detection and quantification of NoV in food. However, shellfish represent a challenging matrix for reliable RT-qPCR quantification. Recently, a standard method for the detection and quantification of NoV in shellfish by RT-qPCR has been developed and utilised by the European Committee for Standards (Lees 2010) and was found to be reproducible in a European laboratory ring trial (CEFAS 2011a, b). Therefore, this method is suitable for detection and quantification of NoV for use in the application of viral hygiene standards (EFSA 2012). However, RT-qPCR has a number of drawbacks for quantification of NoV in shellfish which are discussed below.

Limitations of Current Detection Approaches

Quantification of NoV RNA genome copies in a sample highlights the presence and concentration of NoV, providing evidence of the potential for disease. However, the detection of NoV genomes in a sample does not provide information on the infectivity of the viral particles from which they originate, and it is therefore difficult to assess the actual human health risk. Conventional RT-qPCR for NoV is limited by the reproducibility of virus or nucleic acid extraction, the presence of reverse transcription and PCR inhibitors in the matrix, and the high genetic variability of NoV (Le Guyader et al. 2006). A comparison of extraction methods showed that proteinase K digestion followed by NucliSENS miniMag extraction was the most efficient method for NoV recovery (Uhrbrand et al. 2010). However, an average recovery of 1% and 2% from mussels and oysters, respectively, was achieved. Therefore, the corrected (to account for extraction efficacy) NoV values would be of a greater titre than uncorrected values, with important considerations for risk assessment and proposed shellfish standards (Petterson et al. 2015).

Approaches to Assess NoV Infectivity/Viability

NoV nucleic acid associated with inactivated viruses can still remain detectable by PCR after the virus is no longer infective. For cultivable examples (e.g. Hepatitis A virus), virus particle concentrations (genome copies) were 10- to 1000-fold higher than the plaque-forming unit (infective particles) concentrations of the same sample (Li et al. 2011). Consequently, discriminating infectious from non-infectious NoV represents a critical research gap where progress is necessary to apportion the human health risk of shellfish (Knight et al. 2012). Several alternative approaches for assessing NoV infectivity are currently being investigated and include those based on examining the integrity of the virus genome, those examining capsid and/or binding site integrity (Knight et al. 2012) and those based on viral culture on susceptible cell lines. The ability to culture NoV from environmental samples requires substantial research effort and although NoV infection in vitro human cell lines has been achieved, further optimisation is needed to enhance the efficiency of the method (Jones et al. 2015; Ettayebi et al. 2016). Specifically, it should be noted that while these newly developed cell line assays work well with pure viral cultures, inoculation with environmentally derived NoV poses problems from other contaminants present in the sample. A review on candidate methods to assess infectivity of viruses is provided by Knight et al. (2012).

Regulating NoV in Shellfish Waters and Shellfish: Current Practice and Future Options

Shellfish Quality Assessment

Bacterial contamination of harvested shellfish is regulated under EC Food Hygiene Regulations (e.g. Regulations 854/2004 and 1021/2008), under which standards of compliance based on FIBs determine if shellfish can be harvested. Shellfish hygiene regulations currently do not include virus contamination. However, viruses such as NoV and Hepatitis A (HAV) have been detected in shellfish (Polo et al. 2015), which were implicated in NoV and HAV outbreaks (Loury et al. 2015). To ensure protection of shellfish waters, the introduction of virus testing methods or viral standards has been proposed to improve viral hygiene with respect to shellfish production, and is discussed below (EURL 2014a).

Legal Obligations Relating to NoV in Shellfish Waters

The obligations of UK water companies relating to potential impacts on shellfisheries are regulated based on legislation derived from EU directives. Wastewater effluents are regulated via a set of standards which limit pollutant concentration in the discharge (i.e. treatment of influent and an assessment that the receiving water body has the capacity to disperse the polluted effluent, without significant impact or deterioration) (DCWW 2015). Shellfish waters are regulated within the Water Framework Directive 2000/60/EC (WFD) (EC 2000). The WFD requires that there is no deterioration in water quality in coastal and brackish waters supporting shellfish (bivalves and gastropod molluscs) suitable for human consumption. In 2009, shellfish waters were uniformly designated as ‘Protected Areas’ under the river basin management plans, the Directive requires WWTWs with significant contributions to the pollution of shellfish waters to be treated using tertiary technologies regardless of the population size served by WWTWs draining into the production area (DEFRA 2012). The majority of intermittent CSO or SO discharges do not have a legal requirement for microbial standards prior to discharge. However, some monitored CSOs requiring a permit for discharge and tertiary treatment (e.g. UV) can be a requirement of consent.

End-Product Shellfish Testing

Until 2013, standardised detection methods for viral pathogens were not available for routine analysis for shellfish. End-product testing for viruses by RT-qPCR and viral standards are being considered in addition to existing sanitary measures for shellfish harvesting areas (EFSA 2012). A challenge to the implementation of a viral standard is the extent to which NoV RNA detected by RT-qPCR is correlated with viral infectivity or risk of human illness. However, there is some evidence linking the risk of illness from consuming oysters containing NoV concentrations exceeding 2000 gc g−1, while outbreaks have been associated with values of 1000 gc g−1 (Lowther et al. 2010a; FSAI 2013). However, these studies were based on self-reported customer illness complaints and rarely from confirmed cases. Further work could assess the probability of shellfish being the vehicle of infection via combined testing of shellfish and stool samples for confirmation of NoV as the likely source of infection.

In volunteer studies, ingestion of an inoculum containing 103 gc g−1 of aggregated NoV particles was linked to a 60 ± 20% chance of infection. Counter to expectation, dispersed NoV ingested at an estimated dose of 107 gc g−1 was also linked to a 60 ± 20% chance of illness (based on modelled data) (Teunis et al. 2008). Atmar et al. (2014) measured the 50% human infectious dose for susceptible individuals as 1300 gc (95% confidence, 440–3760 gc). The high variability in these estimates and low sample sizes used do not at present provide enough confidence to support the defining of standards for risk assessment purposes. Furthermore, the risk associated with the consumption of oysters containing low levels of NoV (e.g. <1000 gc g−1) has also not been reliably quantified. Understanding the relationship between dose and response is urgently required to underpin the principle of a quantitative standard. To date, this has proved problematic for NoV due to uncertainty in the degree of viral inactivation, viral aggregation, and differences in host susceptibility (Teunis et al. 2008; Atmar 2010; Atmar et al. 2014). A presence/absence standard may avoid some shellfish-borne illness. However, the presence of NoV does not confirm infectivity, and the cost for regulation, implementation, and enforcement is not proportionate to the health risk. Furthermore, as a high percentage of UK oysters are positive for NoV (estimated at 76% in Lowther et al. 2012b), a presence/absence standard would therefore not permit sale of most UK oysters.

The proposed quantitative limit for NoV in shellfish products placed on the market is 200 gc g1 (EURL 2014a). This level is thought to be consistent with the methodological constraints, and is possible for producers to achieve (Doré et al. 2010). The limit of 200 gc g−1 is the sum of two NoV genogroups (GI and GII), which in practice results in an action threshold close to, or below, the limit of quantification of the RT-qPCR assay (<100 gc g−1) (EURL 2014a). Viral standards may only be applied to shellfish products destined to be consumed raw due to thermal inactivation of viruses (Richards et al. 2010; Flannery et al. 2014).

End-product testing cannot reliably ensure that unsafe food is not placed on the market. The cost of end-product testing is placed on the food business operators (FBOs) (e.g. shellfish producers). A recent estimate suggested that end-product testing could cost producers 10% of the total value of their catch (Hess 2010); however, this value could be higher in smaller species of low economic value (e.g. mussels). In addition, end-product testing does not consider the root cause of the problem, which is human faecal pollution in the shellfish production area. Shellfish producers are also responsible for risk assessment in relation to production site and practices which are designed to minimise the impact of sources of pollution (DEFRA 2015).

Production Area Testing for NoV

Production area testing is implemented in Europe to designate harvesting zone quality, based on faecal indicator bacteria (FIB). Depuration is used to reduce bacterial contamination in bivalve molluscs harvested from class B shellfish production areas. However, evidence suggests that NoV (and other enteric viruses) are not sufficiently removed by standard depuration practices (Polo et al. 2014). In addition, viral outbreaks have also been associated with shellfish harvested from class A production areas (EURL 2014a). A proposed NoV limits of 1000 gc g−1 have been suggested for shellfish production areas as this level is likely to result in an NoV concentration below the proposed 200 gc g−1 end-product limit (EURL 2014a). The cost of shellfish production area testing would be borne by the local competent authority (EURL 2014a). The use of viral limits, either in end-products or in the production area, could also be linked to the application of a label advising the public to cook the product, which would be mandatory to suppliers (EFSA 2012; EURL 2014a).

Post-harvest Treatment of NoV in Shellfish

Post-harvest treatments (e.g. depuration) are required for commercially harvested shellfish that do not to meet required hygiene standards (EC 2004). Commercial shellfish beds in the UK are subject to hygiene classification by the Food Standards Agency (FSA) based on E. coli standards from EC (2004). In the most recently available hygiene classification listings (FSA 2015; FSAS 2014), the majority (74.2%) of UK oyster beds were classified as class B or C, and a further 4.2% were seasonally classified as class B in Scotland. Consequently, most UK-grown oysters must undergo post-harvest hygiene treatment, irrespective of viral load. Methods to purify shellfish are effective at reducing bacterial loading, but their efficacy at reducing viral loading to non-infectious levels may be limited (Neish 2013). Recommended purification treatments include depuration, relaying, and heat treatment. Depuration is the purification of shellfish by allowing natural purging of contaminants in a controlled environment by circulating clean water (Aquatic Water Services Ltd. 2014). Depuration treatments of between 1 and 4 days, using standard commercial conditions (Neish 2013), are used to effectively reduce bacterial contamination of oysters; however, their ability to reduce viral load has been criticised (Le Guyader et al. 2006).

Methods to enhance depuration include adjustments to water temperature, salinity, dissolved oxygen content, turbidity, and phytoplankton content, or the application of chlorination, UV irradiation, treatment with ozone and activated oxygen, or iodophors (Schneider et al. 2009). Using an animal cell line assay, UV treatment has been shown to reduce NoV surrogates to non-infectious levels (Garcia et al. 2015; Neish 2013). Typically, however, water temperature was elevated in these experiments and therefore the relevance to human infectivity is thought to be limited (Cook et al. 2015). Other studies using viral surrogates suggest the potential for reducing NoV loading using a salinity of ≥25‰ (FSA 2003), chlorination (de Abreu Correa et al. 2012), UV irradiation for extended depuration periods (Marques Souza et al. 2013), or dosing with antipathogenic bacteria (Fajardo et al. 2014). However, the validation of these methods has mainly been undertaken with surrogate viruses rather than NoV, restricting their applicability (Cook et al. 2015). Recently, water depuration between 15 and 17 °C has been shown to be effective at reducing NoV loading in shellfish (Doré et al. 2010; FSA 2003; Neish 2013). In contrast, ozone and UV irradiation have proven ineffective for NoV depuration at normal temperatures (Neish 2013).

Relaying oysters into a class A shellfish area for a minimum of two months is used to reduce FIB loading in oysters. However, the effectiveness of this strategy for NoV is linked to ambient viral loading in the relay area, NoV persistence in bivalve tissue, and recirculation to other batches of oysters. The FIB levels used to classify production areas rarely correlate well with shellfish viral loading (Brake et al. 2014). However, movement to Class A beds has proven effective in eliminating NoV from shellfish (Doré et al. 2010; Keaveney et al. 2009; Lowther et al. 2012a). In practical terms, the low availability of Class A beds and the economic costs of relaying are likely to prevent the commercial adoption of this approach.

Potential of Implementing Changes to the Classification System

Under class B shellfish hygiene criteria, up to 10% of samples can be contaminated with up to 46,000 E. coli 100 g−1 shellfish flesh (bacteria quantified by most probable number or colony forming units). Shellfish contaminated with this level of faecal contamination pose a significant risk of elevated viral contamination. While this level of E. coli contamination may be depurated successfully under standard conditions, the corresponding viral contamination is unlikely to be depurated under standard conditions (Polo et al. 2014). It has been suggested that reducing this 10% tolerance for high-risk species such as oysters would increase bivalve shellfish safety (EURL 2014a). However, this strategy would impact producers by reclassifying marginal areas from class B to class C. However, this is unlikely to reduce the NoV risk as NoV has been associated with class A shellfish areas (EURL 2014a).

Minimum Closure Period During High-Risk Events

After a significant faecal pollution incident, or known NoV outbreak, the competent authority may close the shellfish production area. Reopening of the production area usually occurs when the shellfish comply with E. coli standards. However, NoV outbreaks have been reported from shellfish production areas which have been reopened in these circumstances (EURL 2014a). Therefore, a minimum closure period following faecal pollution incidents or outbreaks caused by enteric viruses may reduce the occurrence of further outbreaks (EURL 2014a). In the USA, a minimum closure approach is implemented using a 21-day minimum period (NSSP 2013). Further, the French Food Authority Ministry (DGAI) requires that following a NoV outbreak the production area linked to the outbreak is closed for up to 28 days, with consistent negative NoV results and compliant bacterial indicators resulting in early reopening (CEFAS 2013). Further evidence is required to ascertain if shellfish pose a human health risk during a potential closure period.

Active Management Systems

Active management of shellfisheries is currently being assessed, whereby closure and reopening of shellfish beds is based on pre-determined environmental trigger points. Predictive modelling of FIB load and the dynamic closure of commercial shellfisheries during this period can be used to prevent harvesting of contaminated shellfish. Subsequently, the shellfish production areas would reopen after contamination has returned to background levels, significantly reducing the period of time through which higher levels of controls are applied. This approach is gaining traction as a means to reduce the impact of longer-term closures of production areas on the shellfish industry and avoids the permanent closure of exclusion zones around discharges. However, the technical and economic viability of such schemes require demonstration and appropriate triggers for closure are likely to vary significantly between catchments, requiring adaptive design, and validation for each shellfish production area. Active management systems have been considered as a supplementary approach to current shellfish waters classification based on FIB contamination levels, but direct applicability to management of NoV contamination is limited as different environmental triggers are likely to apply and due to the lack of an effective method for measurement of infective viral loading in shellfish that would be required to establish thresholds for closure.

Shellfish Harvesting Exclusion Zones

A number of different types of exclusion zone could be considered, including geographical- proximity-based zoning, dilution-based zoning, dilution/time-based zoning, and shellfish sampling-based zoning (Aquatic Water Services 2014). Proximity-based zoning has been used to exclude harvesting in areas ranging from 50 to 1500 m from discharges or other inputs (Aquatic Water Services Limited 2014). However, the efficacy of geographical zoning for reducing NoV risk is strongly dependent on prevailing hydrodynamics (Winterbourn et al. 2016). Norovirus load in shellfish did not significantly decrease in ≤7 km from a point source discharge, despite E. coli shellfish concentrations meeting class A criteria (Campos et al. 2015). Dilution-based zoning is mandatory for all conditionally approved areas in the USA of 1:1000 dilution of sewage effluent to protect from viral contamination of harvesting zones (NSSP 2013). Under the NNSP model, reopening of shellfish beds could occur earlier than the 21-day closure following an exposure event via the use of bacteriophage reductions as a proxy (Aquatic Water Services Limited 2014).

A whole-system approach would require a comprehensive NoV survey to inform the zone scaling (Aquatic Water Services Limited 2014). However, in the absence of this information, a hybrid solution is possible, whereby an E. coli proxy is used for NoV risk (Petterson et al. 2015). This proxy could be linked to target NoV standards for harvest, and could be adjusted accordingly on the advent of new information.

Implications for the Adoption of Viral Standards

The European Commission (EC) has proposed that a formal standard for NoV could improve the hygiene of shellfish destined for human consumption (EURL 2014a). As described above, the proposed limits for NoV are 200 genome copies per gram of digestive tissue (gc g−1 dt) for end-product, or harvest standards of shellfish collected from the seabed, for which the limit is proposed to be a maximum 1000 gc g−1 dt (CEFAS 2013). Standards relating to NoV contamination will have socioeconomic implications for bivalve aquaculture and this warrants further investigation (FSA 2003; Oliveira et al. 2011). The costs associated with viral inactivation are likely to vary between shellfish species, since NoV prevalence has been shown to vary between species even when grown at the same location (Polo et al. 2015; Suffredini et al. 2014), in addition to differential infectivity of NoV to humans (Le Guyader et al. 2010). Potential modes of compliance for the water sector could include exploring emergent technologies for viral removal, increasing UV dose/efficacy for UV tertiary treatments, installation of UV polishing on CSOs, and pipe relocation to increase the dilutant rate prior to contact with shellfish beds (DCWW 2015). To justify significant investments, a robust assessment of potential socioeconomic and environmental costs and benefits/disbenefits for each of the proposed categories of viral standards, for different regions at different times of the year, would be advisable (WHO 2006). Implementation of certain measures might also result in reduced compliance with other regulations; for example, installing or improving UV disinfection units could result in increased electricity consumption, in an environment where a reduction in energy consumption is encouraged (UK Parliament 2008). Novel disinfection technologies, e.g. pulsed or low-pressure UV systems or plasma treatments have shown to reduce NoV concentrations and infectivity of surrogates (Lee et al. 2016; Barret et al. 2016). Finally, logistical constraints limit the physical modification of some facilities; for example, UV disinfection unit installation at CSOs is only practicable at larger facilities where there is sufficient space for additional plant and infrastructure (DCWW 2015). Consideration of these and other potential barriers to implementation should be included within a robust cost–benefit analysis prior to implementation of proposed standards.

Conclusions

In conclusion, NoV remains a truly global economic disease of which shellfish will remain a small but expensive infection vehicle to the human population for years to come. Norovirus contamination of shellfish and their production areas represents a significant challenge to the sustainable expansion of aquaculture in colder climates. The burden of NoV is likely to increase in response to climate change and population growth as increasing rainfall/runoff increase pathogen loading and survival in the environment. While the disease burden of shellfish-derived NoV is low, typically 646 cases per 1 million servings, it is the highest of individual food groups in the UK. Epidemiological efforts to apportion confirmed NoV infections to each food group is hampered by a high underreporting ratio and confounded by person-to-person transmission and contamination of food post-harvest. Shellfish will remain a significant vehicle of transmission of NoV to the human population, particularly as species such as oysters are eaten raw.

Recent efforts to standardise detection methods for NoV have improved quantification within food groups. However, both the differential extraction efficacy and co-extraction of inhibitors prevent reliable quantification between different food groups as vehicles for NoV infection. End-product testing of NoV in shellfish is problematic because pooled samples do not adequately protect the consumer from every animal in a batch. In addition, quantification of NoV gc g−1 of shellfish digestive tissue does not correlate to intact, infective viral particles. Legal and economic complications surround end-product testing as it does not guarantee the absence of NoV in unsampled shellfish, only that the sub-sample tested from a batch is free of NoV and could reduce the viability of shellfisheries.

Implementation of a shellfish standard for NoV (based on either end-product testing or harvesting areas) will not directly reduce the viral loading to the environment, but may reduce viral outbreaks in the community. As the majority of NoV infections are not attributed to shellfish, it is likely that community-level action is required to effectively isolate infected persons, particularly in hotspot areas such as hospitals and schools to reduce outbreaks through person-to-person contact. Antiviral disinfectants are not currently widely available for food preparation areas; however, conventional deep clean procedures (bleach and soap) are effective at reducing NoV. Product labelling, education in food preparation areas, and widespread advice from healthcare authorities offer routes to protect the public from NoV exposure. Improved understanding of the concentrations and infectivity of NoV in different vehicles of infection will enable identification of the risk of NoV going forward. Shellfish standards could be revisited once the relationship between infectivity and abundance in different vehicles of infection has been elucidated.

Control of NoV should reduce the risk prior to harvest, as the most significant sources of NoV in shellfish harvesting areas are point sources of human faecal pollution. Currently, water utilities in Europe are not regulated for viral pollution. However, the reliance on indicator bacteria does not adequately represent the risk, particularly from pathogenic viruses such as NoV.

Effective wastewater treatment, followed by viral inactivation technologies, is required to effectively reduce viral loading to the environment and therefore shellfish. However, it is not possible to recommend a single solution for inactivation of NoV, as on-site considerations and cost often override decisions regarding viral inactivation (Barret et al. 2016). The efficacy of current technologies for ameliorating viral pollution requires additional attention. Upgrade of existing wastewater treatment assets to technologies such as MBRs, anaerobic digestion, or tertiary technologies is often effective for reducing the viral load in the final effluents. The success of upgrades would be highly site specific and be contingent on financial restrictions, greenhouse gas, and effluent quality standards. Effluent pipe or shellfish bed relocation is the lower cost options which have proof of concept based on principals from dilution-based zoning. Effective reductions in CSO discharges, either through storm water transfer schemes, pipe relocation or increased wastewater storage and treatment prior to discharge, could reduce NoV loading to shellfish waters. However, costly infrastructure changes are likely to be driven through desire from water utilities to attain standards for bacterial bathing and shellfish water quality, due to monitoring, legislative, and enforcement administration which is currently in place, as opposed to NoV standards.

Notes

Acknowledgements

This review was funded by European Fisheries Fund (Human Pathogens and Shellfish [Shellpath]) project, Welsh Government, Bangor Mussel Producers, Dŵr Cymru/Welsh Water, and the Shellfish Association of Great Britain. The authors would like to thank David Alexander (Food Standards Agency, UK), David Lees (Centre for Environment, Fisheries and Aquaculture, UK), and Elaine Connolly (Department for Environment and Rural Affairs, UK) for discussions and comments during preparation of this manuscript. The authors are grateful to Mallory Diggens for mapping expertise (Fig. 1).

References

  1. ACMSF. (2014). An update on viruses in the food chain. Advisory Committee on the Microbiological Safety of Food Ad Hoc Group on Foodborne Viral Infections report. 1–136. http://www.food.gov.uk/sites/default/files/acmsf-virus-report.pdf.
  2. Adak, G. K., Long, S. M., & O’Brien, S. J. (2002). Trends in indigenous foodborne disease and deaths, England and Wales: 1992 to 2000. Gut, 51, 832–841.PubMedPubMedCentralCrossRefGoogle Scholar
  3. Adak, G. K., Meakins, S. M., Yip, H., Lopman, B. A., & O’Brien, S. J. (2005). Disease risks from food, England and Wales, 1996–2000. Emerging Infectious Diseases, 11(3), 365–372.PubMedPubMedCentralCrossRefGoogle Scholar
  4. ADAS. (2001). The safe sludge matrix: Guidelines for the application of sewage sludge to agricultural land. ADAS, 3rd edition, April 2001. http://s3-eu-west-1.amazonaws.com/media.aws.stwater.co.uk/upload/pdf/SSM.pdf.
  5. Alfano-Sobsey, E., Sweat, D., Hall, A., Breedlove, F., Rodriguez, R., et al. (2012). Norovirus outbreak associated with undercooked oysters and secondary household transmission. Epidemiology and Infection, 140(2), 276–282.PubMedCrossRefGoogle Scholar
  6. Ang, L. H. (1998). An outbreak of viral gastroenteritis associated with eating raw oysters. Communicable Disease and Public Health, 1, 38–40.PubMedGoogle Scholar
  7. Anonymous. (2013a). Microbiology of food and animal feed: Horizontal method for detection of hepatitis A virus and norovirus in food using real-time RT-PCR: Part 1: Method for quantification (ISO/TS 15216-1:2013). Geneva: International Organization for Standardization. http://www.iso.org/iso/catalogue_detail.htm?csnumber=55382
  8. Anonymous. (2013b). Microbiology of food and animal feed: Horizontal method for detection of hepatitis A virus and norovirus in food using real-time RT-PCR: Part 2: Method for qualitative detection (ISO/TS 15216-2:2013). Geneva: International Organization for Standardization. http://www.iso.org/iso/catalogue_detail.htm?csnumber=55382.
  9. Aquatic Water Services Ltd. (2014). Technical report: Review of approaches for establishing exclusion zones for shellfish harvesting around sewage discharge points. Desk study to inform consideration of the possible introduction of exclusion zones as a control for Norovirus in oysters. Final report AWS/160215, Project FS513404. 16th February 2015. https://www.food.gov.uk/sites/default/files/Exclusion%20Zones%20Project%20FS513404%20-%20Technical%20Report%20FINAL.pdf.
  10. Armon, R., Cabellil, V. J., & Duncanson, R. (2007). Survival of F-RNA coliphages and three bacterial indicators during wastewater chlorination and transport in estuarine waters. Estuaries and Coasts, 30(6), 1088–1094.CrossRefGoogle Scholar
  11. Asahina, A. Y., Lu, Y., Wu, C., Fujioka, R. S., & Loh, P. C. (2009). Potential biosentinels of human waste in marine coastal waters: Bioaccumulation of human noroviruses and enteroviruses from sewage-polluted waters by indigenous mollusks. Journal of Virological Methods, 158, 46–50.PubMedCrossRefGoogle Scholar
  12. Atmar, R. L. (2010). Noroviruses—State of the art. Food and Environmental Virology, 2(3), 117–126.PubMedPubMedCentralCrossRefGoogle Scholar
  13. Atmar, R. L., Opekun, A. R., Gilger, M. A., Estes, M. K., Crawford, S. E., et al. (2014). Determination of the 50% human infectious dose for norwalk virus. Journal of Infectious Diseases, 209(7), 1016–1022.PubMedCrossRefGoogle Scholar
  14. Baert, L., Mattison, K., Loisy-Hamon, F., Harlow, J., Martyres, A., et al. (2011). Review: Norovirus prevalence in Belgian, Canadian and French fresh produce: A threat to human health? International Journal of Food Microbiology, 151(3), 261–269.PubMedCrossRefGoogle Scholar
  15. Baert, L., Uyttendaele, M., Stals, A., van Coillie, E., Dierick, K., et al. (2009). Reported foodborne outbreaks due to noroviruses in Belgium: The link between food and patient investigations in an international context. Epidemiology and Infection, 137(3), 316–325.PubMedCrossRefGoogle Scholar
  16. Baker, K., Morris, J., McCarthy, N., Saldana, L., Lowther, J., et al. (2010). An outbreak of norovirus infection linked to oyster consumption at a UK restaurant, February 2010. Journal of Public Health, 33(2), 205–211.PubMedCrossRefGoogle Scholar
  17. Barrett, M., Fitzhenry, K., O’Flaherty, V., Doré, W., Keaveney, S., Cormican, M., et al. (2016). Detection, fate and inactivation of pathogenic norovirus employing settlement and UV treatment in wastewater treatment facilities. Science of the Total Environment, 568, 1026–1036.PubMedCrossRefGoogle Scholar
  18. Bellou, M., Kokkinos, P., & Vantarakis, A. (2013). Shellfish-borne viral outbreaks: A systematic review. Food and Environmental Virology, 5, 13–23.PubMedCrossRefGoogle Scholar
  19. Brake, F., Ross, T., Holds, G., Kiermeier, A., & McLeod, C. (2014). A survey of Australian oysters for the presence of human noroviruses. Food Microbiology, 44, 264–270.PubMedCrossRefGoogle Scholar
  20. Burkhardt, W., III, & Calci, K. R. (2000). Selective accumulation may account for shellfish-associated viral illness. Applied and Environmental Microbiology, 66(4), 1375–1378.PubMedPubMedCentralCrossRefGoogle Scholar
  21. Campos, C. J. A., Avant, J., Gustar, N., Lowther, J., Powell, A., et al. (2015). Fate of human noroviruses in shellfish and water impacted by frequent sewage pollution events. Environmental Science and Technology, 49, 8377–8385.PubMedCrossRefGoogle Scholar
  22. Campos, J. A., & Lees, D. N. (2014). Environmental transmission of human noroviruses in shellfish waters. Applied and Environmental Microbiology, 80(12), 3552–3561.PubMedPubMedCentralCrossRefGoogle Scholar
  23. CEFAS. (2011a). Investigation into the levels of norovirus in influent and treated wastewater samples from a sewage treatment works. Report by CEFAS to the Food Standards Agency, report number FS235003 (P01009), July 2011. https://www.food.gov.uk/sites/default/files/Sewage%20variation%20report_0.pdf
  24. CEFAS. (2011b). Investigation into the prevalence, distribution and levels of norovirus titre in oyster harvesting areas in the UK. Report by CEFAS to the Food Standards Agency, report number FS235003 (P01009), August 2011. https://www.food.gov.uk/sites/default/files/Norovirus%20surveillance%20report_0.pdf
  25. CEFAS. (2013). Report of the 12th workshop of NRLs for monitoring bacteriological and viral contamination of bivalve molluscs. Management of outbreaks—EU situations. https://eurlcefas.org/media/13833/details_of_criteria_for_waiving_results_of_monitoring_programmes_final.pdf
  26. CEFAS. (2014). A critical review of the current evidence for the potential use of indicator species to classify UK shellfish production areas. Final report, project FS512006. https://www.food.gov.uk/sites/default/files/865-1-1607_FS512006_VMcFarlane.pdf
  27. Cook, N., Knight, A., Richards, G. P., Stein, J. (2015). FSA Project FS101120: A critical review on the survival of norovirus in food and on food contact surfaces. Food Standards Agency, TSO, London. https://www.food.gov.uk/sites/default/files/FS101120%20NoV%20critical%20review%20report%20-%20FINAL%203%20June%202015.pdf
  28. Davidson, V. J., Ravel, A., Nguyen, T. N., Fazil, A., & Ruzante, J. M. (2011). Food-specific attribution of selected gastrointestinal illnesses: Estimates from a Canadian expert elicitation survey. Foodborne Pathogens and Disease, 8, 983–995.PubMedCrossRefGoogle Scholar
  29. DCWW. (2015). Summary of options for norovirus challenge for wastewater treatment, opinion of Dŵr Cymru Welsh Water. Received by author via email 2015 (personal communication).Google Scholar
  30. de Abreu Correa, A., Carratala, A., Monte Barardi, C. R., Calvo, M., Girones, R., et al. (2012). Comparative inactivation of murine norovirus, human adenovirus, and human JC polyomavirus by chlorine in Seawater. Applied and Environmental Microbiology, 78(18), 6450–6457.PubMedPubMedCentralCrossRefGoogle Scholar
  31. DEFRA. (2012). Waste water treatment in the United Kingdom2012. Implementation of the European Union Urban Waste Water Treatment Directive91/271/EEC. Department for Environment, Food and Rural Affairs. https://www.gov.uk/government/uploads/system/uploads/attachment_data/file/69592/pb13811-waste-water-2012.pdf
  32. DEFRA. (2015). FSA Project FS246004/Deffra Project WT1529Enhancing knowledge of norovirus behaviour in the marine environment to enable better risk management in molluscan shellfisheries. Department for Environment, Food and Rural Affairs, from http://randd.defra.gov.uk/Document.aspx?Document=13029_WT1529Riskfactorsfornorovirusinoysters.pdf
  33. Doré, B., Flannery, J., Keaveney, S., & Rajko-Nenow, P. (2013). Norovirus in wastewater and shellfish: Assessing the impact of wastewater treatment plant effluent on norovirus contamination in shellfisheries. STRIVE Report 2008-EH-MS-7-S3, prepared for the Environmental Protection Agency, Ireland, from https://www.epa.ie/pubs/reports/research/water/STRIVE_109%20Norovirus%20in%20Wastewater%20and%20Shellfish.pdf
  34. Doré, B., Keaveney, S., Flannery, J., & Rajko-Nenow, P. (2010). Management of health risks associated with oysters harvested from a norovirus contaminated area, Ireland, February-March 2010. Euro Surveillance, 15(19): 1–4. http://www.eurosurveillance.org/ViewArticle.aspx?ArticleId=19567
  35. Drouaz, N., Schaeffer, J., Farkas, T., Le Pendu, J., & Le Guyader, F. S. (2015). Tulane virus as a potential surrogate to mimic norovirus behavior in oysters. Applied and Environmental Microbiology, 81(15), 5249–5256.PubMedPubMedCentralCrossRefGoogle Scholar
  36. Dumbauld, B. R., Ruesink, J. L., & Rumrill, S. S. (2009). The ecological role of bivalve shellfish aquaculture in the estuarine environment: A review with application to oyster and clam culture in West Coast (USA) estuaries. Aquaculture, 290(3–4), 196–223.CrossRefGoogle Scholar
  37. EFSA Panel on Biohazards (BIOHAZ). (2012). Scientific opinion on Norovirus (NoV) in oysters: Methods, limits and control options. EFSA Journal, 10(1): 2500, 39. http://www.efsa.europa.eu/sites/default/files/scientific_output/files/main_documents/2500.pdf
  38. Ellis, J. B., & Butler, D. (2015). Surface water sewer misconnections in England and Wales: Pollution sources and impacts. The Science of the Total Environment, 526, 98–109.PubMedCrossRefGoogle Scholar
  39. Ettayebi, K., Crawford, S. E., Murakami, K., Broughman, J. R., Karandikar, U., et al. (2016). Replication of human noroviruses in stem cell–derived human enteroids. Science, 353(6306), 1387–1393.PubMedPubMedCentralCrossRefGoogle Scholar
  40. EURL. (2014a). Annual Technical Report of Calendar Year 2013. European Union Reference Laboratory for Monitoring Bacteriological and Viral Contamination of Bivalve Molluscs. Final report version 3. March 2014. https://eurlcefas.org/media/13774/eurl_annual_technical_report_calendar_year_2013_final270314.pdf
  41. EURL. (2014b). Microbiological monitoring of bivalve mollusc harvesting areas guide to good practice: technical application. EU Working Group on the Microbiological Monitoring of Bivalve Mollusc Harvesting Areas. Issue 5, June 2014. https://www.cefas.co.uk/nrl/information-centre/eu-good-practice-guide/eurl-good-practice-guide-issue-5/
  42. European Commission. (2000). Directive 2000/60/EC of the European Parliament and of the Council of 23rd October 2000 establishing a framework for Community action in the field of water policy. Official Journal of the European Communities, L327, 1-72. http://eur-lex.europa.eu/legal-content/EN/TXT/?uri=celex%3A32000L0060
  43. European Commission. (2004). Commission regulation (EC) No 854/2004 of the European parliament and of the Council of 29th April 2004 laying own specific rules for the organisation of official controls on products of animal origin intended for human consumption. Official Journal of the European Union, L226/83. http://eur-lex.europa.eu/legal-content/EN/TXT/?uri=URISERV%3Af84003
  44. European Commission. (2008) Commission regulation (EC) No 1021/2008 of 17 October 2008 amending Annexes I, II and III to Regulation (EC) No 854/2004 of the European Parliament and of the Council laying down specific rules for the organisation of official controls on products of animal origin intended for human consumption and Regulation (EC) No 2076/2005 as regards live bivalve molluscs, certain fishery products and staff assisting with official controls in slaughterhouses. Official Journal of the European Union, L277/15. http://eur-lex.europa.eu/legal-content/EN/TXT/?uri=CELEX%3A32008R1021
  45. Fajardo, P., Atanassova, M., Garrido-Maestu, A., Wortner-Smith, T., Cotterill, J., et al. (2014). Bacteria isolated from shellfish digestive gland with antipathogenic activity as candidates to increase the efficiency of shellfish depuration process. Food Control, 46, 272–281.CrossRefGoogle Scholar
  46. Farkas, T., Deng, X., Ruiz-Palacios, G., Morrow, A., & Jiang, X. (2006). Development of an enzyme immunoassay for detection of sapovirus-specific antibodies and its application in a study of seroprevalence in children. Journal of Clinical Microbiology, 44(10), 3674–3679.PubMedPubMedCentralCrossRefGoogle Scholar
  47. Flannery, J., Keaveney, S., Rajko-Nenow, P., O’Flaherty, V., & Doré, W. (2013). Norovirus and FRNA bacteriophage determined by RT-qPCR and infectious FRNA bacteriophage in wastewater and oysters. Water Research, 47(14), 5222–5231.PubMedCrossRefGoogle Scholar
  48. Flannery, J., Rajko-Nenow, P., Winterbourn, J. B., Malham, S. K., & Jones, D. L. (2014). Effectiveness of cooking to reduce Norovirus and infectious F-specific RNA bacteriophage concentrations in Mytilus edulis. Journal of Applied Microbiology, 117(2), 564–571.PubMedCrossRefGoogle Scholar
  49. FSA. (2000). A report of the study of infectious intestinal disease in England. Food Standards Agency, TSO, London. http://www.esds.ac.uk/doc/4092%5Cmrdoc%5Cpdf%5C4092userguide6.pdf
  50. FSA. (2003). Development of procedures for improved viral reduction in oysters during commercial depuration. Food Standards Agency report, project B04002, July 2003. http://tna.europarchive.org/20130814101929/, http://food.gov.uk/science/research/foodborneillness/shellfishresearch/b16programme/B16projlist/b04002/
  51. FSA. (2011). Investigation into the prevalence, distribution and levels of norovirus titre in oyster harvesting areas in the UK. http://www.food.gov.uk/science/research/foodborne illness/microriskresearch/p01programme/p01projlist/p01009/. Accessed 02 04 2015.
  52. FSA. (2015). Shellfish harvesting classifications England and Wales: 2014–2015. https://www.food.gov.uk/enforcement/monitoring/shellfish/shellharvestareas/shellclassew201415.
  53. FSAI (2013). Risk management of norovirus in oysters. opinion by the food safety authority of Ireland Scientific Committee. https://www.fsai.ie/publications_norovirus_opinion/
  54. FSAS. (2014). Shellfish harvesting classifications Scotland: 2014–15. http://www.foodstandards.gov.scot/shellfish-harvesting-classifications-scotland-2014-15. Accessed 02/04/15.
  55. Garcia, L. A. T., Nascimento, M. A., & Barardi, C. R. M. (2015). Effect of UV Light on the inactivation of recombinant human adenovirus and murine norovirus seeded in seawater in shellfish depuration tanks. Food and Environmental Virology, 7(1), 67–75.PubMedCrossRefGoogle Scholar
  56. Glass, R. I., Parashar, U. D., & Estes, M. K. (2009). Norovirus gastroenteritis. New England Journal of Medicine, 361(18), 1–17.CrossRefGoogle Scholar
  57. Gormley, F. J., Little, C. L., Rawal, N., Gillespie, I. A., Lebaigue, S., & Adak, G. K. (2011). A 17-year review of foodborne outbreaks: describing the continuing decline in England and Wales (1992–2008). Epidemiology and Infection, 139, 688–699.PubMedCrossRefGoogle Scholar
  58. Hall, A. J. (2012). Noroviruses: The perfect human pathogens? Journal of Infectious Diseases, 205(11), 1622–1624.PubMedPubMedCentralCrossRefGoogle Scholar
  59. Hall, G., Kirk, M. D., Becker, N., Gregory, J. E., Unicomb, L., Millard, G., et al. (2005). Estimating foodborne gastroenteritis, Australia. Emerging Infectious Diseases, 11(8), 1257–1264.PubMedPubMedCentralCrossRefGoogle Scholar
  60. Haramoto, E., Katayama, H., Oguma, K., & Ohgaki, S. (2005). Application of cation-coated filter method to detection of noroviruses, enteroviruses, adenoviruses, and Torque Teno viruses in the Tamagawa river in Japan. Applied and Environmental Microbiology, 71(5), 2403–2411.PubMedPubMedCentralCrossRefGoogle Scholar
  61. Harris, J. P., Edmunds, W. J., Pebody, R., Brown, D. W., & Lopman, B. A. (2008). Deaths from norovirus among the elderly, England and Wales. Emerging Infectious Diseases, 14(10), 1546–1552.PubMedPubMedCentralCrossRefGoogle Scholar
  62. Havelaar, A. H., Galindo, A. V., Kurowicka, D., & Cooke, R. M. (2008). Attribution of foodborne pathogens using structured expert elicitation. Foodborne Pathogens and Disease, 5(5), 649–659.PubMedCrossRefGoogle Scholar
  63. Heijne, J. C. M., Teunis, P., Morroy, G., Wijkmans, C., Oostveen, S., et al. (2009). Enhanced hygiene measures and norovirus transmission during an outbreak. Emerging Infectious Diseases, 15(1), 24–30.PubMedPubMedCentralCrossRefGoogle Scholar
  64. Hernandez-Morga, J., Leon-Felix, J., Peraza-Garay, F., Gil-Salas, B. G., & Chaidaz, C. (2009). Detection and characterization of hepatitis A virus and Norovirus in estuarine water samples using ultrafiltration—RT-PCR integrated methods. Journal of Applied Microbiology, 106(5), 1579–1590.PubMedCrossRefGoogle Scholar
  65. Hess, P. (2010). Requirements for screening and confirmatory methods for the detection and quantification of marine biotoxins in end-product and official control. Analytical and Bioanalytical Chemistry, 397(5), 1683–1694.PubMedCrossRefGoogle Scholar
  66. Hewitt, J., & Greening, G. E. (2004). Survival and persistence of norovirus, hepatitis A virus, and feline calicivirus in marinated mussels. Journal of Food Protection, 67(8), 1743–1750.PubMedCrossRefGoogle Scholar
  67. Hewitt, J., Greening, G. E., Leonard, M., & Lewis, G. D. (2013). Evaluation of human adenovirus and human polyomavirus as indicators of human sewage contamination in the aquatic environment. Water Research, 47, 6750–6761.PubMedCrossRefGoogle Scholar
  68. Hoffmann, S., Fischbeck, P., Krupnick, A., & Mcwilliams, M. (2007). Using expert elicitation to link foodborne illnesses in the United States to foods. Journal of Food Protection, 70(5), 1220–1229.PubMedCrossRefGoogle Scholar
  69. HPA. (2004). Microbiological risk assessment for norovirus infection—contribution to the overall burden afforded by foodborne infections. Final scientific report. Health Protection Agency, Porton DownGoogle Scholar
  70. HPA. (2007). Guidance for the management of norovirus infection in cruise ships. Health Protection Agency, Porton Down. https://www.gov.uk/government/uploads/system/uploads/attachment_data/file/362998/2007_guideline_norovirus_cruiseships.pdf
  71. Jones, M. K., Grau, K. R., Costantini, V., Kolawole, A. O., Graaf, M. De, et al. (2015). Human norovirus culture in B cells. Nature Protocols, 10(12), 1939–1947.PubMedPubMedCentralCrossRefGoogle Scholar
  72. Keaveney, S., Flannery, J., Guilfoyle, F., & Doré, W. (2009) Conference Paper, 6th International Conference on Molluscan Shellfish Safety, Blenheim, Marlborough, New Zealand.Google Scholar
  73. Kershaw, S., Cook, A., & Campos, C. (2012). Sanitary surveys (England and Wales): Review of progress, processes and outcomes 2007-2011. CEFAS Report C3018, November 2012. https://www.cefas.co.uk/media/41300/review-of-sanitary-surveys-in-ew-2007-2011-final.pdf
  74. Kitajima, M., Oka, T., Haramoto, E., Takeda, N., Katayama, K., et al. (2010). Seasonal distribution and genetic diversity of genogroups I, II, and IV noroviruses in the Tamagawa river, Japan. Environmental Science and Technology, 44(18), 7116–7122.PubMedCrossRefGoogle Scholar
  75. Knight, A., Li, D., Uyttendaele, M., & Jaykus, L.-A. (2012). A critical review of methods for detecting human noroviruses and predicting their infectivity. Critical Reviews in Microbiology, 39(3), 296–309.Google Scholar
  76. Lane, D. C., (2014). FSA Project FS241027: Modelling the Foodborne Transmission Mechanisms for Norovirus: A study for the Food Standards Agency. Food Standards Agency, TSO, London. https://www.food.gov.uk/sites/default/files/885-1-1630_FS2141027_FSA_Final_Submitted_Report_10_July_14.pdf
  77. Le Guyader, F. S., Krol, J., Ambert-Balay, K., Ruvoën-Clutet, N., Desabliaux, B., et al. (2010). Comprehensive analysis of a norovirus-associated gastroenteritis outbreak, from the environment to the consumer. Journal of Clinical Microbiology, 48(3), 915–920.PubMedPubMedCentralCrossRefGoogle Scholar
  78. Le Guyader, F. S., Loisy, F., Atmar, A. L., Hutson, A. M., Estes, M. K., et al. (2006). Norwalk virus–specific binding to oyster digestive tissues. Emerging Infectious Diseases, 12(6), 931–936.PubMedPubMedCentralCrossRefGoogle Scholar
  79. Lee, E.-J., Lee, W., Kim, M., Choi, E. H., & Kim, Y.-J. (2016). Arc discharge-mediated disassembly of viral particles in water. Water Research, 102, 305–312.PubMedCrossRefGoogle Scholar
  80. Lees, D. (2010). International standardisation of a method for detection of human pathogenic viruses in molluscan shellfish. Food and Environmental Virology, 2(3), 146–155.CrossRefGoogle Scholar
  81. Leon, J. S., Kingsley, D. H., Montes, J. S., Richards, G. P., Lyon, G. M., et al. (2011). Randomized, double-blinded clinical trial for human norovirus inactivation in oysters by high hydrostatic pressure processing. Applied and Environmental Microbiology, 77(15), 5476–5482.PubMedPubMedCentralCrossRefGoogle Scholar
  82. Li, D., Baert, L., Coillie, E. Van, & Uyttendaele, M. (2011). Critical studies on binding-based RT-PCR detection of infectious Noroviruses. Journal of Virological Methods, 177, 153–159.PubMedCrossRefGoogle Scholar
  83. Lopman, B. A., Adak, G. K., Reacher, M. H., & Brown, D. W. G. (2003). Two epidemiologic patterns of Norovirus outbreaks: Surveillance in England and Wales, 1992–2000. Emerging Infectious Diseases, 9(1), 71–77.PubMedPubMedCentralCrossRefGoogle Scholar
  84. Lopman, B., Armstrong, B., Atchison, C., & Gray, J. J. (2009). Host, weather and virological factors drive norovirus epidemiology: Time-series analysis of laboratory surveillance data in England and Wales. PLoS ONE, 4(8), e6671.PubMedPubMedCentralCrossRefGoogle Scholar
  85. Loury, P., Le Guyader, F. S., Le Saux, J. C., Ambert-Balay, K., Parrot, P., et al. (2015). A norovirus oyster-related outbreak in a nursing home in France, January 2012. Epidemiology and Infection, 143, 2486–2493.PubMedCrossRefGoogle Scholar
  86. Lowther, J. A., Avant, J. M., Gizynski, K., Rangdale, R. E., & Lees, D. N. (2010a). Comparison between quantitative real-time reverse transcription PCR results for norovirus in oysters and self-reported gastroenteric illness in restaurant customers. Journal of Food Protection, 73(2), 305–311.PubMedCrossRefGoogle Scholar
  87. Lowther, J. A., Gustar, N. E., Hartnell, E., & Lees, D. N. (2010b). Comparison of norovirus RNA levels in outbreak-related oysters with background environmental levels. Journal of Food Protection, 75, 398–400.Google Scholar
  88. Lowther, J. A., Gustar, N. E., Hartnell, R. E., & Lees, D. N. (2012a). Comparison of norovirus RNA levels in outbreak-related oysters with background environmental levels. Journal of Food Protection, 75, 389–393.PubMedCrossRefGoogle Scholar
  89. Lowther, J. A., Gustar, N. E., Powell, A. L., Hartnell, R. E., & Lees, D. N. (2012b). Two-year systematic study to assess norovirus contamination in oysters from commercial harvesting areas in the United Kingdom. Applied and Environmental Microbiology, 78(16), 5812–5817.PubMedPubMedCentralCrossRefGoogle Scholar
  90. Mans, J., Netshikweta, R., Magwalivha, M., van Zyl, W. B., & Taylor, M. B. (2013). Diverse norovirus genotypes identified in sewage-polluted river water in South Africa. Epidemiology and Infection, 141(2), 303–313.PubMedCrossRefGoogle Scholar
  91. Marques Souza, D. S., Dores Ramos, A. P., Nunes, F. F., Moresco, V., Taniguchi, S., et al. (2012). Evaluation of tropical water sources and mollusks in southern Brazil using microbiological, biochemical, and chemical parameters. Ecotoxicology and Environmental Safety, 76, 153–161.CrossRefGoogle Scholar
  92. Marques Souza, D. S., Piazza, R. S., Pilotto, M. R., do Nascimento, M. D. A., Moresco, V., et al. (2013). Virus, protozoa and organic compounds decay in depurated oysters. International Journal of Food Microbiology, 167(3), 337–345.CrossRefGoogle Scholar
  93. Mathijs, E., Stals, A., Baert, L., Botteldoorn, N., Denayer, S., et al. (2012). A review of known and hypothetical transmission routes for noroviruses. Food and Environmental Virology, 4(4), 131–152.PubMedCrossRefGoogle Scholar
  94. Matthews, J. E., Dickey, B. W., Miller, R. D., Felzer, J. R., Dawson, B. P., et al. (2012). The epidemiology of published norovirus outbreaks: A review of risk factors associated with attack rate and genogroup. Epidemiology and Infection, 140(7), 1161–1172.PubMedPubMedCentralCrossRefGoogle Scholar
  95. Mattner, F., Sohr, D., Heim, A., Gastmeier, P., Vennema, H., et al. (2006). Risk groups for clinical complications of norovirus infections: An outbreak investigation. Clinical Microbiology & Infection, 12(1), 69–74.CrossRefGoogle Scholar
  96. Maunula, L., Kalso, S., von Bonsdorff, C.-H., & Pönkä, A. (2004). Wading pool water contaminated with both noroviruses and astroviruses as the source of a gastroenteritis outbreak. Epidemiology and Infection, 132(4), 737–743.PubMedPubMedCentralCrossRefGoogle Scholar
  97. Moresco, V., Viancelli, A., Nascimento, M. A., Souza, D. S. M., Ramos, A. P. D., et al. (2012). Microbiological and physicochemical analysis of the coastal waters of southern Brazil. Marine Pollution Bulletin, 64(1), 40–48.PubMedCrossRefGoogle Scholar
  98. Neish, A. (2013). Investigative trials on the purification of oysters to identify ways of reducing norovirus. CEFAS contract report C5224, 22nd April 2013. https://www.cefas.co.uk/media/52851/2013-cefas-contract-report-c5224.pdf
  99. NSSP. (2013). NSSP Guide for the Control of Molluscan Shellfish: 2013 Revision. from http://www.fda.gov/Food/GuidanceRegulation/FederalStateFoodPrograms/ucm2006754.htm
  100. Oliveira, J., Cunha, A., Castilho, F., Romalde, J. L., & Pereira, M. J. (2011). Microbial contamination and purification of bivalve shellfish: Crucial aspects in monitoring and future perspectives—A mini-review. Food Control, 22(6), 805–816.CrossRefGoogle Scholar
  101. Palfrey, R., Harman, M., and Moore, R. (2011). Impact of waste water treatments on removal of noroviruses from sewage. DEFRA R and D Technical Report WT0924/TR, November 2011. http://randd.defra.gov.uk/Document.aspx?Document=ImpactofWastewaterTreatmentsonRemovalofNorovirusesfromSewagefinal.pdf
  102. Park, Y., Cho, Y.-H., & Ko, G. (2011). A duplex real-time RT-PCR assay for the simultaneous genogroup-specific detection of noroviruses in both clinical and environmental specimens. Virus Genes, 43(2), 192–200.PubMedCrossRefGoogle Scholar
  103. UK Parliament. (2008). Climate Change Act 2008. The Stationery Office Ltd., London. from http://www.legislation.gov.uk/ukpga/2008/27/pdfs/ukpga_20080027_en.pdf
  104. Petterson, S., Grøndahl-Rosado, R., Nilsen, V., Myrmel, M., & Robertson, L. J. (2015). Variability in the recovery of a virus concentration procedure in water: Implications for QMRA. Water Research, 87, 79–86.PubMedCrossRefGoogle Scholar
  105. PHE. (2015). Summary of number of outbreaks of norovirus associated with consumption of shellfish and crustacean between 1992 and 2014. Unpublished dataset, received by author via email 2015 (personal communication).Google Scholar
  106. Phillips, G., Lopman, B., Tam, C. C., Iturriza-Gomara, M., Brown, D., et al. (2009). Diagnosing norovirus-associated infectious intestinal disease using viral load. BMC Infectious Diseases, 9, 63.PubMedPubMedCentralCrossRefGoogle Scholar
  107. Phillips, G., Tam, C. C., Rodrigues, L. C., & Lopman, B. (2010). Risk factors for symptomatic and asymptomatic norovirus infection in the community. Epidemiology and Infection, 139, 1676–1686.PubMedCrossRefGoogle Scholar
  108. Polo, D., Alvarez, C., Diez, J., Darriba, S., Longa, A., et al. (2014). Viral elimination during commercial depuration of shellfish. Food Control, 43, 206–212.CrossRefGoogle Scholar
  109. Polo, D., Varela, M. F., & Romalde, J. L. (2015). Detection and quantification of hepatitis A virus and norovirus in Spanish authorized shellfish harvesting areas. International Journal of Food Microbiology, 193, 43–50.PubMedCrossRefGoogle Scholar
  110. Pommepuy, M., Dumas, F., Caprais, M. P., Camus, P., Mennec, Le, et al. (2004). Sewage impact on shellfish microbial contamination. Water Science Technology, 50, 117–124.PubMedGoogle Scholar
  111. Pommepuy, M., Saux, J. C. L., Hervio-Heath, D., & Le Guyader, S. F. (2009). Monitoring viral contamination of molluscan shellfish. In: Shumway, S.E., & Rodrick, G.E. (Eds.). Shellfish Safety and Quality, Woodhead Publishing, pp. 108–128. http://archimer.ifremer.fr/doc/00015/12607/
  112. Repp, K. K., & Keene, W. E. (2012). A point-source norovirus outbreak caused by exposure to fomites. Journal of Infectious Diseases, 205(11), 1639–1641.PubMedPubMedCentralCrossRefGoogle Scholar
  113. Richards, G. P., McLeod, C., & Le Guyader, F. S. (2010). Processing strategies to inactivate enteric viruses in shellfish. Food and Environmental Virology, 2(3), 183–193.CrossRefGoogle Scholar
  114. Riou, P., Le Saux, J. C., Dumas, F., Caprais, M. P., Le Guyader, S. F., et al. (2007). Microbial impact of small tributaries on water and shellfish quality in shallow coastal areas. Water Research, 41(12), 2774–2786.PubMedCrossRefGoogle Scholar
  115. Robinson, C. M., & Pfeiffer, J. K. (2014). Leaping the norovirus hurdle. Science, 346, 700–701.PubMedPubMedCentralCrossRefGoogle Scholar
  116. Scallan, E., Hoekstra, R. M., Angulo, F. J., Tauxe, R. V., Widdowson, M. A., et al. (2011). Foodborne illness acquired in the United States—major pathogens. Emerging Infectious Diseases, 17(1), 7–15.PubMedPubMedCentralCrossRefGoogle Scholar
  117. Schneider, K. R., Cevallos, J., & Rodrisk, G. E. (2009). Molluscan shellfish depuration. In S. E. Shumway & G. E. Rodrick (Eds.), Shellfish safety and quality (pp. 509–541). Cambridge: Woodhead Publishing.CrossRefGoogle Scholar
  118. Schultz, A. C., & Myrmel, M. (2013). Methods for detection of viruses in food (Norovirus and hepatitis A virus). In F. J. M. Smulders, B. Nørrung, & H. Budka (Eds.), Food borne viruses and prions and their significance for public health (Vol. 6, pp. 79–111). The Netherlands: Wageningen Academic Publishers.CrossRefGoogle Scholar
  119. Scientific, Technical and Economic Committee for Fisheries (STECF) (2013). Summary of the 2013 Economic Performance Report on the EU Aquaculture sector (STECF-13-30). Publications Office of the European Union, Luxembourg, EUR 26368 EN, JRC 86673. https://stecf.jrc.ec.europa.eu/documents/43805/622206/2013-12_STECF+13-30+-+Aquaculture+economics+Summary+report_JRC86673.pdf
  120. Seafish, the authority on seafood, The Seafish Guide to Aquaculture (2013). Farmed UK shellfish production 2011. www.seafish.org/media/…/SeafishGuidetoAquaculture_201309.pdf. Accessed 01 12 2015.
  121. Semenza, J. C., & Menne, B. (2009). Climate change and infectious diseases in Europe. The Lancet Infectious Diseases, 9(6), 365–375.PubMedCrossRefGoogle Scholar
  122. Suffredini, E., Lanni, L., Arcangeli, G., Pepe, T., Mazzette, R., et al. (2014). Qualitative and quantitative assessment of viral contamination in bivalve molluscs harvested in Italy. International Journal of Food Microbiology, 184, 21–26.PubMedCrossRefGoogle Scholar
  123. Tam, C. C., Larose, T., & O’Brien, S. J. (2014). Costed extension to the second study of infectious intestinal disease in the community: identifying the proportion of foodborne disease in the UK and attributing foodborne disease by food commodity. Report to the Food Standards Agency, Project B18021 (FS231043). https://rhenvironmental.co.uk/blog/866-1-1609_IID2_extension_report_-_FINAL_25_March_2014.pdf
  124. Tam, C. C., O’Brien, S. J., Tompkins, D. S., Bolton, F. J., Berry, L., et al. (2012a). Changes in causes of acute gastroenteritis in the United Kingdom over 15 years: microbiologic findings from 2 prospective, population-based studies of infectious intestinal disease. Clinical Infectious Diseases, 54(9), 1275–1286.PubMedCrossRefGoogle Scholar
  125. Tam, C. C., Rodrigues, L. C., Viviani, L., Dodds, J. P., Evans, M. R., et al. (2012b). Longitudinal study of infectious intestinal disease in the UK (IID2 study): Incidence in the community and presenting to general practice. Gut, 61, 69–77.PubMedCrossRefGoogle Scholar
  126. Tam, C. C., Viviani, L., Adak, B., Bolton, E., Dodds, J., et al. (2012c), The second study of infectious intestinal disease (IID2 study). Final Report to the Food Standards Agency, Project Number B18021. https://www.food.gov.uk/sites/default/files/711-1-1393_IID2_FINAL_REPORT.pdf
  127. Teunis, P. F. M., Moe, C. L., Liu, P., Miller, S. E., Lindesmith, L., et al. (2008). Norwalk virus: How infectious is it? Journal of Medical Virology, 80, 1468–1476.PubMedCrossRefGoogle Scholar
  128. Tian, P., Yang, D., Pan, L., & Mandrell, R. (2012). Application of a receptor-binding capture quantitative reverse transcription-pcr assay to concentrate human norovirus from sewage and to study the distribution and stability of the virus. Applied Environmental Microbiology, 78(2), 429–436.PubMedPubMedCentralCrossRefGoogle Scholar
  129. Ueki, Y., Sano, D., Watanabe, T., Akiyama, K., & Omura, T. (2005). Norovirus pathway in water environment estimated by genetic analysis of strains from patients of gastroenteritis, sewage, treated wastewater, river water and oysters. Water Research, 39, 4271–4280.PubMedCrossRefGoogle Scholar
  130. Uhrbrand, K., Myrmel, M., Maunula, L., Vainio, K., Trebbien, R., et al. (2010). Evaluation of a rapid method for recovery of norovirus and hepatitis A virus from oysters and blue mussels. Journal of Virological Methods, 169(1), 70–78.PubMedCrossRefGoogle Scholar
  131. Vaillant, V., de Valk, H., Baron, E., Ancelle, T., Colin, P., et al. (2005). Foodborne infections in France. Foodborne Pathogens and Disease, 2, 221–232.PubMedCrossRefGoogle Scholar
  132. Victoria, M., Guimarães, F. R., Fumian, T. M., Ferreira, F. F., Vieira, C. B., et al. (2010a). One year monitoring of norovirus in a sewage treatment plant in Rio de Janeiro, Brazil. Journal of Water Health, 8(1), 158–165.PubMedCrossRefGoogle Scholar
  133. Victoria, M., Rigotto, C., Moresco, V., de Abreu Corrêa, A., Kolesnikovas, C., et al. (2010b). Assessment of norovirus contamination in environmental samples from Florianópolis City, Southern Brazil. Journal of Applied Microbiology, 109, 231–238.PubMedGoogle Scholar
  134. Webby, R. J., Carville, K. S., Kirk, M. D., Greening, G., Ratcliff, R. M., et al. (2007). Internationally distributed frozen oyster meat causing multiple outbreaks of norovirus infection in Australia. Clinical Infectious Diseases, 44(8), 1026–1031.PubMedCrossRefGoogle Scholar
  135. Werber, D., Laušević, D., Mugšosa, B., Vratnica, Z., Ivanović-Nikolić, L., et al. (2009). Massive outbreak of viral gastroenteritis associated with consumption of municipal drinking water in a European capital city. Epidemiology and Infection, 137(12), 1713–1720.PubMedCrossRefGoogle Scholar
  136. Westrell, T., Dusch, V., Ethelberg, S., Harris, J., Hjertqvist, M., et al. (2010). Norovirus outbreaks linked to oyster consumption in the United Kingdom, Norway, France, Sweden and Denmark, 2010. Euro Surveillance, 15(12), 1–4.Google Scholar
  137. Whitehead, P. G., Leckie, H., Rankinen, K., Butterfield, D., Futter, M. N., et al. (2016). An INCA Model for Pathogens in Rivers and Catchments: Model structure, sensitivity analysis and application to the river thames catchment, UK. Science of the Total Environment, 572, 1601–1610.PubMedCrossRefGoogle Scholar
  138. WHO. (2006). WHO Guidelines for the safe use of wastewater, excreta and greywater. Volume I: Policy and regulatory aspects. Geneva: World Health Organisation.Google Scholar
  139. Winterbourn, J. B., Clements, K., Lowther, J. A., Malham, S. K., McDonald, J. E., et al. (2016). Use of Mytilus edulis biosentinels to investigate spatial patterns of norovirus and faecal indicator organism contamination around coastal sewage discharges. Water Research, 105, 241–250.PubMedCrossRefGoogle Scholar
  140. Woods, J. W., & Burkhardt, W., III. (2010). Occurrence of norovirus and hepatitis A virus in U.S. oysters. Food and Environmental Virology, 2(3), 176–182.CrossRefGoogle Scholar
  141. Wyn-Jones, A. P., Carducci, A., Cook, N., D’Agostino, M., Divizia, M., et al. (2011). Surveillance of adenoviruses and noroviruses in European recreational waters. Water Research, 45(3), 1025–1038.PubMedCrossRefGoogle Scholar
  142. Yang, N., Qi, H., Wong, M. M. L., Wu, R. S. S., & Kong, R. Y. C. (2012). Prevalence and diversity of norovirus genogroups I and II in Hong Kong marine waters and detection by real-time PCR. Marine Pollution Bulletin, 64(1), 164–168.PubMedCrossRefGoogle Scholar
  143. Ye, M., Li, X., Kingsley, D. H., Jiang, X., & Chen, H. (2014). Inactivation of human norovirus in contaminated oysters and clams by high hydrostatic pressure. Applied and Environmental Microbiology, 80(7), 2248–2253.PubMedPubMedCentralCrossRefGoogle Scholar
  144. Zakhour, M., Maalouf, H., Di Bartolo, I., Haugarreau, L., Le Guyader, F. S., et al. (2010). Bovine norovirus: Carbohydrate ligand, environmental contamination, and potential cross-species transmission via oysters. Applied and Environmental Microbiology, 76(19), 6404–6411.PubMedPubMedCentralCrossRefGoogle Scholar

Copyright information

© The Author(s) 2017

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors and Affiliations

  • Francis Hassard
    • 1
  • Jasmine H. Sharp
    • 2
  • Helen Taft
    • 3
  • Lewis LeVay
    • 1
  • John P. Harris
    • 4
  • James E. McDonald
    • 5
  • Karen Tuson
    • 1
  • James Wilson
    • 6
  • David L. Jones
    • 3
  • Shelagh K. Malham
    • 1
  1. 1.Centre for Applied Marine Sciences, School of Ocean SciencesBangor UniversityMenai BridgeUK
  2. 2.Natural Resources WalesCardiffUK
  3. 3.School of EnvironmentNatural Resources & Geography, Bangor UniversityBangorUK
  4. 4.NIHR Health Protection Research Unit in Gastrointestinal InfectionsUniversity of LiverpoolLiverpoolUK
  5. 5.School of Biological SciencesBangor UniversityBangorUK
  6. 6.Bangor Mussel Producers Ltd.BangorUK

Personalised recommendations
