Stable and robust train routing in station areas with balanced infrastructure capacity occupation

  • Nikola BešinovićEmail author
  • Rob M. P. Goverde
Open Access


Routing trains through busy railway station layouts is an important part of the timetabling process. For each train, a feasible route has to be determined to provide reliable operations, given the arrival and departure times at stations. In this paper, we propose a model for stable and robust train routing with the goal to minimize capacity occupation and maximize robustness. We define a multi-objective optimization problem and provide the heuristic RouteCare based on a max-plus automata model and a delay propagation model. We consider microscopic infrastructure to guarantee practical feasibility. The performance of the proposed algorithm is demonstrated on real-life instances of the Dutch railway network. The generated solutions outperformed the variants of RouteCare that independently maximize stability or robustness by 10.4% and 9.5%, respectively. In addition, RouteCare showed that even for the same number of resources used, a more robust route plan can be found that uses the station capacity more efficiently.


Railway Routing Conflict-free Stable Robust Max-plus algebra

1 Introduction

Timetable planning becomes more challenging with increasing demands and needs more attention and more effort from traffic planners. The need for more reliable planning is constantly growing. In particular, stations are locations in the network that are usually recognized as bottlenecks where most of the delays are being generated. In addition, intensive use of infrastructure resources (e.g., track sections, switches, crossings) requires periodic and frequent preventive maintenance to keep a high level of service. These challenges raise the following questions: 1. How to incorporate stability measures in the planning process to obtain an acceptable level of stability? 2. How to assign more robust routes with less interdependencies? 3. How to increase the availability of the infrastructure and reduce the required frequency of maintenance? Answering all these questions serve the single goal of providing a better and more reliable service to passengers.

To quantify the quality of scheduling solutions, Goverde and Hansen (2013) proposed design parameters such as efficiency, feasibility, stability and robustness. Timetable efficiency is the ability of trains to have travel times as short as possible. Timetable feasibility is the ability of all trains to adhere to their scheduled train paths, which are conflict-free considering microscopic details, i.e., all trains can proceed undisturbed by other traffic. Timetable stability is the ability of a timetable to absorb initial and primary delays so that delayed trains return to their scheduled train paths without rescheduling. This is directly connected to the infrastructure occupation. If the occupation is higher, then the remaining time allowances are lower and provide a less stable timetable. Timetable robustness is the ability of a timetable to withstand design errors, parameter variations, and changing operational conditions. We use these definitions of timetable indicators and translate them to the station level when designing route plans. To satisfy these design indicators, we need to consider different mathematical models both on a microscopic and macroscopic level of detail (Goverde et al. 2016). A microscopic level considers the detailed infrastructure (block lengths, curvatures, gradients) and signalling system, while a macroscopic level considers relevant timetable points (e.g., stations, junctions, bridges) as nodes and tracks between them as arcs. If microscopic details were not considered but instead default minimum headway norms are used, then we refer to normative or macroscopic feasibility.

In this paper, we consider an extension of the train routing problem (TRP) that was introduced by Zwaneveld et al. (1996). The TRP consists of choosing an appropriate route for each train arriving or departing in a station area and platform assignment where each train is assigned to one station platform track. The input to the TRP is usually a predefined macroscopic timetable that includes a number of trains and the scheduled arrival and departure times in the station. The output of the TRP is a route plan, which represents a set of compatible train routes consisting of an infrastructure itinerary assigned to each train at the appropriate time according to the timetable. In addition, a route plan is defined on the microscopic level.

The TRP attracted a lot of attention in the past and different approaches to model the TRP are found in the literature, particularly focusing on determining macroscopically feasible and efficient train routes. Carey and Carville (2003) gave a heuristic approach similar to the manual planning methods currently used in Great Britain. Zwaneveld et al. (1996, 2001) suggested formulating the TRP as a node packing problem, while Lusby et al. (2011a) proposed the set packing formulation. Zwaneveld et al. (1996, 2001) defined a TRP on a conflict graph, which models all conflicting train routes. While doing so, they considered only aggregated train routes due to the size of problem instances, and thus cannot guarantee the conflict-freeness of the produced route plan.

Caimi et al. (2011) defined the problem as a multicommodity flow problem. They considered the TRP on a Resource Tree Conflict Graph which computes a route plan that is conflict-free at the microscopic level and gave a computationally efficient model. Corman et al. (2009) proposed an Alternative Graph formulation for rescheduling and rerouting using an incompatibility graph and blocking times. The incompatibility graph models all routes that cannot be used simultaneously. All incompatible routes are then included in the Alternative Graph, which also requires sequence-dependent setup times to model the sectional-release route locking principle. A more efficient aggregated route formulation is furthermore introduced which computes slightly conservative microscopically conflict-free solutions with small extra buffer times. An extensive overview of the state-of-the-art is given in Sels et al. (2014) for periodic routing and Lusby et al. (2011b) and Cacchiani et al. (2014) for non-periodic cases. In our paper, the focus is on the periodic TRP version, but the approach may easily be adjusted to the non-periodic problem as well.

It has been commonly accepted that delays of trains are unavoidable in real-time operations as being subject to internal and external stochastic disturbances. In order to absorb these disturbances in real-time, a route plan should contain time supplements in the train process times and buffer times between pairs of consecutive train movements. These time allowances help to reduce delays and make the route plan more robust. Therefore, robustness of route plans is a necessary feature; however, it has been considered rarely in the literature. Caimi et al. (2005), Caprara et al. (2010) and Dewilde et al. (2014) introduced robustness implicitly by rewarding extended buffer times between trains as a common way to improve the robustness. Herrmann (2006) introduced three other robustness measures for the TRP as in Zwaneveld et al. (1996) which are variations on maximizing (clique/edge/node) weights in the conflict graph. These measures resemble an explicit robustness measure based on stochastic disturbance distributions. Caimi et al. (2005) and Herrmann used fixed-point heuristics to solve the TRP. Note that Herrmann referred to these measures as stability measures. In our paper, we define robustness explicitly as reducing the cumulative train delays in the station area. This robustness notion has been used in Kroon et al. (2008) for improving timetable robustness, but has not been used in train routing problems so far.

According to Goverde and Hansen (2013), stability is regarded as an important design indicator. A common way to express stability, which we also adopt in this paper, is through infrastructure capacity occupation. Capacity occupation norms for station occupation are proposed by the International Railway Association UIC (UIC 2013) and as such should be respected in the planning processes. In the literature, these norms are also known as stability norms. For example, having a route plan with an infrastructure occupation rate of a platform track of 90% of the time can not be accepted as a good route plan. Capacity occupation in a periodic timetable can be defined by the minimum cycle time \(\mu\), which represents then a stability measure (Heidergott et al. 2005; Goverde 2007). The minimum cycle time is the minimal period length in which the periodic execution of arrival and departure events is feasible after compressing the events as much as possible. Therefore, we want to minimize the cycle time \(\mu\) to achieve this. Let us assume a route plan with a scheduled cycle time T. The minimized \(\mu\) provides \(T-\mu\) time allowances (i.e., time supplements and buffer times) on the critical cycle and more everywhere else, i.e., on non-critical cycles. For more details on timetable stability evaluation, we refer to Goverde (2007, 2010), and on capacity assessment, we refer to Bešinović and Goverde (2018). Burkolter (2005) developed a Petri-net model that minimizes the cycle time to find a stable timetable structure (e.g., a train sequence). The proposed model applies two heuristics, local search and simulated annealing. The feasibility is additionally checked on the microscopic level by the model of Herrmann (2006). Petering et al. (2015), Zhang and Nie (2016) and Sparing and Goverde (2017) solve a related problem to Burkolter (2005) for bigger networks. They developed variants of exact minimal cycle time optimization (MCTO) models to find an optimal timetable structure. Bešinović and Goverde (2016) proposed a two-stage stability-to-robustness model that integrates MCTO and further designs an actual stable and robust timetable by effectively distributing time allowances. So far, no implementations of using the minimum cycle time as a stability measure for route plans exists in the literature.

The use of individual infrastructure elements plays a considerable role in traffic operations, because the occupation of each element determines how frequent maintenance should be undertaken. Each resource, particularly movable elements like switches, needs regular maintenance and replacement due to their lifetime cycle. The lifetime depends on multiple factors that may be train-, track- or usage-related. Some of these relevant factors are trains’ axle load, total tonnage, soil quality, maintenance and component renewal, train speed, number of operations (i.e., switch movements), and number of trains in facing or in trailing direction (Zwanenburg 2009). Closing a track section to maintain a switch often needs some traffic adjustments, which causes local changes in train routes, possible platform changes or even cancelling trains, and above all, evokes passenger inconvenience. Therefore, it is highly beneficial to spread the usage of infrastructure elements as equally as possible. The parameters defining the resource occupation can be the total blocking time and/or the number of resources used in a station. In our paper, we adopt the latter.

We introduce an extension to the original TRP and define it as the robust train routing problem (RTRP). Given a microscopic infrastructure and signalling system, macroscopic timetable (arrival and departure times), a set of alternative routes and train dynamics characteristics, determine a route plan including platform assignment that provides conflict-free, stable and robust operations with minimized and evenly distributed infrastructure use. To compute conflict-free solutions, we consider a much higher level of (infrastructure) details compared to e.g. Zwaneveld et al. (1996, 2001), which is already NP-hard. Together with additional objectives such as robustness, i.e. explicitly considering many disturbance scenarios, and an even infrastructure use, our considered problem requires many new variables, extra constraints, and a stochastic model formulation. In our opinion, this makes the newly created problem significantly more difficult to solve even for small instances. Therefore, we opted to apply a heuristic approach to find feasible, stable and robust route plan solutions.

In this paper, we propose a new microscopic multi-objective approach for the RTRP to improve train routing and platform assignment, which incorporates the important aspects of feasibility, stability, robustness, and balanced infrastructure occupation. We introduce the multi-start local search heuristic RouteCare to solve the RTRP. RouteCare is based on two models for capacity assessment and robustness evaluation. The former involves a max-plus automata model, and the latter integrates a delay propagation model. One of the main advantages of the max-plus automata model is the ability to represent the infrastructure resources and blocking times of these resources corresponding to blocking time stairways. Other than the time-event graph max-plus algebra models (Heidergott et al. 2005; Goverde 2007), in the max-plus automata, both the start and end time of blocking each resource by each train are taken into account. In this way, conflicts between trains are naturally forbidden, and this enables to compute capacity occupation by a given route plan. Feasibility is guaranteed by explicitly modelling track use and considering all operational constraints of the infrastructure and signalling system. Stability is achieved by minimizing total infrastructure occupation. Robustness is enforced by reducing the expected train delays. An even resource use is encouraged by distributing trains over more resources. A case study of a typical station area in the Netherlands shows the potential of the RouteCare algorithm by improvements in the obtained route plans compared to the original route plans. The approach represents a valuable addition to decision support tools in planning processes. In particular, RouteCare may be used in the planning of basic route plans, and also for short-term adjustments due to scheduled infrastructure maintenance and construction works.

The main contributions of this paper are fourfold. First, we propose a new RTRP formulation that for the first time explicitly includes stability and uses the minimum cycle time as a stability measure for the RTRP. Second, the capacity assessment model provides a microscopically conflict-free solution while no additional constraints for modelling headway constraints are needed. Third, the proposed model considers a more even use of infrastructure resources which may lead to generating more acceptable route plans and reduce required maintenance works. Fourth, the model incorporates capacity and robustness assessment directly in the optimization process of the TRP. As a result, planners gain an extended knowledge about the created route plan as soon as it has been produced. This is an improvement to the current general practice, where a capacity and robustness assessment is undertaken a posteriori or not at all in the design steps.

The remainder of the paper is organized as follows. Section 2 gives the definitions and notation used in the paper. Section 3 presents the methodology for solving the TRP. In particular, first the necessary data preprocessing and adopted modelling assumptions are given in Sects. 3.1 and 3.2. Then, models for capacity assessment, robustness evaluation and a multi-objective notion of the RTRP are described in Sects. 3.3, 3.4 and 3.5. The heuristic RouteCare and the corresponding permutation rules are elaborated in Sects. 3.6 and 3.7. Section 4 gives results of computational experiments, which is followed by conclusions in Sect. 5.

2 Definitions and notation

The microscopic infrastructure topology graph \(G=(X,S)\) represents the network at the level of homogeneous behavioral sections (i.e. sections with a constant value of speed limit, gradient and curvature). Each arc (in railway terms infrastructure section) in \(S\subseteq X\times X\) is described with its attributes such as length and constant characteristics of speed limit, gradient, and radius. The microscopic nodes \(x\in X\) represent both points in which these characteristics change and infrastructure element changes like boundaries of blocks, switches, and platform track sections. Next to the infrastructure, we denote the set of trains by Z and typically denote a train by \(z\in Z\).

A resource represents a subset of infrastructure elements that can be exclusively allocated to a single train at a given time. In practice, this is a block section or an interlocking section such as switch, crossing, single or double slip. The set of resources is denoted by R, with a typical element \(r \in R\). We also define the subset of resources that belong to platform tracks (tracks where a train stops) as \(R_{{ platform}}\).

An itinerary represents a sequence of resources r that can be used by a train to traverse through a station and it is denoted as j. The set of all itineraries in a station is denoted J. An itinerary may define an inbound movement, i.e. from the station entry to the platform track, outbound movement, i.e. from the platform track to exit of the station, and through movement from entry to exit of the station. Typically, when a train is stopping, its itinerary is split into inbound and outbound.

A train route defines an assignment of an itinerary to a train. A train route \(p_{zj}\) is an itinerary \(j\in J\) assigned to train \(z\in Z\). A train route \(p_{zj}\) is described by a subset of used resources \(p_{zjr}\), where r is a resource at the route. We define the set of all possible routes for a train z as \(P_z\). Further, the set of all train routes over all trains is denoted as P. Each train route blocks resources for a limited time that can be computed using the blocking time theory (Hansen and Pachl 2014). In addition, a train line is a train service that is defined with train type, stopping pattern, frequency and train routes through stations.

A route plan consists of assigned routes for all trains including inbound and outbound routes and selected platform tracks within a station and is denoted by \(\bar{P}\). In addition, the set of used resources in \(\bar{P}\) is established as \(\bar{R}=\bigcup _{p_{zj}\in \bar{P}}p_{zjr}\), where \(j\in J\), \(r\in p_{zj}\), \(\bar{R}\subseteq R\) and \(\bar{P}\subseteq P\).

The blocking time of a resource is the time during which the resource is solely dedicated to a single train and cannot be used by any other. A blocking time consists of an approach, running and clearing time, corresponding to a train running from the approach signal to the block signal, traversing the block itself, and running out of the block until the train has completely left the block over its entire train length (Hansen and Pachl 2014). In addition, the blocking time includes setup and release times, as well as the driver sight and reaction time. The blocking time of a resource r on a route \(p_{zj}\) is denoted as \(b_{zjr}\) and is defined with its starting and ending time, \(b_{zjr}=(s_{zjr},f_{zjr})\), for all \(z\in Z\), \(j\in J\), and \(r\in j\). A blocking time stairway of a train route is computed for a given train-dynamic speed profile based on the scheduled running time on the (macroscopic) network level. For this purpose, we use the microscopic timetabling models developed in Bešinović et al. (2017). A blocking time stairway for a train route \(p_{zj}\) is defined as \(B_{{zj}}= (s_{{zj}},f_{{zj}})\), where \(s_{{zj}}\) and \(f_{{zj}}\) are vectors of start and end times of all resources r over the train route \(p_{zj}\).

Note that in our approach it is not fundamental that the timetable is periodic. However, the timetables in the Netherlands are planned as such, so we assume throughout the paper that all route plans are also periodic with a scheduled cycle timeT.

Capacity occupation of a station is defined as the share of time that the train routes from a given route plan occupy the infrastructure in a given time period. Capacity occupation may be determined as a summation of critical blocking times in the station network. A critical blocking time is one that affects the value of the capacity occupation if its size changes. These critical blocking times together form a so-called critical cycle. Resources that are included in the critical cycle are referred to as critical resources, and the minimum cycle time of a route plan is the weight of the critical cycle, i.e., the sum of its arc weights.

Platform occupation is the total blocking time allocated to trains stopping at a certain platform. The occupation of a single resource r, such as a platform track, is denoted as \(B_r\) and computed as the sum of the blocking times over this resource by all routes in a route plan.

Table 1 summarises the notation used throughout the paper, while a detailed introduction of each is given in the following sections.
Table 1

Notation of the RTRP




Set of infrastructure nodes


Set of infrastructure arcs

\(G = (X,S)\)

Infrastructure graph


Set of trains


Set of resources

\(R_{{ platform}}\)

Set of resources belonging to platform tracks


Set of all alternative train routes


Set of selected train routes in a route plan


Set of used resources in \(\bar{P}\)








Train route of a train z over itinerary j


Resource k of a \(p_{zj}\)

\(s_{zj}\), \(f_{zj}\)

Vectors of start and end times of a blocking time stairway for train z on itinerary j


Blocking time stairway for train z on itinerary j (tuple of two vectors)

\(s_{zjr}\), \(f_{zjr}\)

Start and end times for train z on itinerary j at resource r


Total blocking time over all routes using resource r


Set of conflicting train route pairs


Set of critical resources from the critical cycle


Scheduled cycle time


Time horizon for the delay propagation model


Set of events in station areas, e.g., entry, exit, arrival, departure events


Set of activities, e.g., running, dwelling times, headways


Event-activity network


Lower bound for process (ij)


Number of replications






Observed delay at h-th period of the i-th event


Modulo parameter

\(\delta ^{(q)}\)

One disturbance replication (scenario)

\(\alpha , \beta , \gamma\)

Weight factors of the objective function


Number of trains in route plan \(\bar{P}\)

3 Modeling the RTRP

3.1 Preprocessing

The preprocessing consists of the following procedures which are briefly explained.
  1. 1.

    Import all possible route alternatives.

  2. 2.

    Reduce the set of alternative routes.

  3. 3.

    Compute the blocking time stairways for each train route.

  4. 4.

    Derive the pairs of conflicting train routes.

In Procedure 1, the input for each train line is a set of train routes that are implemented in the interlocking system which represent all possible routing alternatives. In theory, we may incorporate all existing routes that connect a station entry/exit with all station platform tracks, but in practice the set of preferable platforms is commonly reduced to a smaller number of platforms depending on the station layout and previous planning decisions.

For a pair of origin and destination nodes there may exist an ample number of defined alternative routes. Therefore, during experimental testing, route reduction rules (Procedure 2) may be implemented to reduce computation time, as in Zwaneveld et al. (1996) and Dewilde et al. (2014). We tested the reduction carried out in Zwaneveld et al. (1996).

In Procedure 3, we use a microscopic model previously developed in Bešinović et al. (2017) for computing blocking time stairways for all possible train routes using the detailed infrastructure defined by the graph G. First, running times are computed for scheduled arrival and departure times from the timetable in a way that time supplements are equally distributed along the train run. Then, blocking time stairways are computed for all train routes in the station.

Procedure 4 defines a set of conflicting train routes, which is done by finding conflicts between two train routes. A conflict is determined as an overlap (in time and space) between blocking times of two routes. For example, let us consider train routes \(p_{zj}\) and \(p_{qm}\), where z and q are trains in Z and j and m are corresponding itineraries in J, respectively. Also, assume that train z precedes train q within the station. The corresponding blocking time stairways are \(B_{zj}\) and \(B_{qm}\). Let \(r_c\) denote a conflicting resource. Then, the conflict between two train routes are identified as:
$$\begin{aligned} c_{zj,qm} = \{ (p_{zj}, p_{qm}) | \exists r_c\in p_{zj} \cup p_{qm}, s_{zjr_c}<s_{qmr_c}, f_{zjr_c} >s_{qmr_c} \} , \forall z,q\in Z, j,m \in J. \end{aligned}$$
If \(c_{zj,qm} = \emptyset\), then there is no conflict between routes \(p_{z j}\) and \(p_{q m}\). The set of conflicting train route pairs C is defined as:
$$\begin{aligned} C = \bigcup _{z,q\in Z, j,m\in J} c_{zj,qm}. \end{aligned}$$

3.2 Assumptions

We make three assumptions within the RTRP formulation. First, we assume that an initial route plan is given and feasible for all \(z \in Z\). The input to the RTRP is a route plan \(\bar{P}\) which is the output from a previous planning step, the timetable design. By using a timetabling approach developed in Goverde et al. (2016), our generated timetable is microscopically conflict-free, and so is our initial \(\bar{P}\). Second, we assume that the weight of a train route equals the running time through the station. Third, we do not consider passenger connections in stations. To solve the given multi-objective RTRP, we introduce a heuristic algorithm in the following sections. In particular, Section 3.3 describes a max-plus automata model to compute the capacity occupation, Sect. 3.4 gives a delay propagation model to evaluate robustness, Sect. 3.5 presents the objective function and Sect. 3.7 combines all previous in a heuristic algorithm.

3.3 Capacity assessment: max-plus automata model

We propose a max-plus automata model for assessing the capacity occupation and refer to it as the capacity assessment (CA) submodel. The output of the CA submodel consists of 1) the capacity occupation \(\mu\), 2) the set of critical resources K, i.e., the resources that determine the critical cycle, 3) the total blocking times of single resources, \(B_r\) for all resources \(r\in \bar{R}\), 4) the platform occupation, \(B_r\) for all platform resources \(r\in R_{{ platform}}\), and 5) the number of resources \(\theta\) used by the route plan. All these output characteristics of a route plan are exploited afterwards to modify the set of chosen routes. In essence, a max-plus automata model considers blocking time stairways directly by using start and finish times of each block in the stairway. Also, the model does not allow overlap between two stairways. Thus, minimum headways between trains are modelled explicitly and the output is conflict-free. Graphically, the max-plus automata model resembles a tetris game where a falling block represents a blocking time stairway.

Gaubert and Mairesse (1999) introduced max-plus automata which combine elements of the theory of heaps-of-pieces and max-plus algebra. An initial application of max-plus automata in railways is given in Van Egmond (1999). Max-plus algebra is an idempotent semiring over the union of real numbers and \(\varepsilon =-\,\infty\), \(\mathbb {R}_{\max }=\mathbb {R}\cup \{\varepsilon \}\), and is equipped with the two binary operations maximum (\(\oplus\)) and addition (\(\otimes\)). Let a and b be real scalars or \(\varepsilon\), then the operations are defined as
$$\begin{aligned} a\oplus b=\max (a,b) \quad \text {and} \quad a\otimes b=a+b. \end{aligned}$$
The element \(\varepsilon =-\infty\) is the neutral element for \(\oplus\) and absorbing for \(\otimes\). The element \(e=0\) is the neutral element for \(\otimes\). Properties of max-plus algebra are similar to conventional algebra. We refer to Goverde (2007) and Heidergott et al. (2005) for more details on max-plus algebra with applications to railways.

A max-plus automaton is a triple \((\bar{P},\bar{R},M)\). Here, \(\bar{P}\) is a finite set of tasks representing a route plan. A task \(p\in \bar{P}\) represents a train route \(p_{zj}\). In the remainder of the section, we omit indices to keep the notation clearer. \(\bar{R}\) is a finite set of resources (as defined in Sect. 3.1). Lastly, M is a linear transformation \(\bar{P}\rightarrow \mathbb {R}_{\max }^{\bar{R}\times \bar{R}}\), which is uniquely specified by a finite family of matrices M(p), \(p\in \bar{P}\), as defined in the next paragraph.

Vectors s(p) and f(p) represent the start and end times of the blocking time stairway s of train route p, respectively; and are \(|\bar{R}|\)-dimensional row vectors with an element equal to \(\varepsilon\) if a resource is not used. Matrix M(p) represents a blocking time stairways of train route p in max-plus automata notation, and simultaneously equals the capacity occupation of p. Matrix M(p) is computed as:
$$\begin{aligned} M_{ij}(p) = \left\{ \begin{array}{ll} e, &{}\quad i=j, i\notin \bar{R}(p), \\ f_j(p)-s_i(p), \quad &{}\quad i,j \in \bar{R}(p), \\ \varepsilon , &{}\quad \text {otherwise.} \end{array}\right. \end{aligned}$$
Route plan \(\bar{P}\) is represented as \(\bar{P}=\{p_1,\ldots ,p_n\}\), where n is the number of routes in \(\bar{P}\). Therefore,
$$\begin{aligned} M(\bar{P})=M(p_1\cdots p_n )=M(p_1)\otimes \cdots \otimes M(p_n), \end{aligned}$$
where \(p_1 \cdots p_n\) is concatenation of train routes in \(\bar{P}\) and \(M(\bar{P})\) is computed sequentially by adding one route at a time.
We introduce the upper contour of the route plan \(\bar{P}\), \(x(\bar{P})\), which is computed as
$$\begin{aligned} x(\bar{P})=M(\bar{P})\otimes x(e), \end{aligned}$$
where x(e) is an \(|\bar{R}|\)-dimensional row vector with all entries equal to \(\varepsilon\).
In order to determine the earliest possible start of the next cycle, we add the route of the first train in the cycle \(p_1\) to the route plan as \(\bar{P}p_1\). The difference \(f(p_1)-s(p_1)\) represents a vector of blocking times of \(p_1\) (from the next period) over all resources. The capacity occupation \(\mu (\bar{P})\) is computed as
$$\begin{aligned} \mu (\bar{P})=\min _{r\in \bar{R}} \left[ x(\bar{P}p_1)-(f(p_1)-s(p_1))\right] _r, \end{aligned}$$
where schedule \(\bar{P}p_1\) is a schedule for one time period including the first train service \(p_1\) that belongs to the next period and the minimum is taken over all resources \(r\in \bar{R}\), which correspond to the vector entries.
The set of critical resources K is constructed step-wise, after adding each train route \(p_z\) to the heap of previously added routes \(M(p_1\cdots p_{z-1})\). A resource of \(p_z\) that satisfies
$$\begin{aligned} f(p_z) - s(p_z) = x(p_1\cdots p_{z}) - x(p_1\cdots p_{z-1}) \end{aligned}$$
is considered as a critical resource and is added to K. In other words, if the difference between upper contours after adding route \(p_z\) is exactly the blocking time of that route \(f(p_z) - s(p_z)\) on some resources, then such a resource is a critical resource. Once all train routes from \(\bar{P}\) are included in M, all critical resources are known.
The total blocking time of each resource r is computed as:
$$\begin{aligned} B_r = \sum _{z\in Z, j\in J} (f(p_{zjr})-s(p_{zjr})), \qquad \forall r \in \bar{R}. \end{aligned}$$
Blocking times of platform tracks \(r\in R_{platform}\) are contained in \(\bar{R}\), so we do not explicitly recompute them. In addition, the number of unique resources used \(\theta\) for a given route plan is obtained as \(\theta = |\bar{R}|\). Note that the model complexity, the size of the M matrices, depends on the route choices and number of resources used \(\bar{R}\) and not on the station layout complexity.

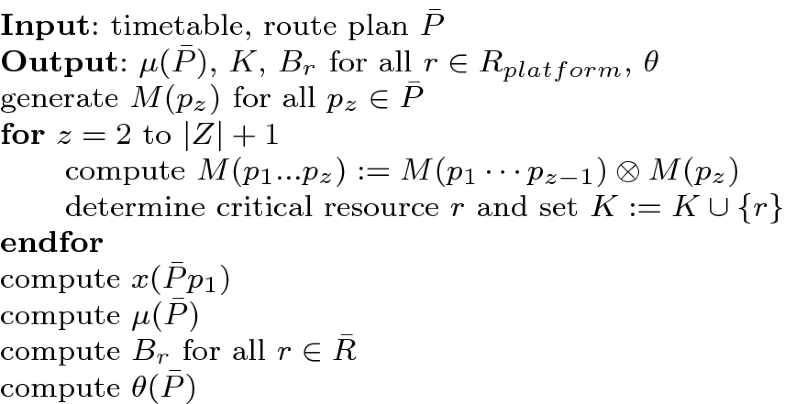

Algorithm 1 summarizes the capacity occupation model. Given is a timetable and the corresponding route plan \(\bar{P}\) that includes all selected train routes \(p_z\in \bar{P}\subset P\). First, all individual matrices M are computed for each train route p in \(\bar{P}\). Next, matrix \(M(\bar{P}p_1)\) is created by adding one route at the time. While doing so, the critical resource r is determined in each iteration and assigned to the set of critical resources K. Then, the CA submodel computes the capacity occupation for a station by using (2) and (3). Finally, the output consists of the capacity occupation \(\mu\), the critical resources K, total number of resources used \(\theta\), and the resource occupation \(B_r\) for all \(r\in \bar{R}\). The output of Algorithm 1 depends on the order trains are scheduled in the timetable and thus its routes added to the heap. Note that in case that two trains arrive/depart simultaneously to/from the station (i.e., have rolling stock or passenger connection, but not infrastructural) they can be modelled as one piece to maintain their dependency (see Bešinović and Goverde 2018 for more details).

Algorithm 1 Pseudo code of the CA submodel

Open image in new window
For better understanding of the max-plus automata model, we give a numerical example of two train routes a and b running through a simple station (Fig. 1). Routes a and b make a route plan \(\bar{P}=ab\). Train route a uses resources 1, 3 and 4, while b uses 4, 2 and 1. The set of used resources is \(\bar{R}=\{1,2,3,4\}\). Their blocking times are defined with vectors of starting and ending times in Table 2.
Table 2

Blocking times for train routes a and b

Route r

s(r) (s)

f(r) (s)


\([0,\epsilon ,25,40]\)

\([40,\epsilon ,60,75]\)


\([80,25,\epsilon ,0]\)

\([140,100,\epsilon ,35]\)

Figure 2 visualises the capacity occupation of train routes a and b. Using (1), matrices M for each train route are computed:
$$\begin{aligned} M(a) = \begin{bmatrix} 40&\quad \epsilon&\quad 60&\quad 75\\ \epsilon&\quad e&\quad \epsilon&\quad \epsilon \\ 15&\quad \epsilon&\quad 35&\quad 50\\ 0&\quad \epsilon&\quad 20&\quad 55 \end{bmatrix}, \quad M(b)=\begin{bmatrix} 60&\quad 20&\quad \epsilon&\quad -45\\ 115&\quad 75&\quad \epsilon&\quad 10 \\ \epsilon&\quad \epsilon&\quad e&\quad \epsilon \\ 140&\quad 100&\quad \epsilon&\quad 35 \end{bmatrix}. \end{aligned}$$
The matrix M for trains ab is computed as
$$\begin{aligned} M(ab)=M(a)\otimes M(b)= \begin{bmatrix} 215&\quad 175&\quad 60&\quad 110\\ 115&\quad 75&\quad \epsilon&\quad 10\\ 190&\quad 150&\quad 35&\quad 85\\ 175&\quad 135&\quad 20&\quad 70 \end{bmatrix}. \end{aligned}$$
The upper contour of the route plan ab is then computed as \(x(\bar{P}a)=x(aba)= M(aba)\otimes x(e)= (255, 175, 315, 330)^T.\) Here a is added to represent the first train from the following period. The capacity occupation is computed using (3) as
$$\begin{aligned} \mu (\bar{P})=\mu (ab)= \min _r [x(aba)-(f(a)-s(a))]_r= \min _r \begin{pmatrix} \begin{bmatrix} 255 \\ 175 \\ 315 \\ 330 \end{bmatrix} -\begin{bmatrix} 40 \\ \epsilon \\ 35 \\ 35 \end{bmatrix} \end{pmatrix}_r = 215 s, \end{aligned}$$
where the minimum is taken over the vector entries. Figure 3 shows the final result of the capacity assessment of route plan \(\bar{P}\). Dashed lines give the upper contour which equals \(x(\bar{P}a)= (255, 175, 315, 330)^T\). The double arrow depicts the capacity occupation \(\mu (\bar{P})\) which equals 215 s. There is one critical resource since all routes touch at resource 1, \(K=\{1\}\). The total number of resources used is \(\theta =4\) and platform occupation is 75 s and 35 s for each platform (resources 2 and 3), respectively.
Fig. 1

Example station layout

Fig. 2

Resource occupation of train routes a and b

Fig. 3

Capacity occupation of ab. Dashed lines give the upper contour \(x(\bar{P}a)\). The double arrow depicts the capacity occupation \(\mu (\bar{P})\)

3.4 Robustness evaluation: delay propagation model

We implement a simulation-based model as robustness evaluation and refer to it as the RE submodel. The RE submodel simulates train operations in a station area under initial disturbances. Disturbances are defined as small deviations from the planned process times and are assumed to be known and given as input.

We consider a horizon of H hours to capture the propagation over a longer period of time. In transport networks with dense traffic, it may commonly happen that a train from 1 h causes a delay to a following train in a next period. We assume that all train orders are fixed as in the timetable, so no traffic control measures within the station area are taken into account. By doing so, we concentrate on the timetable itself.

We deploy a macroscopic model of a station area with several events for each train: entry to the station, arrival and departure to/from a platform and exit from the station. Also, all dependencies of train routes are maintained and mapped from the microscopic network used in the CA submodel to the macroscopic network. This level of abstraction allows to develop a fast RE submodel capable of performing a number of Monte Carlo simulations. We create an event-activity network \(EAN=(V,A)\), where vertices correspond to events \(i\in V\) with corresponding event time \(v_i\), i.e., given scheduled arrival, departure or pass-through times. Arcs \(a\in A\) represent process times such as running, dwell, transfer of headway times. Each arc is described with a pair of events \(a=(i,j)\). For modeling the RE submodel, we use precedence constraints
$$\begin{aligned} v_j-v_i\ge l_{ij}, \end{aligned}$$
where \(l_{ij}\) is the minimum process time over arc (ij), computed using models from Bešinović et al. (2017). So, (4) gives a lower bound on the process times between two adjacent events.
The robustness evaluation model is based on a Sample Average Approximation Method, see Shapiro (2000). We assume that the primary disturbances are described by a non-negative random vector variable \(\varDelta\) that assigns non-negative disturbance values to each activity. Let \(\delta\) be a replication from \(\varDelta\) and \(D(v,\delta )\) is defined as the average weighted delay when route plan v is performed subject to disturbances in \(\delta\). Thus, we want to find minimum \(D^*\) as
$$\begin{aligned} D^*=\text {minimize}\{ED(v,\varDelta )\}. \end{aligned}$$
To solve \(D^*\), we approximate it by (1) selecting a fixed number of realizations |Q|, and (2) making a random sample of Q vectors \(\delta ^{(q)}\) of primary disturbances. Thus, we compute the average cumulative delay \(D^*_Q\) as:
$$\begin{aligned} D^*_Q = \text {minimize} \left\{ \frac{1}{|Q|} \sum _{q=1}^Q D(v,\delta ^{(q)}) \right\} . \end{aligned}$$
The robustness evaluation model is realized as an optimization model that minimizes the average cumulative delay of the route plan \(\bar{P}\), while \(D_i(h)\) is a single delay of one event i in the h-th hour. The RE submodel is formulated as follows:
$$\begin{aligned} D^*_Q = \text {minimize} \left\{ \frac{1}{|Q|} \sum _{q=1}^Q D(v,\delta ^{(q)}) \right\} \end{aligned}$$
subject to
$$\begin{aligned} v_j^{(q)}(h+k_{ij}) - v_i^{(q)}(h) \ge l_{ij} + \delta _{ij}^{(q)}(h),\quad \forall (i,j)\in A, \forall h\in H, \end{aligned}$$
$$\begin{aligned} v_i^{(q)}(h) \ge v_i + hT,\quad \forall i\in V, \forall h\in H, \end{aligned}$$
$$\begin{aligned}v_i^{(q)}(h) - v_i-hT\le D_i(h),\quad \forall i\in V, \forall h\in H \end{aligned}$$
Here, variable \(v_i^{(q)}(h)\) defines the simulated event time of event i in hour h with respect to the input disturbances and \(k_{ij}\) defines the hour shift of events i and j. For example, if i is scheduled before j then \(k_{ij}=0\), otherwise \(\hbox {k}_{ij}=1\). Constraint (6) assures that precedence constraints are satisfied for the minimum process times and a given disturbance \(\delta ^{(q)}_{ij}(h)\) in the h-th hour from event i to j. Constraint (7) guarantees that a train does not depart earlier than scheduled. Note that the scheduled event time of periodic event i after h hours is \(v_i+h\cdot T\) with \(T=60\) min. Finally, (8) defines all delay variables \(D_{i}(h)\) as non-negative.

The RE submodel tests a given tentative route plan \(\bar{P}\) against a set of replications \(q\in Q\), and returns the robustness measure \(\bar{D}(\bar{P}) = D^*_Q\). From the RE formulation can be seen that maximizing robustness equals minimizing the average cumulative delay, which we use as a robustness measure in Sect. 4. Also, we create an ordered list of the train routes that are affected the most, i.e., received the most delays, by summing the delays for each train line separately.

3.5 Objective functions for the RTRP

In order to address the posed questions, we define multiple objective functions.

As the first objective, a route plan with small capacity occupation allows more buffer times to be spread between trains. In other words, such a route plan tends to be more robust. We choose to minimize cycle time \(\mu\) to get the maximal achievable time allowance.

As the second objective, we introduce the robustness of a route plan and it is based on the delay propagation. In particular, the goal is to separate train routes in time as much as possible to minimize possible train delays. Train event times are considered as fixed as they are the result of a previous planning step—timetabling on a network level. Thus, in our model, time supplements are given and fixed, while buffer times between routes depend essentially on the route choice that has been made. Choosing certain routes, the knock-on effects of delays from one train to another can be significantly reduced or even avoided if two routes are independent. Thus, we want to find a route plan that minimizes the average train delay \(\bar{D}\).

The third objective considers balancing the use of single infrastructure resources. Since our focus is on a dominant passenger network, we can assume that all trains are of a similar tonnage, and thus, we may translate the expected lifetime of a resource to the number of train runs over it. In this way, a reduced number of scheduled routes over a single resource would extend its lifetime and reduce the maintenance frequency and the required (partial) station closures for these works. To achieve this, we maximize the number of \(\theta\) resources used in a station area. As a consequence, some used routes may be longer and/or slower; however, such route plan can significantly reduce the need for maintenance closures. Note that we also choose not to use efficiency in the objective function. Having another objective criterion makes it more difficult to balance and weigh all criteria correctly, and it makes the results also more difficult to interpret. This is acceptable for the TRP as running times do not differ much due to already reduced train speeds in a station area. Still, route efficiency is encouraged within permutation rules by giving priority to faster routes (see Sect. 3.7). Most importantly, a possible slight increase in running times will always be outweighed by the reduced need of maintenance closures of single resources.

We summarize the multi-objective problem for solving the RTRP as
$$\begin{aligned} cost(\bar{P}) = \min _{\bar{P}} \left\{ \alpha \mu + \beta \bar{D} + \gamma \theta \right\} , \end{aligned}$$
where \(\alpha , \beta\) and \(\gamma\) are weight factors of three objectives to normalize the costs of single objectives.

First, the stability measure is of a deterministic nature, while the robustness measure is stochastic. Second, the former considers only the critical cycle, while the latter focuses on the buffer times, i.e., the delay reduction potential of the buffer times, also between all train lines of the route plan. When optimizing only on stability, i.e., over the critical cycle, good robustness over the complete route plan is not necessarily achieved. Reversely, if only robustness is considered, stability may suffer by high capacity occupation of a certain platform (resource). Thus, we need both measures to find the best overall solutions. The importance of a multi-objective approach is quantified in Sect. 4.

3.6 RTRP heuristic

We propose the heuristic RouteCare for solving the RTRP. RouteCare is a greedy multi-start local search heuristic that is based on the capacity assessment model and the delay propagation model. RouteCare returns the best found robust route plan RRP. Algorithm 2 gives an outline of RouteCare.

The initialization phase consists of assigning the input route plan \(\bar{P}\) as the best current RRP and its cost is the cost of \(\bar{P}\), \(c(RRP):=c(\bar{P})\). RouteCare consists of several steps that are repeated iteratively until it performs an \(N_{{ iter}}\) number of iterations. The algorithm may also terminate before reaching \(N_{{ iter}}\) if stagnation of the algorithm is observed. We assume that the algorithm stagnates when the total cost of a solution does not change for a given number of iterations \({ stagMax}\). In order to prevent premature stagnation and move away from a possible local minimum, we execute a re-start when a solution is unchanged for a \({ randMax}\) number of iterations. To this end, we define a counter \({ stag}\) that tracks the number of iterations without solution improvement. If \({ stag}={ randMax}\), then the route plan \(\bar{P}\) is randomized.

At each iteration, we receive a route plan \(\bar{P}\) with the evaluated corresponding cost \(c(\bar{P})\). First, a tentative route plan \(\bar{P}\) is assessed on infrastructure occupation \(\mu (\bar{P})\) using the max-plus automata model from Sect. 3.3. Then, the algorithm evaluates the robustness of the proposed route plan \(\bar{P}\) by using the delay propagation model from Sect. 3.4 and checks the number of used resources \(\theta (\bar{P})\). Consecutively, the total cost \(c(\bar{P})\) is obtained. If a new \(\bar{P}\) has a lower cost than RRP then \(\bar{P}\) becomes the new RRP.

Finally, we permute \(\bar{P}\) by selecting N candidate routes to be exchanged based on the rules defined in Sect. 3.7. One can choose a value for N between 1 and |Z|. Note that if \(N=|Z|\) then the new \(\bar{P}\) represents a completely new set of routes. An alternative route plan is evaluated again in the new iteration.

3.7 Route permutations

In this section, we define rules to remove unfavorable routes from a current \(\bar{P}\) and substitute them with alternative ones for a given train line. Therefore, we define a set of rules for excluding a route from \(\bar{P}\) and likewise, a set of rules for selecting an alternative route to be inserted in the \(\bar{P}\). The exclusion rules are based on the output of the capacity assessment and robustness evaluation. The inclusion rules are derived from the corresponding exclusion ones together with the constraints that provide a realizable route and satisfy the conflict-freeness of chosen routes.

Algorithm 2 Pseudo code of RouteCare algorithm

We first give a set of exclusion (E) rules.

Rule E1. Exclude a train route with one or more resources on the critical cycle.

A route that is part of a critical cycle is a good candidate for exclusion. Braking a chain of critical events may lead to a change in capacity occupation. If a new route is chosen wisely, this rate may be reduced.

Rule E2. Exclude a route that participates in the critical cycle with the most critical resource, i.e., the one with the highest capacity occupation.

This rule relaxes the utilization of the resource with the highest capacity occupation. As such, it provides a diversification in used resources and thus leads to a more dispersed utilization of station resources.

Rule E3. Exclude a route that uses a platform track with the highest occupation.

Resources that correspond to platform tracks may not necessarily be in the critical cycle. However, having more train lines scheduled to a single platform sets more dependencies between them, and in general leads to less resistance to possible delays. Therefore, we would like to use station platform tracks in a more even manner and to achieve this by distributing trains over all available platform tracks.

Rule E4. Exclude a route that received most delays in the robustness evaluation. In the RE submodel, an ordered list of routes with total delays is generated, so we take the most sensitive route and seek for its alternative. Since one of the objectives in the model is reducing delays, excluding the least robust route may improve the route plan.

Rule E5. If more than one route exists that satisfies a certain exclusion rule, then exclude the route among the possible alternatives with a probability proportional to its weight, i.e., a route with lower weight has a higher probability to be selected.

Note that E-rules may be mutually exclusive. Therefore, during the experimentation phase, in each iteration one E-rule is chosen randomly with all rules treated equally. The weight of a route is the running time over it.

Inclusion (I) rules are given as follows. First, we define rules that naturally follow exclusion rules E1 to E3, thus representing their counterparts. All I-rules correspond to a train considered for exclusion by E-rules. In other words, I-rules are applied on the set of routes of the train z, that has been predetermined by an E-rule.

Rule I1. Include a route from \(P_z\) that does not use a resource in the critical cycle.

Rule I2. Include a route from \(P_z\) that does not use any critical resource.

Rule I3. Include a route from \(P_z\) that does not use the highest utilized platform track.

Rule I4. Include a route from\(P_z\)that ensures a conflict-free run considering all other routes in the route plan, i.e., select a route that satisfies
$$\begin{aligned} (p_{zj}, p_{qm}) \notin C, q\in Z, z\ne q, \end{aligned}$$
over all other train routesqin the route plan\(\bar{P}\).

Since one of the objectives is to deliver a conflict-free route plan, this rule opts only for an alternative route that does not create a conflict with other routes in \(\bar{P}\).

Rule I5. If more than one route exists that satisfies a certain insertion rule, then include a route among the possible alternatives with a probability proportional to its weight, i.e., the route with the lowest weight has a higher probability to be chosen.

In terms of the nature of the defined rules and their relation to the objectives, we may say that rule pairs E1–I1, E2–I2 and E3–I3 relate to the capacity occupation constraints and the critical cycle time. Recall that due to the modelling nature of max-plus automata in the CA submodel, it is not needed to model headways explicitly. Furthermore, E4 encourages the robustness of a route plan. The pair of rules E3–I3 encourages more evenly distributed usage of resources, which is particularly valuable for the maintenance planning. Finally, rule I4 maintains the conflict-freeness of a given solution. Therefore, we may conclude that by using all defined rules, we obtain a RTRP model, and if we exclude E4 then we get the relaxation to the original TRP model.

4 Computational results

We tested RouteCare on a medium-sized station in the Netherlands, Den Bosch. The outline of the station is given in Fig. 4. The station includes eight station tracks of which five are equipped with a platform to provide boarding and alighting of passengers. The remaining station tracks are used for trains passing through the station without stopping. As a common practice, station tracks are divided in groups per direction of traffic, that is, two platform tracks for trains running in one direction and the remaining three for the opposite one. In the basic scenario, 12 trains are serving the station every 30 min. Therefore, a cycle time of \(T=30\) min was considered. For the robustness evaluation, we simulated one day of service, \(H=32\) (between 6 a.m.–22 p.m.). In the RE submodel, \(|Q|=30\) replications are performed. The delay distribution over all process times is assumed to be exponential. For the parameter of the exponential distribution, we adopted 5% of the process times (Yuan and Hansen, 2007). The parameters of RouteCare are defined after initial empirical experiments on the algorithm performance of finding better route plan solutions. In particular, \(N=1\), \({ randMax}=20\), \(N_{{ iter}}=500\) and \({ stagMax}=40\). The parameters of the objective function (9) are defined based on the relative importance of each objective. The importance of the three objectives is defined by the lexicographic order: stability, robustness, and even infrastructure use. The first two objectives, capacity occupation and robustness are of the same nature, both expressed in seconds, while capacity occupation is typically of a bigger order of magnitude for the experiments performed. Therefore, \(\alpha\) and \(\beta\) are both adopted to be 1. The third objective, the number of resources, is expressed in non-dimensional units, and typically takes lower values than both the capacity occupation and robustness, thus we adopted also \(\gamma =1\). We generated 40 alternative routes for all trains, thus there was no need for applying Procedure 2 in the preprocessing stage. We used an Intel E7 with 2.6 GHz processor for testing purposes.
Fig. 4

Station Ht layout


The performance of RouteCare in terms of solution quality and algorithm stability was tested first with the results given in Sect. 4.1. In addition, we compared the two submodels CA and RE to evaluate their effects individually to the obtained solutions in Sect. 4.2. Initially, RouteCare was run with only the CA submodel active, while RE was evaluated a posteriori to determine the robustness of the solution. In the second run, RouteCare used only the RE submodel, while CA was performed a posteriori. By doing this, we could quantify the effect of considering only one objective function on the quality of the resulting route plans. After determining the benefits of the model, we undertook extensive computational analyses for different scenarios whose results are reported in Sect. 4.3.

4.1 Performance of the RouteCare heuristic

Table 3

Results of the RTRP heuristic



Standard deviation

Total cost


7.95 (0.73%)

Number of iterations


39.46 (31.57%)

In this section, we give results on the stability of the RouteCare algorithm developed for solving the RTRP. To produce the initial macroscopic timetable, we used the timetabling model developed by Bešinović et al. (2016). Then we applied RouteCare to compute the route plan for the station. We reran the algorithm 30 times to evaluate its algorithmic stability. Table 3 shows the statistics of the obtained results. Particularly, it gives the average and the standard deviation of the total cost and number of iterations needed to obtain a solution. We also compared the solution of RouteCare with the original route plan as considered in the timetabling denoted as OriginalRP. To that purpose, OriginalRP was evaluated using the objectives in RouteCare—capacity occupation, average cumulative delays and number of resources. It can be observed from Table 3 that RouteCare performed good throughout successive simulations, as it always found an improved solution.

Although it did not always end up to a single value, the obtained total cost has a limited standard deviation of only 0.73%. The average number of necessary iterations before reaching a solution was 125, while in some simulation runs the solution has been found after 100 iterations. In all cases, the model needed considerably less than \(N_{{ iter}}\) iterations. Therefore, we can say that the average performance of RouteCare was satisfactory for the given test case.
Fig. 5

Performance of RouteCare

Figure 5 shows the improvement of the total cost (solid line) for one run of RouteCare with both costs for the CA (dotted line) and RE (dashed line) submodels. It also gives intermediate costs of capacity occupation and robustness. It can be observed that in the first ten iterations the capacity occupation was relatively high, but noticeable improvements were obtained in the beginning, due to decreasing the total delay of a route plan. Around iteration \({ iter}=35\), we see another significant reduction in capacity occupation. At \({ iter}=80\), we observe a small robustness improvement, which was the last change in the solution cost. The model continued iterations until it reached one of the stopping criteria \({ stagMax}\), so the final solution was obtained after 142 iterations. The total cost was \(c({ RRP})=1089\), where \(\mu ({ RRP})=690\) s, \(\bar{D}({ RRP})=333\) s and \(\theta =66\). We observed improvements in the newly generated route plan RRP when comparing with OriginalRP. The results for OriginalRP were \(\mu ({ OriginalRP})=696\), \(\bar{D}({ OriginalRP})=354\) and \(\theta ({ OriginalRP})=48\). So, the capacity occupation was reduced with 6 s, while average delay with 21 s. In addition, the new solution has a more diverse use of infrastructure resources. Thus, we may say that RouteCare may improve existing route plans.

4.2 Performance analysis: CA vs. RE submodels

In this section, we give a comparison of the produced route plans when only one of the CA or RE submodels is applied as well as the complete RouteCare with both submodels being active. Using only one submodel entails a subset of E- and I-rules that are applicable. Table 4 gives an outline of the used rules for each case considered.

Table 5 shows the results for all three cases. Namely, the capacity occupation, average cumulative delay as robustness cost, number of resources used, and the total cost. Bold numbers in the table indicate the value that was the aim of the optimization. For example, when only the CA submodel is used, then we obtain the RP that is optimized (minimized) for capacity utilization, while robustness is evaluated a posteriori. The second case is tackled in a similar way, while the last considered a multi-objective optimization with jointly minimizing capacity utilization, maximizing robustness (minimizing average cumulative delay) and maximizing the number of resources.
Table 4

Rules applied in submodels of RouteCare








CA submodel






RE submodel




CA and RE







Table 5

Results of individual submodels for \(|Z|=12\) trains


Capacity occupation \(\mu (RRP)\)

Cumulative delay \(\bar{D}(RRP)\)

No. of resources \(\theta\)

Total cost c(RRP)

Only CA





Only RE





CA and RE





Bold values represent the best results

When using only the CA submodel, we obtained the lowest capacity usage of 609 s. However, a posteriori evaluation of robustness showed much greater cumulative delay compared to the other two cases, more than 160%. This means that focusing solely on minimizing infrastructure occupation does not necessarily mean a better route plan robustness.

In the second case, when the model only maximizes robustness, \(\bar{D}({ RRP})=318\) s is achieved. However, the capacity occupation is remarkably higher than the one in the first case with in total 194 which is an increase of 31%. Applying only the RE submodel resulted in a total cost of 1187 which was slightly smaller than when applying only the CA submodel. However, since RE does not consider the use of resources, it ended up with four resources less than the CA case.

Comparing the complete RouteCare with the RE submodel, we observe that with just a minor increase of the average cumulative delay, from 318 to 333 s, we obtained a significantly reduced capacity occupation of \(\mu ({ RRP})=690\) instead of 803. In addition, both models use an equal number of resources \(\theta =66\). This means that by including both objectives in RouteCare, a route plan of overall better quality is obtained. Looking at the total costs of the three, we concluded that the multi-objective setup performed the best with a solution that is better than the CA submodel by 117 (10.4%) and the RE submodel by 98 (9.5%). RouteCare showed that even for the same number of resources used, a more robust route plan can be found that uses more efficiently the station capacity.

In general, if a route planning is done by respecting only the robustness objective, it may lead to a significantly higher capacity occupation. Since the latter would be evaluated only afterwards, it may result in discarding such a route plan due to exceeding the stability norms. On the other hand, it is not sufficient to design a route plan that focuses only on minimizing the infrastructure occupation. Such a route plan may have an ample amount of time allowances but allocated inefficiently. Thus, distributing them in a smart way is also highly important. Therefore, it may be concluded that it is important to include multiple objectives in the optimization model in order to obtain principally better solutions for the route plan.

4.3 Testing RouteCare on different timetable instances

In this section, we present the results of random scenarios and timetables generated. We tested 24 scenarios with different numbers of train lines ranging between 9 and 14 operating within the cycle time \(T=30\) min. In these tests, we adopted \(N_{{ iter}}=200\) and \({ stagMax}=40\). The characteristics of scenarios and the obtained results are given in Table 6.

Changing the number of trains does not necessarily mean a change in capacity occupation. Thus, the critical cycle may remain the same with an increasing (or decreasing) number of scheduled routes. In other words, an added route may not use resources on the critical cycle nor generate a new one. For example, this was observed between scenarios sc1 and sc2, the capacity occupation remained the same while the number of trains is different, 14 and 13, respectively. However, the robustness cost for the latter case was reduced which is a result of less trains in the station.

The robustness cost shows better correspondence when changing the number of train routes in the station. In other words, more trains implies more dependencies between train routes and thus, less buffer times in between. In addition, the trend of increased total cost with an increasing number of train routes is more evident. As expected, the scenarios with a smaller number of train routes used usually less resources, while the ones with more trains used more resources. For most of the scenarios, 21 out of 24, RouteCare finished in less than 100 iterations, as shown in the last column.

We notice that the same number of trains does not necessarily generate the same costs, neither capacity occupation nor average delay. For example, the capacity occupation for scenarios with 13 train routes varies between 609 and 890 s, while the average delay varies between 110 and 185 s. Thus, we may conclude that the capacity occupation does not only depend on the station layout and number of trains but also on the way how the infrastructure has been utilized in terms of scheduled dwell times, corridors served by train lines, or types of trains. In addition, it depends on scheduled train operations such as trains passing through, originating or terminating in the station. So, all these criteria influence the capacity occupation heavily.
Table 6

Additional computational results


No. of trains |Z|

Capacity occupation \(\mu ({ RRP})\)

Total delay \(\bar{D}({ RRP})\)

No. of resources \(\theta\)

Total cost \(c({ RRP})\)

No. of iterations









































































































































































5 Conclusions

This paper presented a new microscopic multi-objective model for solving the robust train routing problem. The developed multi-start local search heuristic RouteCare improves feasible, stable and robust route plans with even use of infrastructure resources. The model incorporates two submodels for capacity assessment based on max-plus automata theory and robustness evaluation based on the delay propagation algorithm. The feasibility is guaranteed as the input to the model was computed using a microscopic model for computing running times and blocking time stairways. Stability and robustness are increased by minimizing the cycle time (capacity occupation) and minimizing the expected total delays. Finally, the model maximizes the number of different resources used which reduces the need for maintenance closure of resources and thus, for alternative traffic adjustments.

RouteCare was tested on a medium-size station in the Netherlands. The results showed high efficiency of RouteCare, i.e., the algorithm reported good performance over multiple successive runs while the obtained solution was always within 0.73% of the best found solution. The two submodels were tested individually to evaluate their distinctive performances and also compared with the complete RouteCare. Results revealed that it is highly important to consider multiple objectives in order to obtain principally better overall solutions for the route plan in a station area. In particular, for the test case, RouteCare achieved a 9.5% improvement compared to the model that included only the robustness objective. These results stressed the importance of using multi-objective approaches to generate better route plans. The extensive computational analysis for different input timetables showed that the capacity occupation and the corresponding total cost are also heavily influenced by the way the station capacity is utilized like train mix and preferred platforms or scheduled dwell times and not only by the number of scheduled trains and the station layout.

As part of future research, we may assess the efficiency of exclusion and inclusion rules individually. The results may give an insight for further simultaneous usage of rules to further improve the performance of RouteCare. As new indicators of infrastructure utilization, we may consider how resources are used, e.g. number of switch operations, axle load and resource age. We also plan to develop an exact model for solving the RTRP, which would allow to quantify the improvements achieved by RouteCare. Moreover, we will test the importance of the implemented submodels on the resulting route plan by varying the corresponding weight factors. In addition, multiple Pareto-optimal solutions can be provided to planners to be selected which would increase the quality of the implemented route plans and reduce time needed to generate them. Overall, RouteCare provided very promising results and could be considered as a valuable support tool to railway planners in designing better railway services.



  1. Ahuja RK, Magnanti TL, Orlin JB (1993) Network flows: theory. Algorithms and applications. Prentice Hall, Englewood CliffsGoogle Scholar
  2. Bešinović N, Goverde RMP (2016) Improving robustness of railway timetables: a new two-stage approach. In: The ninth triennial symposium on transportation analysis (TRISTAN IX), 12–17 June 2016, ArubaGoogle Scholar
  3. Bešinović N, Goverde RMP (2018) Capacity assessment in railway networks. In: Handbook of optimization in the railway industry. International Series in Operations Research and Management Science, vol 268. Springer, Cham, pp 25–45Google Scholar
  4. Bešinović N, Goverde RMP, Quaglietta E, Roberti R (2016) Micro-macro approach to robust timetabling. Transp Res Part B Methodol 87:14–32CrossRefGoogle Scholar
  5. Bešinović N, Quaglietta E, Goverde RMP (2017) Microscopic models and network transformations for automated railway traffic planning. Comput Aided Civ Infrastruct Eng 32(2):89–106CrossRefGoogle Scholar
  6. Burkolter DM (2005) Capacity of railways in station areas using Petri nets. Ph.D. Thesis, Swiss Federal Institute of Technology, ZurichGoogle Scholar
  7. Cacchiani V, Galli L, Toth P (2014) A tutorial on non-periodic train timetabling and train platforming problems. EURO J Transp Logist 4(3):285–320CrossRefGoogle Scholar
  8. Caimi G, Burkolter D, Herrmann T (2005) Finding delay-tolerant train routings through stations. In: Fleuren H, den Hertog D, Kort P (eds) Operations research proceedings, vol 2004. Springer. Berlin, pp 136–143Google Scholar
  9. Caimi G, Chudak F, Fuchsberger M, Laumanns M, Zenklusen R (2011) A new resource-constrained multicommodity flow model for conflict-free train routing and scheduling. Transp Sci 45(2):212–227CrossRefGoogle Scholar
  10. Caprara A, Galli L, Kroon LG, Maróti G, Toth P (2010) Robust train routing and online re-scheduling. In: 10th Workshop on algorithmic approaches for transportation modelling, optimization, and systems (ATMOS ’10)Google Scholar
  11. Carey M, Carville S (2003) Scheduling and platforming trains at busy complex stations. Transp Res Part A 37:195–224Google Scholar
  12. Corman F, Goverde RMP, D’Ariano A (2009) Rescheduling dense train traffic over complex station interlocking areas. In: Ahuja RK, Möhring RH, Zaroliagis CD (eds) Robust and online large-scale optimization: models and techniques for transportation systems. Springer, Berlin, pp 369–386CrossRefGoogle Scholar
  13. Dewilde T, Sels P, Cattrysse D, Vansteenwegen P (2014) Improving the robustness in railway station areas. Eur J Oper Res 235(1):276–286CrossRefGoogle Scholar
  14. Gaubert S, Mairesse J (1999) Modeling and analysis of timed petri nets using heaps of pieces. IEEE Trans Autom Control 44(4):683–697CrossRefGoogle Scholar
  15. Goverde RMP (2007) Railway timetable stability analysis using max-plus system theory. Transp Res Part B 41(2):179–201CrossRefGoogle Scholar
  16. Goverde RMP (2010) A delay propagation algorithm for large-scale railway traffic networks. Transp Res Part C 18(3):269–287CrossRefGoogle Scholar
  17. Goverde RMP, Hansen IA (2013) Performance indicators for railway timetables. In: IEEE international conference on intelligent rail transportation 2013 (ICIRT), Beijing, August 30–September 1 2013, pp 301–306Google Scholar
  18. Goverde RMP, Bešinović N, Binder A, Cacchiani V, Quaglietta E, Roberti R, Toth P (2016) A three-level framework for performance-based railway timetabling. Transpo Res Part C Emerg Technol 67:62–83CrossRefGoogle Scholar
  19. Hansen IA, Pachl J (2014) Railway timetabling and operations. Eurailpress, HamburgGoogle Scholar
  20. Heidergott B, Olsder GJ, van der Woude J (2005) Max plus at work: modeling and analysis of synchronized systems: a course on max-plus algebra and its applications. Princeton University Press, PrincetonCrossRefGoogle Scholar
  21. Herrmann TM (2006) Stability of timetables and train routings through station regions. Ph.D. Thesis, Swiss Federal Institute of Technology, ZurichGoogle Scholar
  22. Kroon LG, Romeijn HE, Zwaneveld PJ (1997) Routing trains through railway stations: complexity issues. Eur J Oper Res 98(3):485–498CrossRefGoogle Scholar
  23. Kroon LG, Maroti G, Retel Helmrich MJ, Vromans MJCM, Dekker R (2008) Stochastic improvement of cyclic railway timetables. Transp Res Part B Methodol 42(6):553–570CrossRefGoogle Scholar
  24. Lusby RM, Larsen J, Ryan D, Ehrgott M (2011a) Routing trains through railway junctions: a new set-packing approach. Transp Sci 45(2):228–245CrossRefGoogle Scholar
  25. Lusby RM, Larsen J, Ehrgott M, Ryan D (2011b) Railway track allocation: models and methods. OR Spectr 33(4):843–883CrossRefGoogle Scholar
  26. Petering MEH, Heydar M, Bergmann DR (2015) Mixed-integer programming for railway capacity analysis and cyclic, combined train timetabling and platforming. Transp Sci 50(3):892–909CrossRefGoogle Scholar
  27. Sedgewick R, Wayne K (2011) Algorithms, 4th edn. Addison-Wesley, New YorkGoogle Scholar
  28. Sels P, Vansteenwegen P, Dewilde T, Cattrysse D, Waquet B, Joubert A (2014) The train platforming problem: the infrastructure management company perspective. Transp Res Part B Methodol 61:55–72CrossRefGoogle Scholar
  29. Shapiro A (2000) Stochastic programming by Monte Carlo simulation methods, Stochastic Programming E-Print SeriesGoogle Scholar
  30. Sparing D, Goverde RMP (2017) A cycle time optimization model for generating stable periodic railway timetables. Transp Res Part B Methodol 98:198–223CrossRefGoogle Scholar
  31. UIC, Code 406: capacity. International Union of Railways, Paris (2013)Google Scholar
  32. Van Egmond RJ (1999) Railway capacity assessment, an algebraic approach. TRAIL studies in transportation science series S99/2Google Scholar
  33. Yuan J, Hansen IA (2007) Optimizing capacity utilization of stations by estimating knock-on train delays. Transp Res Part B 41:202–217CrossRefGoogle Scholar
  34. Zhang X, Nie L (2016) Integrating capacity analysis with high-speed railway timetabling: a minimum cycle time calculation model with flexible overtaking constraints and intelligent enumeration. Transp Res Part C Emerg Technol 68:509–531CrossRefGoogle Scholar
  35. Zwanenburg WJ (2009) Modelling degradation processes of switches and crossings for maintenance and renewal planning on the Swiss railway network. Ph.D. Thesis, EPFL, LausanneGoogle Scholar
  36. Zwaneveld PJ, Kroon LG, van Hoesel CPM (2001) Routing trains through a railway station based on a node packing model. Eur J Oper Res 128:14–33CrossRefGoogle Scholar
  37. Zwaneveld PJ, Kroon LG, Romeijn HE, Salomon M, Dauzere-Peres S, van Hoesel CPM, Ambergen HW (1996) Routing trains through railway stations: model formulation and algorithm. Transp Sci 30:181–194CrossRefGoogle Scholar

Copyright information

© The Author(s) 2019

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (, which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors and Affiliations

  1. 1.Department of Transport and PlanningDelft University of TechnologyDelftThe Netherlands

Personalised recommendations
