Petroleum Science

, Volume 14, Issue 2, pp 372–382 | Cite as

Emulsification of Indian heavy crude oil using a novel surfactant for pipeline transportation

Open Access
Original Paper
First Online:
Received:

Abstract

The most economical way to overcome flow assurance problems associated with transportation of heavy crude oil through offshore pipelines is by emulsifying it with water in the presence of a suitable surfactant. In this research, a novel surfactant, tri-triethanolamine monosunflower ester, was synthesized in the laboratory by extracting fatty acids present in sunflower (Helianthus annuus) oil. Synthesized surfactant was used to prepare oil-in-water emulsions of a heavy crude oil from the western oil field of India. After emulsification, a dramatic decrease in pour point as well as viscosity was observed. All the prepared emulsions were found to be flowing even at 1 °C. The emulsion developed with 60% oil content and 2wt% surfactant showed a decrease in viscosity of 96%. The stability of the emulsion was investigated at different temperatures, and it was found to be highly stable. The effectiveness of surfactant in emulsifying the heavy oil in water was investigated by measuring the equilibrium interfacial tension (IFT) between the crude oil (diluted) and the aqueous phase along with zeta potential of emulsions. 2wt% surfactant decreased IFT by almost nine times that of no surfactant. These results suggested that the synthesized surfactant may be used to prepare a stable oil-in-water emulsion for its transportation through offshore pipelines efficiently.

Keywords

Heavy crude oil Oil-in-water emulsion Pipeline transportation Sunflower oil Rheology Stability

1 Introduction

In past decades, a progressive decrease in conventional oil reserves has led to a dramatic increase in production of heavy crude oil. However, transportation of such highly viscous crude oil through pipelines is a major challenge for petroleum industries especially in offshore conditions. Heavy crude oils have viscosities of more than 1000 mPa s at room temperature. However, viscosity of crude oil should be less than 200 mPa s at 15 °C for its transportation through pipelines (Kessick and Denis 1982). The flowability of crude oil at the pumping temperature is an important factor that affects pipeline transportation. Heavy crudes usually have higher pour points due to high content of high molecular weight components, such as waxes, asphaltenes and resins. In conditions where the atmospheric temperature is below the pour point, crude oil gels completely and causes severe transportation problems. Especially in the cold offshore environment, waxes and asphaltenes deposit over inner surfaces of pipelines and eventually clog the pipelines, which further increases the pumping cost.

Therefore, several methods are employed by petroleum industries to transport crude oils through pipelines, dilution/blending of crude with lighter oil or organic solvents, preheating of crude and subsequent heating of pipelines, use of pour point depressants (PPDs), application of drag reducing additives and development of core annular flow (CAF) and in situ oil upgrading (Martínez-Palou et al. 2011). However, each of these methods has economic, technical and logistical drawbacks when it comes to transportation of heavy crude oil through offshore pipelines. Another pipeline technique favourable for cold offshore environments is the transportation of heavy crudes as oil-in-water (O/W) emulsions.

Oil-in-water emulsions are thermodynamically unstable dispersions of the oil phase in the water phase. They are subjected to several breakdown processes like flocculation, coalescence, Ostwald ripening and creaming (Langevin et al. 2004). In order to make these emulsions kinetically stable, a suitable surfactant (or mixture of surfactants) is always added, which adsorbs at the oil/water interface and forms a strong interfacial film (Jiang et al. 2013). However, a particular surfactant may not be suitable for different crude oils due to variation in physicochemical properties. Fatty acids (FAs), derived from different vegetable oils, are raw materials for preparation of surfactants through esterification or polymerization. Surfactants synthesized using vegetable oils have various advantages. They are cheaper, biodegradable and cause no adverse effect on nature. In this study, we used sunflower oil to synthesize a novel surfactant. Sunflower oil is a triglyceride obtained from pressing sunflower (Helianthus annuus) seeds. Alkaline hydrolysis of these triglycerides produces FAs and glycerol. Fatty acids from sunflower oil consist of 6.8% palmitic, 5.0% stearic, 19.6% oleic and 68.6% linoleic acids (Harrington and D’Arcy-Evans 1985). Hydrolysed sunflower oil was esterified with a trimer of triethanolamine to develop a new surfactant as ester and further evaluated as emulsifier for preparation of heavy oil-in-water emulsions. The estimated cost of the synthesized surfactant is very low as compared to the cost of commercial surfactants. Considering the economy, it is very important for petroleum industries to maximize the oil content as well as minimize the requirement of surfactant to prepare a stable emulsion with acceptable viscosity and pour point.

The objective of current research is to synthesize a cheap natural surfactant from sunflower oil that is suitable for preparing an oil-in-water emulsion of an Indian heavy crude oil to facilitate its transportation through offshore pipelines. Oil content and the amount of surfactant required were further optimized by investigating their effect on pour point, viscosity, stability, droplet size distribution, interfacial tension and zeta potential of the prepared emulsions.

2 Experimental

2.1 Materials

Heavy crude oil sample was collected from a Rajasthan oil field, India. Sunflower oil was procured from a local market in Kolkata, India. Polythene ethylene glycol (PEG) and triethanolamine (TEA) were obtained from Loba Chemie Pvt. Ltd. (Mumbai, India). n-heptane, n-decane, toluene, HCl and chloroform were procured from Merck Specialties Pvt. Ltd. (Mumbai, India). Methanol, sodium chloride, sodium carbonate, acetone, p-toluene sulphonic acid, acetic acid, petroleum ether (40–60 °C) and acetonitrile were received from Avantor Performance Materials India Ltd. (New Delhi, India).

2.2 Synthesis of surfactant

Hydrolysis of sunflower oil (SO) Sunflower oil (50 g) was reacted with 10% NaOH solution (250 mL) at 150 °C under constant stirring (450 rpm) in a three-necked flask along with gradual addition of water (400 mL) for 2 h. After reaction, a hot solution of 30% HCl (150 mL) was added and the mixture was kept in a water bath at 80 °C until the oily layer became clear. The oily layer was then separated and collected as hydrolysed sunflower oil (HSO), a mixture of several free fatty acids.

Synthesis of tri-triethanolamine TEA (149 g) was condensed in the presence of NaOH (1.6 g) as a catalyst. The reaction was carried at 260 °C under constant stirring (450 rpm) in a three-necked flask until 36 g of water was collected in a Dean and Stark trap. The used catalyst was then neutralized by washing the obtained product with 5% acetic acid solution. To further wash out impurities, the product was dissolved in petroleum ether (b.p. 40–60 °C) and an organic layer was separated. The remaining solvent was distilled off using a Soxhlet apparatus to give tri-triethanolamine (TTEA) (Hafiz and Abdou 2003).

Esterification of HSO and TTEA HSO (36 g) was reacted with TTEA (51 g) in the presence of a catalyst, p-toluene sulphonic acid (0.0108 g). The reaction was carried at 150 °C with continuous stirring, and water was removed azeotropically as it was formed. The product was then washed with a hot solution of 5% Na2CO3 to remove the catalyst and then dissolved in petroleum ether (b.p. 40–60 °C). After separating the organic layer, the solvent was distilled off to obtain purified tri-triethanolamine monosunflower ester (TMSE) as a desired surfactant (Hafiz and Abdou 2003). Physical state of the surfactant is semisolid at 25 °C and brownish-black in colour. It has a density of 1.102 gm/cm3 at 15 °C.

2.3 Characterization of crude oil

Heavy crude oils are usually produced in the form of water-in-oil emulsion (Dicharry et al. 2006), so the initial water content in crude oil was measured using the Dean and Stark method (ASTM D4006-11 2011). Water was then separated with aid of a commercial demulsifier (PEG 200) and heating to obtain pure heavy crude oil. Further, the density (ASTM D1480-15 2015) and pour point (ASTM D5853-11 2011) of the heavy crude oil were also determined using standard ASTM methods. SARA analysis was performed to characterize crude into four major components: saturates, aromatics, resins and asphaltenes (Jha et al. 2014). Wax content was determined using the modified Universal Oil Products (UOP) 46-64 method (Sharma et al. 2014), and wax appearance temperature (WAT) was determined using the viscosity method (Dantas Neto et al. 2009).

2.4 Preparation of emulsions

An aqueous phase was first prepared by dissolving the surfactant in distilled water at 65 °C. The heavy crude oil sample was preheated to 65 °C to improve its fluidity before adding it to the aqueous phase. Emulsions were then prepared using a Hielscher ultrasonic homogenizer with an UP200Ht processor at a working frequency of 26 kHz and 100% amplitude for a fixed irradiation time of 10 min. In this study, the oil content was varied in the emulsion, keeping the volume of the surfactant constant (2wt%) with respect to the total volume of the emulsion. Again for specific series of experiments, at the optimized oil content, the surfactant concentration in the emulsion was varied to obtain an optimum surfactant concentration.

2.5 Fourier transform infrared (FT-IR) spectroscopy

Infrared spectra of both crude oil and the synthesized surfactant were recorded using a Perkin-Elmer spectrum 2 spectrophotometer assisted by Spectrum-10 software to analyse the functional groups present. Software collected spectra, in absorbance mode, in the spectral region of from 4000 to 400 cm−1. Further infrared spectra of emulsion systems were also recorded to compare and analyse the functional groups.

2.6 Measurement of pour point and rheology of the crude oil and emulsions

The main objective of the emulsification process is to decrease the pour point and enhance the flowability of the heavy crude oil. Pour points of emulsions were measured using the ASTM method (ASTM D5853-11 2011). The rheological flow behaviour of crude oil and emulsions was investigated at 25 °C using a Bohlin Gemini 200 rheometer (Gemini 200 software), supplied by Malvern instruments. Cone-plate (25-mm plate diameter, 2.5° cone angle and 70-μm gap) and parallel-plate (25-mm plate diameter at two gaps, 750 and 500 μm) geometries were used for measurement of rheology of the crude oil and prepared emulsions, respectively.

2.7 Measurement of emulsion stability

Immediately after preparation of emulsions, each emulsion was transferred to three separate 10-mL glass tubes (0.1-mL graduation) and tightly stoppered with a glass lid. These three separate groups of emulsion samples were then kept at 15, 25 and 35 °C to allow separation of water over time from these emulsion samples. The amount of water separated at the end of six days was noted and the emulsion stability was calculated using the following equation.
$$S = \left( {1 - V/V_{\text{i}} } \right) \times 100\%$$
(1)
where S is the emulsion stability; V i is the water volume in the initial emulsion, mL; and V is the volume of water separated from the emulsion, mL.

2.8 Interfacial tension and zeta potential measurements

A Texas-500 spinning drop tensiometer (Data-Physics, Model No: SVT 15 N) was used to measure interfacial tension (IFT) between the oil and the aqueous phase at different surfactant concentrations at 25 °C. Due to the very high viscosity of the crude oil, it was impossible to inject a drop of oil using a microlitre syringe in the capillary tube filled with the aqueous phase. Therefore, crude oil had to be diluted with n-decane (40% v/v) to make it flowable (Zhao et al. 2013). During measurement, the capillary tube was rotated at 2000 rpm for 600 s to obtain equilibrium IFT values.

Zeta potential of emulsions was measured using a Zeta-Meter System 4.0 (Zeta-meter, INC., Staunton, VA) to study the charge properties of oil droplets in the emulsion at room temperature. To prepare samples for measurement, 0.1 mL of each emulsion was diluted with 100 mL of distilled water. At least five different particles of each sample were tracked to obtain the average value of zeta potential.

2.9 Measurements of oil droplet size and size distribution

Size and distribution of oil droplets in prepared emulsions were determined using a Zetasizer Nano S90 particle size analyser procured from Malvern Instruments Ltd. at 25 °C. Dynamic light scattering was conducted at a 90° scattering angle to measure particle sizes with this particle size analyser. This instrument analyses the diffusion of particles moving under Brownian motion by measuring the scattered light intensity and converts this to size and a size distribution using the Stokes–Einstein relationship. In order to make the emulsion sample optically clear and to avoid the effect of multiple scattering, 0.1 mL of emulsion was diluted with 15 mL of distilled water. Tests were run three times, and the test duration was shortened to 10 s to avoid effect of coalescence of droplets during measurement.

3 Results and discussion

In the present investigation, a surfactant was synthesized by extracting free fatty acids from sunflower oil and evaluated as an emulsifier. Oil-in-water emulsions were prepared to optimize oil content and surfactant concentration by investigating their effects on pour point, rheology and stability of emulsions. Effects of droplet size distribution in emulsions on their viscosity and stability were also examined along with discussion of interfacial properties, IFT and zeta potentials of emulsions at various surfactant concentrations.

3.1 Analysis of crude oil

The results of water content, API gravity, pour point, wax content, WAT and SARA analysis of crude oil are reported in Table 1. The Dean and Stark method confirmed the presence of a large amount (45%) of dispersed water in the crude oil (W/O emulsion) sample. API gravity of heavy crude oil is 21.27°, so it can be classified as heavy crude oil according to API convention. A large amount of wax is present in heavy crude oil, which is a major factor in resisting flow as these wax crystals start appearing at temperature around 55 °C. These wax crystals grow at further decreasing temperatures, start to precipitate and form a solid phase. A very high pour point (42 °C) was observed for this particular heavy crude oil which can be attributed to its high wax content. As reported, the crude oil was found to be highly asphaltinic in nature and very rich in the resin fraction, which makes crude oil heavier and restricts its flowability. A very high fraction of saturates (66.5%) was present in crude oil, which provides an asphaltene-hostile environment and assists in deposition of asphaltenes (Alcazar-Vara and Buenrostro-Gonzalez 2011).
Table 1

Physicochemical properties of heavy crude oil

Parameter

Observed value

Method

Water content, % (v/v)

45

ASTM D4006-11

Density at 15 °C, g cm−3

0.9254

ASTM D1480-15

Specific gravity at 15 °C

0.9262

ASTM D1480-15

API gravity at 15 °C

21.27



Pour point,  °C

42

ASTM D5853-11

Wax content, % (w/w)

11

Modified UOP 46-64

WAT,  °C

55

Viscosimetry

SARA analysis, % (w/w)



 Saturates

66.5



 Aromatics

10.5



 Resins

8.5



 Asphaltenes

6.5



3.2 Infrared spectroscopic analysis

FT-IR spectra of heavy crude oil, TMSE and O/W emulsion are shown in Fig. 1, and the observed peaks with associated functional groups are given in Table 2. Characteristic peaks of alkyl groups (CH3 and CH2) due to stretching vibration and bending vibration with strong absorbance at 2919, 2850 and 1462 cm−1 were observed for heavy crude oil. Such high absorbance can be attributed to high contents of saturates and wax in heavy crude oil. Combination of the multiple bands around 1114 cm−1 and the band at 1736 cm−1 confirms the presence of ester in the synthesized surfactant. Presence of aromatic nuclei observed in the crude oil may be due to the presence of asphaltenes and resins (Quiroga-Becerra et al. 2012). Peaks around 719 and 666 cm−1 in heavy crude oil and TMSE, respectively, represent rocking vibration of the backbone of carbon chains having six or more carbon atoms (Quiroga-Becerra et al. 2012). In spectra of the emulsion system, a very strong and broad absorption band at 3443 cm−1 was observed due to the presence of hydroxyl groups from H2O after formation of the O/W emulsion. The absorption bands of alkyl groups were greatly weakened, suggesting the breaking of C–C bonds and shortening of C-chains thus improving the flowability of heavy crude oil. Also the band due to rocking vibration of C-chains shifted to 495 cm−1 that can also suggest that the number of C-atoms in the chain has been reduced due to emulsion formation.

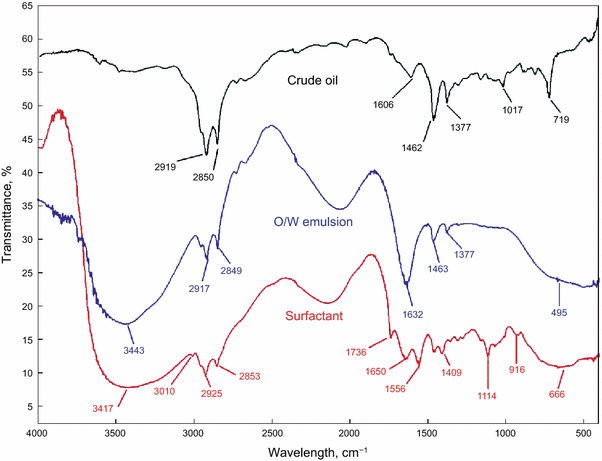

Fig. 1

FT-IR spectra of heavy crude oil, synthesized surfactant and prepared emulsion

Table 2

Wave number (cm−1) for dominant peaks detected from FT-IR

Functional group

Type of vibration

Crude oil

Surfactant

Emulsiona

O–H in water

Stretching

–

3417

3443

=C–H in aromatics

Stretching

–

3010

–

C–H in CH3, CH2

Asymmetric stretching

2919

2925

2917

C–H in CH3, CH2

Symmetric stretching

2850

2853

2849

C=C in alkene/aromatic nuclei

Stretching

1606

1650

1632

Unsaturated C=C

In-plane bending

1017

916

–

C=O in ester

Stretching

–

1736

–

C–O in ester

Stretching

–

1114

–

C–H in CH3, CH2

Symmetric bending

1462, 1377

1409

1463

–(CH2) n –

Rocking

719

666

495

aEmulsion with 60% oil content and 2wt% surfactant

3.3 Depression in pour point

In order to avoid flow assurance problems in pipelines under offshore conditions, the pour point of emulsions should be very low. Ahmed et al. (1999) found the pour point to be 6 and 9 °C, respectively, for emulsions with oil content of 60% and 70%, respectively, when the pour point of the crude oil was 18 °C. Zaki (1997) also reported a decrease in the pour point of crude oil from 13 to 7 °C after emulsification with 70% oil content. Pour point is a very important flow parameter, and for all the prepared emulsions in our study, the measured pour point was found to be remarkably low compared to the pour point of heavy crude oil (42 °C). All the emulsions prepared were flowing at even 1 °C, which is highly suitable for offshore conditions.

3.4 Rheological behaviour of heavy crude oil and prepared emulsions

Flow behaviour of the heavy crude oil and emulsions was investigated in a rate-controlled (CR) mode over a shear rate range of 100–1000 s−1. The rheometer provided flow behaviour curves as both shear stress vs. shear rate and apparent viscosity vs. shear rate, along with respective data. Figure 2 shows the rheological behaviour of heavy crude oil and prepared emulsions by varying the oil content at a constant surfactant concentration (2wt%), measured at two gaps using parallel-plate geometry. Non-Newtonian behaviour of the shear-thinning profile was observed for heavy crude oil. For parallel-plate measurements at two gaps, instead of coinciding, lower apparent viscosity values were observed at lower gap size (at 500-μm gap) for each emulsion over the range of shear rate studied due to occurrence of the wall slip effect. However, all data points from both gaps appeared to fall close to a single curve, indicating the slight possibility of wall slip. Apparent wall slip or wall depletion effects are observed for concentrated emulsion systems in rheometers due to displacement of the dispersed phase away from the solid boundaries (walls), and this displacement of the dispersed phase is caused due to action of various physicochemical forces (Barnes 1995). The presence of wall slip poses a special problem while measuring actual rheological properties of emulsions. During rheological measurement of oil-in-water emulsions, depletion of the oil phase with an increase in shear stress leaves the low-viscosity liquid (continuous phase) adjacent to the boundary; thus, viscosities observed in such conditions are much lower than the actual ones (Pal 2000). However, during pipeline transportation of emulsions, due to slip, dispersed particles will be displaced away (towards centre, region of low shear) from the smooth solid wall of pipelines and facilitate the flow; therefore, estimation of actual rheological properties of an emulsion is important for industries involved in pipeline transportation. Apart from the geometry and shear rate used for measurement, possibility of wall slip also depends on the size of dispersed droplets in an emulsion. Lower dispersed droplet size lessens the chances of occurrence of wall slip inside the rheometer (Barnes 1995). All emulsions studied in this work possessed droplet sizes lower than 400 nm, discussed in Sect. 3.8, which also suggests lower chances of wall slip.

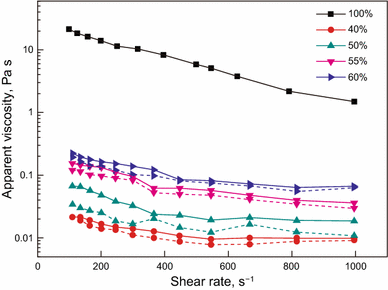

Fig. 2

Influence of oil content on the rheology of the emulsions at 2wt% surfactant, measured at 25 °C. Solid and dashed lines represent data at 750- and 500-μm gaps, respectively

Zahirovic et al. (2009) utilized the parallel-plate geometry at different gap sizes for very low apparent shear rate up to 1.0 s−1 and the vane geometry for shear rate further up to 100 s−1, in their study of ammonium nitrate-in-diesel oil emulsion. We have considered the high shear rate in our study because in most crude oil transportation pipelines actual flow takes place at shear rates around 500 s−1, where the shear rate near or on the pipe wall may be even higher (Azodi and Nazar 2013a; Johnsen and Rønningsen 2003). Since rheological measurement carried out at a bigger gap size is relatively less prone to wall slip (Pal 2000), results obtained at higher gap size (750 μm) are further discussed here. However, results obtained at both gap sizes are comparatively presented in Table 3 as the degree of viscosity reduction at 546 s−1 shear rate. Up to 50% oil content, emulsions showed close to Newtonian behaviour, whereas, when the oil content further increased, they started to behave as non-Newtonian shear-thinning fluids. Shear-thinning behaviour suggests that the emulsion viscosity decreased as the pumping pressure increased. At high shear rate (546 s−1), the apparent viscosity of heavy crude oil was found to be 5081 mPa s, whereas, after an emulsion was formed with 40% oil content, the emulsion viscosity reduced dramatically by 99.8% and reached 9.5 mPa s. Furthermore, an increase in the oil content led to an increase in the emulsion viscosity. At 60% oil content, the emulsion viscosity increased to 81.2 mPa s, where the degree of viscosity reduction was around 98.4%. Further increase in the oil content led to an inversion of the O/W emulsion into a W/O emulsion. From the results observed and considering the maximum throughput of oil through pipelines, it is clear that the optimum volume of oil was 60% for preparing a stable emulsion with acceptable viscosity.
Table 3

Viscosity reduction in emulsions of different oil contents at two gap sizes and 546 s−1 shear rate

Oil content, %

Parallel-plate geometry

750-μm gap

500-μm gap

Apparent viscosity, mPa s

Viscosity reduction, %

Apparent viscosity, mPa s

Viscosity reduction, %

60

81.2

98.4

75.4

98.5

55

57.2

98.9

48.3

99.0

50

19.4

99.6

12.4

99.7

40

9.5

99.8

7.9

99.8

Apparent viscosity of heavy crude oil is 5081 mPa s

At 60% oil content, the optimum amount of surfactant required to stabilize emulsions with acceptable viscosity was determined by measuring the rheology of emulsions of various surfactant concentrations. Figure 3 shows the effect of surfactant concentration on the rheology of emulsions, measured at two gaps using the parallel-plate geometry. Results obtained at both gap sizes are comparatively presented in Table 4, and results at 750 μm are further discussed. As the surfactant concentration decreased from 2wt% to 1wt%, the apparent viscosity of emulsions also decreased. At 1wt% surfactant, the emulsion viscosity was reduced to approximately 99.3%. However, at higher concentrations (3wt% surfactant), the emulsion viscosity was 98.6 mPa s, reduced by 98.0%. This could be attributed to the fact that higher emulsifier concentration decreases the interfacial tension between oil and water, which leads to formation of smaller oil droplets. As a result of a decrease in droplet sizes, the number of droplets contacting water surface increases which ultimately increases the emulsion viscosity (Azodi and Nazar 2013b). It is not economical to use a large amount of surfactant. On the other hand, stability of the emulsion at lower surfactant concentration is another important factor to choose an optimum concentration.

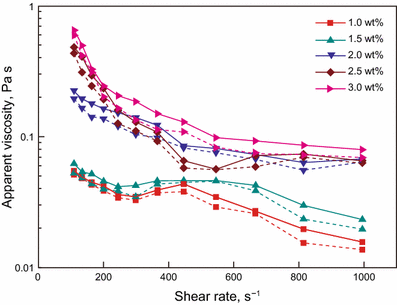

Fig. 3

Influence of surfactant concentration on the rheology of emulsions of 60% oil content, measured at 25 °C. Solid and dashed lines represent data at 750- and 500-μm gaps, respectively

Table 4

Viscosity reduction in emulsions of different surfactant concentrations at two gap sizes and 546 s−1 shear rate

Surfactant concentration, wt%

Parallel-plate geometry

750-μm gap

500-μm gap

Apparent viscosity, mPa s

Viscosity reduction, %

Apparent viscosity, mPa s

Viscosity reduction, %

1.0

34.4

99.3

28.9

99.4

1.5

46.1

99.1

45.8

99.1

2.0

81.2

98.4

75.4

98.5

2.5

56.2

98.9

55.9

98.9

3.0

98.6

98.0

82.8

98.4

Apparent viscosity of heavy crude oil is 5081 mPa s

3.5 Interfacial tension analysis

Surfactant effectiveness as an emulsifier is most importantly evaluated by its ability to decrease the IFT between crude oil and water. Figure 4 demonstrates the equilibrium IFT values between heavy crude oil (diluted) and the aqueous phase at various surfactant concentrations. It was observed that with increasing surfactant concentration in the aqueous phase, IFT values decreased efficiently. IFT between diluted crude and water with no surfactant was around 6.15 mN/m and decreased to 1.10 mN/m after 0.5wt% surfactant addition. At 2wt% surfactant, the IFT value decreased to 0.69 mN/m, whereas at 3wt%, IFT reached to 0.37 mN/m. The decreased IFT value contributed largely to a subsequent decrease in the drop size of dispersed crude oil. As a result of decreased particle size distribution, viscosity as well as the stability of the emulsion increased.

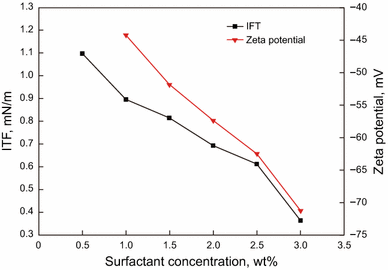

Fig. 4

IFT between crude oil and the aqueous phase and zeta potential as a function of surfactant concentration

3.6 Zeta potential analysis

The zeta potential measurement helps in predicting emulsion stability by predicting the tendency of the emulsion to coalesce or flocculate. It characterizes distance between the emulsion droplets by calculating the electric charge on the surface of droplets. A higher absolute value of the zeta potential (either negative or positive) is interpreted as meaning there is higher charge on the droplets, which results in greater chances of them repelling each other and avoiding coalescence and flocculation. A lesser charge on the droplets allows them to come closer and coalesce/flocculate (Jha et al. 2015). Figure 4 summarizes the effect on zeta potential of O/W emulsions with increasing surfactant concentration. It was observed that the absolute value of zeta potential increased from 44.3 to 71.2 mV as the surfactant concentration increased from 1wt% to 3wt% in the emulsion. These results suggest that with an increase in the surfactant concentration, the charge concentration on emulsion droplets also increased which led to production of a stable emulsion.

3.7 Stability of emulsions

Emulsion stability is a very important parameter which depends on factors like concentrations of oil/water and their density difference, water phase viscosity, salinity and pH, choice and amount of surfactant, size of dispersed oil droplets, preparation method and duration and temperature of homogenization (Lim et al. 2015). Based on water separation observed after 6 days at different temperatures, the emulsion stability is plotted in Figs. 5 and 6, respectively, against variations in oil content and surfactant concentration. It was observed from the results that increases in both oil content as well as surfactant concentration led to an increase in the emulsion stability. On the other hand, temperature also played a very important role in the emulsion stability. Emulsion samples kept at lower temperatures showed higher stability than at higher temperatures. As the oil content in emulsion increased from 40% to 60% at 2wt% surfactant, the emulsion stability increased from 51.7% to 85% at 35 °C. When the temperature decreased from 35 to 15 °C, the stability of the emulsion of 40% oil increased from 51.7% to 83.3% and for the emulsion of oil content above 40%, 100% stability was achieved. The effect of temperature can be explained by the fact that a decrease in temperature leads to a decrease in interfacial tension between oil and water. As a result, the decrease in internal energy of the molecules may decrease the pressure required to induce the interfacial film thinning and ultimately increases the coalescence time (Liyana et al. 2014).

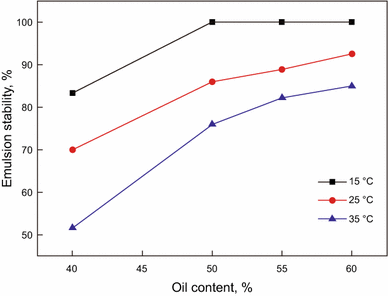

Fig. 5

Emulsion stability as a function of oil content at different temperatures (2wt% surfactant)

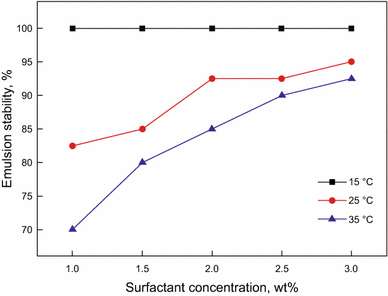

Fig. 6

Emulsion stability as a function of surfactant concentration at different temperatures (60% oil content)

The emulsions with 60% oil content were completely stable at 15 °C, despite variation in surfactant concentration from 1wt% to 3wt%. However, when the temperature increased to 25 °C, the stability of emulsion with 1wt% surfactant reduced to 82.5%, and furthermore reduced to 70% at 35 °C. Again, an increase in the stability at higher temperatures was achieved by increasing the surfactant concentration. The emulsion with 3wt% surfactant was found to achieve stability around 95.0% and 92.5% at 25 and 35 °C, respectively. An increase in the surfactant concentration results in an increasing number of surfactant molecules absorbed at the oil/water interface which provides a barrier to the coalescence of dispersed oil droplets, thus stabilizing the emulsion (Zaki 1997). Additionally, application of ultrasonic waves causes formation of droplets with smaller sizes, which increases the total interfacial area allowing more particle-to-particle interaction, and finally leads to enhancing the emulsion stability. Considering the stability as well as viscosity of the emulsion of 60% oil content, 2wt% surfactant can be used to prepare an efficient emulsion at 25 °C. However, for lower temperatures, the surfactant concentration can also be less than 2wt%.

3.8 Size distribution of oil droplets in emulsions

Droplet size distribution is one of the important parameters that influence the rheology as well as the stability of the emulsion. This parameter is greatly affected by oil/water ratio, selection and concentration of surfactant and emulsification technique. Several authors previously have reported that the use of ultrasonic waves leads to production of emulsion with relatively smaller dispersed phase droplets than by a mechanical homogenizing method (Abismaïl et al. 1999; Lin and Chen 2006). Results of the volume droplet size distribution of O/W emulsions at various oil content and surfactant concentration are plotted in Figs. 7 and 8, respectively.

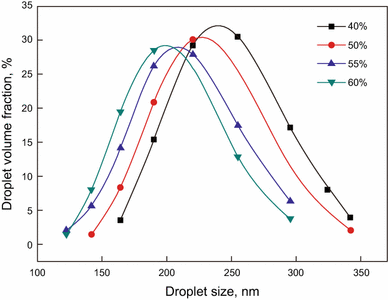

Fig. 7

Droplet size distribution of emulsions as a function of oil content (2wt% surfactant)

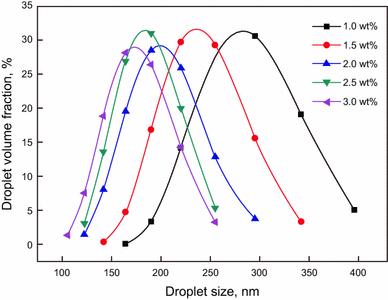

Fig. 8

Droplet size distribution of emulsions as a function of surfactant concentration

Figure 7 shows that as the oil content of the emulsion increased, the size of dispersed oil droplets in the emulsion decreased. The emulsion with 40% oil had droplet sizes in a range of 164–342 nm in diameter, whereas, when the oil content increased to 60%, the size range of droplets decreased to 122–295 nm. From Fig. 8, it is clear that an increase in the surfactant concentration allowed the production of smaller oil droplets in the emulsion. The emulsion with 1wt% surfactant had droplet sizes in a range of 164 to 396 nm, whereas, when the surfactant concentration increased up to 3wt%, the size of dispersed droplets tended to decrease to 105–255 nm. As been discussed previously, an increase in the surfactant concentration resulted in a decrease in IFT between oil and water, which further reduced the surface free energy required to increase the interfacial area and allowed the easier production of smaller oil droplets. A decrease in oil droplet size resulted in an increase in emulsion stability but also increased the emulsion viscosity, as seen in stability and viscosity results. Many authors previously have found the same effects of droplet size on viscosity and stability of emulsions (Kumar and Mahto 2016; Pal 1996; Zaki 1997). It was also noted that all the prepared emulsions had droplet sizes less than 400 nm.

4 Conclusions

  1. 1.

    Surfactant (TMSE) synthesized using sunflower oil was found to be a very effective emulsifying agent for preparation of O/W emulsions, and it may be considered for use in heavy oil transportation processes in offshore.


  2. 2.

    The emulsions prepared with TMSE were found to be still flowing at even 1 °C, which can be highly suitable for flow in cold environments.


  3. 3.

    Flow behaviour of heavy crude oil and most of the emulsions within the experimental range were non-Newtonian shear thinning.


  4. 4.

    Formation of an O/W emulsion caused a tremendous decrease in the viscosity of crude oil. All emulsions showed viscosity lower than 200 mPa s at 25 °C and higher shear rate, which is adequate for flow in offshore conditions.


  5. 5.

    Synthesized surfactant decreased the IFT between oil (diluted) and the aqueous phase by the order of tenfold and led to preparation of highly stable emulsions.


  6. 6.

    Use of ultrasonic waves led to production of emulsions with oil droplets size less than 400 nm, which promotes an increase in emulsion stability.


  7. 7.

    For this particular heavy crude oil, 60% oil content and 2wt% surfactant concentration were found to be optimum values to produce a flowable and stable O/W emulsion using the synthesized surfactant at 25 °C. For lower temperatures, a stable emulsion can also be produced even at the surfactant concentration less that 2wt%.



Notes

Acknowledgements

Authors would like to gratefully acknowledge the Indian Institute of Technology (Indian School of Mines), Dhanbad for providing necessary laboratory facilities and financial support.
