Thermotropic liquid crystalline polyesters derived from 2-chloro hydroquinone
- 106 Downloads
Abstract
Synthesis of thermotropic liquid crystalline polyesters derived from bis[4-hydroxy benzoyloxy]-2-chloro-1,4-benzene (BHBOCB) and aliphatic dicarboxylic acid chlorides by interfacial polycondensation methodology is presented. Synthesised polyesters consist of bis[4-hydroxy benzoyloxy]-2-chloro-1,4-benzene as a mesogen and aliphatic diacid chloride as flexible spacer. The length of oligomethylene units in the polymer was varied from the trimethylene to the dodecamethylene groups. Synthesized polyesters were characterized by differential scanning calorimetry and optical microscopy. The transition temperatures and thermodynamic properties were studied for all these polymers. These polyesters exhibited thermotropic liquid crystalline behavior and showed nematic texture except decamethylene spacer. Decamethylene spacer based polyester showed marble texture of smectic C. Mesophase stability of these polyesters was higher than \(123{^{\circ }}\hbox {C}\) (except first heating cycle of PE-1).

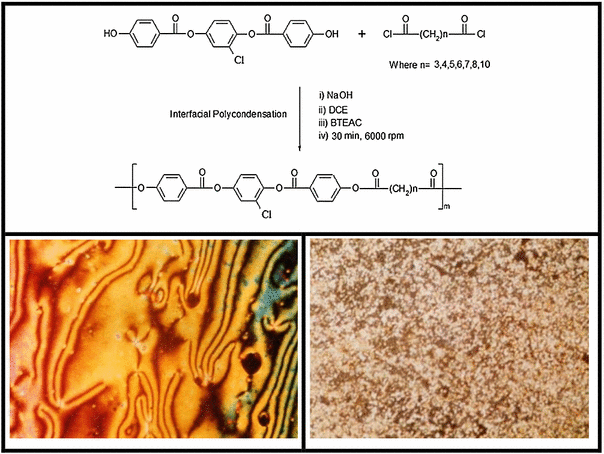

Graphical Abstract:
SYNOPSIS The present study deals with the synthesis of thermotropic liquid crystalline polyesters derived from bis[4-hydroxy benzoyloxy]-2-chloro-1,4-benzene (BHBOCB) and aliphatic dicarboxylic acid chlorides by interfacial polycondensation methodology.
Keywords
Thermotropic liquid crystalline polyesters aromatic mesogen aliphatic flexible spacersNotes
Supplementary material
References
- 1.Han H and Bhowmik P K 1997 Wholly aromatic liquid-crystalline polyesters Prog. Polym. Sci. 22 1431CrossRefGoogle Scholar
- 2.(a) Chavan N N and Mulani K B 2012 In Thermotropic liquid crystalline polyesters (Germany: Lambert Academic Publishing Co.); (b) Jin J I and Kang C S 1997 Thermotropic main-chain polyesters Prog. Polym. Sci. 22 937Google Scholar
- 3.Negi Y S and Goyal R K 2003 Development of thermotropic liquid crystalline polymers and their applications Int. J. Plastics Technol. 7 99Google Scholar
- 4.Broer D J, Lub J and Mol G N 1995 Wide-band reflective polarizers from cholesteric polymer networks with a pitch gradient Nature 378 467CrossRefGoogle Scholar
- 5.Bunning T J and Kreuzer F H 1995 Cyclosiloxane-based liquid crystalline materials Trends Polym. Sci. 3 318Google Scholar
- 6.Xing C, Jacky W Y, Zhao K Q and Tang B Z 2008 Synthesis and liquid crystalline properties of poly(1-alkyne)s carrying triphenylene discogens J. Polym. Sci. Part A: Polym. Chem. 46 2960CrossRefGoogle Scholar
- 7.Zhu Z, Zhi J, Liu A, Cui J, Tang H, Qiao W, Wan X and Zhou Q 2007 Synthesis and characterization of a thermotropic liquid-crystalline poly[2,5-bis(4-alkoxy carbonyl phenyl)styrene] J. Polym. Sci. Part A: Polym. Chem. 45 830CrossRefGoogle Scholar
- 8.Luzny W, Pomarzanska S E and Pron A 1999 Structural properties of selected poly(azomethines) Polymer 40 6611Google Scholar
- 9.Shiota A and Ober C K 1997 Rigid rod liquid crystalline thermosets Prog. Polym. Sci. 22 975Google Scholar
- 10.Ortiz C, Wagner M, Bhargava N, Ober C K and Kramer E J 1998 Deformation of a polydomain, smectic liquid crystalline elastomer Macromolecules 31 8531Google Scholar
- 11.Ortiz C, Ober C K and Kramer E J 1998 Stress relaxation of a main-chain, smectic, polydomain liquid crystalline elastomer Polymer 39 3713Google Scholar
- 12.Heino M T, Hietaoja P T, Vainio T P and Seppala J V 1994 Effect of viscosity ratio and processing conditions on the morphology of blends of liquid crystalline polymer and polypropylene J. Appl. Polym. Sci. 51 259CrossRefGoogle Scholar
- 13.Bualek-Limcharoen S, Saengsuwan S, Amornsakchai T and Wanno B 2001 Rheology, Morphology and tensile properties of thermotropic liquid crystalline polymer/polypropylene in-situ composites Macromol. Symp. 170 189Google Scholar
- 14.Zhou Q and Lenz R W 1983 Liquid crystalline prolymers. 15. Synthesis and liquid crystalline properties of alkyl-substituted polyesters J. Polym. Sci. Part A: Polym. Chem. 21 3313Google Scholar
- 15.Kleinschuster J J, Pletcher T C, Schaefgen J R and Luise R R 1994 Ger. Offen. 2 520Google Scholar
- 16.Roviello A and Sirigu A 1975 Mesophasic structures in polymers. A preliminary account on the mesophases of some polyalkanoates of p,p‘-dihydroxy-\(\varvec {\alpha } ,\varvec {\alpha } \)’-dimethyl dibenalazine J. Polym. Sci. Polym. Lett. Ed. 13 455Google Scholar
- 17.Mulani K, Momin M, Ganjave N and Chavan N 2014 Thermotropic liquid crystalline polyesters based on trimesogenic diol and flexible spacers Malaysian Polym. J. 9 54Google Scholar
- 18.Mulani K, Momin M, Ganjave N and Chavan N 2015 Thermotropic liquid crystalline polyesters derived from bis-(4-hydroxybenzoyloxy)-2-methyl-1,4-benzene and aliphatic dicarboxylic acid chlorides Bull. Mater. Sci. 38 1301Google Scholar
- 19.Mulani K, Ganjave N and Chavan N 2014 Synthesis and characterization of triad based rigid mesogenic diols derived from hydroquinone and 4-hydroxybenzoic acid Ind. J. Chem. B 53B 591Google Scholar
- 20.Pereira F V, Borsali R, Ritter O M S, Gonçalves P F, Merloa A A and da Silveira N P 2006 Structure-property relationships of smectic liquid crystalline polyacrylates as revealed by SAXS J. Braz. Chem. Soc. 17 333Google Scholar
- 21.Gray G W and Warrall B M 1959 The mesomorphic transition temperature of 3-substituted 4-n-octyloxydiphenyl-4-carboxilic acids J. Chem. Soc. 1545Google Scholar
- 22.Gray G W, Johns B and Marson F 1957 Mesomorphism and chemical constitution. Part VIII. The effect of 3’-substituents on the mesomorphism of the 4’-n-alkyloxyphenyl-4-carboxylic acids and their alkyl esters J. Chem. Soc. 393Google Scholar
- 23.Branch S J, Byron D J, Gray G W, Ibbotson A and Warrall B M 1964 Mesomorphism and chemical constitution. Part XII. The preparation and mesomorphic properties of substituted 4, 4’-di-(p-n-alkoxybenzylideneamino) biphenyls J. Chem. Soc. 3279Google Scholar
- 24.Arora S L, Ferguson J L and Taylor T R 1970 Molecular structure and liquid crystallinity phenylene Bis(alkoxybenzoates) J. Org. Chem. 35 4055Google Scholar
- 25.Young W R, Haller I and Green D C 1972 Mesomorphic structure of some ring-methylated phenyl benzoyloxybenzoates J. Chem. Soc. 37 3707Google Scholar
- 26.Sonpatki M M, Ravindranath K and Ponrathnam S 1994 Segmented copoly(ether-ester) elastomers. Influence of hard segment length and substitution on mesophase formation Polym. J. 26 804Google Scholar
- 27.Jin J, Chung B Y, Chol J and Jo B 1991 Inportance of the role of flexible spacers in liquid crystal formation by bend dimesogenic and star-shaped trimesogenic compounds Bull. Korean Chem. Soc. 12 189Google Scholar
- 28.Meurisse P, Noel C, Monnerie L and Fayolle B 1981 Polymers with mesogenic elements and flexible spacers in the main chain: Aromatic-aliphatic polyesters British Polymer J. 13 55Google Scholar
- 29.Lenz R W 1985 Synthesis and properties of thermotropic liquid crystal polymers with main chain mesogenic units Polymer J. 17 105Google Scholar
- 30.Jo B W, Lenz R W and Jin J 1982 Liquid crystalline polymers, 7. Thermotropic polyesters with main chain phenyl-1,4-phenylene,4,4’-biphenlene, and 1,1’-binaphthyl-4,4’-ylene units Makromol. Chem. Rapid Comm. 3 23Google Scholar
