On Parameter Selection in Cold Spraying

H. Assadi; T. Schmidt; H. Richter; J.-O. Kliemann; K. Binder; F. Gärtner; T. Klassen; H. Kreye

doi:10.1007/s11666-011-9662-9

Journal of Thermal Spray Technology

December 2011, Volume 20, Issue 6, pp 1161–1176 | Cite as

On Parameter Selection in Cold Spraying

Authors
Authors and affiliations

H. AssadiEmail author
T. Schmidt
H. Richter
J.-O. Kliemann
K. Binder
F. Gärtner
T. Klassen
H. Kreye

Peer Reviewed

First Online: 08 June 2011

Received: 30 December 2010

Revised: 19 April 2011

1 Shares
2.4k Downloads
91 Citations

Abstract

For cold spraying, a method for the construction of the window of deposition and the selection of optimum process parameters is presented. Initially, particle impact velocity and the critical particle velocity for bonding are worked out and expressed explicitly in terms of key process and material parameters. Subsequently, the influence of particle velocity on coating characteristics is examined in view of the results of experiments and simulations. It has been found that main coating characteristics can be described as a unique function of the ratio of particle velocity to critical velocity, here referred to as η. Finally, coating properties are linked directly to primary process parameters via parameter selection maps, where contours of constant η are plotted on a plane of gas temperature versus gas pressure. Inferences of the presented method and the resulting parameter selection maps are discussed for the example of copper as feedstock material.

Keywords

cold gas dynamic spraying influence of spray parameters properties of coatings

Nomenclature

a: Gas sound velocity
A: Nozzle area
A*: Nozzle area at the throat
a*: Sound velocity in the throat of the nozzle
a_ref: Reference particle velocity
C_d: Drag coefficient
c_1-6: Fitting parameters
c_p: Specific heat of particle
D*: Nozzle diameter at the throat
D_e: Nozzle diameter at the exit
D_i: Nozzle diameter at the inlet
d_p: Particle diameter
d_p^ref: Reference particle diameter
f: Calibration coefficient
h_p: Height of the “splat”—particle flattened due to impact
k: Gas specific heat ratio
k₁: A particle-size-dependent fitting parameter, used in v _cr formula
L_c: Length of the converging (subsonic) part of the nozzle
L_d: Length of the diverging (supersonic) part of the nozzle
M: Mach number
m_t: Mass flow rate of the process gas
n: Fitting parameter
P: Gas heating power
P^ref: Reference gas heating power
P: Gas pressure
p₀: Gas stagnation pressure
p₀^*: Critical process gas pressure for cold spraying
R: Universal gas constant
r_e: Expansion ratio
T: Gas temperature
T₀: Gas stagnation temperature
T₀^ref: Reference gas stagnation temperature
T₀^*: Critical process gas temperature for cold spraying
T_m: Melting temperature of particle
T_p: Particle temperature
T_pi: Particle impact temperature
t: Characteristic process time for adiabatic strain phenomena
V_t: Rate of gas consumption
V_t^ref: Reference rate of gas consumption
V: Gas velocity
v₁: Approximated gas velocity
v₂: Approximated particle velocity at the nozzle exit
v₃: Approximated particle velocity upon impact
v_cr: Critical particle velocity for bonding
v_cr^ref: Reference critical particle velocity
v_cr^min: Critical particle velocity for fully adiabatic deformation
v_erosion: Impact velocity causing erosion by hydrodynamic penetration
v_m: Impact velocity causing a rise of T _p up to T _m
v_max: Maximum particle velocity achievable at a finite p ₀
v_p: In-flight particle velocity
v_pi: Impact velocity of particle
v_pi⁰: Characteristic impact velocity (v _pi to induce 1 K rise in T _p)
x: Characteristic system dimension for adiabatic strain phenomena
z: Axial distance from nozzle throat
z₀: Location of particle injection on the axial coordinate
α: Heat diffusivity of particle
β: Adiabaticity of particle deformation
δ: Characteristic thickness of the bow shock boundary layer
η: Particle impact velocity quotient; coating quality parameter
η_f: η under failure conditions
μ: Mean particle size
ρ: Gas density
ρ₀: Gas stagnation density
ρ_p: Particle density
σ: Tensile strength of particle at 293 K
σ_c: Cohesive strength
σ_u: Ultimate tensile strength

Introduction

Cold spraying, or kinetic spraying as called alternatively, may now be regarded as an established method for coating and rapid manufacturing. Unlike conventional thermal spraying methods, in this method feedstock material is not exposed to high temperatures during the spray process, and particles are in solid state upon impact on the substrate. By means of cold spray, oxidation, structural, and compositional changes, and usual problems associated with thermal spraying—high-temperature processing of materials in general—are alleviated. These unique characteristics have attracted much attention from both academia and industry especially within the past 10 years, as indicated by numerous patents and publications including a few textbooks (Ref 1-4). The growing interest in cold spray has been associated with a continual search for optimal spraying conditions, regarding both final properties of the deposit and economical efficiency. This article aims to contribute further to this search.

It is well known that material deposition in cold spray results from high-velocity impact and subsequent deformation of particles (Ref 2-9). The resulting adiabatic shear instabilities provide sufficient material flow and heat for bonding at the interface between particle and substrate. Acceleration of particles to high velocities is achieved via injection of the feedstock powder into a preheated gas, which expands to supersonic velocities in a de-Laval nozzle (Ref 10, 11). A most determining factor for bonding is the velocity of the impacting particle. Bonding occurs if the particle velocity upon impact, v _pi, becomes greater than a critical value, v _cr (Ref 10-18). The conditions that lead to particle bonding can be identified with respect to what is referred to as window of deposition. This window is in fact a graphical representation of the above criterion for particle bonding, as illustrated on a v _pi-T _pi diagram. It provides a basis to identify the required spraying parameters, and ultimately, to optimize coating properties (Ref 8, 19, 20). The influence of key material and process parameters on v _pi and v _cr is summarized in Table 1. As shown in the table, some properties influence both v _pi and v _cr, while others influence either v _pi or v _cr. Moreover, some of these influences, such as the effect of particle size on v _pi, do not follow a monotonic trend (Ref 13, 18, 20, 21). Because of these complexities, identification of optimum spraying parameters for different materials continues to be a challenging aspect of cold spraying.

Table 1

Effect of key materials and process parameters on v _pi and v _cr

Parameter	Effect on v _pi	Effect on v _cr
Particle
Melting temperature	…	↑
Specific heat	…	↑
Hardness	…	↑
Density	↑↓	↓
Size	↑↓	↓
Gas
Temperature	↑	↓ (a)
Pressure	↑	…
Nozzle
Length	↑	…

(a) Presuming that particle temperature increases with increasing gas temperature

This study aims at providing a practical solution to this problem. It is specifically motivated by the following questions: What would be “the right” process parameters, particle size, and equipment for a given material and a desired coating property? How could these parameters be determined in a convenient and intelligible way? To deal with these questions, we make use of the notion of parameter selection map, as proposed for cold spray originally by Stoltenhoff et al. (Ref 12). In their analysis of cold spray, Stoltenhoff et al. constructed a selection map by working out the locus of p ₀ and T ₀, corresponding to the condition v _pi = v _cr, and thus, marking the start of deposition on a p ₀-T ₀ diagram. This was done for different values of particle size, though v _cr was assumed to be independent of particle size and temperature (taken to be 560 m/s for copper). The present analysis moves forward by considering the effect of various factors on v _cr. Moreover, the seemingly complicated effect of process conditions on final properties of the deposit is reduced into simple relationships in view of the existing experimental data (Ref 8, 9, 19, 22-25). To facilitate the analysis, v _pi and v _cr are expressed explicitly in terms of primary key parameters, namely, the particle size and the process gas pressure and temperature. In this way, coating properties are linked directly to primary material and process parameters.

The manuscript starts with a description of the numerical model, through which the particle velocity is worked out for a range of process and materials parameters. Subsequently, fitting functions for v _pi and v _cr are presented. Correlations between coating properties and particle velocity are presented and discussed next. Finally, examples of parameter selection maps are presented, including a note on possible implications of these maps in the development of cold spray technology.

Numerical Calculation of Particle Velocity

Particle acceleration and deceleration in the nozzle is due to the drag force on the particle. The particle velocity for a spherical particle can be calculated from this force balance (Ref 26):

$$ v_{\text{p}} \frac{{{\text{d}}v_{\text{p}} }}{{{\text{d}}z}} = \frac{3}{4}C_{\text{d}} \frac{{\uprho (v - v_{\text{p}} )|v - v_{\text{p}} |}}{{\uprho_{\text{p}} d_{\text{p}} }} $$

(1)

Generally, the above differential equation is solved numerically to obtain v _p, while the gas velocity, v, is obtained from a 1D isentropic model of gas flow through a convergent-divergent nozzle (Appendix A). In the present analysis, the nozzle is assumed to have a linear profile, i.e., it is conical in both subsonic and supersonic parts. For such a profile, dz can be substituted by dM (Appendix B), so that Eq 1 can be rewritten (for M ≥ 1) as follows:

$$ {\text{d}}v_{\text{p}} = \frac{3}{8}\frac{{a_{\text{ref}}^{2} }}{{R \, T_{0} }}\frac{{D^{*} }}{{D_{\text{e}} - D^{*} }}(v - v_{\text{p}} )\frac{{|v - v_{\text{p}} |}}{{v_{\text{p}} }}\frac{{ \, f^{\prime}_{\text{A}} (M) \, f_{\uprho } (M)}}{{\sqrt {f_{\text{A}} (M)} }}\,{\text{d}}M $$

(2)

where

$$ a_{\text{ref}}^{2} = \frac{{C_{\text{d}} \, L_{\text{d}} \, p_{0} \, }}{{\uprho_{\text{p}} \, d_{\text{p}}}} $$

(3)

The parameter a _ref (with the dimension m/s) is regarded here as the reference particle velocity. This parameter can be perceived as a product of three factors, each of which scale with the magnitude of particle velocity at the exit of the nozzle. The first factor $ C_{\text{d}} / (\uprho_{\text{p}} \, d_{\text{p}} ) $ is a combination of particle characteristics that represents susceptibility of the particle to gain velocity; a lower value of $ C_{\text{d}} /(\uprho_{\text{p}} d_{\text{p}} ) $ implies higher resistance to acceleration, and vice versa. The second factor L _d is a key dimension of the nozzle, relating to the time period during which the particle is accelerated by the process gas. The driving force for acceleration scales with the density of the process gas, which is represented by the third factor, p ₀. Thus, a _ref encapsulates the intrinsic susceptibility of particle to accelerate, the duration of acceleration, and the driving force for acceleration. Consequently, higher values of a _ref lead naturally to higher particle velocities at the nozzle exit. A more detailed interpretation of a _ref will be presented in section 3.

For a specific nozzle, gas, upstream stagnation temperature and pressure of the gas (see Table 2 for the current example) the gas dynamics equations and the drag equation are solved numerically, using an explicit finite difference method. In the present analysis, M is taken as the primary variable, which is varied between $ \left. M \right|_{{z = z_{0} }} $ and $ \left. M \right|_{{z = L_{\text{d}} }} $ by a fixed increment of dM = 0.01. Subsequently, Eq 1 is used to obtain dv _p, and hence, v _p. Figure 1 shows an example of the obtained results (for the parameters given in Table 2, with C _d = 0.65), where particle velocity, gas velocity, and gas temperature are plotted as a function of the axial distance z.

Table 2

Parameters used for the numerical calculations (Fig. 1)

Parameter	Value
Particle (copper)
C _d	0.65-0.85
d _p	20 × 10⁻⁶, m
ρ_p	8960, kg/m³
c _p	384, J/kg per K
T _m	1357, K
σ	2.2 × 10⁸, Pa
Gas (nitrogen)
R	297, J/kg per K
k	1.4
T ₀	600, K
p ₀	4 × 10⁶, Pa
Nozzle
D _i, D*, D _e	15, 2.7, 6.4, ×10⁻³ m
L _c, L _d	30, 130, ×10⁻³ m
z ₀	−30, ×10⁻³ m

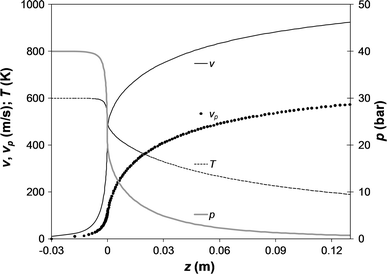

Fig. 1
A parametric plot of v, v _p, T, and p versus z, the axial distance from the nozzle throat, calculated using the isentropic flow model, and the data given in Table 2

Parametric Expression of the Particle Velocity

The following expression fits the numerically calculated values of gas velocity, for any T ₀, and for a wide range of k (1.1-2.1) and expansion ratio (3.0-16.0):

$$ v \approx v_{1} = \left( {c_{1} + \frac{{D^{*} - c_{1} D^{*} }}{{D_{\text{e}} }}} \right)^{n} a^{*} $$

(4)

where c ₁ and n are fitting parameters given as $ c_{1} = \exp (0355k + 1162k^{2} ) $ and $ n = 0.85k^{ - 3} $. Note that these fitting parameters depend only on the type of the process gas, and that v ₁ (as expected) is independent of pressure.

The form of the fitting function for particle velocity is chosen in view of the following considerations: First, the final gas velocity is taken as an upper bound for the final particle velocity at the exit of the nozzle. This implies that v _p does not exceed v during particle acceleration within the nozzle. Noting that v depends on T ₀ and not on p ₀, the gas velocity also represents the highest achievable particle velocity as obtained for a finite T ₀ and infinitely large p ₀. Likewise, it is assumed that there exists a second limiting velocity, v _max, which represents the highest achievable particle velocity as obtained for a finite p ₀ and infinitely large T ₀. The particle velocity at the exit of the nozzle is considered as a convolution of v _max and v ₁, as follows:

$$ v_{\text{p}} \approx v_{2} = f \cdot \left( {\frac{1}{{v_{\max } }} + \frac{1}{{v_{1} }}} \right)^{ - 1} $$

(5a)

where f is a calibration coefficient close to unity, considered here to compensate for the deviation of the above fitting function from the real solution. It is clear that f would equal unity at extremely large p ₀ or T ₀, i.e., where v _max or v ₁ approach infinity, respectively.

An examination of the numerically calculated values of v _p, as obtained for extremely large values of T ₀, demonstrate that v _max does indeed exist, and that it scales with the reference particle velocity, a _ref, as follows:

$$ v_{\max } = (1.3 \, r_{\text{e}}^{ - 0.21} ) \, a_{\text{ref}} $$

(5b)

where r _e is the expansion ratio of the nozzle. It is interesting to note that for typical values of expansion ratio (4.0-9.0) the prefactor $ (13r_{\rm e}^{ - 0.21} ) $ is close to unity (0.8 to 1.0). This implies that a _ref and v _max are roughly equal, and hence, convey a similar physical meaning. Therefore, a _ref as defined by Eq 3 can be viewed as an estimate of the maximum particle velocity, achievable for a given set of particle characteristics, nozzle length and pressure, regardless of the magnitude of the gas stagnation temperature. For the parameters given in Table 2, a _ref is about 1500 m/s.

By choosing f = 1.09, Eq. 5a fits well the numerically calculated values of particle velocity over a relatively wide range of process and materials parameters (Fig. 2). For a nozzle with an expansion ratio of 5.6 (corresponding to the parameters given in Table 2), Eq 5a, b can be rewritten in terms of primary materials and process parameters as follows:

$$ v_{\text{p}} \approx \left( {\frac{{c_{2} }}{{\sqrt {R \, T_{0} } }} + \sqrt {\frac{{\uprho_{\text{p}} d_{\text{p}} }}{{C_{\text{d}} L_{\text{d}} p_{0} }}} } \right)^{ - 1} $$

(6)

where c ₂ is 0.42 for nitrogen, and 0.45 for helium as process gas. Note that Eq 6 fits the results of the employed one-dimensional isentropic model, as applied to a nozzle with a linear profile, assuming constant C _d. In reality, flow is influenced by friction at the nozzle interior, the nozzle has often a non-linear profile, and C _d is not constant (Appendix C). Therefore, Eq 6 should be used with reservation, especially for very small or very large particles. Equation 6 is also not applicable to low-pressure cold-spray systems, where powder is injected into the supersonic part of the nozzle.

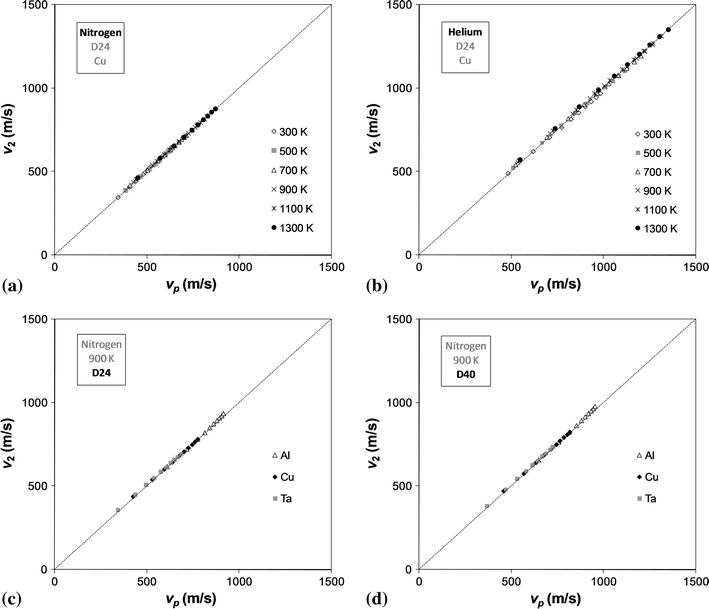

Fig. 2
Numerically calculated particle velocity at the nozzle exit, v _p, as compared to the values obtained from the fit-function, Eq 5a, b, for copper as a reference spray material, nozzle type 24 (D24), nitrogen (a) or helium (b) as process gas, and temperatures from 30 to 1300 K. (c) and (d) illustrate the correlations for nozzle types 24 and 40 (D24 and D40), obtained for copper, aluminum, and tantalum as spray materials, and nitrogen (900 K) as process gas. Small scattering of the data points from the diagonal (dashed) line demonstrates a good correlation between v _p and v ₂, for a wide range of gas pressure (10-100 bar) and temperature (300-1300 K), and for different types of process gas, material and nozzle geometry. Different data points of the same group (identified by the same marker/symbol) correspond to different values of pressure, i.e., the lowest and the highest points correspond to p ₀ = 10 and 100 bars, respectively. Particle size is fixed at 20 μm in all calculations. Dimensions of the nozzle type 24 are the same as in the previous example (Table 2), whereas nozzle type 40 has an expansion ratio of 7.6 and L _d of 180 mm (nozzle type names are used according to the notation of the Helmut Schmidt University, Hamburg, Germany and CGT GmbH, Ampfing, Germany)

The following example shows how the above fitting function may be used to provide a quick overview on the influence of process parameters on v _p. Differentiation of Eq 6 with respect to p ₀ and T ₀, with the parameters given in Table 2, results in:

$$ \frac{{{\text{d}}v_{\text{p}} }}{{v_{\text{p}} }} \cong 0.21\frac{{{\text{d}}p_{0} }}{{p_{0} }} + 0.29 \, \frac{{{\text{d}}T_{0} }}{{T_{0} }} $$

(7)

According to this relation, for the conditions specified in Table 2, 10% increase in p ₀ and/or T ₀, results in 2.1% and/or 2.9% increase in v _p, respectively.

Because of the bow shock that forms in front of the substrate, the velocity of particles upon impact would in practice be lower than that given by Eq 6. This effect can be taken into account by solving Eq 1 once more for the deceleration of particles in the bow-shock region. The result of modelling, considering the bow-shock effect, has been found to fit the following expression:

$$ v_{\text{pi}} \approx v_{3} = v_{2} \left( {1 + \frac{{\uprho_{0} \updelta }}{{\uprho_{\text{p}} d_{\text{p}} }}} \right)^{ - 1} $$

(8)

where δ is a fitting parameter of about 0.0007 m for the current example. Figure 3 shows the results of the numerical model as compared to Eq 6 and 8.

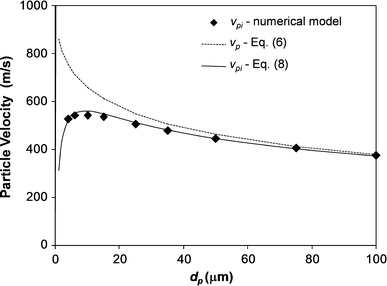

Fig. 3
Variation of the particle impact velocity for copper particles of different sizes (data points, numerically calculated), as compared to values obtained from the fit-functions, Eq 6 and 8. The calculation parameters are the same as in the previous example (Table 2)

It should be noted that similar approximations have been used by different authors (Ref 10, 14). The present approximation, however, appears to be applicable to a wider range of parameters, partly because it relaxes the condition v _p ≪ v. Moreover, postulation of the maximum particle velocity, v _max, in this study is considered to provide further insight to the problem of particle acceleration in cold spray.

Parametric Expression of the Critical Velocity

The critical impact velocity can be expressed in terms of materials properties and particle temperature as follows (Ref 8):

$$ v_{\text{cr}} = k_{1} \sqrt {c_{\text{p}} (T_{\text{m}} - T_{\text{p}} ) + 16\frac{\sigma }{{\uprho_{\text{p}} }}\left( {\frac{{T_{\text{m}} - T_{\text{p}} }}{{T_{\text{m}} - 293}}} \right)} $$

(9)

where k ₁ is a dimensionless fitting parameter typically in the range from 0.5 to 0.6. The effect of particle size can be incorporated into the above relation by taking k ₁ as a function of d _p. This has been done for copper. By fitting the existing experimental data for particle sizes within the range 10-105 µm, one obtains (Ref 9):

$$ k_{1} = 0.64{ (}d_{\text{p}} /d_{\text{p}}^{\text{ref}} )^{ - 0.18} $$

(10a)

and

$$ v_{\text{cr}} = v_{\text{cr}}^{\text{ref}} { (}d_{\text{p}} /d_{\text{p}}^{\text{ref}} )^{ - 0.18} \sqrt {1 - T_{\text{p}} /T_{\text{m}} } $$

(10b)

where d _p ^ref is a reference particle size, and v _cr ^ref is a reference critical velocity, which are for the current example equal to 10 μm and 650 m/s, respectively. Apart from the mathematical form of the v _cr-d _p variation, it is well established that in cold spraying smaller particles exhibit higher critical velocities as compared to larger particles. This can be attributed, among all possible factors, to larger deviation from the condition of adiabaticity—i.e., to more effective heat diffusion from the surface of the particle—for smaller particles (Ref 8).

Note that Eq 10a, b is valid only for copper and for a limited range of particle size; for infinitely large or small particles, the critical velocity as obtained from this equation becomes zero or infinity, respectively. To proceed from this point, a more general expression for v _cr can be obtained under the following considerations: First, in view of the results of large-scale impact tests (Ref 8), one can presume that the critical velocity approaches asymptotically a non-zero minimum, v _cr ^min , as the particle size becomes extremely large—i.e., where particle deformation can be considered to become fully adiabatic. Likewise, considering that temperature gradient in very small particles is negligible, it is assumed that the critical velocity for bonding coincides with another characteristic impact velocity, v _m, signifying the kinetic energy that causes the particle to reach its melting point. That is to assume, in other words, that bonding would be inevitable when the entire particle is at T _m. Based on these assumptions, v _m and v _cr ^min would become the upper and the lower bounds of the critical velocity, respectively. In a first approximation, the critical velocity is formulated as a simple mathematical interpolation between these two limits, using the following expression:

$$ v_{\text{cr}} = \frac{{v_{\text{m}} + c_{4} \upbeta^{n} \, v_{\text{cr}}^{\min } }}{{ 1+ c_{4} \upbeta^{n} }} $$

(11a)

where $ v_{\text{m}} = \sqrt {2c_{\text{p}} (T_{\text{m}} - T)/c_{3} } $, in which c ₃ is the fraction of the kinetic energy that dissipates into heat within the particle, c ₄ and n are fitting constants, and β is a dimensionless parameter representing adiabaticity of particle deformation—i.e., the degree to which the process of deformation can be considered to be adiabatic. The adiabaticity is defined here as:

$$ \upbeta = \frac{{d_{\text{p}} v_{\text{pi}}^{0} }}{\upalpha } $$

(11b)

in which α is the thermal diffusivity of the particle under consideration, and $ v_{\text{pi}}^{0} = \sqrt {2 \, c_{\text{p}} } $ is a characteristic impact velocity, corresponding to 1 K rise in average particle temperature due to the dissipation of kinetic energy. The above definition of adiabaticity is based on that used previously in the simulation of adiabatic shear instability during particle impact (Ref 7). In the analysis of high strain-rate phenomena, adiabaticity is represented by the dimensionless parameter x ²/α t, in which x is a characteristic system dimension, and t is a characteristic process time (Ref 27). In the present analysis, x and t are substituted by d _p and d _p/v _pi ⁰ , respectively. Thus, the two extremes of fully-isothermal and fully adiabatic deformation are signified by β = 0 and ∞, respectively. The form of the interpolation function in Eq 11a, b is chosen in view of the following considerations: (a) Assuming that the thermal condition at the interacting interfaces plays a most determining role in particle bonding, the adiabaticity parameter (which incorporates both particle size and heat diffusivity) should be the main argument of this function. (b) The interpolation function should satisfy the limiting conditions, v _cr = v _m and v _cr ^min , corresponding to β = 0 and ∞, respectively. (c) The function should be capable of providing a good fit to the existing experimental data on copper, and (d) this should preferably be achieved via a minimum number of fitting parameters. Note that the above analysis is based on a heat-conduction view of the size-dependence of critical velocity; other possible factors, such as surface oxidation, which may play a role in size-dependence of the critical velocity, are not considered here. Equation 11a, b should therefore be conceived only as a slightly improved version of Eq 10a, b. Also, further experimental data will be needed to assess applicability of Eq 11a, b to materials other than copper. For this reason, size-dependence of the critical velocity is considered only for the case of copper in the present analysis.

Equation 10a, b and 11a, b can provide almost identical results for copper powder (with particle size of 5-105 μm). The agreement between these two equations—as well as the best fit to the experimental data—is achieved when c ₃ = 2/3, c ₄ = 1, n = 1/2, and v _cr ^min is calculated using Eq 9 with k ₁ = 0.27. Note that all these constants are taken here as adjustable fitting parameters, with the exception of c ₃ (fraction of the kinetic energy that dissipates into the particle) which should in principle be consistent with the thermomechanical aspects of particle/substrate interaction. Preliminary simulations of particle impact suggest that c ₃ is indeed in the range between 0.5 and 0.8. Using these parameters, Eq. 11a, b can be rewritten as:

$$ v_{\text{cr}} = v_{\text{cr}}^{\text{ref}} \frac{{0. 4 2 (d_{\text{p}} /d_{\text{p}}^{\text{ref}} )^{0.5} \sqrt {1 - T_{\text{p}} /T_{\text{m}} } + 1.19\sqrt {1 - 0.73 \, T_{\text{p}} /T_{\text{m}} } }}{{0.65 + { (}d_{\text{p}} /d_{\text{p}}^{\text{ref}} )^{0.5} }} $$

(12)

where d _p ^ref = 10 μm, and v _cr ^ref = 650 m/s, as before. Note that unlike Eq 10a, b, the above equation results in finite values of critical velocity for infinitely large or small d _p. For the example of copper, Fig. 4 shows plots of v _cr versus d _p according to Eq 12, as compared to values of the critical velocity as obtained from experiments and FEM simulations. Figure 4 also provides an overview on the degree of adiabaticity in cold spray—as signified by the gap between v _m and v _cr.

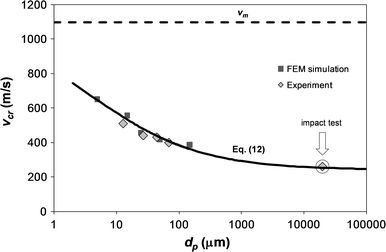

Fig. 4
Variation of the critical impact velocity with particle size for copper. The solid lines correspond to Eq 12, while the dotted lines show the upper limit of the critical velocity, corresponding to zero adiabaticity. The particle temperature upon impact is assumed to be 300 K

Influence of Particle Impact Velocity on Deposition Characteristics

The condition for successful cold spray deposition is met as soon as v _pi > v _cr. However, obtaining cold-sprayed coatings of favorable properties requires that v _pi becomes noticeably larger than v _cr. On the other hand, higher v _pi means higher operation costs. Also, exceeding v _cr by too large an amount may lead to unfavorable effects such as erosion. Therefore, the question of how coating properties are influenced by the magnitude of v _pi becomes of central importance in cold spray. This section examines the influence of particle impact velocity on some of these characteristics.

Flattening Ratio

The flattening ratio, defined here as 1 − h _p/d _p (Fig. 5), represents the severity of particle deformation as a result of impact (Ref 5, 7). Deposits with severely deformed particles are likely to exhibit minimal porosity, high amounts of bonded area, and relatively high values of cohesive strength. Therefore, the flattening ratio can be considered as a “diagnostic” microstructural property, which serves as a general measure of the overall quality of cold-sprayed coatings.

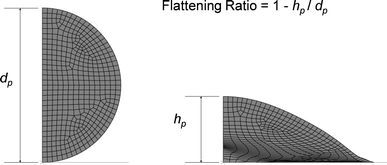

Fig. 5
An example of flattening of a particle due to impact on a rigid substrate, as obtained from FEM simulation

The effect of particle impact velocity on the flattening ratio is investigated through finite element modelling of plastic deformation during impact, using ABAQUS/Explicit (Ref 28). The calculation settings and the presumed material properties were similar to those used previously in Ref 7, 8. For simplicity, and to alleviate the effect of particle size and that of excessive mesh distortion on the deformed shape, simulations were performed for adiabatic deformation of large “particles” (20 mm in diameter) impacting on a rigid substrate. Further flattening due to subsequent impingements was not considered. Moreover, a friction coefficient of 0.5 was chosen between the surfaces of the particle and the substrate. Figure 6 shows the results of modelling for different initial conditions, corresponding to aluminum and copper as example feedstock materials.

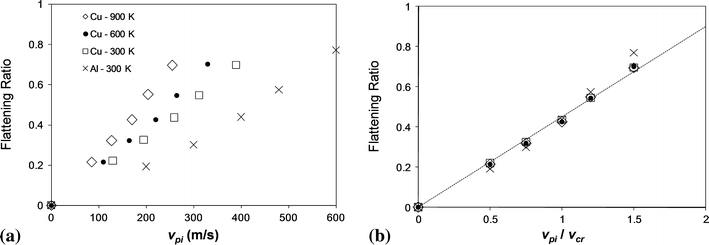

Fig. 6
Calculated flattening ratios of copper and aluminum as a function of (a) particle impact velocity, and (b) the ratio of particle impact velocity to critical velocity. The dashed line in (b) shows the relation: y = 0.46x

As shown in Fig. 6(a), the flattening ratio always increases with increasing particle impact velocity, though the rate of this increase depends strongly on material properties, as well as on T _pi. Interestingly, the flattening ratio exhibits little dependence on material properties or temperature, when it is plotted against the ratio of the particle impact velocity to the critical particle impact velocity (Fig. 6b). In this case, all variations collapse onto a single quasi-linear curve. Consequently, the flattening ratio appears to be a unique function of v _pi/v _cr, regardless of the values of materials and process parameters.

Deposition Efficiency

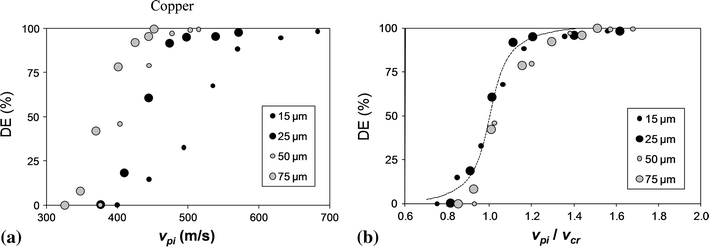

It is well established that higher pressures and temperatures result in higher particle velocities, and hence, lead to higher deposition efficiencies (DEs). Interestingly, the deposition efficiency also—in analogy with the flattening ratio—appears to be a unique function of v _pi/v _cr. This can be demonstrated based on the existing experimental data (Ref 9). As illustrated in Fig. 7, variation of DE with v _pi/v _cr (considering size-dependence of the critical velocity) is the same for cold spraying of different copper powders. It should be noted, however, that the characteristic smooth variation of DE with temperature or pressure, as often observed in cold spray experiments, is also a consequence of particle size variance. Under idealized conditions, the DE variation in cold spraying of a mono-size powder would be expected to resemble a step function. As the size distribution becomes wider, the increase of DE with increasing any characteristic parameter—such as temperature, pressure, v _pi of the mean particle size, or even the v _pi/v _cr ratio—will become more gradual. In view of these considerations, plots of DE versus v _pi/v _cr should be interpreted with caution. For typical powders, on the other hand, the effect of particle size variance is normally not significant. Moreover, there is always a particle velocity variance due to fluid-dynamic effects (even for a mono-size powder) which masks the influence of the particle-size variance. Therefore, it would still be safe to consider v _pi/v _cr as a most influential factor in the prediction of DE. As a general rule for typically ductile materials, DE reaches a saturation limit at v _pi/v _cr = 1.2, and remains unchanged until erosive effects (due to hydrodynamic penetration) kick in at v _pi/v _cr = 1.5-3.0.

Having the particle size distribution function, f(d _p), for a given powder, DE can be worked out quantitatively as a function of process and materials parameters as follows:

$$ {\text{DE}} = \int\limits_{0}^{\infty } {g \, f(d_{\text{p}} ){\text{ d}}d_{\text{p}} } $$

(13a)

where dd _p is the differential of d _p and g is a size-dependent function, which is obtained in terms of the characteristic particle velocities as follows:

$$ g = \left\{ {\begin{array}{ll} 1 & {{\text{if }}v_{\text{cr}} < v_{\text{pi}} < v_{\text{erosion}} } \\ 0 & {{\text{if }}v_{\text{pi}} < v_{\text{cr}} {\text{ or }}v_{\text{pi}} > v_{\text{erosion}} } \\ \end{array} } \right. $$

(13b)

in which v _erosion is an upper limit for the particle impact velocity, beyond which there would be no deposition (Ref 8). Equation 13a, b can be used to show that for a powder with normal size distribution, with μ as the mean particle size, one obtains: v _cr(μ) = v _pi(μ) at DE = 0.5. This means that if DE is plotted against v _pi(μ)/v _cr(μ), then the critical velocity should correspond to 50% DE. Alternatively, and equally correctly, the critical velocity could be worked out with respect to the point where DE rises from zero. In that case, however, v _pi should represent the impact velocity of the largest bonded particle, which may not necessarily be the same as that of the mean-sized particle; the largest bonded particle would presumably be considerably smaller, and hence, faster than the mean-sized particle. It can be conceived that both methods should predominantly lead to identical values of v _cr.

Coating Strength

The correlation between coating strength and impact velocity has already been investigated for copper (Ref 9) and titanium (Ref 19). Figure 8 shows an example for copper. In this study, cold spray experiments were performed for four different particle size distributions. Different particle velocities were obtained by changing the gas temperature over a wide range (20 to 900 °C). Further details on the spray experiments and on the strength measurements are given elsewhere (Ref 9). As shown in Fig. 8(a), variation of the cohesive strength, σ_c, with impact velocity depends strongly on the (mean) particle size of the respective powder. However, variation of the cohesive strength with v _pi/v _cr appears to be identical for all of the examined powders. This is shown in Fig. 8(b), where the cohesive strength is plotted against v _pi/v _cr, considering size-dependence of the critical velocity (Fig. 4). Another important feature in Fig. 8(b) is the small “plateau” at lower values of strength, implying non-zero strengths around v _pi = v _cr. This latter feature might seem surprising at a first glance. It should be noted, however, that non-zero strengths and deposition efficiencies (section 5.2) at v _pi = v _cr are in fact inevitable characteristics of the present method of analysis. Note that the impact velocities of the mean-sized and the largest-bonded particles are not necessarily the same, and so, a residual strength would be expected at v _pi/v _cr = 1. Alternatively, the difference between these impact velocities can be accounted for by adjusting the v _pi/v _cr ratio in such a way that the cohesive strength drops to zero at v _pi/v _cr = 1. For the case of copper, this is achieved by applying a correction factor of f = 1.05 to the v _pi/v _cr ratio; implying 5% underestimation of v _pi with reference to v _cr. The result of this modification is shown in Fig. 8(c), where the cohesive strength is normalized with respect to a reference value of 300 MPa. The reference value represents the value of strength at v _pi/v _cr = 2. Considering the special stress condition in the TCT test, this value coincides roughly with the ultimate tensile strength of 450 MPa as obtained for (highly deformed) copper (Ref 8, 19, 20). In view of these results, the real cohesive strength of cold-sprayed coatings may be expressed generally, for typical powders and ideal spraying conditions, as follows:

$$ \sigma_{\text{c}} \approx \sigma_{\text{u}} \left( {f\frac{{v_{\text{pi}} }}{{v_{\text{cr}} }} - 1} \right) $$

(14)

where σ_u is the ultimate tensile strength, and f is a calibration factor as explained above.

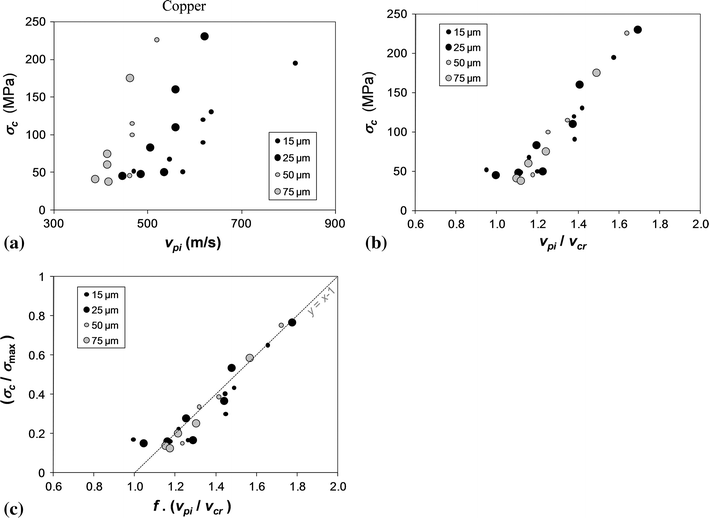

Fig. 8
Measured values of the cohesive strength of cold-sprayed copper coatings, as plotted against (a) particle impact velocity, and (b) the ratio of particle impact velocity to critical velocity, and (c) the adjusted velocity ratio using a correction factor of f = 1.05. The dashed line in (c) shows the relation: y = x − 1, where y (on the vertical axis) indicates the cohesive strength normalized with respect to a reference value of 300 MPa, representing the tensile strength of highly deformed bulk copper in a TCT test

A similar behavior was observed for titanium, for which various impact conditions were obtained using a wide range of process gas temperature at p ₀ = 40 bar (Fig. 9). As illustrated in Fig. 9(b), again, the normalized cohesive strength shows a unique linear correlation with v _pi/v _cr for both types of the titanium powder used in this study. In this case, however, size-dependence of the critical velocity is not considered when calculating the v _pi/v _cr ratio. In analogy with the results of the copper powders (Fig. 8b), there is non-zero strength at v _pi/v _cr = 1. Figure 8(c) shows the alternative relation, which is obtained by applying a correction coefficient of f = 1.08, and considering a reference (TCT) strength of 420 MPa, corresponding to an ultimate tensile strength of 630 MPa.

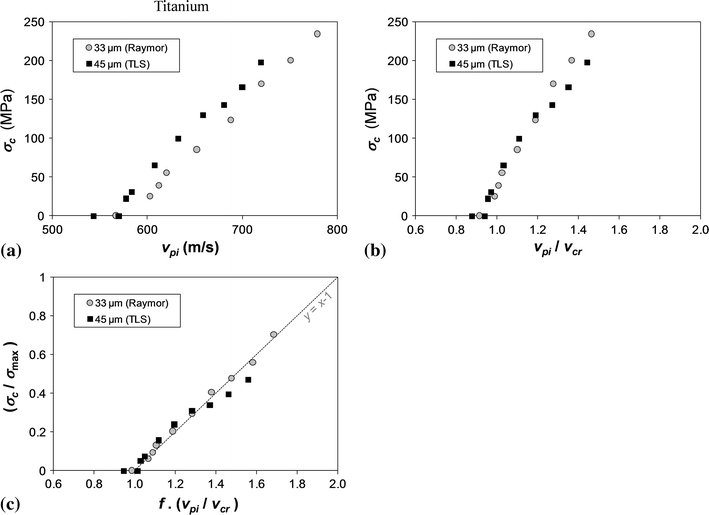

Fig. 9
Measured values of the cohesive strength of cold-sprayed titanium coatings, as plotted against (a) particle impact velocity, and (b) the ratio of particle impact velocity to critical velocity, and (c) the adjusted velocity ratio using a correction factor of f = 1.08. The dashed line in (c) shows the relation: y = x − 1, where y is the cohesive strength normalized with respect to 420 MPa, representing the tensile strength of a highly deformed material in a TCT test

Preliminary analysis of the experimental data for titanium sprayed on aluminum suggests that the adhesive strength between the titanium coating and the substrate, also, depends only on v _pi/v _cr. However, a general quantitative relationship as in Eq 14 cannot be derived for the adhesion strength because of the influence of different substrate materials involved.

Despite the arguable deviations from Eq 14, the overall results as obtained for copper and titanium suggest that the coating strength, too, can be considered as a unique function of v _pi/v _cr. This further supports the notion that the ratio v _pi/v _cr might be used as a universal and simple measure of the general quality of cold-sprayed deposits.

Parameter Selection Maps

The above results (section 5) suggest that coating characteristics may be conceived as a function of a dimensionless parameter, defined as the ratio of particle impact velocity to critical particle impact velocity:

$$ \upeta = \frac{{v_{\text{pi}} }}{{v_{\text{cr}} }} $$

(15)

Considering the correlations obtained for v _pi and v _cr (sections 3 and 4), η can be expressed directly in terms of primary materials and process parameters, namely, particle size, gas temperature, and gas pressure. For the specific material, spraying conditions and nozzle geometry as considered in this study (Table 2), η can be expressed as follows:

$$ \upeta \cong \left[ {\frac{{v_{\text{cr}}^{\text{ref}} }}{{a_{\text{ref}} }} \, \left( {\frac{{d_{\text{p}} }}{{d_{\text{p}}^{\text{ref}} }}} \right)^{ - 0.18} \sqrt {1 - \frac{{T_{\text{pi}} }}{{T_{\text{m}} }}} \left( {1 + 0.32\sqrt {\frac{{C_{\text{d}} L_{\text{d}} p_{0} (1 + k)}}{{\uprho_{\text{p}} \, d_{\text{p}} \, k \, R \, T_{0} }}} } \right)\left( {1 + \frac{{p_{0} \updelta }}{{RT_{0} d_{\text{p}} }}} \right)} \right]^{ - 1} $$

(16)

where v _cr ^ref = 650 m/s, d _p ^ref = 10 μm, and δ = 0.0007 m. Note that the above equation incorporates size-dependence of the critical velocity according to Eq 10a, b. Equation 16 provides a basis for the construction of parameter selection maps for cold spraying of copper, as described next.

Constructing the Maps

An important feature of Eq 16 is that, apart from T _pi, it does not contain any intermediate variable; note that velocity variables v _pi and v _cr are replaced by primary process parameters in this equation. Elimination of T _pi from Eq 16 may in principle be pursued through numerical modelling combined with a fitting procedure, similar to that performed for v _pi (section 3). However, finding a general expression for T _pi might be comparatively less straightforward. In addition to the parameters considered in this analysis, T _pi is expected to be influenced by factors such as the length of the pre-chamber and the stand-off distance (Ref 9-14). Apart from these complexities, particle bonding is expected to be influenced by the temperature difference between the substrate and the particle, especially at higher values of T ₀. This means that even an accurately estimated T _pi may not solve the issue completely. Clearly, further experimental and theoretical studies will be needed on this front. Nevertheless, to obtain a preliminary overview on the variation of η with primary process parameters, T _pi is considered here to increase linearly with increasing T ₀, according to: T _pi = c ₅ + c ₆ T ₀, where c ₅ and c ₆ are fitting parameters. This linear approximation is based on the results of numerical modelling (Appendix D).

Using Eq 16 and the above approximation for T _pi, the deposition window may be defined in the p ₀-T ₀-d _p space as follows:

$$ 1 < \upeta (p_{0} ,T_{0} ,d_{\text{p}} ) < \upeta_{\text{f}} $$

(17)

where the upper limit, η_f, signifies the condition for unsuccessful deposition resulting from material failure—such as erosion under hydrodynamic penetration, particle break-up or melting—at very high impact velocities. It is clear that η_f may not have a unique value, because different materials may undergo different types of failure upon impact at high velocities. In a first approximation, η_f is taken to correspond to v _erosion, which is roughly twice as much the critical velocity for most materials; thus η_f = 2. The parameter selection map can be constructed by plotting the respective η-contours on p ₀-T ₀, T ₀-d _p, or p ₀-d _p planes. Considering the existing relationships between the coating properties and η (section 5), the region in the vicinity of the contour η = 1.5 can be considered as a benchmark for cold spraying of high-strength coatings. Figure 10 shows examples of parameter selection map as obtained for copper, using Eq 16 and the above-mentioned approximation for T _pi, with c ₅ = 150 K and c ₆ = 0.5. It should be noted that c ₆ = 0.75 would provide a better fit to the numerical results as shown in Appendix D. However, the more conservative value of 0.5 is used here to compensate for the enhanced effect of the “cooler substrate” at higher values of T _pi. The window of deposition, i.e., the range of primary parameters resulting in deposition is shown as the gray region in Fig. 10. It should be noted that the borders of the window of deposition would be expected to shift upwards, if the temperature difference between the particle and the substrate were taken into account. Clearly, the shift would be more significant for the upper border (erosion by hydrodynamic penetration) as it would be associated with relatively higher temperature differences between particle and substrate.

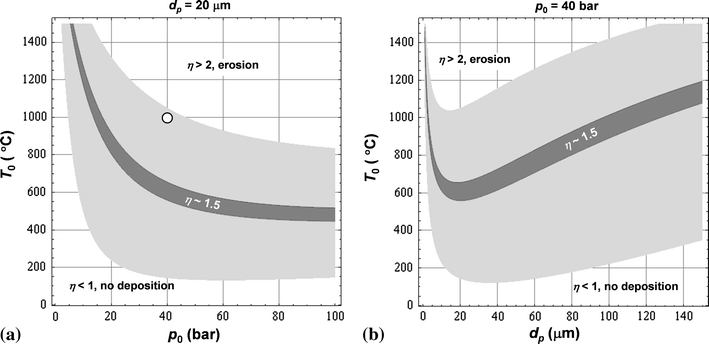

Fig. 10
Parameter selection map for copper on the p ₀-T ₀ (left), and the d _p-T ₀ (right) planes, as obtained from Eq 16 and 17, for the parameters given in Table 2. Here, as a crude approximation, T _pi is assumed to change linearly with T ₀ as follows: T _pi = 150 + 0.5 T ₀. The circle on the left diagram marks the highest p ₀ and T ₀ achievable today by utilizing commercially available equipment

It is clear that the parameter selection maps as shown in Fig. 10 could also be worked out numerically. In fact, parametric expression of η as employed in the present analysis is to facilitate a preliminary estimation of the processing conditions, without a need for complex fluid dynamics or solid mechanics computations. For more accurate analyses, of course, windows of deposition may be obtained based on interpolations of the numerical results.

Using the Maps

A parameter selection map may serves as a convenient means to determine optimum process conditions for a given feedstock material, process gas, and nozzle geometry. In addition, it may be utilized as a guideline for further optimization and development of cold spray systems. These utilities are discussed below.

The first step to determine optimum spraying conditions is to decide on the desired η value. This can be done based on the existing correlations between η and the selected coating properties, such as those shown in section 5. For instance, a target value of 1.4 for η would warrant a cohesive strength of at least 100 MPa for cold-sprayed copper coatings. The next step after deciding on the value of η is to select (or construct) a p ₀-T ₀ map for the given nozzle, gas type, and feedstock material. It is clear that to achieve a certain η-value, there would be an infinite number of possibilities with respect to the pairs of p ₀ and T ₀; a fixed η value would impose a constraint on either p ₀ or T ₀ but not on both. At this stage, one may consider different criteria to define the best choice of p ₀ and T ₀, and so, to pinpoint a specific processing condition on the parameter selection map.

The cost of operation is likely to be a commonsensical criterion in most industrial applications. In this case, using the lowest possible gas pressure, or the highest possible gas temperature, would constitute the most favorable process setting. This can be demonstrated by taking the case of copper (Fig. 10) as a typical example. For simplicity, the operation cost is considered here to be governed by gas consumption and heating power. These two factors can be calculated from the mass flow rate of the process gas, m _t, which is given as:

$$ m_{t} = A^{*} p_{0} \sqrt {\frac{k}{{RT_{0} }}} \left( {\frac{k + 1}{2}} \right)^{{ - \, \frac{k + 1}{2(k - 1)}}} $$

(18)

Assuming a constant heat capacity of 1200 J/kg for nitrogen, the gas consumption, V _t, and the gas heating power, P, are obtained for the given nozzle (Table 2) in terms of p ₀ and T ₀ as follows:

$$ V_{t} = V_{t}^{\text{ref}} \frac{{p_{0} }}{{p_{0}^{\text{ref}} }}\sqrt {\frac{{T_{0}^{\text{ref}} }}{{T_{0} }}} $$

(19)

$$ P = P^{\text{ref}} \frac{{p_{0} }}{{p_{0}^{\text{ref}} }}\left( {\frac{{T_{0} }}{{T_{0}^{\text{ref}} }} - 1} \right)\sqrt {\frac{{T_{0}^{\text{ref}} }}{{T_{0} }}} $$

(20)

where V _t ^ref = 3.8 m³/h and P ^ref = 0.47 kW, for p ₀ ^ref = 1 bar and T ₀ ^ref = 298 K. Considering that η = 1 represents the threshold of cold-spray deposition, p ₀ can be worked out in terms of T ₀, and then, inserted into Eq 19 and 20 to work out the gas flow rate and the heating power as a sole function of T ₀. Figure 11 shows the corresponding results for two cases of η = 1 and η = 1.5, using the parameters given in Table 2, with C _d = 0.85. As shown in Fig. 11, for both cases the flow rate and the heating power decrease with increasing gas temperature. The latter trend may seem somewhat surprising, as higher gas temperatures would intuitively be associated with higher heating powers. This is clearly not the case in this example. Note that higher temperatures on a given η-contour correspond to lower pressures and that, according to Eq 20, P scales with p ₀. As a result, the operation cost (gas consumption plus heating) will always decrease with increasing gas temperature, regardless of the price of gas or electricity. This means that, as far as the operation cost is concerned, T ₀ should be set as high as it is technically feasible—taking into account the capability of the system and the melting temperature of the feedstock material—and then, the corresponding p ₀ should be determined from the relevant η-contour on the given p ₀-T ₀ diagram. Practical issues like nozzle clogging should also be taken into account when selecting parameters along a desired η-contour. It should also be noted that the absolute power consumption that is needed in real spray equipment is normally higher than that estimated by Eq 20, since Eq 20 does not take into account heat losses.

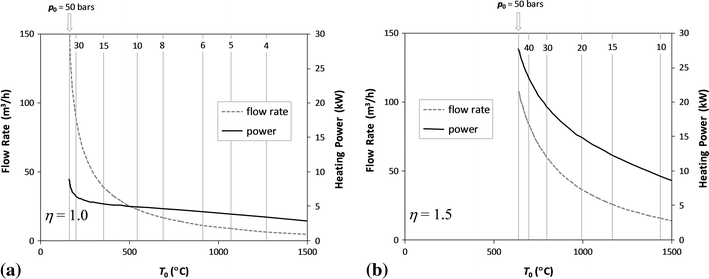

Fig. 11
Calculated variations of the gas flow rate and the heating power with the gas temperature, (a) for the condition of η = 1 for copper, i.e., where v _pi = v _cr, and (b) for η = 1.5, corresponding to the dark gray region in Fig. 10 (left)

An alternative criterion to define the best choice of p ₀ and T ₀ can be devised with respect to homogeneity of the coating microstructure. Figure 12 shows superimposed η-contours of 10 and 50 μm particles. The gray region is the overlap of the respective windows of deposition. It is reasonable to assume that spraying within this region would ensure maximal deposition efficiency when the particle size is between 10 and 50 μm. It should be noted, however, that none of the respective η-contours of the two windows match. Instead, they cross over at certain points (shown as dots in Fig. 12) within the gray region. Only at these points η-values of different particles are equal; anywhere else within the gray region particles of different sizes deposit with different η-values, and hence, exhibit different flattening ratios and bonding characteristics. In this respect, the locus of these crossovers signifies the optimum conditions for cold spraying, should a deposit of uniform bonding characteristics be desired. The lowest point of this locus, marked by p ₀ ^* and T ₀ ^* , represents the critical process parameters for cold spraying of copper, when particles are between 10 and 50 μm, nitrogen is used as process gas, and the nozzle has the dimensions as specified in Table 2. The significance of the point (p ₀ ^* , T ₀ ^* ) is that it marks a minimal condition for efficient deposition of a structurally uniform coating. In this way, p ₀ ^* and T ₀ ^* might be conceived as “main cold-spray attributes” of a given feedstock material, for a given type of gas and nozzle geometry. It would seem interesting to work out—using the above procedure—and report these attributes for various combinations of feedstock materials and cold spray systems.

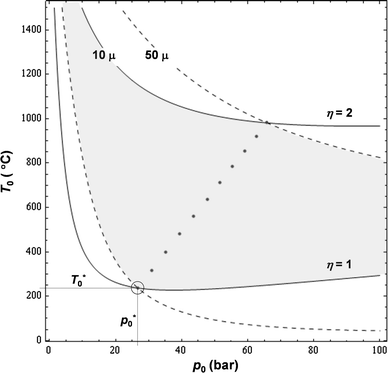

Fig. 12
Parameter selection map as calculated for copper for two different values of particle size. The dots show the locus of the crossovers of the respective η-contours. The crossover at η = 1 is signified by the critical processing conditions p ₀ ^* and T ₀ ^*

A parameter selection map may also provide a guideline for further development of cold spray systems. As shown in Fig. 12, the threshold of deposition (as signified by η = 1) for a 10 µm particle has a local minimum around 40 bars. This implies that increasing pressure beyond 40 bars would actually work against deposition of 10 μm particles. This effect results from the deceleration of particles by the bow shock, which would be more significant for smaller particles. In view of this consideration, it may not be necessarily helpful, nor desirable, to develop cold spray systems that are capable of working at much higher pressures. Instead, it would be helpful to devise methods to alleviate the bow shock effect, e.g., by spraying in partial vacuum as in the so-called aerosol deposition method (Ref 29), or to spray at highest possible temperatures. In contrast, for larger particle sizes (see the example for a particle size of 50 μm in Fig. 12) increasing the gas pressures to values higher than 40 bars would be beneficial for enhancing coating properties.

The presented method of analysis has also some limitations. A main limitation is that it does not take substrate properties into account. Consequently, the method does not incorporate certain deposition characteristics—such as the adhesive strength of the coating/substrate—that are additionally influenced by the properties of the substrate material. On the other hand, preliminary analysis of the adhesive-strength data suggest that similar correlations could be worked out between the measured data and the v _pi/v _cr ratio, with v _cr representing a weighted average of the respective critical velocities for the feedstock and substrate materials. Further work is in progress on this front.

Conclusions

Particle velocity at the exit of the nozzle can be expressed, with reasonable accuracy, as an explicit function of pressure, temperature, and particle size. This function is obtained as a convolution of two limiting velocities as follows: (a) the gas velocity at the exit, which is a function of T ₀ but not p ₀, and (b) a reference particle velocity, which is a function of p ₀ but not T ₀. The latter parameter signifies the maximum particle velocity achievable for a given nozzle geometry, particle size, and p ₀. In combination with a parametric expression for the critical particle velocity, the above fitting function is used to work out an explicit expression for the ratio of particle velocity to critical velocity, referred to as η. Based on the existing experimental data (for copper and titanium) and simulations (for copper and aluminum), it is postulated that main coating and deposition characteristics can be expressed as a unique function of this dimensionless parameter. In this way, final coating properties are linked directly to primary process and material parameters for the examined materials. To facilitate selection and optimization of cold spray parameters, parameter selection maps are constructed as contour plots of η on p ₀-T ₀ planes. These maps show not only the respective window of deposition, but also the spraying parameters corresponding to the desired η-value, and hence, to the target coating property. Moreover, application of parameter selection maps in cold spray alleviates the need for a thorough understanding of fluid dynamics or solid mechanics by the end user. Finally, parameter selection maps can be used to pinpoint optimal spraying conditions with respect to different criteria such as minimization of the process cost or maximization of the uniformity of the coating properties. A future line of research in cold spray could involve assessment of the proposed method in view of further experimental data, and possibly, application of the method to work out the most favorable spraying conditions for various feedstock materials.

Notes

Acknowledgments

The authors thank K. Onizawa and K. Donner for assistance with the numerical calculations. Also, technical support from T. Breckwoldt, H. Hübner, D. Müller, N. Nemeth, C. Schulze, M. Schulze, and U. Wagener is gratefully acknowledged. HA is much thankful to Förderverein Metallkunde e.V., Hamburg, Germany, for a research fellowship.

Appendix A: Gas Dynamic Equations for Flow in a Nozzle

The following well-known gas dynamic equations are used for isentropic flow of an ideal gas with constant thermodynamic properties through a convergent-divergent nozzle (Ref 10-14, 30):

$$ \frac{A}{{A^{*} }} = f_{\text{A}} (M) = \frac{1}{M}\left[ {\frac{{2 + (k - 1)M^{2} }}{k + 1}} \right]^{{\frac{k + 1}{2(k - 1)}}} $$

(A1)

$$ \frac{T}{{T_{0} }} = f_{\text{T}} (M) = \left( {1 + \frac{k - 1}{2}M^{2} } \right)^{ - 1} $$

(A2)

$$ \frac{p}{{p_{0} }} = f_{\text{p}} (M) = \left( {1 + \frac{k - 1}{2}M^{2} } \right)^{{\frac{ - k}{k - 1}}} $$

(A3)

$$ \frac{\uprho }{{\uprho_{0} }} = f_{\uprho } (M) = \left( {1 + \frac{k - 1}{2}M^{2} } \right)^{{\frac{ - 1}{k - 1}}} $$

(A4)

$$ \uprho_{0} = \frac{{p_{0} }}{{R \, T_{0} }} $$

(A5)

$$ a = \sqrt {k \, R \, T} ;\quad a^{*} = \sqrt {2 \, k \, R \, T_{0} /(1 + k)} $$

(A6)

$$ v = a \, M $$

(A7)

Appendix B: Nozzle Profile Equations

For a simplified geometry with linear profiles in the subsonic and the supersonic parts, the following relations are obtained between the nozzle area and the axial distance z, where z = 0 at the throat of the nozzle.

Supersonic part (M ≥ 1):

$$ z = \frac{{2\sqrt {A/\uppi } - D^{*} }}{{D_{\text{e}} - D^{*} }}L_{\text{d}} $$

(B1)

Subsonic part (M < 1):

$$ z = \frac{{2\sqrt {A/\uppi } - D^{*} }}{{D^{*} - D_{\text{i}} }}L_{\text{c}} $$

(B2)

Differentiation of Eq B1 and B2 will result in:

M ≥ 1:

$$ \text{d}z = \frac{{L_{\text{d}} \, }}{{(D_{\text{e}} - D^{*} )\sqrt {\uppi \, A} }}\,{\text{d}}A \, = \frac{{L_{\text{d}} \, D^{ *} f^{\prime}_{\text{A}} (M)}}{{2(D_{\text{e}} - D^{*} )\sqrt {f_{\text{A}} (M)} }}\,\text{d}M $$

(B3)

M < 1:

$$ {\text{d}}z = \frac{{L_{\text{c}} \, }}{{(D^{*} - D_{\text{e}} )\sqrt {\uppi \, A} }}\,{\text{d}}A \, = \frac{{L_{\text{c}} \, D^{ *} f^{\prime}_{\text{A}} (M)}}{{2(D^{*} - D_{\text{e}} )\sqrt {f_{\text{A}} (M)} }}\,{\text{d}}M $$

(B4)

Differentiation of Eq A1 with respect to M results in:

$$ f^{\prime}_{\text{A}} (M) = f_{\text{A}} (M)\left[ {\frac{(k + 1)M}{{2 + (k - 1)M^{2} }} - \frac{1}{M}} \right] $$

(B5)

Appendix C: Drag Coefficient

In the present analysis it is assumed that the drag coefficient, C _d, is constant; in reality, C _d is a function of Mach and Reynolds numbers (Ref 9, 11, 31, 32). For spherical particles, this effect can be described according to Carlson et al. (Ref 31) or Walsh (Ref 32). Both influences are illustrated in Fig. C1, for the case of spraying with nitrogen at a pressure of 30 bars and a temperature of 600 °C. Figure C1(a) shows the drag coefficient, whereas Fig. C1(b) shows the corresponding Reynolds number, plotted as a function of particle Mach number, for different particle sizes. The calculation according to Walsh also reproduces the discontinuity of the drag coefficient at Mach 1. Note that there is a comparatively strong increase of the drag coefficient with decreasing Mach number. The increase of drag coefficient with increasing particle size is attributed to significantly different Reynolds numbers. Under typical cold spray conditions, the particle acceleration takes place at particle Mach numbers in the range from 0.5 to 2 (Ref 9, 11). Under these conditions, the drag coefficient varies between 0.5 and 1.5. It should be noted that for typical conditions in high-pressure cold spraying, particle acceleration is effectively at particle Mach numbers between 0.8 and 0.95. For low-pressure systems, where powder is fed into the supersonic part of the nozzle, higher Mach numbers in the range from 0.95 to 3 are expected. For very small or low density particles, Mach numbers can be even smaller (<0.8). Thus, applying the suggested concepts to vastly different spraying conditions or systems should be made with caution.

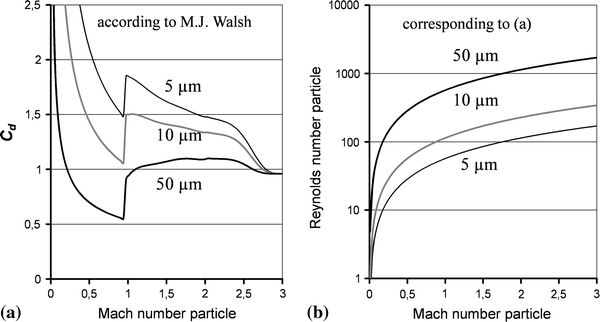

Fig. C1
Drag coefficient (a) and corresponding Reynolds numbers of particles (b) as a function of Mach number, calculated for different particle sizes. For this calculation a supersonic nitrogen gas stream of Mach 3 is taken. The stagnation conditions are 30 bar 600 °C for nitrogen as process gas. The approximation of Walsh is used in a similar way in the fluid dynamics software FLUENT (Ref 33)

Appendix D: Approximation of Particle Temperature

The results of numerical modelling (Fig. D1) show that the particle temperature increases linearly with increasing gas temperature. They also show that gas pressure has little influence on particle temperature. On the other hand, the particle temperature is strongly influenced by the particle size, which is shown for two different parameter settings in Fig. D1(b). The comparison shows that nozzle design, and particularly, the point of particle injection has major influence on particle temperature. For simplicity, however, these latter influences are not considered in the present analysis. Here, the particle temperature is approximated by a linear fit to temperatures calculated numerically for nozzle type 24 (signified as D24) with T _pi = c ₅ + c ₆ T ₀, where c ₅ and c ₆ are fitting parameters. Significant errors in particle impact temperature are only expected for very small (<15 μm) and very large (>150 μm) particles.

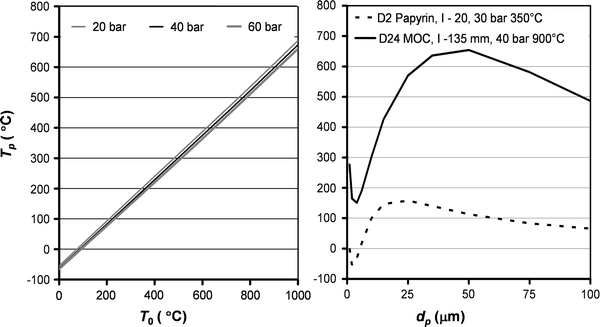

Fig. D1
Temperature of copper particles, as a function of (a) process gas temperature and (b) particle diameter, calculated using an isentropic model, for nozzle type 24 (Table 2), injection 20 mm/135 mm upstream of the nozzle throat

References

1.
A.P. Alkimov, V.F. Kosarev, N.I. Nesterovich, and A.N. Papyrin, Method of Applying Coatings, Russian Patent No. 1618778, 1990Google Scholar
2.
A. Papyrin, Cold Spray Technology, Elsevier, Amsterdam, 2007Google Scholar
3.
V.K. Champagne, The Cold Spray Materials Deposition Process: Fundamentals and Applications, CRC Press, Cambridge, 2007CrossRefGoogle Scholar
4.
E. Irissou, J.-G. Legoux, A.N. Ryabinin, B. Jodoin, and C. Moreau, Review on Cold Spray Process and Technology: Part I—Intellectual Property, J. Therm. Spray Technol., 2008, 54, p 495-516CrossRefGoogle Scholar
5.
R.C. Dykhuizen, M.F. Smith, R.A. Neiser, D.L. Gilmore, X. Jiang, and S. Sampath, Impact of High Velocity Cold Spray Particles, J. Therm. Spray Technol, 1998, 8(4), p 559-564CrossRefGoogle Scholar
6.
S. Yin, X.-F. Wang, B.-P. Xu, and W.-Y. Li, Examination on the Calculation Method for Modeling the Multi-Particle Impact Process in Cold Spraying, J. Therm. Spray Technol, 2010, 19(5), p 1032-1041CrossRefGoogle Scholar
7.
H. Assadi, F. Gärtner, T. Stoltenhoff, and H. Kreye, Bonding Mechanism in Cold Gas Spraying, Acta Mater., 2003, 51, p 4379-4394CrossRefGoogle Scholar
8.
T. Schmidt, F. Gärtner, H. Assadi, and H. Kreye, Development of a Generalized Parameter Window for Cold Spray Deposition, Acta Mater., 2006, 54, p 729-742CrossRefGoogle Scholar
9.
T. Schmidt, H. Assadi, F. Gärtner, H. Richter, T. Stoltenhoff, H. Kreye, and T. Klassen, From Particle Acceleration to Impact and Bonding in Cold Spraying, J. Therm. Spray Technol., 2009, 18, p 794-808CrossRefGoogle Scholar
10.
R.C. Dykhuizen and M.F. Smith, Gas Dynamic Principles of Cold Spray, J. Therm. Spray Technol., 1998, 7, p 205-212CrossRefGoogle Scholar
11.
T. Stoltenhoff, H. Kreye, and H.J. Richter, An Analysis of the Cold Spray Process and its Coatings, J. Therm. Spray Technol., 2002, 11, p 542-550CrossRefGoogle Scholar
12.
T. Stoltenhoff, J. Voyer, and H. Kreye, Cold Spraying—State of the Art and Applicability, International Thermal Spray Conference 2002, Essen, E.F. Lugscheider, C.C. Berndt, Eds., DVS-Verlag, Düsseldorf, Germany, 2002, p 366-374Google Scholar
13.
V.F. Kosarev, S.V. Klinkov, A.P. Alkimov, and A.N. Papyrin, On Some Aspects of Gas Dynamics of the Cold Spray Process, J. Therm. Spray Technol, 2003, 12(2), p 265-281CrossRefGoogle Scholar
14.
M. Grujicic, C.L. Zhao, C. Tong, W.S. DeRosset, and D. Helfritch, Analysis of the Impact Velocity of Powder Particles in the Cold-Gas Dynamic-Spray Process, Materials science and Engineering, 2004, A368, p 222-230Google Scholar
15.
S.V. Klinkov, V.F. Kosarev, and M. Rein, Cold Spray Deposition, Significance of Particle Impact Phenomena, Aerospace Science and Technology, 2005, 9, p 582-591CrossRefGoogle Scholar
16.
C.J. Li, W.Y. Li, and H. Liao, Examination of the Critical Velocity for deposition of Particles in Cold Spraying, J. Therm. Spray Technol, 2006, 15(2), p 212-222CrossRefGoogle Scholar
17.
K. Kim, M. Watanabe, J. Kawakita, and S. Kuroda, Effects of Temperature of In-flight Particle on Bonding and Microstructure in Warm-Sprayed Titanium Deposity, J. Therm. Spray Technol, 2009, 18(3), p 392-400CrossRefGoogle Scholar
18.
C. Borchers, T. Schmidt, F. Gärtner, and H. Kreye, High Strain Rate Deformation Microstructures of Stainless Steel 316L by Cold Spraying and Explosive Powder Compaction, Applied Physics A, 2008, 90, p 517-526CrossRefGoogle Scholar
19.
K. Binder, J. Gottschalk, M. Kollenda, F. Gärtner, and T. Klassen, Influence of Impact Angle and Gas Temperature on Mechanical Properties of Titanium Cold Spray Deposits, J. Therm. Spray Technol., 2010, 20, p 234-242CrossRefGoogle Scholar
20.
T. Schmidt, F. Gärtner, and H. Kreye, New Developments in Cold Spray Based on Higher Gas- and Particle Temperatures, J. Therm. Spray Technol, 2006, 15(4), p 488-494CrossRefGoogle Scholar
21.
G. Bae, K. Kang, H. Na, J.-J. Kim, and C.H. Lee, Effect of Particle Size on the Microstructure and Properties of Kinetic Sprayed Nickel Coatings, Surface & Coatings Technology, 2010, 204, p 3326-3335CrossRefGoogle Scholar
22.
R.C. McCune, W.T. Donlon, O.O. Popola, and E.L. Cartwright, Characterization of Copper Layers Produced by Cold Gas-Dynamic Spraying, J. Therm. Spray Technol, 2000, 9(1), p 73-82CrossRefGoogle Scholar
23.
F. Gärtner, T. Stoltenhoff, J. Voyer, H. Kreye, S. Riekehr, and M. Kocak, Mechanical Properties of Cold-Sprayed and Thermally Sprayed Copper Coatings, Surface & Coatings Technology, 2006, 200, p 6770-6782CrossRefGoogle Scholar
24.
W.Y. Li, C.J. Li, and H. Liao, Effect of Annealing treatment on the Microstructure and Properties of Cold-Sprayed Cu Coatings, J. Therm. Spray Technol, 2006, 15(2), p 206-211CrossRefGoogle Scholar
25.
E. Calla, D.G. McCartney, and P.H. Shipway, Effect of deposition Conditions on the Properties and Annealing Behavior of Cold-Sprayed Copper, J. Therm. Spray Technol, 2006, 15(2), p 255-262CrossRefGoogle Scholar
26.
G.B. Wallis, One Dimensional Two Phase Flow, McGraw Hill, New York, 1969Google Scholar
27.
G.G.B. Olson, J.F. Mescall, and M. Azrin, Adiabatic Deformation and Strain Localization, Shock Waves and High-Strain-Rate Phenomena in Metals, M.A. Meyers and L.E. Murr, Ed., Plenum Press, New York, 1981, p 22-23 Google Scholar
29.
J. Akedo, Room Temperature Impact Consolidation (RTIC) of Fine Ceramic Powder by Aerosol Deposition Method and Applications to Microdevices, J. Therm. Spray Technol., 2008, 17, p 181-198CrossRefGoogle Scholar
30.
M.A. Saad, Compressible Fluid Flow, Prentice Hall, Englewood Cliffs, NJ, 1985Google Scholar
31.
D.J. Carlson and R.F. Hoglund, Particle Drag and Heat Transfer in Rocket Nozzles, AIAA Journal, 1964, 2, p 1980-1984CrossRefGoogle Scholar
32.
M.J. Walsh, Drag Coefficient Equations for Small Particles in High Speed Flows, AIAA Journal, 1975, 13(11), p 1526-1528CrossRefGoogle Scholar
33.
ANSYS FLUENT Flow Modeling Software, release13.0, ANSYS, Inc. Canonsburg, PA 15317, USA. 2010.Google Scholar

Copyright information

Authors and Affiliations

H. Assadi
- 1
- 2
Email author
T. Schmidt
- 1
H. Richter
- 1
- 3
J.-O. Kliemann
- 1
K. Binder
- 1
F. Gärtner
- 1
T. Klassen
- 1
H. Kreye
- 1

1.Helmut Schmidt UniversityHamburgGermany
2.Tarbiat Modares UniversityTehranIran
3.Thayer School of Engineering, Dartmouth CollegeHanoverUSA

On Parameter Selection in Cold Spraying

Abstract

Keywords

Nomenclature

Introduction

Numerical Calculation of Particle Velocity

Parametric Expression of the Particle Velocity

Parametric Expression of the Critical Velocity

Influence of Particle Impact Velocity on Deposition Characteristics

Flattening Ratio

Deposition Efficiency

Coating Strength

Parameter Selection Maps

Constructing the Maps

Using the Maps

Conclusions

Notes

Acknowledgments

References

Copyright information

Authors and Affiliations

Personalised recommendations

Cite article
