Landau–Zener transitions in spin qubit encoded in three quantum dots

Recent progress in the experimental realization of the semiconductor quantum dots (QDs) gives the tool to perform compatible and fully scalable systems needed in the quantum computations. In contrast to charge qubits, spin qubits are characterized by long decoherence times necessary in the quantum computation [1]. To encode the qubit in the single electron spin in QD, one needs to apply a magnetic field which removes the spin degeneracy. Control of the spin qubit can be performed by the electron spin resonance (ESR) [2, 3]. The readout of the final qubit state can be done using transport measurements in the Pauli spin blockade regime with an auxiliary QD or with a quantum point contact (QPC) [4].

There are proposals [5, 6, 7, 8, 9, 10, 11, 12, 13, 14] to build the qubit in a two-spin system in double-quantum dots (2QD). The qubit logical subspace is defined by a singlet (S) and one of the triplets (\(T^{S_Z}\)), which correspond to the north and the south pole of the Bloch sphere, respectively. Applying an external magnetic field, one removes degeneration between the triplets, and the information is stored in the \(S-T^{+ 1}\) subspace. The preparation and manipulation of the qubit can be done by fast electrical pulses (in a nanosecond scale) which change an exchange interaction between the spins [6]. The control of the qubit is performed by the Landau–Zener (L–Z) transition [15, 16, 17] through an anticrossing point in a non-adiabatic regime. The anticrossing comes from mixing between the singlet and triplet states due to nuclear hyperfine fields [6, 7, 8], a spin–orbit coupling [18], or an inhomogeneous magnetic field [12]. The mixing is needed for proper functioning of the \(S-T^{+1}\) qubit; however, it can cause some unwanted decoherence processes. The L–Z method can be used to implement the universal quantum gates with high fidelity [19, 20] and to measure the \(S-T^{+1}\) splitting when the spin–orbit coupling and hyperfine interaction compete with each other [21]. The 2QD system with two spins allows also to encode the qubit in the \(S-T^{0}\) subspace [6, 11, 12, 13]. In the external magnetic field, the qubit state \(T^{0}\) is the excited state; therefore, one needs to pass through the \(S-T^{+1}\) anticrossing quick enough to remain in the qubit state S. The mixing of S and \(T^{0}\) states is induced in an inhomogeneous magnetic field, and the initialization can be performed with high fidelity [13]. Moreover, both the qubit states have \(S_Z=0\); therefore, they are unaffected by noises in an uniform magnetic field.

DiVincenzo et al. [22] proposed an exchange-only qubit in three-spin system in a triple-quantum-dot (TQD) device. An advantage of the proposal is encoding the qubit in the doublet states with the same spin z-component (\(S_Z\)). It was pointed out [23, 24] that the doublet subspace is immune to the decoherence processes. In the system, the full unitary operations of the qubit states are done by purely electrical control of the exchange interactions between the spins. Recently, TQD in a linear geometry has been investigated, both theoretically [25, 26, 27] and experimentally [28, 29, 30, 31]. Another proposition is a resonant exchange qubit [32, 33], where the manipulation is done by applying an rf gate-voltage pulses to one of the gates. If the oscillation frequency is matched to the exchange interaction, one can observe the nutations between the qubit states. The DiVincenzo scheme is not limited only to the linear TQD system. Shi et al. [34] proposed an electrically controlled hybrid qubit encoded in 2QD with many levels and three spins.

Recent theoretical studies [35, 36, 37] showed advantages encoding of the qubit on TQD with a triangular geometry. In this case, both the doublet states are equivalent and can be easily controlled by changing the TQD symmetry. Single-qubit operations, the readout and the decoherence related to external electrodes as well as leakage processes were studied as well [37]. The triangular TQD devices were fabricated in the three lateral quantum dots by the atomic force microscope [38, 39, 40], the electron-beam lithography [41], and in the vertical quantum dots [42]. Similar structures can be found in molecular magnets [43, 44] which exhibit rich quantum dynamics.

In this paper, we would like to show how one can encode the spin qubit and study its dynamics by means of the L–Z transitions for different symmetries of the TQD system. We model the system within the Hubbard Hamiltonian where the symmetry is fully electrically controlled by the local gate potentials applied to the quantum dots. Two geometries of TQD will be taken into consideration, the linear and the triangular one, for which one expects significant differences in qubit generation and its dynamics. The linear case is related to the experimental papers [29, 30] where a qubit state was initialized in the doublet subspace by an adiabatic passage. They observed a coherent rotation between the qubit states when an exchange pulse applied to the system induced the L–Z transition. We would like to extend the investigation on dynamic generation of the qubit states and study conditions for qubit encoding. The main purpose is to study the triangular TQD where one expects that both the qubit states can be easily generated by the L–Z transition. We will examine different symmetries of the system to generate any qubit state on the Bloch sphere. Next, the evolution of the qubit states with time-dependent gate potentials will be analyzed. We expect that the qubit states could be degenerated for a special condition (when a pseudo-magnetic field vanishes). The L–Z passage through this point could lead to Rabi oscillations which can be used for coherent qubit manipulations. We will show that this effect can be observed for some special symmetry: the triangular TQD with one of the dots being smaller.

The model (1) neglects hyperfine interactions and a spin–orbit coupling, which means that the doublet and quadruplet subspaces are separated. Therefore, the current studies of qubit dynamics can be confined to the doublet subspace only. The model can be applied to the Si-based quantum dots, the systems which are very promising in quantum computation due to long decoherence and relaxation times which can be in the order of a few seconds [45, 46].

2.1 Qubit encoded in the doublet subspace

Let us focus on the spin qubit states \(|D_S\rangle \) and \(|D_T\rangle \) which can be presented on the Bloch sphere as the north and south pole, respectively. In the Hubbard model, the exchange interactions are generated by virtual transitions to the excited double occupied states. To see these processes, we perform the perturbative canonical transformation [47] of the Hubbard Hamiltonian (1) to an effective Heisenberg Hamiltonian

$$\begin{aligned} \hat{H}_\mathrm{eff}&=\sum _{i<j}J_{ij} \left( \mathbf {S}_i\cdot \mathbf {S}_j- \frac{1}{4}\right) - g \upmu _B B_z \sum _i S_{z,i}, \end{aligned}$$

(7)

where the superexchange couplings \(J_{ij}\) are derived out to the second order treating the interdot hoppings as small (\(t_{ij}\ll U\))

$$\begin{aligned} J_{ij}&=2|t_{ij}|^2\left( \dfrac{1}{U_j + \tilde{\epsilon }_j - \tilde{\epsilon }_i}+\dfrac{1}{U_i + \tilde{\epsilon }_i - \tilde{\epsilon }_j}\right) . \end{aligned}$$

(8)

Notice that this Hamiltonian works only for the doublets with single occupation of the quantum dots.

The Hamiltonian of the spin qubit encoded in the doublet subspace \(|D_S\rangle \) and \(|D_T\rangle \) can be expressed as

$$\begin{aligned} \hat{H_\sigma }=-\frac{1}{2}(3J+g \upmu _B B_z)\mathbf {1}+\frac{\delta }{2}\sigma _z+\frac{\gamma }{2}\sigma _x, \end{aligned}$$

(9)

where

$$\begin{aligned} J= & {} \frac{1}{3}(J_{12}+J_{23}+J_{31}), \end{aligned}$$

(10)

$$\begin{aligned} \delta= & {} \frac{1}{2}(J_{12}+J_{23}-2J_{31}), \end{aligned}$$

(11)

$$\begin{aligned} \gamma= & {} \frac{\sqrt{3}}{2}(J_{12}-J_{23}). \end{aligned}$$

(12)

Note that \(\delta \) and \(\gamma \) can be interpreted as the z and x component of a pseudo-magnetic field \(\mathbf{b}=(\gamma ,0,\delta )\). Eigenvalues of the Hamiltonian (9) are

$$\begin{aligned} E_{D}^\pm = -\frac{3}{2}J-\frac{g \upmu _B B_z}{2} \pm \frac{\varDelta }{2}, \end{aligned}$$

(13)

where J is the energy separation of the quadruplet and the doublet subspaces, and \(\varDelta =\sqrt{\gamma ^2+\delta ^2}\) is the energy gap between the doublets. For a system of Si/SiGe quantum dots, the gap can be of the order of \(\varDelta \sim 21.6\) \(\upmu \)eV [48]. The corresponding eigenstates are

$$\begin{aligned} |D^-\rangle= & {} \cos \phi |D_S\rangle +\sin \phi |D_T\rangle , \end{aligned}$$

(14)

$$\begin{aligned} |D^+\rangle= & {} \sin \phi |D_S\rangle -\cos \phi |D_T\rangle , \end{aligned}$$

(15)

where \(\phi = \arctan (\gamma /(\delta -\varDelta ))\) denotes the angle of the pseudo-field \(\mathbf{b}\) with respect to the z-axis.

In this paper, we consider two configurations of the TQD: the triangular one (see Fig. 3), with all superexchange interactions are always on (\(J_{ij}\ne 0\)), and the linear one for which the outermost spins are decoupled (we take \(J_{31}=0\)—see linear TQD scheme in Fig. 1a. From Eq. (11), one can see that for the linear molecule \(\delta = (J_{12}+J_{32})/2 >0\); therefore, the state \(|D_T\rangle \) is energetically favorable. For the symmetric case with \(J_{12}=J_{23}\) the mixing \(\gamma = (3/2)(J_{12}-J_{23})=0\), and the field \(\mathbf {b}\) is oriented toward the south pole, with \(|D_T\rangle \) as the ground state. For the triangular TQD, all exchange couplings are equivalent. Therefore, by proper manipulation of the exchange couplings, one can change the triangular symmetry and get any orientation of the pseudo-field \(\mathbf{b}\) on the x–z plane. This effect is used to prepare the qubit state on the Bloch sphere in any superposition given by \(|D^{\pm }\rangle \).

Open image in new window

First we consider the dynamics in the linear TQD (see the scheme in Fig. 1a which was studied recently by several experimental groups [29, 30, 31]. The paper [30] showed the initialization of the qubit state by an adiabatic passage between different charge regions. However, there was not presented how the qubit state was encoded on the Bloch sphere. We want to expand these studies and find conditions for the generation of the qubit states \(|D_S\rangle \) and \(|D_T\rangle \) by means of the L–Z transition. The evolution of the doublet state \(|\varPsi _D(t)\rangle \) (4) will be considered for different symmetries of the system for which one can expect initialization of various qubit states on the Bloch sphere. Let us stress that our model (1) conserves the total spin, the system remains in the doublet subspace during the evolution. The advantage of this approach is to operate in the decoherence-free subspace (DFS) [23, 24].

We are interested in the L–Z transition between the charge configurations (2,1,0) to (1,1,1) when the qubit states \(|D_S\rangle \) and \(|D_T\rangle \) are generated. Since the calculations are performed within the Hubbard model, the qubit states are not perfect, they are always in a small superposition with the double occupation states. The accuracy of the initialization operation of the qubit can be defined by a fidelity, which is a measure of closeness of two quantum states and is given by \(F=Tr \left[ \sqrt{\rho _i} \rho _r \sqrt{\rho _i}\right] \), where \(\rho _i\) is a density matrix of a desired ideal state and \(\rho _r=|\varPsi _D\rangle \langle \varPsi _D|\) is the real final state [50]. For a perfect qubit generation, the fidelity is unity; however, due to non-qubit states, the fidelity is lowered. For large \(U_i\), the separation between the double occupied states and the qubit states is larger, and the fidelity goes to unity; however, the exchange interactions \(J_{ij}\) decrease and the gap between the doublet states becomes smaller.

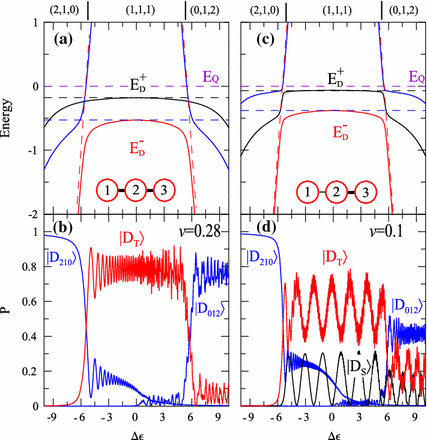

The results of the numerical calculations of the evolution of the doublet states and the energy levels as a function of the detuning parameter are presented in Fig. 1 for the linear TQD with the symmetric tunnelings between the dots \(t_{12}=t_{23}=-1\) (the left panel) and for the asymmetric case with \(2t_{12}=t_{23}=-1\) (the right panel). Figure 1a presents the adiabatic and diabatic energy levels (full and dashed curves, respectively) versus the detuning \(\varDelta \epsilon \) for the symmetric case. The solid red curve describes the evolution of the ground state, from the state \(|D_{210}\rangle \) via \(|D_T\rangle \) (in the (1,1,1) region) to the final state \(|D_{012}\rangle \). The dashed curves correspond to the diabatic energy levels: the blue and the red curves for \(|D_T\rangle \) and \(|D_{210}\rangle \), respectively, while the black dashed curve describes the diabatic energy level \(|D_S\rangle \). Notice that for the symmetric coupling between the dots, the ground state in the region (1,1,1) is \(|D_T\rangle \) and the second doublet \(|D_S\rangle \) can not be generated. Optimal generation of the qubit is for the adiabatic passage for which the fidelity \(F\approx 0.95\) at \(\varDelta \epsilon =0\). The fidelity can be higher for larger \(U_i\) when the occupation of the non-qubit states is negligible.

The numerical calculations of the time evolution of the occupation probabilities of the doublet states are shown in Fig. 1b. At an initial moment \(\varDelta \epsilon (t_\mathrm{in})=-10\), the system was in the ground state \(|D_{210}\rangle \). The calculations were performed for the speed rate \(v=0.28\). Notice that this speed rate is not optimal for the qubit generation and is taken to show the dynamics in the (1,1,1) region clearly. After the crossing point (for \(\varDelta \epsilon > -U/2\)), one can observe the L–Z transition to the qubit state \(|D_T\rangle \) with characteristic oscillations in the occupation probabilities for \(|D_T\rangle \) and \(|D_{210}\rangle \). The period of the oscillations is inversely proportional to the energy gap. At the transition point, the energy gap is \(\varDelta E_{01}\approx 0.66\) and hence one can estimate the generation probability \(P^\mathrm{gen}_{D_T}\approx 0.70\). Notice that the second qubit state \(|D_S\rangle \) is not generated. When the potential becomes larger (\(\varDelta \epsilon >U/2\)), the system goes through the other L–Z passage, to the charge configuration (0,1,2).

Let us estimate the sweep time \(t^{sw}\) needed to transfer the system from the initial state to the center of the (1,1,1) region. The hopping parameter determined in the experiment [31] is \(t_{ij}\approx 10\) \(\upmu \)eV. The energy gap can be estimated as \(\varDelta E_{01}= 6.6\) \(\upmu \)eV, and the speed rate in our calculations is \(v\approx 43\) keV/s. Hence the qubit is generated in the time \(t^{sw}\approx 2.31\) ns with the probability \(P_{|D_T\rangle }^\mathrm{gen}\approx 0.70\). The estimated time is much shorter than spin-flip relaxation [37] and decoherence caused by the charge noise [49], which means that our approximation (17) is justified.

For the asymmetric couplings between the quantum dots, which mimics the experimental situation [30], one can get observe some mixing of the qubit state \(|D_T\rangle \) with \(|D_S\rangle \)—see the right panel in Fig. 1. In the considered case, we take \(2t_{12}=t_{23}=-1\) and the superexchange couplings are asymmetric \(4J_{12}=J_{23}=4t^2_{23}U/(U^2-v^2t^2)\). The qubit parameters are \(\delta =5J_{23}/8\) and \(\gamma =-3\sqrt{3}J_{23}/8\); therefore, the L–Z transition can generate two states \(|D^-\rangle \) and \(|D^+\rangle \) which are superpositions of \(|D_S\rangle \) and \(|D_T\rangle \). One can see a double anticrossing in the adiabatic energy levels in Fig. 1c between the blue–red and the blue–black curves, which correspond the L–Z transitions: \(|D_{210}\rangle \rightarrow |D^-\rangle \) and \(|D_{210}\rangle \rightarrow |D^+\rangle \). The energy gaps at these points are \(\varDelta E_{01}\approx 0.4\) and \(\varDelta E_{02}\approx 0.55\), respectively. For the speed rate \(v=0.1\), which provides the same \(\varDelta E_{01}^2/v\) rate like in the previous case, one can generate these states with the probabilities \(P^\mathrm{gen}_{|D^{-}\rangle }\approx 0.70\) and \(P^\mathrm{gen}_{|D^{+}\rangle }\approx 0.259\). The transition time can be estimated as \(t^{sw}\approx 6.3\) ns. The generated qubit rotates on the Bloch sphere what is seen in Fig. 1d as strong oscillations between the states \(|D_S\rangle \) and \(|D_T\rangle \).

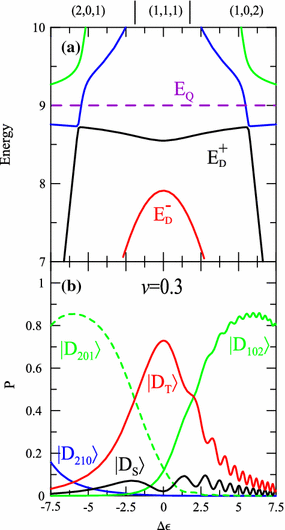

Let us consider the TQD system with the central dot smaller than two others, and the L–Z transitions between the charge configurations (1,0,2)\(\leftrightarrow \)(1,1,1) and (2,0,1)\(\leftrightarrow \)(1,1,1). The similar passages were studies in the experiments [29, 30, 31]. For the model (1), we take \(\epsilon _2>\epsilon _1=\epsilon _3=0\) and \(U_2>U_1=U_3=U\). For this case, the symmetry is broken, and from Eq. (8), one gets asymmetric superexchange couplings \(J_{12}\ne J_{23}\) for any \(\varDelta \epsilon \ne 0\), which leads to mixing between the qubit states \(|D_T\rangle \) and \(|D_S\rangle \). Figure 2 presents the dynamics of the system for \(\epsilon _2=9\), \(U_2=24\) and the symmetric electron hopping between the dots. At an initial moment, \(\varDelta \epsilon =-7.5\) and the ground state is \(|D_{201}\rangle \) with a superposition of \(|D_{210}\rangle \). Figure 2a shows the adiabatic evolution of the energy levels which is qualitatively similar as observed in the experiment [29]. For a given speed rate \(v=0.3\), the L–Z transition generates the state \(|D^-\rangle \), whereas the state \(|D^+\rangle \) is not generated—see Fig. 2b. Notice that at \(\varDelta \epsilon =0\), there is no mixing between the qubit states (\(\gamma =0\)); therefore, the occupation probability of \(|D_S\rangle \) decreases and goes to 0 for the adiabatic passage. Moreover, one can see that the qubit state \(|D^-\rangle \) is the superposition with the states \(|D_{201}\rangle \) and \(|D_{102}\rangle \), which also leads to a deep in the adiabatic curve \(E_D^+\) (the black one in Fig. 2a). The fidelity \(F\approx 0.74\) is rather low, which means that the qubit cannot be so good generated as in the previous cases.

Open image in new window

Let us now consider the L–Z transitions in the TQD with the triangular geometry (shown in Fig. 3) where the local gate electrodes control the position of the energy levels, \(\tilde{\epsilon }_i=\epsilon _i+eV_i\) at each dot. Here we are interested in an influence of the triangular symmetry on the energy structure of the qubit and its dynamics. To describe the symmetry breaking effect in TQD, it is more convenient to introduce an effective in-plain electric field \(\mathbf{E}\), instead to use the local gate potentials \(V_i\) as the parameters. For a small value of E, the energy level of the i-th quantum dot can be expressed as

$$\begin{aligned} \tilde{\epsilon }_i=\epsilon _i+g_E \cos \left[ \theta -\left( i-1\right) \frac{2\pi }{3}\right] , \end{aligned}$$

(19)

where \(g_E= e|\mathbf{E}||\mathbf{r}_1+\mathbf{r}_2|/2\) is the parameter describing electron polarization, e is the elementary electron charge, \(\mathbf{r}_i\)—the vector showing the position of the i-th quantum dot in the coordinate system, \(\theta \) is the angle between \(\mathbf{E}\) and the vector \(\mathbf{r_1}\). We would like to study the L–Z passages generated by a time-dependent electric field described by the parameter \(g_E\equiv v t\) at a fixed angle \(\theta \).

Open image in new window

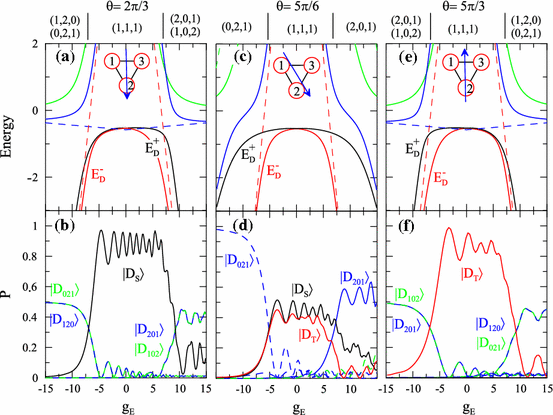

Figure 4 shows dynamics in TQD with the triangular geometry for three different orientations of the electric field: \(\theta =2\pi /3\), \(\theta =5\pi /6\), and \(\theta =5\pi /3\) (in the left, middle, and right panel, respectively). For \(\theta =2\pi /3\), the electric field is toward the dot 2, and at the initial time, the electron polarization parameter is \(g_E(t_\mathrm{in})=-15\) for which the dot levels are \(\tilde{\epsilon }_2+U_2<\tilde{\epsilon }_1=\tilde{\epsilon }_3\). The ground state \(|\psi _\mathrm{in}\rangle =(|D_{021}\rangle +|D_{120}\rangle )/\sqrt{2}\) is a superposition of the charge configuration (0,2,1) and (1,2,0) (with an equal charge redistribution between the dot 1 and 3). In Fig. 4a, one can see the anticrossing point between the adiabatic energy levels (the red and blue solid curves) corresponding to the L–Z transition to the region (1,1,1) with the ground state \(|D^-\rangle =|D_S\rangle \). The energy gap at the anticrossing point is \(\varDelta E_{01}\approx 2.3\), and for the speed rate \(v=2.2\), the state \(|D_S\rangle \) is generated with the probability \(P^\mathrm{gen}_{|D_S\rangle }\approx 0.85\)—see Fig. 4b. The energy gap is larger than in the linear case, because all three hopping parameters \(t_{ij}\) are always on. Notice that for this orientation of the field, the qubit state \(|D_T\rangle \) is not generated, because the transfer matrix element \(\langle \psi _\mathrm{in}|\hat{H}|D_T\rangle =\sqrt{3}(t_{23}-t_{12})/2=0\), this state is dark [36, 37]. For the qubit state \(|D_S\rangle \), one can found \(\langle \psi _\mathrm{in}|\hat{H}|D_S\rangle =(t_{23}+t_{12})/2=-1\) for \(t_{ij}=-1\). In Fig. 4a, one can see also the crossing between the state \(|D_S\rangle \) and \(|D_T\rangle \) at \(g_E=0\) after which the ground state becomes \(|D_T\rangle \). However, there is no mixing between \(|D_S\rangle \) and \(|D_T\rangle \), the parameter \(\gamma =0\) in the qubit Hamiltonian (9), and hence the system is held in \(|D_S\rangle \) in whole range of the charge state (1,1,1). Similarly, as for the linear case, we can estimate the time for qubit generation. Taking \(t_{ij} = 10\) \(\upmu \)eV from the experiment [31], one gets \(\varDelta E_{01}=23\) \(\upmu \)eV, \(v= 332.7\) keV/s, and hence the transition time \(t^{sw}=0.45\) ns.

Open image in new window

The situation is different in the right panel of Fig. 4 when the electric field has opposite orientation. Now at the initial condition for \(g_E=-15\), the dot levels are \(\tilde{\epsilon }_2>\tilde{\epsilon }_1\,+\,U_1=\tilde{\epsilon }_3\,+\,U_3\) and the ground state is \(|\psi _\mathrm{in}\rangle =(|D_{102}\rangle -|D_{201}\rangle )/\sqrt{2}\). One can see the initial charge distribution of the function is different than in previous case—the dot 2 is empty. The transfer matrix elements are \(\langle \psi _\mathrm{in}|\hat{H}|D_T\rangle =\sqrt{3}(t_{23}+t_{12})/2=-\sqrt{3}\) and \(\langle \psi _\mathrm{in}|\hat{H}|D_S\rangle =(t_{23}-t_{12})/2=0\) for \(t_{ij}=-1\). In this case, \(|D_S\rangle \) is the dark state and the L–Z transition generates the qubit state \(|D_T\rangle \) (see Fig. 4f). The energy gap is now \(E_{01}\approx 3.47\). We take \(v= 5.01\) to get the same \(\varDelta E_{01}^2/v\) rate with the generated probability \(P^\mathrm{gen}_{|D_T\rangle }\approx 0.85\). The qubit state is generated in time \(t^{sw}= 0.19\) ns. The period of observed oscillations is larger than for the case \(\theta =2\pi /3\) because the gap is larger. Similarly, like in previous case, one can see the crossing between \(|D_T\rangle \) and \(|D_S\rangle \) at \(g_E=0\) but now the generated qubit state \(|D_T\rangle \) is kept in whole charge region (1,1,1). We will show latter how to remove this degeneration point and to perform the L–Z passage between the qubit states.

In the middle panel in Fig. 4, we present an intermediate case for \(\theta =5\pi /6\). Now the parameter \(\gamma \) is nonzero for the whole range of \(g_E\) (except \(g_E=0\)), which leads to mixing between the doublets \(|D_S\rangle \) and \(|D_T\rangle \). The L–Z transition generates the state \(|D^-\rangle \) from the initial state \(|D_{021}\rangle \), with \(P^\mathrm{gen}_{|D^-\rangle }\approx 0.85\) in time \(t^{sw} = 0.46\) ns. The occupation probabilities of \(|D_S\rangle \) and \(|D_T\rangle \) oscillate in phase, see the black and the red curve in Fig. 4d. There is no passage to the excited state \(|D^+\rangle \) because it is decoupled with the initial state \(|D_{021}\rangle \). These results show that generation of the qubit state \(|D^-\rangle \) on the Bloch sphere can be performed by an appropriate orientation of the electric field.

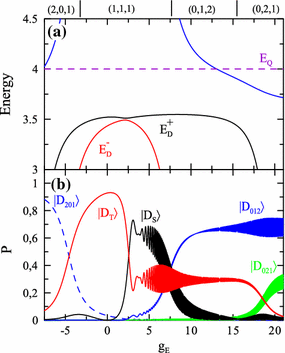

Let us now consider the case with one of the dots smaller than two others. We expect that the symmetry of the system will be broken, the degeneracy of the doublet states \(|D^-\rangle \) and \(|D^+\rangle \) will be removed and one can perform the L–Z passage in the center of the charge region (1,1,1). In calculations, we took \(\epsilon _2=4\), \(\epsilon _{1,3}=0\), \(U_2=24\), \(U_{1,3}=11\), and \(\theta =0\). In Fig. 5a, one can see the adiabatic levels \(|D^-\rangle \) and \(|D^+\rangle \) in the region (1,1,1) and an anticrossing point at \(g_E\approx 2\). Before this point, for \(g_E<2\), the system is in the ground state \(|D^-\rangle \) which is a superposition \(|D_T\rangle \) with a small contribution \(|D_S\rangle \); the qubit is oriented to the south pole on the Bloch sphere. For an adiabatic passage, above \(g_E>2\), the qubit changes its orientation toward the north pole (\(|D_S\rangle \) becomes dominating). The results presented in Fig. 5b were calculated for the L–Z transition with the speed rate \(v=0.01\). One can see generations of the excited state \(|D^+\rangle \) and the Rabi oscillations (oscillations between \(|D_T\rangle \) and \(|D_S\rangle \). After anticrossing, the fidelity for \(|D_S\rangle \) is \(F\approx 0.93\). This effect can be used to dynamic control the qubit states and to perform quantum operations [30]. Plots in Fig. 5b show also two other L–Z transitions: at \(g_E \approx 7.5\) and \(g_E \approx 18\) where the states \(|D_{012}\rangle \) and \(|D_{021}\rangle \) are generated, respectively. Notice that \(|D_T\rangle \) is kept till the transition at \(g_E\approx 18\).

Open image in new window

Summarizing, we considered the system of three coherently coupled quantum dots (TQD) in the linear and the triangular geometry, for which quantum dot levels were controlled by the local gate potentials. Applying electrical pulses, the Landau–Zener transitions were generated between different charge configurations \((N_1,N_2,N_3)\) of the system. The spin qubit states were encoded in the doublet subspace \(|D_S\rangle \) and \(|D_T\rangle \) in the charge region (1,1,1), and they were generated from the initial charge states with double dot occupancy (e.g., from (2, 1, 0)).

Our research on the linear TQD expands the investigations presented in [29, 30, 31]. We showed that in this case, the state \(|D_T\rangle \) is preferred, the generated qubit is restricted to the south part of the Bloch sphere only. For Si-based quantum dots [45, 49], the estimated sweep time \(t^{sw}\) for the generation of the qubit is of the order of a few nanoseconds which is much shorter than both the decoherence and relaxation time. We also considered the system with one of the dots smaller than two others. The qubit states cannot be well generated, then the fidelity is rather low, and the final state always contains a large superposition of non-qubit states for any speed rate.

In the triangular geometry, both the qubit states are equivalent and can be easily generated by the L–Z transitions for the mirror symmetries. The symmetry was changed by a rotation of the effective electric field (controlled by the local gate potentials applied to the quantum dots). If the electric field is oriented toward the second quantum dot, then the L–Z transition generates the qubit state \(|D_S\rangle \) from the initial state \(|\psi _\mathrm{in}\rangle =(|D_{021}\rangle +|D_{120}\rangle )/\sqrt{2}\). For the opposite direction of the electric field, the second qubit state \(|D_T\rangle \) is obtained from the initial state \(|\psi _\mathrm{in}\rangle =(|D_{102}\rangle -|D_{201}\rangle )/\sqrt{2}\). The L–Z transition induces characteristic oscillations between the initial and the qubit state with the amplitude related to the speed rate v. For small v, these oscillations can be suppressed and the qubit is generated with a higher fidelity. The energy gaps are larger than in the linear molecule which allows faster generation of the qubit states (with \(t^{sw}\approx \) 0.1 ns). We also showed that one can get any qubit state on the Bloch sphere by a proper orientation of the electric field. The interested case is the triangular TQD with one of the dots smaller for which an additional anticrossing point between the qubit states occurs. We showed that the L–Z passage through this point generates the Rabi oscillations. This effect can be used to perform one-qubit operations. Applying a proper sequence of electrical pulses, one can perform the Pauli X and Z gate which give full unitary control of the qubit rotation on the Bloch sphere [37].

Our calculations showed that the dynamics of the qubit should be observable in an experiment on Si-based quantum dots even in the presence of the decoherence processes for reasonable transition speeds.

The triangular TQD system can be used for construction of a multi-qubit quantum register with fast quantum logical operations. Changing the symmetry of each qubit, one can easily encode a desire initial state in the register. For the linear TQD, the encoding operation is more complex, because one should perform an additional single-qubit gate in order to rotate the qubit states, which significantly increases the operation time.
