Plant and Soil

, Volume 395, Issue 1–2, pp 307–315 | Cite as

Effect of in planta phosphorus on aluminum-induced inhibition of root elongation in wheat

  • Ji Feng Shao
  • Jing Che
  • Rong Fu Chen
  • Jian Feng Ma
  • Ren Fang ShenEmail author
Regular Article



Both aluminum (Al) toxicity and phosphorus (P) deficiency are limiting factors of crop production on acid soils. Although Al-P interaction has been extensively studied, the results are controversial. The aim of this study is to investigate the effect of in planta P on Al-induced inhibition of root elongation in wheat (Triticum aestivum L.).


Roots of wheat (cv. Atlas 66) with different internal P concentrations were prepared by two methods; split-root and re-rooting in a hydroponic solution using three different P levels (0, 25 and 250 μM) to avoid direct precipitation of Al-P in the solution. Al toxicity was evaluated by root elongation inhibition and callose induction. The Al and P concentrations in the root tips were also compared among different treatments.

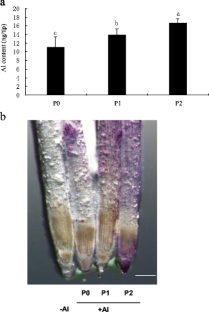

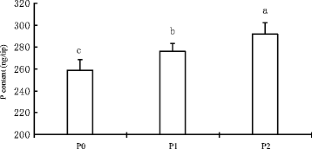

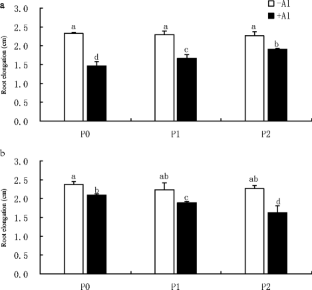

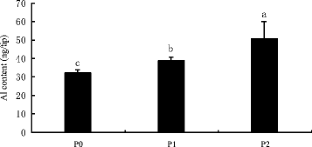

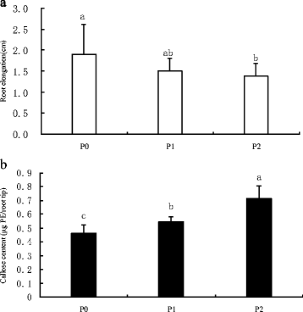

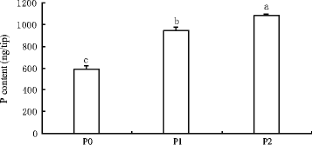

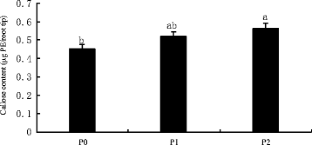

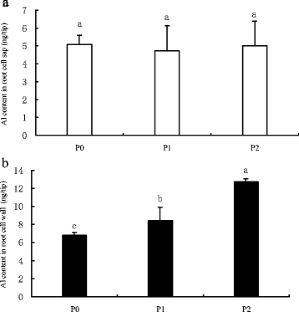

Both split-root and re-rooting methods generated roots with different P concentrations in the tips when exposed to different P levels. Lower P in the root tips resulted in less Al-induced inhibition of the root elongation, less callose content and less Al accumulation, while higher root P caused a higher Al-induced inhibition of the root elongation, increased callose content and Al accumulation in the root tips. Furthermore, Al in the root cell sap was not altered by different P concentrations, but Al in the root cell wall was increased with increasing in planta P concentrations.


Al toxicity in wheat is associated with P in the root cell wall; lower root P enhanced Al tolerance, while higher root P aggravated Al toxicity in wheat.


In planta Phosphorus Aluminum Wheat root Cell wall Split-root Re-rooting



This investigation was financially supported by the Nation Key Basic Research Program of China (No.2014CB441000) and the Natural Science Foundation of China (No.41025005). This research was also supported in part by Joint Research Program implemented at the Institute of Plant Science and Resources, Okayama University.

Supplementary material

11104_2015_2566_MOESM1_ESM.doc (176 kb)
Supplemental Fig. 1 Graphical representation of a root-split system (a) with two compartments, A and B, each 26 cm × 5 cm × 14 cm deep, and a photograph of the profile (b) and top view (c) of the system. (DOC 175 kb)


  1. Chen RF, Zhang FL, Zhang QM, Sun QB, Dong XY, Shen RF (2012) Aluminium-phosphorus interactions in plants growing on acid soils: does phosphorus always alleviate aluminium toxicity? J Sci Food Agric 92:995–1000CrossRefPubMedGoogle Scholar
  2. Fernandes JC, García-Angulo P, Goulao LF, Acebes JL, Amâncio S (2013) Mineral stress affects the cell wall composition of grapevine (Vitis vinifera L.) callus. Plant Sci 206:111–120CrossRefGoogle Scholar
  3. Foy CD, Fleming AL, Burns GR, Armiger WH (1967) Characterization of differential aluminum tolerance among varieties of wheat and barley. Soil Sci Soc Am J 31:513–521CrossRefGoogle Scholar
  4. Gaume A, Machler F, Frossard E (2001) Aluminum resistance in two cultivars of Zea mays L.: root exudation of organic acids and influence of phosphorus nutrition. Plant Soil 234:73–81CrossRefGoogle Scholar
  5. He G, Zhang J, Hu X, Wu J (2010) Effect of aluminum toxicity and phosphorus deficiency on the growth and photosynthesis of oil tea (Camellia oleifera Abel.) seedlings in acidic red soils. Acta Physiol Plant 33:1285–1292CrossRefGoogle Scholar
  6. Horst WJ (1995) The role of the apoplast in aluminum toxicity and resistance of higher plants: a review. J Plant Nutr Soil Sci 158:419–428Google Scholar
  7. Horst WJ, Puschel AK, Schmohl N (1997) Induction of callose formation is a sensitive marker for genotypic aluminium sensitivity in maize. Plant Soil 192:23–30CrossRefGoogle Scholar
  8. Horst W, Schmohl N, Kollmeier M, Baluška F, Sivaguru M (1999) Does aluminium affect root growth of maize through interaction with the cell wall – plasma membrane –cytoskeleton continuum? Plant Soil 215:163–174CrossRefGoogle Scholar
  9. Iqbal T (2014a) A split-root experiment shows that translocated phosphorus does not alleviate aluminium toxicity within plant tissue. Plant Soil 384:21–36CrossRefGoogle Scholar
  10. Iqbal MT (2014b) Phosphorus alleviates aluminum toxicity in Al-sensitive wheat seedlings. Commun Soil Sci Plant Anal 45:437–450CrossRefGoogle Scholar
  11. Jiang HX, Tang N, Zheng JG, Li Y, Chen LS (2009) Phosphorus alleviates aluminum-induced inhibition of growth and photosynthesis in Citrus grandis seedlings. Physiol Plant 137:298–311CrossRefPubMedGoogle Scholar
  12. Kochian LV (1995) Cellular mechanisms of aluminum toxicity and resistance in plants. Annu Rev Plant Physiol Plant Mol Biol 46:237–260CrossRefGoogle Scholar
  13. Kochian LV, Hoekenga OA, Pineros MA (2004) How do crop plants tolerate acid soils? Mechanisms of aluminum tolerance and phosphorous efficiency. Annu Rev Plant Biol 55:459–493CrossRefPubMedGoogle Scholar
  14. Kohle H, Jeblick W, Poten F, Blaschek W, Kauss H (1985) Chitosan-elicited callose synthesis in soybean cells as a Ca2+-dependent process. Plant Physiol 77:544–551PubMedCentralCrossRefPubMedGoogle Scholar
  15. Liao H, Wan H, Shaff J, Wang X, Yan X, Kochian LV (2006) Phosphorus and aluminum interactions in soybean in relation to aluminum tolerance. Exudation of specific organic acids from different regions of the intact root system. Plant Physiol 141:674–684PubMedCentralCrossRefPubMedGoogle Scholar
  16. Ma JF (2007) Syndrome of aluminum toxicity and diversity of aluminum resistance in higher plants. Int Rev Cytol 264:225–252CrossRefPubMedGoogle Scholar
  17. Ma JF, Shen RF, Nagao S, Tanimoto E (2004) Aluminum targets elongating cells by reducing cell wall extensibility in wheat roots. Plant Cell Physiol 45:583–589CrossRefPubMedGoogle Scholar
  18. Ma JF, Che ZC, Shen RF (2014) Molecular mechanisms of Al tolerance in gramineous plants. Plant Soil 381:1–12CrossRefGoogle Scholar
  19. Maejima E, Watanabe T, Osaki M, Wagatsuma T (2014) Phosphorus deficiency enhances aluminum tolerance of rice (Oryza sativa) by changing the physicochemical characteristics of root plasma membranes and cell walls. J Plant Physiol 171:9–15CrossRefPubMedGoogle Scholar
  20. Marschner P (2011) In mineral nutrition of higher plants, 3rd edn. Academic, LondonGoogle Scholar
  21. Nakagawa T, Mori S, Yoshimura E (2003) Amelioration of aluminum toxicity by pretreatment with phosphate in aluminum‐tolerant rice cultivar. J Plant Nutr 26:619–628CrossRefGoogle Scholar
  22. Polle E, Konzak CF, Kittrick JA (1978) Visual detection of aluminum tolerance levels in wheat by hematoxylin staining of seedling roots. Crop Sci 18:823–827CrossRefGoogle Scholar
  23. Rounds MA, Larsen PB (2008) Aluminum-dependent root growth inhibition in Arabidopsis results from AtATR-regulated cell cycle arrest. Curr Biol 18:1495–1500CrossRefPubMedGoogle Scholar
  24. Ruíz-Herrera LF, López-Bucio J (2013) Aluminum induces low phosphate adaptive responses and modulates primary and lateral root growth by differentially affecting auxin signaling in Arabidopsis seedlings. Plant Soil 371:593–609CrossRefGoogle Scholar
  25. Ryan PR, Ditomaso JM, Kochian LV (1993) Aluminum toxicity in roots - an investigation of spatial sensitivity and the role of the root cap. J Exp Bot 44:437–446CrossRefGoogle Scholar
  26. Ryan PR, Delhaize E, Jones DL (2001) Function and mechanisms of organic anion exudation from plant roots. Annu Rev Plant Physiol Plant Mol Biol 52:527–560CrossRefPubMedGoogle Scholar
  27. Sanchez-Calderon L, López-Bucio J, Chacon-Lopez A, Cruz-Ramirez A, Nieto-Jacobo F, Dubrovsky JG, Herrera-Estrella L (2005) Phosphate starvation induces a determinate developmental program in the roots of Arabidopsis thaliana. Plant Cell Physiol 46:174–184CrossRefPubMedGoogle Scholar
  28. Sun QB, Shen RF, Zhao XQ, Chen RF, Dong XY (2008) Phosphorus enhances Al resistance in Al-resistant Lespedeza bicolor but not in Al-sensitive L. cuneata under relatively high al stress. Ann Bot 102:795–804PubMedCentralCrossRefPubMedGoogle Scholar
  29. Tan KZ, Keltjens WG (1990) Interaction between aluminum and phosphorus in sorghum plants.2. Studies with the aluminum tolerant sorghum genotype Sc0283. Plant Soil 124:25–32CrossRefGoogle Scholar
  30. Von Uexkull HR, Mutert E (1995) Global extent, development and economic-impact of acid soils. Plant Soil 171:1–15CrossRefGoogle Scholar
  31. Ward CL, Kleinert A, Scortecci KC, Benedito VA, Valentine AJ (2011) Phosphorus-deficiency reduces aluminium toxicity by altering uptake and metabolism of root zone carbon dioxide. J Plant Physiol 168:459–465CrossRefPubMedGoogle Scholar
  32. Xia JX, Yamaji N, Kasai T, Ma JF (2010) Plasma membrane-localized transporter for aluminum in rice. Proc Natl Acad Sci U S A 107:18381–18385PubMedCentralCrossRefPubMedGoogle Scholar
  33. Yang JL, Zhu XF, Zheng C, Zhang YJ, Zheng SJ (2011) Genotypic differences in Al resistance and the role of cell-wall pectin in Al exclusion from the root apex in Fagopyrum tataricum. Ann Bot 107:371–378PubMedCentralCrossRefPubMedGoogle Scholar
  34. Zhang FL, Zhang QM, Zhao XQ, Shen RF (2010) Comparison between two P–Al treatment methods in studying effect of phosphorus on aluminium toxicity to plants. Acta Pedol Sin 47:311–318Google Scholar
  35. Zheng SJ, Yang JL, He YF, Yu XH, Zhang L, You JF, Shen RF, Matsumoto H (2005) Immobilization of aluminum with phosphorus in roots is associated with high aluminum resistance in buckwheat. Plant Physiol 138:297–303PubMedCentralCrossRefPubMedGoogle Scholar
  36. Zhu XF, Lei GJ, Jiang T, Liu Y, Li GX, Zheng SJ (2012) Cell wall polysaccharides are involved in P-deficiency-induced Cd exclusion in Arabidopsis thaliana. Planta 236:989–997CrossRefPubMedGoogle Scholar
