Malignant pituitary corticotroph adenomas: report of two cases and a comprehensive review of the literature
Abstract
Corticotroph pituitary carcinomas are tumors, defined by the presence of distant metastases that determine their poor prognosis. The diagnosis and therapy of malignant corticotroph adenomas remains a clinical challenge. The molecular mechanisms of malignant transformation of pituitary adenomas are unclear, although they are believed to arise in an adenoma-to-carcinoma sequence. We describe two cases of malignant Cushing’s disease with metastases in liver and bone, respectively. The primary pituitary tumors were treated by a combination of radiotherapy and transsphenoidal surgery, but recurred several times in both patients. The time interval between the diagnosis of Cushing’s disease and the discovery of metastases was 32 and 17 years, respectively. In the first case the patient died within 6 months after diagnosis of metastasis, whereas the second patient is alive at a follow-up of 2 years after the discovery of the metastasis. Furthermore, we reviewed all available cases of corticotroph pituitary carcinomas reported in the literature and analyzed their clinical features and therapeutical management. In conclusion, frequent relapses of Cushing’s disease, aggressive growth of macroadenoma, Nelson’s syndrome after adrenalectomy or persistently high ACTH levels should prompt the clinician to consider the possibility of pituitary corticotroph carcinomas.
Keywords
Pituitary Corticotroph adenomas MalignantIntroduction
Pituitary carcinomas are defined by the presence of distant metastases of a pituitary tumor to the extracranial region or the cerebrospinal space [1]. Pituitary tumors in general are relatively common and are detected in about 5–10% of the normal population as incidentalomas [2]. Malignancies of the pituitary, however, are extremely rare with a prevalence of only 0.1–0.2% of all pituitary tumors [3, 4]. The true frequency of pituitary carcinomas may be slightly underestimated, because metastatic lesions have often been diagnosed at post-mortem examination and meanwhile more sensitive imaging techniques have become available [5, 6].
Most pituitary carcinomas are endocrinologically active [3, 7]. In addition, the number of reported non-functioning cases might be overestimated, especially when reported before the routine use of immunohistochemistry [8] and ultrasensitive hormone assays. Although ACTH-producing pituitary tumors present only a minority of all pituitary adenomas [9], they account for 40% of all pituitary carcinomas [3, 7, 10].
Reliable predictive markers for malignant transformation of a pituitary tumor have not been identified so far [1]. Therefore, the initial diagnosis of malignant pituitary Cushing’s disease remains a clinical challenge. Indicators of potential malignancy of ACTH producing adenomas are major increases in pituitary tumor volume along with persistently high plasma ACTH and cortisol levels. It is possible that bilateral adrenalectomy in Cushing’s disease might trigger the development of pituitary carcinoma, just like the stimulation of growth of the pituitary in Nelson’s syndrome.
In previous reviews, non-uniform definitions of pituitary carcinoma caused confusion by designating invasive pituitary adenomas as malignant or including pituitary carcinomas without evidence of metastasis [6, 11]. Furthermore, metastases to the pituitary gland were sometimes not discriminated from primary pituitary carcinoma [12]. At our outpatient clinic two patients presented with ACTH-producing pituitary carcinoma resulting in malignant Cushing’s disease (CD). The difficult management of this entity prompted us to provide a detailed analysis of our two cases and a systematic review of the literature, which is the largest review so far. Therefore, we searched for previous case reports on malignant corticotroph adenomas in the Pubmed library using the keywords “ACTH, corticotroph; pituitary, hypophysis; adenoma, carcinoma, adenocarcinoma; malignant, metastasis”. In addition, we analyzed previous reviews reporting on pituitary carcinomas in general without detailed analysis of the corticotroph subentity. The literature search was completed on September 30, 2006.
Case report
Case 1 (Fig. 1)
A 19-year-old man was in good health until he suffered a contusion during military training in November 1960. In 1961 an X-ray of the sella was made for persisting headaches which showed sellar enlargement. In the summer of 1963 symptoms of hypercortisolism evolved with fatigue, easy bruisability, striae and weight gain of 15 kg. In 1964, he was diagnosed with Cushing’s disease due to a pituitary macroadenoma. Cushing’s disease was diagnosed by increased cortisol production rate (109 mg/24 h, normal value < 12 mg/24 h) and elevated excretion of 17-ketogenic steroids (29.8–67.4 mg/24 h, normal values < 20 mg/24 h). In addition, serum cortisol was insufficiently suppressed by 1 mg dexamethasone. Therapy consisted of conventional external pituitary radiotherapy with 30 Gy in October 1964. Within 3 months clinical signs and symptoms of Cushing’s disease resolved, with normal anterior thyreotrophic function but hypogonadotrophic hypogonadism. Subsequent biochemical evaluation revealed normal values for urinary secretion of 17-ketosteroids and 17-ketogenic steroids, and cortisol production rate was within the reference range in 1965. During the following years the patient remained in remission. In 1982, CT-imaging of the pituitary region revealed an empty sella. In 1987, however, the patient reported weight gain of 10 kg in 2 years and easy bruising. On physical examination a buffalo hump, central adiposity, moon-face, bruises, atrophic skin, and striae were noticed. Biochemical evaluation revealed insufficient suppression on dexamethasone 1 mg overnight (300 nmol/l, normal suppression <100 nmol/l). Twenty-four hour urinary cortisol excretion was 700 nmol/24 h (upper normal value 220 nmol/24 h). CT-imaging of the pituitary revealed tumor growth with extension into the right cavernous sinus and in the sphenoid sinus (Hardy–Wilson classification III-E). Ketoconazole was started with increasing dosages prior to transsphenoidal surgery in November 1987 followed by brachytherapy with I-125 (four implants with a total activity of 0.55 mCi). The postoperative course was complicated by a liquor leak and subsequent meningitis due to Staphylococcus aureus. Histological examination of the tumor revealed positive immunostaining for ACTH with occasional mitotic figures and polymorphic nuclei. Clinical signs and symptoms of Cushing’s disease regressed and 24 h urinary cortisol excretion normalized (110 nmol/24 h). In 1990, however, our patient presented with diplopia due to a right-sided abducens nerve paresis and clinical signs and symptoms of recurrent Cushing’s disease, which developed within a few months. Neurological examination also revealed discrete paresis of the right-sided trigeminal nerve. The diplopia was caused by tumor extension into the right cavernous sinus on MRI. Biochemical evaluation revealed 24 h urinary cortisol excretions between 500 and 800 nmol/24 h. Fractionated conventional radiotherapy was administered by a linear accelerator in a total dose of 40 Gy. Diplopia regressed after radiotherapy and ACTH concentrations gradually decreased from 108 ng/l during radiotherapy to 49 ng/l in January 1992. Urinary 24 h cortisol secretion decreased to 79 nmol/24 h. In 1992, MRI revealed a significant decrease in pituitary tumor volume. In 1993, the patient developed recurrent Cushing’s disease, nonetheless. Biochemical evaluation revealed increased 24 h urinary cortisol excretion (1860 nmol/24 h) and insufficient suppression to dexamethasone (serum cortisol 100 nmol/l after 0.5 mg dexamethasone four times daily during 2 days (normal values < 60 nmol/l), and ACTH 28 ng/l). In October 1993, diplopia recurred, now due to right-sided trochlear nerve paresis. MRI revealed tumor progression with extension into the right cavernous sinus, in the right prepontine cisterna and in the course of the trochlear nerve. In January 1994, ketoconazole was started at a dose of 200 mg three times a day, but total 24 h urinary cortisol excretion remained increased. MRI in 1995 revealed progression of the pituitary tumor. Clinically, the patient gained weight again and developed diabetes mellitus for which insulin was started. Bilateral adrenalectomy was performed in February 1995. Pathological examination revealed bilateral adrenal hyperplasia (right adrenal gland 35 g, left adrenal gland 20 g). Glucocorticoid and mineralocorticoid substitution therapy were started and insulin treatment could be stopped. After bilateral adrenalectomy the pituitary tumor showed progressive growth during 1995 with increasing ACTH concentrations (586 ng/l directly after bilateral adrenalectomy to 396,000 ng/l in August 1995) and a strong pigmentation of the skin developed, compatible with Nelson’s syndrome. High-dose dexamethasone treatment was started (1.5 mg daily). ACTH levels decreased subsequently eightfold. However, progressive neurological deficits due to local pituitary tumor growth developed with paresis of n. II, III, V and VI on the right side and n. VI on the left side. Somatostatin analog therapy (octreotide) was started at a dose of 500 mg three times daily. There were also multiple echo-dense lesions in the liver. Pathological examination of one of these lesions revealed a neuro-endocrine tumor positive for ACTH. Extended MRI of the cerebrum and the spinal cord revealed no metastases. No metastases were found in the lungs. In August 1995 chemotherapy was started with doxorubicin 45 mg/m2 i.v. on day 1, in combination with cyclophosphamide 1,000 mg/m2 i.v. on day 1 and etoposide 100 mg/m2 i.v. on day 1, 3 and 5. After the second course of chemotherapy the patient developed ulcers on arms and in the perianal region. Surgery was necessary to clean the ulcers and remove the debris. The condition of the patient worsened subsequently. In January 1996 the patient and the treating physicians decided to stop active treatment and to continue with palliative care. The patient died the same month.

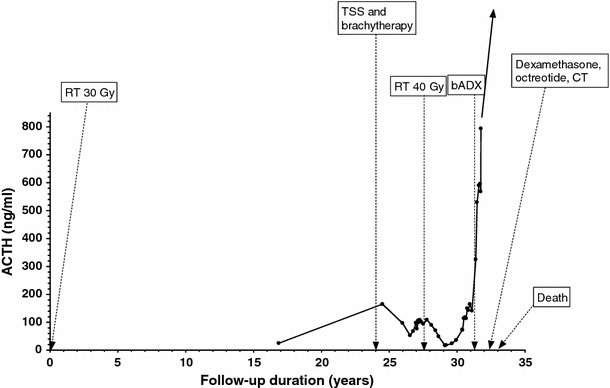

Clinical course in case 1. bADX bilateral adrenalectomy; CT chemotherapy; RT radiotherapy; TSS transsphenoidal surgery
Case 2 (Fig. 2)

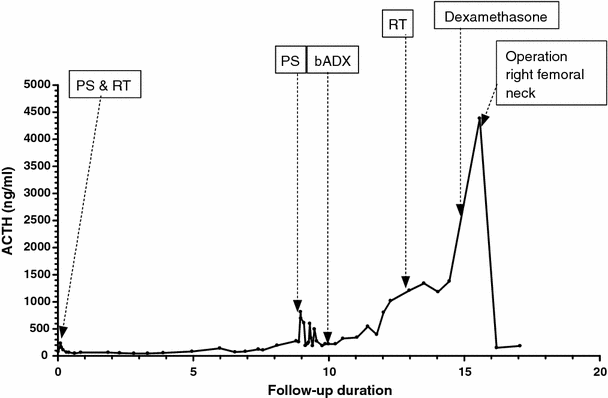

Clinical course in case 2. bADX bilateral adrenalectomy; PS Pituitary surgery; RT radiotherapy
Discussion
These two case reports highlight several phenomena of malignant Cushing’s disease. The patients can present with Cushing’s disease without any signs of metastases at initial presentation. There can be a long delay between initial presentation and suspicion of malignant disease (23 and 9 years, respectively). Finally, survival is long after initial diagnosis of Cushing’s disease (32 and 18 years, respectively).
Review of reported cases of malignant Cushing’s disease
| Author, year of publication | Sex | Age | Presentation | Initial treatment | Number and treatment for local pituitary recurrences | Time interval diagnosis-metastases (years) | Metastatic sites | Treatment of metastases | Outcome | Time interval metastases-death (years) |
|---|---|---|---|---|---|---|---|---|---|---|
| Ahmed 2000 [12] | F | 44 | TSS, RT | 2 | Cervical lymph node | Surgery, SSI | Still alive at publication | |||
| Ahmed, 2000 [12] | M | 26 | CS | bADX, RT | 1 (TSS) | 3.46 | Liver, intracranial | SSI | Death due to disease | 5.04 |
| Bates, 1995 [13] | M | 30 | Visual field defects | PS | 2 (PS, PS) | 8 | Intracranial | RT, bADX, SSI | Death due to disease | 2 |
| Casson, 1986 [14] | M | 58 | CS | PS, bADX | 2 (PS, RT) | 6 | Sternum, liver, lymph node | Death due to acute paraparesis due to spinal metastases | Death shortly after diagnosis of metastases | |
| Ceyhan, 2006 [15] | F | 60 | CS | TSS, RT | 3 (2 recurrences before metastases: treatment not documented, 1 recurrence at time of metastasis: RT ) | 6 | Cervical vertebrae, epidural component | Surgery | Still alive at publication | |
| Cohen, 1936 [16] | F | 45 | CS | RT | 7 | Liver | Death due to bronchopneumonia | Metastases found in post-mortem analysis | ||
| Della Casa, 1997 [17] | F | 52 | Visual complaints | TSS, RT | 1 (now clinical CS; TCS, RT) | 11 | Intracranial, spinal dissemination | Craniotomy; SSI, OCT, cyproheptadine, bromocriptine, sodium valproate (all during 2 months: no effects); SSI: partial suppression | Death due to disease | 3 |
| Farrell, 2003 [18] | F | 34 | Visual field defects | TSS, RT | 1 (now clinical CS; TSS: 2 times debulking, RT, bADX) | 5 | Cervical vertebrae, lumbar spine, ribs, pelvis | RT, OCT, CT (carboplatin, etoposide and vincristine) | Death due to disease | 1 |
| Feiring, 1953 [19] | F | 31 | CS | RT | 6 (RT; TCS & RT; RT; TCS &RT; RT; RT) | 6 | Intracranial (dura) | Death due to rupture of mycotic aneurysm of the abdominal aorta | Metastases found in post-mortem analysis | |
| Forbes, 1947 [20] | F | 42 | CS | RT | 1 (brachytherapy, PS) | 3 | Liver | Death due to bronchopneumonia | Metastases found in post-mortem analysis | |
| Frost, 1995 [8] | F | 33 | PS, RT | 1 (recurrence at time of metastasis: TSS) | 6 | Intracranial, intradural (extracranially) | Surgery, CT | Still alive at publication | ||
| Gabrilove, 1984 [11] | M | 37 | CS | bADX | 1 (Nelson’s, cobalt teletherapy) | 4.83 | Spinal cord, cauda equina, heart, liver, pancreas, bone | Death due to disease | Death shortly after diagnosis of metastases | |
| Gaffey, 2002 [21] | F | 56 | CS | TSS, bADX | 2 (RT, stereotactic gamma knife surgery) | 6 | Liver | Surgery, OCT, CT (8 courses cyclophosphamide, vincristine, dacarbazine) | Still alive at publication | |
| Gaffey, 2002 [21] | F | 35 | CS | TSS | 1 (TSS, bADX, RT) | 11 | Intracranial, spine | Craniotomy | Death due to carcinomatous meningitis | 4 |
| Gaffey, 2002 [21] | F | 63 | CS | bADX | 1 (Nelson’s, TSS) | 8 | Intracranial (dura) | Surgery, RT | Still alive at publication | |
| Gaffey, 2002 [21] | F | 17 | NFA | PS, RT | 3 (PS, PS, PS) | 12 | Bone | RT | Still alive at publication | |
| Garrao, 1997 [22] | F | 47 | CS | bADX | 1 (TSS, RT) | 14.25 | Bone | Surgery, OCT | No anatomical cause for death | 0.42 |
| Gatti, 1984 [23] | F | 13 | CS | lADX, RT | 3 (RT, RT & rADX, TSS) | 19 | Intracranial | Death due to hemorrhagic brain insult due to metastasis | Death shortly after diagnosis of metastasis (few hours after imaging hemorrhagic brain insult) | |
| Heukamp, 2004 [24] | F | 40 | Silent pituitary tumor | PS | 2 (PS, PS) | 16 | Intracranial | 2 times surgery, stereotactic RT | Still alive at publication | |
| Hinton, 1998 [25] | F | 53 | CS | TSS, RT | 0.75 | Liver, bone | CT, surgery | Death due to disease | 0.42 | |
| Holthouse, 2001 [26] | F | 17 | Headache | PS | 2 (during 1st pregnancy: high dose dexamethasone & bromocriptine, after delivery PS, RT; TSS) | 11 | Bone | RT, craniotomy | Still alive at publication | |
| Kaiser, 1983 [27] | F | 17 | PS, RT, bADX | 5.58 | Bone, liver, lung, mediastinum | CT (cyclophosphamide, adriamycin, 5-fluorouracil) | Still alive at publication | |||
| Kaltsas, 1998 [5] | M | 41 | CS | PS, RT, bADX, CT started without evidence of peripheral metastases (lomustine/5-FU (6 cycles), carboplatin (6 cycles), dacarbazine (2 cycles)) | Spine, liver | Death due to disease | 1.5 | |||
| Kemink, 1999 [28] | F | 22 | CS | bADX | 3 (TCS, cyproheptadine, TCS & RT) | 34 | Intracranial (dura) | Death due to purulent leptomeningitis | Metastasis found in post-mortem analysis | |
| Kouhara, 1992 [29] | M | 15 | CS | bADX | 3 (Nelson’s, TSS, TSS, RT) | 24 | Intracranial, spine | Surgery: metastases of intraspinal space | Still alive at publication | |
| Landman, 2002 [30] | F | 14 | CS | bADX | 1 (Nelson’s, TCS) | 14 | Intracranial | 2 times craniotomy | Still alive at publication | |
| Levesque, 1991 [31] | M | 25 | CS | TSS, RT, OP’DDD | 2.5 | Intracranial (dura), lymph node | Meningeal, cervical surgery, OP’DDD | Death due to intracranial hypertension due to metastasis | 0.5 | |
| Lormeau, 1997 [32] | F | 18 | CS | PS | 5 (bADX & PS, RT, TCS, RT, PS) | 7.58 | Liver | 2 times hepatic chemoembolization | Still alive at publication | |
| Masuda, 1999 [33] | M | 59 | Headache, decreased visual acuity | TSS, RT | 1.5 | Dura, intracranial, lungs, lymph nodes | Death due to cardiac arrest | Death shortly after diagnosis of metastasis | ||
| Moore, 1976 [34] | M | 21 | CS | RT, bADX, PS | 15 | Intracranial, spinal cord, liver | Death due to disease | Metastases found in post-mortem analysis | ||
| Nawata, 1990 [35] | M | 53 | Diplopia, decreased visual acuity | TSS, RT | 1 (now clinical CS, TCS, RT) | 4 | Intracranial, liver, lung | OP’DDD, CT | Death due to disease | Death shortly after diagnosis of metastasis |
| Nosé-Alberti, 1998 [36] | F | 21 | CS | TSS, rADX | 1.33 | Liver | Death due to sepsis (4 months after initial TSS) | Metastases found in post-mortem analysis | ||
| Papotti, 1984 [37] | F | 13 | CS | lADX, brachytherapy | 5 (brachytherapy, brachytherapy & rADX, PS, PS, RT) | 19 | Intracranial, dura | Death due to cerebral bleeding | Death shortly after diagnosis of metastasis (1 h post-imaging of bleeding) | |
| Pernicone, 1997 [3] | F | 65 | TCS | 5 | Spinal subarachnoid | Surgery, RT | Death due to disease | 1.5 | ||
| Pernicone, 1997 [3] | M | 71 | RT, sphenoid biopsy | 3.5 | Lymph node, muscle | ADX | Death due to disease | 0.25 | ||
| Pernicone, 1997 [3] | F | 69 | TCS, RT | 11 | Intracranial, spinal subarachnoid | RT | Death due to disease | 1 | ||
| Pernicone, 1997 [3] | F | 48 | RT | 18 | Bone | RT | Still alive at publication | |||
| Pernicone, 1997 [3] | M | 37 | TCS, RT | 17 | Spinal subarachnoid, liver | Surgery, RT | Death due to disease | 7 days | ||
| Pernicone, 1997 [3] | M | 70 | CS | TCS | 8 | Dura cranial/spinal | RT | Death due to disease | 0.5 | |
| Queirox, 1975 [38] | F | 36 | CS | bADX | Liver | Death due to postoperative shock after bADX | Metastases found in post-mortem analysis | |||
| Richter, 2000 [39] | F | 49 | CS | TSS | 4 (now clinical CS; PS, bADX & RT, PS, RT) | 8 | Liver, bone | RT of bone metastases | Still alive at publication | |
| Roncaroli, 2003 [40] | M | 26 | Visual impairment | PS, RT | 2 | Intracranial (dura) | Death due to disease | 21 | ||
| Roncaroli, 2003 [40] | F | 58 | Blindness right eye | TCS, RT | 1 (bADX) | 5 | Intracranial | Death due to disease | 13 | |
| Roncaroli, 2003 [40] | M | 48 | Left temporal hemianopsia | TCS, RT | 0.25 | Skin, lymph node | Death due to disease | 1.75 | ||
| Roncaroli, 2003 [40] | F | 35 | Headache, visual impairment | TSS, RT | 4 | Bone | Death due to disease | 2.67 | ||
| Roncaroli, 2003 [40] | F | 28 | Headache, visual field reduction | TCS, RT | 15 | Intracranial, oral cavity | Death due to myocardial infarction | 1 | ||
| Salassa, 1959 [41] | M | 41 | CS | bADX | 3 (Nelson’s; TCS, RT, RT) | 4.5 | Spinal cord, liver | Death due to disease | 0.5 | |
| Scheithauer, 2001 [42] | F | 59 | CS | PS, bADX | 7 | Liver | Segmental hepatectomy | Still alive at publication | ||
| Scheithauer, 2001 [42] | F | 17 | CS | 11 | Bone | CT, RT | Still alive at publication | |||
| Scheithauer, 2001 [42] | F | 35 | CS | PS, bADX | 12 | Intracranial, spinal meninges | Craniotomy | Death due to disease | 4 | |
| Sheldon, 1954 [43] | F | 26 | CS | 2.08 | Liver | Death during preparation for exploratory surgery of adrenals | Metastases found in post-mortem analysis | |||
| Singh, 2000 [44] | F | 20 | Acromegaly | TSS | 2 (RT & PS, 2nd recurrence: now signs and symptoms of acromegaly & CS) | 1 | Liver | Ketoconazole | Death due to thromboembolism | 0.08 |
| Suzuki, 2002 [45] | F | 61 | Bitemporal hemianopsia | TS | 1 (now clinical CS, RT) | 6.33 | Liver | SSI | Still alive at publication | |
| Tonner, 1992 [46] | F | 52 | CS | TCS, RT | 3 | Intracranial | Ketoconazole | Death due to disease | 0.75 | |
| Zafar, 1984 [47] | M | 56 | CS | TCS, RT | 1 (refusal of PS, ketoconazole/aminogluthetamide/OP’DDD) | 5 | Intracranial, spinal meninges | Death due to pneumonia | Metastases found in post-mortem analysis | |
| Zahedi, 2001 [48] | F | 40 | CS | TSS, RT | 1 (after diagnosis of metastasis; TSS & RT & bADX) | 5 | Lymph node | Resection of lymph node | Still alive at publication | |
| Van der Klaauw and Kienitz, 2007 | M | 23 | CS | RT | 3 (TSS & brachytherapy, RT, bADX) | 32 | Liver, bone | CT | Death due to disease | 0.5 |
| Van der Klaauw and Kienitz, 2007 | M | 35 | CS | TSS (TCS due to hematoma), RT | 2 (PS & bADX; RT) | 17 | Bone | Surgery | Still alive at publication |
Summary of clinical features of the reported cases of malignant Cushing’s disease
| Characteristics (n = 58) | ||
|---|---|---|
| Gender, male (n (%)) | 19 (33) | |
| Age (years) | 39 (13–71) | |
| Presentation (n (%)) | Cushing’s syndrome | 37 (64) |
| Visual complaints, silent adenoma | 15 (26) | |
| Not documented | 6 (10) | |
| Initial therapy (n (%)) | Transsphenoidal or transcranial surgery | 43 (74) |
| Radiotherapy | 29 (50) | |
| Uni-/bilateral adrenalectomy | 2 (3)/16 (28) | |
| Medicamentous therapya | 9 (16) | |
| Metastatic sites (n (%)) | Intracranial central nervous system | 25 (43) |
| Extracranial central nervous system | 14 (24) | |
| Extramedullary | 36 (62) | |
| Mean time interval diagnosis-metastases (years) | 8.8 (0.25–34) | |
| Mean interval metastases-death (years) | 1.7 (0–21) | |
| Alive at publication (n (%)) | 18 (31) | |
In our first case, Cushing’s disease recurred three times after initial cure for which he was treated with transsphenoidal surgery and brachytherapy, radiotherapy and bilateral adrenalectomy, respectively. In our second case, Cushing’s disease recurred two times for which the patient was treated by transsphenoidal surgery, bilateral adrenalectomy, and radiotherapy. Recurrences of Cushing’s disease were reported frequently in the other case reports of malignant Cushing’s disease; one recurrence was reported in 15 patients [8, 11, 12, 17, 18, 20, 21, 22, 30, 34, 35, 40, 45, 47, 48], two recurrences in 7 patients [13, 14, 21, 24, 26, 44] and three or more recurrences in 10 patients [15, 19, 21, 23, 28, 29, 32, 37, 39, 41]. Nelson’s syndrome, defined as pituitary tumor progression after bilateral adrenalectomy, developed in one of our patients. Bilateral adrenalectomy was performed as initial treatment in 16 cases (28%) after which recurrent Cushing’s syndrome due to growth of the pituitary was documented in 11 cases [11, 12, 14, 21, 22, 28, 29, 30, 34, 41]. Pituitary tumor recurrences after bilateral adrenalactomy during the course of the disease, were reported in only 4 other patients [23, 32, 37, 39].
The time interval between primary diagnosis of Cushing’s disease and diagnosis of metastases was 32 and 17 years, respectively, which is relatively long compared to the mean interval of 8.8 years with a range of 0.25–34 years in the previously reported cases. Presenting symptoms of metastases were mainly dependent on the localization of metastases. A few metastases were asymptomatic and only found during routine follow-up screening for (recurrent) Cushing’s disease [12, 13, 23, 46]. Most of the metastases, however, caused problems such as pain or local compression due to local growth in liver [12, 21, 25, 27, 32, 39, 45], bones [8, 11, 14, 18, 26, 35], and the central nervous system [15, 17, 21, 22, 24, 29, 30, 31]. In nine cases metastases were found only by post-mortem analysis in the liver, intracranial, meninges, and spinal cord [16, 19, 20, 28, 34, 36, 38, 43, 47]. Within the central nervous system, metastatic sites were intracranial in 43%, and extracranial in 24%. Extramedullary metastases (62% of the cases) were mostly reported in the liver [3, 11, 12, 14, 16, 20, 21, 25, 27, 32, 35, 36, 39, 41, 42, 43, 44, 45], lymph nodes [3, 12, 31, 40, 48], and bone [3, 11, 14, 18, 21, 22, 25, 26, 27, 39, 40, 42].
In 8 cases including one of our cases, metastases were found solely in bone, of which 4 patients were still alive at time of report in the literature [21, 26, 42]. Those patients had been treated with surgery (our case, [15]), with radiotherapy [21, 26], and with combined chemotherapy and radiotherapy [26]. Time interval to death in the other four cases ranged from 0.4 to 2.7 years [3, 15, 22, 40].
In 10 cases, metastases were found only in the liver [16, 20, 21, 32, 36, 38, 42, 43, 44, 45]. Of those patients, two were still alive at publication. One patient, a 56-year-old woman at diagnosis, was treated by resection of liver metastases and 8-cycle chemotherapy (cyclophosphamide, vincristine, dacarbazine) and still alive after almost 2 years after diagnosis of liver metastases [21]. The other patient, 18-year-old woman at diagnosis, was treated by hepatic chemo-embolization (cisplatin, lipiodol and spongel power) and was still alive after almost 2.5 years after diagnosis of liver metastases [32].
Of our patients, one patient was still alive at publication, but the other patient died 6 months after the diagnosis of metastases. Of all reported cases, 18 patients (31%) were still alive at publication of the data with a follow-up after initial presentation of 0–7 years after the diagnosis of metastases; four with solitary liver metastases [21, 32, 42, 45], two with multiple sites of metastases [27, 39], five with solitary bone metastases (our case, [15, 21, 26, 42]) as discussed above. The other patients had solitary lymph node metastases (n = 2) which were extirpated [12, 48] or metastases in the central nervous system (n = 5) for which surgery [8, 24, 29, 30], or combined surgery and radiotherapy was applied [21]. However, the mean interval between diagnosis of metastases and death was 1.7 years with a range of 0–3.9 years. Survival after the initial presentation is approximately 10 years, which is comparable to the survival in patients with a malignant prolactinoma [50]. However only 33% of all reported cases with malignant CD survived more than 1 year after the development of metastases.
Malignant pituitary tumors are thought to arise from initially benign, large macroadenomas [51]. The mechanisms underlying malignant transformation are incompletely understood [51] and prediction of future malignant behavior of ACTH-producing pituitary adenomas is not possible until now. Frequent recurrences of pituitary adenomas might be indicative of a non-benign course. In the reported cases CD recurred at least one time in 55% of cases. However, recurrence of benign Cushing’s disease after initial surgical cure also occurs in 5–36% of the patients during long-term follow-up [52, 53, 54, 55, 56, 57]. Furthermore, growth of the pituitary tumor occurred in 67% of the reported cases that were treated with bilateral adrenalectomy as primary treatment. The prevalence of Nelson’s syndrome without evidence of distant metastases of the pituitary tumor ranges from approximately 30–50% [58, 59] in adrenalectomized patients and thus seems rather high in the reported cases with malignant pituitary CD. Therefore adrenalectomy might trigger transformation of a pituitary tumor in an adenoma-to-carcinoma sequence. Nevertheless, prophylactic irradiation of the pituitary to prevent Nelson’s syndrome has not been proven to be effective and remains controversial [60, 61].
In addition, in one third of the reported cases the initial presentation consisted of mass effects of a silent adenoma and Cushing’s syndrome evolved only in the course of the disease. This is in contrast with findings of Scheithauer et al. [62] who report 23 cases with a benign silent corticotrophic adenoma at pathology reports, but in these cases no symptoms of hypercortisolim occurred during the course of the disease. Although data are scarce, the evolvement of Cushing’s syndrome after initial presentation of a silent corticotrophic adenoma might thus be considered as indicative of possible future malignant behaviour of the pituitary tumor.
Persistently high ACTH levels despite various treatments targeted at the pituitary should prompt the clinician to consider possible malignant pituitary CD. Most of the metastases, however, caused local signs or symptoms such as pain located in the bones or abdomen (as in our two cases) and radiological investigations to detect metastatic disease should be preferably targeted on the basis of clinical findings. Occasionally, intracranial metastatic disease was found on routine radiological scanning of the pituitary tumor.
There is case-to-case variability of the effect of chemotherapy on prognosis. Although these data involve only a limited number of patients, we conclude that chemotherapy does not improve prognosis of malignant corticotroph adenoma. In addition, octreotide therapy [17, 18, 21, 22], cyproheptadine [30], and OP’DDD [31, 35] were tried. Survival in these patients was not different from other patients. Thus, it seems that surgical removal of metastases might provide the best chance of survival. Molecular mechanisms underlying malignant transformation of pituitary adenomas are incompletely understood until now, but could present targets for development of new drugs to control malignant pituitary CD.
In conclusion, malignant pituitary CD is very rare. Frequently recurring CD, invasive macroadenoma, Nelson’s syndrome or persistently high ACTH levels should prompt the clinician to consider the possibility of malignant disease. Diagnosis of malignancy at an early point in time might allow aggressive local and systemic therapy to improve prognosis significantly.
