Pharmaceutical Research

, Volume 33, Issue 11, pp 2805–2814 | Cite as

Inflation of Type I Error in the Evaluation of Scaled Average Bioequivalence, and a Method for its Control

  • Detlew Labes
  • Helmut Schütz
Research Paper

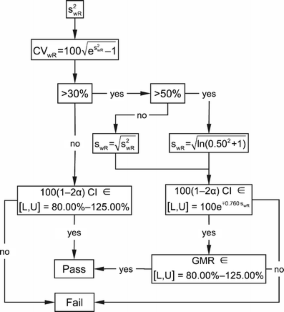

To verify previously reported findings for the European Medicines Agency’s method for Average Bioequivalence with Expanding Limits (ABEL) for assessing highly variable drugs and to extend the assessment for other replicate designs in a wide range of sample sizes and CVs. To explore the properties of a new modified method which maintains the consumer risk ≤0.05 in all cases.


Monte-Carlo simulations of three different replicate designs covering a wide range of sample sizes and intra-subject variabilities were performed.

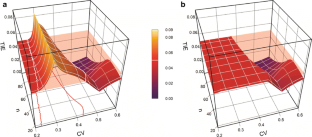

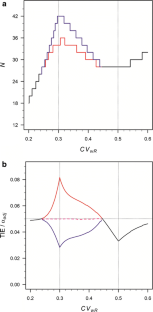

At the switching variability of CV wR 30% the consumer risk is substantially inflated to up to 9.2%, which translates into a relative increase of up to 84%. The critical region of inflated type I errors ranges approximately from CV wR 25 up to 45%. The proposed method of iteratively adjusting α maintains the consumer risk at the desired level of ≤5% independent from design, variability, and sample size.


Applying the European Medicines Agency’s ABEL method at the nominal level of 0.05 inflates the type I error to an unacceptable degree, especially close to a CV wR of 30%. To control the type I error nominal levels ≤0.05 should be employed. Iteratively adjusting α is suggested to find optimal levels of the test.


bioequivalence European Medicines Agency highly variable drugs Monte-Carlo simulation reference-scaling



(Average) bioequivalence


Average bioequivalence with expanding limits


Area under the curve


Confidence interval


Maximum observed concentration


Within-subject coefficient of variation of the reference treatment


European Medicines Agency


(United States) Food and Drug Administration


Geometric means ratio


Highly variable drug (product)


Regulatory constant


Lower expanded acceptance limit for bioequivalence


Sample size


Number of subjects in sequence 1, 2


Reference product


Reference-scaled average bioequivalence


Test product


Empiric type I error (probability of α, consumer risk)


Upper expanded acceptance limit for bioequivalence


Nominal level of the statistical test


Adjusted α


True T/R ratio



We would like to thank László Endrényi and Anders Fuglsang for useful comments on an earlier draft of this article. Their comments and challenges directly improved the quality of this article.

Supplementary material

11095_2016_2006_MOESM1_ESM.doc (994 kb)
ESM 1 (DOC 994 kb)
11095_2016_2006_MOESM2_ESM.xls (203 kb)
ESM 2 (XLS 203 kb)


  1. 1.
    European Medicines Agency, Committee for Medicinal Products for Human Use (2010) Guideline on the Investigation of Bioequivalence. London; 2010 Jan 20. Available from:
  2. 2.
    McGilveray IJ, Midha KK, Skelly JP, Dighe S, Doluisio JT, French IW, et al. Consensus report from “Bio International ’89”: issues in the evaluation of bioavailability data. J Pharm Sci. 1990;79(10):945–6.CrossRefPubMedGoogle Scholar
  3. 3.
    Blume HH, KK Midha, editors. Bio-International. bioavailability, bioequivalence and pharmacokinetics. Stuttgart: medpharm Scientific Publishers; 1993.Google Scholar
  4. 4.
    Boddy AW, Snikeris FC, Kringle RO, Wei GCG, Opperman JA, Midha KK. An approach for widening the bioequivalence acceptance limits in the case of highly variable drugs. Pharm Res. 1995;12(12):1865–68.CrossRefPubMedGoogle Scholar
  5. 5.
    Shah VP, Yacobi A, Barr WH, Benet LZ, Breimer D, Dobrinska MR, et al. Evaluation of orally administered highly variable drugs and drug formulations. Pharm Res. 1996;13(11):1590–4.CrossRefPubMedGoogle Scholar
  6. 6.
    Schuirmann D. A comparison of the two one-sided tests procedure and the power approach for assessing the equivalence of average bioavailability. J Pharmacokin Biopharm. 1987;15:657–80.CrossRefGoogle Scholar
  7. 7.
    Tóthfalusi L, Endrényi L. Sample sizes for bioequivalence studies for highly variable drugs. J Pharm Pharmaceut Sci. 2012;15(1):73–84.Google Scholar
  8. 8.
    Patterson SD, Jones B. Viewpoint: observations on scaled average bioequivalence. Pharm Stat. 2012;11:1–7.CrossRefPubMedGoogle Scholar
  9. 9.
    European Medicines Agency, Committee for Human Medicinal Products. Questions & Answers: positions on specific questions addressed to the Pharmacokinetics Working Party (PKWP). London; 2015 Nov 19. Available from:
  10. 10.
    Willavize SA, Morgenthien EA. Comparison of models for average bioequivalence in replicated crossover designs. Pharm Stat. 2006;5(3):201–11.CrossRefPubMedGoogle Scholar
  11. 11.
    Chow S-C, Shao J, Wang H. Individual bioequivalence testing under 2 × 3 designs. Stat Med. 2002;21(5):629–48.CrossRefPubMedGoogle Scholar
  12. 12.
    Endrényi L, Tóthfalusi L. Regulatory conditions for the determination of bioequivalence of highly variable drugs. J Pharm Pharmaceut Sci. 2009;12(1):138–49.CrossRefGoogle Scholar
  13. 13.
    Chow S-C, J-p L. Design and analysis of bioavailability and bioequivalence studies. Boca Raton: Chapman & Hall/CRC Press; 2009. p. 596–8.Google Scholar
  14. 14.
    d_labes (Berlin, DE). RSABE/ABEL: ‘alpha’ of scaled ABE? In: Bioequivalence and Bioavailability Forum [Internet]. Vienna: BEBAC; 2013 Mar 15. Available from:
  15. 15.
    Wonnemann M, Frömke C, Koch A. Inflation of the type I error: investigations on regulatory recommendations for bioequivalence of highly variable drugs. Pharm Res. 2015;32(1):135–43.CrossRefPubMedGoogle Scholar
  16. 16.
    Roebruck P, Kühn A. Comparison of tests and sample size formulae for proving therapeutic equivalence based on the difference of binomial probabilities. Stat Med. 1995;14(14):1583–94.CrossRefPubMedGoogle Scholar
  17. 17.
    Schütz H. Two-stage designs in bioequivalence trials. Eur J Clin Pharmacol. 2015;71(3):271–81.CrossRefPubMedGoogle Scholar
  18. 18.
    Tóthfalusi L, Endrényi L, García Arieta A. Evaluation of bioequivalence for highly variable drugs with scaled average bioequivalence. Clin Pharmacokinet. 2009;48(11):725–43.CrossRefPubMedGoogle Scholar
  19. 19.
    Labes D, Schütz H, Lang B. PowerTOST: power and sample size based on Two One-Sided t-Tests (TOST) for (Bio)Equivalence Studies. R package version 1.3–5. 2016. Available from:
  20. 20.
    R Core Team. R: A language and environment for statistical computing. R Foundation for Statistical Computing. Vienna; 2016. Available from:
  21. 21.
    Zheng C, Wang J, Zhao L. Testing bioequivalence for multiple formulations with power and sample size calculations. Pharm Stat. 2012;11(4):334–41.CrossRefPubMedGoogle Scholar
  22. 22.
    Brent RP. Algorithms for minimization without derivatives. Mineola: Dover Publications; 2003.Google Scholar
  23. 23.
    European Generic Medicines Association. Revised EMA Bioequivalence Guideline. Questions & Answers. Summary of the discussions held at the 3rd EGA Symposium on Bioequivalence. London: 2010 Jun. Available from:
  24. 24.
    Blume H, Kübel-Thiel K, Reutter B, Siewert M, Stenzhorn G. [Nifedipin: Monographie zur Prüfung der Bioverfügbarkeit/Bioäquivalenz von schnell-freisetzenden Zubereitungen]. Pharm Ztg. 1988;133:389–93. German.Google Scholar
  25. 25.
    Commission of the European Communities, CPMP Working Party on the Efficacy of Medicinal Products. Investigation of Bioavailability and Bioequivalence. Note for Guidance III/54/89-EN, 9th Draft. Brussels: 1991.Google Scholar
  26. 26.
    Health Canada, Therapeutic Products Directorate. Guidance Document. Comparative Bioavailability Standards: Formulations Used for Systemic Effects. Ottawa:2012 May 22. Available from:
  27. 27.
    European Medicines Agency, Committee for Medicinal Products for Human Use. Concept paper for an addendum to the note for guidance on the investigation of bioavailability and bioequivalence: evaluation of bioequivalence of highly variable drugs and drug products. London; 2006 Apr 27. Available from:
  28. 28.
    Karalis V, Macheras P, Symillides M. Geometric mean ratio-dependent scaled bioequivalence limits with leveling-off properties. Europ J Pharm Sci. 2005;26:54–61.CrossRefGoogle Scholar
  29. 29.
    Kytariolos J, Karalis V, Macheras P, Symillides M. Novel scaled bioequivalence limits with leveling-off properties. Pharm Res. 2006;23(11):2657–64.CrossRefPubMedGoogle Scholar
  30. 30.
    Karalis V, Symillides M, Macheras P. On the leveling-off properties of the new bioequivalence limits for highly variable drugs of the EMA guideline. Europ J Pharm Sci. 2011;44:497–505.CrossRefGoogle Scholar
  31. 31.
    Symillides M, Karalis V, Macheras P. Exploring the relationships between scaled bioequivalence limits and within-subject variability. J Pharm Sci. 2013;102(1):297–301.CrossRefGoogle Scholar
  32. 32.
    Senn S, Grieve AP. A comment on optimal allocations for bioequivalence studies. Biometrics. 1999;55:1314–5.CrossRefPubMedGoogle Scholar
  33. 33. A service of the U.S. National Institutes of Health [Internet]. Bethesda (MD): U.S. National Library of Medicine [2013] – Identifier NCT01290757 [last updated 2014 May 8]. Available from:
  34. 34.
    U.S. Department of Health and Human Services, Food and Drug Administration, Center for Drug Evaluation and Research. Guidance for Industry. Statistical Approaches to Establishing Bioequivalence. Rockville (MD): 2001 Jan. Available from:
  35. 35.
    International Council for Harmonisation. ICH Harmonised Tripartite Guideline: Statistical Principles for Clinical Trials. 1998 Feb 5. Available from:
  36. 36.
    Commission of the European Communities. Investigation of Bioavailability and Bioequivalence. Note for Guidance III/54/89-EN. Brussels: 1991 Dec. Available from:
  37. 37.
    Fuglsang A. Controlling type I errors for two-stage bioequivalence study designs. Clin Res Reg Aff. 2011;28(4):100–5.CrossRefGoogle Scholar
  38. 38.
    Bauer P, Köhne K. Evaluation of experiments with adaptive interim analyses. Biometrics. 1992;50(4):1029–41. correction in Biometrics. 1996;52:380.CrossRefGoogle Scholar
  39. 39.
    Lehmacher W, Wassmer G. Adaptive sample size calculations in group sequential trials. Biometrics. 1999;55(4):1286–90.CrossRefPubMedGoogle Scholar
  40. 40.
    Wolfsegger MJ, Jaki T. Simultaneous confidence intervals by iteratively adjusted alpha for relative effects in the one-way layout. Stat Comput. 2006;16:15–23.CrossRefGoogle Scholar
  41. 41.
    Davit BM, Chen M-L, Conner DP, Haidar SH, Kim S, Lee CH, et al. Implementation of a reference-scaled average bioequivalence approach for highly variable generic drug products by the US Food and Drug Administration. AAPS J. 2012;14(4):915–24.CrossRefPubMedPubMedCentralGoogle Scholar
  42. 42.
    Muñoz J, Alcaide D, Ocaña J. Consumer’s risk in the EMA and FDA regulatory approaches for bioequivalence in highly variable drugs. Stat Med. 2016;35(12):1933–4.CrossRefPubMedGoogle Scholar
  43. 43.
    World Health Organization. Multisource (generic) pharmaceutical products: guidelines on registration requirements to establish interchangeability. Geneva: 2015 May 20. Available from:
