Optical and Quantum Electronics

, Volume 46, Issue 8, pp 1027–1037 | Cite as

Spectrum research on the passive mode-locked \(\hbox {Yb}^{3+}\)-doped fiber laser

Open Access
Article
First Online:
Received:
Accepted:
  • 664 Downloads

Abstract

In this paper, the spectrum characters of passive mode locked \(\hbox {Yb}^{3+}\)-doped fiber laser were investigated in detail, tunable four wavelengths with more than 30 nm tuning range, single wavelength, double wavelengths, multi-wavelengths laser output have all been observed in experiment. Moreover, these results were analyzed theoretically.

Keywords

Wavelength Passive mode-locked \(\hbox {Yb}^{3+}\)-doped fiber laser Dispersion

1 Introduction

Stable multi-wavelength mode-locked fiber lasers are particularly useful in fiber-optical sensing, optical instrumentation, microwave photonic systems, optical signal processing, wavelength-division-multiplexing transmission systems and so on Pudo and Chen (2003), Lou et al. (2004), Chen et al. (2000), Gong et al. (2005), (2006), Li and Chan (1998), Yao et al. (2001), Hayahi and Yamashita (2003), Bellemare et al. (2000), Wey et al. (1997), Li et al. (1998), Vlachos et al. (2000), Mielke et al. (2003), Tu et al. (2007), Fenga et al. (2006), Yeh et al. (2007), Schultz et al. (2009), Okhotnikov et al. (2003), Kivist et al. (2008), Zhe et al. (2009), Song et al. (2009a), Song et al. (2009b), due to the numerous advantages including the generation of narrow high-repetition-rate pulse trains at multiple wavelengths, high power, low noise and the compatibility with other fiber-optic components.

Many different mode-locked multi-wavelength fiber lasers have been reported in the last few years. Previously, room-temperature multi-wavelength lasing in an actively mode-locked erbium-doped fiber ring laser (ML-EDFRL) was demonstrated by use of multiple gain media in the laser cavity Pudo and Chen (2003), temporal-spectral multiplexing Lou et al. (2004), flattening the gain spectrum Chen et al. (2000),or the inter-channel multiple four-wave mixing Gong et al. (2005). However, these designs are somewhat complex or have poor tunability. As an alternative way, multi-wavelength dispersion-tuned actively ML-EDFRL has been proposed Li and Chan (1998). However, the laser is sensitive to the environment disturbance due to its long cavity. Further more, the erbium-doped fiber lasers were cooled in liquid Nitrogen to reduce the strong homogenous gain broadening effect at room temperature, Yao et al. (2001), Hayahi and Yamashita (2003), which made the system bulky and impractical for real applications. Bellemare et al. (2000) used a frequency shifter in a cw fiber lasers to reduce homogenous gain broadening. A variable cavity length created by introducing a frequency shifter may not be suitable for active mode locked. High noise is another problem for multi wavelength active mode locked fiber lasers. By using an intra-cavity F-P filter or a nonlinear polarization rotator Wey et al. (1997), Li et al. (1998), the supermode noise can be suppressed, but at the cost of high insertion loss. It was demonstrated that the use of semiconductor material as the gain medium could provide stable multi-wavelength lasing at room temperature with weaker homogenous gain broadening Vlachos et al. (2000), Mielke et al. (2003). However, lasers using semiconductor material tend to have low output power and high noise figure comparing with EDF-based lasers.

Contrast to active multi-wavelength mode locked fiber lasers, passive multi-wavelength mode locked fiber lasers have been a powerful technique for the generation of subpicosecond and femtosecond optical pulses. As it is self-starting, modulation mechanisms are not needed comparing with active starting, so the cost and complexity of the ultrashort pulse lasers reduce. Based on so many advantages, passive multi-wavelength mode locked fiber lasers have been widely studied by many people currently Tu et al. (2007), Fenga et al. (2006), Gong et al. (2006), Yeh et al. (2007). In order to generate multi-wavelength laser, all kinds of filters were used such as Mach–Zehnder filter Tu et al. (2007), F-P filter Fenga et al. (2006), polarization maintaining fiber filterGong et al. (2006) and double-ring filterYeh et al. (2007). In order to tune the wavelength, interference tunable spectral filter Schultz et al. (2009), grating-pair tunable dispersive delay line Okhotnikov et al. (2003) and acousto-optic tunable filter Kivist et al. (2008) have been used. A signal or dual wavelength tunable passive mode locked Erbium-doped Fiber lasers only by appropriately rotating the polarization controllers have been reported Zhe et al. (2009), Song et al. (2009a), Song et al. (2009b).

However, multi wavelength tunable passive mode locked \(\hbox {Yb}^{3+}\)-doped fiber laser only by appropriately rotating the polarization controllers has not been reported to our best knowledge. In this paper a tunable four wavelengths passive mode locked \(\hbox {Yb}^{3+}\)-doped fiber laser is obtained by only adjusting the polarization controller carefully and choosing the proper parameters of fiber laser. Moreover, single wavelength, double wavelengths, multi-wavelengths have been also observed and studied in this paper.

2 Principle and design

Schematic diagram of mode-locked system is shown in Fig. 1. \(\hbox {Yb}^{3+-}\)-doped fiber ring laser is composed by \(\hbox {Yb}^{3+}\)-doped fiber as gain medium(the absorption of \(\hbox {Yb}^{3+}\)-doped fiber for the pumping laser at 979 nm is 199 dB/m), polarization-dependent optical isolator (PD-ISO) as polarizer, two polarization controllers (\(\hbox {PC}_{1}\) & \(\hbox {PC}_{2})\), 980/1053 nm wavelength-division multiplexer as signal and pump light coupler and the output coupler (90:10) as the signal light output. Pumping light source is two laser diodes operating at the wavelength of 976 nm with maximum output power about 440 mW. Pumping laser is coupled into \(\hbox {Yb}^{3+}\)-doped fiber by 980/1053nm wavelength division multiplexer.
Fig. 1

Experimental setup of \(\hbox {Yb}^{3+}\)-doped fiber ring laser

In order to better explain the operation principle of the spectrum characters of passive mode locked \(\hbox {Yb}^{3+}\)-doped fiber laser, we analyze the light transmission character of the laser cavity which can be described as a length of fiber with two polarizers at both ends as shown in Fig. 2Song et al. (2009b). \(\upalpha _{1}\), \(\upalpha _{2}\) are the angles between the input signal’s polarization direction and the vertical birefringent axis, analyzer’s polarization direction and the vertical birefringent axis respectively. Both \(\upalpha _{1}\) and \(\upalpha _{2}\) can be changed by adjusting the polarization controller \(\hbox {PC}_{1}\) and \(\hbox {PC}_{2}\). The PD-ISO plays the roles as both the polarizer and the analyzer. Then, the \(\hbox {PC}_{1}\) transforms the light to an elliptical polarization state. The polarization state of the light rotates as it propagates in the cavity due to different effects of the self-phase modulation and cross-phase modulation on two orthogonal polarized components. The angle of rotation is proportional to the light intensity. Therefore, the combination of PC-PD-ISO-PC acts as a polarization-dependent loss controller. The transmittivity function T of this structure can be expressed as Song et al. (2009b):
$$\begin{aligned} T&= \cos ^{2}\alpha _1 \cos ^{2}\alpha _2 +\sin ^{2}\alpha _1 \sin ^{2}\alpha _2 \nonumber \\&+\frac{1}{2}\sin 2\alpha _1 \sin 2\alpha _2 \times \cos \left( {\Delta \phi _L +\Delta \phi _{NL} } \right) \end{aligned}$$
(1)
$$\begin{aligned} \Delta \phi _L&= \frac{2\pi L}{\lambda }\left( {n_y -n_x } \right) \end{aligned}$$
(2)
$$\begin{aligned} \Delta \phi _{NL}&= -\frac{2\pi L_1 n_2 P}{3A_{eff} \lambda }\cos 2\alpha _1 \end{aligned}$$
(3)
Here, \(\Delta \upphi _{L}\) is the linear phase shift resulting from modal birefringence, \(\Delta \upphi _{NL}\) is the nonlinear phase shift caused by the effects of the SPM and XPM. \(\hbox {n}_\mathrm{x}\) and \(\hbox {n}_\mathrm{y}\) are the refractive indices of the respective fast and slow axes of the optical fiber. \(\hbox {L}_{1}\) is the length of the optical fiber between \(\hbox {PC}_{1}\) and \(\hbox {PC}_{2}\). \(\lambda \) is the operating wavelength, \(\hbox {n}_{2}\) is the nonlinear coefficient, P is the instantaneous peak power of input signal, and \(\hbox {A}_\mathrm{eff}\) is the effective fiber core area.
Fig. 2

Principle of NPR, E: Electric vector of input signal; x: fast axis of SMF; y: slow axis of SMF

From Eq.(1) we can see that the system transmission depends on the linear phase shift due to modal birefringence and the nonlinear phase shift introduced by the nonlinear effects of SPM and XPM as reference Song et al. (2009b) discussed, in the case of different values of angle \(\upalpha _{1}\) and \(\upalpha _{2}\), the transmission of the fiber loop manifests as a trigonometric function of the operating wavelength and the instantaneous peak power. Consequently, the polarization -dependent loss of this system can be changed into wavelength- and intensity-dependent loss as Eq.(1) and Fig. 3. Lasers will emerge at different wavelengths from the round trip with different polarization states. Then lasers can oscillate and be tuned by adjustment of the PCs at multi wavelength. Mode locked laser can be achieved in certain values of \(\upalpha _{1}\) and \(\upalpha _{2}\) based on the principle of nonlinear polarization rotation (NPR) effect Song et al. (2009b).
Fig. 3

The transmittivity(T) against light power(P) induced by NPR

Of course, the \(\hbox {Yb}^{3+}\)-doped fiber is a normal dispersion medium Okhotnikov et al. (2003), which is different to \(\hbox {Er}^{3+}\)-doped fiber, so it is impossible to create soliton pulse without dispersion compensating. Only the anomalous dispersion compensating components are introduced into the cavity, the dispersion can be balanced and soliton pulses can be achieved. It is to say the mode locked pulse is a chirp pulse in the region of normal dispersion when no dispersion compensating component used in ring cavity. In the same time, the interference effect of normal dispersion, SPM and XPM will affect the shape of optical spectrum as the follows experiment analysis.

3 Experimental results and anylsis

Through carefully adjusting the direction angles of the polarization controllers \(\hbox {PC}_{1}\) and \(\hbox {PC}_{2},\,\hbox {Yb}^{3+}\) fiber ring laser can operate with four wavelengths mode-locked modes from 1037.875 nm to 1071.729 nm shown in Fig. 9 continuously when the pumping power is 240 mW. Taking advantage of the intensity-dependent loss induced by the NPR effect which could be used to efficiently suppress the mode competition, the output four wavelengths pulses were stable at room temperature in our experiment.

The pulses have been monitored by a high-speed photodiode (home-made) and an oscilloscope (Model TEXTRONIX 2467) with bandwidths of 10GHz and 350MHz respectively, the corresponding spectrum has been monitored by ADVANTEST Q8384 optical spectrum analyzer. Fig. 4 is autocorrelation traces of the four wavelengths mode-locked signal monitored by autocorrelation device of home-made. From that, we can find that the pulse width is about 31.39 ps and the average output power is about 12.5 mW. As seen in Fig. 9, the spectrum of four wavelengths of mode-locked signal with more than 30 nm tunable range, although the side-mode suppression ratio of the output pulse is larger than 10 dB, the side-mode suppression ratio is very small compared with the side-mode suppression ratio of \(\hbox {Er}^{3+}\)-doped tunable dual-wavelength ultrashort pulse. Song et al. (2009b) We consider that the phenomenon is caused by interference effects between normal group dispersion and self(cross)-phase modulation.

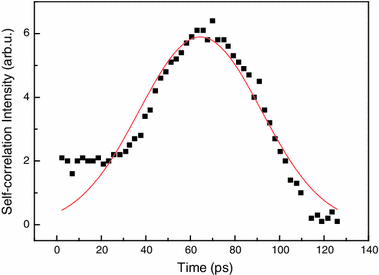

Fig. 4

Autocorrelation traces of the mode-locked signal with tunable four wavelengths (the dot line is experiment data and continuous line is Gaussian fit)

In order to confirm this conclusion, we first decrease the pump power to weaken the self(cross)-phase modulation effect and carefully adjust the direction angles of the polarization controllers \(\hbox {PC}_{1}\) and \(\hbox {PC}_{2}\), the four wavelengths mode locked laser was never obtained and one or dual wavelength continuous laser have been obtained as Fig. 6 and Fig. 7, the side-mode suppression ratio of the output pulse exceed more than 40 dB, when the pumping power change to 240 mW, the continuous laser change to mode locked laser, we consider the transmittivity against light power induced by NPR is largest as shown in Fig. 3 in this time. In other way, when the cavity dispersion is compensated by grating compressor, pulse width will be compressed and the optical spectrum will be stretched as shown in Fig. 5 and 8. The central wavelength of the mode-locked pulse is 1053 nm and the spectral bandwidth (FWHM) is 27 nm. From Fig. 5, we can find that the pulse width is compressed to about 120.2 fs after introducing the grating chirp compressor. Moreover, the relative four wavelengths intensities of lasing wavelengths and the wavelength spacing were not accurately identical, this is because the operating pulses not only satisfy the mode locking condition but also the transmission function.

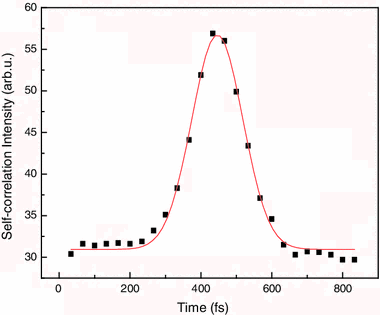

Fig. 5

Autocorrelation traces of the compression Mode-locked signal (the solid curve is Gaussian fit)

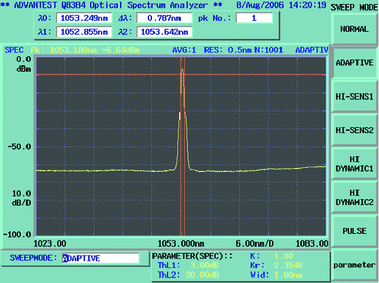

Fig. 6

Spectrum of single wavelength continuous laser

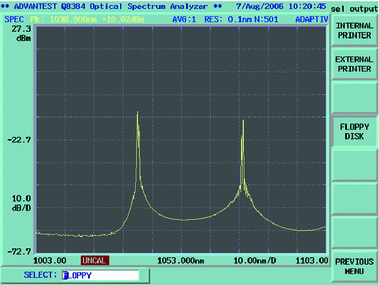

Fig. 7

Spectrum of dual wavelength continuous laser

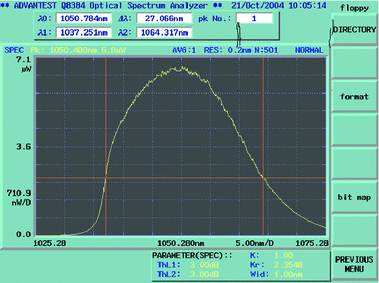

Fig. 8

Spectrum of mode-locked laser with chirping compensation

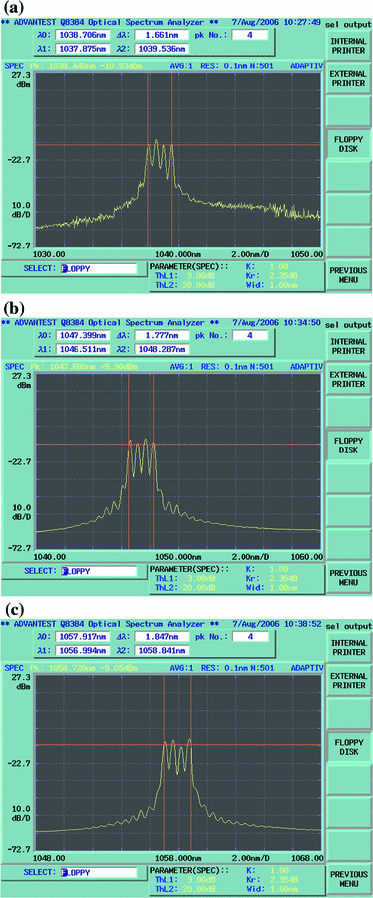

Fig. 9

(a,b,c,d as above four figures) Spectrum of tunable four wavelengths of mode-locked laser

The single peak spectrum width can be expressed Jie et al. (2008) by formula (4) as follows when the multi peak spectrum as above four wavelengths is caused by interference effect between normal group dispersion and self(cross)-phase modulation.
$$\begin{aligned} \delta \lambda =\pm \lambda \sqrt{\frac{2m}{cD}-0.0703\frac{\lambda ^{2}}{\left( {c\tau } \right) ^{2}}} \end{aligned}$$
(4)
Where D is the cavity of passive mode locked \(\hbox {Yb}^{3+}\)-doped fiber laser, its value is 15 ps/nm, c is light velocity, m is integral number, \(\tau \) is pulse width. Calculating by formula (4) using \(\uplambda \) and \(\tau \) are 1053 nm and 31.39 ps respectively, \(\updelta \uplambda \approx 0.7\,\hbox {nm}\), which is in good agreement with the experiment result as in Fig 9 \(\updelta \uplambda \approx 0.67\,\hbox {nm}\).
The interval of dual wavelength spectrum as in Fig. 7 can be expressed Song et al. (2009b) by formula (5):
$$\begin{aligned} \Delta \lambda =\frac{\lambda ^{2}}{\Delta nL_2 } \end{aligned}$$
(5)
Here, \(\Delta \hbox {n}\) and \(\hbox {L}_{2}\) are the average birefringence and cavity length of passive mode locked \(\hbox {Yb}^{3+}\)-doped fiber laser respectively, calculating by formula (5) using \(\Delta \hbox {n}= 3\times 10^{-6}\) and \(\hbox {L}_{2}=10\,\hbox {m}\) respectively, then \(\Delta \uplambda \approx 36.9\,\,\hbox {nm}\), which is in good agreement with the experiment result as in Fig. 7 \(\Delta \uplambda \approx 36\,\,\hbox {nm}\). Single and dual-wavelength switching operation with different wavelength can also be achieved just through adjusting the \(\hbox {PC}_{1}\) and \(\hbox {PC}_{2}\).
In experiment, we carefully adjust the direction angles of the polarization controllers \(\hbox {PC}_{1}\) and \(\hbox {PC}_{2}\), multi-wavelength continuous laser are shown as Fig. 10 when the pumping power is larger than 300 mW. Moreover, we find the shape of the multi-wavelength spectrum is not only influenced by pump power, but also influenced by many factors such as the length of mode locked cavity, the length of \(\hbox {Yb}^{3+}\)-doped fiber, the coupling ratio of the output coupler and so on as reference Yu et al. (2009). We think in this case the transmittivity against light power induced by NPR is in the right region as shown in Fig. 3, for the inhomogeneous gain broaden effect of \(\hbox {Yb}^{3+}\)-doped fiber is obvious than \(\hbox {Er}^{3+}\)-doped fiber, so the multi-wavelength operating is more easily obtained for \(\hbox {Yb}^{3+}\)-doped fiber laser, the no-uniform amplitude of each wavelength is can be found in Fig. 10, which is caused by no-uniform of the \(\hbox {Yb}^{3+}\)-doped fiber’s gain spectrum Jie et al. (2008).

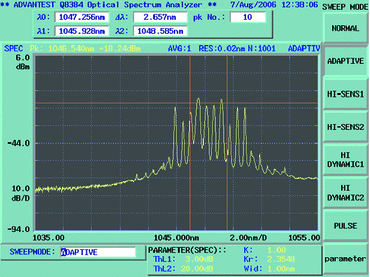

Fig. 10

Spectrum of multi-wavelength continuous laser

For lower pumping power about 50 mW and 180 mW, the Q-switched mode-locked pulse and Q-switched pulse can be obtained respectively. The generation of Q-switched mode-locked or Q-switched pulse are influenced by pump power, direction angles of the polarization controllers \(\hbox {PC}_{1}\) and \(\hbox {PC}_{2}\) and so on Gan et al. (2006), Sanchez et al. (2008). The pump power is more than 400 mW with two LD pumping, multi pulses phenomenon Komarov et al. (2006) has been observed. At the same time we observe the hysteresis phenomenon when the pump power decreases to the threshold of mode locked laser as reference Yu et al. (2009).

4 Conclusion

Tunable four wavelengths, single wavelength, double wavelengths, multi-wavelengths of passive mode locked \(\hbox {Yb}^{3+}\)-doped fiber laser were investigated in detail, tunable four wavelengths can be obtained only by adjusting the polarization controller carefully in the cavity and choosing the devise parameter of laser appropriately. The tuning range is more than 30 nm, The side-mode suppression ratio of the output pulse is larger than 10 dB. At the same time, single wavelength, double wavelengths and multi wavelengths have been all obtained, the experiment results are in good agreement with our theory analysis.

References

  1. Bellemare, A., Karasek, M., Rochette, M., Larochelle, S., Tetu, M.: Room temperature multifrequency erbiumdoped fiber lasers anchored on the ITU frequency Grid. IEEE Photon. Technol. Lett. 18, 825–831 (2000)Google Scholar
  2. Chen, L.R., et al.: Dual-wavelength, actively mode-locked fiber laser with 0.7 nm wavelength spacing. Electron. Lett. 36, 1921–1923 (2000)CrossRefGoogle Scholar
  3. Feng, J., Xu, W., Ye, H.: Calculation and Experiment of Spectral Sideband Offset in Ring Cavity Fiber Laser by Nonlinear Polarization Rotation. CHINESE JOURNAL OF LASERS 35(9), 1333–1337 (2008)CrossRefGoogle Scholar
  4. Fenga, X., Tama, H., Waib, P.K.A.: Stable and uniform multiwavelength erbium doped fiber laser using nonlinear polarization rotation. OPTICS EXPRESS 14(18), 8205–8210 (2006)ADSCrossRefGoogle Scholar
  5. Gan, Y., Xiang, W.H., Zhang, G.Z.: Studies on Ytterbium-doped Fiber Laser Operating in Different Regimes. Journal of Physics: Conference Series 48, 795–799 (2006)ADSGoogle Scholar
  6. Gong, Y., et al.: Dual-wavelength 10-GHz actively mode-locked erbium fiber laser incorporating highly nonlinear fibers. IEEE Photon. Technol. Lett. 17(12), 2547–2549 (2005)ADSCrossRefGoogle Scholar
  7. Gong, Y.D., Tian, X.L., Tang, M., Shum, P., Chia, M.Y.W., Paulose, V., Wu, J., Xu, K.: Generation of dual wavelength ultrashort pulse outputs from a passive mode locked fiber ring laser. Optics Communications 265, 628–631 (2006)ADSCrossRefGoogle Scholar
  8. Hayahi, R., Yamashita, S.: Multiwavelength, active mode-locked Polarization Maintaining fiber laser at 10 GHz. OFC2003, TuL6, pp. 239–240 (2003)Google Scholar
  9. Kivist, S., Herda, R., Okhotnikov, O.G.: Electronically Tunable Yb-Doped Mode-Locked Fiber Laser. IEEE Photonics technology letters. 20(1), 51–53 (2008)ADSCrossRefGoogle Scholar
  10. Komarov, A., Leblond, H., Sanchez, F.: Multiple pulses operation of a passively mode-locked ytterbium-doped fiber laser. Proc. of SPIE 6255, 62550P–1-9, 2006Google Scholar
  11. Li, S., Chan, K.T.: Electrical wavelength tunable and multiwavelength actively mode-locked fiber ring laser. Appl. Phys. Lett. 72, 1954–1956 (1998)ADSCrossRefGoogle Scholar
  12. Li, Y., Lou, C., Wu, J., Wu, B., Gao, Y.: Novel method to simultaneously compress pulses and suppress suppermode noise in actively mode-locked fiber ring laser. IEEE Photon. Technol. Lett. 10, 1250–1252 (1998)ADSCrossRefGoogle Scholar
  13. Li, Z., Zhao, W., Zhang, W., Chen, G., Wang, Y.: Continuously tuning fiber lasers with wavelength of mode-locked pulses. ACTA PHOTONICA SINICA 38(1), 2–4 (2009)Google Scholar
  14. Lou, J.W., Carruthers, T.F., Currie, M.: 4\_10 GHz mode-locked multiple-wavelength fiber laser. IEEE Photon. Technol. Lett. 16(1), 51–53 (2004)ADSCrossRefGoogle Scholar
  15. Mielke, M., Alphonse, G.A., Delfyett, P.J.: 168 channels 6 GHz from a multiwavelength mode-locked semiconductor laser”, IEEE Photon. Technol. Lett. 4, 501–503 (2003)CrossRefGoogle Scholar
  16. Okhotnikov, O.G., Gomes, L., Xiang, N., Jouhti, T., Grundinin, A.B.: Mode-locked ytterbium fiber laser tunable in the 980–1070-nm spectral range. Opt. Lett. 28, 1522–1524 (2003)ADSCrossRefGoogle Scholar
  17. Pudo, D., Chen, L.R.: Actively modelocked, quadruple-wavelength fiber laser with pump-controlled wavelength switching. Electron. Lett. 39, 272–274 (2003)CrossRefGoogle Scholar
  18. Sanchez, F., Leblond, Herve, Salhi, M., Komarov, A., Haboucha, A.: Models for Passively Mode-Locked Fiber Lasers. Fiber and Integrated Optics 27(5), 370–391 (2008)ADSCrossRefGoogle Scholar
  19. Schultz, M., Karow, H., Wandt, D., Morgner, U., Kracht, D.: Ytterbium femtosecond fiber laser without dispersion compensation tunable from 1015 nm to 1050 nm. Optics Communications 282, 2567–2570 (2009)ADSCrossRefGoogle Scholar
  20. Song, C., Xu, W., Luo, Z., Chen, W., Gao, Y., Liu, S.: Tunable Mode-Locked Pulsed Erbium-Doped Fiber Ring Laser. ACTA OPTICA SINICA 29(5), 1292–1295 (2009a)CrossRefGoogle Scholar
  21. Song, C., Xu, W., Luo, Z., Luo, A., Chen, W.: Switchable and tunable dual-wavelength ultrashort pulse generation in a passively mode-locked erbium-doped fiber ring laser. Optics Communications 282(22), 4408–4412 (2009b)ADSCrossRefGoogle Scholar
  22. Tu, C., Guo, W., Li, Y., Zhang, S., Lu, F.: Stable multiwavelength and passively mode-locked Yb-doped fiber laser based on nonlinear polarization rotation. Optics Communications 280, 448–452 (2007)ADSCrossRefGoogle Scholar
  23. Vlachos, K., Zoiros, K., Houbavlis, T., Avramopoulos, H.: 10 x 30 GHz pulse train generation from semiconductor amplifier fiber ring laser. IEEE Photon. Technol. Lett. 12, 25–27 (2000)ADSCrossRefGoogle Scholar
  24. Wey, J.S., Goldhar, J., Burdge, G.L.: Active harmonic mode-locked of an erbium fiber laser with intracavity Fabry-Perot filters. J. Lightwave Technol. 33, 1171–1180 (1997)ADSGoogle Scholar
  25. Yao, J., Yao, J.P., Wang, Y., Tjin, S.C., Zhou, Y., Lam, Y.L., Liu, J., Lu, C.: Tunable active mode-locked multiwavelength fiber ring laser. Opt. Commun. 191, 341–345 (2001)ADSCrossRefGoogle Scholar
  26. Yeh, C.H.: Stabilized dual-wavelength erbium-doped dual ring fiber laser. OPTICS EXPRESS 15(21), 13844–13848 (2007)ADSCrossRefGoogle Scholar
  27. Zhao, Y., Yongzhi, L., Deshuang, Zhao, Huang, L., Dai, Z.: Study on Side Bands in Passively Mode-Locked Fiber Laser. ACTA OPTICA SINICA 29(4), 991–995 (2009). (in chinese)CrossRefGoogle Scholar
