Local distribution of radioactivity in tree leaves contaminated by fallout of the radionuclides emitted from the Fukushima Daiichi Nuclear Power Plant

Abstract

We analyzed fresh and dead leaves collected in forests in Fukushima after the Fukushima Daiichi Nuclear Power Plant (FDNPP) accident, using autoradiography. Both fresh and dead leaves of Cryptomeria japonica were contaminated by radionuclides (134Cs and 137Cs). Contamination of the fresh leaves was possibly attributed to interception of radionuclides by tree canopies, whereas the dead leaves indicated the direct deposition of radionuclides by fallout and/or washout of radionuclides intercepted by tree canopies. Translocation of radiocesium from a contaminated branch to new leaves growing after the FDNPP accident was not clearly observed, although transfer of radiocesium from leaf parts to male flowers occurred. Fallen leaves of Quercus serrata, which started growing after the FDNPP accident, did not show radioactivity, indicating that significant amounts of translocation from other parts to new leaves did not occur. Fallen leaves of Q. serrata collected from a litter showed hot spots originating from direct fallout. Needles of Pinus densiflora were also contaminated by fallout. Leaching with pure water removed soluble fractions of radiocesium and hot particles from the surface of the contaminated leaves, but significant amounts of radioactivity remained. This means that foliar absorption occurred in both fresh and dead leaves. Further leaching experiments using surfactant and acetone could not remove the remaining radiocesium from the leaves. The leaching experiments indicate that radiocesium in the contaminated leaves is strongly fixed in leaf tissues and is not readily released unless leaf tissues are decomposed.

This is a preview of subscription content, access via your institution.

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6

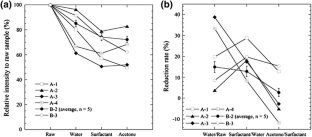

Fig. 7
Fig. 8

References

  1. 1.

    Chino M, Nakayama H, Nagai H, Terada H, Katata G, Yamazawa H (2011) J Nucl Sci Technol 48:1129–1134

    Article  CAS  Google Scholar

  2. 2.

    Kinoshita N, Sueki K, Sasa K, Kitagawa J, Ikarashi S, Nishimura T, Wong Y, Satou Y, Handa K, Takahashi T, Sato M, Yamagata T (2011) PNAS 108:19526–19529

    Article  CAS  Google Scholar

  3. 3.

    Yoshida N, Takahashi Y (2012) Elements 8:201–206

    Article  CAS  Google Scholar

  4. 4.

    Kato H, Onda Y, Teramage M (2012) J Environ Radioact 111:59–64

    Article  CAS  Google Scholar

  5. 5.

    Ohno T, Muramatsu Y, Miura Y, Oda K, Inagawa N, Ogawa H, Yamazaki A, Toyama C, Sato M (2012) Geochem J 46:287–295

    CAS  Google Scholar

  6. 6.

    Tanaka K, Takahashi Y, Sakaguchi A, Umeo M, Hayakawa S, Tanida H, Saito T, Kanai Y (2012) Geochem J 46:73–76

    CAS  Google Scholar

  7. 7.

    Cremers A, Elsen A, De Preter P, Maes A (1988) Nature 335:247–249

    Article  CAS  Google Scholar

  8. 8.

    Bostick BC, Vairavamurthy MA, Karthikeyan KG, Chorover J (2002) Environ Sci Technol 36:2670–2676

    Article  CAS  Google Scholar

  9. 9.

    Shimamoto YS, Takahashi Y, Terada Y (2011) Environ Sci Technol 45:2086–2092

    Article  CAS  Google Scholar

  10. 10.

    Qin H, Yokoyama Y, Fan Q, Iwatani H, Tanaka K, Sakaguchi A, Kanai Y, Zhu J, Takahashi Y (2012) Geochem J 46:297–302

    CAS  Google Scholar

  11. 11.

    Ronneau C, Cara J, Apers D (1987) The deposition of radionuclides from Chernobyl to a forest in Belgium. Atmospheric Environ 21:1467–1468

    Article  CAS  Google Scholar

  12. 12.

    Scotti IA, Silva S (1992) J Environ Radioact 16:97–108

    Article  CAS  Google Scholar

  13. 13.

    Topcuoǧlu S, Güngör N, Köse A, Varinlioǧlu A (1997) J Radioanal Nucl Chem 218:263–266

    Article  Google Scholar

  14. 14.

    Desmet G, Myttenaere C (1988) J Environ Radioact 6:197–202

    Article  Google Scholar

  15. 15.

    Bunzl K, Schimmack W, Kreutzer K, Schierl R (1989) Sci Total Environ 78:77–87

    Article  CAS  Google Scholar

  16. 16.

    Ronneau C, Sombre L, Myttenaere C, Andre P, Vanhouche M, Cara J (1991) J Environ Radioact 14:259–268

    Article  CAS  Google Scholar

  17. 17.

    Ito S, Nakagawa M, Buckley GP, Nogami K (2003) J For Res 8:49–57

    Article  Google Scholar

  18. 18.

    Ministry of Agriculture, Forestry and Fisheries, Japan (MAFF) (2012) http://www.rinya.maff.go.jp/j/press/hozen/120208.html. Accessed 7 July 2012 (in Japanese)

  19. 19.

    TU Hardwood Research Project (2011) In: Furukawa I, Hioki Y, Yamamoto F (eds) Management and utilization of broad-leaved trees. Kaiseisha Press, Ootsu

    Google Scholar

  20. 20.

    Ruzin SE (1999) Plant microtechnique and microscopy. Oxford University Press, New york

    Google Scholar

  21. 21.

    Hasegawa H, Tsukada H, Kawabata H, Chikuchi Y, Takaku Y, Hisamatsu S (2009) J Environ Radioact 100:54–57

    Article  CAS  Google Scholar

  22. 22.

    Sakamoto F, Ohnuki T, Kozai N, Igarashi S, Yamasaki S, Yoshida Z, Tanaka S (2012) Trans At Energy Soc Jpn 11:1–7

    Article  CAS  Google Scholar

  23. 23.

    Levi E (1970) Physiol Plant 23:811–819

    Article  CAS  Google Scholar

Download references

Acknowledgments

We thank Dr. H. Doi for his support in microscope observation of leaf samples. This work was carried out in the FMWSE project (Fukushima Radiation Monitoring of Water, Soil and Entrainment) supported by MEXT (Ministry of Education, Culture, Sports, Science & Technology in Japan).

Author information

Affiliations

Authors

Corresponding author

Correspondence to Kazuya Tanaka.

Rights and permissions

Reprints and Permissions

About this article

Cite this article

Tanaka, K., Iwatani, H., Sakaguchi, A. et al. Local distribution of radioactivity in tree leaves contaminated by fallout of the radionuclides emitted from the Fukushima Daiichi Nuclear Power Plant. J Radioanal Nucl Chem 295, 2007–2014 (2013). https://doi.org/10.1007/s10967-012-2192-1

Download citation

Keywords

  • Fukushima
  • Radioactivity
  • Radiocesium
  • Tree leaves
  • Autoradiography
