Stabilization of bulk aggregation state in semiconducting polymer solutions

Chi Chung Hua; Chih Jung Lin; Yu Ho Wen; Show An Chen

doi:10.1007/s10965-010-9476-3

Journal of Polymer Research

July 2011, Volume 18, Issue 4, pp 793–800 | Cite as

Stabilization of bulk aggregation state in semiconducting polymer solutions

Authors
Authors and affiliations

Chi Chung HuaEmail author
Chih Jung Lin
Yu Ho Wen
Show An Chen

Original Paper

First Online: 28 July 2010

Received: 01 April 2010

Accepted: 15 July 2010

95 Downloads
3 Citations

Abstract

Stabilization of the aggregation state in semiconducting conjugated polymer solutions during sample preparation or flow processing, such as spin coating or ink-jet printing, is crucial to warrant controllable thin-film properties for applications with polymer-based light emitting diodes (PLED). Flow-turbidity measurements on the solutions made of a widely studied conjugated polymer revealed, for the first time, that flow could result in instant and/or persistent changes in the bulk aggregation state. Current observations, nevertheless, suggested that a combination of moderately high polymer concentration and intermediately poor solvent quality can substantially stabilize the aggregation state at the stages of sample preparation, prolonged storage, and flow processing.

Keywords

Aggregate Flow-turbidity Semiconducting polymer solution

This is a preview of subscription content, to check access.

Notes

Acknowledgement

This paper is dedicated to the memory of Prof. Wunshain Fann. The support from the National Science Council of ROC under Grant No. 98-2752-E-007-002-PAE is gratefully acknowledged.

Appendix

The Mie theory for analyzing the light-turbidity data involves the following set of equations [16, 17]:

$$ {\tau_{\rm{T}}} = - \frac{1}{L}\ln \left( {\frac{I}{{{I_0}}}} \right) = - \frac{1}{L}\ln (T) $$

(A1)

$$ {\tau_{\rm{T}}} = N{C_{\rm{sca}}} $$

(A2)

$$ {C_{\rm{sca}}} = {Q_{\rm{sca}}}\pi R_{\rm{Mie}}^2 $$

(A3)

$$ {Q_{\rm{sca}}} = \left( {\frac{2}{{{\alpha^2}}}} \right)\sum\limits_{i = 1}^\infty {\left( {2i + 1} \right)\left\{ {{{\left| {{a_i}} \right|}^2} + {{\left| {{b_i}} \right|}^2}} \right\}} $$

(A4)

$$ \alpha = \frac{{2\pi {R_{\rm{Mie}}}}}{\lambda } $$

(A5)

$$ m = \frac{{{n_{\rm{p}}}}}{n} $$

(A6)

$$ {a_i} = \frac{{{\psi_i}\left( \alpha \right)\psi_{_i}^\prime \left( {m\alpha } \right) - m{\psi_i}\left( {m\alpha } \right)\psi_{_i}^\prime \left( \alpha \right)}}{{{\zeta_i}\left( \alpha \right)\psi_{_i}^\prime \left( {m\alpha } \right) - m{\psi_i}\left( {m\alpha } \right)\zeta_{_i}^\prime \left( \alpha \right)}} $$

(A7)

$$ {b_i} = \frac{{m{\psi_i}\left( \alpha \right)\psi_{_n}^\prime \left( {m\alpha } \right) - {\psi_i}\left( {m\alpha } \right)\psi_{_i}^\prime \left( \alpha \right)}}{{m{\zeta_i}\left( \alpha \right)\psi_{_i}^\prime \left( {m\alpha } \right) - {\psi_i}\left( {m\alpha } \right)\zeta_{_i}^\prime \left( \alpha \right)}} $$

(A8)

The symbols have the following significance: τ _T is the light turbidity, L the path length of light passing through the sample, N the number of scattering centers per unit volume, C _sca the total light energy scattered by one spherical particle, Q _sca the scattering efficiency, R _Mie the Mie radius, ψ _i(x) the Riccati-Bessel function, ς _i(x) the Hankel function, λ the wavelength of incident light in the medium (=λ ₀/n), n _p the refractive index of the scattering particle, n the refractive index of the solvent medium.

Using the above relations, the specific turbidity has been derived to be [18,19]

$$ \left( {\frac{{{\tau_{\rm{T}}}}}{c}} \right) = \left( {\frac{{3\pi }}{{2\lambda {\rho_{\rm{p}}}}}} \right)\left( {\frac{{{Q_{\rm{sca}}}}}{\alpha }} \right){,} $$

(A9)

where ρ _p is particle density, and c (g/ml) is the particle concentration. Equations A1 to A9 can be utilized to compute the specific turbidity as a function of Mie radius, as shown in Fig. 6. In estimating the refractive index of MEH-PPV aggregates, the Gladstone-Dale equation was employed [16]:

$$ \left( {m - 1} \right)n = \left( {{n_0} - n} \right)\phi $$

(A10)

where n ₀ (=1.882) is the refractive index of MEH-PPV at solid state, n (=1.486) is the refractive index of DOP, and ϕ is the mean volume fraction of MEH-PPV within an aggregate cluster. To obtain a rough estimate of ϕ, we have utilized the fact that the solvent quality of MEH-PPV/DOP is similar to that of MEH-PPV/toluene [12], so that the known monomeric density for the latter system [3] may be employed to obtain an estimate of ϕ = 0.248. For simplicity, the present analysis ignored possible concentration dependences of ϕ. Accordingly, m in Eqs. A6 and A10 is found to be 1.066

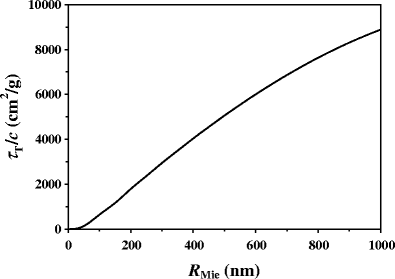

Fig. 6
A computation result of the specific turbidity as a function of Mie radius

.

References

1.
Braun D, Heeger AJ (1991) Appl Phys Lett 58:1982CrossRefGoogle Scholar
2.
Burroughes JH, Bradley DDC, Brown AR, Marks RN, Mackay K, Friend RH, Burns PL, Holmes AB (1990) Nature 347:539CrossRefGoogle Scholar
3.
Lee CK, Hua CC, Chen SA (2008) J Phys Chem B 112:11479CrossRefGoogle Scholar
4.
Chen SH, Su AC, Huang YF, Su CH, Peng GY, Chen SA (2002) Macromolecules 35:4229CrossRefGoogle Scholar
5.
Collison CJ, Rothberg LJ, Treemaneekarn V, Li Y (2001) Macromolecules 34:2346CrossRefGoogle Scholar
6.
Nguyen T-Q, Doan V, Schwartz BJ (1999) J Chem Phys 110:4068CrossRefGoogle Scholar
7.
Shi Y, Liu J, Yang Y (2000) J Appl Phys 87:4254CrossRefGoogle Scholar
8.
Hua CC, Kuo CY, Chen SA (2008) Appl Phys Lett 93:123303CrossRefGoogle Scholar
9.
Lee CK, Hua CC, Chen SA (2009) J Phys Chem B 113:15937CrossRefGoogle Scholar
10.
Bird RB, Armstrong RC, Hassager O (1987) Dynamics of polymeric liquids, vol. 1 fluid mechanics, 2nd edn. Wiley-Interscience, New YorkGoogle Scholar
11.
de Gans B-J, Duineveld PC, Schubert US (2004) Adv Mater 16:203CrossRefGoogle Scholar
12.
Shie SC, Hua CC, Chen SA (2007) Macromol Theory Simul 16:111CrossRefGoogle Scholar
13.
Hua CC, Chen CL, Chang CW, Lee CK, Chen SA (2005) J Rheol 49:641CrossRefGoogle Scholar
14.
Thiele ES, French RH (1998) J Am Ceram Soc 81:469CrossRefGoogle Scholar
15.
Berne BJ, Pecora R (2000) Dynamic light scattering. Dover, New YorkGoogle Scholar
16.
Kerker M (1969) The scattering of light and other electromagnetic radiation. Academic, New YorkGoogle Scholar
17.
van de Hulst HC (1981) Light scattering by small particles. Dover, New YorkGoogle Scholar
18.
Heller W, Pangonis WJ (1957) J Chem Phys 26:498CrossRefGoogle Scholar
19.
Liberatore MW, McHugh AJ (2005) J Non-Newton Fluid Mech 132:45CrossRefGoogle Scholar
