Children’s Participation in a Virtual Epidemic in the Science Classroom: Making Connections to Natural Infectious Diseases
- First Online:
- Cite this article as:
- Neulight, N., Kafai, Y.B., Kao, L. et al. J Sci Educ Technol (2007) 16: 47. doi:10.1007/s10956-006-9029-z
- 1.2k Downloads
This study investigated students’ understanding of a virtual infectious disease in relation to their understanding of natural infectious diseases. Two sixth-grade classrooms of students between the ages of 10 and 12 (46 students) took part in a participatory simulation of a virtual infectious disease, which was integrated into their science curriculum. The results from our analyses reveal that students perceived the simulation as similar to a natural infectious disease and that the immersive components of the simulation afforded students the opportunity to discuss their understandings of natural disease and to compare them to their experiences with the virtual disease. We found that while the virtual disease capitalized on students’ knowledge of natural infectious disease through virtual symptoms, these symptoms may have led students to think of its transfer more as an observable or mechanical event rather than as a biological process. These findings provide helpful indicators to science educators and educational designers interested in creating and integrating online simulations within classroom environments to further students’ conceptual understanding.
Keywordsmulti-user virtual environment infectious disease classroom simulation
Despite advances in medicine and technology, the prevalence of certain infectious diseases still persists, as does the fear of contracting infectious diseases. In 2003 more than 8,000 people were infected and over 700 people died because of the Severe Acute Respiratory Syndrome (SARS) (Centers for Disease Control and Prevention). Similarly, in 2004, there was national panic when the initial demand for the flu vaccine exceeded its supply and many people who wanted to be vaccinated could not (CBS News, 2004). Research has shown that children and adults have a difficult time understanding how an individual contracts an infectious disease, what causes these diseases to spread, and how diseases can be prevented (Au et al., 1999; Kalish, 1999; Sigelman et al., 1996a). For these reasons, the National Science Education Standards (NRC, 1995) include the study of infectious disease at every grade level from grades 5–12 to increase understanding and help prevent disease spread.
There have been a number of instructional approaches that include textbooks, hands-on classroom experiments, and educational technologies to teach students about infectious diseases (Centers for Disease Control and Prevention; Science Education Partnership Award Program). More recently, researchers have started investigating various forms of participatory simulations as a way to teach students about infectious diseases (Colella, 2000; Hug et al., 2001; Wilensky and Stroup, 1999). Several features of participatory simulations are of instructional relevance for learning about infectious disease. For example, in some participatory simulations learners can create online representations of themselves, also called avatars. Also, since some participatory simulations have hundreds of thousands of registered users and thousands of concurrent users, learners can simulate in real time the spread of a disease for a similar duration of a natural disease outbreak.
This paper investigates the integration of a multi-user virtual environment (MUVE), called Whyville, within classroom curriculum about infectious disease. In this study, two classes with a total of 46 sixth-grade students became members of Whyville and were able to access the website at home and during science class where they learned about infectious diseases. The students created avatars in Whyville, which experienced the outbreak and spread of a virtual epidemic called Whypox during a 4-week period. When an avatar had the disease, two important aspects of online participation were affected—the avatar’s appearance and the ability to chat with other Whyville participants. The feature of having the avatar’s appearance change allows users to experience diseases without direct physical harm to the participant, which would be difficult to replicate in real life due to ethical considerations.
Our study investigated the integration of a virtual infectious disease called Whypox within science classroom curriculum and its relationship to students’ understanding of natural infectious diseases. We wanted to understand in which ways students perceived Whypox as a natural disease and thus isolate design features that might create more effective integrations and simulations of disease in the future. Lastly, we wanted to know how students draw on their participation within a virtual disease simulation in order to expand on their knowledge of natural infectious diseases. The following literature review situates the participation in a virtual epidemic within the larger body of participatory simulations before addressing how participation in a participatory simulation might enhance children’s understanding of natural infectious disease.
In educational settings, students have been taught about infectious diseases through a variety of instructional approaches such as textbooks, hands-on classroom experiments, and educational technologies (Centers for Disease Control and Prevention; Science Education Partnership Award Program). Some of these interventions used infectious disease as a medium to teach about science inquiry (Hug et al., 2001), while other studies focused on teaching about aspects of infectious disease such as the biology of germs (Au et al., 1999), latency and immunity (Colella, 2000), or the probability of getting a disease (Wilensky and Stroup, 1999). Individually these studies tapped specific aspects of how children understand infectious disease and how to better teach about these aspects of infectious disease.
A more recent development to teach about infectious disease is the use of participatory simulations (Colella, 2000; Hug et al., 2001; Wilensky and Stroup, 1999). An educational simulation has been defined as a model of some phenomenon or activity that users learn about through interaction with the simulation (Alessi and Trollip, 2001). However, simply modeling or imitating the central features of a situation does not render an activity a simulation- in a simulation the user must have the experience of playing a genuine role and experience consequences of one’s actions (Gredler, 1996).
In a computer-supported participatory simulation, students can experience a phenomenon such as disease spread repeatedly because the teacher or designer can experimentally vary the disease. Participatory simulations have differed from one another in three dimensions: the virtual reality component, which refers to how faithfully a real-life environment is replicated visually, functionally, aurally, and sometimes kinesthetically (Alessi and Trollip, 2001); the scale, which refers to the number of participants that can participate concurrently in a single simulation and ranges from a single classroom to hundreds of thousands of participants; and the type of platform, which at the time of this study referred to two distinct types—wearable or hand held computers (Colella, 2000; Hug et al., 2001; Krajcik et al., 1998) and computer-based online multi-user environments (Aschbacher, 2003; Foley and La Torre, 2004).
Two features of participatory simulations have been salient to the study of infectious diseases—the ability to increase the user’s immersiveness or feeling of presence in the simulation and the integration of the simulation into the classroom curriculum. For example, in one group of studies in which high school students used wearable computers called Thinking Tags to learn about latency of a virus, probability for infection, and immunity, the students felt that they had experienced a disease (Colella, 2000). Each Thinking Tag had an infrared transmitter and receiver that exchanged information with the other tags in the simulation and then displayed to the user information such as how many people the Thinking Tag had met that were sick. The Thinking Tags were used within a single classroom and each simulation lasted minutes. Findings from this study showed that with the Thinking Tags, students made references to themselves as being infected and were able to communicate naturally with each other, which seemed to encourage communication about disease. A limitation in this research was that specific assessments of students’ learning were not conducted in the study.
Also, participatory simulations have been successfully integrated into classroom curriculums about infectious disease. For example, an eight-week curriculum called “Can Good Friends Make You Sick?” included the use of Thinking Tags by a class of eighth graders learning about the biology of communicable diseases (Hug et al., 2001). While the curriculum in that study included infectious disease, only students’ levels of inquiry and engagement were assessed. A relevant finding to the present study was that as students became more familiar with how the computer devices operated, they began to engage in more sophisticated levels of science inquiry.
While the Thinking Tags were designed for a single classroom to use, other participatory simulations termed multi-user virtual environments (MUVEs) have been used to access a virtual world on the Internet. At the time of this study, there were two such environments that included the study of infectious disease—River City and Whyville. The main difference between these two MUVEs was the role of the student’s avatar or online representation. In River City (Dede et al., 2002) students learned about how infectious disease spread and the process of scientific inquiry by examining the sanitary conditions and disease spread in the 19th century. Students used their avatars to interview the city’s virtual inhabitants and collect data about sanitary conditions within the city but the avatars did not experience the diseases themselves. However, in Whyville, students through their avatars experienced firsthand the outbreak of a virtual epidemic called Whypox.
For our study, we combined aspects of the approaches discussed above. We used an existing, thriving participatory simulation that was a MUVE, called Whyville, and integrated the technology use within a classroom curriculum on infectious disease. The main difference between our study and the studies on participatory simulations with wearable or handheld computers (Colella, 2000; Hug et al., 2001) was scale. While these previous studies were conducted in single classrooms where an outbreak lasted only a minute, in Whyville a single outbreak of Whypox could last up to two months depending on the population of Whyville and the chosen disease vector at the time of the outbreak. We believe that the large scale would allow for students to become more fluent with the technical aspects of the medium in addition to providing students with more time to both participate in a virtual disease epidemic and observe its impact. Our study differed from previous research on Whyville in that we wanted to examine how the participation in a virtual disease related to students’ understanding of natural disease. Prior research on Whyville focused on how the introduction of the virtual disease and related disease activities on the Whyville site had increased user online discussion about the spread and cure of Whypox (Foley and La Torre, 2004).
To understand the extent to which students related Whypox to natural infectious disease, we examined classroom discussion between the teacher and the students. Prior research has shown how classroom discourse can provide opportunities for science inquiry (Gallas, 1995; Kafai and Ching, 2001; Lemke, 1990). In line with this research, we looked at how class discussions might afford connections of a virtual infectious epidemic to natural infectious diseases.
We also examined students’ understanding of how disease spreads and how to prevent disease from occurring. Researchers have shown that children have difficulty understanding these concepts (Au et al., 1999; Kalish, 1999; Obeidallah et al., 1993; Siegal, 1988; Siegal and Peterson, 1999; Sigelman et al., 1996b; Solomon and Cassimatis, 1999). Of particular interest to the present study was Au and Romo’s (1996) model of children’s conceptualization of disease because their assessment tools evaluated students’ reasoning about what caused disease. Au’s research team developed a four-point rubric that was used to assess children’s understanding of four biological phenomena: food contamination, illness, genetics, and infectious disease. Children’s understanding of each phenomenon was evaluated according to how students reasoned about a scenario. If students included a biological causal explanation, (e.g., a person got sick because germs grew, reproduced, and attacked cells), their response was given a higher score than a response that included only a non-biological cause (e.g., a person got sick because he was not wearing a coat). Like other research (Parmelee, 1992), Au’s focus on the explicit teaching to children about the causes of infectious disease was based on the assumption that without science instruction, children and adults did not automatically reason coherently about biological phenomena such as the spread of infectious disease. In line with Au’s research, children who did not have this science instruction tended to reason about biological phenomena by applying their knowledge of people and everyday observable behaviors to explain the cause.
Context of study
Participants were 46 sixth-grade students, an equal number of boys and girls, in two classes taught by the same science teacher. The students attended a laboratory school that is affiliated with a large, urban university and comprised of a diverse ethnic sample: 27% Latino, 13% African-American, 13% Asian, and 47% Caucasian. Two-thirds of the families receive tuition assistance based on a sliding scale. Over 85% of these students have computer and Internet access from their homes (Kafai and Sutton, 1999). All students received parental consent and provided assent for participation in the study. The classroom teacher had over 20 years of experience working in elementary schools and teaching science.
Classroom activities and discussions were videotaped. The videotaped whole-class discussions were used to determine how students and teachers used Whypox in their discussions about natural infectious disease. Two surveys were developed to assess students’ understanding of natural infectious diseases and their perceptions of Whypox as a natural disease.
One video camera was used to record whole-class discussions that took place throughout the study. During the whole-class recordings, a microphone was placed near the teacher. This resulted in approximately 6 hours of videotaped whole-class discussions focused on Whyville activities.
Whyville and the Classroom Curriculum
The use of Whyville was integrated into a 10-week teacher-led curriculum about infectious diseases. Some of the activities that students participated in as part of their science curriculum included: watching videos about specific diseases and the nature of germs; examining cell structures under the microscope; doing hands-on experiments that simulated the spread of an infectious disease; completing worksheets about cells, bacteria, and viruses; and using online tools to research specific diseases. These activities took place throughout the study, even after Whyville was introduced to the students in the third week of the study when students started to log on to Whyville for at least 10 minutes every science class.

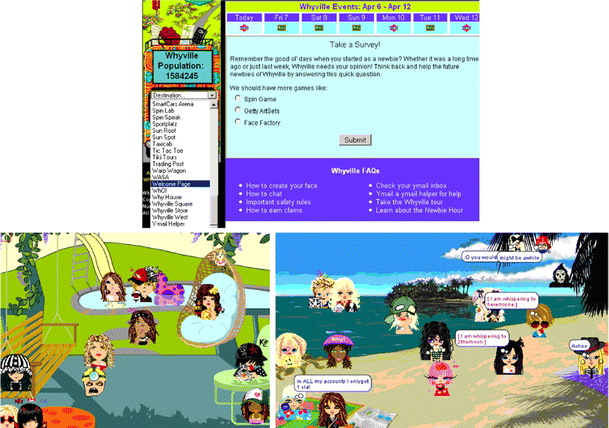

Students had access to the Whyville website during school hours and after-school hours. Each member of Whyville was represented by a screen name and avatar, which was a member’s online headshot that appeared on the screen after a member logged on to the website. A member could augment his or her avatar by buying or creating face parts.
Infectious Disease Survey
“Cathy went over to see her friend who was sick. Some bad germs got inside her body. She felt okay for a day. But then the next day she started to feel sick all over her whole body. Her head ached and her stomach hurt and her throat hurt—all at the same time. (a) Why did it take a whole day for her to feel sick after the germs got inside her body? (b) How did the germs make her feel sick in so many parts of her body at the same time?”
The disease survey was administered at week 1, the beginning of the study, and week 10, the end of the study.
To determine whether students connected the virtual disease to natural disease, we developed a survey to examine students’ understanding of the virtual disease Whypox and asked students to compare their understanding of Whypox to natural infectious diseases and to report about their online experiences with Whypox. The Whypox survey was administered at week ten, the end of the study.
Before and after the curriculum unit on infectious diseases, the infectious disease survey was given to all students by the researchers. The Whypox survey was administered only at the end of the unit. All classroom sessions were videotaped. One to two researchers of the team of five researchers observed each science class throughout this study. The research team consisted of university faculty, a postdoctoral fellow, and graduate students. The researchers administered the evaluation instruments and videotaped class discussions.
The first part of analysis examined the whole-class discussions about Whypox using transcripts of the videotaped classroom discussions while the second part of analysis coded students’ survey responses about natural and virtual infectious disease.
Relating Virtual Disease to Natural Infectious Disease in Discussions
Video segments of whole-class discussion were examined in order to determine the efforts used by the teacher and the students to connect their Whypox experience with what they had learned about natural infectious diseases. The video segments were selected from one of the classes only because there were no performance differences between the two classes on students’ survey responses. The video segments we wanted to analyze occurred after the outbreak of Whypox and contained discussions about Whypox. After viewing these seven segments, four video segments, a total of 4 h, met the above criteria and were transcribed completely. Conversations, but not behaviors, were transcribed.
After reading the video transcriptions, we developed thematic categories that were derived from theory, that classroom discourse can provide opportunities for science inquiry (Lemke, 1990). The video segments were coded using three thematic categories: (1) the use of infectious disease terminology in relation to Whypox (e.g., “Whypox was like an epidemic”; “we should have quarantine in Whyville”); (2) the mapping of Whypox to a natural disease in which a natural disease was referenced by mentioning symptoms of natural diseases, the virology of natural diseases, or the consequences of natural diseases; and, (3) the immersive component of Whypox in which students and teacher included experiential, social, and causal aspects of someone having Whypox.
Understanding of Natural Infectious Disease
Coding Scheme for Analysis of Infectious Disease and Whypox Survey
Type of explanation
Description of explanation in Infectious Disease Survey
Description of explanation in Whypox Survey
Don’t know/no response
Don’t know/no response
Don’t know/no response
No mention of the biology, only people’s behaviors or characteristics; Explicit movement of unspecified entities; Explicit mechanical transfer of germs
No mention of the embedded code responsible for the virus, only people’s behaviors or characteristics; Explicit movement of unspecified entities through some medium
Biology of germs or white blood cells, including biological processes or processes of growing, dying, reproducing
Embedded piece of code within a medium
To test inter-rater reliability on all of the questions we first selected a random sample of 25% of the surveys and found representative student answers for each code. Then we selected another random sample of 25% of the surveys and one coder coded these using the coding key we had developed as a research team. A second coder also coded the same sample using that coding key. We considered items reliable if they shared 80% accuracy between the two coders. Discrepancies for each item were discussed and coding descriptions for each question were revised as needed.
Perceptions of Whypox as a Natural Disease
We investigated the ways in which students perceived features of Whypox. Our goal was to determine how faithful the simulation was to natural infectious diseases. In developing our coding scheme for the students’ reasoning of the causality of Whypox, we followed Au’s research team (Au and Romo, 1999; Au et al., 1999) but included the unique features of the virtual disease (see Table I). The coding scheme for the other questions about Whypox’s relationship to natural infectious disease and Whypox as a learning tool as viewed by students will be listed in the results section. For the inter-rater reliability we followed the same procedures as outlined in the disease survey and accepted only items that had at least 80% agreement.
Classroom Discussions Relating Virtual Disease to Natural Infectious Disease
During and after the Whypox outbreak, several classroom discussions examined both Whypox and its connection to natural infectious disease. We identified three ways in which the students and the teacher discussed their understandings of natural disease and compared them to their experiences with the virtual epidemic: (1) application of terms used to explain Whypox to terms used to explain natural diseases; (2) mapping of Whypox to a natural disease in which a natural disease was referenced by mentioning symptoms of natural diseases; the virology of natural diseases; or the consequences of natural diseases; and (3) immersive component of having Whypox in which the students and teacher referred to someone experiencing Whypox and included experiential, social, and causal aspects of being immersed in Whypox. There were many instances in the selected video segments in which more than one code applied to a single student or teacher reference.
Teacher: Did you have Whypox? You already had it. You already had it before you talked to this person that you just saw before you had Whypox?
Sam: I started on Saturday, I think.
Sam: It might have been contagious.
Teacher: So, you may have given it to them. Alice, what else is happening?
Alice: Two things. They are contagious. Because I was around some people at the beach. Person just had it. I saw Whypox and that’s it. And, also, if you can chat, it just comes out. Achoo, achoo. Like you’re sneezing.
Teacher: OK if I’m around a lot of people who have colds, do I automatically get the colds?
Teacher: Would I be sick all year? As a teacher would I be sick all year if I automatically got colds from kids?
Teacher: Oh, yeah, I’d be sick all year.
Student: You’d be sick right now.
Teacher: I’d be sick right now. So, just being around people does not mean that you are absolutely going to get it. All right add to that Patrick.
Celine: There were these heads around me and I couldn’t move away from them. They were all bunched up in these colonies.
Teacher: Colonies of bacteria around you. Huh?
Celine: Like a wall.
This link may have helped students to think about the causes of Whypox with a more sophisticated causal mechanism than mere contact since students had learned through other instructional methods that bacteria or viruses were the biological causal agent of natural infectious diseases, not the contact itself.
Lee: I wanted to infect other people. So, I went close to them and then I went away and then they got it.
Linking causality to proximity, a social aspect, is repeated in this next example: “Jon said that Jon and Mike got it first and since we’re usually on the computers at the same time, maybe that we were together and we were at the same room or something.” These last examples illustrate students’ attempts to make sense of what was happening with Whypox.
Perceptions of Virtual Disease
We asked students the question “In which ways was Whypox like a real infectious disease?” The answers show that students perceived several features of the virtual infectious disease as features inherent in natural infectious diseases. These features included being contagious (80% of the responses, n = 32), having symptoms (32.5%, n = 13), and being like a specific other disease (20%, n = 8). We asked students “How do you think Whypox spread through the community?” All of the students’ explanations for virtual disease transfer included a pre-biological causal mechanism that included activities such as contact, chat, and sneezing. No student attributed a biological causal explanation that included transfer of Whypox through a piece of embedded code. We believed that computer code embedded within the MUVE of Whyville was the biological equivalent of a natural infectious disease.
Students’ Understanding of Natural Disease
Distribution of Student Responses to Scenario-Based Questions about the Transfer of Natural Infectious Disease
Type of explanation
Don’t know/no response
Distribution of Student Responses to Question About Causes of Infectious Diseases
Type of explanation
Don’t know/no response
Distribution of Student Responses to Question About Things that Increase the Spread of Infectious Diseases
Type of explanation
Don’t know/no response
This study identified benefits and challenges in using MUVEs such as Whyville in a classroom curriculum about natural infectious diseases. One of the main differences between the Whypox disease simulation and previous participatory simulations (Colella, 2000; Hug et al., 2001; Krajcik et al., 1998) was scale. We speculated that the large scale of Whyville affected students in ways that prior smaller scale simulations of infectious disease could not. For example, because Whypox lasted several days rather than minutes, students were faced with the reality that Whypox was not going away any time soon. As evidenced by classroom discussions, students interpreted this as a problem since their faces and ability to chat were negatively affected. Because face building and chatting were important activities on Whyville having these activities hampered may have motivated students to look for a cure and ponder possible causes as they did in this study. In addition, students were able to track and compare the spread of the epidemic not only in their two classrooms but also in the whole online community. These observed differences led students to discuss frequency and length of visits in Whyville and forms of interactions with other community members as possible reasons for contracting the disease.
By using avatars in Whyville students also experienced a disease without physical harm to their actual self, a form of immersiveness absent from traditional science curricula of instruction from textbooks, videos, and laboratory experiments. With this immersive component, students started referring to themselves as having the virtual disease, a phenomenon experienced in previous participatory simulations of infectious diseases (Colella, 2000; Krajcik et al., 1998; Soloway et al., 2001). This participatory component, in addition to the fact that Whypox shared features similar to diseases with which the students had familiarity such as chicken pox and the common cold, allowed students to connect Whypox to natural infectious diseases. This was apparent in their whole-class discussions, where the students and the teacher used Whypox as a vehicle to talk about some of the causes and preventions of natural infectious diseases as well as terminology and concepts of infectious diseases.
While the analysis of pre and post survey questions showed significant changes in students’ reasoning about the causes of natural diseases, a large majority still provided pre-biological explanations. This finding reinforces past research indicating that the concepts of natural infectious disease are difficult for students to learn, even with instruction. The participation in the classroom curriculum on infectious disease might have been responsible for this though our research design does not allow us to identify particular causes for this change.
Students perceived similarities in the virtual epidemic and the spread of natural infectious diseases, with one major exception—the level of reasoning about the causes of virtual disease was less sophisticated than the reasoning about the causes of natural infectious disease. However, students did perceive features of Whypox as similar as those of natural infectious disease such as being contagious and having symptoms. We thought that it was important to know how students viewed the causes of the virtual disease in case their reasoning could be used as a springboard to discuss the equivalent of natural infectious disease. Our findings showed that students’ reasoning about the causes of the virtual disease did not go beyond observable explanations such as touching someone or sneezing. Students did not think that the cause of Whypox was an internal process, such as through a computational mechanism.
It is possible that the immersiveness feature of Whypox presents benefits and challenges to learning about natural disease. While Whypox allowed students to show symptoms and have contact with other avatars, the types of contact possible in this virtual epidemic were limited. For example, avatars could not engage in sexual intercourse, an activity that has been linked to the spread of many natural infectious diseases. Also, avatars did not have exposure to unsanitary conditions, which represents another cause for many natural infectious diseases. This reduced set of experiences that an avatar could have had may have constrained how students thought about the spread of Whypox.
Also, while Whypox capitalized on students’ prior knowledge of natural infectious disease through the symptoms of sneezing and dots on the face, these virtual reality symptoms may have manipulated students into thinking of disease more as an observable event. For instance, touching someone rather than the reproduction of germs in the body was seen as the cause. Our results confirmed this supposition. No student attributed what we termed the computational causal explanation to Whypox. This result contrasted with students’ overall increase in biological causal explanations for natural infectious diseases.
Although the similarity of Whypox to familiar natural diseases in which children and adults have naïve understandings might have accounted for some of this discrepancy, a contributing reason for this discrepancy might be a missing curricular piece. This missing connection might be an introduction to computer viruses, what they are and how they function. Biological virus and computer virus alike contain a piece of DNA or code, which has their instructions. Students could have examined the similarities and differences between biological and computational viruses. Such background information might have helped students to understand possible mechanisms of Whypox.
We believe that the science teacher played an important role in integrating the MUVE of Whyville within the classroom environment. This teacher engaged students in discussions about the technical aspects of the MUVE, how Whypox was affecting the virtual community, the appearance of Whypox, and connections about Whypox with natural diseases. The teacher allowed students to explore Whyville on their own during class time. She too was knowledgeable about the site and the various activities available.
This study contributes to the existing and growing literature on participatory simulations on infectious diseases. Based on our findings, we learned that having an integrated curriculum around the participatory simulation stimulated teacher–student discussions about the causes and spread of virtual and natural diseases. From these discussions, we also learned that students did not reason about the causes of virtual diseases in ways similar as natural diseases.
One possible explanation that students did not reason about the causality of virtual diseases in a sophisticated way was because we did not link the two types of diseases sufficiently. Specifically, because Whypox took place on a computer, we thought that including computational viruses in future curricula might effectively bridge natural and virtual diseases. In such a curricular addition, students could investigate different forms of computer viruses and the ways they are transmitted. The additional study of computational viruses might help students more effectively link the causes of Whypox to the causes of natural disease. Finally, the role of the teacher cannot be overlooked. In the present study, the teacher engaged students in discussions about Whypox and other disease-related activities on Whyville. She facilitated students’ use of certain features of Whyville such as tools to model disease and the newspaper, Whyville Times, to read about past episodes of Whypox. During whole-class discussions, she facilitated students to make connections to concepts and terminology used in reference to natural infectious diseases. In future implementations of Whypox into the science classroom, the role of the teacher might also affect the potential impact of this intervention.
The writing of this paper was supported in part by a grant of the National Science Foundation (NSF-0411814) to the second author. The views expressed are those of the author and do not necessarily represent the views of the supporting funding agency or the University of California, Los Angeles.
